Tra-Con, Inc.    Bedford, MA 01730

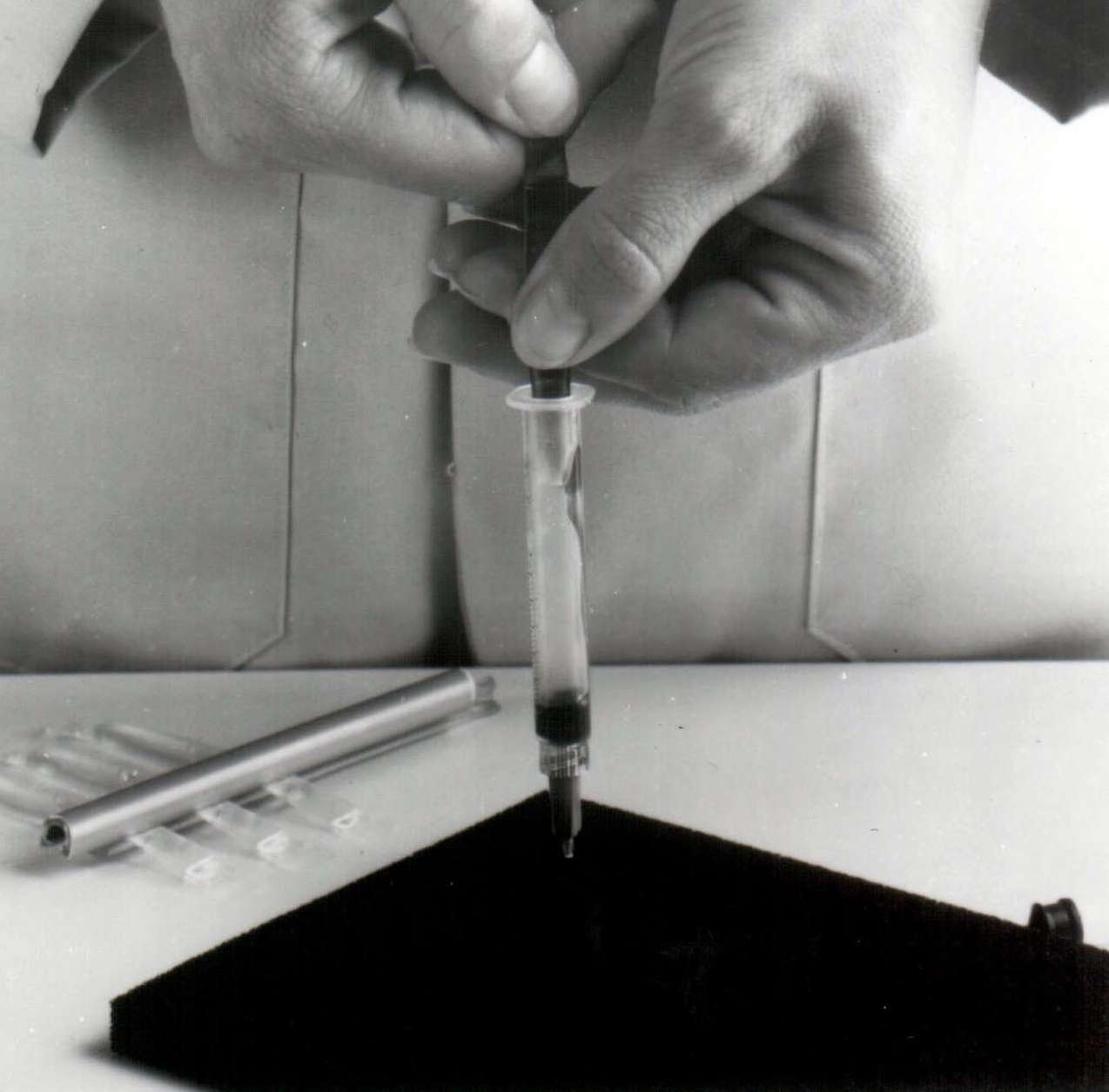

Nov 26, 2002 TRA-BOND 526M04 two-part, low-viscosity epoxy adhesive provides versatility of fast heat cure and stands up to 85/85 testing. Product is suited for critical, high-temperature, fiber-optic applications that require lowest stress possible, including polar maintaining fiber work.

Vestil Manufacturing Co.    Angola, IN 46703-0507
Nov 26, 2002 Drum Crusher/Compactor has crushing power of 38,000 lbs, while drum compacting feature allows users to compact products within drums by removing drum crushing platen. Safety features include pressure relief valve, door interlock system, and drum head piercer. Built-in fork pockets aid in transporting, while dual-speed hydraulic pump provides 25 sec cycle time. Operation is determined via Compact - Off - Crusher key selector switch.

Hytrol Conveyor Co., Inc.    Jonesboro, AR 72401
Nov 26, 2002 ProSort Logix controls 100 and 200 series ProSort sliding-shoe sorters as well as ProSort SC Power Pivot Sorter. Touchscreen provides current statistical information and diagnostics for troubleshooting. Product controls all devices on sorter and interlocks communication of information and signals between sorter and other involved devices. Offerings include 1–47 diverts and modem support.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Nov 26, 2002 Microwireâ„¢ units, housed in 6-lead SOT-23 packages, support densities from 1–4 kbits. Utilizing PMOS Electrically Erasable Cell (PEEC) process technology, dedicated 8-bit and 16-bit word Microwire devices have surface area of 8.26 mm². Series 93XX46A, 93XX56A, and 93XX66A devices offer operating voltages down to 2.5 V, active current of 1 mA, and standby current of 1 µA. For lower/higher voltages applications, additional units operate down to 1.8 V and work in 5 V designs.

Sloan Valve Co.    Franklin Park, IL 60131

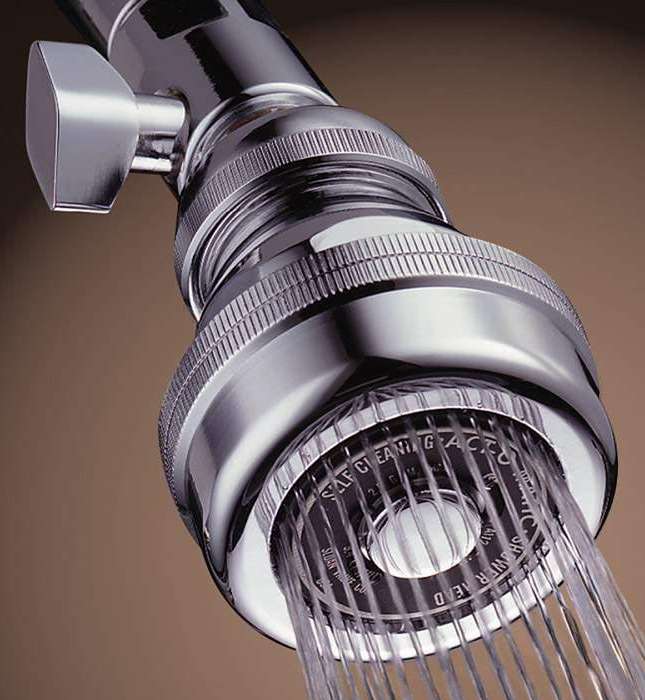

Nov 26, 2002 ACT-O-MATIC® provides 2.5 gpm flow in Cone-Within-A-Cone spray. Pressure-compensating flow control provides consistent flow at low pressures. Chrome-plated, all brass showerhead incorporates self-cleaning spray disc that eliminates sand and other particles after each use. When water is turned off, disc retracts to drain position, washing away particles and preventing residual dripping after use. Options include thumbscrew and integral mounting flange.

Samtec, Inc.    New Albany, IN 47151 1147

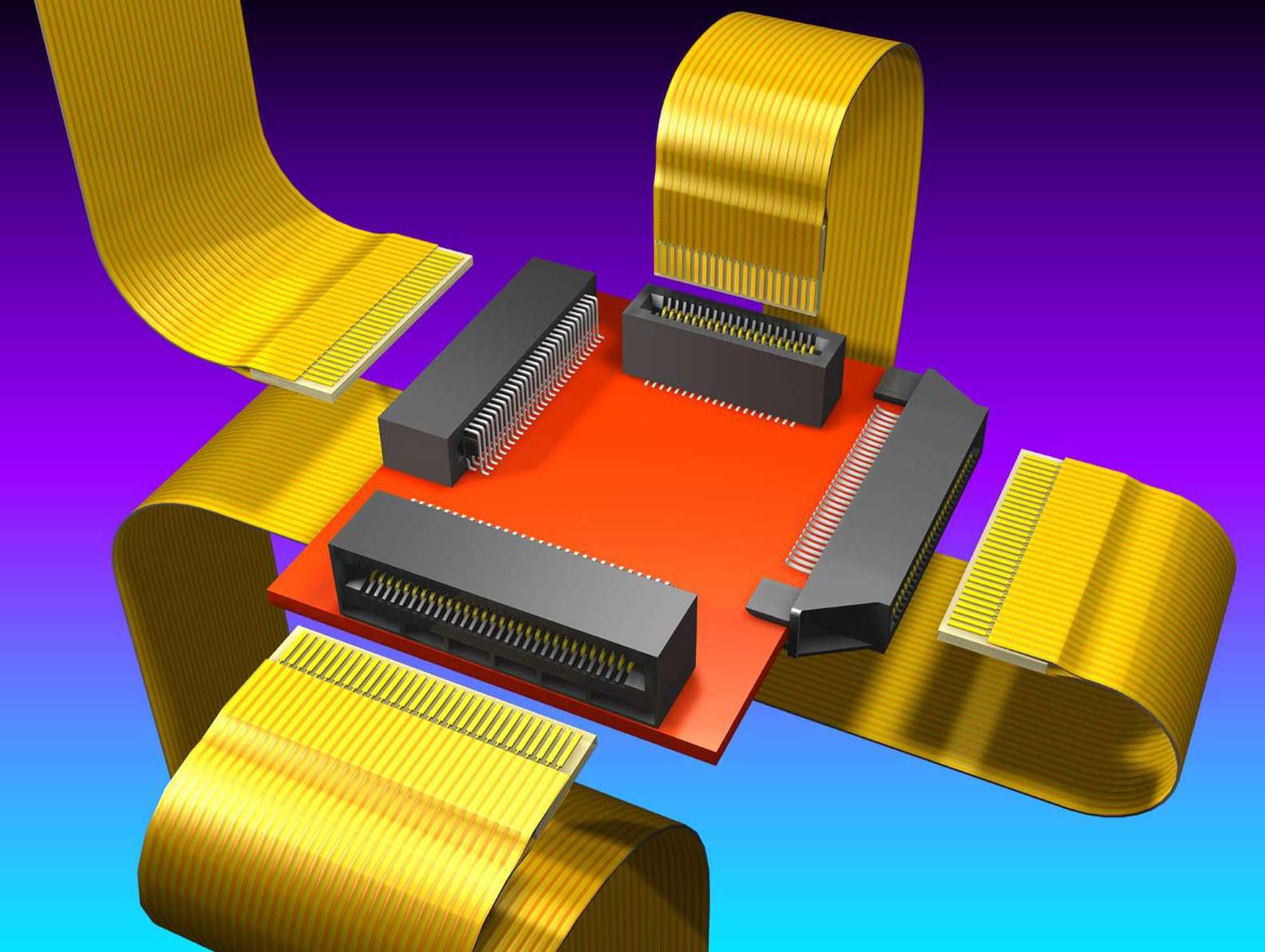

Nov 26, 2002 Series MEJ1 double-sided data links mate with MEC1 Series Mini-Edge Card connectors. Data links are available in 5 in. lengths with 60 conductors and in 10 in. lengths with 40 conductors. Mini-Edge Card connector styles include vertical, right-angle, and edge mount. Pin counts from 10–140 are available for mating with .062 in. thick printed circuit boards. Polarized connectors have board-lock feature that provides secondary retention.

Viscom USA    Atlanta, GA 30092
Nov 26, 2002 Independent of script fonts, software includes OCR (optical character recognition) feature that reads clear text and facilitates second source verification. OCR is used for placement verification, identification of version status, and information customization. Software also records serial numbers and component versions, allowing comparison with component labeling. Program recognizes all fonts without teach-in procedures for font types and sizes.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Nov 26, 2002 Equipped with Kenclamp clamping system, KM tooling delivers 3-surface contact. Quick-change tooling system consists of spindle with built-in KM connection that accepts KM toolholder or cutting unit using face and taper contact between spindle and toolholder. Machine-specific adaptors make it possible to utilize full line of existing KM turning tools on any machine. Line includes collet and hydraulic chucks, gage bars, shell and end mill adapters, extensions, and reducers.

Xycom Automation Inc.    Saline, MI 48176

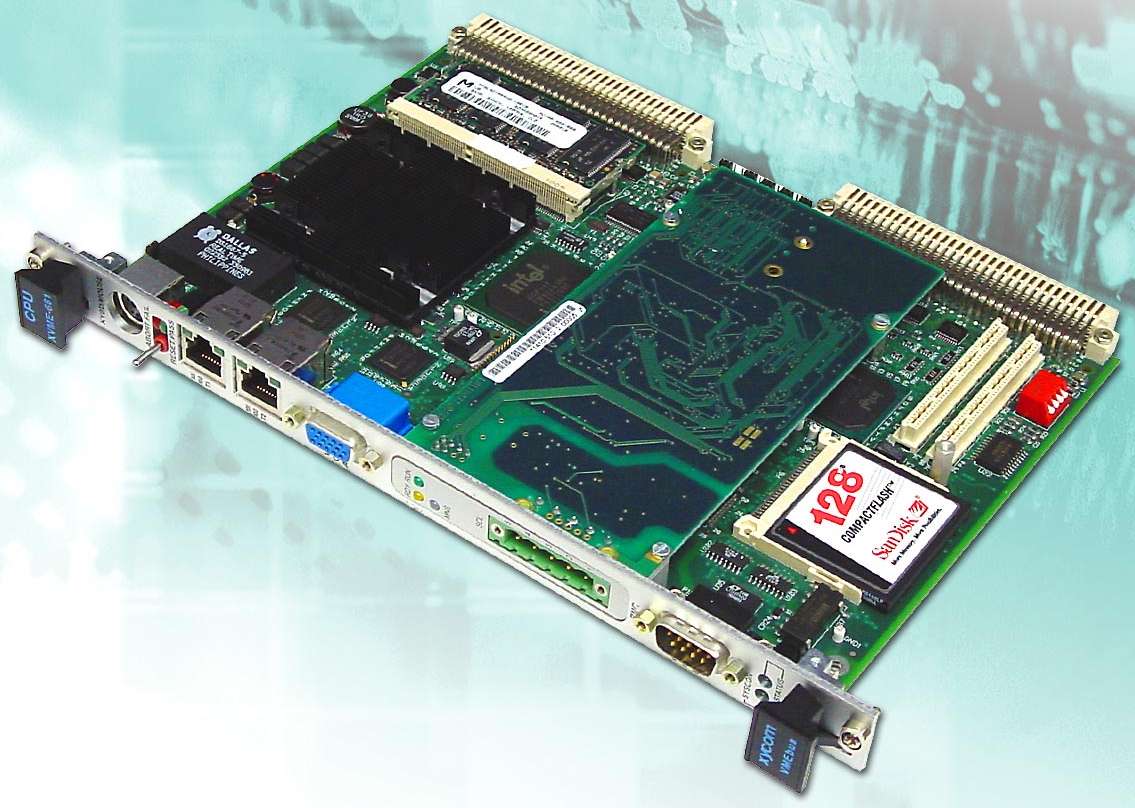

Nov 26, 2002 Model XVME-661, 6U single-slot, Intel® Pentium® III 700 MHz based processor provides electrical isolation and noise immunity on Ethernet ports, COM1, and PMC site. PC-compatible board offers EIDE, dual 10/100 Base-T Ethernet using RJ45 connectors, support for flat panel displays, 256 Mbytes SDRAM, and support for on-board, configurable, hardware byte-swapping. VMEbus processor also includes keyboard, mouse, RS232 serial, USB, and floppy disk interfaces, and printer port.

Production Basics, Inc.    Watertown, MA 02472

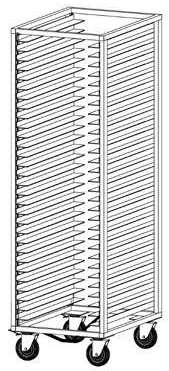

Nov 26, 2002 PCB Transporter, with ESD epoxy powder coat and integrated drag chain, prevents exposure of printed circuit boards to static charges. Storage brackets accommodate 18 x 26 in. board trays, which may be secured via optional vertical stop bar. Transporter comes in 20 and 30 tray capacities to move multiple circuit boards. Cart, with 21 x 28 in. footprint, is constructed of 12-gauge steel for heavy-duty use.

Spectronics Corp.    Westbury, NY 11590
Nov 26, 2002 Spectroline® TITAN® Stinger® comes with 4 ft cord, which plugs into vehicle cigarette lighters, allowing HVAC/R contractors to recharge NiCad battery while driving between jobs. Measuring 7 3/8 in. long, cordless flashlight uses uses xenon-filled bulb and TITAN filter lens technology. Supplied with wall-mountable charging cradle with AC charging cord, flashlight inspects small to medium size AC&R systems.

Omni Displays    Holbrook, NY 11741
Nov 26, 2002 Offered in sizes from 12–18 in., TFT monitors are wall mountable and support up to 16.7 million colors. Touch-screen LCDs are available in resistive and capacitive variations. On-screen display resolutions range from 800 x 600 to 1,280 x 1,024. Image brightness is rated up to 250 cd/m². Standard LCDs come with or without video functionality and provide analog and analog/digital VGA input. Resolutions range from 1,024 x 768 to 1,280 x 1,024.

Erich Industries Inc. / Performance Products    Elgin, IL 60120
Nov 26, 2002 AIR FORCEâ„¢ design cycles 1,000 times per day with virtually no maintenance due to pneumatic strength and only 4 moving parts. High cycle life is rated for 10 million cycles. Opener has no helical gears, springs, or lubricants. Ultra-Powerâ„¢ system opening force of 200 lb enables opener to drive doors up to 600 lb and 60 in. wide. Able to handle stainless steel or fiberglass doors, unit offers adjustable opening speeds from 1.5 to 5 seconds.

FPI    Costa Mesa, CA 92626

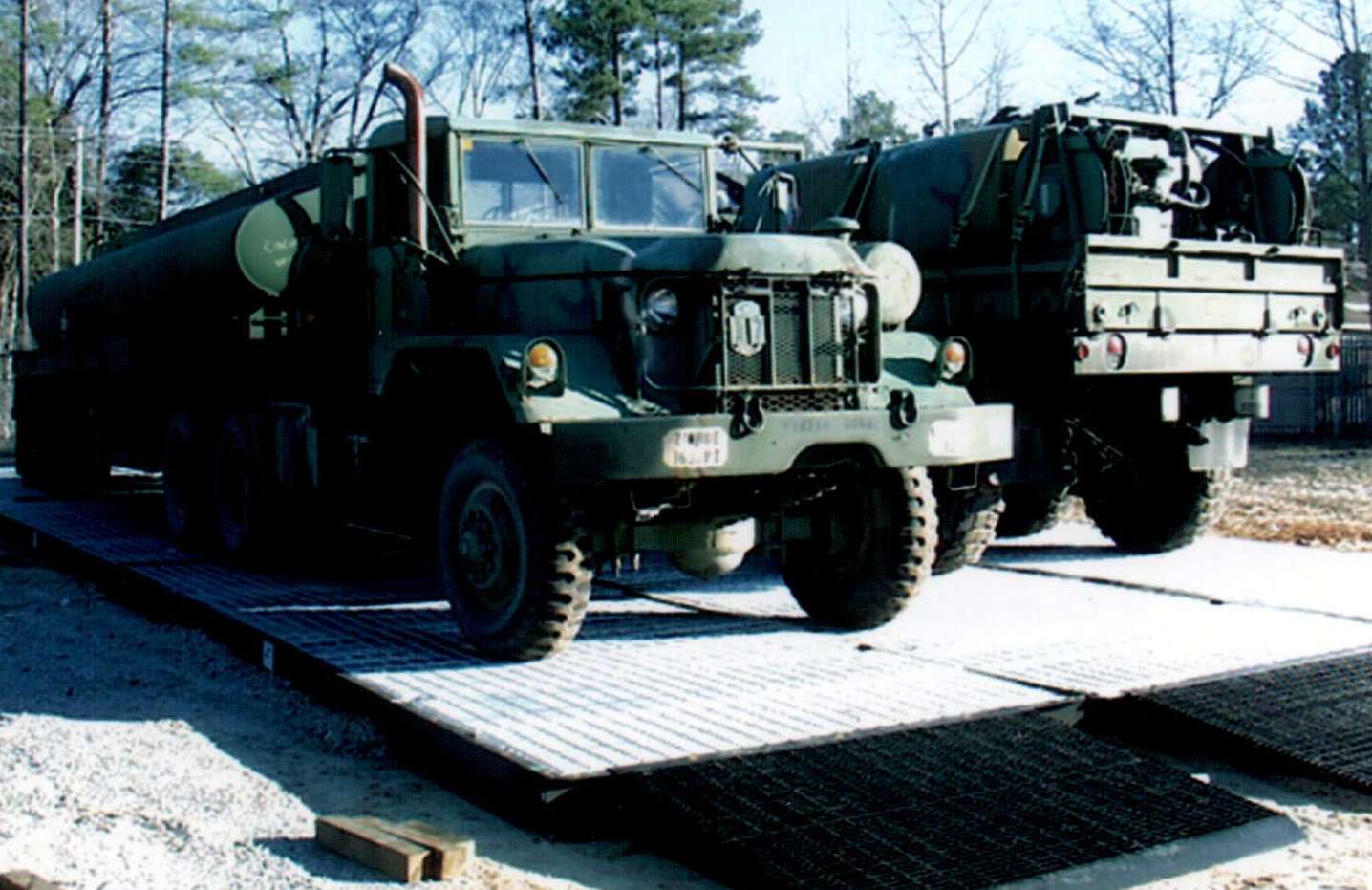

Nov 26, 2002 DOCSâ„¢ (Drive on Containment System) incorporates point-of-source control with filtration system that complies with storm water regulations. Use of mobile, heavy, galvanized steel drive-on pads with sumps provides secondary hazardous materials containment. Available in 7 models, sizes range from 436 ft² drive-on space with 2,130-gallon sump capacity to 1440 ft² with 6417-gallon capacity. Unit can be moved about as desired and does not require add on oil/water separator system.

Rez-Solutions    Lakewood, NJ 08701
Nov 26, 2002 Based on pure polyurea, Tough-Cote URC, Tough-Cote URM, and Tough-Cote URR are seamless, flexible coatings that offer water- and chemical-resistance. Products are 100% solids, 2-component, pure polyurea elastomers, and can be applied at temperatures from –40 to +350°F. Coatings, formulated with UV stabilizers, can be applied to metal and roofing substrates, including concrete, foam, and wood.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 26, 2002 TS-5400 Series II Automotive Functional Test Platform (AFTP) measurement-ready test system accelerates functional test deployment, reduces test development costs, and helps get automotive electronics control modules to market quicker. Scalable system provides migration path for critical product test software. AFTP includes Test Executive SL 5.0 software, support of serial protocol standards, and integrated software, hardware, and cabling.

Microscan Systems, Inc.    Renton, WA 98057
Nov 26, 2002 Series MS-3 consists of laser scanner, CCD scanner, and stand-alone CCD scan engine. Featuring scan rate of 1,000 scans/decodes per second, laser offers scan angle of more than 70° wide. CCD reader provides scan speed up to 270 scans/sec. CCD scan engine offers same performance in industry standard shape of 1.5 x .98 x .64 in. Laser and CCD readers can be mounted on robotic equipment or embedded into instruments and machinery.

FutureDial, Incorporated    Sunnyvale, CA 94089
Nov 26, 2002 SnapSyncâ„¢ shares and backs-up phonebook information and allows users to edit information directly on PC, eliminating need for manual input of information via mobile phone's keypad. Compatible with MS Outlook, it can operate as stand-alone PIM (personal information manager). SnapDialerâ„¢ allows users to wirelessly connect to Internet from laptop computers, using mobile phone as wireless modem. SnapMediaâ„¢ personalizes mobile phones with customized caller ID ringers and pictures.

Toledo Transducers Inc.    Holland, OH 43528
Nov 26, 2002 Self-contained, digital-display AutoCell is available for capacities from 2,000 lb to 2,000 tons. With no wires or cables to attach, unit performs press calibrations and tonnage readouts by pressing start button after being placed inside machine. It automatically shuts off after 5 minutes of being idle. AutoCell works on mechanical, hydraulic, and powdered-metal presses.

Lennox Industries Inc.    Richardson, TX 75080
Nov 26, 2002 UL Class 2 listed MERV 11 pleated filter includes 100% synthetic, gradient-density, non-woven media that is totally hydrophobic and enclosed in double-wall beverage board frame. Filter achieves average dust spot efficiency of 60–65% and has minimum average efficiency of 85% for particles 3.0–10.0 µ, (mold and fungi). Other efficiencies include 69% for particles 1.0–3.0 µ (dust and pet dander) and 31% for particles 0.3–1.0 µ (bacteria).
