Advance Fiberglass, Inc.    Maumelle, AR 72113
Nov 21, 2002 Series OLK-51 includes Model OM120 power meter, which provides backlit display and auto-zero feature that doesn't forget reference when meter is turned off. Model OS420 LED light source is for premises and campus cabling networks with multi-mode fiber, or single-mode fibers under 5 km. Model OS430 Laser source is for single-mode fibers outside plant environment where long wavelengths are used. Single output allows testing at 1310 and 1550 nm without disconnecting and reconnecting cable.

Norstat, Inc.    Rockaway, NJ 07866
Nov 21, 2002 Series 120 continuously monitors background noise and automatically adjusts volume output between 72 and 107 db to always be 5 dB louder than surrounding ambient noise. IP65 protection rating provides immunity to negative environmental influences such as water and dust, making it suitable for adverse, outdoor, and other transportation type applications such as forklifts, AGV’s, trucks, sweepers, and industrial machinery.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Nov 21, 2002 Precimat 306 CNC utilizes 5.9 kW variable-speed main spindle, with speeds from 5,100 rpm. Grinding range is 600 x 300 mm and X-, Y-, Z-axis travels are 700, 450, and 280 mm, respectively. Machine can be configured with horizontal or vertical grinding spindle. Linear guideways in all axes consist of 6-row ball bearing systems. Work area is enclosed to contain coolant. Siemens 840 D CNC control features 26.4 cm color flat screen, arranged for simplified programming.

Lexair, Inc.    Lexington, KY 40511 1018
Nov 21, 2002 Full Bore® mechanical-grip, air-release, front-mounted collet chuck eliminates conventional draw tube and external actuator. Spring force holds workpiece while it is being machined, and part remains clamped even if air pressure is lost. Adjustable concentricity and dead-length positioning allow hex, round, and square bar feeding. Clamping force is constant regardless of spindle speed. Pads are offered in 1/16 in. increments. Nine models range from 6.75 to 14 in. diameter.

Ophir Optronics, Inc.    Danvers, MA 01923
Nov 21, 2002 Model PE50HD Pyroelectric head provides energy measurement of high-energy Excimer lasers. It is calibrated for 157 nm and 10.6 µm. Linearity is specified at 1% for 0–400 µS pulse widths, with pulse width measurement capability up to 1 mS. Energy scales include 10 J, 1 J, 100 mJ, and 10 mJ. Max pulse rate is 100 Hz, while calibration accuracy is ±3 % at 193 nm. Max average power is 15 W with max average power density of 10 W/cm².

MidTel Technologies    Arlington Heights, IL 60004
Nov 21, 2002 MPT-100 Crimp Pull Test instrument certifies quality of crimping coax connectors and center pins to various lengths of coax cable. Tool makes ratchet-action destructive pull type force measurements to crimp-on coax connectors terminated cable samples, providing up to 200 lb force. Digital readout displays fail force point in 1/2 in. high digits. System consists of digital meter, tensile stress tester, and power supply. Accuracy is ±0.5% of reading.

Nilfisk Industrial Vacuums    Morgantown, PA 19543
Nov 21, 2002 Heavy-duty CFM 3507W vacuum helps plant and sanitation managers improve safety and hygiene of food-processing facilities. Multi-stage filtration system retains food particles and bacteria down to 0.3 microns in size and deposits them in 26 gal tank. With automatic shut-off feature for overload protection and optional 210 gal tank, unit is suitable for continuous-duty, process-integrated applications including packaging, filling, and mixing.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 21, 2002 Series PSA allows noise figure and gain from 200 kHz to 26.5 GHz. Analyzers incorporate preamplifier with low noise, wide dynamic range, and flat frequency response from 10 MHz to 3 GHz. Integrated uncertainty calculator automatically calculates total measurement uncertainty, including errors introduced by all elements of test setup. Analyzers produce total measurement uncertainty at frequencies up to 3 GHz as low as ±0.05 dB.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 21, 2002 Series 89600 vector signal analyzers (VSAs), with 802.11g WLAN Signal Studio software, includes automatic detection, demodulation, and despreading of 4 mandatory 802.11b signal formats. Software also detects and decodes optional 802.11b, 802.11g PBCC (packet binary convolutional code), and CCK-OFDM (complementary code-keying-orthogonal frequency division multiplexing) formats. With 802.11a analysis, users can skip over 802.11g CCK-OFDM payload and demodulate 802.11a-compatible data payload.

Yokogawa Corp. Of America    Newnan, GA 30265 1040
Nov 21, 2002 Fully redundant modules for CENTUM CS3000 R3 distributed control system, enable users to install HART-capable I/O into remotely mounted units within Class 1 Division 2 environments. Options include ISA G3 corrosion resistance and high temperature rating of -20 to +70°C. Plant Resource Manager software provides access to automatically collected data from both HART and FOUNDATION Fieldbus devices, and allows integration, management, and maintenance of field devices using common database.

Tiger Optics, LLC    Warrington, PA 18976
Nov 21, 2002 Model MTO-1000-CH₄ trace methane analyzer couples CW Laser technology with Cavity Ring-Down Spectroscopy to measure CH₄ levels down to 2 parts-per-billion in less than 1 sec. CRDS technology uses low-power, continuous wave diode lasers to provide exact, non-invasive, and rapid means of detecting contaminants. Corrosion-resistant analyzer, with multi-valve inlet design, allows CH₄ detection in up to 4 gas streams.

Harmonic Drive, LLC    Peabody, MA 01960
Nov 21, 2002 Size 14 HPG Harmonic Planetary® Gearhead maintains backlash level of less than 1 arc-min for life of gearhead. It measures 85 mm long, with 60 mm square mounting flange. Rated torque is 110 lb-in. and maximum torque is 500 lb-in. Gear ratios range from 5 to 45:1. Applications include automation equipment, semiconductor equipment, and machine tools.

USF Surface Preparation Group    Newnan, GA 30265
Nov 21, 2002 For precision finishing of delicate surfaces and removal of rust and heat-treat scale, Vacu-Blast® walk-in system offers controlled processing environment for surface preparation. For use with ferrous and non-ferrous metallic and non-metallic abrasive blasting materials, system includes ventilation and lighting provisions, dust collection, UL- and CSA-approved relay logic system, and choice of Vacu-Draft(TM) pneumatic or mechanical media recovery systems.

Dickson Co.    Addison, IL 60101-4917
Nov 21, 2002 Pro Series is offered in 2 models: Model TR220 for temperature and humidity and Model SR200 for temperature. They provide data storage of 32,512 sample points, and accuracy of ±1.8°F for temperature and ±2% for relative humidity. Push-to-Start Button helps eliminate unusable pre-data during testing, shipping, and other monitoring conditions. Units are suitable for laboratory, plant, and quality control applications.

Big Joe Manufacturing Co.    Lincolnwood, IL 60646

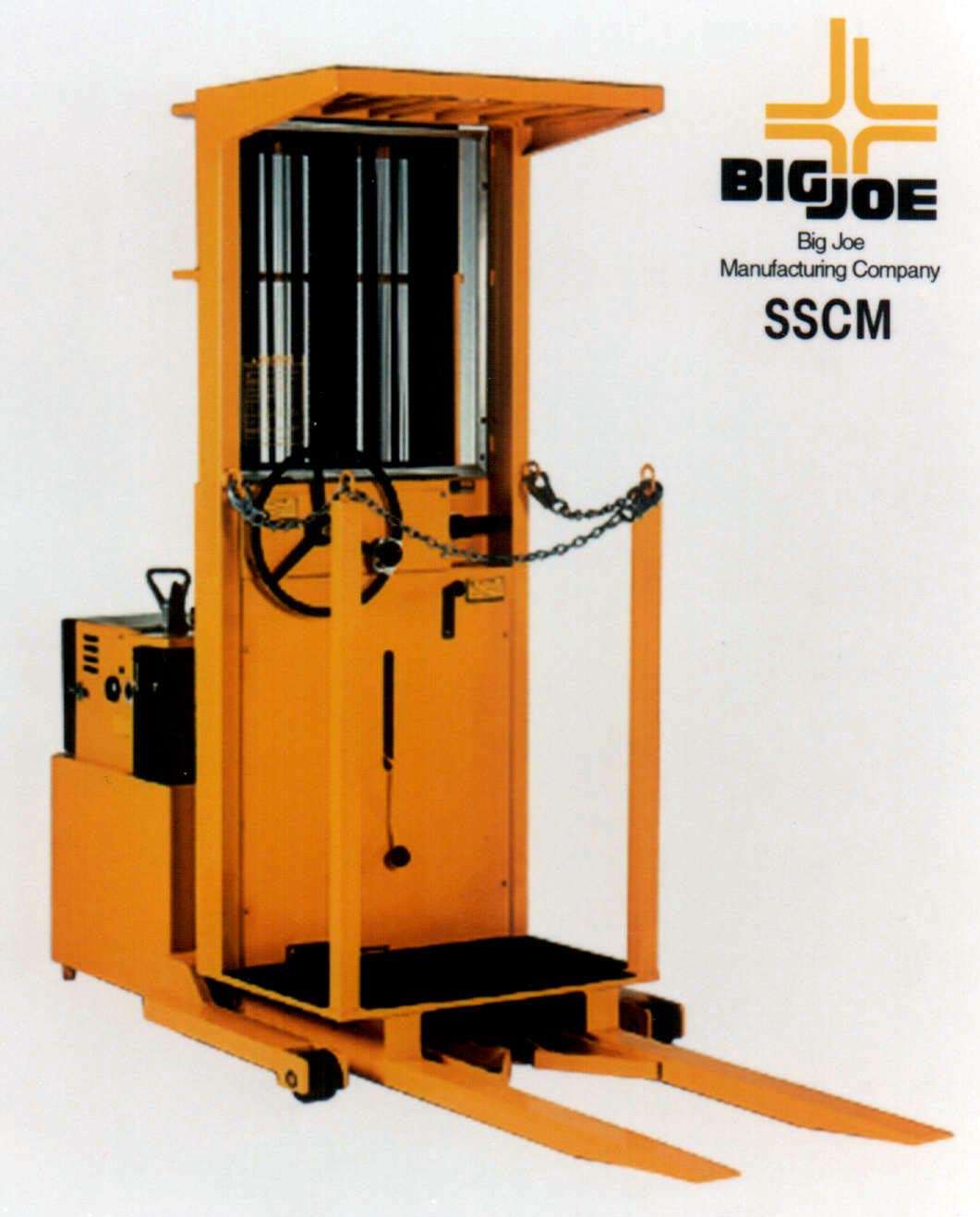

Nov 20, 2002 Model SSCM Stock Selector allows user to lift, lower, forward, and reverse from stock picking level. All controls are located on elevating operator compartment and platform, allowing complete maneuverability. Maneuverable 32 in. wide unit is able to go into areas where only rolling ladders were previously used. Stock Selector is also suitable for overhead applications, such as changing lights and heater and sprinkler maintenance.

Gowanda Electronics Corp.    Gowanda, NY 14070

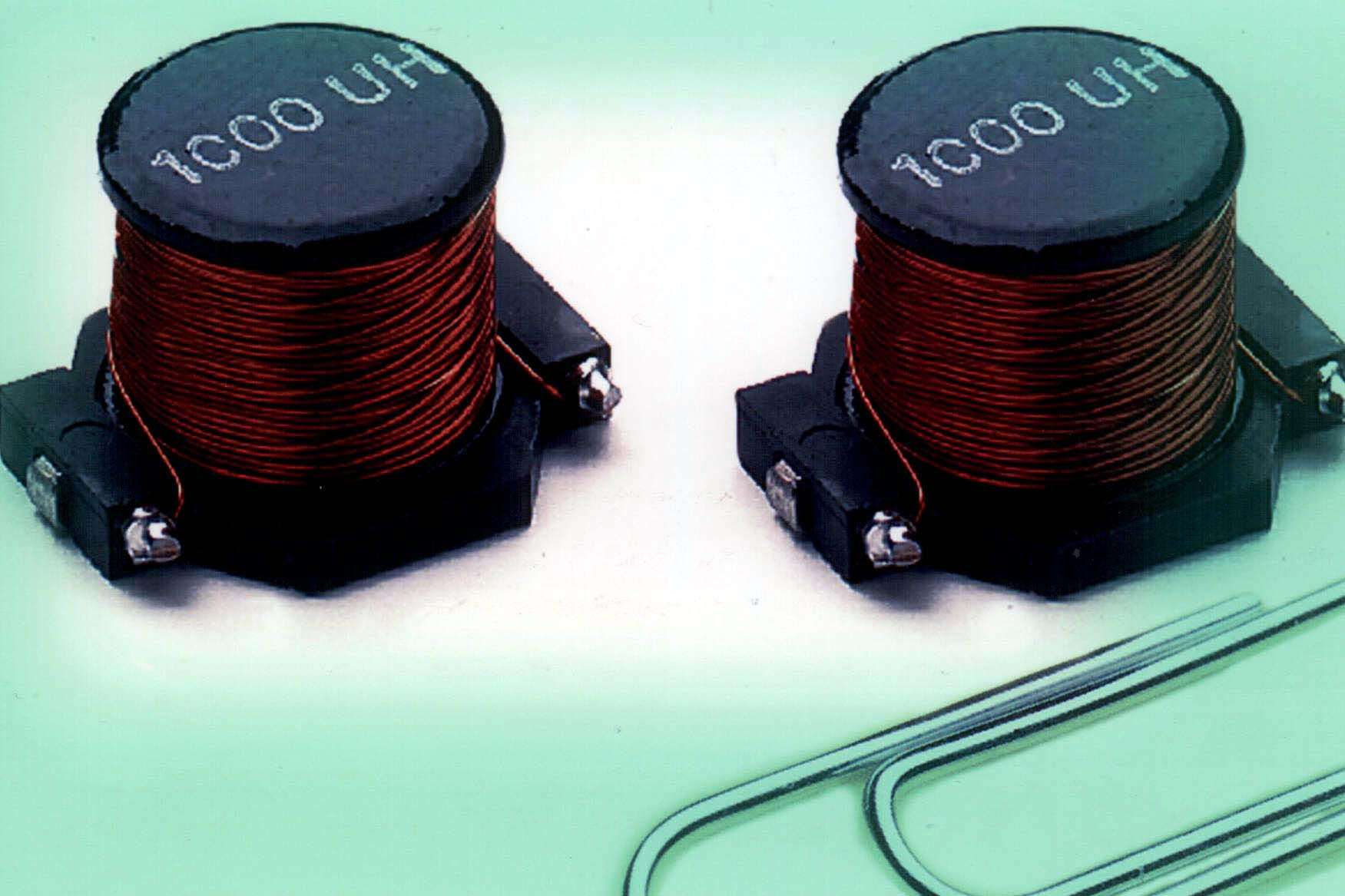

Nov 20, 2002 Series SMP 5057 offers inductance range from 3.9 ±20% µH at 1 kHz to 100,000 ±10% µH at 100 kHz. Current ratings range from 9.75 to 0.090 dc A and saturation current from 24.0 to 0.146 dc A. Inductors are targeted for microprocessor and distributed-power applications, including power supplies, power regulators, and DC to DC converters. They are also used in security systems, instrumentation, bar code, and laboratory analysis equipment.

Stoody Co.    Chesterfield, MO 63017
Nov 20, 2002 Type A-T1, 625-T1, 82-T1, 182-T1 and HX-T1 flux-cored wires meet chemistry requirements of AWS EniCrFe-2, ERNiCrMo-3, ERNiCr-3, and EniCrMo-2. Operational characteristics make them suitable for similar and dissimilar joining applications, as well as many cladding applications. Wires offer arc stability even when welding in vertical position.

Lumex Inc.    Carol Stream, IL 60188

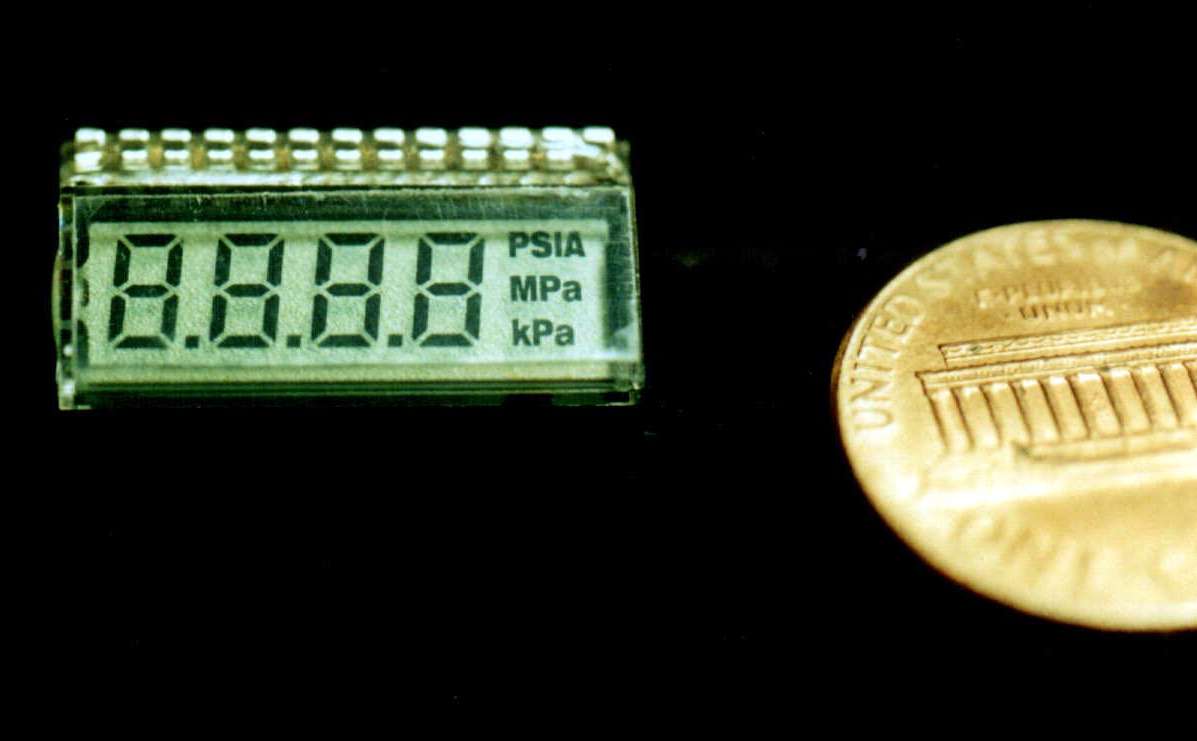

Nov 20, 2002 Model LCD-S401M14TF incorporates 3 decimal points, allowing numbers ranging from 0.001 to 9999 to be displayed. Units of measure for pressure indication include psia, MPa, and kPa. Transflective unit utilizes Twisted Nematic LCD fluid against gray background. Device operates from 5 Vac supply, over temperature range of 0 to +50°C. In-line package measures 0.80 x 0.40 in. with 13 0.25 in. long leads on 0.060 in. centers. Custom features are available.

Shimadzu Scientific Instruments, Inc.    Columbia, MD 21046
Nov 20, 2002 Series TOC-VC Total Organic Carbon Analyzers utilize built-in purifying system to take house air and reduce or eliminate carbon monoxide, carbon dioxide, and total hydrocarbons, enabling air to be used as carrier gas for TOC analysis. Gas Purifying Kit also eliminates need for dangerous gas cylinders.

Sola/Hevi-Duty A Business Of The EGC Electrical Group    Skokie, IL 60077

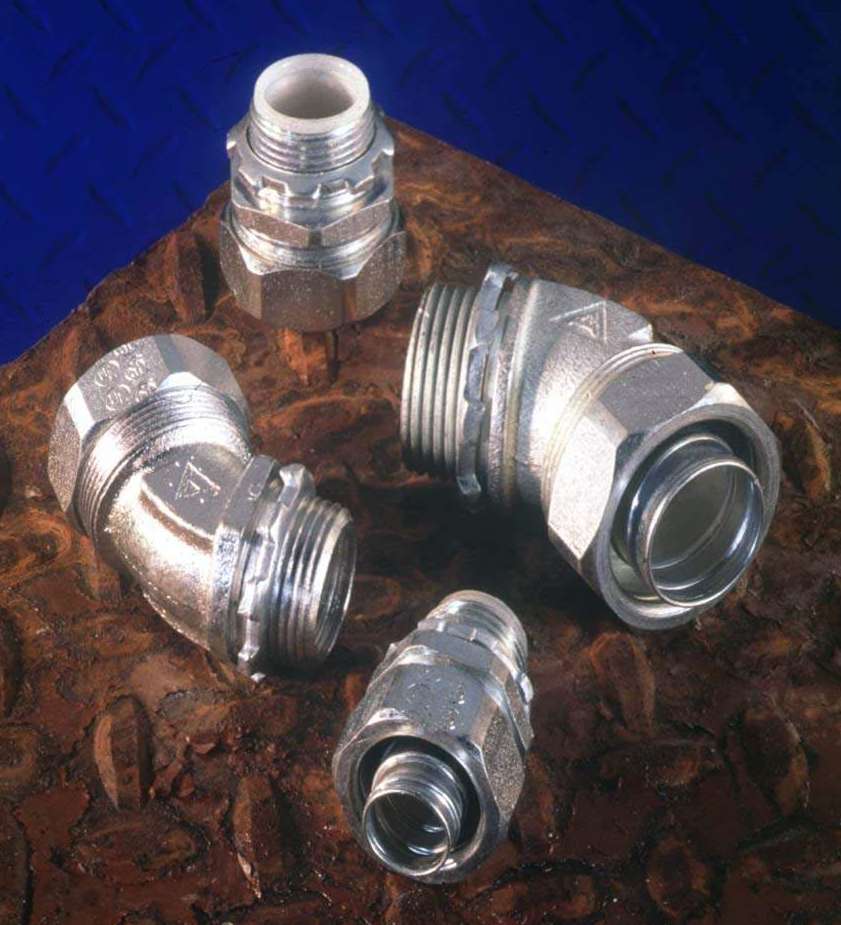

Nov 20, 2002 ST Liquidtight metallic connectors and hubs safety connect flexible metal conduit, while sealing out oil, water, dirt, dust, and fumes. Pull-out protection is 4 times greater than UL requirements. Connectors are made of malleable iron or steel and come in straight, 45°, and 90° designs, in sizes to 6 in. Applications include petrochemical facilities, waste treatment centers, and chemical plants.
