Automatic Timing & Controls    Lancaster, PA 17605
Dec 04, 2002 Microprocessor-based, MotorGuardianâ„¢ MPA-1000 provides protection for 3-phase ac motors, pumps, and compressors. It installs in new or retrofit applications using 2-piece, clip-on current transformers. DIN-rail mount enclosure includes 2-line, 16-character, vacuum-fluorescent display.

Key Instruments    Trevose, PA 19053-3428
Dec 04, 2002 Eagle-Eye(TM) Alarm, for FR Series Acrylic Flowmeters, provides non-contact optical sensing that is unaffected by contaminants in flow stream. Housed in splash-resistant enclosure, unit offers standard- and automatic-reset operating modes and requires no calibration. Red and green LEDs provide visual status and buzzer provides audible indication of flow rate status. Multiple units may be installed on single flowmeter for multiple thresholds.

Brown & Sharpe Mfg. Co.    North Kingstown, RI 02852
Dec 04, 2002 Series K combines 3 CCD cameras in carbon-fiber frame with handheld Space® Probe, featuring 9 infrared LEDs, that measures parts such as sheet-metal assemblies, dies, molds, car bodies, automotive interiors, and fixtures. Models K400 and K600 have measuring volumes of 160 and 600 cu ft, respectively. Temperature compensation utilities are included. PC-DMISâ„¢ measurement and inspection software provides analysis and reporting tools, and adaptable shop floor user interface.

American High Performance Seals    Oakdale, PA 15071
Dec 04, 2002 ROTAFLONâ„¢ seals handle high surface speed, high temperature, high pressure, and insufficient lubrication. Series MC has polymer seal lip with or without embedded spring energizer. Series RB offers polymer sealing surface bonded to elastomeric seal lip. Seals are chemical resistant and handle surface speed up to 5900 ft/min and temperature range of -58 to +500°F.

Hypertherm, Inc.    Hanover, NH 03755 0010
Dec 04, 2002 Powermaxl650® incorporates Auto-voltageâ„¢ input sensing that allows operation from 200–600 V, 3-phase with no rewiring. Boost Conditionerâ„¢ circuitry compensates for voltage variation with digitally controlled converter that delivers adjustable constant current output from 30–100 A. System has maximum cut capacity of 1½ in. and delivers gouging capabilities at rate of over 22 lb/hr. It provides 100 A/16 kW output.

TTI, Inc.    Williston, VT 05495
Dec 04, 2002 Model PXR3 1/32 DIN controller is offered with optional 24V AC/DC power supply and analog retransmission. Additional options include RS485 communications, digital input, timer function, dual outputs, and programmable alarms. Provided with LED display, unit has watertight, corrosion-resistant faceplate, rated NEMA 4x. Keypad provides 3-button programming. Unit also offers auto-tuning, self-tuning, and fuzzy control and accepts temperature and process inputs.

NSW, LLC    Roanoke, VA 24016
Dec 04, 2002 Integral Supergrip Surface V-belts incorporate co-extruded design that eliminates delamination of supergrip surface from thermoplastic V-belt. With co-extruded NSW design, belts are available in polyurethane and polyester constructions with non-reinforced and polyester reinforced options. Abrasion resistant products install with on-site, butt-welded splicing. Belts are offered in full rolls or spliced endless to any length.

Dwyer Instruments, Inc.    Michigan City, IN 46361

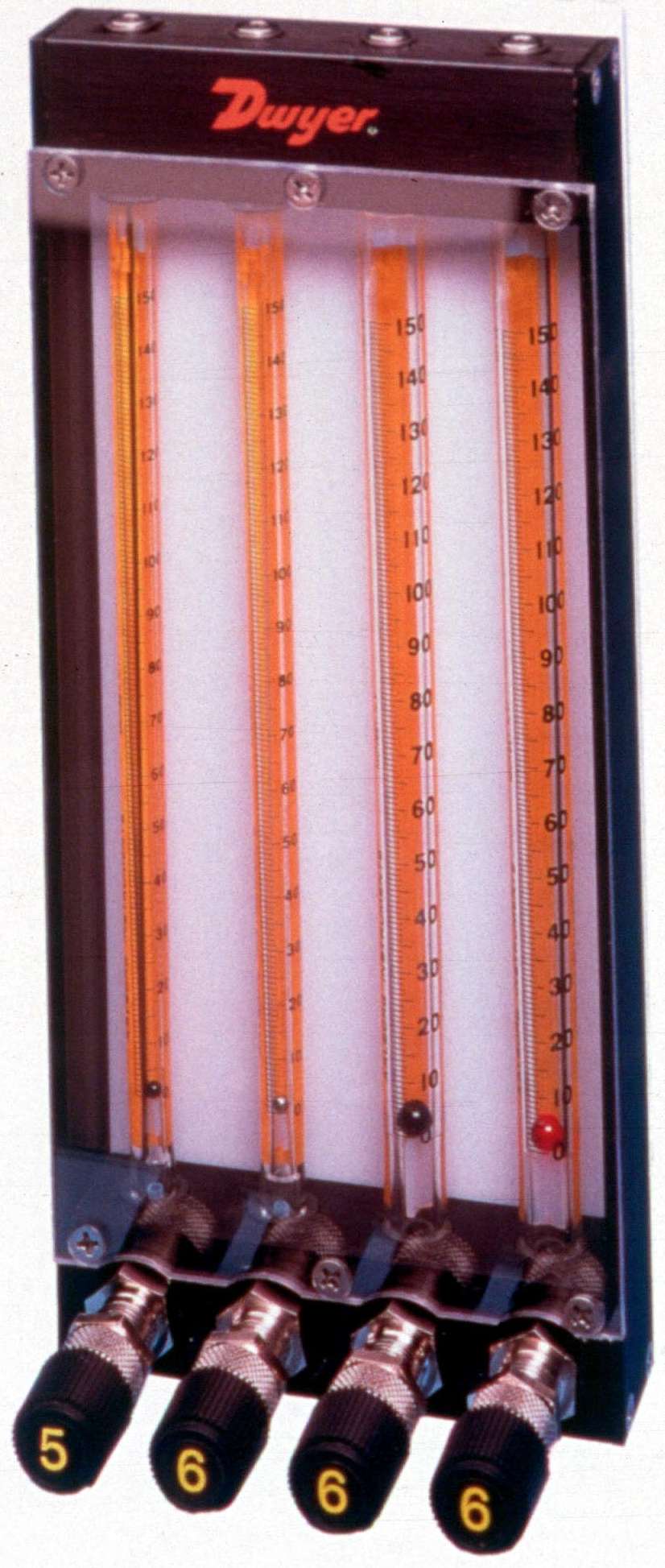

Dec 04, 2002 Series MTF suits any flow application requirements for 65 or 150 mm variable area flow tubes. Available with 2-6 tube meters, system offers design features such as interchangeable flow tubes and floats, manifolding at inlet or outlet, chemical compatibility, and fluted metering tubes. Accuracy is ±2% FS at 70°F and 14.7 psia, and repeatability is ±0.25 of scale reading. Max operating pressure and temperature are 200 psig and 250°F, respectively.

Gullco International Inc.    Cleveland, OH 44146
Dec 04, 2002 Model GBM-10 hand held bevelling machine produces clean machined bevel angles of 15° through 75° and bevel widths from 0–¾ in. Mild steel and aluminum can be beveled in variety of metal forms including plate, bar, strip, block and large tube and pipe. Optional helix rollers assist with smooth operation of unit. GBM-10 is also suitable for chamfer and weld prep applications.

Gullco International Inc.    Cleveland, OH 44146
Dec 04, 2002 Model WPG-250 universal, 3-jaw, self-centering gripper has clamping range of .38–15 in. Mountable on any make of positioner, its smooth close/open action uses lever to firmly lock and release workpiece. Ruggedly constructed, unit provides minimal reduction in positioner capacity.

VOUMARD Inc.    Elmsford, NY 10523
Dec 04, 2002 With up to 8 available axes, Model 300 offers various chucking devices to clamp short and long components. Turret can be equipped with 4 spindles, permitting internal and external grinding operations. Precise indexing is accomplished via HIRTH gear curvic coupling. Machine utilizes spheroidal, one-piece, cast iron bed for rigidity and stability as well as Siemens 840D control with Windowsâ„¢ NT interface for small batch and high volume production work.

American Allsafe    Tonawanda, NY 14150 2593

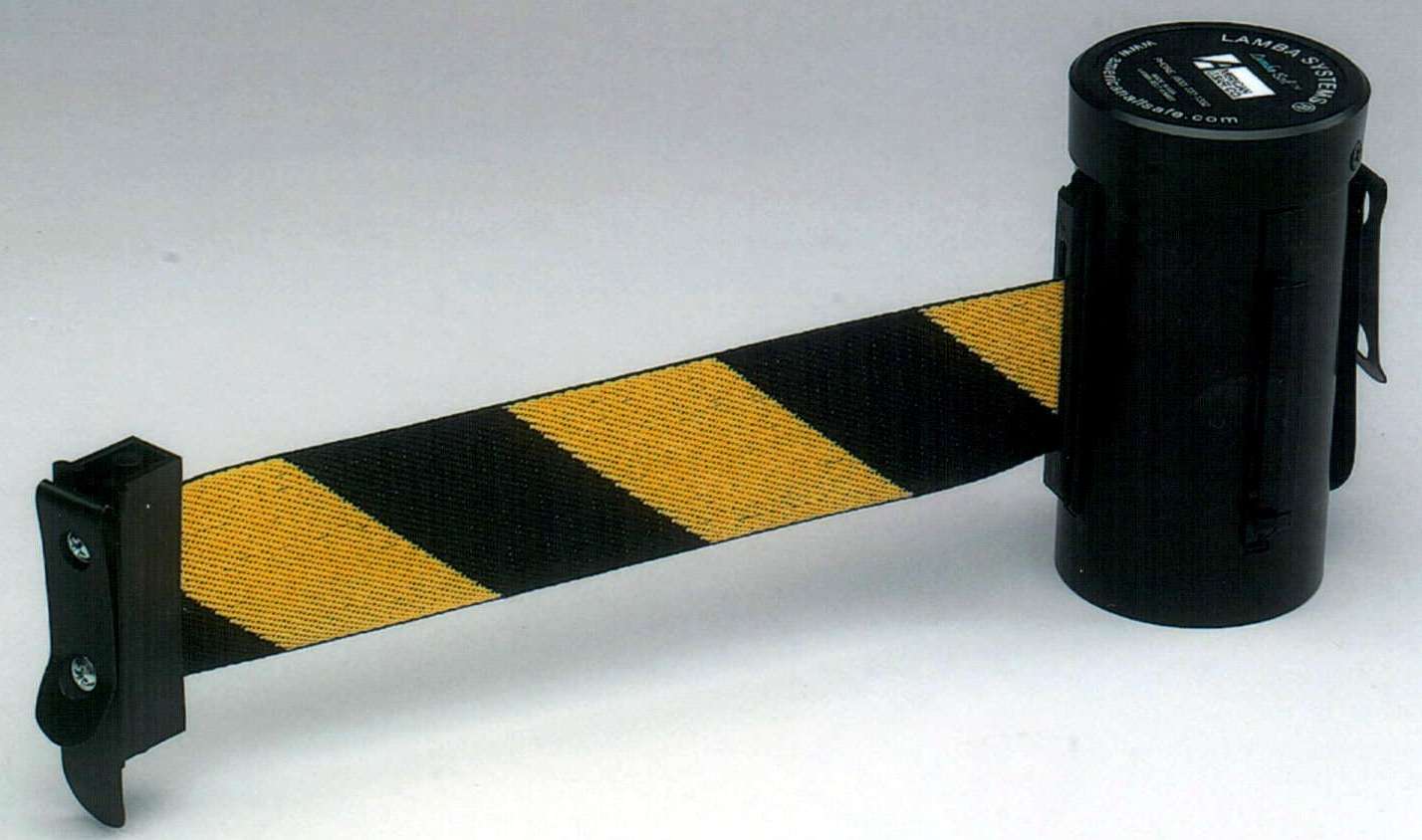

Dec 04, 2002 Lamba® Belt with precision retracting spring allows 2 in. standard belt to extend from 0 to 7 ft 6 in. Unit attaches to Lamba cone in minutes, alleviating traffic in work areas and blocking off cleanup areas. Belt system offers support for flashing light or lock-in sign at top of cone for additional warning. System comes with ring weights, Lamba Belt, and Lamba cones. Cones offer 4-sided warning and visibility of safety hazards.

Mahr Federal Inc.    Providence, RI 02940

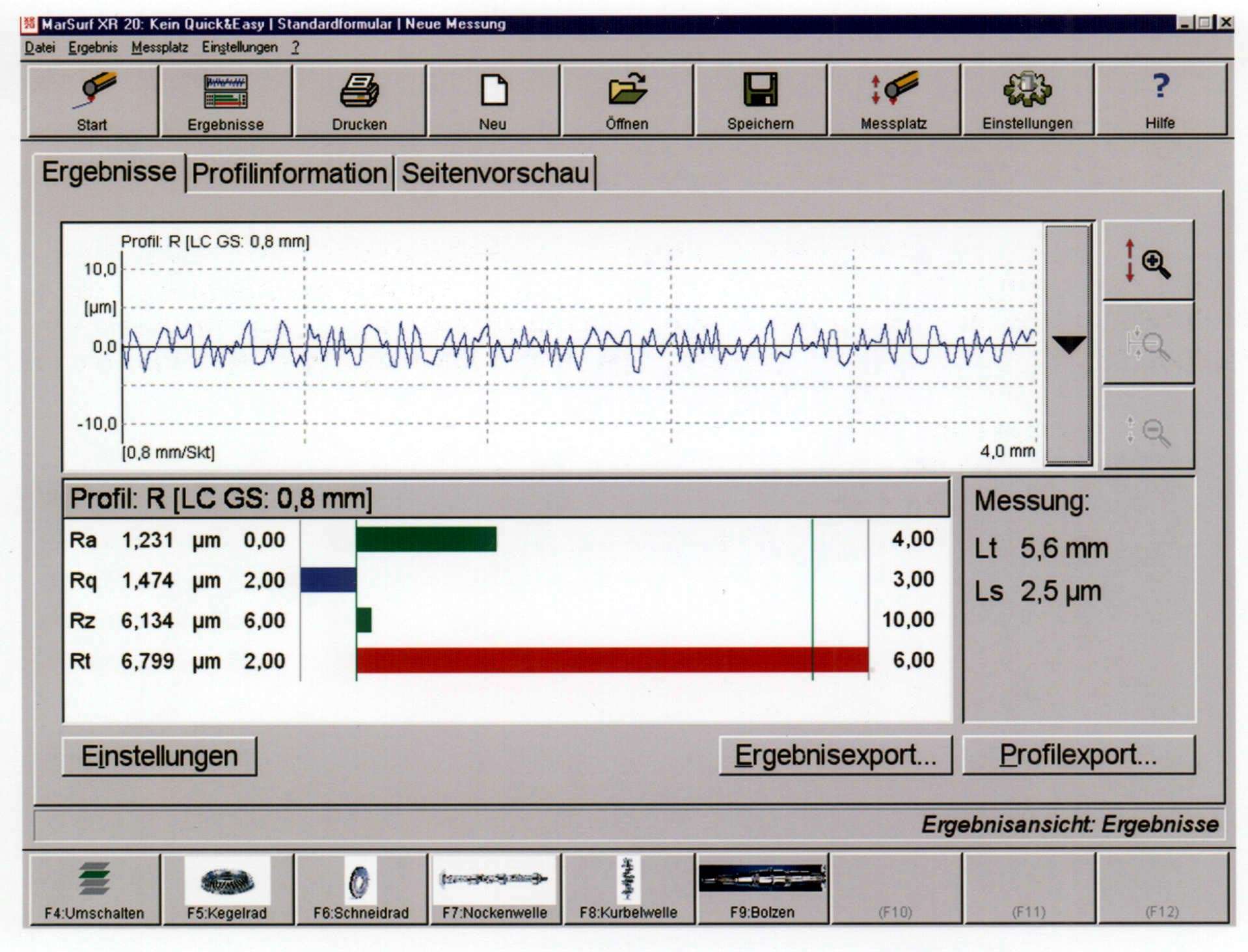

Dec 04, 2002 MarSurfâ„¢ XR 20 utilizes company's modular Perthometer Concept. System measures surface roughness contours and topography. Windows compatible, PC-based system has touchscreen monitor, drive unit, measuring stands, and touchscreen software. Multiple measurements can be made with up to 64 profiles. Additional features include dynamic calibration with PGN and PEN, automatic selection of standard filters and traversing lengths, and preset maintenance/calibration intervals.

Vestil Manufacturing Co.    Angola, IN 46703-0507
Dec 04, 2002 Fork Extensions speed up process of loading pallet on back of fork truck. Spacer length is slightly more than jam of truck door, eliminating need to back out of pallet, pick up pallet again and push to clear door. Extensions are offered with various retainers to keep from sliding off of forks. Lengths range from 48–96 in. Extensions accommodate existing fork widths of 4, 5, and 6 in. that are up to 2 in. thick.

Endress + Hauser Inc.    Greenwood, IN 46143
Dec 04, 2002 PROline Promass 80E measures mass, volume, density, and temperature in range of fluids. Accuracy for mass flow is ±0.35% in liquids and ±0.75% in gas. Transmitter has 2-line, backlit display allowing 2 measuring variables to be assigned. Self-diagnostic function, with clear text messages, simplifies troubleshooting. Process fittings, welded directly to flow splitter, eliminate need for internal gaskets, reducing risk of leakage.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214
Dec 04, 2002 AnverFlex™ Mid-Sized Rectangular Flat Vacuum Cups are made from urethane blend, which is bonded to machined aluminum hub with pre-drilled and tapped mounting holes and vacuum port. Featuring inside sealing ring for security, non-marking cups range in size from 1.2–7.2 in. wide and 10–20 in. long. Rated load capacity is up to 800 lb at 24 in. Hg when used in horizontal plane, depending upon size, load surface, and vacuum generating system.

Tracewell Systems, Inc.    Westerville, OH 43081-8846

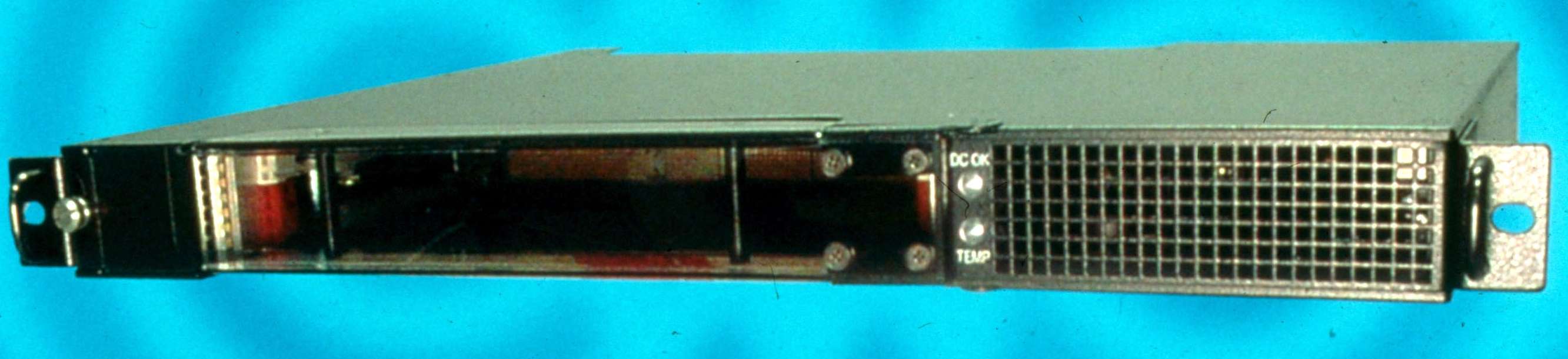

Dec 04, 2002 Model S33-1U provides push/pull cooling scheme that handles boards dissipating up to 70 W/slot. Equipped with local and remote monitoring capabilities, unit supports ongoing system performance and diagnostics. Airflow is distributed evenly via 7 fans, each providing 15 CFM. Unit incorporates 250 W power supply and houses 2-slot CPCI backplane that supports hot swap and System Management Bus capability. Overall chassis measurement is 13.7 x 10.0 x 1.74 in.

Rogan Corp.    Northbrook, IL 60062
Dec 04, 2002 AXL Clamp Lever has Pure Touch(TM) thermoplastic elastomer inlays, rounded edge design, and reinforced fiberglass body. Unit can be adjusted to 20-45 positions, with and without load. Pulling up on handle disengages unit to swivel into desired clamping position. Releasing re-engages clamp for tightening and loosening. Available in charcoal and black, product utilizes one TORX(TM) head adjustment screw.

Fishman Corp.    Hopkinton, MA 01748
Dec 04, 2002 Suited for assembly and repair of small parts, Model 8500â„¢ offers 2 independent vacuum and air modules with separate foot pedals for controlling pickup pen and handheld syringe. Bench-top workstation frees both hands for manual operation and provides timed dispensing from 0.1 sec to over 3 min. With adjustment knobs to control each function, unit provides up to 100 psi dispensing pressure, has potentiometer-controlled timer with 4 ranges, and vacuum pull-back.

Conbraco Industries, Inc.    Matthews, NC 28106 0247

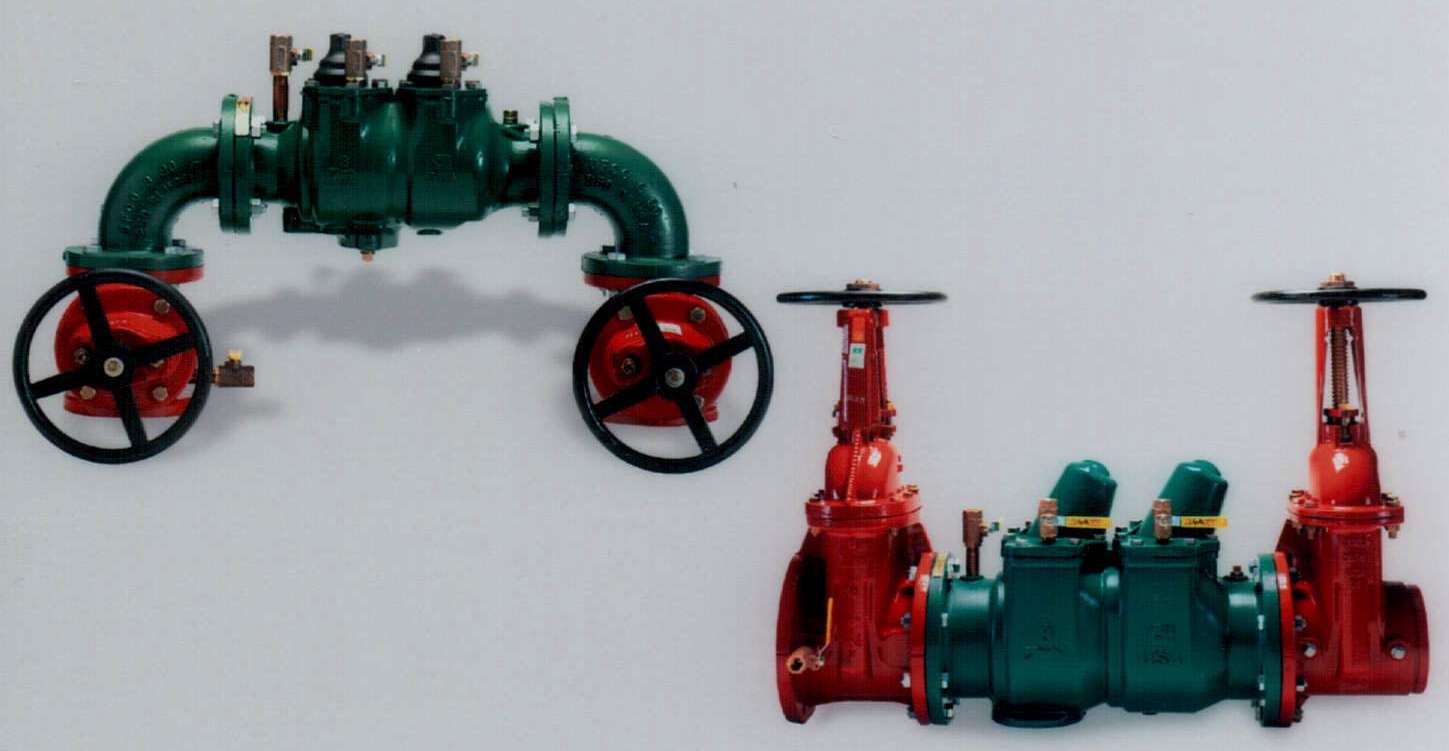

Dec 04, 2002 Modular, in-line repairable Model DC valve assemblies are available in sizes from 2½â€“10 in. Units guard against back-pressure or back-siphonage caused by cross connections between potable water lines and substances that are objectionable but not hazardous. Assemblies offer 175 psig max working pressure and operating temperature range of 33–140°F. Products are suited for irrigation systems, pools, industrial plant plumbing systems, power plants, and food cookers.
