E T Environmental    Lindale, TX 75771
Dec 02, 2002 Model CE-400 fits in any application requiring treatment of volumes between 400 and 18,000 GPD of water and sludge. Automated system utilizes Allen-Bradley Micrologix PLC controls with full analog pH capabilities.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Dec 02, 2002 Model TMS320C5510 provides full featured board for DSP development. It enables user to identify areas to be tuned for less power consumption, demonstrate dynamic power management in hardware and software, and manage power consumption efficiently to meet system power budgets early in development cycle.

APA Optics Inc.    Minneapolis, MN 55449-7218
Dec 02, 2002 Multimode fiber-based DWDM mux/demux offers 8 channel, 200 GHz spacing. It features uniform channel-to-channel insertion loss and large bandwidth due to broad flat-top passband. Insertion loss is typically less than 1 dB and polarization dependent loss is less than 0.3 dB over -40 to +85°C without any active temperature control. Variation across all channels is less than 0.2 dB. Adjacent channel isolation is typically greater than 30 dB.

American Allsafe    Tonawanda, NY 14150 2593

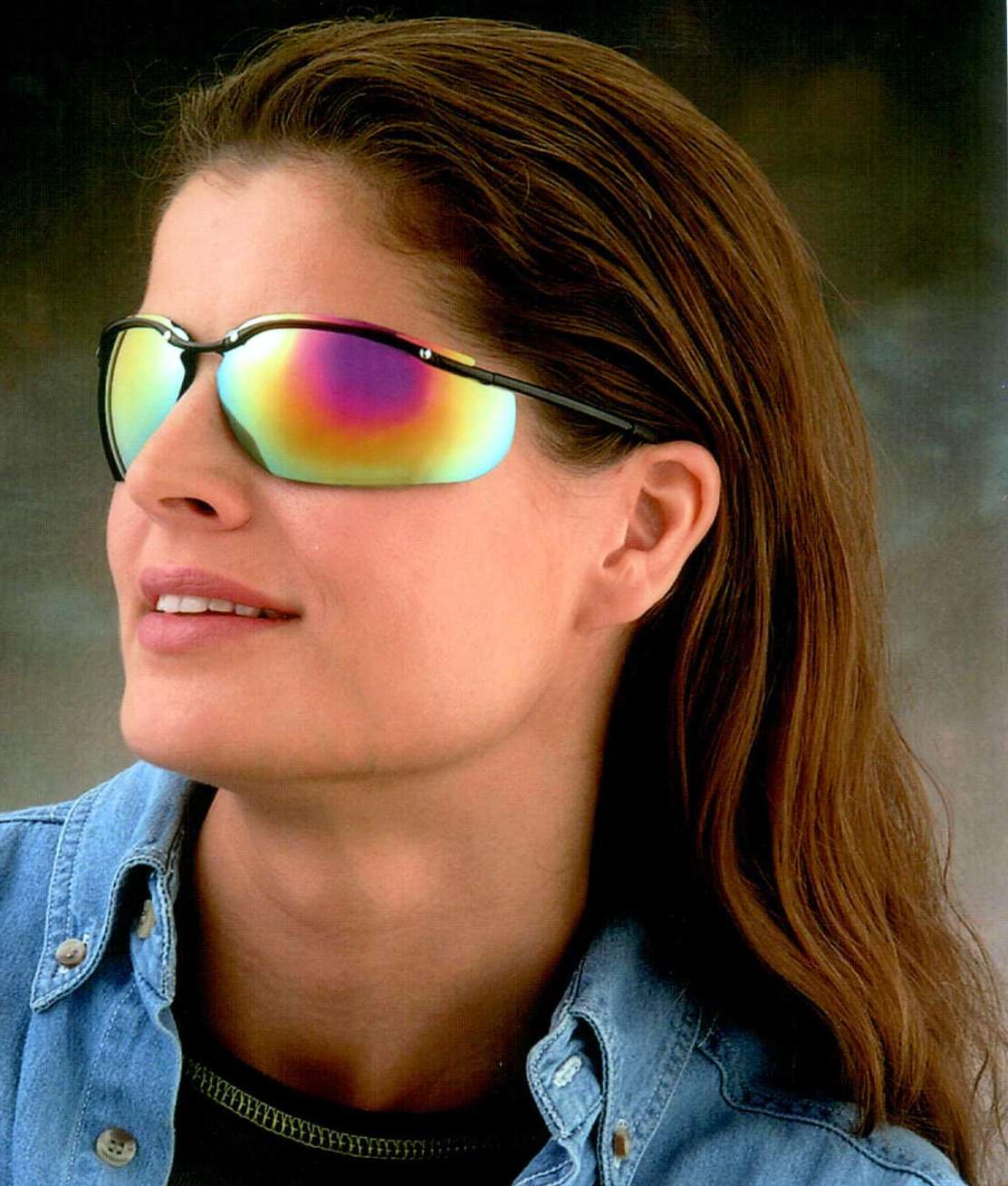

Dec 02, 2002 Senecaâ„¢ spectacle is offered with various lens options and black or gold frame. Lightweight metal frame has hand adjustable nosepiece that allows for individual fit. Seneca meets or exceeds ANSI Z87.1 standards.

Stafford Mfg. Corp.    Woburn, MA 01888 0670

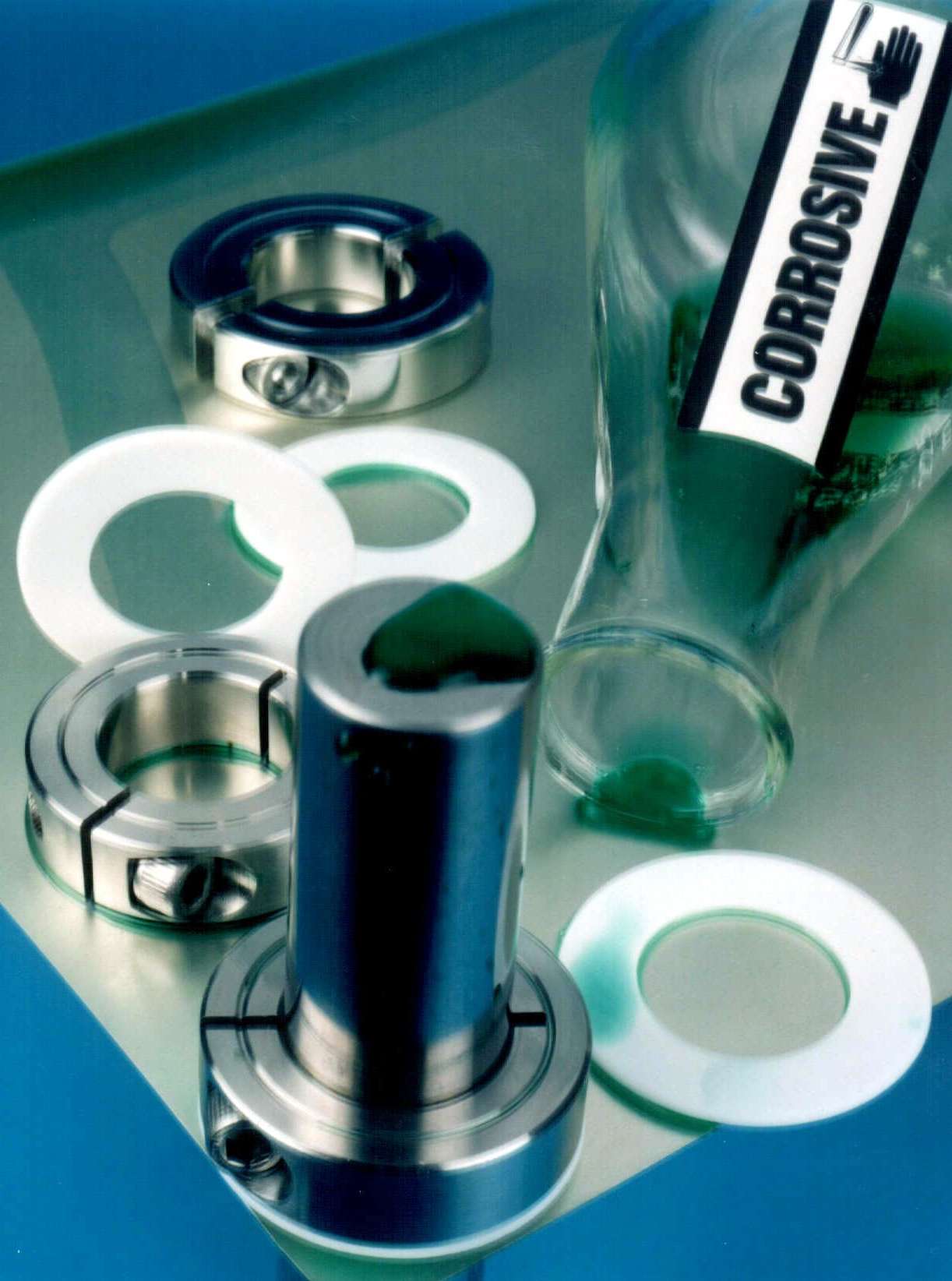

Dec 02, 2002 Teflon® washers match inside and outside dia. dimensions of shaft collars. Suited for rotary applications in harsh environments, washers are available in sizes from 1/2 in. ID x 1 1/8 in. OD up to 2 in. ID x 3 in. OD. Products are 1/16 in. thick, chemically inert, non-flammable, and operate over -450 to +500°F temperature range. Applications include rotating components and pivoting robot arms.

AGR International, Inc.    Butler, PA 16001-0149

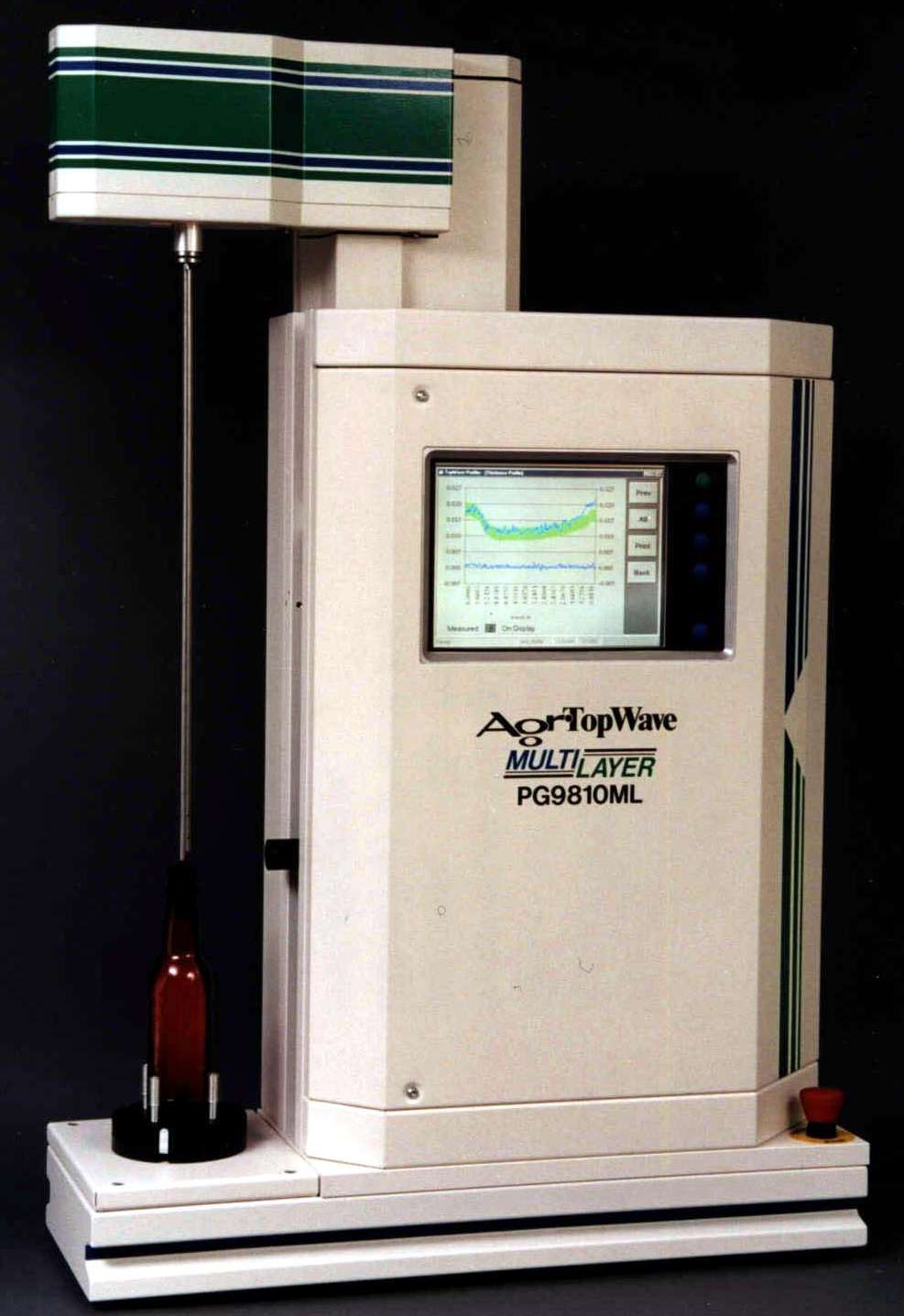

Dec 02, 2002 Model PG9810-ML Profiler Multilayer Gaugeâ„¢ permits evaluation of multilayer preforms and containers for presence and proper distribution of nylon-based barrier materials in 15 seconds. Operated by pushing one button and reading results, PG9810-ML non-contact, automated measuring device uses IR absorption technology to determine PET and nylon wall thickness. Bench-top device includes 3 built-in test routines, results of which are shown on integrated display.

Meese Orbitron Dunne Co.    Saddle Brook, NJ 07662

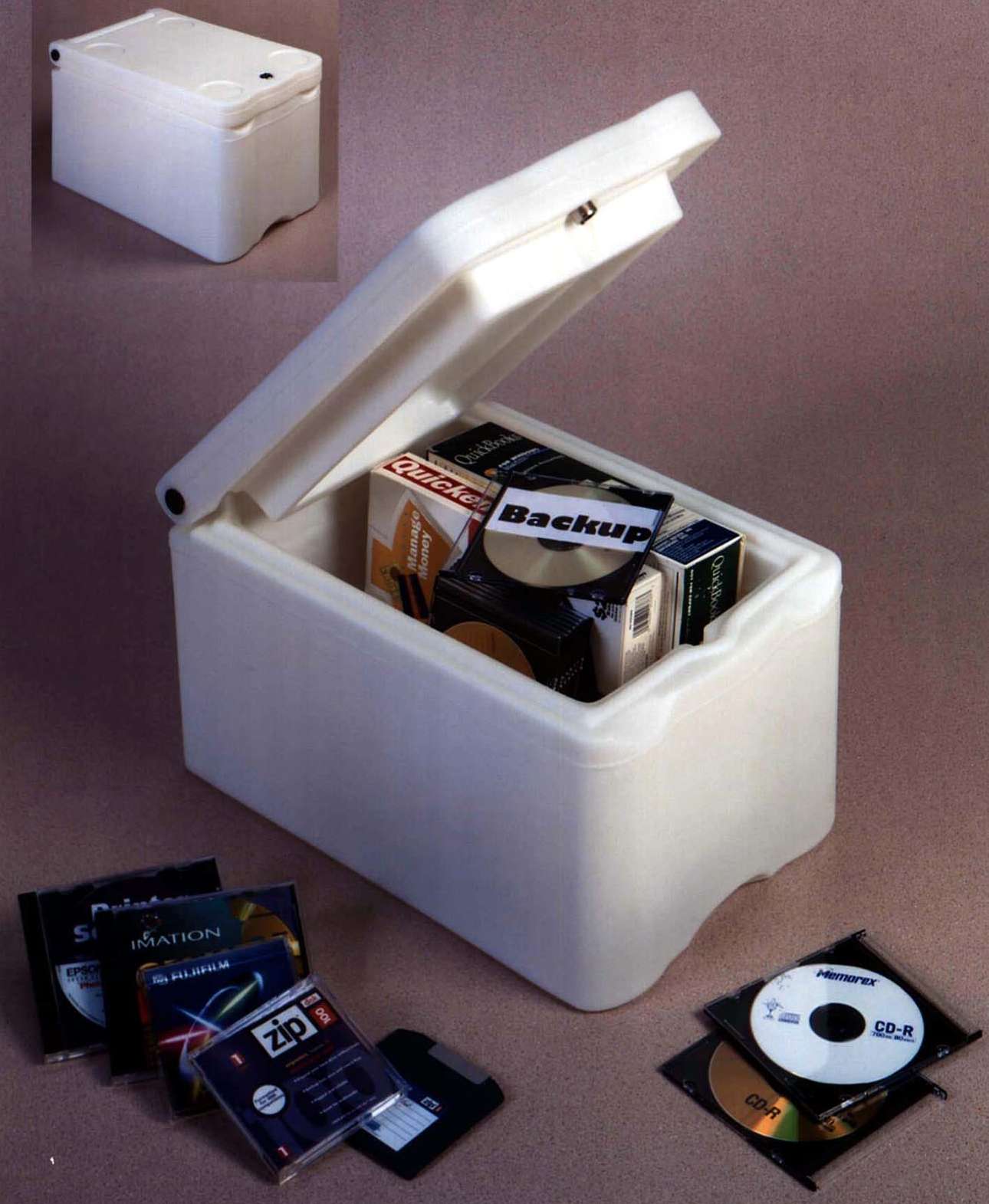

Dec 02, 2002 Rotationally molded from cross-linked polyethylene in seamless, insulated, double-wall design, MediaVault prevents electronic record contamination. Unit secures sensitive media from fire, water, heat, humidity, and theft. Gap between double walls is injected with fire retardant soda ash through molded-in openings, then compacted, sealed and covered with melted, spin welded polyethylene closures. Safe measures 10 1/2 x 11 5/8 x 17 1/2 in. with 5 7/8 x 6 1/4 x 8 7/8 in. interior space.

Elmo Mfg. Corp.    Plainview, NY 11803

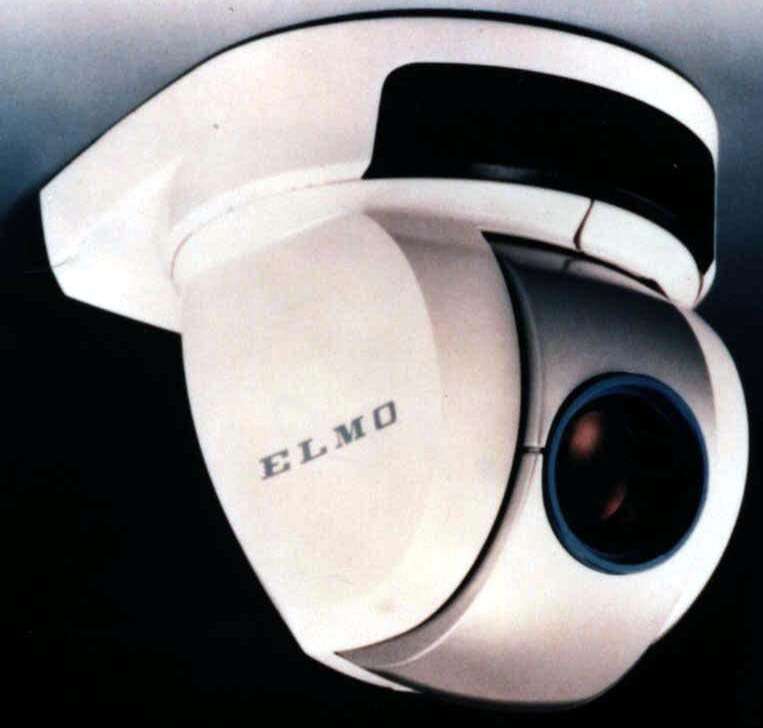

Dec 02, 2002 With built-in web server, Model PTC-201C IP monitors any location on PC from any location via internet connection and compatible browser. Able to provide simultaneous access to up to 10 users, system produces motion images with VGA and QVGA resolution in excess of 480 TVL with refresh rates up to 30 frames/sec. Offerings include 105°/sec pan/tilt speed, 22x optical zoom, and 1 lux min illumination requirement. Camera has 300° horizontal sweeping pan and 120° vertical tilt.

Advance Transformer Co.    Rosemont, IL 60018 5625

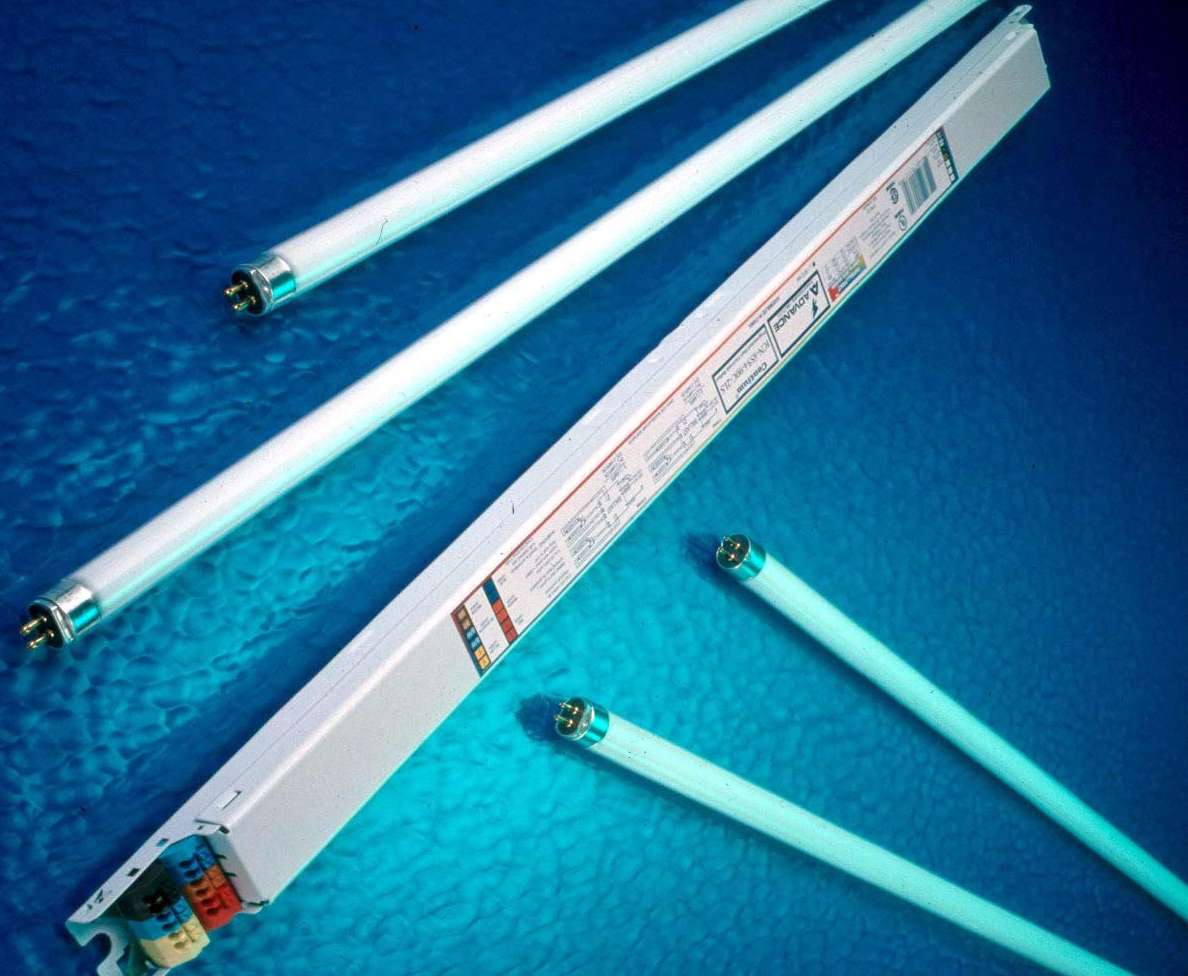

Dec 02, 2002 Centium® model ICN-4S54-90C-2LS operates 36/39, 50, and 55 W long twin tube lamps as well as F58T8 lamps. With IntelliVolt® technology, ballast works with lamps at any input voltage from 120–277 V, 50/60 Hz. High-low switching option allows fixture to control number of lamps in operation. Type CC rated for anti-arcing protection, unit has 1 in. high, low profile housing and 90°C temperature rating. Unit offers 20 ft remote mounting, 0°F cold starting, and auto-restart capabilities.

ARO - Ingersoll-Rand Fluid Products    Bryan, OH 43506

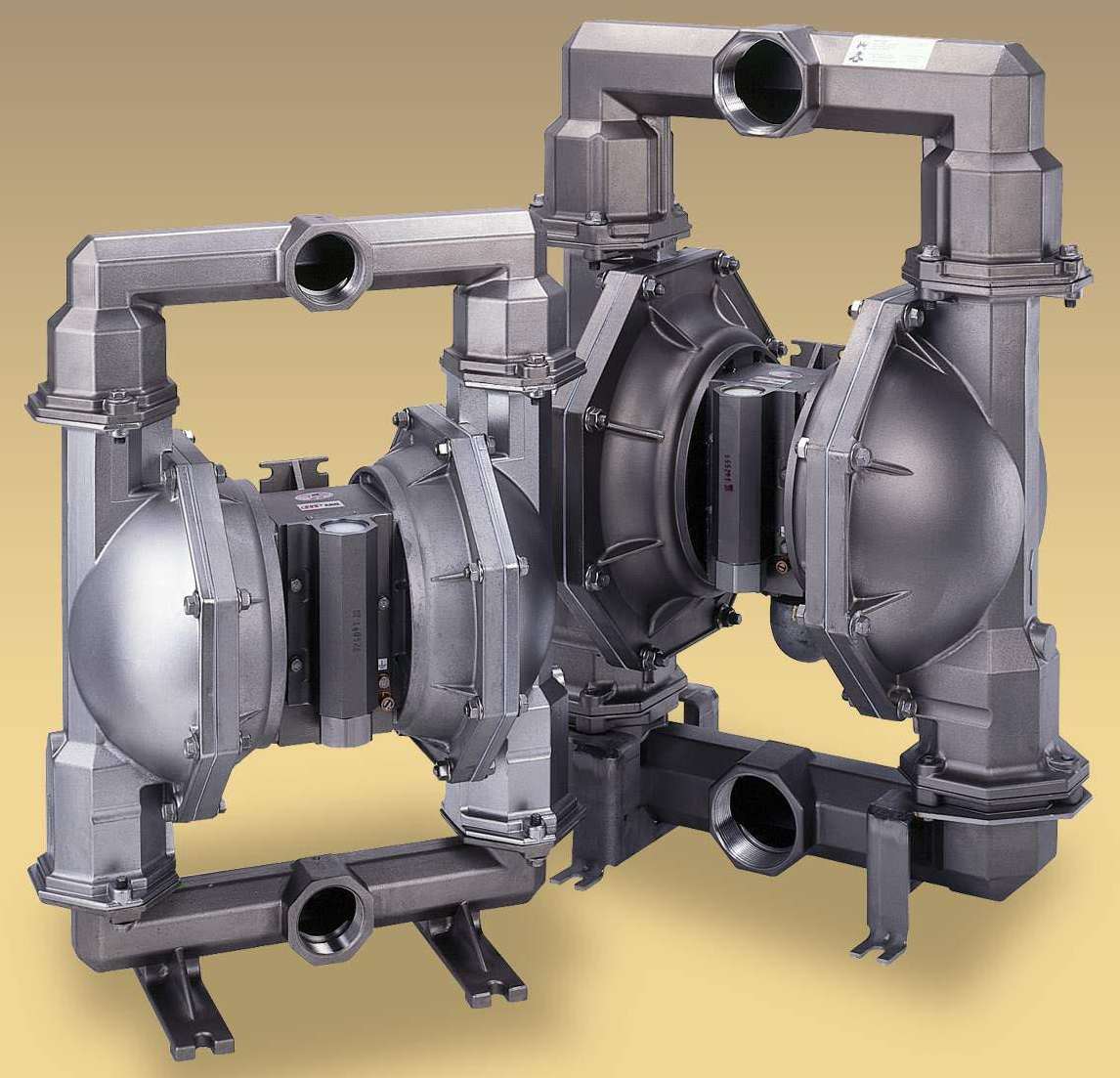

Dec 02, 2002 Resistant to internal, aggressive chemicals and external corrosive environments, air-operated pumps are available in 2 and 3 in. fluid port sizes. Flow capabilities range up to 275 gpm. Pump bodies suit various process applications, including hazardous chemical transfer, and are compatible with high-temperature fluids. Fire-Proof pumps will not melt under extreme conditions. Design components include stall-, lube-, and ice-free air motor.

Rockwell Automation, Dodge & Reliance Electric Headquarters In The Americas    Greenville, SC 29615-4617

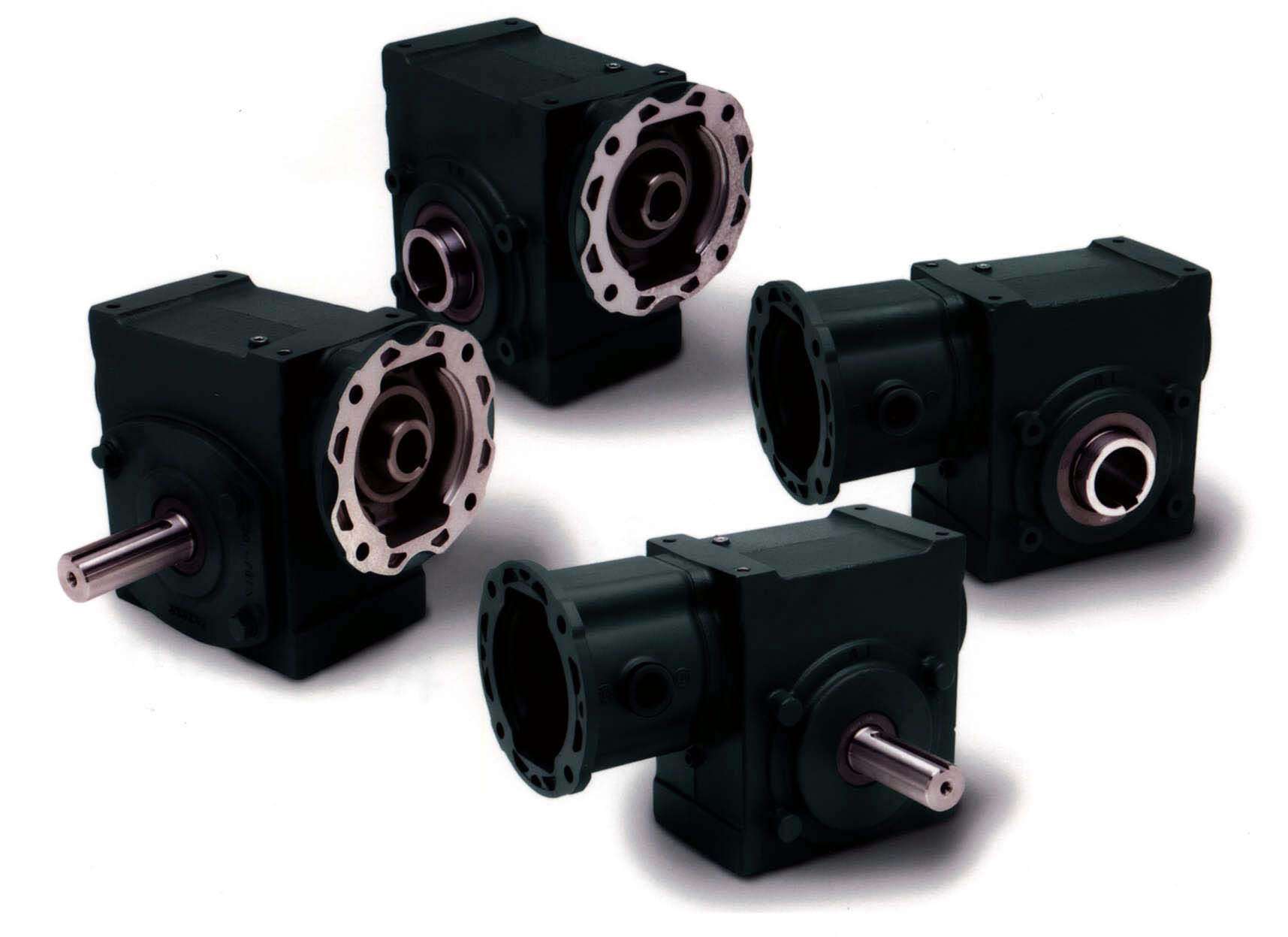

Dec 02, 2002 DODGE® TIGEAR-2â„¢ single reduction, right angle worm speed reducers have totally enclosed, ventless sealing system that provides leak-free performance. Factory-filled synthetic lubricant accommodates range of operating temperatures. Tapered adapter bushing system virtually eliminates fretting corrosion on hollow shaft applications. Locking nut creates positive means for easy removal. Ten sizes cover center distances from 1.33–4.75 in.

Control Co.    Houston, TX 77258 8307

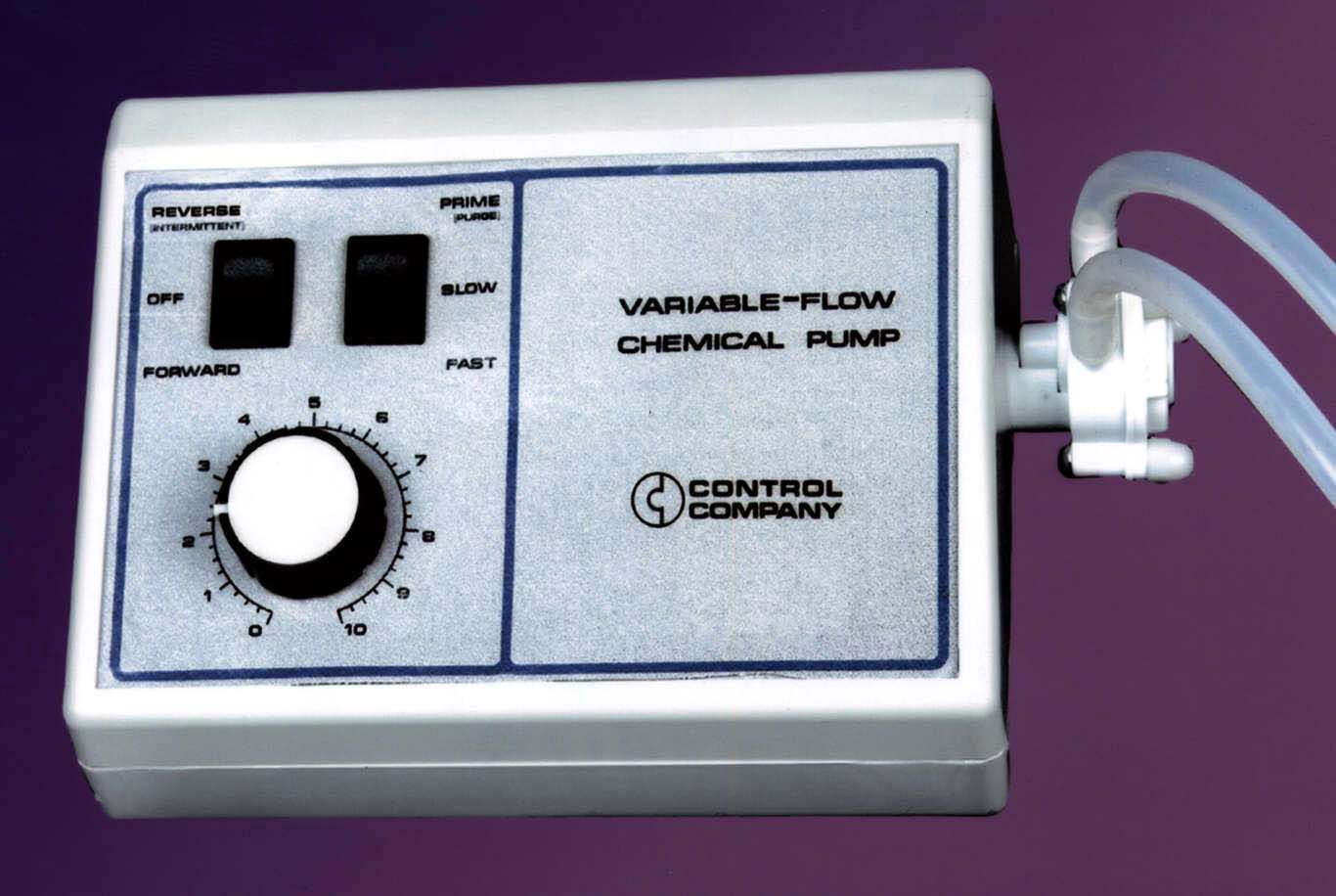

Dec 02, 2002 Variable-Flow Chemical Transfer Pump handles fluids with viscosity to 200 cP from 120 ml to 2.2 Lpm. Suction lift is 10 ft wet. Chemical-resistant, wetted parts are Delrin®, 304 stainless-steel, Buna N, and Teflon®. Barbed inlet/outlet ports use tubing with nominal ID of 3/16 in. Direct drive pump offers continuous-sweep variable control and may be used with fluid temperatures from -40 to 200°F. Reversible purge/prime switch offers high-speed emptying/filling.

Endress + Hauser Inc.    Greenwood, IN 46143
Dec 02, 2002 Liquiphant FTL 20 uses measuring fork to fit inside pipes as small as 1/2 in. It provides level measurement in all types of liquids, independent of electrical properties, turbulence, material build-up, solids content, suspended particles, gas bubbles, and external vibration. AS-i electronics allow integration to existing bus structures. AC or DC-PNP outputs are available. FTL 20 provides maximum and minimum detection in tanks and dry running pump protection in pipes.

Tri-Mer Corp.    Owosso, MI 48867
Dec 02, 2002 Quadra-Scrubâ„¢ provides continuous operation with zero shutdown, and consistently produces collection efficiencies ranging from 99% and higher. Chemical-free system is made of UV-stabilized polypropylene and utilizes mechanical separation technology. Four stages, arranged as series of cartridges, have independent magnehelic gage to indicate when cleaning is necessary. Applications include battery forming and steel pickling.

Flo-tech, Div. of Racine Federated Inc.    Racine, WI 53404
Dec 02, 2002 Self-contained Flo-check® PFM Series offers 3 1/2 digit LCD for flow and temperature and makes all flow, pressure, and temperature measurements simultaneously from one point. Pressure rating is 6,000 psi and max operating temperature is 300°F. Testers include pressure relief disc protection and low battery/over-voltage indicators. PFM6 is for troubleshooting of mobile or stationary hydraulic systems. PFM6BD is for in-line testing of bi-directional motors, and PFM8 Dynamometer reads HP and kW power directly.

Transducers Direct    Miamiville, OH 45147

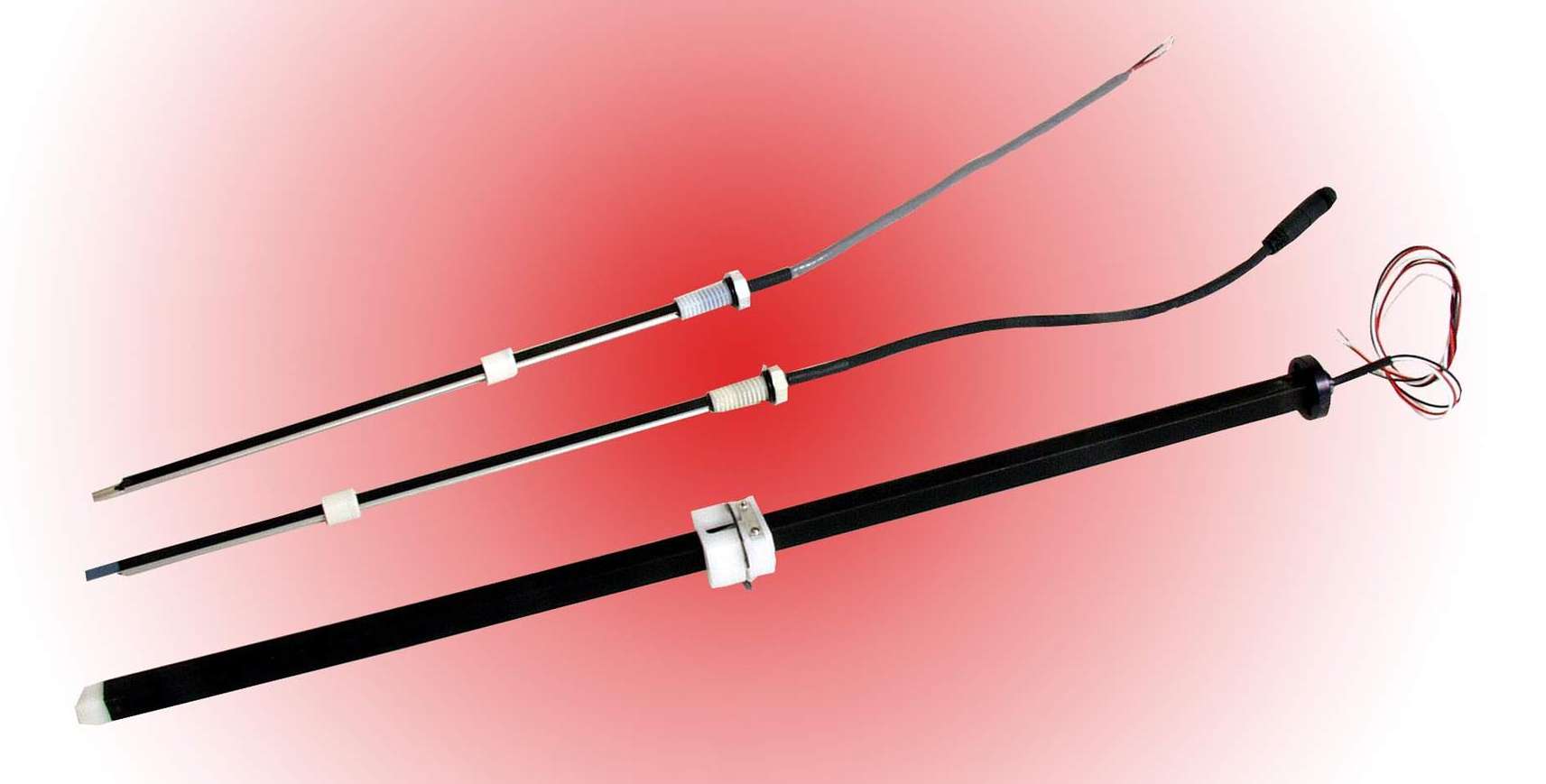

Dec 02, 2002 Model TDP-140 provides smart capability for small-bore pneumatic cylinders. It uses high-resistivity conductive plastic printed on anodized aluminum element. Molded wiper block, matching element profile, follows cylinder piston movement. Sensor provides absolute analog output and 1% linearity. It mounts within pressurized cylinders to 100 psi, and can be ordered in travel lengths of 1-24 in. Operating temperature is -25 to +100°C.

Molex Inc.    Lisle, IL 60532-1682
Dec 02, 2002 Ganged RF Interconnect System provides connections for 2.5 GHz bandwidth single-ended or analog RF signals in blind-mate daughtercard receptacles and backplane headers. Connectors offer 50 Ohm ±10% matched impedance contact, press-fit termination and locator pegs, and modular assembly of vertical signal pairs. Blind-mate right-angle daughtercard receptacles and vertical backplane headers are available in 6 and 8 positions.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Dec 02, 2002 Multicore® 63S4 MP200 no-clean solder paste is formulated with 63S4 alloy that eliminates tombstone defects and reduces component misalignment. Paste delivers extended abandon time, long open time, and slump resistance. It is suitable for HASL, OSP copper, gold over nickel, and silver immersion. Multicore 63S4 meets or exceeds test specifications of J-STD-004 for copper mirror, copper plate, chlorides and bromides, and is classified as ROL0.

Ultra Motion    Cutchogue, NY 11935

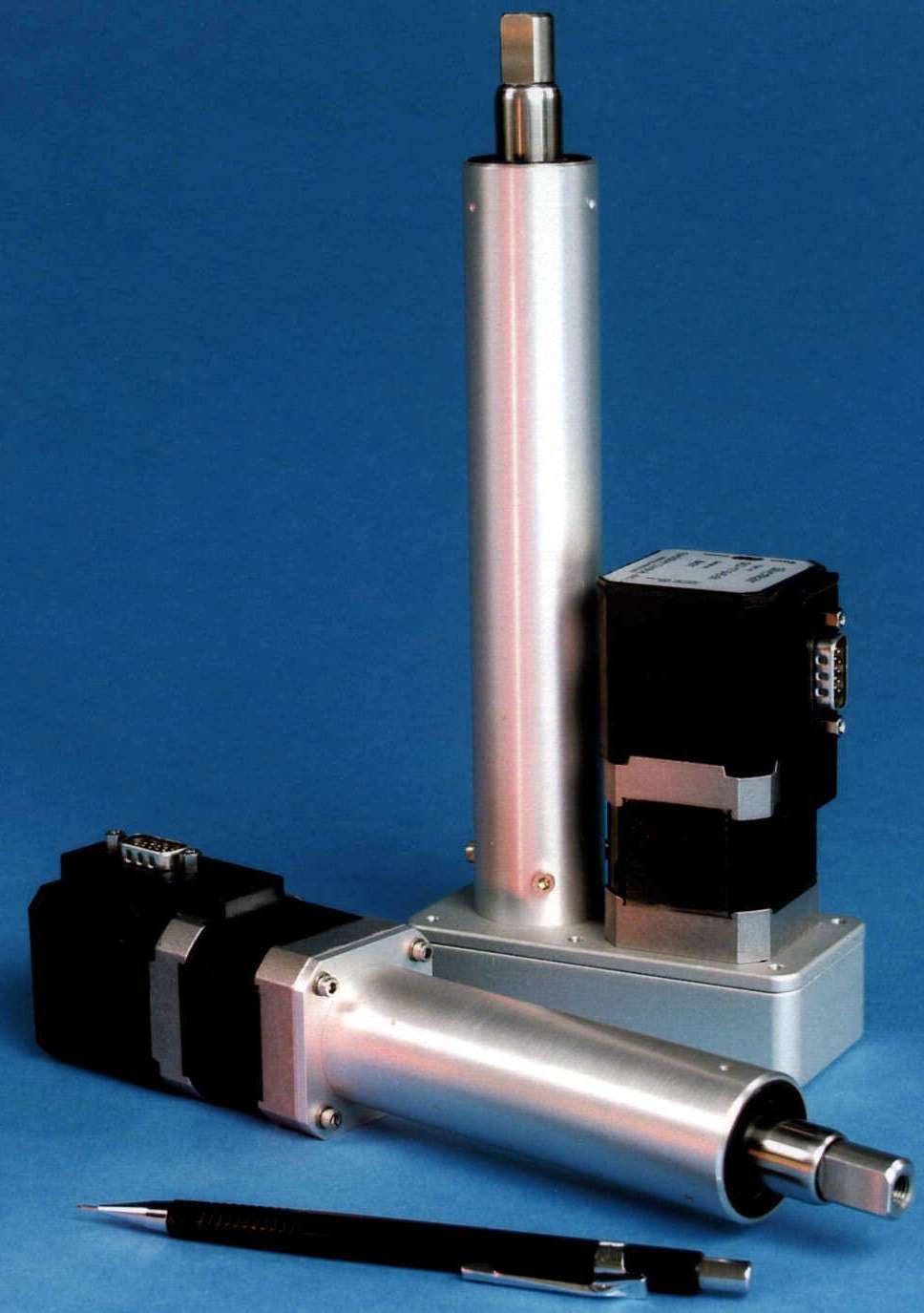

Dec 02, 2002 Smart Digit and Smart Bug actuators include optical encoder, digital servo amp, indexer, local power supply, and serial communications interface. With 1 µ repeatability and .5 µ resolution, actuators are available in 2, 4, and 8 in. stroke lengths. Directly coupled to drive screw, Smart Digit units move at speeds to 25 ips with 120 lb of force max. Smart Bug units incorporate nonslip timing belt with ratios from 1:1 to 4:1 and move at speeds to 40 ips, providing 500 lbs of force max.

American ELTEC, Inc.    Las Vegas, NV 89102

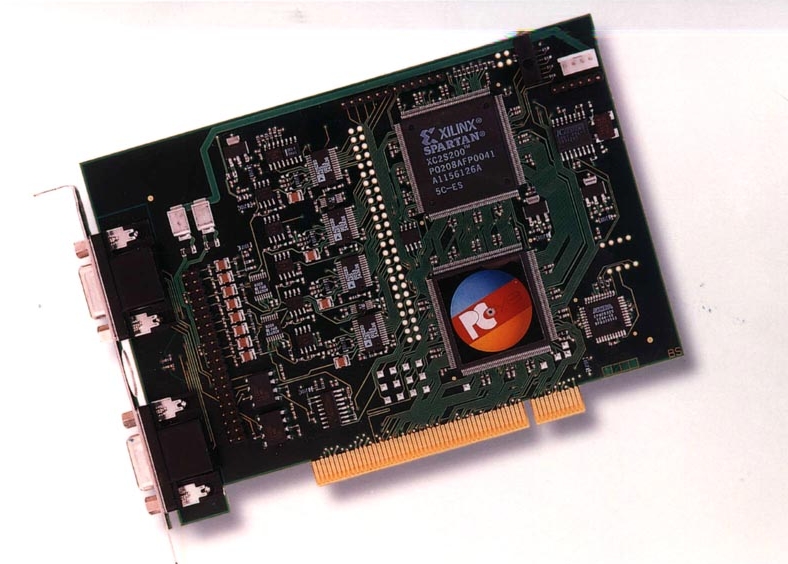

Dec 01, 2002 PC_EYE(R)_2+ quadro channel and RGB color frame grabber PCIbus board has 4 video input channels that can digitize 4 separate images in parallel from synchronized cameras. Drivers are provided for Linux and Windows(R) 98, ME, NT, and 2000 operating systems. Setup program provides test and configuration of board. Support for 3rd party imaging tools is available, including AdOculos(R), Heurisko(R), VisiLab(R), LabView(R), and Halcon(R).
