Steelnor Systems    Midland, ON L4R4K8
Feb 01, 2012 Available with several options, SS1500TL-SSC812L Sealer and Conveyor is equipped as standard with variable and tamperproof, laboratory-quality temperature controls; PTFE/fiberglass sealing bands; and trim scrap blower. Design can minimize air trapped in head space of bag when packaging fluidic or free flowing products, and speed is variable to 1,100 ipm. Constructed of stainless steel and anodized aluminum, system features standard seal width at 3/16 in.; options range from 1/8-7/16 in.

VectorNav Technologies    College Station, TX 77840
Feb 01, 2012 Encased in 33 x 26 x 9 mm aluminum package, VN-100 Rugged is built on 9-axis suite of factory calibrated MEMS accelerometers, gyroscopes, and magnetometers. Unit provides accuracies of better than 0.5° in pitch and roll and 2° in heading. Each sensor is calibrated for bias, scale factor, and misalignment errors. Running on all VN-100 sensors at 200 Hz, Vector Processing Engine(TM) sensor fusion algorithm allows sensors to output real-time orientation estimates and inertial measurements.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 31, 2012 Providing mechanical and electrical connection of LED onto heat sink, Type NL2 Socket features poke-in wire termination method for 18-22 AWG solid, 18-20 AWG pre-bonded, and 18 AWG stranded wires. One-piece connector assembly has UV-resistant housing, molded polarity indicator, and cleared area designated for reflector mounting that accepts custom or commercially available optics. Applications include retail lighting, commercial down lights, and high bay lighting.

Crestron Electronics, Inc.    Rockleigh, NJ 07647

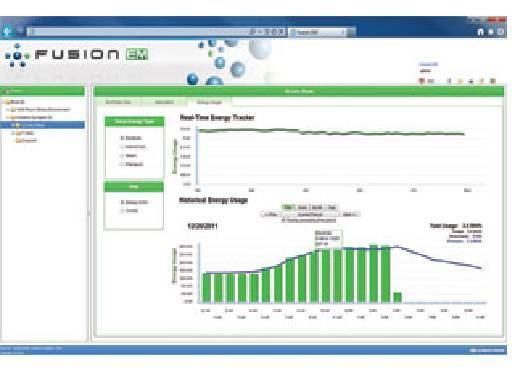

Jan 31, 2012 Fusion EM(TM) can track power consumption in room or building and generate data for analysis to reduce costs. Running on central server, Fusion database provides foundation to run different software applications based on organizational needs. Fusion EM can also be used to monitor and track environmental systems and energy usage, turn lights on/off, set actions for when room is occupied, adjust heating/cooling set points, and edit demand response settings.

Tripp Lite    Chicago, IL 60609
Jan 31, 2012 Featuring EMI/RFI noise filtering, individual outlet configuration, and 1080 J of surge protection, TLP76MSG ECO-SURGE Suppressor reduces energy waste caused by phantom loads, electricity wasted by idle device, even when it appears to be turned off. There are 6 outlets, each with their own ON/OFF switch, and one always-on outlet that provides constant power to devices which require it. Also standard, Master Switch cuts power to all outlets except always-on, simultaneously.

Steelnor Systems    Midland, ON L4R4K8
Jan 31, 2012 Designed for filling and assembly lines, SS1500T - SSC545 sealer conveyor system is optimized for seal and trim applications. It offer variable speed to 1,100 ipm as well as variable and tamperproof, laboratory quality temperature control. Along with PTFE and fiberglass sealing bands, 5 ft long x 4½ in. wide conveyor features 115 V, 50/60 Hz single-phase operation; stainless steel and anodized aluminum construction; and ability to handle virtually all heat sealable materials.

General Tools & Instruments    New York, NY 10013
Jan 31, 2012 Targeting plumbers and HVACR contractors and technicians, Pipe and Duct Video Borescope Inspection System (DPS16) offers flexibility and performance for examining and documenting interior conditions of ductwork and water/sewer pipes. System is comprised of Pipe and Duct Inspection Probe and Reel Set (P16PIP) and Video Borescope Handheld Recording Console (H16). Able to maneuver through two 90° bends, IP68 waterproof probe is 72 ft long and employs 1.1 in. dia camera.

Opto Diode Corp.    Newbury Park, CA 91320

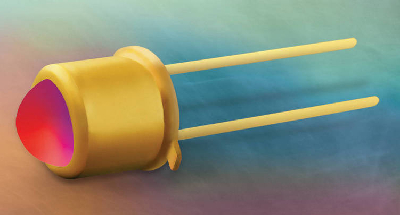

Jan 31, 2012 Manufactured using liquid-phase epitaxially grown GaAlAs, Model OD-850L features peak emission wavelength of 850 nm, total minimum output power from 25 mW, typical output of 35 mW, and peak forward current of 300 mA. Hermetically sealed standard TO-46 is designed with gold-plated surfaces and window caps that are welded to case for durability. Operating from -40 to 100°C, Model OD-850L is suited for use in optical encoders and photoelectric controls.

Mott Corporation    Farmington, CT 06032 3159
Jan 31, 2012 Available in 316L stainless steel or titanium, Sterilizing Grade Filter Media meets ASTM F838-05 for bacterial retention. Product is autoclavable, biocompatible, impervious to solvents, and compatible with most organic compounds and complex drug chemistries. Engineered for external use or for integration in implantable devices, media is suited for filters that prevent plugging of catheters, drug delivery devices, medical instrumentation, and gas flow restrictor devices.

Wavelength Electronics, Inc.    Bozeman, MT 59715

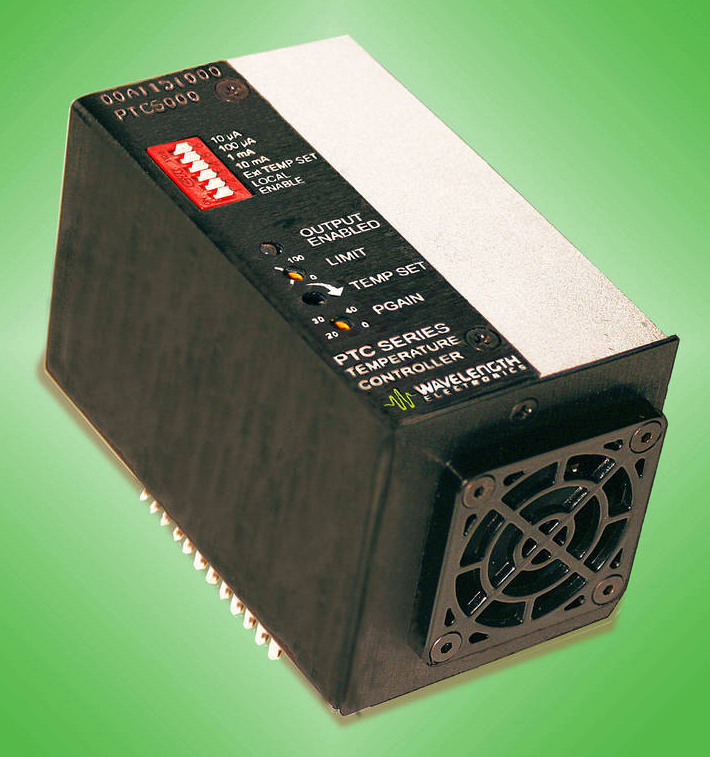

Jan 31, 2012 Operating from single 5-30 V power supply, PTC Series interfaces with various temperature sensors and includes 2 models that drive ±5 or ±10 A to Peltier thermoelectric cooler or resistive heater. Bias current is adjustable to maximize controller sensitivity and stability for application at hand, and proportional gain is adjustable via onboard trimpot. Features include onboard controls, remotely control support, and built-in heatsink and fan for thermal management.

CommAgility Limited    Leicestershire LE11 3EH  Uruguay

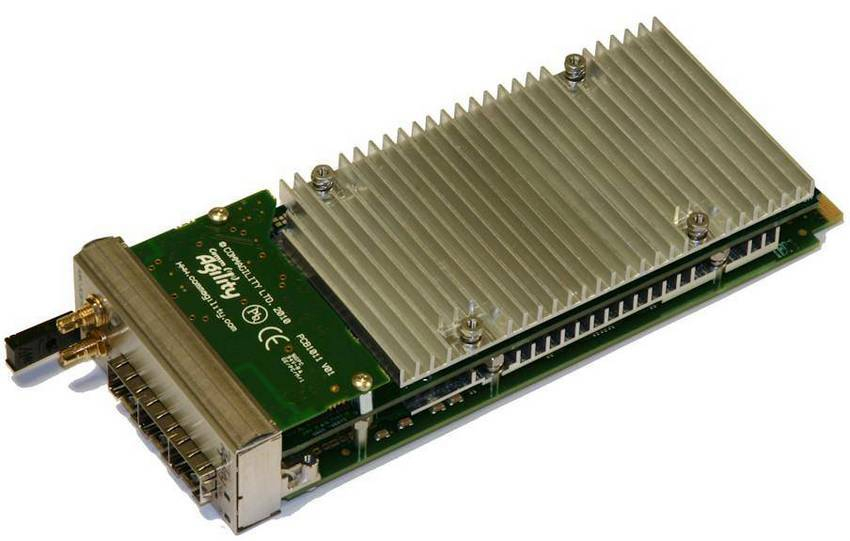

Jan 31, 2012 Intended for high-performance applications such as telecoms and image processing, AMC-2C6678 is powered by two 1.25 GHz Texas Instruments (TI) TMS320C6678 DSPs and features 16 DSP cores and FPGA resources. For 4G wireless baseband and test equipment solutions, including LTE and LTE Advanced, AMC-2C6670 incorporates two 1.2 GHz TI TMS320C6670 DSPs with option for SFP+ connections direct to AIF2 interface of one DSP to support CPRI. GPS receiver for timing synchronization is also available.

Super Micro Computer, Inc.    San Jose, CA 95131
Jan 31, 2012 Contained in 76 x 360 x 40.4 mm form factor, Model PWS-1K03B-1R supports mission-critical server and storage operation. Hot-swappable unit fits Supermicro 1U/2U/3U/4U chassis, providing output power in 1,200 W/1.5 min and 1,000 W/3 min options. Incorporating rechargeable Li-Ion cell technology, module uses less than 1 W at 99.9% power efficiency to maintain full charge. It features I2C/Smart battery monitoring through remote management and provides 500 full charge/discharge cycles.

Cryopak Industries, Inc.    Delta, BC V3M5R4
Jan 31, 2012 Featuring outside dimensions of 25.25 x 22.25 x 23.0 in., TimeSaverCN72(TM) Shipper maintains 2-8°C throughout shipment in extreme cold shipping environments. Container is pre-qualified against temperatures down to -25°C for 72+ hours. Using VIP and PIR insulating materials, shipper is commonly used for temperature-sensitive pharmaceuticals, drugs, clinical trials, and biologicals.

GF Piping Systems    Tustin, CA 92780-7258
Jan 31, 2012 Offered in panel or field mount versions, Signet 9900 SmartPro(TM) Transmitter provides single-channel interface for multiple parameters including flow, pH, ORP, conductivity/resistivity, pressure, temperature, level, and salinity. Backlit display, measuring 3.90 x 3.90 in., shows separate lines for units, main, and secondary measurements as well as dial-type digital bar graph. HART module allows communication with any HART® enabled device, as well as remote adjustment of 4 and 20 mA settings.

Meyda Tiffany    Yorkville, NY 13495
Jan 31, 2012 Measuring 17.5 in. wide with 19-54 in. height range from ceiling, Tuscan Vineyard Six Light Chandelier features frosted red wine bottle in center of ceiling fixture surrounded by 6 arms and candelabra bulbs. Hardware and canopy are hand-finished in Textured Timeless Bronze that will complement broad range of interior décor schemes. All styles are available in frosted or transparent colored glass.

Meyda Tiffany    Yorkville, NY 13495
Jan 31, 2012 Measuring 72 in. wide, Dakota 4-Tier Chandelier is designed with 4 ringed tiers featuring total of 52 Carmel Onyx Acrylic shades. Each shade is 5 in. wide and 8.25 in. tall. Hardware, canopy, and frame are hand-finished in Textured Timeless Bronze finish that will complement broad range of interior décor schemes. With height from ceiling ranging from 75-255 in., chandelier is suited for residential foyers, hotel lobbies, retail, hospitality, and commercial applications.

GAO FiberOptics Inc.    Toronto   Canada
Jan 31, 2012 Using visible red light, handheld model C0280003 indicates location of faults in single- and multi-mode fiber from macro bend point, break, problem coupler or connector, or mechanical splice that is not well aligned. Portable unit operates at 650 nm ±20 nm and can distinguish faults in fiber jumpers, jumper boards, distribution frames, and tie-ins. In addition to FC, ST, and SC adaptors, CW and 2 Hz alternative optical output modes are available.

Haydon Kerk Motion Solutions    Waterbury, CT 06705
Jan 31, 2012 Along with force output of 70-260 N and output resolution from 0.0005-0.004 in. per step command, 36 mm G4 linear actuator features adapter plate that lets this 36 mm OD unit replace existing size 17 hybrid stepper motor linear actuators. Optimized teeth geometry and high-energy neodymium magnets promote continuous force output rating, while custom-engineered plastics and size of bearings maximize rotor support and axial load capability. There are 3 configurations available.

Maple Systems Inc.    Everett, WA 98204

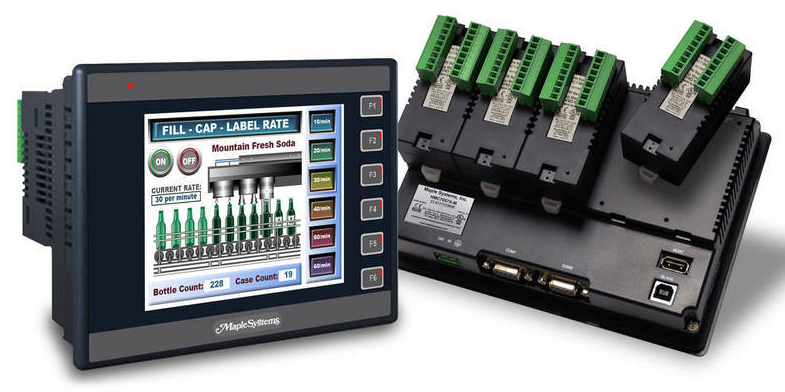

Jan 31, 2012 Combining HMI and PLC into one unit, HMC (Human Machine Controller) accepts up to 5 plug-in I/O modules with varying configurations of digital and analog inputs and outputs. Touchscreen display size options include 3.5 and 5.7 in., and 6 function keys are adjacent to screen. In addition to stand-alone operation, HMC can integrate with existing system serially and supports multiple communication protocols. One software application can be used to program both graphic interface and ladder logic.

Phoenix Contact    Harrisburg, PA 17111 0100
Jan 31, 2012 Made from PVC material with V0 inflammability rating as per UL 94, Wire Ducts range in size from 25-120 mm and come in 2 m lengths. Units are UL and CSA approved with flexible fingers that will not snap when user runs wire through them. Notched score line eliminates need for notching pliers to break off fingers, while cover's contour allows it to snap on and fit securely. Applications include biotech, natural gas, and food industries.
