Werth America, Inc.    Orchard Park, NY 14127

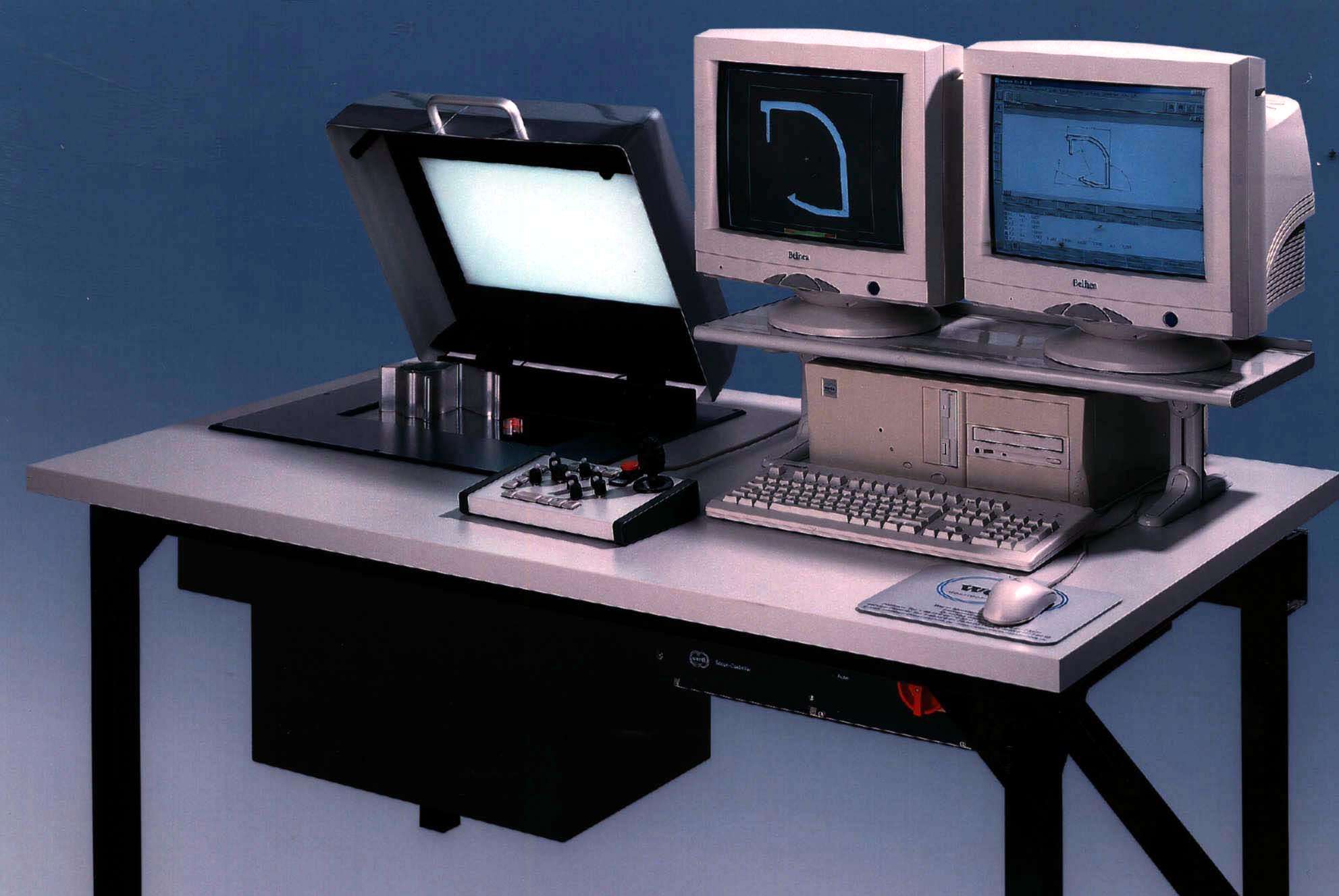

Jan 13, 2003 Flatscope 2D CMM features window where workpiece is placed. Cover closes over part and provides profile illumination. CCD camera and optics are beneath glass, and ring light underneath provides surface illumination for measurement of features where transmitted light is not possible. Maximum measuring range is 400 x 200 mm, and parts can be up to 100 mm in height. Choice of fixed or zoom lenses provides overall 2D accuracy down to 0.00035 in.

Arista Corporation    Tustin, CA 92780-2137

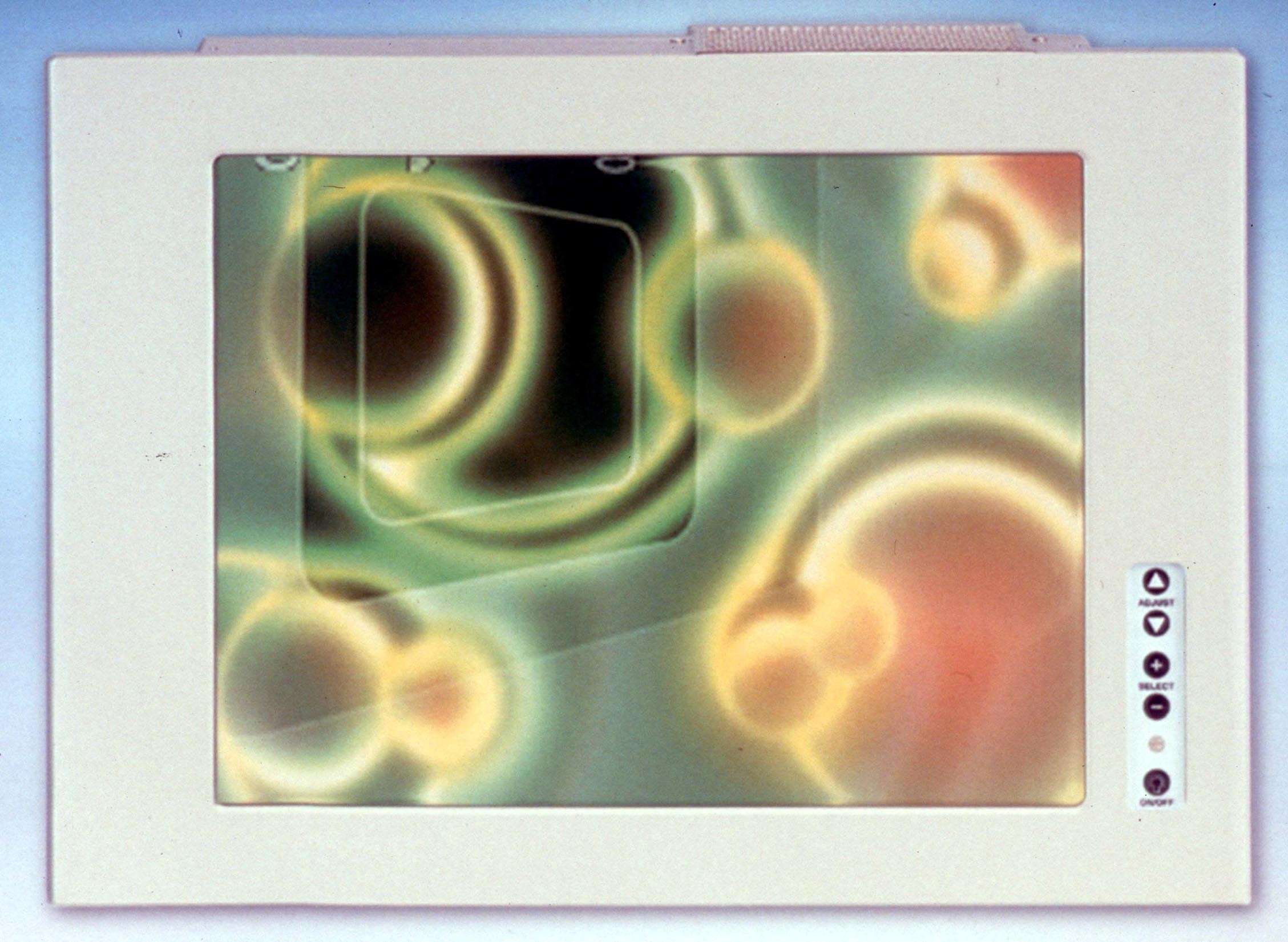

Jan 13, 2003 Modular Model ARP-1715, with Intel® Pentium® III or Celeron processor, features 15 in. color TFT LCD display, with 1024 x 768 resolution and ELO AccuTouch touchscreen. NEMA 4/12- and IP65-compliant waterproof front panel is equipped with sealed, aluminum front bezels and steel chassis. PC supports up to 512 Mbyte memory and includes 2.5 in. hard disk drive, CD-ROM, FDD, and 10/100Base-T Ethernet controller. Applications include medical, point-of-sale, and industrial automation.

Scientific Technologies Inc.    Fremont, CA 94555
Jan 13, 2003 MicroSafe® Flexible MCF4700 Series consists of at least 2 transmitter and receiver segments, controller, and interconnecting cables. Transmitter/receiver measures only 1.0 x 1.1 in., allowing use on small machines. Response time is 6.69 msec with resolution up to 12 mm. Standard segmented lengths from 3.9 to 71.0 in. are available and are connected with 6 in. to 42.8 ft interconnect cable. Low-ESD models and DeviceNetâ„¢ interface are available.

Danfoss VLT Drives    Loves Park, IL 61111

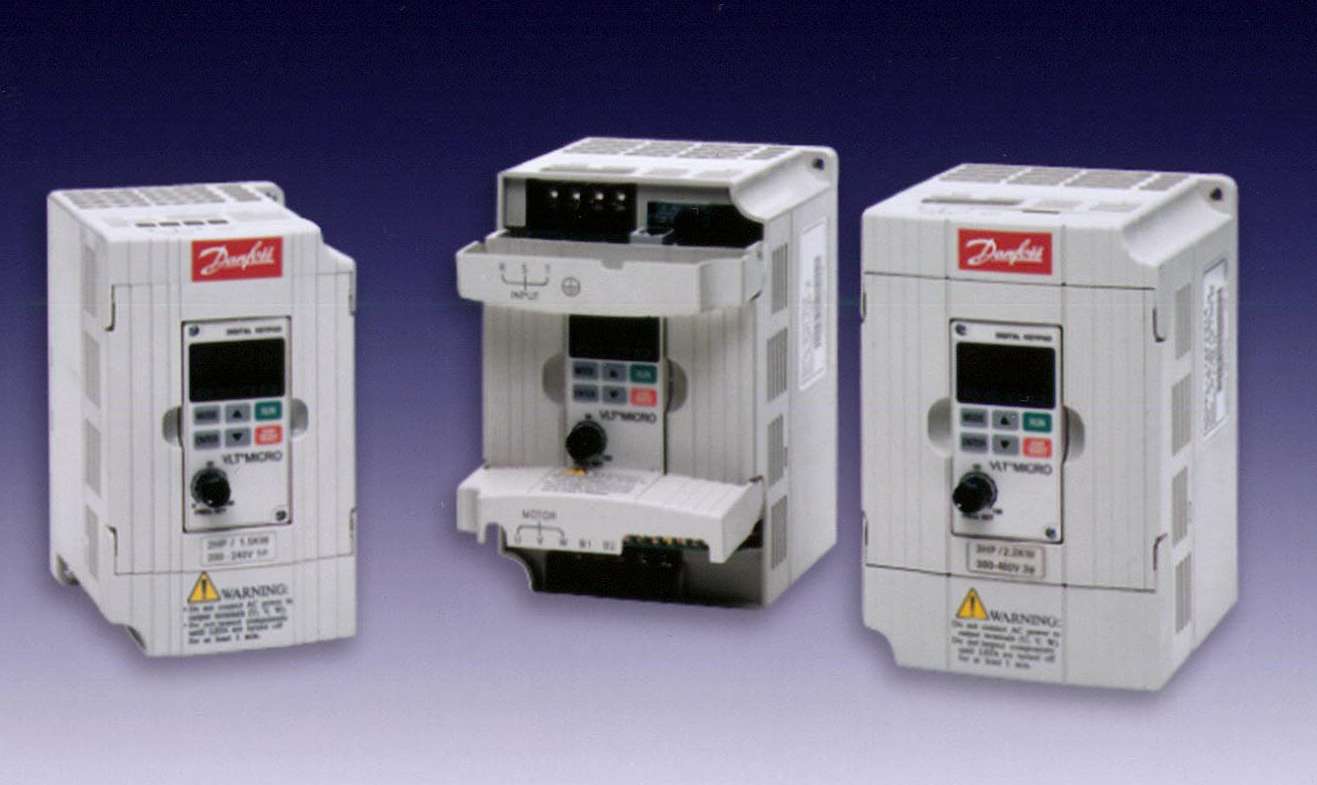

Jan 13, 2003 VLT® MICRO Drives are offered in ½-5 hp range for 230 Vac applications and 1-5 hp for 460 Vac applications. Digital keypad/display module is mounted to front panel. Units include programmable digital input and outputs, overload current to 150% of rated current for 1 minute, automatic voltage regulation, S-curve or linear ramp profiles, momentary power failure restart, and panel or DIN-rail mount. Applications include conveyors, pumps, and fans.

SK Daifuku    Salt Lake City, UT 84116
Jan 13, 2003 Piece-Picking System features high-speed box buffer, which handles up to 300 cases/hr, automatically replenishing flow rack. Piece Sorter has multiple chutes that can each handle many small orders or single large one. Order consolidation station allows accurate configuration of many small orders to multiple customer locations. Warehouse Rx® WMS controls system and uses operational data to allow assignment of resources where most needed.

Woodhead Connectivity    Northbrook, IL 60062-1892

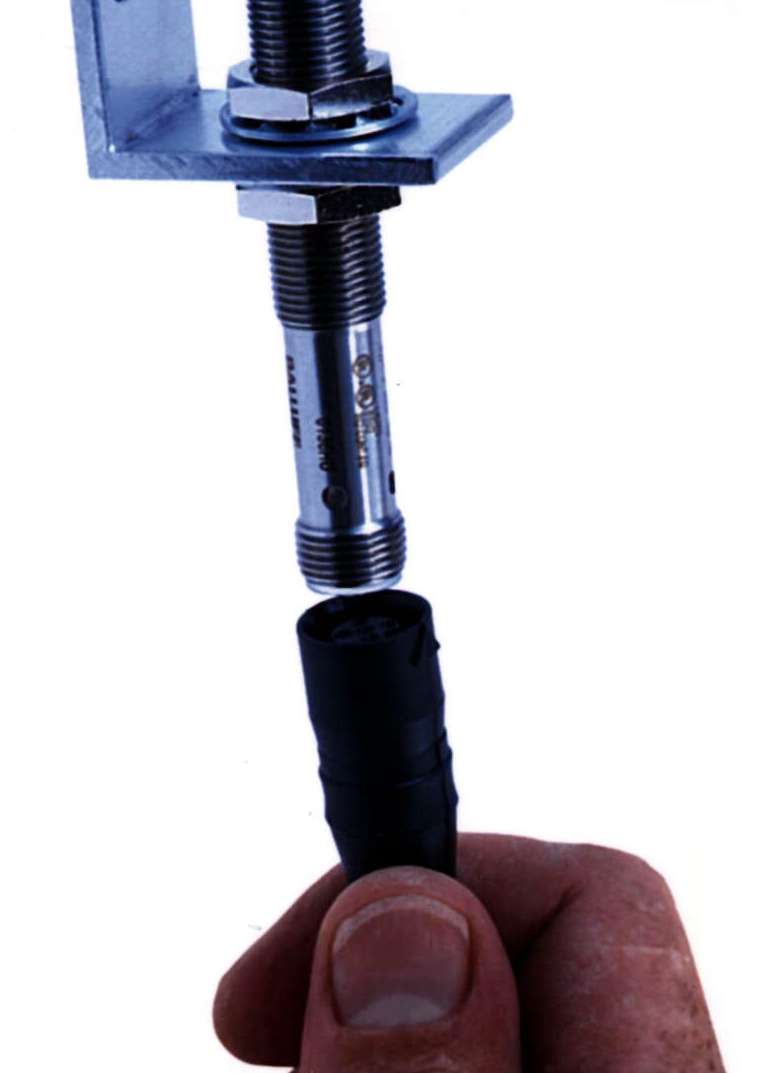

Jan 13, 2003 One-piece double ended Micro-Pushâ„¢ M12 connector allows twist-free coupling of control components while providing IP64 protection and vibration resistance. Alignment of arrow on connector with keyway on mating sensor simplifies connection. Suitable for joining large numbers of proximity sensors directly to controllers, connectors are available in straight or right-angled forms and 3 or 4-pole configurations.

Beckman Coulter, Inc.    Fullerton, CA 92834-3100

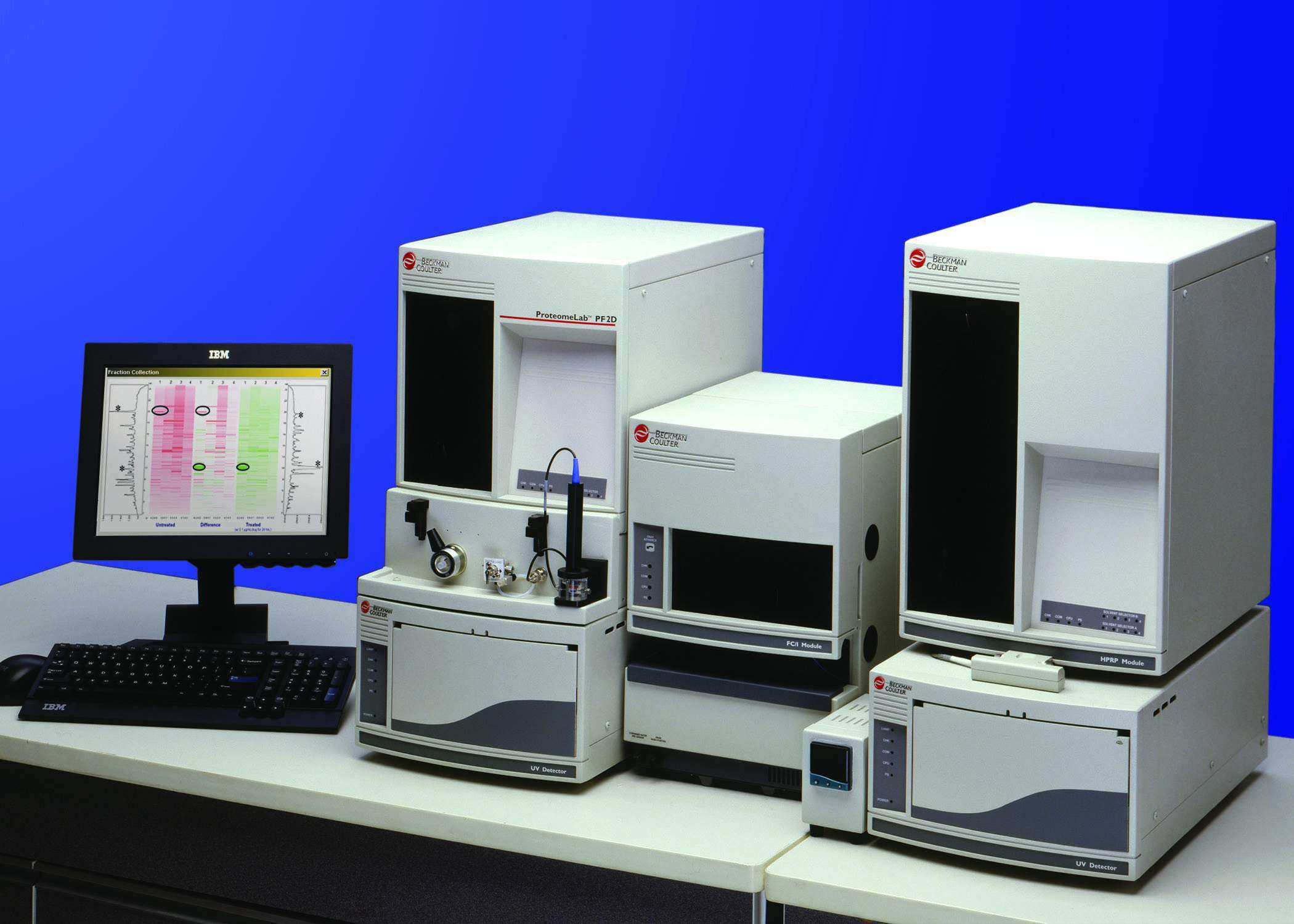

Jan 13, 2003 ProteomeLabâ„¢ PF 2D automated system resolves thousands of proteins present in cell lysates, producing results in hours. In first dimension, chromatofocusing separates proteins according to their pI, providing information that can be related to traditional isoelectric focusing techniques. Fractions from first dimension are collected and injected into second dimension, which separates on basis of hydrophobicity. Software displays both 1D and 2D maps of expressed protein profiles.

Beckman Coulter, Inc.    Fullerton, CA 92834-3100

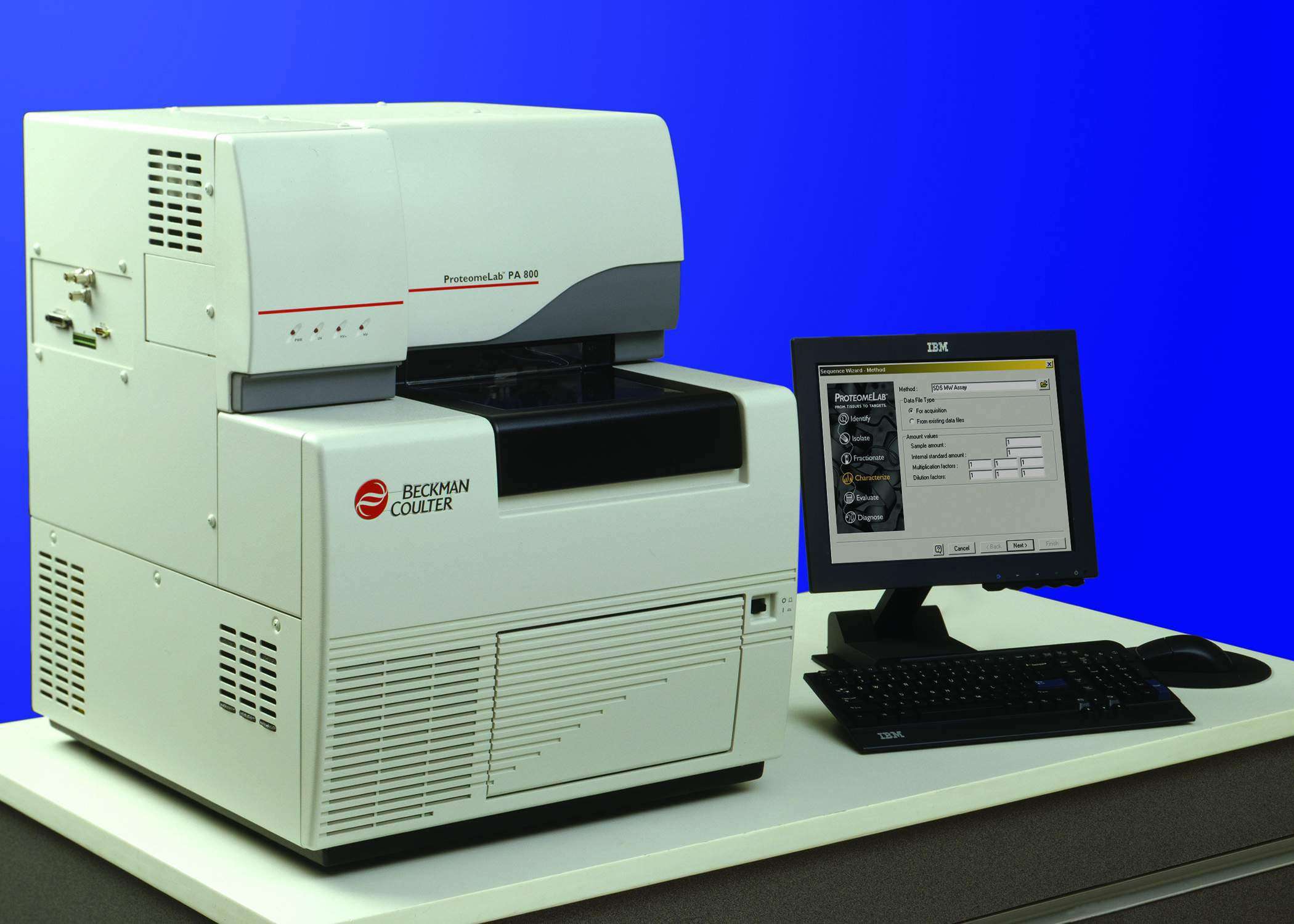

Jan 13, 2003 ProteomeLabâ„¢ PA-800 Protein Characterization System provides automated, high-resolution analysis of proteins. It offers molecular weight determination, peptide mapping, isoelectric focusing, carbohydrate profiling, and mechanisms to study protein/protein interactions in solution. Unit works with ProteomeLab PF 2D 2-dimensional protein fractionation system that resolves proteins in liquid phase. PA-800 includes chemistry, software, training, and support.

Keyence Corporation of America    Elmwood Park, NJ 07407

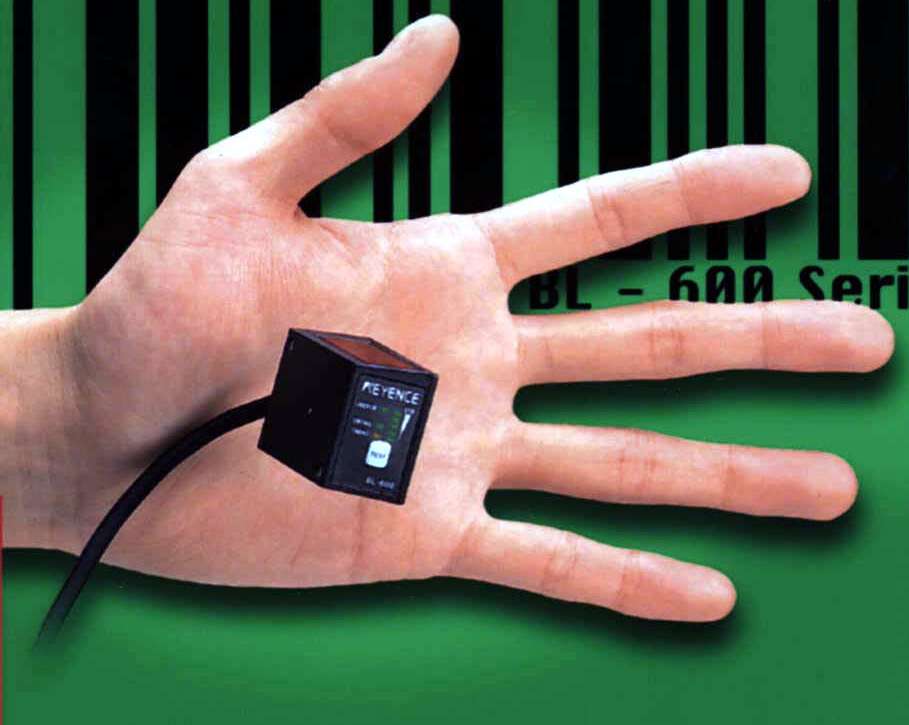

Jan 13, 2003 Using polygon mirror scanning technology, Series BL-600 laser scan bar code reader operates at 500 scans/sec, reads bars as thin as 0.125 mm, and operates at distances up to 330 mm. Specular Reflection Cancellation circuit operates in conjunction with Automatic Gain Control to eliminate reading errors caused by highly reflective backgrounds. Preventative Maintenance feature monitors and reports reading performance to detect potential reading error problems.

Balzers, Inc.    Elgin, IL 60123
Jan 13, 2003 Diamond-like BALINIT® TRITON, for machining aluminum alloys and other non-ferrous metals, has hardness rating of over 2,500 HV 0.05 and low coefficient of friction (against dry steel: 0.1 to 0.2). With temperatures up to 660°F at cutting edge, adhesion-reducing properties of product prevent material adherence to tool. Coating is suitable for drilling, reaming, milling, turning, recessing, and tapping applications, and also suits polycarbonates, and other plastic materials.

Logility Inc.    Atlanta, GA 30305
Jan 13, 2003 Logility Voyager Solutionsâ„¢ suite v6.5 helps reduce supply chain costs, optimize inventory investments, and increase sales through real-time visibility, optimized supply chain planning and execution, and sales and operations planning. Software provides web-based visibility of supply chain events and summarizes performance indicators that enable optimal inventory investments and provide decision support.

Northeast Robotics, Inc.    Weare, NH 03281
Jan 13, 2003 Series R-100-1 Ring LED Illuminator, with 36 LEDs, and Series R-100-2, with 72 LEDs, have 100 mm OD and 69.5 mm ID. Models include diffused, non-diffused, and focused lensing, with red or white LEDs, and 12 or 24 V continuous and 24 V strobed power options. Series R-100-2 is for applications requiring low-contrast features, small fields of view, and large subject-to-light distances. Lensing, LED circuitry, and housing are secured together with threaded lock ring.

LMI Technologies Inc.    Southfield, MI 48075
Jan 13, 2003 Sensor tracks object displacements and running profile changes at speeds of up to 200 kHz and resolves thickness variations as fine as 0.007 µm. Sensor, with twin-viewing axes, has 30 µm dia laser spot size, observation angle of 43°, and stand-off of 0.6 or 1.18 in. It automatically compensates for differences in object color and surface, and tracks pits, surface textures, and increases in object height. Measuring range is 0.04-0.79 in.

United States Data Corp.    Richardson, TX 75080 2722
Jan 13, 2003 Leveraging .NET Framework technology, FactoryLink v7.1 incorporates servers, clients, utilities, and development tools. Offerings include bi-directional connectivity via XML connector, dynamic branching that allows for hierarchical substitutions of tag groups at run or development time, and standards-based scripting. Product also offers trending and alarm viewing ActiveX controls as well as support for multi-user applications and migration from previous versions.

Aalborg Instruments & Controls, Inc.    Orangeburg, NY 10962

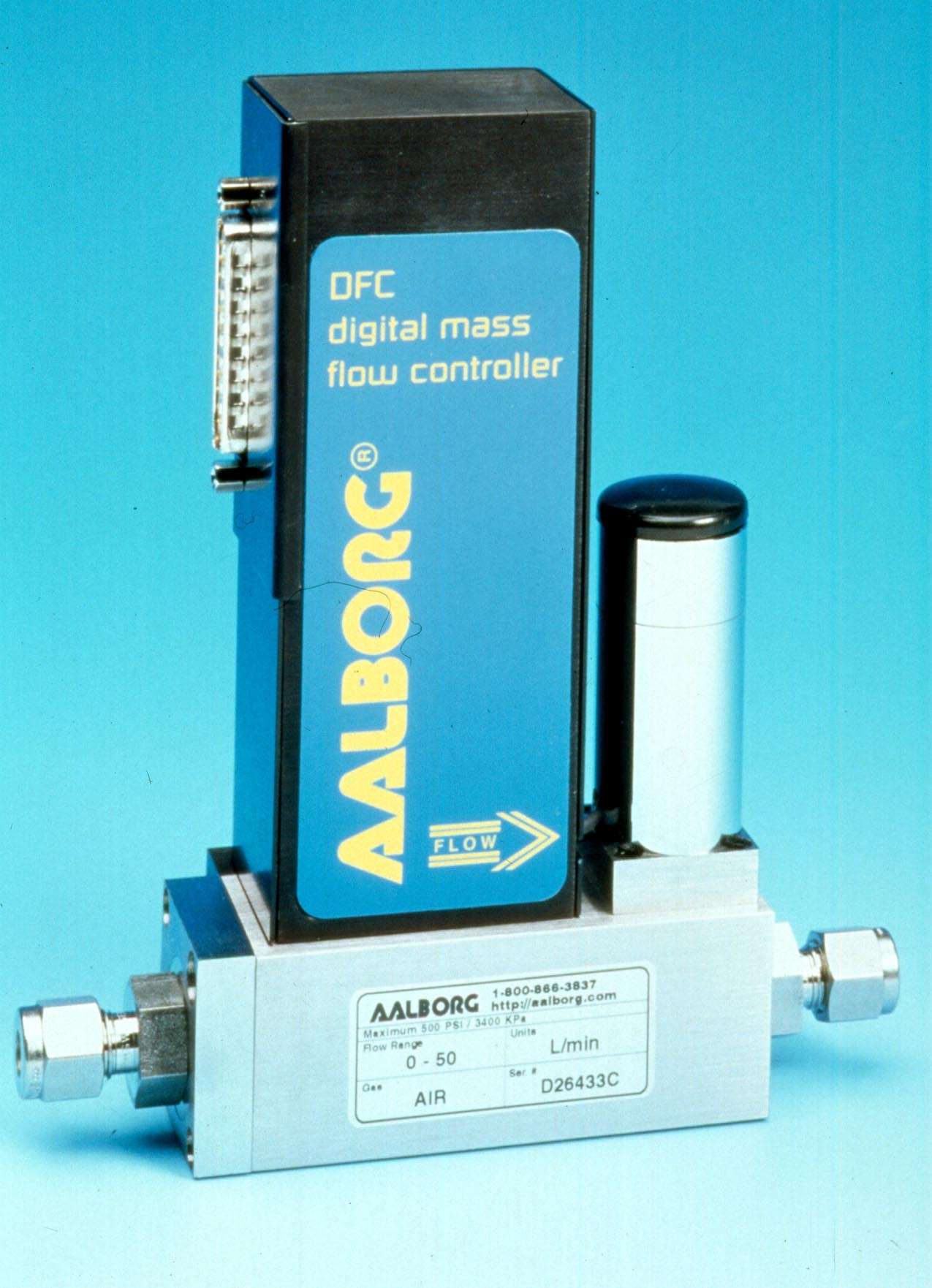

Jan 10, 2003 Digital Flow Controller allows user to program, record, analyze, and control flow rates of various gases with computer via RS-485 interface. Auto zero feature utilizes automatic balancing circuit that virtually eliminates drift of zero and span. On-board memory enables each controller to store NIST-traceable calibrations for up to 10 gases. Maximum flow is 100 sL/min and max gas pressure is 500 psig. Output signals include 4–20 mA, 0–5 Vdc, and 0–10 Vdc.

Rose Plastic USA, L.P.    California, PA 15419 0698
Jan 10, 2003 UniBoxes provide protective packaging in square and rectangular configurations. Available in various sizes, they are suitable for use with tools, office and school supplies, craft materials, and promotional items. Boxes are stackable, reclosable, and reusable. Offered with hanging loops for display purposes, products can also be silk-screened. They are available transparent and in various opaque colors.

J-Works, Inc.    Sylmar, CA 91342

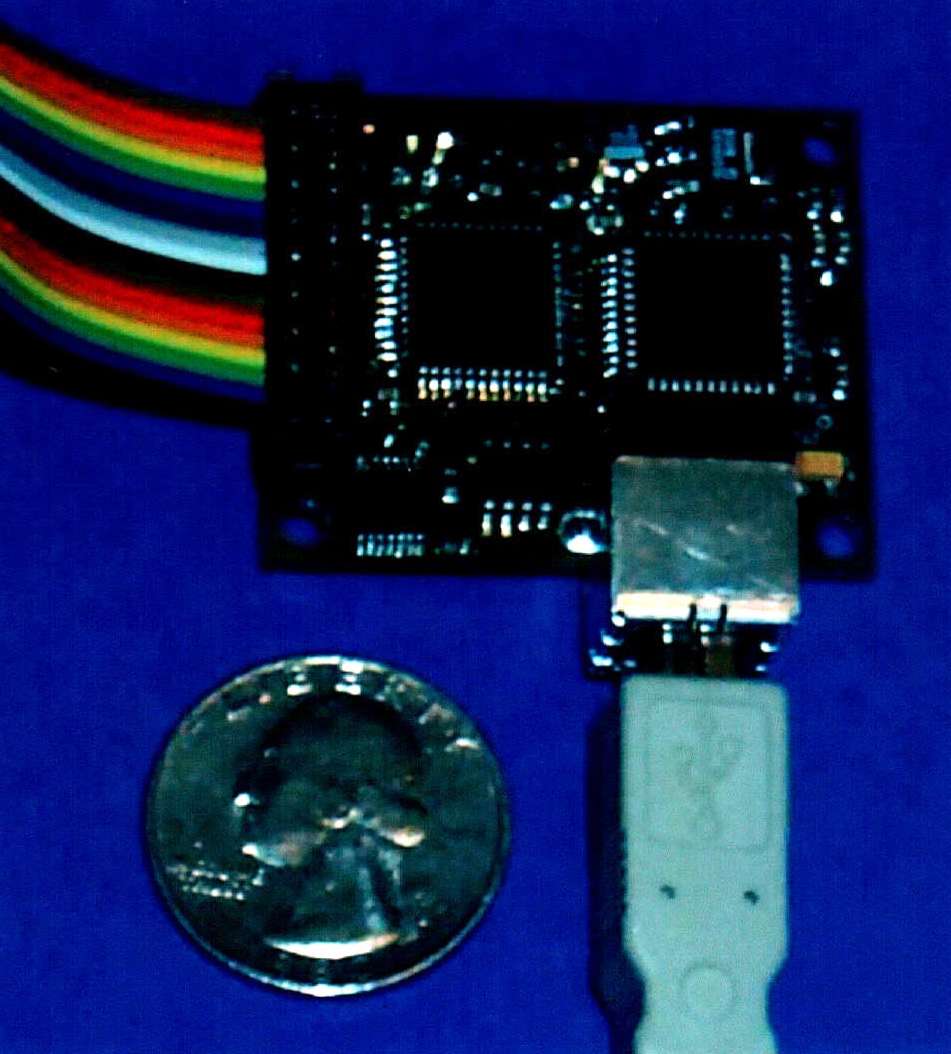

Jan 10, 2003 Model JSB815 provides complete control of all LCD text displays that have industry-standard HD44780 controller. It provides control and display power from any USB port and is suitable for use in multiple stand-alone or system type data acquisition and control applications. Unit interfaces with any LCD configuration, from one-line displays to units with dual controllers and multiple lines of text.

Sentech, Inc.    North Hills, PA 19038
Jan 10, 2003 Series 42DC process LVDT sensors are offered in measurement ranges from 1.000–20.000 in. with 8 intermediate ranges. They utilize 3-wire connection, operate from unregulated 24 Vdc, and provide output of 4–20 mA, permitting transmission of signal over long distances with immunity to noise and interference. Units have stainless steel housings with epoxy seal. Each includes integral miniature signal processor utilizing SMT and ASIC technology.

Estimating Systems, Inc.    Forestdale, MA 02644
Jan 10, 2003 PULSAR® Construction Cost Estimating Software 2003 is suitable for military, government agencies, and state-funded institutions using Job Order Contracting and Simplified Acquisition of Base Engineering Requirements methodologies for construction bid delivery. Crystal Reports format provides concise exporting of customized reports to spreadsheets and document files. RS Means Cost Database includes over 40,000 construction line items for 715 geographic areas.

Unex Manufacturing, Inc.    Jackson, NJ 08527
Jan 10, 2003 Add-On Pick Tray option for Span-Track models converts existing rack into split case picking system, and eliminates need for additional pallet rack or reworking components. Galvanized steel tray is 15 in. deep and sits on 30° pitch, which tips box toward picker, improving view and accessibility. Full width label holder provides product identification. Tray can be added to any pallet rack with carton flow and integrates with pick-to-light systems.
