Fowler, Fred V., Co., Inc.    Newton, MA 02466
Jan 10, 2003 Checkmatic internal/external gauge measures center axis distances, thread rolls, and internal/exterior grooves. It also determines precise bearing face distance, concentricity, hole position and center distance, internal recess diameters, internal and external splines, and slot and undercut depth. With switchable solution of 0.0005/0.00005 in., product incorporates inch-metric conversion, preset and preset recall, zero settings, memory hold, tolerance input, and RS-232 input.

Dispensing Technologies International Corp.    Clinton, MA 01510-2412
Jan 10, 2003 Portable, cordless, hand-held EZ-mix®HI consists of motorized hand gun with light-touch trigger and Drip-Freeâ„¢ design that minimizes oozing from mix-tip after releasing trigger. Able to dispense materials with viscosity over 1 million cps in under 1 min, rechargeable, battery-powered tool eliminates repetitive squeezing. Dispenser, constructed of ABS plastic, has hardened-steel drive mechanism and variable-speed motor control. DC motor produces up to 200 lb of force.

Larco    Brainerd, MN 56401-0547
Jan 10, 2003 Ergonomic presence-sensing Comfort Step mat reduces worker fatigue while guarding personnel against injury from hazardous machinery. Switch on mat acts as safeguarding device, stopping dangerous machinery to load or unload stations, and change tools. Applications include places where liquids and fluids may be present, plastic blow-molding machines, assembly machinery, water-jet machines, automated material handling, and packaging machinery.

Greenheck Fan Corp.    Schofield, WI 54476 0410
Jan 10, 2003 Extruded-aluminum Model ESID-430 provides air-exhaust blades and intake blades within common frame, limiting short cycling of air. It includes drainable head and sloped sill to maximize resistance to water carryover. Models ESJ-401LT and ESD-403LT are lighter-weight versions of existing non-drainable blade and drainable blade louvers. They come with stationary, extruded-aluminum blades.

National Instruments Corp.    Austin, TX 78759-3504
Jan 10, 2003 With no fixed memory limits, LabVIEW graphical development environment creates real-time embedded measurement applications. It incorporates true protected memory, preemptive multitasking, and advanced memory management, allowing users to create applications or virtual instruments for acquiring, analyzing, and presenting technical data. Diagrams can execute in parallel manner using OS to break complex processes down into multiple threads.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Jan 10, 2003 Interposer, Spring Probe, and Microstrip Contact(TM) test sockets are 63.5 x 63.5 x 88.9 mm and can be used in packages up to 27 x 27 mm. They include built-in thermistor and copper heat sink with integrated fan assembly. Conduction-cooling system makes sockets suitable for BGA, LGA, and CSP package designs used in high-powered devices. Temperature range with thermoelectric cooling is 5-194°F, with max differential temperature of 158°F.

Hines Industries, Inc.    Ann Arbor, MI 48108
Jan 10, 2003 Eliminator-10 balances family of small parts including turbine components, impellers, armatures, pulleys, dampners and blowers, with capacity up to 10 lb. Parts are dynamically balanced using hard cradle suspension and underslung belt drive, ensuring permanent calibration. Software displays amount of unbalance and angle of unbalance. Single plane and 2 plane capability is standard.

Dylon Industries, Inc.    Cleveland, OH 44144 1045
Jan 10, 2003 Heavy-duty, water-based Grade FW-3382 forges warm or hot ferrous metals and is suitable for use on jobs that involve upsetting or extrusion. Product can be used on dies with temperatures from 225–600°F and does not build up. Synthetic dilutes with water, including hard water; dilution ratios are typically 10:1 or greater.

Eagle Technology, Inc.    Mequon, WI 53092
Jan 10, 2003 EAM/CMMS software, ProTeus III v9.0, supports interfaces to Tridium® Vykon controllers, Invensys® IA series controllers, Invensys® InVue workstation, Staefa®'s Talon controllers, Honeywell®'s UNC, and Carrier® CCN system. Interfaces allow automatic activation of work orders based on real-time control parameters. Software provides preventive and demand maintenance work orders, calendar functions, asset tracking, repair parts inventory management, purchase requisitions, and list of reports.

Acromag, Inc.    Wixom, MI 48393 7037
Jan 09, 2003 BusWorks® 965PB Input Modules interface thermocouple and millivolt signals directly to ProfiBus-DP network. With up to 6 channels of input, modules support operation on 12–36 Vdc power supplies and support communication rates up to 12M baud. Features include user-selectable ranges for sensors and signals, sigma-delta 16-bit A/D converters, built-in CJC sensors, and thermocouple break detection. Three-way 1500 Vac isolation protects against surges and ground loops.

Royal Machine & Tool Corp.    Berlin, CT 06037
Jan 09, 2003 With 21 in. dia, 3-Jaw Work Positioner grips and locates jet engine compressor housings for CNC deburring operations. It provides 1.00 in. jaw movement (2.00 in. on diameter), while 2 sets of top jaws provide grip diameter range from 6-36 in. Additional applications include water jet cutting, material handling, palletizing, and depalletizing.

CrossTec Corp.    Boca Raton, FL 33431
Jan 09, 2003 NetOp Remote Control v7.5 supports most Windows platforms and allows users to remote control Linux and Solaris servers, even when using hand-held Windows CE devices. Security Server module is available for fault-tolerant centralized control of authentication, user rights, and event-based audit trails. Application also provides modular code, screen transfer algorithm, and rapid screen updates.

Ermanco, Inc.    Spring Lake, MI 49456 9652
Jan 09, 2003 Model NBA-23â„¢ live roller, zero-pressure accumulation conveyor eliminates all line pressure and employs narrow, ultra-high-strength belt that allows conveyor lengths up to 300 ft. Total lack of metal lacing reduces noise, as does product's hollow shaft direct drive, which eliminates need for all chains, sprockets, and chain guards. Additional offerings include helical gear reducer and CRUZcontrol electronic sensing logic package.

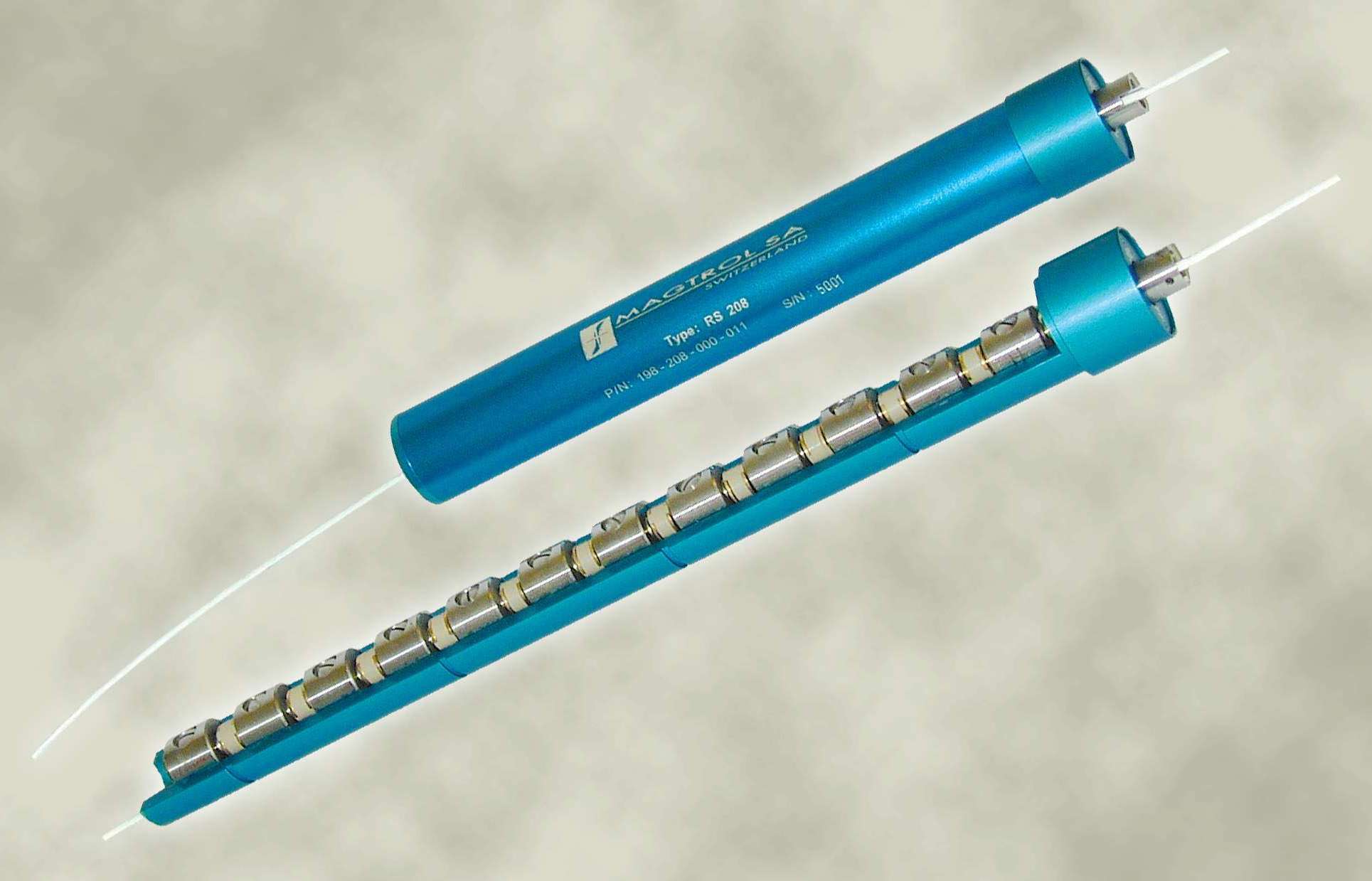

Magtrol, Inc.    Buffalo, NY 14224
Jan 09, 2003 Products transmit electrical measurement signals from rotating part to stationary measurement system or PC and do not contain slip rings. Offered with choice of 4, 8, or 12 channels, they operate up to 40,000 rpm. Features include resistance of less than 0.2 milliohms, noise of less than 25 mV, and signals up to 0.5 A/cell, 60 V AC/DC. Units are suited for use in aerospace, machinery, paper, and automobile industries.

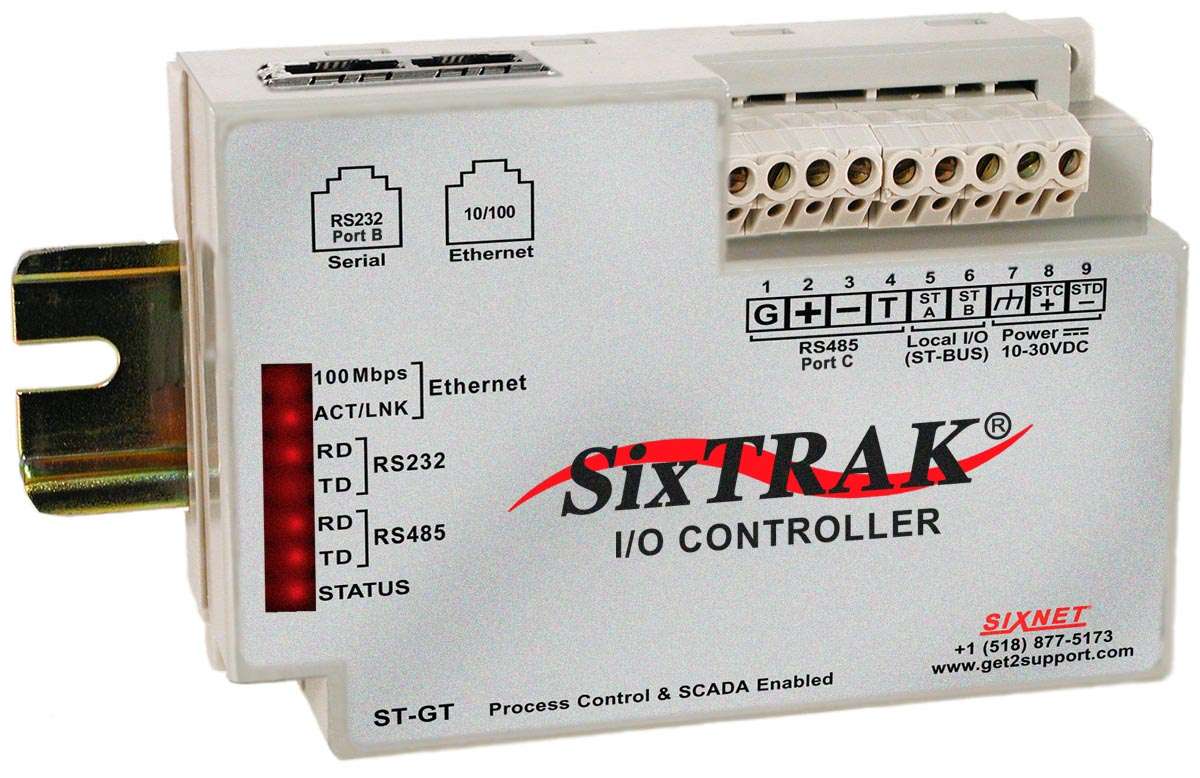

Sixnet    Clifton Park, NY 12065 0767
Jan 09, 2003 SixTRAK® Model ST-GT-1210 entry level Controller/Remote Terminal Unit (RTU), for SixTRAK I/O Gateways, includes 10/100 Ethernet, RS232, RS485, and ST-BUS I/O ports. It interfaces to thousands of I/O, runs ISaGRAF IEC 61131-3 programs, performs datalogging, and interfaces to 3rd party Modbus devices, all in real-time. Features include process control and SCADA functionality. Operating temperature range is -40 to +70°C.

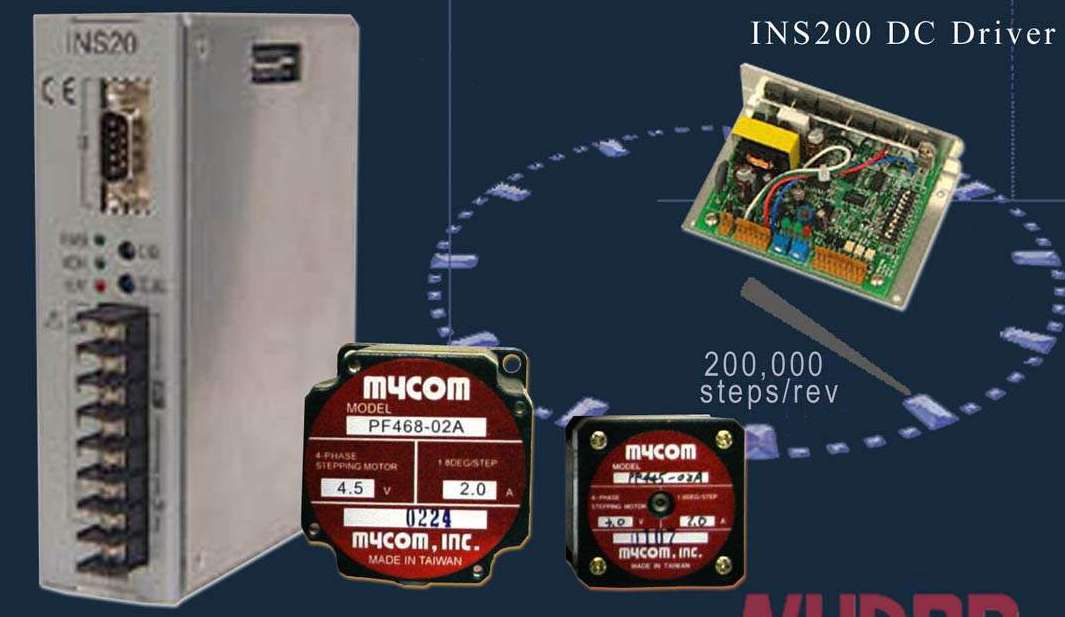

Nyden Corporation    San Jose, CA 95134
Jan 09, 2003 Equiangular INS20 NanoDriveâ„¢ Series is CE-rated and includes basic step of 1.8º and 16 resolution modes. Unipolar 2-Phase/4-Phase motor driver is available in AC and DC versions to power stepper motors in NEMA sizes 17 and 23 of the 4, 6, and 8 lead variety. Product's 16 equiangular resolution setting controls are programmable from 1/1 to 1/1000 step. Single intelligent torque chip in driver affords resolution programmable settings to rotate attached motor 360º.

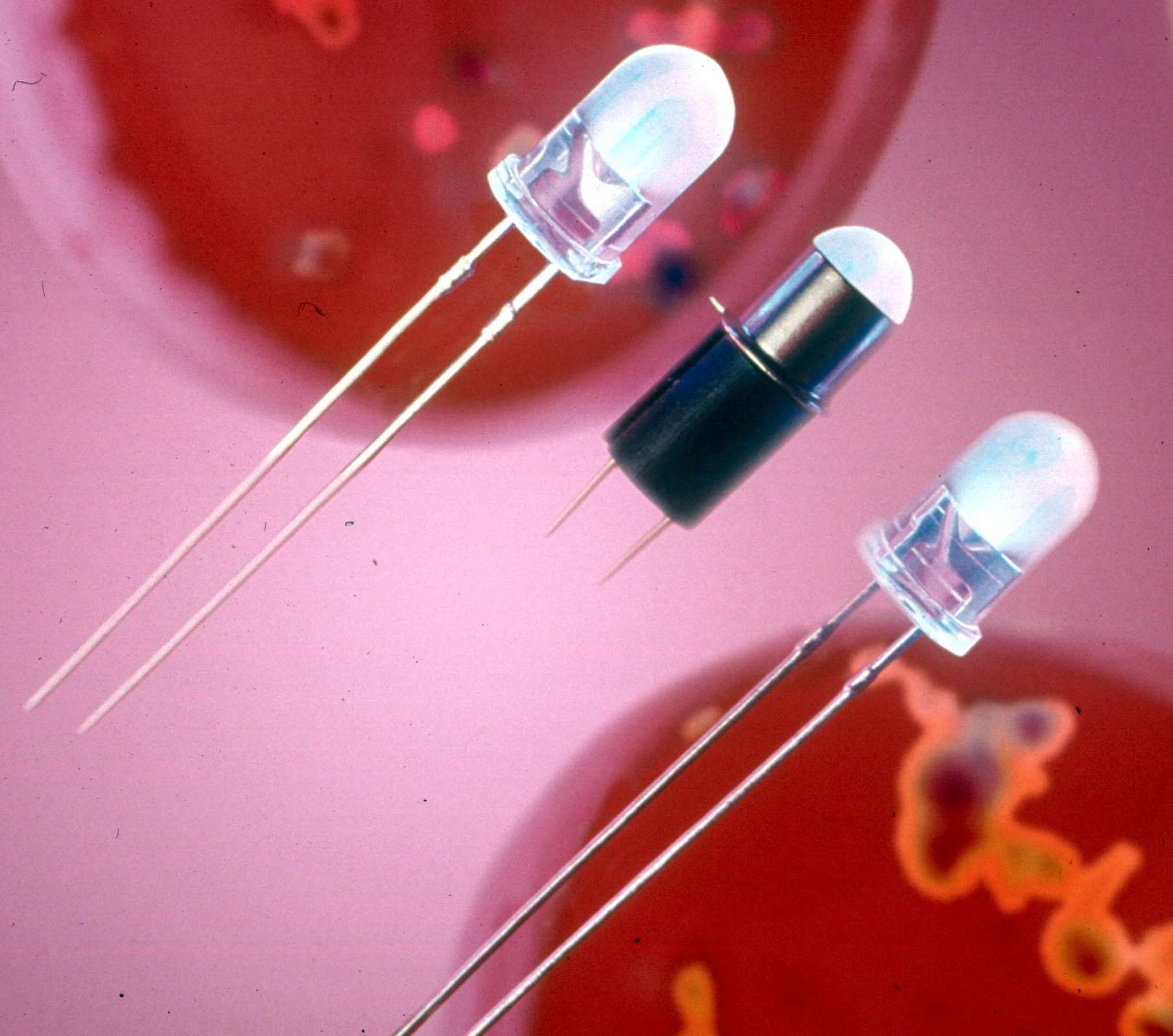

LEDtronics, Inc.    Torrance, CA 90505
Jan 09, 2003 T1¾ Ultraviolet Discrete Light Emitting Diodes incorporate semi-conductor compounds to produce ultraviolet emissions in 370 nm, 390 nm, 395 nm, 400 nm, 405 nm, and 410 nm wavelengths. LEDs are available in narrow and wide emission angles with solid-state design. Impervious to electrical and mechanical shock, vibration, frequent switching, and environmental extremes, LEDs have average life span of 100,000+ hours.

AirLoc Products    Franklin, MA 02038
Jan 09, 2003 PAD-PAK® Vibration Control Pads are prepackaged to provide proper leveling and loading for machines having 4 points of support. Offered in 45 durometer neoprene, for low-frequency applications, and 70 durometer nitrile, for high damping, each set contains 4 base pads and 4 shim leveling pads. Cross pattern on tops and bottoms assures stable, non-slip surface. Sizes range from 2–10 in. sq with varying thickness to support machine weights from 200–20,000 lb.

Carbis Inc.    Florence, SC 29502 6229
Jan 09, 2003 Powered Tarping System eliminates need for worker to climb on back of trailers or on top of loads. Operator connects tarp to spreader bar and guides tarp along length of trailer via hand held pendant control and powered winch system. Tarping system can be customized to fit specific applications and is available in variety of materials. Optional platform and stairs provide safe access to side of trailers.

ILX Lightwave Corp.    Bozeman, MT 59771 6310
Jan 09, 2003 Model OMH-6780B or 6790B Power/Waveheads with OMM-6810B Optical Multimeter or LPA-9080 Series Parameter Analyzer measure up to 10 W and wavelength within 0.2 nm. Fiber exit port allows connection to OSA to make spectral measurements.
