National Instruments Corp.    Austin, TX 78759-3504

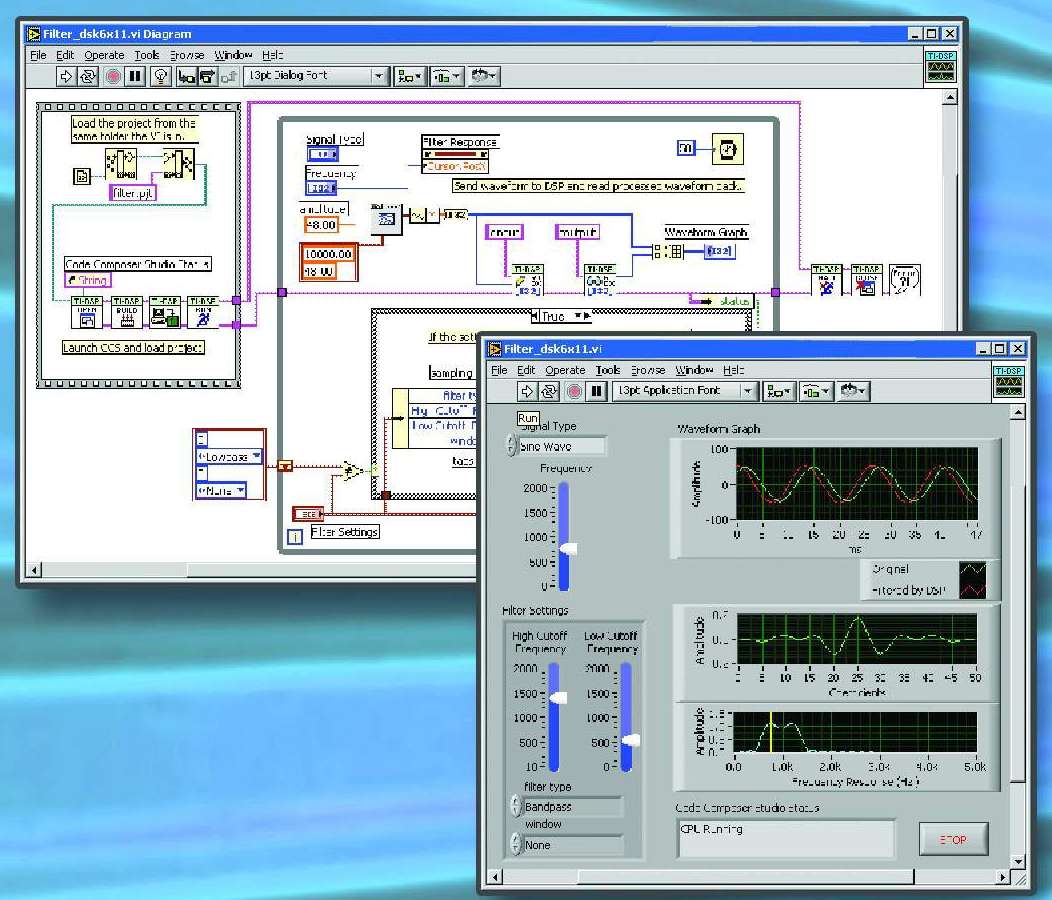

Dec 11, 2002 LabVIEW DSP Test Integration Toolkit integrates LabVIEW graphical development environment with Code Composer Studio development tools. Toolset integrates measurements throughout design process. As eXpressDSP-compliant plug-in, toolkit automates routine functions such as build and run, and communicates test data directly to and from DSP chip memory. Engineers can read/write data internal to DSP chips and view/control test data in real-time at speeds up to 2 MB/s.

Unitek Miyachi Lasers    Monrovia, CA 91017 7133
Dec 11, 2002 Micron Series Laser Welder with CNC motion system provides sub-micron XY positional resolution of 100 nm and bi-directional repeatability of 500 nm. A Series pulsed Nd:YAG lasers produce focused spot sizes of 25 microns and incorporate pulse shaping for 20 programmable segments. Available models are MX40 for limited floor space; SMX40 for jobs that require long work envelopes; and MX60 for XY travel of up to 450 mm.

Gorman-Rupp Industries    Bellville, OH 44813

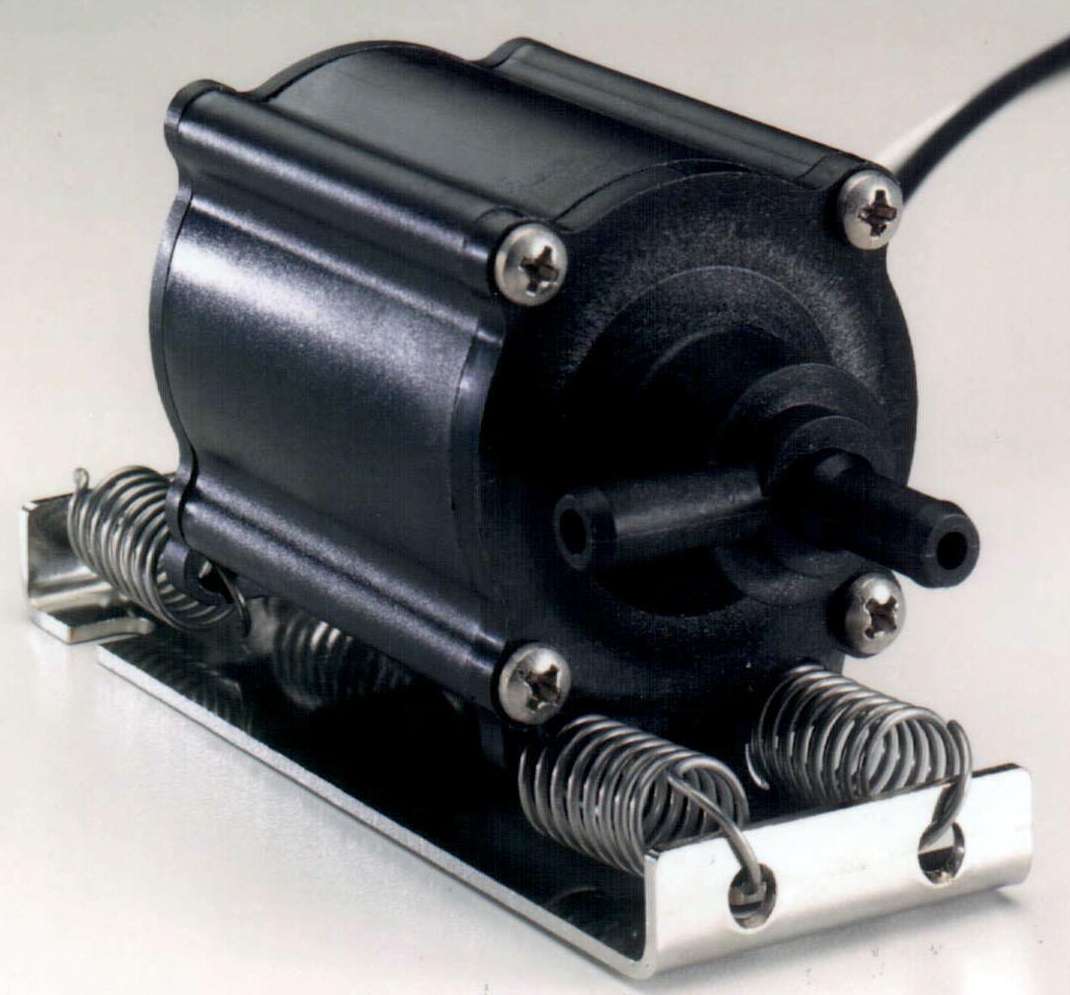

Dec 11, 2002 Pump utilizes oscillating and diaphragm technology for use as transfer or recirculation pump. Duckbill/umbrella valve does not require external sealing and wetted materials are constructed of FDA approved materials. Offerings include flow rates to 350 ml/min and discharge pressures to 35 psi. Unit can self prime to 5 ft. If pump is under continuous operation, fluid temperatures range to 104°F. Applications include analytical, medical, and laboratory instruments.

Generation Electronics    Lowell, MA 01851-2729
Dec 11, 2002 Custom Cable Harnesses can be constructed from materials for temperature variations from -40 to +100°C and for use in vacuum enclosures. They can withstand flexing, vibration, water, and corrosives. Harnesses are offered for signal loss applications down to 1 mOhm and for voltage systems up to 10 KV. Fabricated from 4 to 30 Ga wire, all harnesses are 100% electrically and mechanically tested and UL/CSA approved.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214

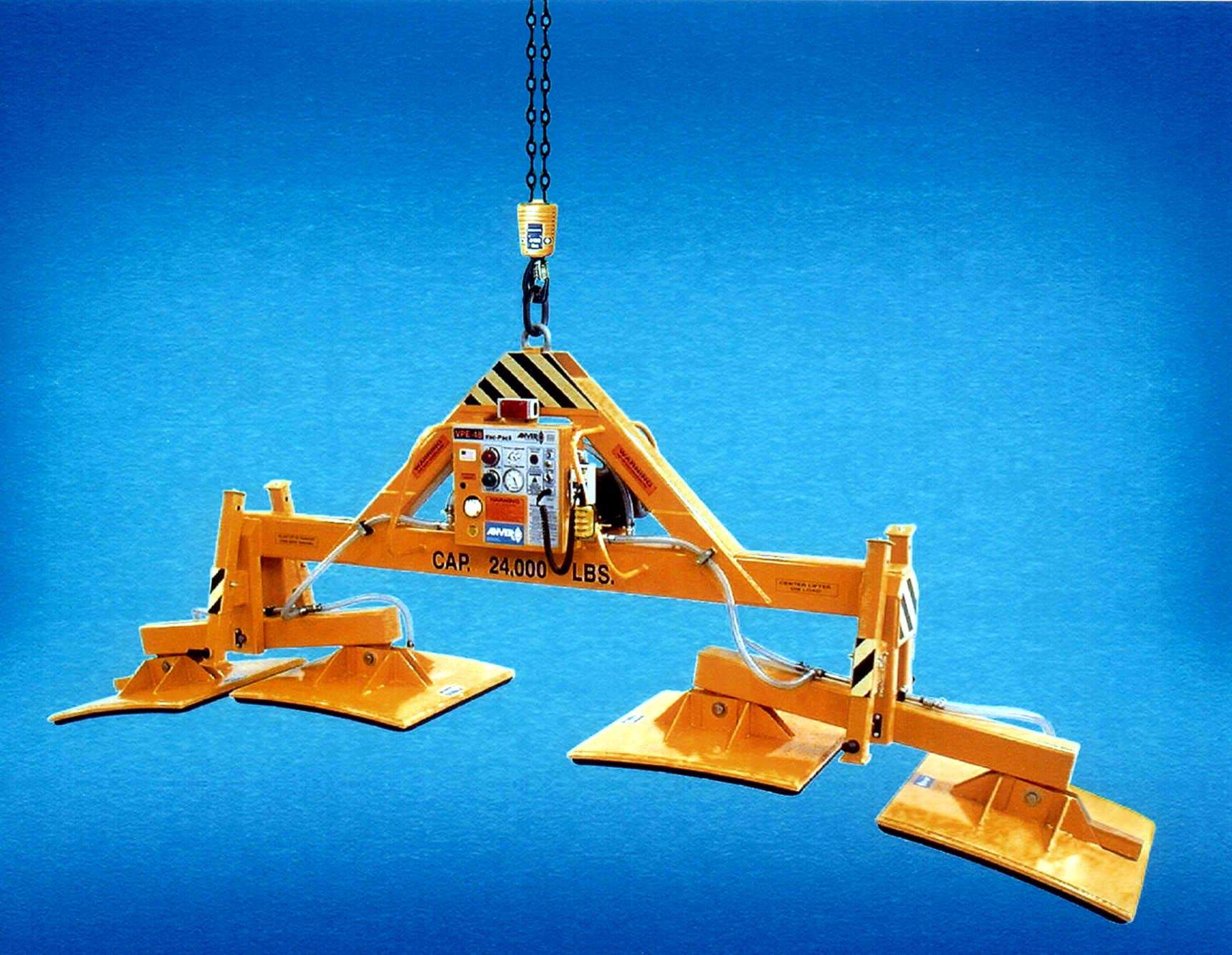

Dec 11, 2002 Series VPE lifters have oversize frames with custom pivot points and large formed pads that allow instant attach and release. Totally self-contained, units operate on 220/460 V, 3-phase power and lift loads such as pipes, vessels, and curved tunnel sections weighing up to 60,000 lb each. Timers and switches on warning and control module turn vacuum pump off and on at preset levels to maintain safe level for lifting.

Graco Inc.    Minneapolis, MN 55440

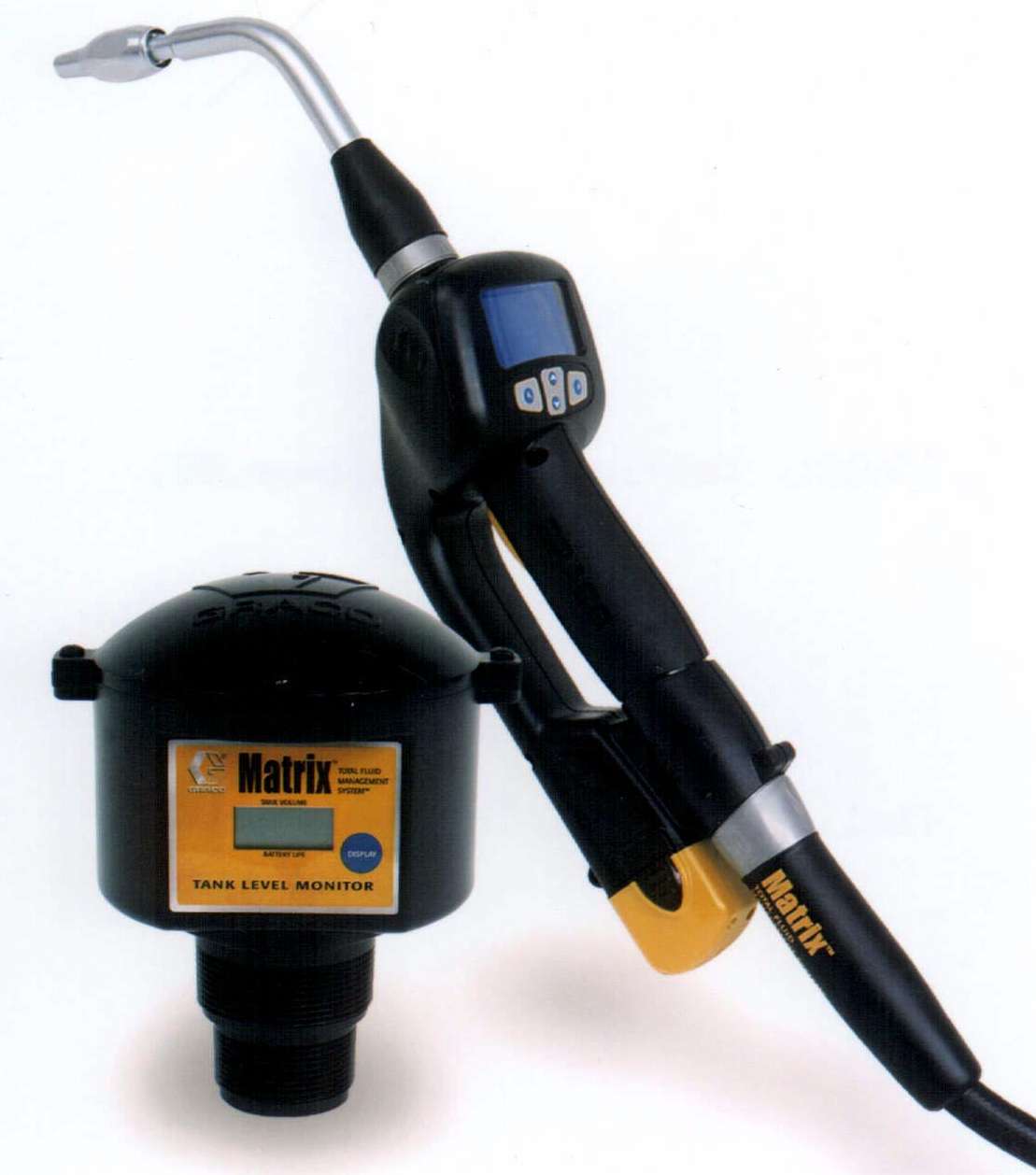

Dec 11, 2002 Matrixâ„¢ Total Fluid Management Systemâ„¢ provides wireless metering, tracking, and delivery of oil, gear lube, anti-freeze, and transmission fluids. System tracks all fluids dispensed through Matrix system, and records transactions and inventory levels. Multi-level security and PIN codes protect system and assets. Electronic meters dispense fluids in pints, quarts, gallons, or liters, and tank level monitors keep track of bulk fluids in storage tanks.

Positech, A Div. Of Columbus McKinnon    Laurens, IA 50554-1299
Dec 11, 2002 Simple Air Manipulator Economy Series has lifting capacity of 725 lb and side-loading feature. End-of-arm rotating axis has 7,000 in.-lb of moment loading and can rotate 330° around arm. Unit has lubrication-free cylinders, drag brakes on three axes, leveling jacks and operates with 90 psi clean, dry air. Safety features include 3:1 design factor for all structural components and pilot operated lock valve on lift cylinder.

Sola/Hevi-Duty A Business Of The EGC Electrical Group    Skokie, IL 60077
Dec 11, 2002 AEPGI wall-mounted device with explosion-proof enclosure tests for presence of electrical grounding in tank cars or tank trucks before and during transfer of combustible materials. Unit connects with hand-held alligator clamp, indicating safe ground with green light and absence of ground with red light. Interlocking circuitry prevents pumps from starting until ground is established and shuts pumps down if ground is lost during transfer.

S-B Power Tool Co. (Skil/Bosch)    Chicago, IL 60646 5925
Dec 11, 2002 With 5 A motor, 2 speed settings, and adjustable base/depth guide, model 1639 cuts ceramic wall tile, cement board, particle board, plaster, lath, foam board, and composites. Bump-off switch allows for 1-handed operation with speeds of 25,000 and 30,000 rpm. Glass-filled nylon foot plate/depth guide adjusts in seconds and will not break or deform under pressure. Unit comes with 1/8 and 1/4 in. collet, two 1/8 in. general purpose bits, 1/8 in. guide-point drywall bit and collet wrench.

Pioneer Eclipse Corp.    Sparta, NC 28675
Dec 11, 2002 Mean Machine Burnishers are offered with 4 engine options including Kawasaki and Honda, 4 deck sizes, optional electric and centrifugal clutches, aluminum or steel cylinders, and 110 V electric or 12 V battery start. RokBak deck provides easy pad access from standing position. Powder-coated cast aluminum alloy decks; adjustable, welded handles; Safe-Fill cylinders; and UL listed couplings, regulator, fuel lines, and cylinder are standard.

Vision Controls, Inc.    Hartland, WI 53029

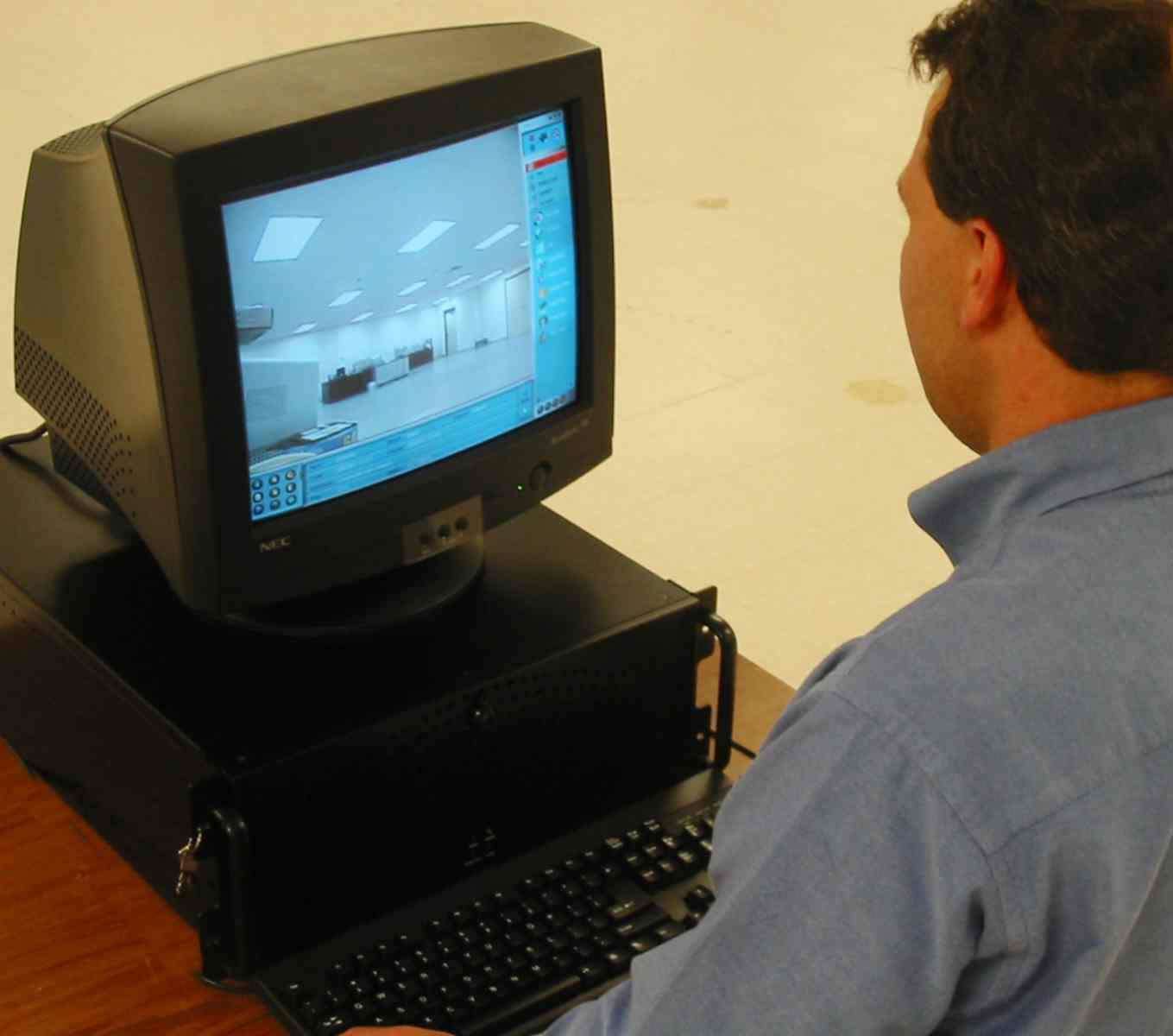

Dec 11, 2002 CAM Workstation SS captures digital images for display, recording, archiving, and retrieval from CCTV system. Support software enables event/alarm logging and event detection based on sensor interface. With 2400:1 video compression technology, system enables high volume storage and transmission. Design allows user to view designated visual information; scenes are referenced based on time, date, and camera location.

Timken Co., The    Canton, OH 44706 0932
Dec 11, 2002 Available with 8–84 in. outside diameters, DuraSpexx™ Power Rating Series bearings can replace standard bearings without redesigning space. Featuring 23% rating increase over company's standard product, calculated bearing life is doubled.

KOA Speer Electronics Inc.    Bradford, PA 16701
Dec 11, 2002 KCR Series 3-terminal chip filter drives radiated noises to ground, providing performance in circumstances where ground condition is unstable. Product is suited for use in high speed (1–100 MHz) data line applications for reflecting wave prevention and overshoot/undershoot correction. Available in size 1206, series offers 1/16 W power rating. Capacitance values range from 22–220 pF with resistance of 50 or 100 ohms.

T & S Equipment Co.    Angola, IN 46703

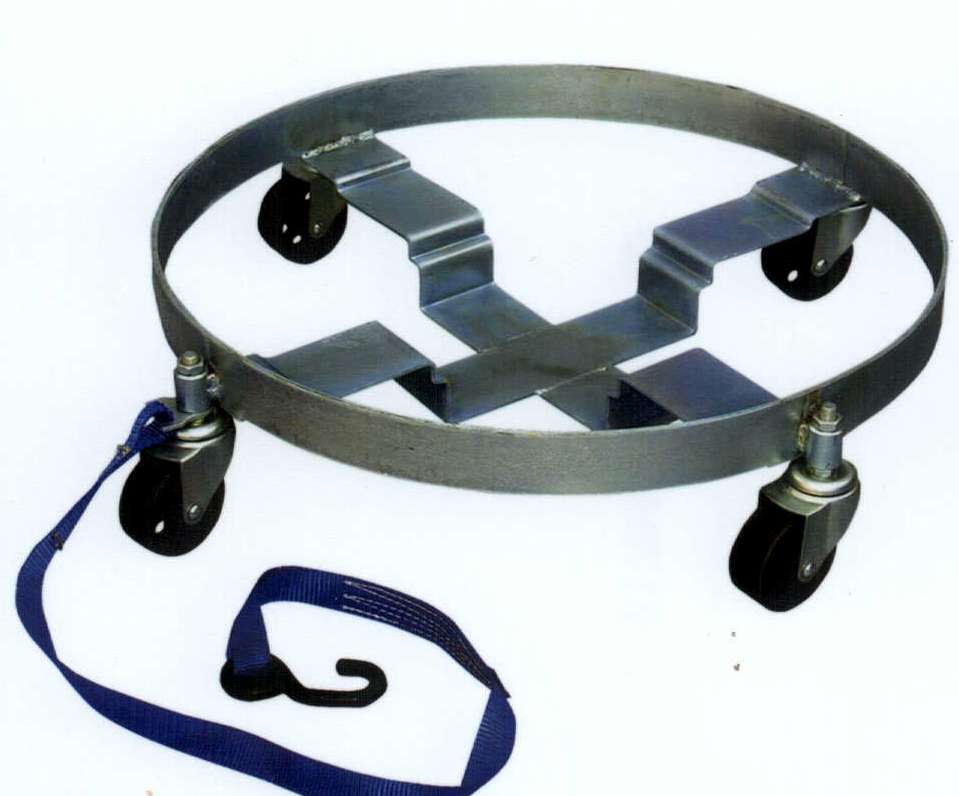

Dec 11, 2002 Quad Dolly transports 5 gal pails, 30 or 55 gal steel drums, or LP tanks. Available in 3 models, unit offers hard rubber or cast iron casters. Capable of transporting loads up to 1,200 lbs, dolly has polished zinc finish for corrosion resistance. Stainless steel is also available. Standard 4 ft long nylon pull strap aids in moving loaded dolly down aisles or over thresh holds.

GB Gardner Bender    Milwaukee, WI 53209
Dec 11, 2002 Copper split-bolt connectors suit 16–000 AWG conductors. Aluminum split-bolt connectors can be used with 16–0000 AWG copper/aluminum conductors. Available in single- and dual-conductor versions, aluminum mechanical lugs accept conductors from 14 AWG–250 MCM. Aluminum splicer-reducers join wires of similar gauge or transition from larger to smaller wires. Copper mechanical lugs are suited for 14–000 AWG copper conductors. Copper post connectors are available for 18–0 AWG copper conductors.

Hayward Industrial Products Inc., Hayward Filtration    Elizabeth, NJ 07207
Dec 11, 2002 Made from 100% pure polypropylene materials, LOFCLEAR(TM) bags are compliant with food requirements and contain no leachables or lubricants. Effective in removal of gelatinous materials, bags also absorb oil. Series 100 bags incorporate multi-layer design with efficiencies greater than 99% and dirt capacities up to ½ lb. Series 500 bags utilize all welded, multi-pleated construction, with 4 efficiency ratings from 95-99% and dirt-holding capacities of over 2 lb.

Tru-Connector Corporation    Peabody, MA 01960 5099
Dec 11, 2002 In-Series 7-16 adapters eliminate need for multiple adapters when interconnecting 7-16 to type N, HN, C, LC, SQS, 7/8-EIA, and 1-5/8 EIA RF coaxial connectors. With ratings to 2,700 Vrms, 50 Ohm adapters are offered in customer-specified male or female interface combinations. Adapters are constructed with nickel- or silver-plated brass bodies, silver-plated, beryllium-copper female contacts, and silver- or gold-plated brass male contacts.

Hoffman    Anoka, MN 55303 7504

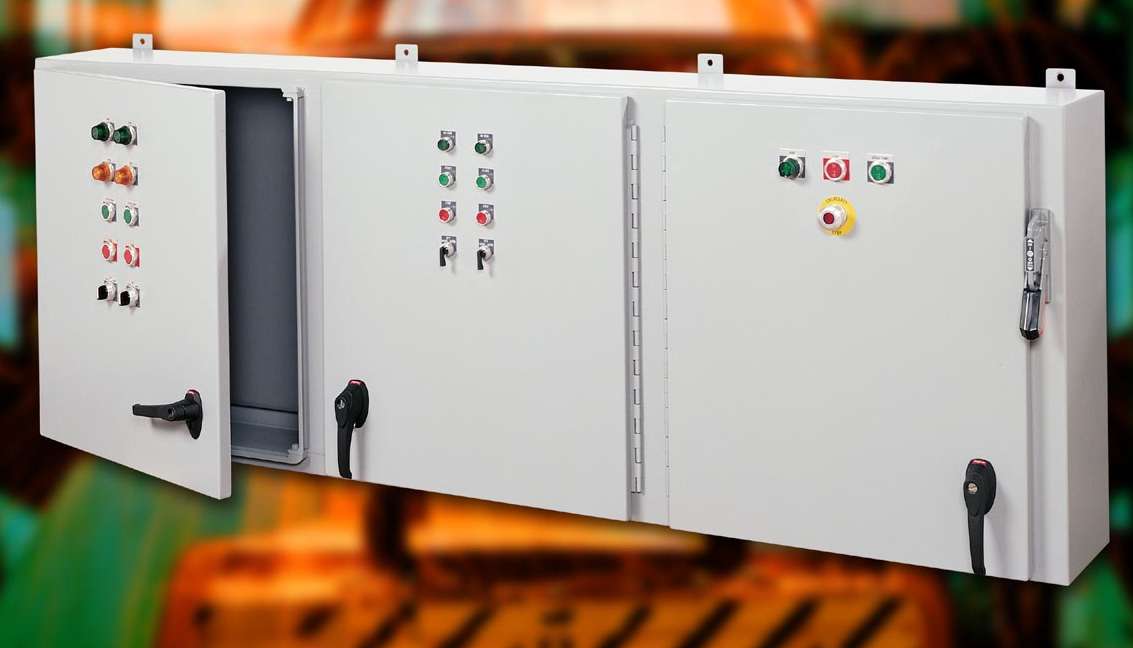

Dec 11, 2002 Series A26 products support 60 in. max height requirement of Lean manufacturing doctrine. Sized to provide clear line of sight across factory floor, UL/NEMA Type 12 flange-mounted disconnect units are designed for distributed control components and condensed main control and power distribution panels. Available in free-standing, wall-, or machine-mount, models and subpanels range in size from 30 x 28 x 8 in. with 1 door to 60 x 196 x 16 in. with 5 doors.

Martin Engineering    Neponset, IL 61345 9766

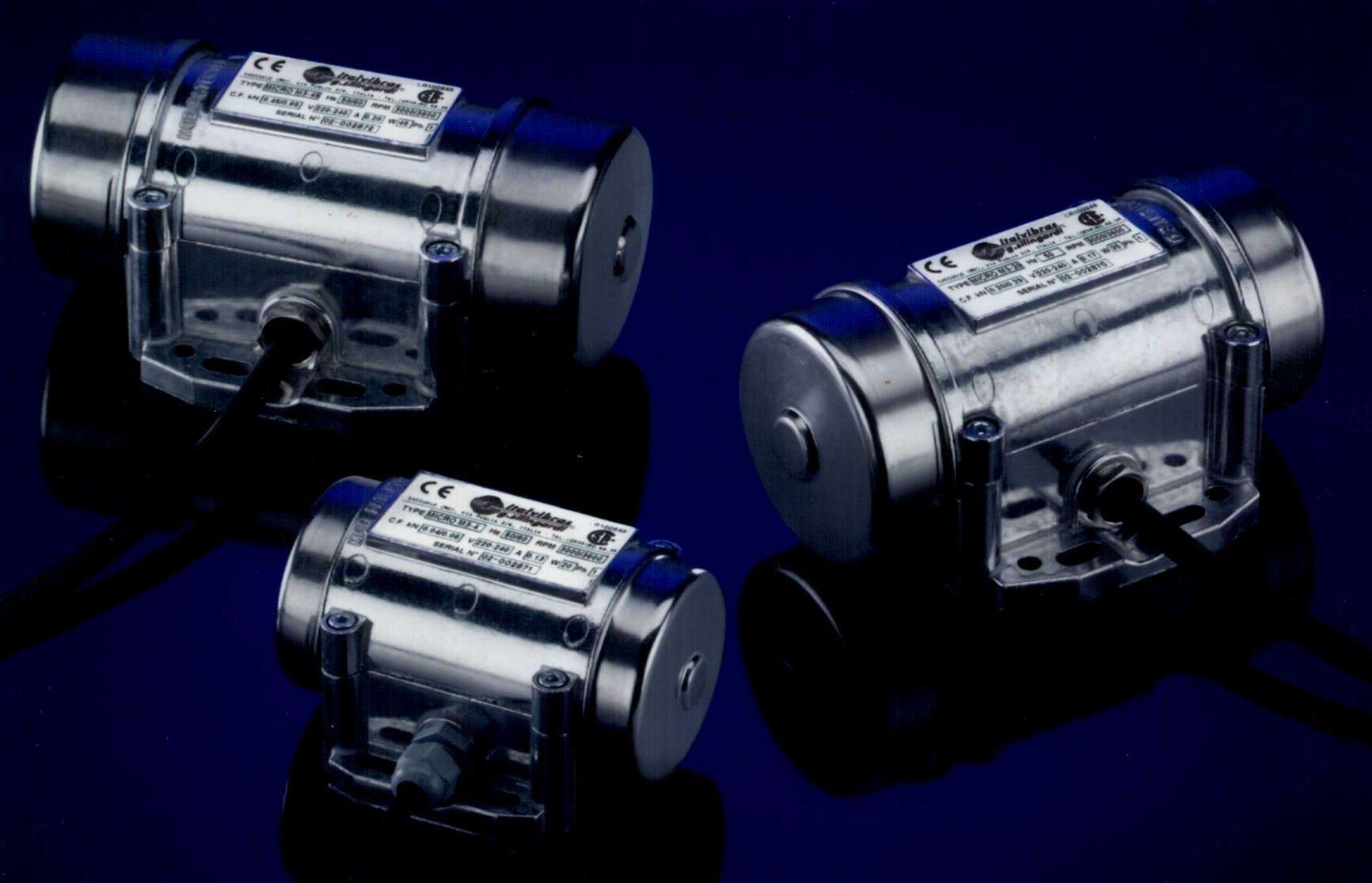

Dec 11, 2002 MICRO series, which includes M3/4, M3/20, and M3/45 vibrators, offer IP65 mechanical protection, aluminum alloy casing, and stainless steel weight covers. Lamellar eccentric weights can be regulated in steps by changing actual number of weights mounted. Three-phase models are supplied with power flex (2 meters), while single-phase models are also supplied with condenser installed in casing along flex. Centrifugal force can be adjusted from 0 to max indicated value.

Air Squared, Inc.    Hamilton, OH 45011

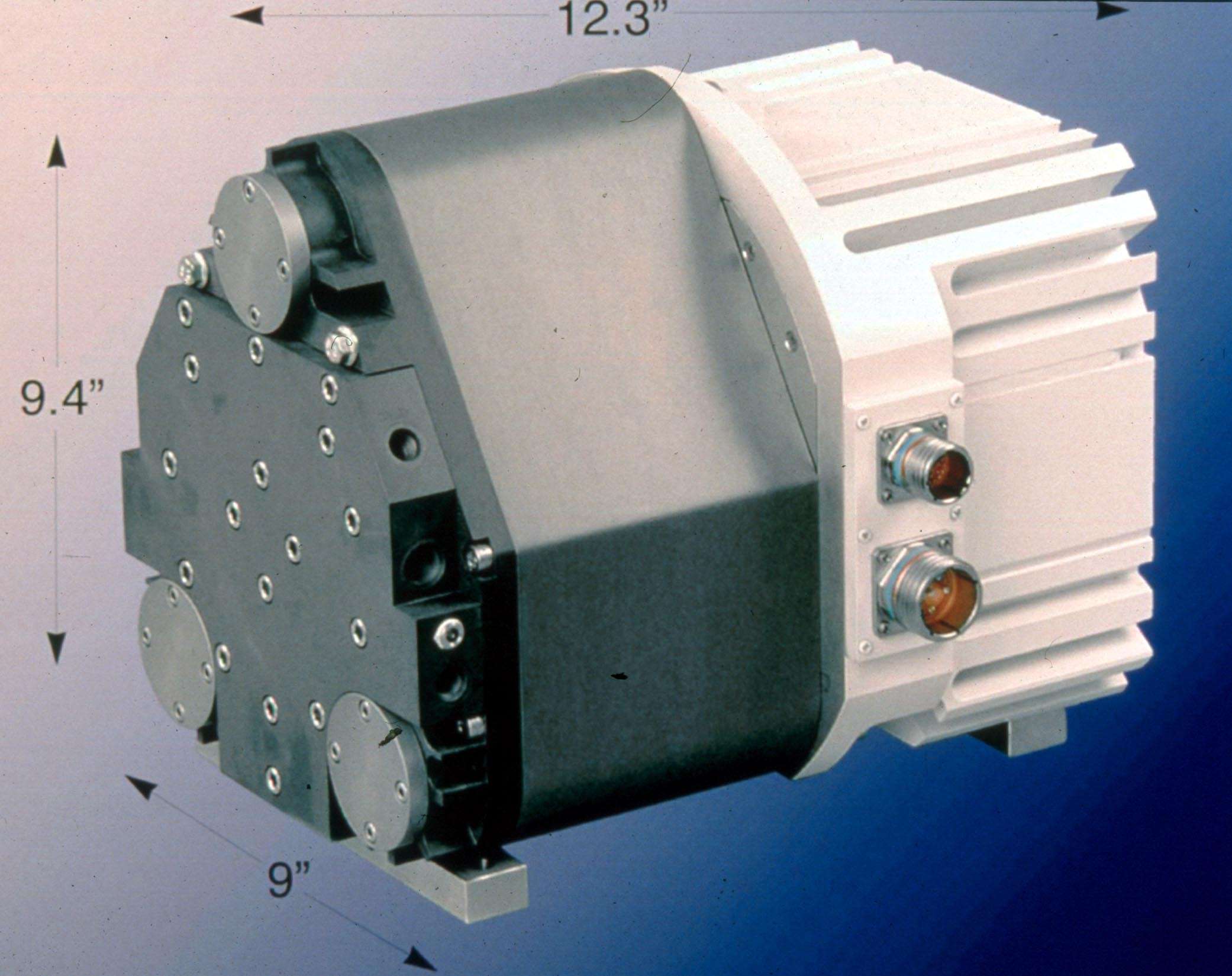

Dec 11, 2002 Oil-free Model P18H36 uses pancake-type, brushless DC motor which is 144 mm long, resulting in overall unit size of 9 x 9.4 x 12.3 in. Liquid cooling technique eliminates need for aftercooler and allows temperature rise of only 125°F. Applications include compressed air for medical equipment, fuel cells and natural gas boosters.
