Frigoscandia Equipment    Redmond, WA 98052

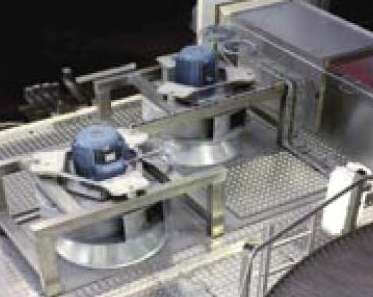

Dec 12, 2002 M-series GYRoCOMPACT® modular spiral freezers are based on self-stacking belt that eliminates bulky and difficult to clean support structures. Freezer has thoroughly cleanable freezing zone. Increased access to evaporators and other areas inside freezer housing make thorough cleaning fast, easy, and economical.

Del-Tron Precision Inc.    Bethel, CT 06801
Dec 12, 2002 Model LE2-X features 2.060 x 2.500 in. aluminum actuator base that uses E-2 AC series ball slide assembly with 0.50 in. of travel. Anti-creep retainer system maintains alignment. Standard 0.188 in. diameter, 0.050 in. lead leadscrew drives slide from side. Anti-backlash nut is spring-loaded to assure positive movement when changing direction. Actuator offers straight-line accuracy of 0.0005 in. per in., 0.0002 in. repeatability, and speeds up to 20 rps.

Lincoln    St. Louis, MO 63120 1578

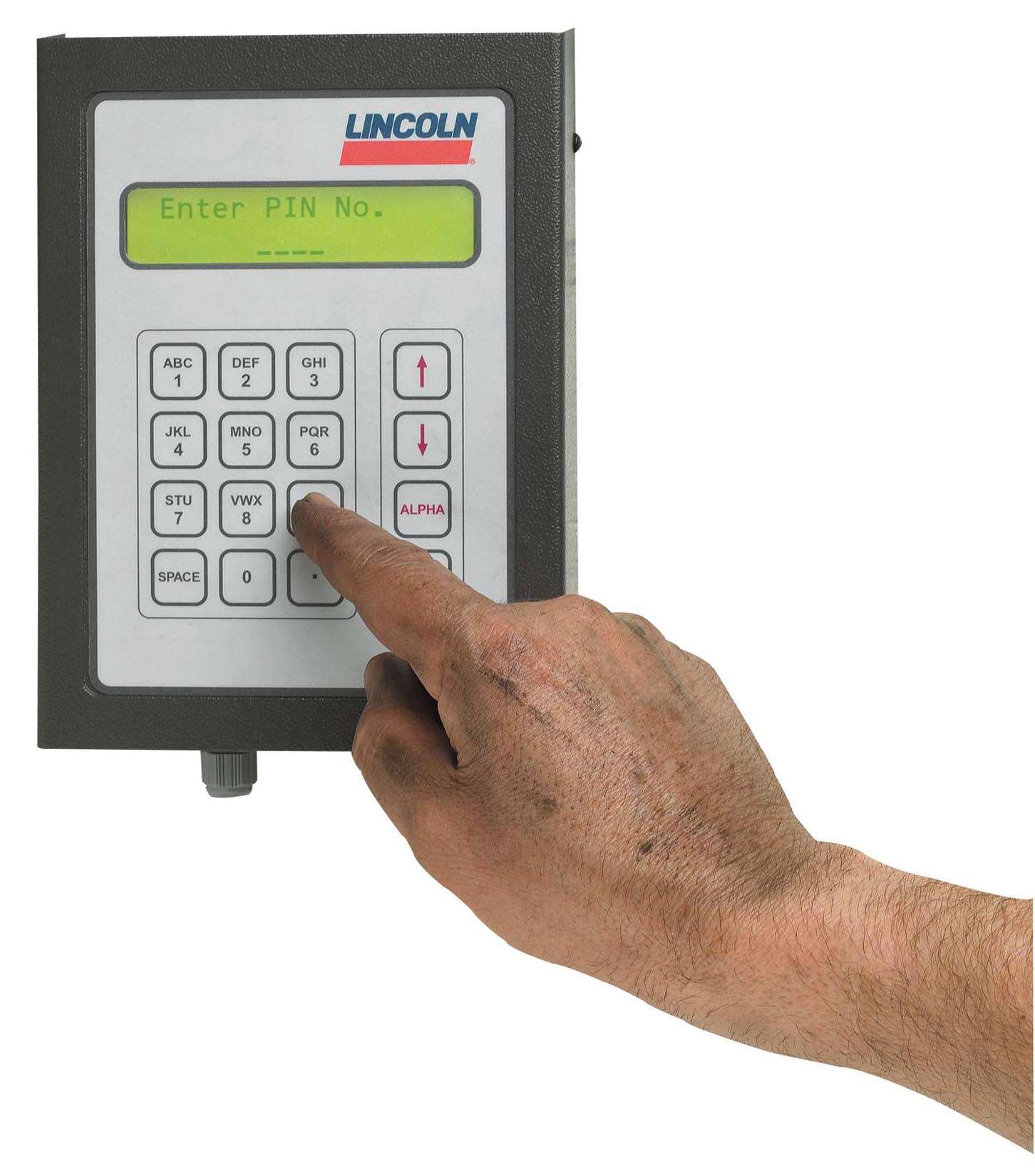

Dec 12, 2002 Model LFC 3000 Fluid Inventory Control and Management System simultaneously controls, dispenses, and monitors up to 64 locations using modular components. It creates reports by product user, customer, or location and monitors stock levels with standard software. Supervisory personnel can assign degrees of system access and control with 3 security code levels. Enhanced setup, control, and report capabilities are available with optional PC interface package.

Lincoln    St. Louis, MO 63120 1578

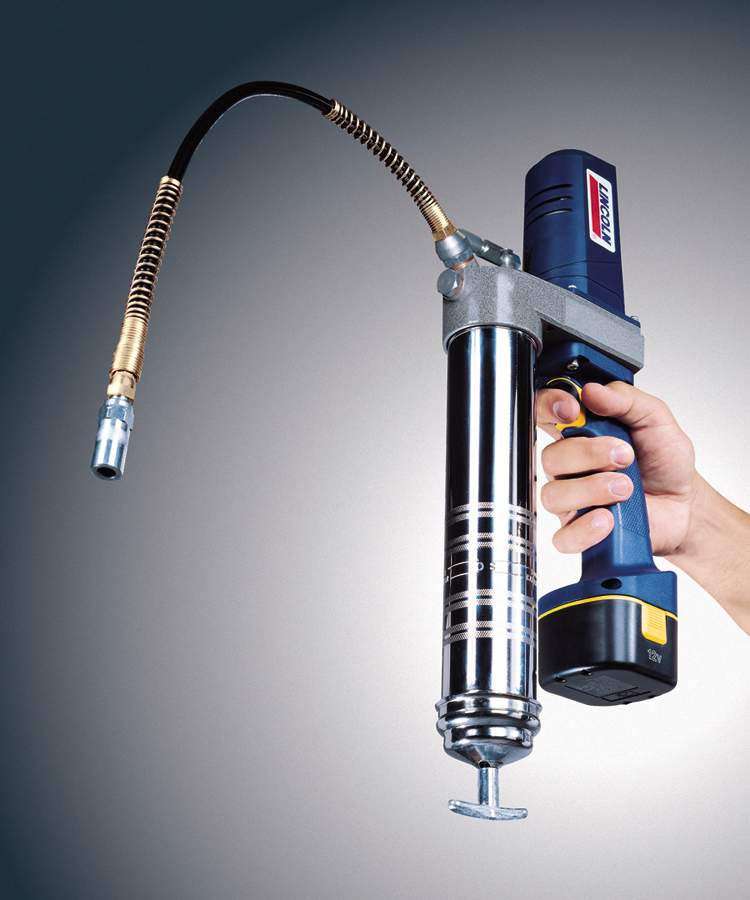

Dec 12, 2002 PowerLuber Models 1242 and 1244 are 12 V cordless grease guns featuring pressure relief valve that allows grease to escape in thin strand when blocked fitting is encountered, alerting operator that fitting is not accepting grease. Valve also prevents guns from accidental overload. Both models have CE-approved assemblies and wiring design. Battery clips ensure that battery remains secure in harsh conditions.

Lincoln    St. Louis, MO 63120 1578
Dec 12, 2002 Self-priming, automatic PowerLuber Model 1163 cycles continuously provided that its trigger is pulled. Products includes air motor and air operating range of 40–150 psi. Design incorporates powder paint exterior, chrome-plated grease container, and high-pressure flexible hose. CE certified, unit is suited for heavy equipment, fleet, auto/truck dealership, and agricultural applications.

Lincoln    St. Louis, MO 63120 1578

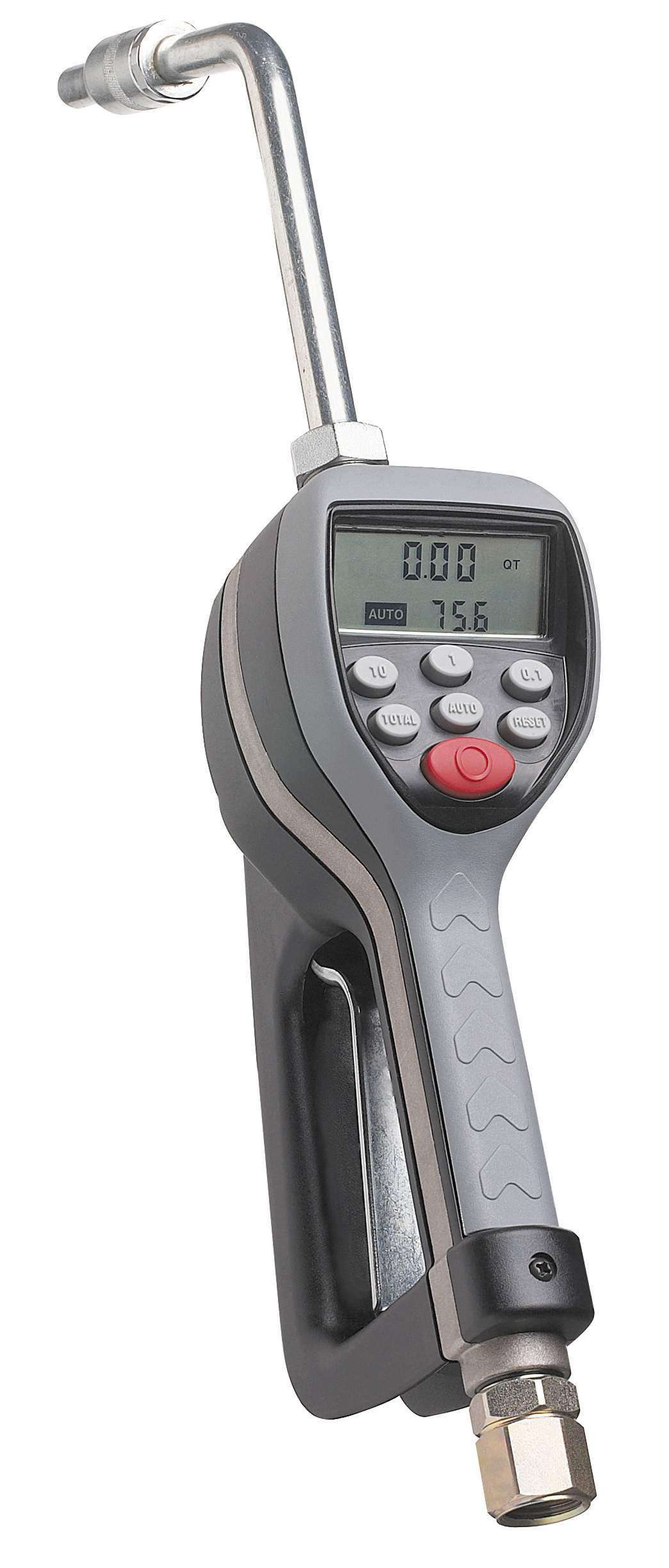

Dec 12, 2002 Model 905 Electronic Metering Control Valve dispenses motor oil, ATF, gear lubricant, antifreeze and hydraulic fluid in pints, quarts, liters, or gallons. Automatic, non-drip nozzle contains manual open/close feature preventing accidental release of fluid when handling or storing meter. Digital display allows for accurate bulk dispensing. Valve includes inline swivel, adjustable rigid extension, nozzle, and inline filter.

Stedham Electronics Corp.    Reno, NV 89502

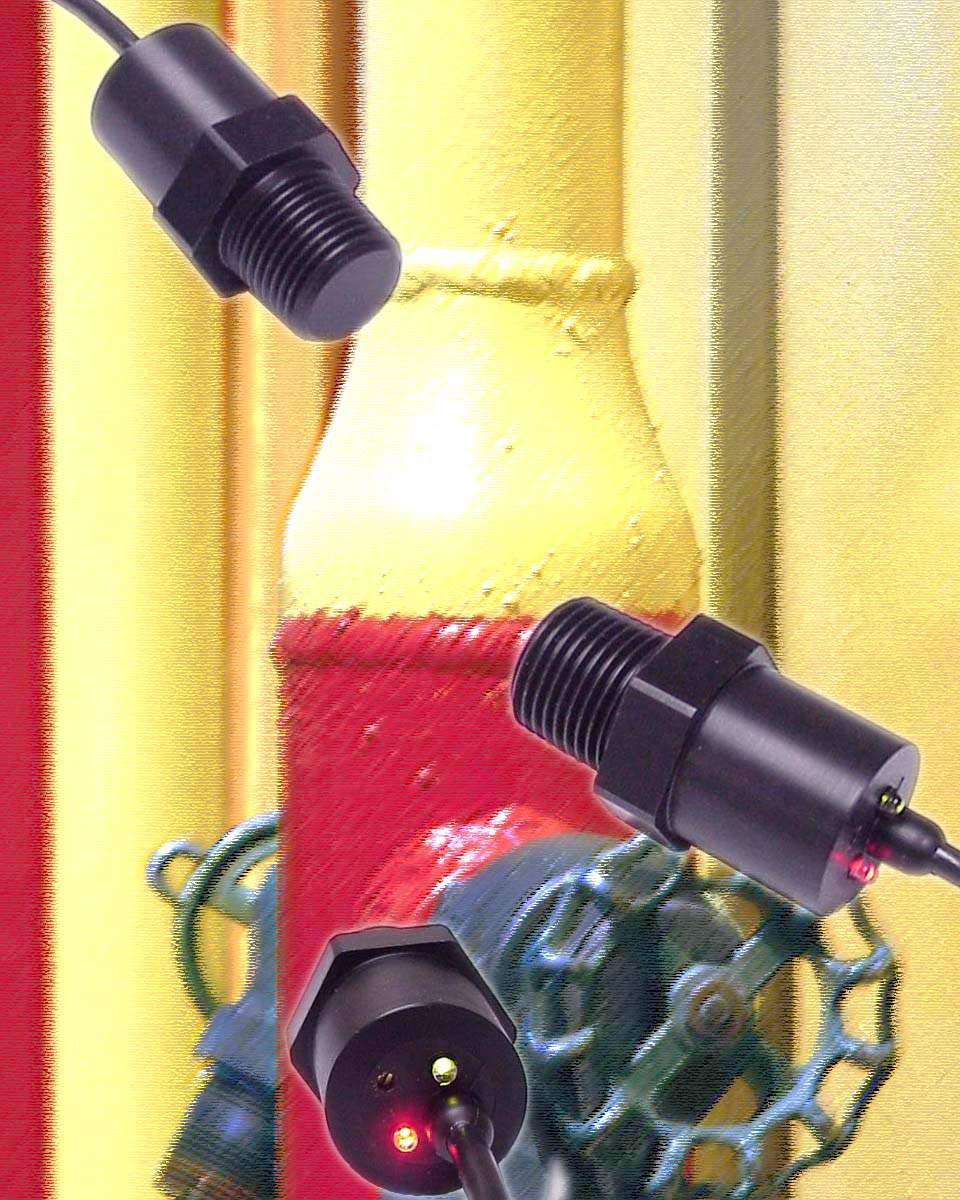

Dec 12, 2002 Housed in Delrin for durability, Capacitive Proximity Sensors have standard ½ in. NPT threads to fit into tanks and fittings without requiring sensor well. Available in all DC and AC outputs, units feature adjustable sensitivity, green Power-On LED and yellow Signal LED. DC version is protected against short circuit, reverse polarity, and overload.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846

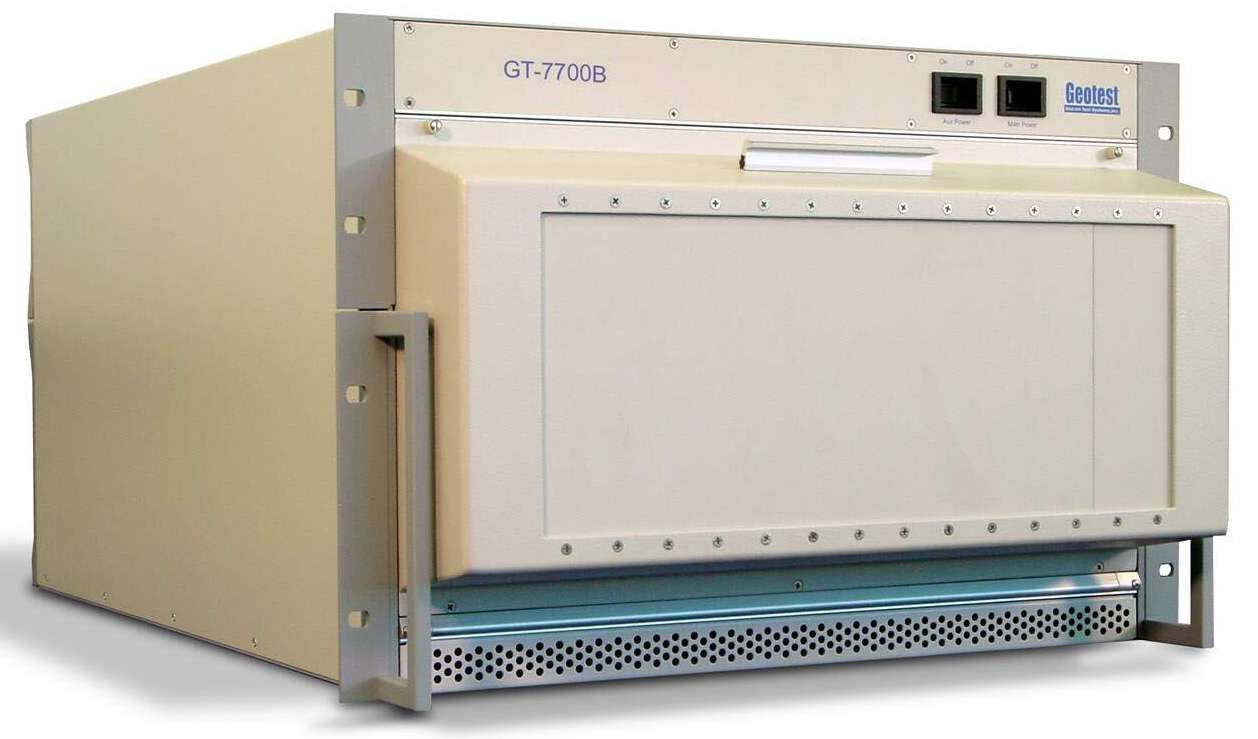

Dec 12, 2002 Platform model GT7700B accommodates 8 ISA and 4 PCI or cPCI slots in 1 chassis. Able to be expanded to accommodate up to 38 PC cards using expansion chassis, design accepts PC plug-in card from any vendor using carrier cards. Product is provided with Pentium CPU controller and included SBC, floppy, hard disk, SVGA interface, two RS-232 ports, parallel port, and USB port. Employing 2 power supplies, product provides 3 open slots for I/O interfaces.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Dec 12, 2002 Models GX5930 and GC5930 provide 32 I/O channels of programmable outputs and threshold inputs. Incorporated DIOEasy software package includes virtual panel stand-alone application, Windows OS driver, and on-line documentation. Suited for applications that require custom voltages/thresholds, GX5930 units are used with PXI-based modules, while GC5930 units are used with PCI cards. Products provide 0–9 V output signals and capture input signals with 0–9 V thresholds.

Druck, Inc.    New Fairfield, CT 06812
Dec 12, 2002 DPI 320/325 Series high pressure portable calibrators offer bottle source for dry pneumatic calibrations to 3000 psi. Combined with electrical source/measure and PC interface, instruments provide calibrations with 0.025% FS accuracy. Offerings include 122 in.³ capacity gas cylinder, precision regulator, and fine volume adjuster. Pressure ranges vary from 0-500 psi thru 0-3000 psi. DPI 325 units support real-time error analysis with full documenting capability.

Komatsu America International Company    Vernon Hills, IL 60061
Dec 12, 2002 Model PC1250-7 is a 251,000 lb hydraulic excavator with 651 hp engine featuring electronic controller and governor that complies with EPA Tier II air quality regulations. Open-center, load-sensing, and engine speed-sensing hydraulic system includes 4 variable capacity pumps. Equipment Management Monitoring System schedules maintenance and performs onboard diagnostics. Pressurized cab reduces noise levels and keeps dust out. Standard track frame is 21 ft 1 in. and GP boom is 29 ft 10 in.

Ophir Optronics, Inc.    Danvers, MA 01923
Dec 12, 2002 Model 10K-W water-cooled, thermopile surface absorber head measures YAG and CO₂ lasers at up to 10,000 W of power. It spreads beam out over large area to avoid damage to thermopile sensor. Unit has 45 mm aperture; 1064 nm, 10.6 µm spectral range; and power range from 200 to 10,000 W. Information is stored in EEROM of detector head and is downloaded when display is turned on, making head plug-and-play ready.

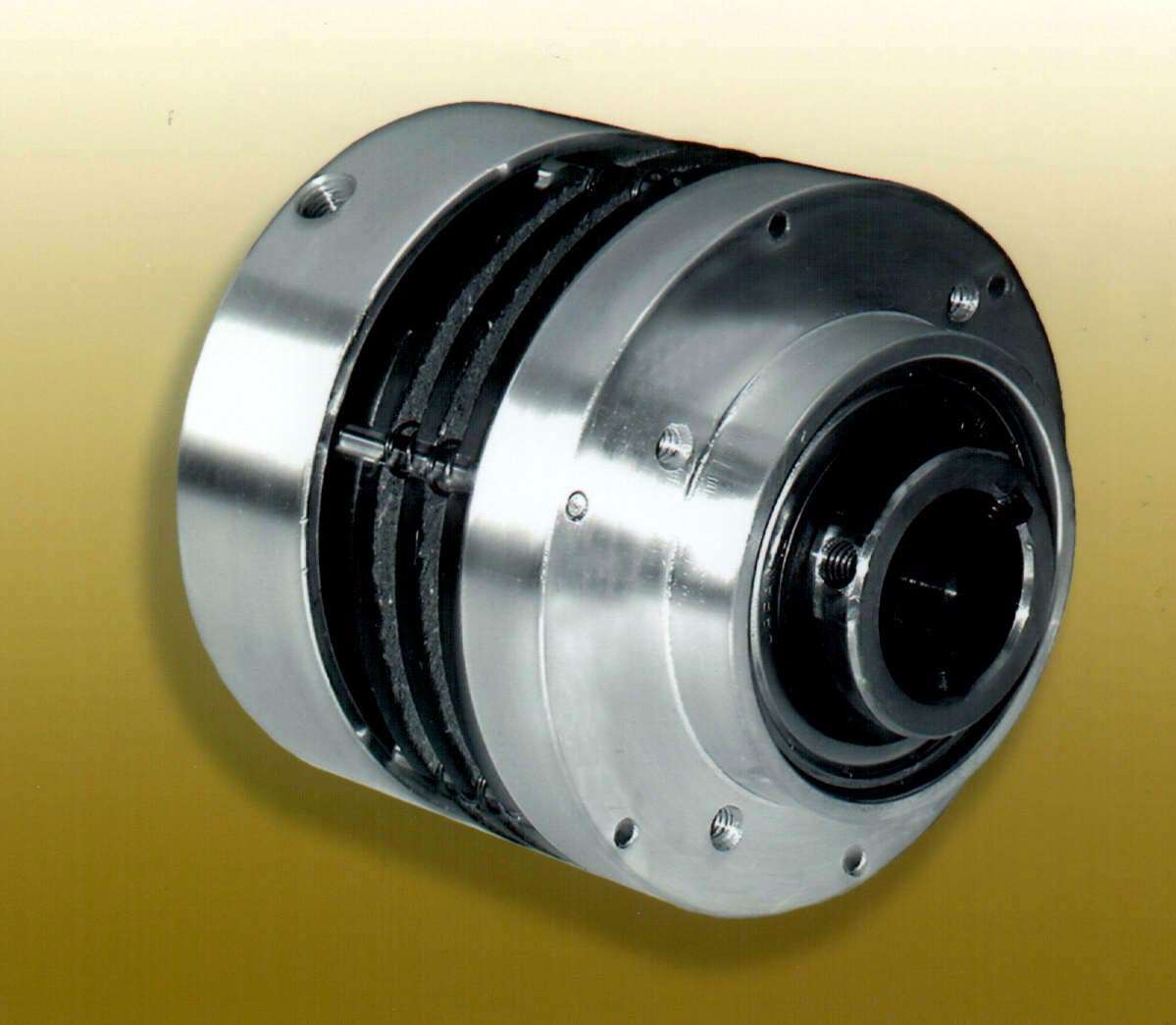

Nexen Group, Inc.    Vadnais Heights, MN 55127
Dec 12, 2002 Air Champ® Model LSCC-32 Straight-Bore Conveyor Clutch features bore range of 15.88–22.22 mm, and can be modified to accept range of sprockets, timing belts, or pulley diameters. Air chamber/piston surrounds central hub making rotary air union unnecessary. Open housing design allows for high thermal horsepower and heat dissipation. Clutch is suitable for soft starts in accumulating, chain-driven live roller, or in-line material handling conveyor applications.

Compact Air Products, Inc.    Westminster, SC 29693 0499
Dec 12, 2002 Universal Series products provide drop-in replacement for square-bodied, pancake-type, pneumatic cylinders. Cylinders' bore sizes range from 8–100 mm with strokes from 5–100 mm. Fully rebuildable units provide corrosion- and wear-resistance. Cylinder walls offer optional mounting and port locations as well as flexibility for modifications. Products utilize flush-mounted Compact Round Limit Sensors, which feature Magneto Resistive technology.

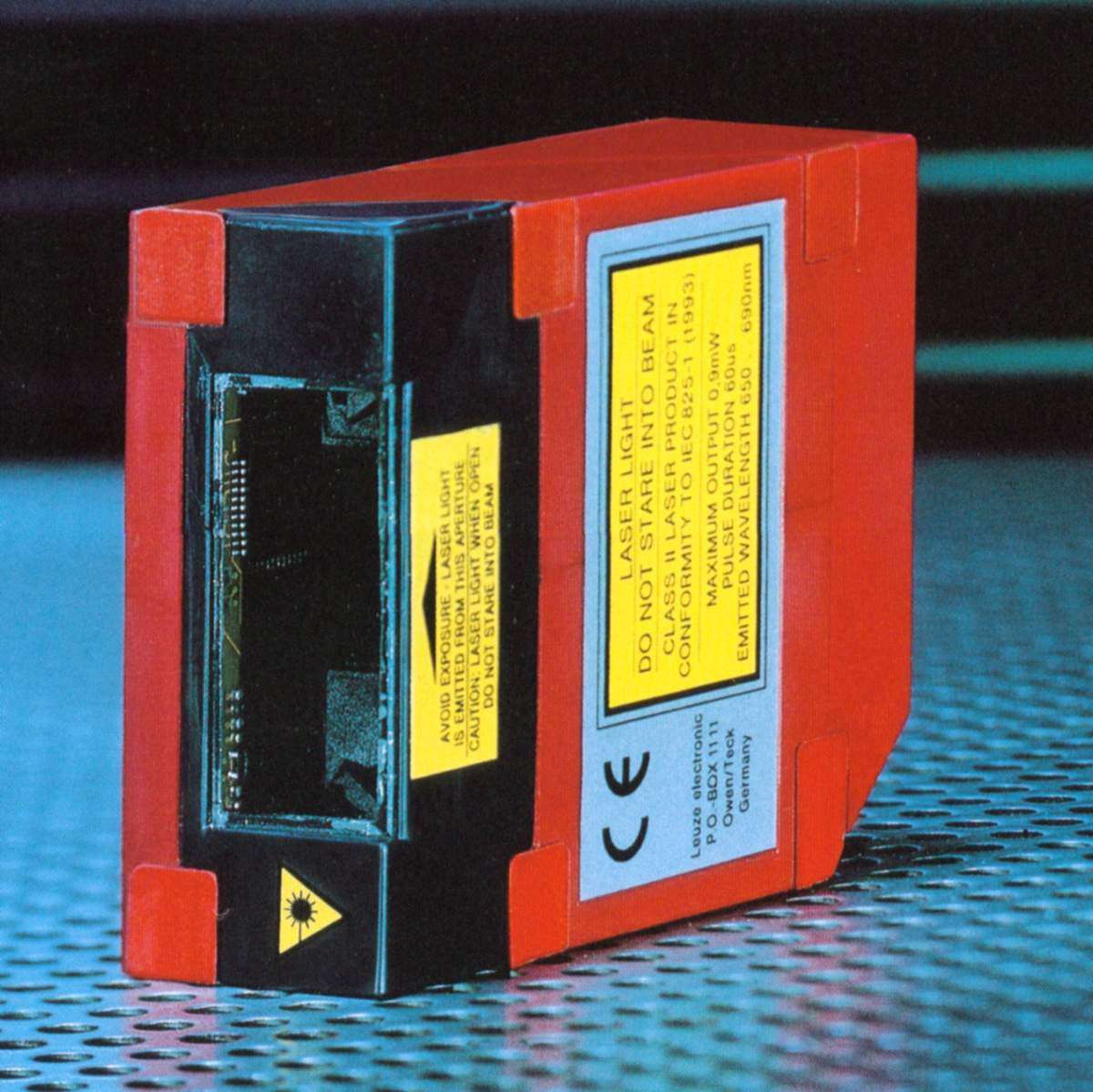

Leuze electronic, Inc.    New Hudson, MI 48165
Dec 12, 2002 Model BCL 21/22 allows either frontal or lateral scanning. Minimal bar code widths of 0.15 mm can be scanned, and 0.8 mm wide codes can be read from distances up to 450 mm. AUTO-CONFIG mode eliminates need for experience with codes. User can format data, calculate statistics, or compare codes utilizing uncomplicated input program.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Dec 12, 2002 Model 400A76 TEDS Sensor Interface Kit provides hardware and software required to interface with TEDS sensors. Operating on Windows PC via an RS-232 port, kit enables user to read/write data in 16 IEEE TEDS templates as well as in 3 templates established by LMS International. Supported transducers include accelerometers, microphones, charge amplifiers, and microphone preamplifiers. Kit consists of RS-232 Hardware Interface Dongle, TEDS Read/Write software, and cable assembly.

Key Technology, Inc.    Walla Walla, WA 99362
Dec 12, 2002 Precision Size Grader offers 95% efficiencies within 1/64 in. at capacities exceeding 10,000 lb/hr. Unit gently conveys product, minimizing bruising. Indicator system allows on-the-fly adjustability. Because last roller is fixed, each roller moves backwards as adjusting handle is turned at equal distance to create cumulative effect back to infeed roller. Low-maintenance design minimizes need for annual rebuilds.

StarTech.com    Groveport, OH 43125
Dec 12, 2002 Low-profile LCD monitor/keyboard/touchpad combo offers pull-out drawer and foldup display screen. Able to fit server control equipment into environments where rack space is limited, 19 in. unit combines 15.1 in. TFT display with 1024 x 768 resolution, 105-key PS/2 keyboard, and PS/2 touchpad. Its 1U drawer pulls out, and display folds up like notebook computer. Integrated Cabinet Console works with existing Keyboard/Video/Mouse switches.

RKC Instrument    South Bend, IN 46628

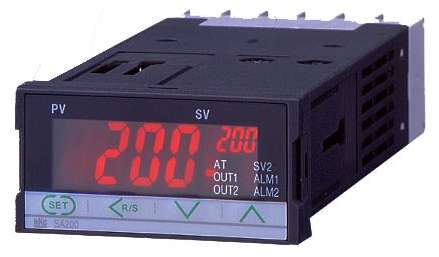

Dec 11, 2002 Model SA201, 1/32 DIN PID instrument, accepts various input types and has programmable 4–20 mA, relay, and voltage pulse outputs. Ranges and scaling are field programmable. Optional digital contact input allows RUN/STOP and SV1/SV2 switching. Temperature and control-loop break alarms are also available. DeviceNet and Profibus connectivity is available, as well as serial RS-485 communications. Waterproof front panel is rated to IP66.

L.J. Star, Inc.    Twinsburg, OH 44087

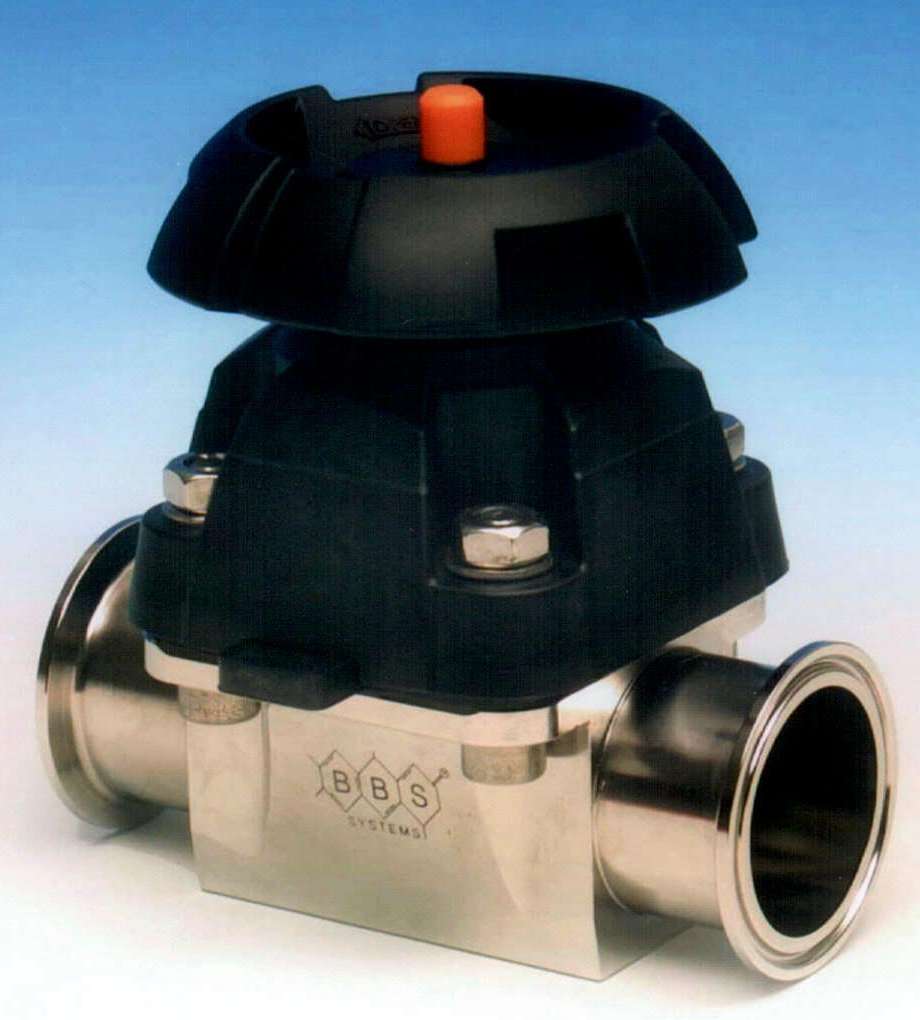

Dec 11, 2002 BBS-Systems Sterile 2/2 Diaphragm Valves are machined from 316 stainless steel. Cavity-free and compliant with DIN 1.4435 BN2 norms, products are piston-driven, pneumatically actuated, and rated to 150 psi. Valves, with 180-grit interior finish and 120-grit exterior finish, are self-draining when positioned as indicated on valve body. Eleven models range in size from ¼â€“6 in. They are suitable for applications requiring CIP/SIP and are fully autoclavable.
