Hart & Cooley, Inc.    Holland, MI 49423 3715
Dec 10, 2002 REZZINâ„¢ registers and diffusers are constructed of lightweight polymer materials that withstand heat and excessive moisture. Line includes 3-way deflection ceiling diffuser, double-deflection sidewall diffuser, 2-way floor register, modular core T-bar, and louvered T-bar. Many different sizes are available.

Saelig Co., Inc.    Pittsford, NY 14534
Dec 10, 2002 Trakit(TM) Windows-based software helps manufacturers control and manage Inventory Control, Sales and Purchase Orders, Bill of Materials, RFQs, and Material Requirements Planning. It provides comprehensive reporting for BOMs, costings, shortages, stock take, cashflow, and picklists. Reminder function allows user to enter reminder information against parts and monitor overdue orders. User interface offers flexible queries and searching.

IBAG North America    North Haven, CT 06473

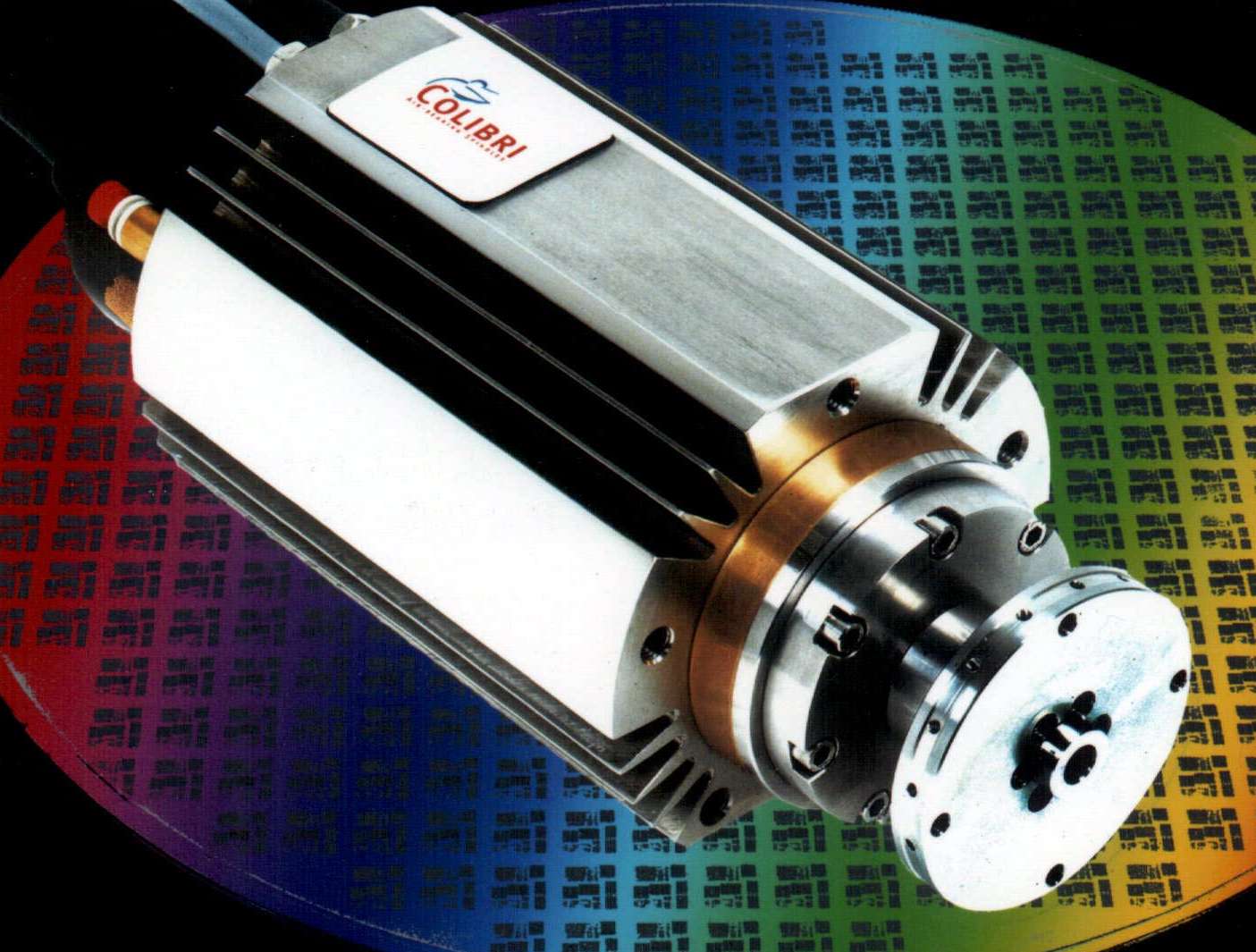

Dec 10, 2002 Series BER utilizes Motorized Bearing Technology and offers speeds to 10,000 rpm, low runout from 0.2 to 0.5 µm, clean room compatibility, integral encoder, through-the-shaft vacuum, and self-cooling. Balanced to G 0.4 standards, spindles have high stiffness of 7 N/µm axial and 10 N/µm radial. Units are 120 mm in diameter and 190 mm long. They provide power output of 550 W and up to 0.6 Nm of torque. Load capacities are 75 N radial and 100 N axial.

Selco Products Co.    Reno, NV 89521-5908
Dec 10, 2002 Models AL-213 and AL-512 use 4-20 mA linear scalable input to display any unit of measure, while Model AP-560 monitors AC voltage. All have operating temperature of 0-50°C at 35-85% RH. Model TZ-41 DIN rail mounted transmitter keeps data signal conditioned. It includes input ranges of 0-5 mA, 0-20 mA or 4-20 mA with 1:1 input to output ratio. Outputs are 0-5 V or 1-5 V. Displays and transmitter run off input signal and do not require power supply.

Selco Products Co.    Reno, NV 89521-5908

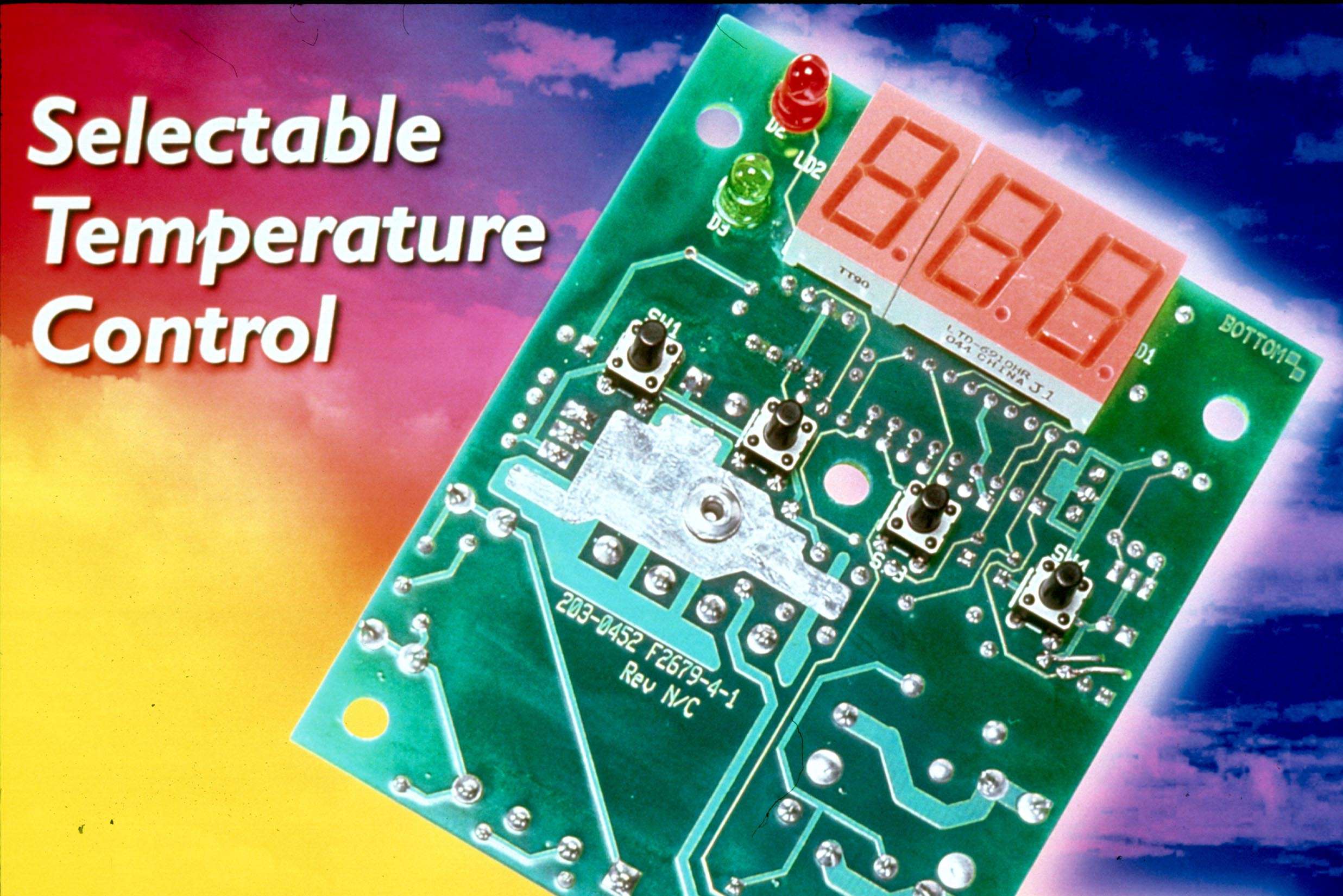

Dec 10, 2002 Model 2679 utilizes microprocessor-based technology allowing reprogramming of onboard circuitry to meet requirements. Temperature control range is 20-220°F, accurate to ±1°F. Input voltages are factory-fixed or user-selectable. Unit includes sensor break protection, programmable set point differential, and 0.56 in., 3-digit digital display. It is used with Model 3203 stainless steel probe.

Ideal Mfg. & Sales Corp.    Madison, WI 53704
Dec 10, 2002 Model AE2-CEM Net Weight Filling and Closing Machine conveys 5-gal pails to 2 different nozzles for filling, while providing high-speed weight control. Connection free cart eliminates need to plug in air or electrical lines to machine control. With no control connections, machine operates on plant air and includes automatic filter drain, self-contained flush controls, expandable conveyor, permanent lubrication, and 2-way locking swivel casters.

Kinetrol USA, Inc.    Addison, TX 75248 2415

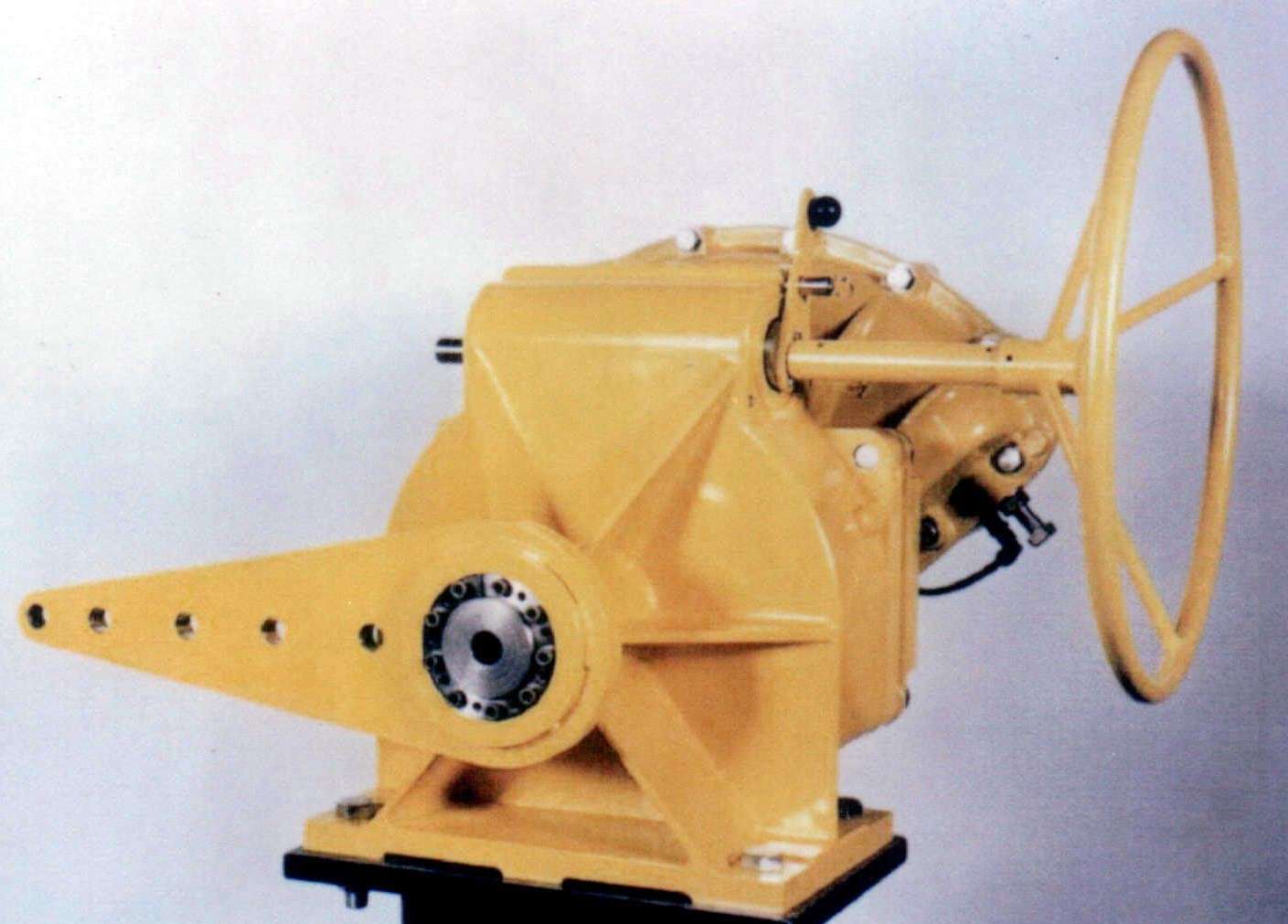

Dec 10, 2002 Module, compatible with all damper types, includes integral manual override and modulating or on/off control with failure mode options. Suitable for new installations or replacing existing electric/pneumatic drives, unit provides accurate air/gas flow control to burners, heaters, boilers, and turbine systems in power plants, refineries, and additional industrial applications.

AMETEK Spectro Analytical Instruments Inc.    Mahwah, NJ 07430
Dec 10, 2002 SPECTROTEST(TM) employs arc/spark technology and intelligent software that automatically recalibrates for changing conditions. ICAL (Intelligent Calibration Logic) monitors/controls operation independent of external influences. Using one sample, Automatic Program Finder recognizes new matrices, loads optimal testing program, and selects optimum parameters. Offerings include optical system with CCD detectors and holographic gratings.

THK America, Inc.    Schaumburg, IL 60173 5340

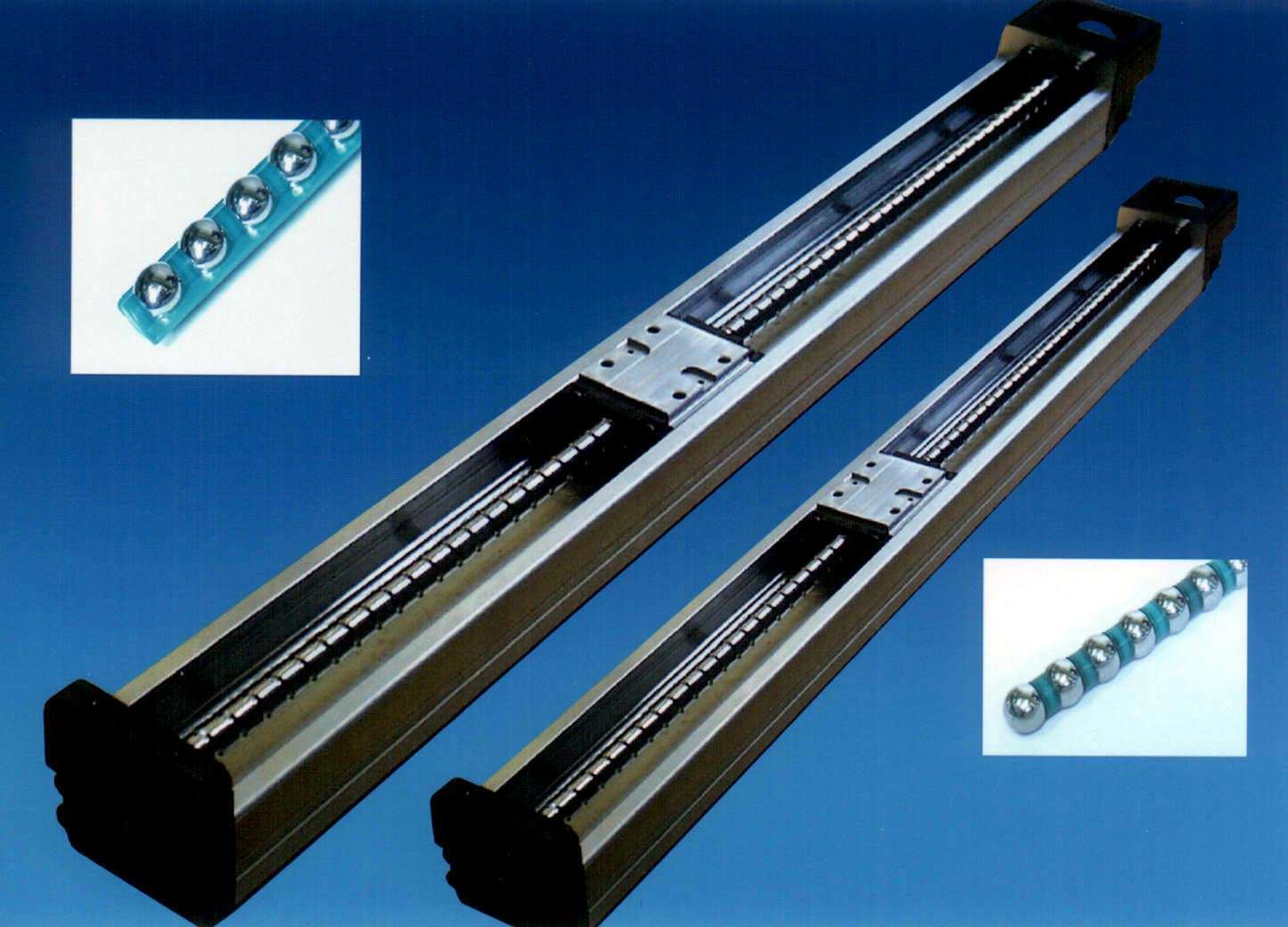

Dec 10, 2002 Type SKR Actuator includes LM Guide and Ballscrew with Caged Technology, which isolates each load carrying re-circulating element in LM guides within individual cage or pocket. Preventing ball-to-ball contact and associated friction, cage also acts as reservoir for lubricants, eliminating need for external lubricating system. Producing little dust, unit is available in outer rail lengths from 150–740 mm and stroke ranges of 55–608.5 mm.

OI Analytical    College Station, TX 77842

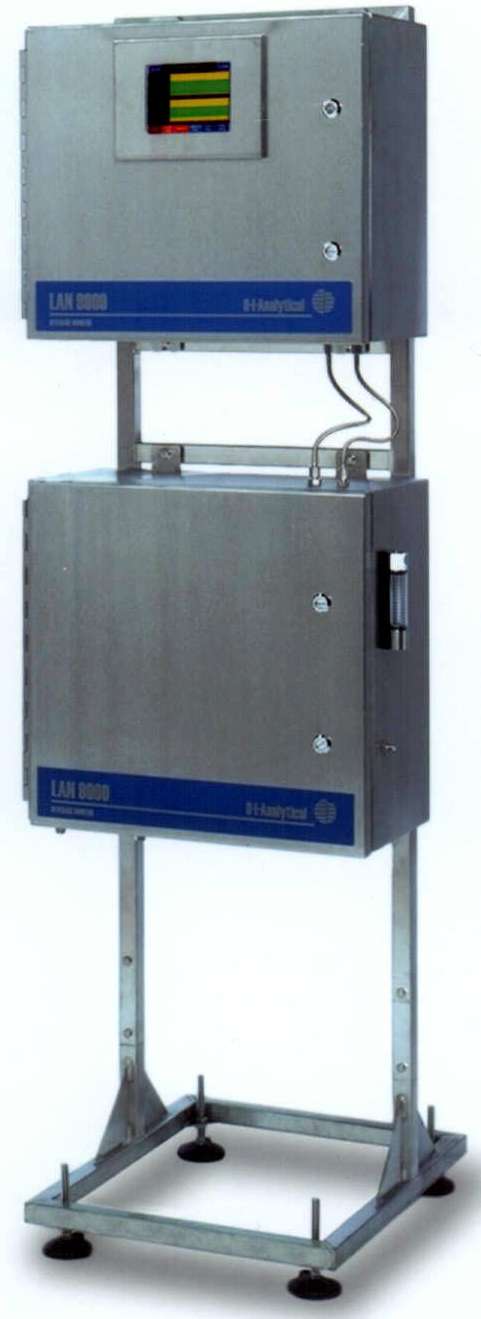

Dec 10, 2002 LAN 9000 measures content of sugar (Brix) or Diet and CO₂ in soft drink bottling operations. With infrared optical filter/detectors and digital electronics, unit identifies components by allowing only spectra of aforementioned ingredients to pass through detector. Amount of each is determined by absorption of unique spectra. Product includes single detection technology, built-in Ethernet connectivity, and on-line instrument control via 6.4 in. color LCD touchscreen.

FloCat    Kenosha, WI 53144
Dec 10, 2002 Series C-ES45-C 2–8 in. flow meters use 1 precision-machined helical rotor as only moving part. Rotation is electronically detected and processed. Jewel bearings and polished tungsten-carbide shafts minimize friction. Available with blind pulse or 4-20 mA output, units are provided with individually calibrated turbine meters. Modular electronics can be meter- or remote-mounted for transmitting signals up to 2,000 ft. Product is offered in 3 body materials.

Dadco, Inc.    Plymouth, MI 48170-2598
Dec 10, 2002 Model HP.S offers dual port capabilities and uses square rod to prevent rotation. It features 50 mm bore size and is available in variety of stroke lengths. Adjustable cushioning on both ends allows cylinder to meet specific deceleration requirements. Maximum speed is 0.66 ft/sec and maximum working pressure is 140 psi.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Dec 10, 2002 Planomat Universal Surface/Profile Grinder is assembled from base modules, including machine bed, column, wheelhead and machine table. Linear guideways in all axes consist of 6-row ball and 4-row roller bearing systems. Grinding range is 800 x 400–2,000 x 600 mm, and grinding wheel is 400 x 80 x 127 mm. Variable speed, 18 kW main spindle achieves speeds to 6,000 rpm. GE Fanuc 18i CNC control includes color flat screen, softkeys, and Windows™ graphic user interface.

Micro 100, Inc.    Los Angeles, CA 90029
Dec 10, 2002 Solid Carbide Moldmaking Runner Cutters are offered in 2 designs: one with 10° per side for milling 10° channels in plastic molds, and one with 15° per side to mill 15° channels in similar applications. Eight sizes are offered in each design with shank diameters from 3/16 to ½ in., which are precision ground within -.0001 to -.0003 in. Ball end radii range from 1/32 up to 5/32 in. at +.003 in. -.000 in.

F.I.R.E. Panel LLC    Scottsdale, AZ 85206

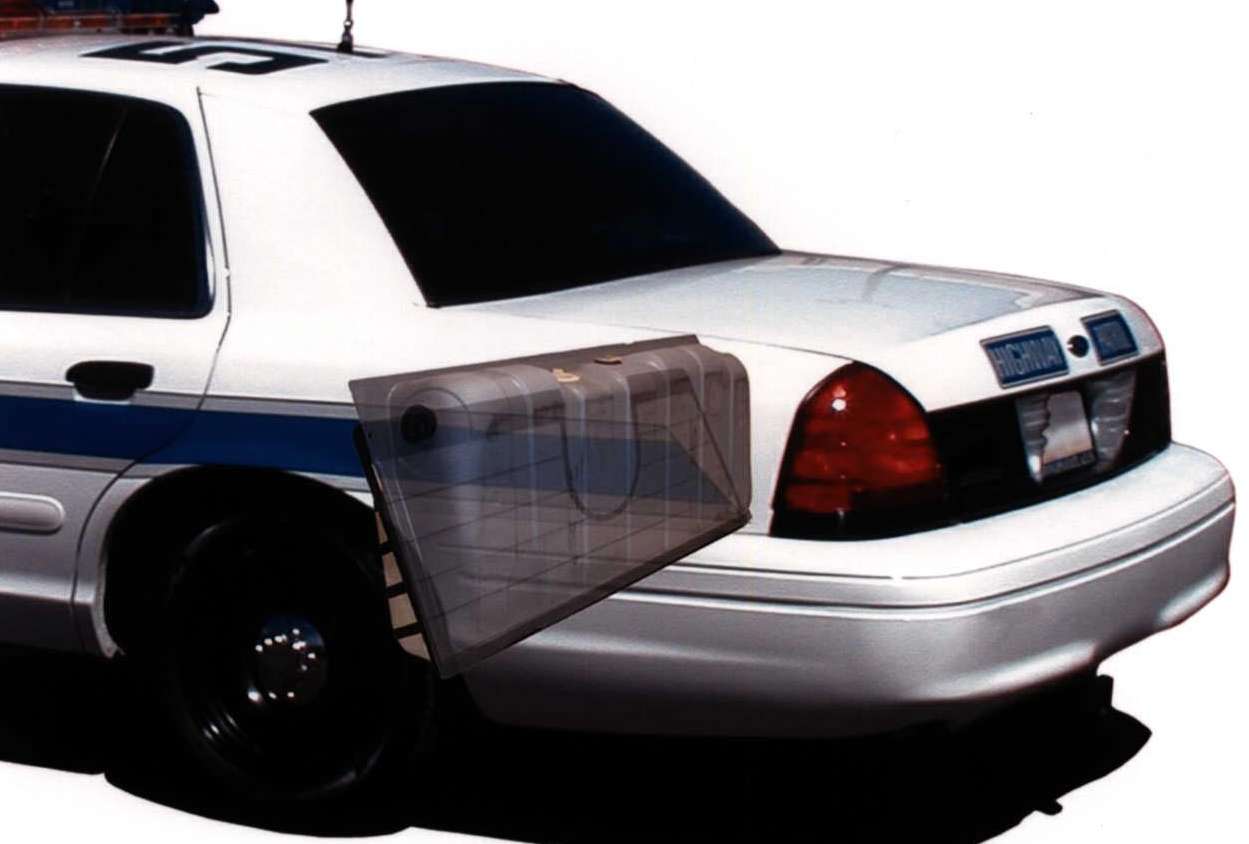

Dec 10, 2002 FIRE Panelâ„¢ helps prevent fires caused by rear-end collisions by encasing vehicle's fuel tank with custom-formed, 3D, polymer panel that contains fire-suppressing powder. Unaffected by low-speed accidents, system's shape wraps around sides of fuel tank to provide additional protection during skewed angle collisions. Upon impact, panel shatters, releases powder, and renders space around tank inert, preventing ignition of fuel or suppressing fire.

Castell Interlocks, Inc.    Chicago, IL 60601

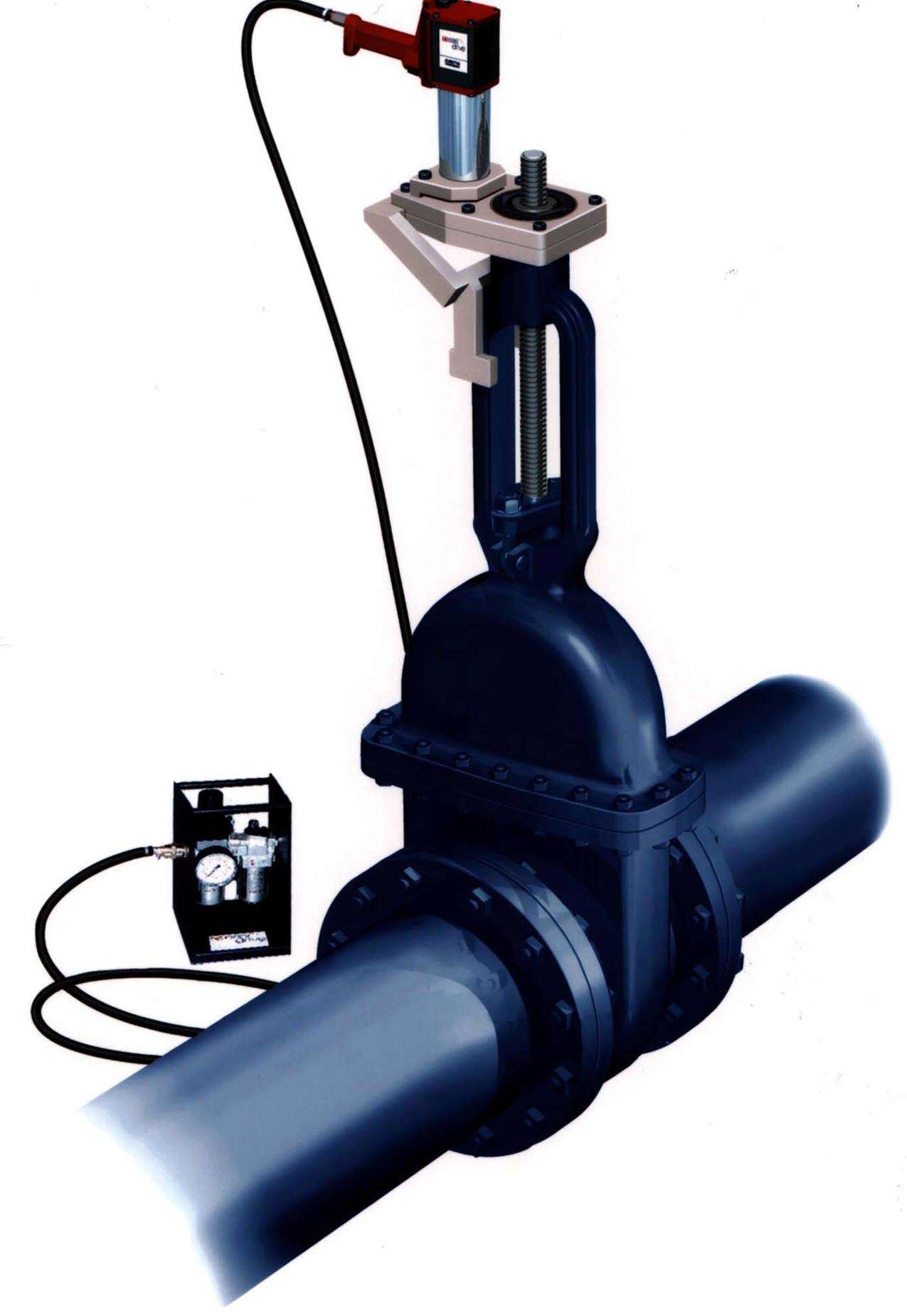

Dec 10, 2002 Easi-Drive portable valve operating system is comprised of drive gun, valve coupler, and power pack. Operation is pneumatic, hydraulic, or electric. System is used with manual valves in situations where valve size, pressure rating or work environment demand dedicated actuator or work crew. Banks of valves can be managed with single Easi-Drive tool. Unit works in Hazardous Areas and all climate conditions, and can move tight or partially seized valves.

Seco-Larm    Irvine, CA 92606-5012

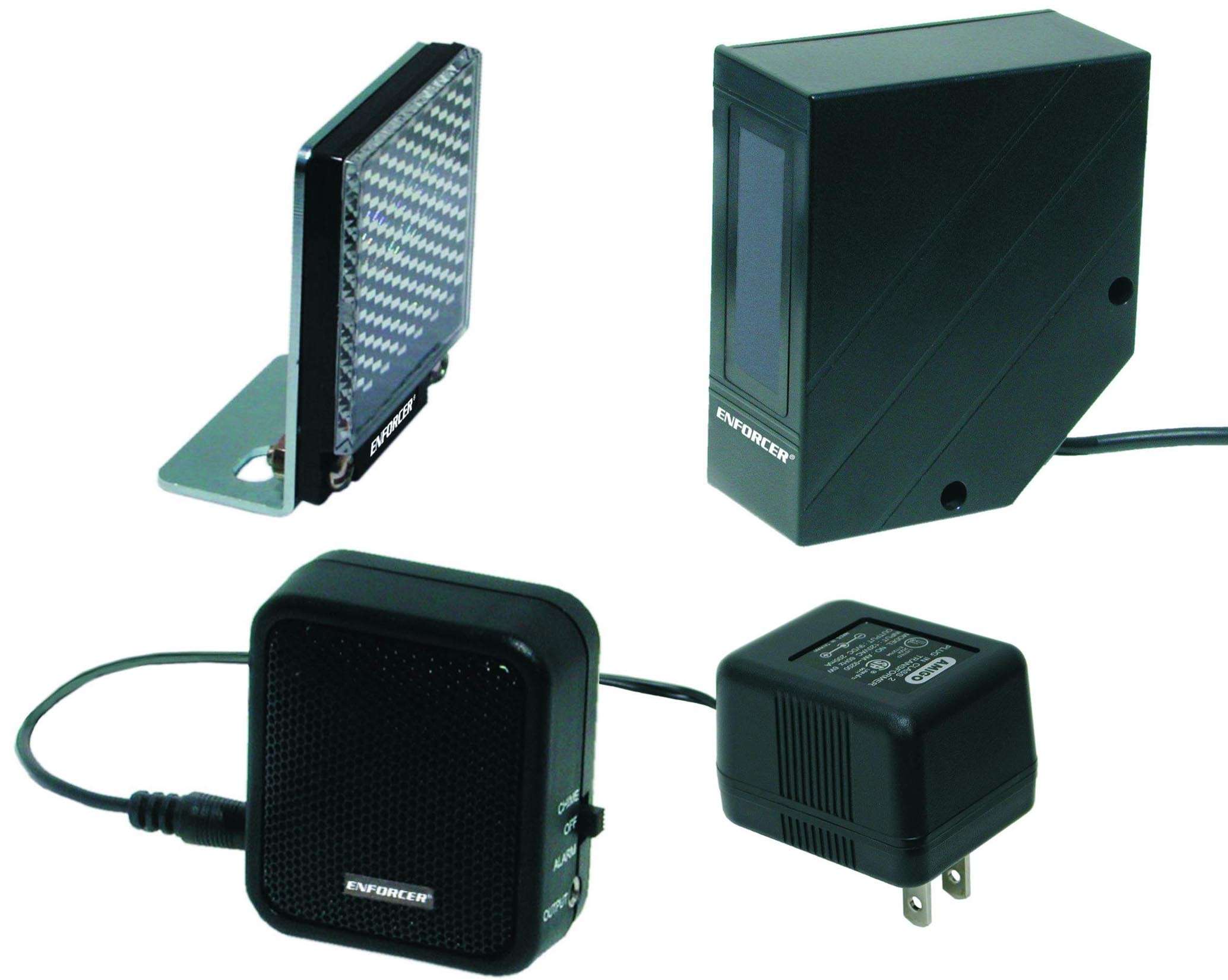

Dec 10, 2002 Model E-931-S22RRC monitors entrance, making ding-dong or siren sound if transmitter/receiver's beam is interrupted. With adjustable volume control for speaker/electronic chime, unit also offers adjustable sounding time from 3–30 seconds in siren mode. Product comes with single-beam transmitter/receiver, reflector, speaker/electronic chime, 9 Vdc adapter, mounting brackets, and hardware. Optional counter can be incorporated into unit.

Torit, Donaldson Co., Inc.    Minneapolis, MN 55440
Dec 10, 2002 Available in 8 models, MediaFilterâ„¢ filters mist, smoke, dust, and fumes with 40% ASHRAE Multi-Vee prefilter, 4 in. impinger, and aluminum mesh filter. Modular design allows for customization to specific filtration applications. Also available in vertical configuration, product is offered with various power, size, filter, and drainage options. Each is available as either ambient or source collector.

Rockwell Automation / Allen-Bradley/Power Group    Mequon, WI 53092
Dec 10, 2002 PowerFlexâ„¢ 40 is available in 115, 230, and 460 V for applications up to 10 hp. It uses sensorless vector control for powerful motor torque at low speeds. Configurable I/O performs basic logic, timer, and counter functions. Integral keypad includes 10 most commonly programmed parameters, and integral RS485 works with configuration and monitoring software. Drive can be DIN rail or panel mounted. Zero Stackingâ„¢ capability allows drives to be mounted side by side.

TTI, Inc.    Williston, VT 05495
Dec 09, 2002 Model PC6-B tests and calibrates pressure transducers/transmitters, pressure switches/relief valves, analog and digital pressure indicators, process indicators, and pressure converters. External or digital pressure modules accommodate variety of pressure ranges from -30 in. Hg to 15,000 psi. Optional Windowsâ„¢-based SiCal software permits remote control operation and data transfer into other applications. Calibration data can be logged, viewed, and printed.
