Validyne Engineering Corp.    Northridge, CA 91324-4438
Dec 19, 2002 Model PS409 is 4 in. deep with 3/8 DIN enclosure, suitable for test panels and test cells where low-pressure readings are required. It provides 5 Vdc analog output for recording, remote display, or control purposes. Panel mount digital indicator, with 0.5 in. high, 4½ digit display provides readout in psi, in. Hg, and in. H₂O. Transducer is offered in absolute, gage, and differential versions with pressure ranges from 0.1–3200 psi FS. Operating range is 0–160°F.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Dec 19, 2002 Offering peak generator power of 10,000 W, Bobcatâ„¢ 250 D NT incorporates 3-cylinder, 18.8 hp, liquid-cooled diesel engine. On job sites, unit can also serve as back-up power source for running floodlights and tools that require electrical power. Constructed with heavy-duty parts and without PC boards, full casing protects components from accidental impact and harsh elements. CV-rated output of 250 A, 28 V at 100% duty cycle allows for use of solid or flux cored wires.

AVO International    Dallas, TX 75237

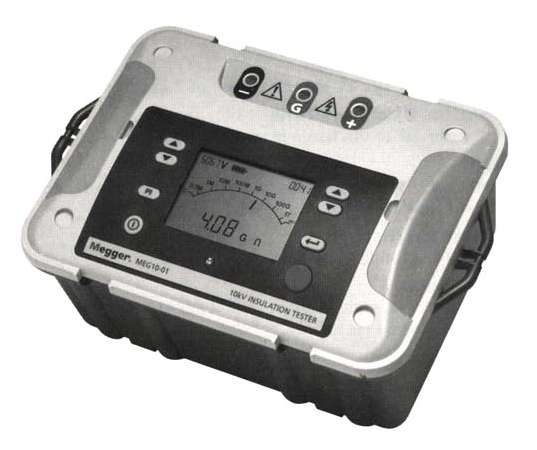

Dec 19, 2002 Microprocessor-controlled, Model MEG-10-01 is manufactured to requirements of IEEE43:2000 Standard, which suggests use of 10 kV as test voltage for rotating machinery with rated voltage above 12 kV requirements. Test voltage range is 500–5000 V, with measurement range up to 50 Gohm at 500 V, 500 Gohm at 5 kV or 10 kV on digital display, and to 1 Tohm at all voltages on analog scale. IP54-rated unit provides real-time data output and on-board storage for download.

Autosplice    San Diego, CA 92121
Dec 19, 2002 Flange Stacking Interconnectsâ„¢ can be auto-inserted into first PCB or daughter-board assembly using knurled pin or star pin configurations. Flange design includes series of notches around stand-off rings' periphery that allow for out-gassing to relieve pressures, which can build up during reflow soldering. Available in standard or high-conductivity copper alloys, FSI components provide electrical interfaces with plated through holes and solder pads.

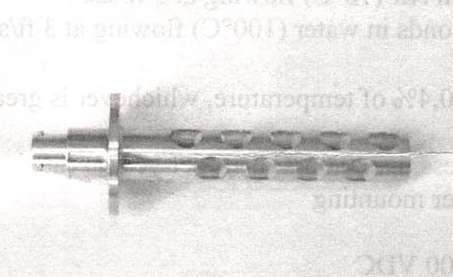

RdF Corporation    Hudson, NH 03051 0490
Dec 19, 2002 Air Sensor, based on platinum resistance temperature technology, provides accurate measurements in controlled chambers, wind tunnels, cargo bays, biological storage, heat exchangers, and exhaust flues. Stainless steel enclosure protects sensor from corrosive environments, while perforated sheath protects sensing element from foreign material. Sensor features less than 0.05°C drift/year at rated service temperature of -130 to 220°C.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005 2550

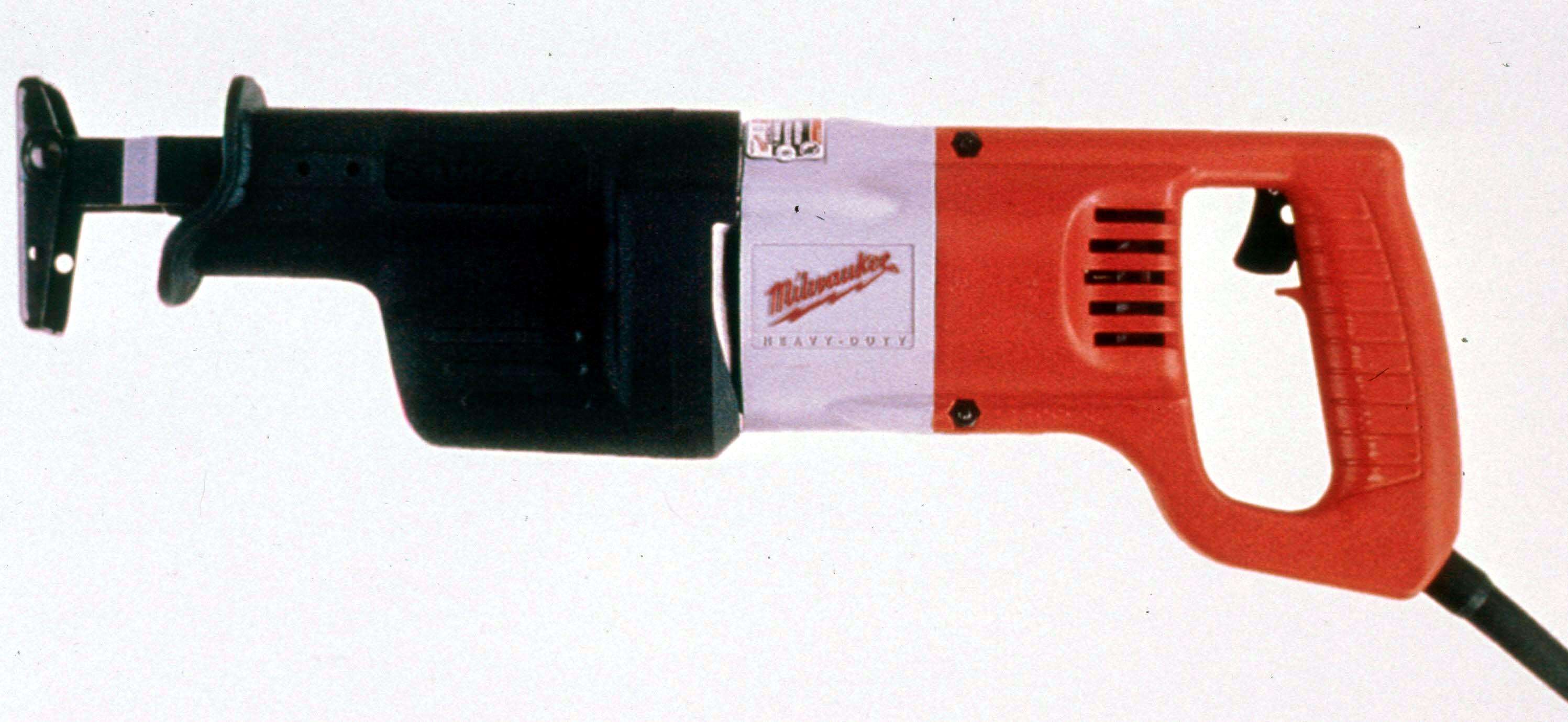

Dec 19, 2002 Sawzall Model 6509 offers 0–2800 spm, variable speed trigger with ¾ in. stroke length and Quik-Lok blade clamp for tool-less blade changes. Blades may be clamped upside down for special cutting needs. Double bearing wobble plate mechanism and lighter spindle help minimize vibration. Tool is double insulated and has heavy duty S jacket, 8 ft 2-wire rubber cord. Saw uses standard ½ in. shank blades.

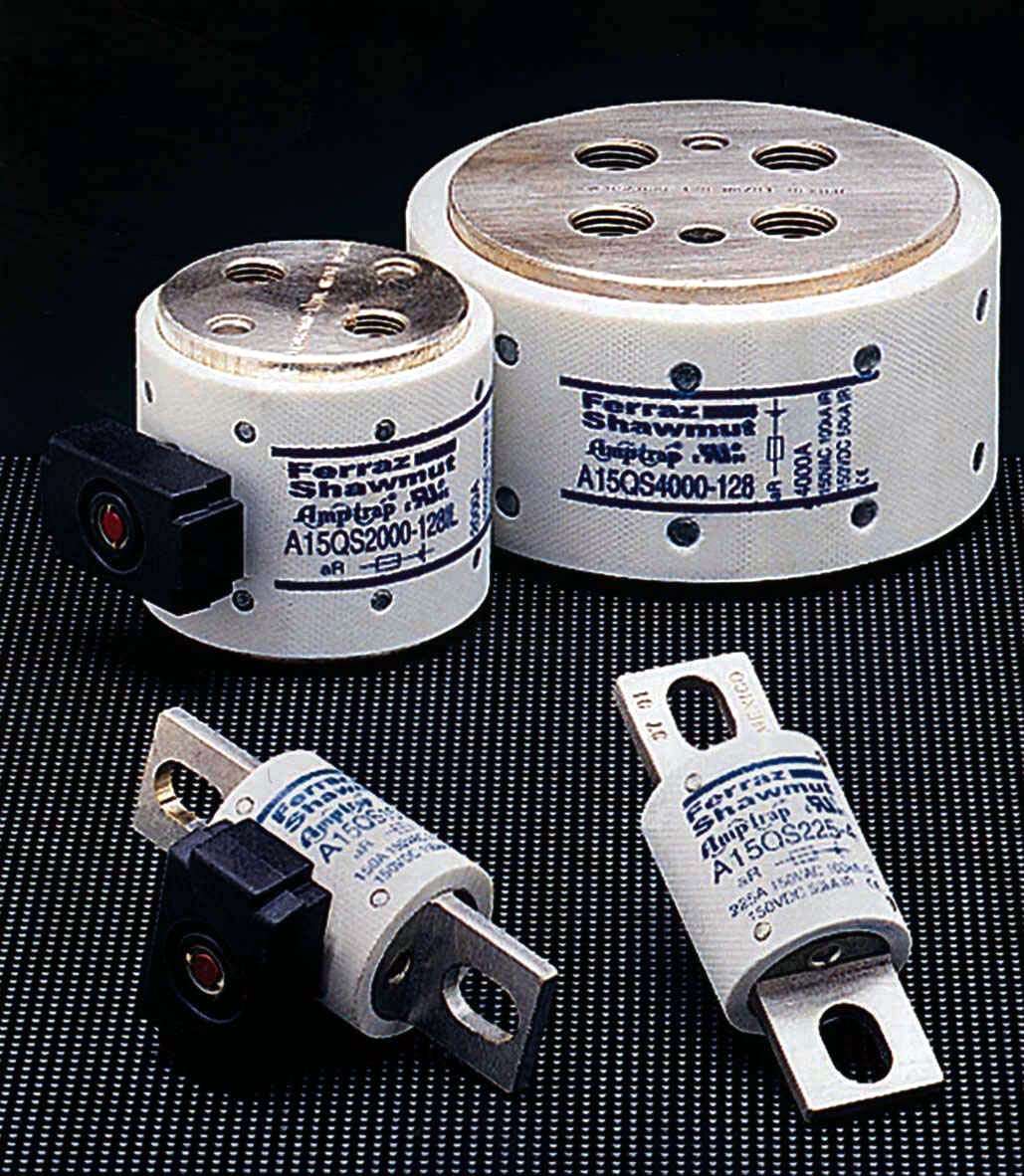

Mersen    Newburyport, MA 01950
Dec 19, 2002 Series A15QS Amp-Trap Form 101 fuses protect diodes, thyristors, GTOs, and other semiconductor devices. They are rated 150 V ac/dc and range from 1-6,000 A. Fuses are UL Recognized components, feature AC approvals for UL Guide Number JFHR2, and have been DC tested to UL Standard 198L parameters. Fuse status indicators are optional. Typical system applications include heavy duty devices such as rectifiers, inverters, and phase controllers.

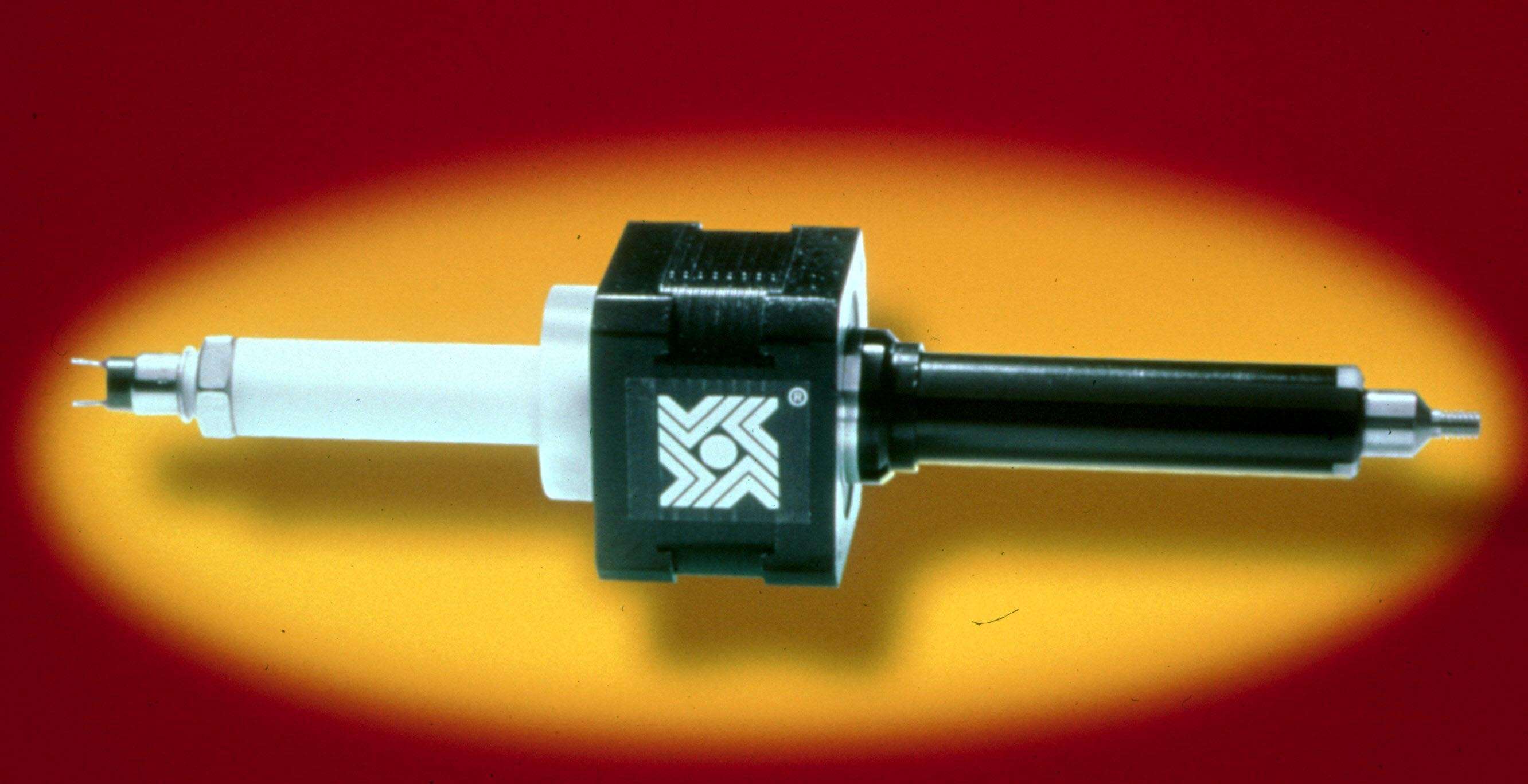

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910
Dec 19, 2002 Size 17 captive linear actuator includes military style connector and proximity switch for end of travel. For hybrid captive motors, Size 17 or 23 units offer max operating travel of 2.5 in. with forces up to 50 lb for Size 17 and 200 lb for Size 23. Precision per step can be as low as .00012 in. Anti-backlash nuts are available for extreme bi-directional precision.

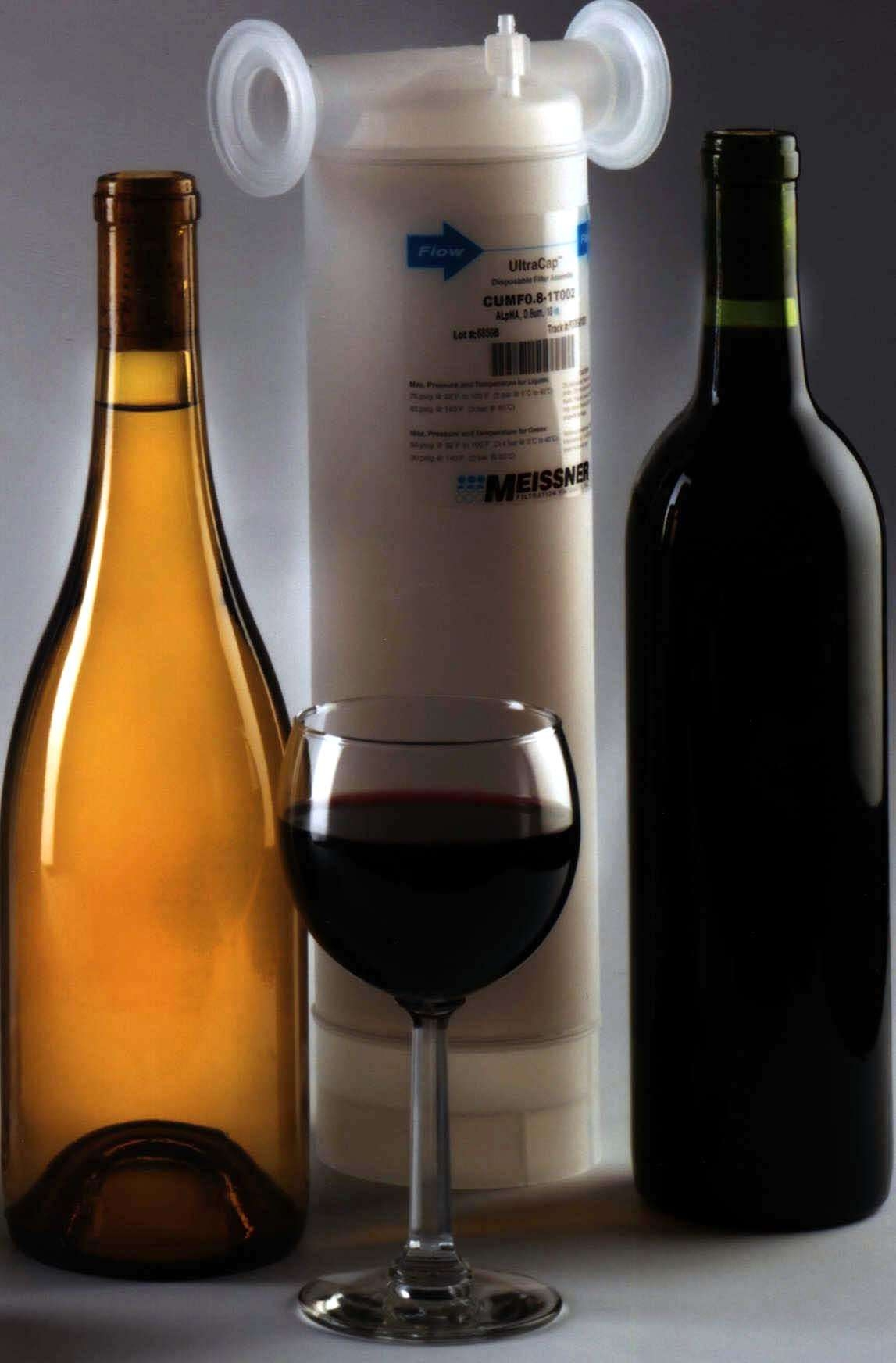

Meissner Filtration Products, Inc.    Camarillo, CA 93012 8760
Dec 19, 2002 UltraCap® disposable filter assembly eliminates need for stainless steel filter housings. It is offered with 0.45 or 0.6 µm absolute rated membranes of PVDF and PES for final filtration of red wines, white and blush wines, sparkling wines, and wine coolers. Prefilter utilizes polypropylene microfiber media. To guarantee reliability in sterile filtration or microbial stabilization of wine, UltraCap® can be integrity tested in place.

RIA Electronic, Inc.    Eatontown, NJ 07724

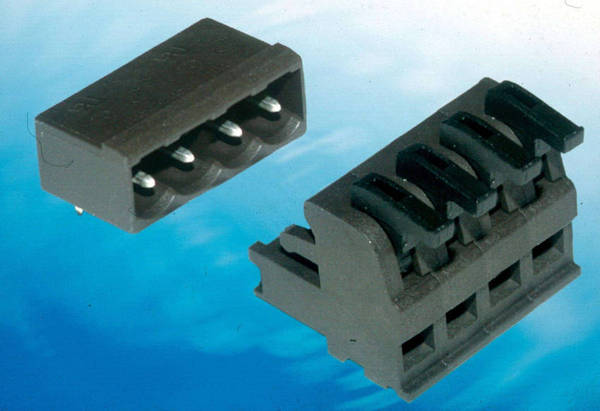

Dec 19, 2002 Type ASP045 Pluggable Springcon® terminal block replaces screw type pluggable 2-piece terminal blocks. With wire range from 16–28 AWG, unit is rated to 300 V at 10 A. Design provides constant contact resistance and auto adjustment of spring force at each wire size. Type ASP045 is UL Listed and meets VDE requirements. It is offered in 2 to 24 poles.

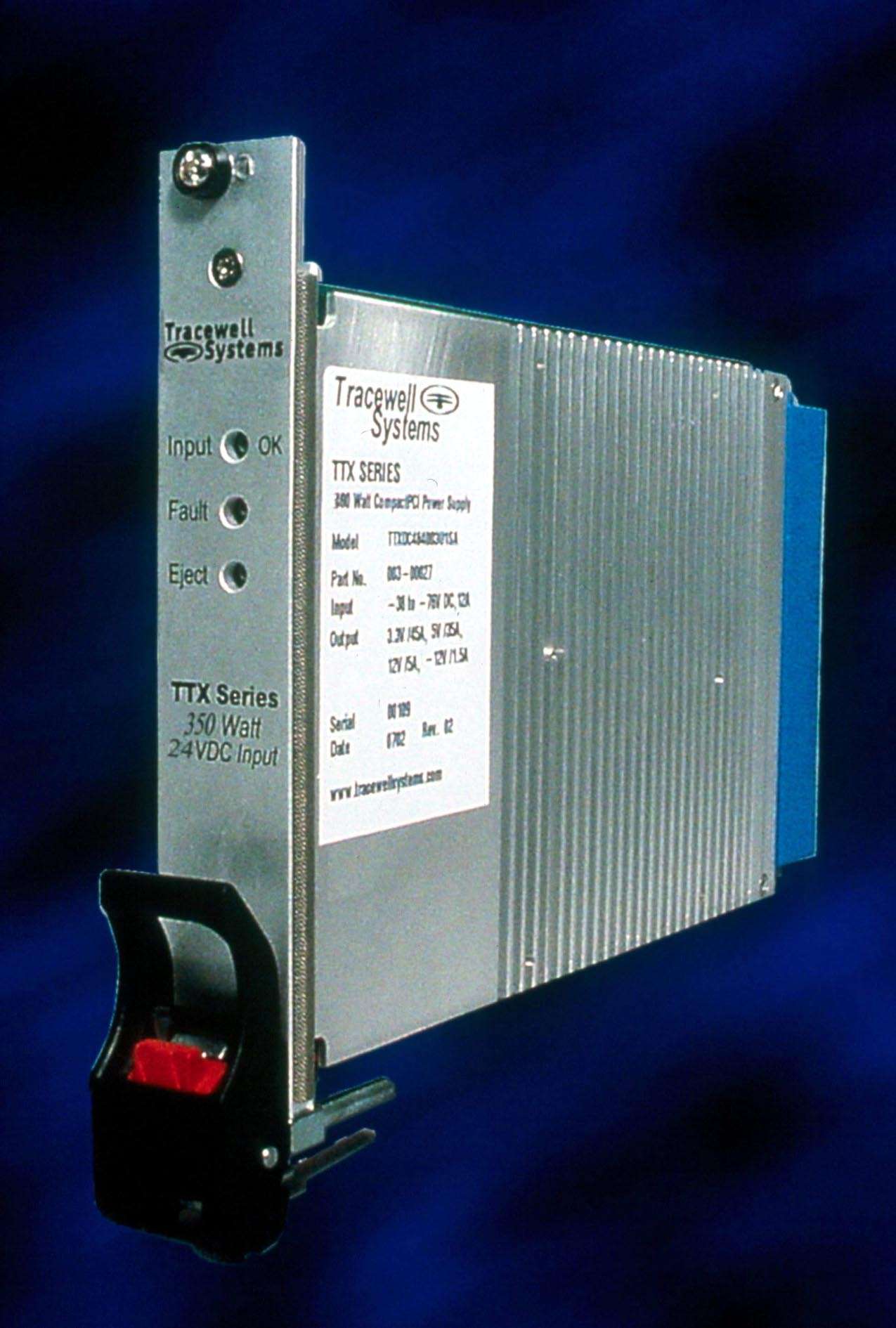

Tracewell Systems, Inc.    Westerville, OH 43081-8846
Dec 19, 2002 TTX Series single-slot power supplies are 24 V DC input units that include 350 W, 3U model and 700 W, 6U model. They support input range of 18–36 V and provide outputs of 5, 3.3, and ±12 V. Isolated, fixed 500 kHz switching frequency utilizes dual soft switching bridge architecture with integrated planar magnetics. I²C interface provides actual output voltages and current measurements. OR'ring diodes are replaced with MOSFETS, reducing heat dissipation.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110

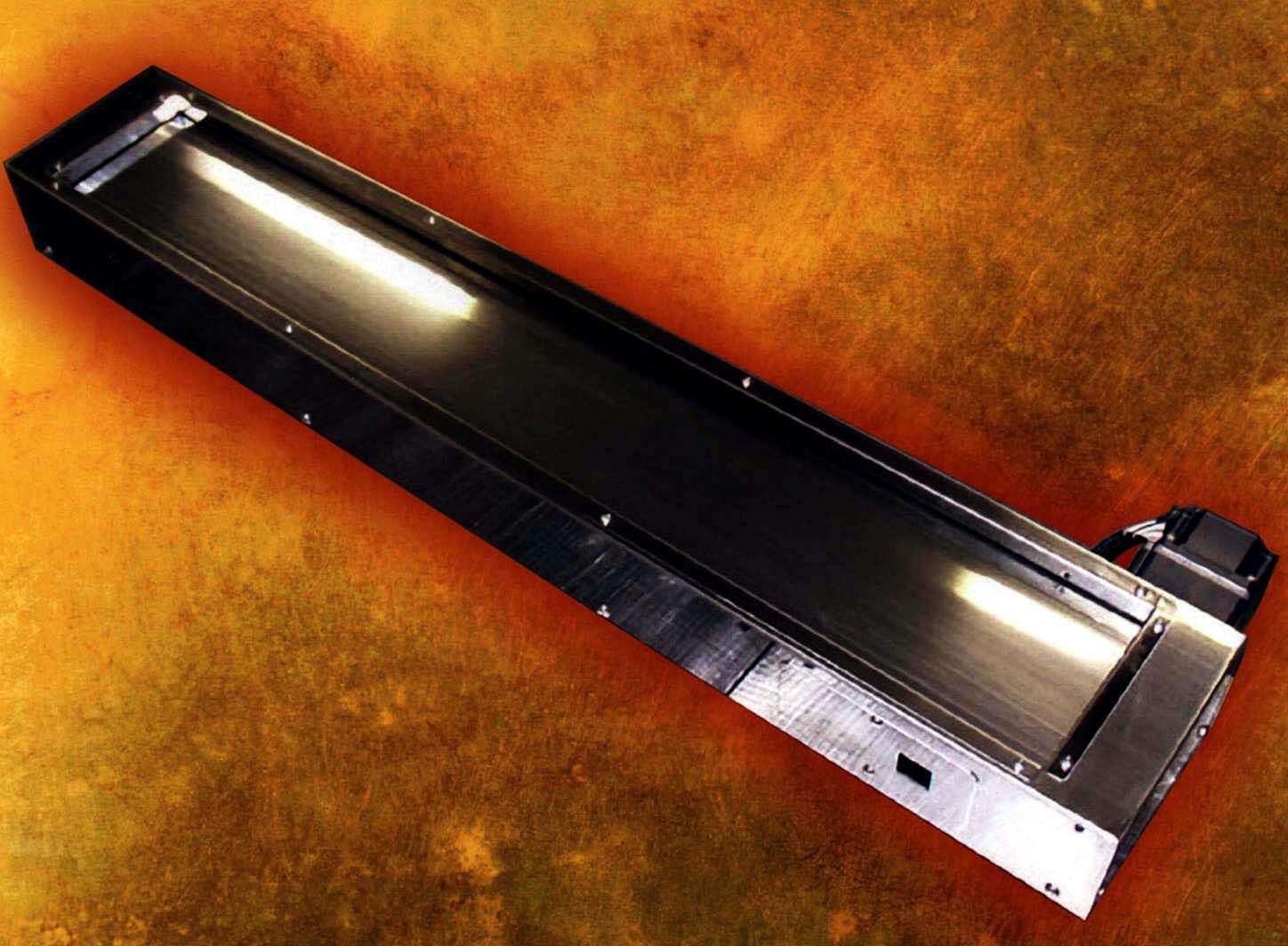

Dec 19, 2002 Constructed of stainless steel, ASG conveyors handle small parts in cleanroom environments. Custom-engineered to each application, products are available with various configurations, belt widths, lengths, and pulley diameters. Conveyors come complete with speed motors and drives (AC or DC, fixed or variable).

Dadco, Inc.    Plymouth, MI 48170-2598
Dec 19, 2002 Model SL.16 measures 14 mm in diameter with M16 threaded body. Forces on contact range from 13–114 lb, and stroke lengths are available from 10–100 mm. Internal hex aids in installation and removal. Also offered to assist in removal is the ratcheting RT-16-A removal tool.

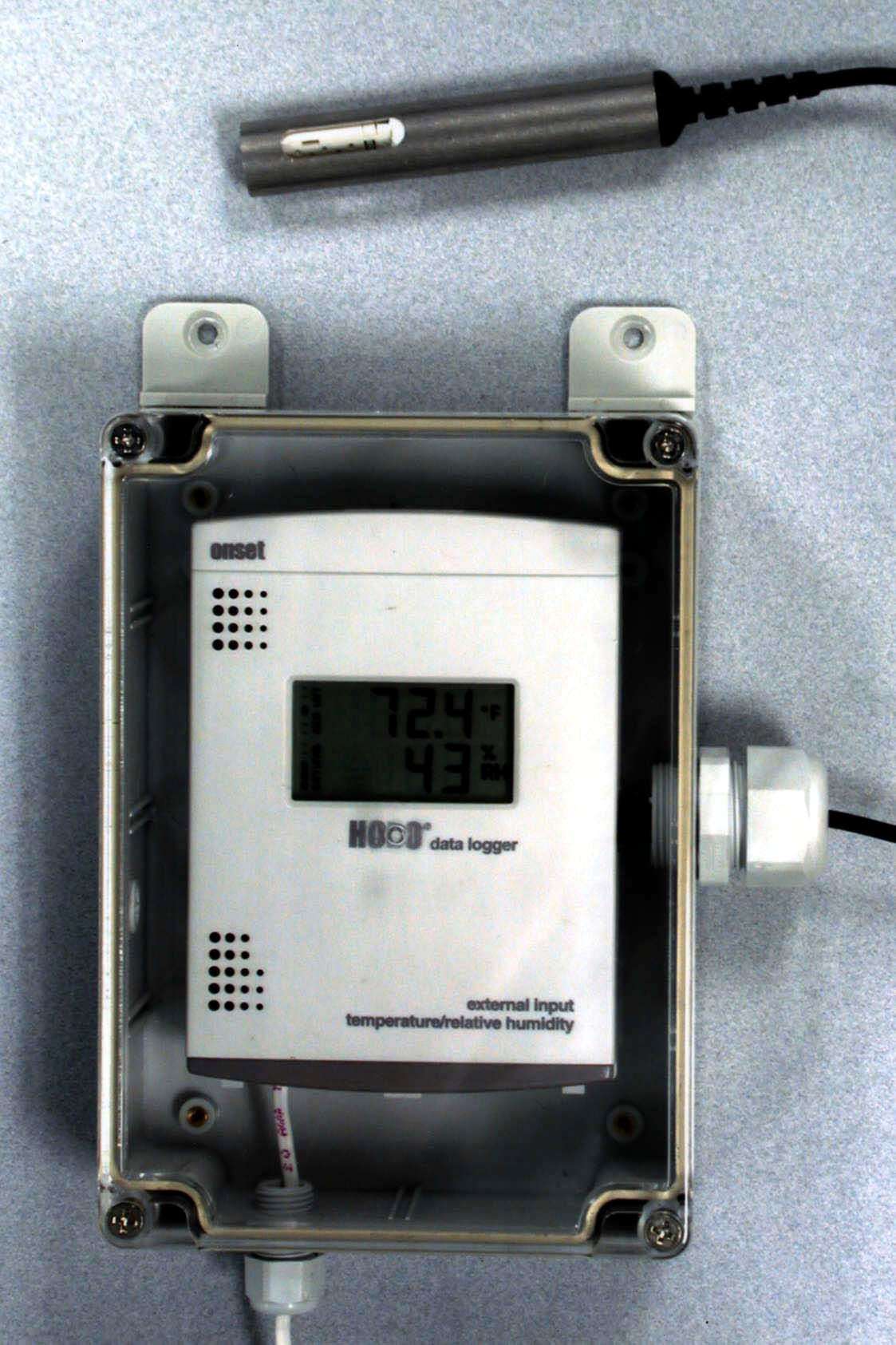

Onset Computer Corp.    Bourne, MA 02532
Dec 19, 2002 Tested to NEMA 4X standards, case mounts HOBO LCD Temp/RH Data Logger in condensing, wet, or dusty environments. It protects against corrosion, wind-blown dust and rain, splashing, and hose-directed water. Sensor cable feeds from LCD Logger through watertight grommet to external sensor. Made of UV-stabilized polycarbonate, product contains removable cap with O-ring seal and internal desiccant pack to minimize internal condensation.

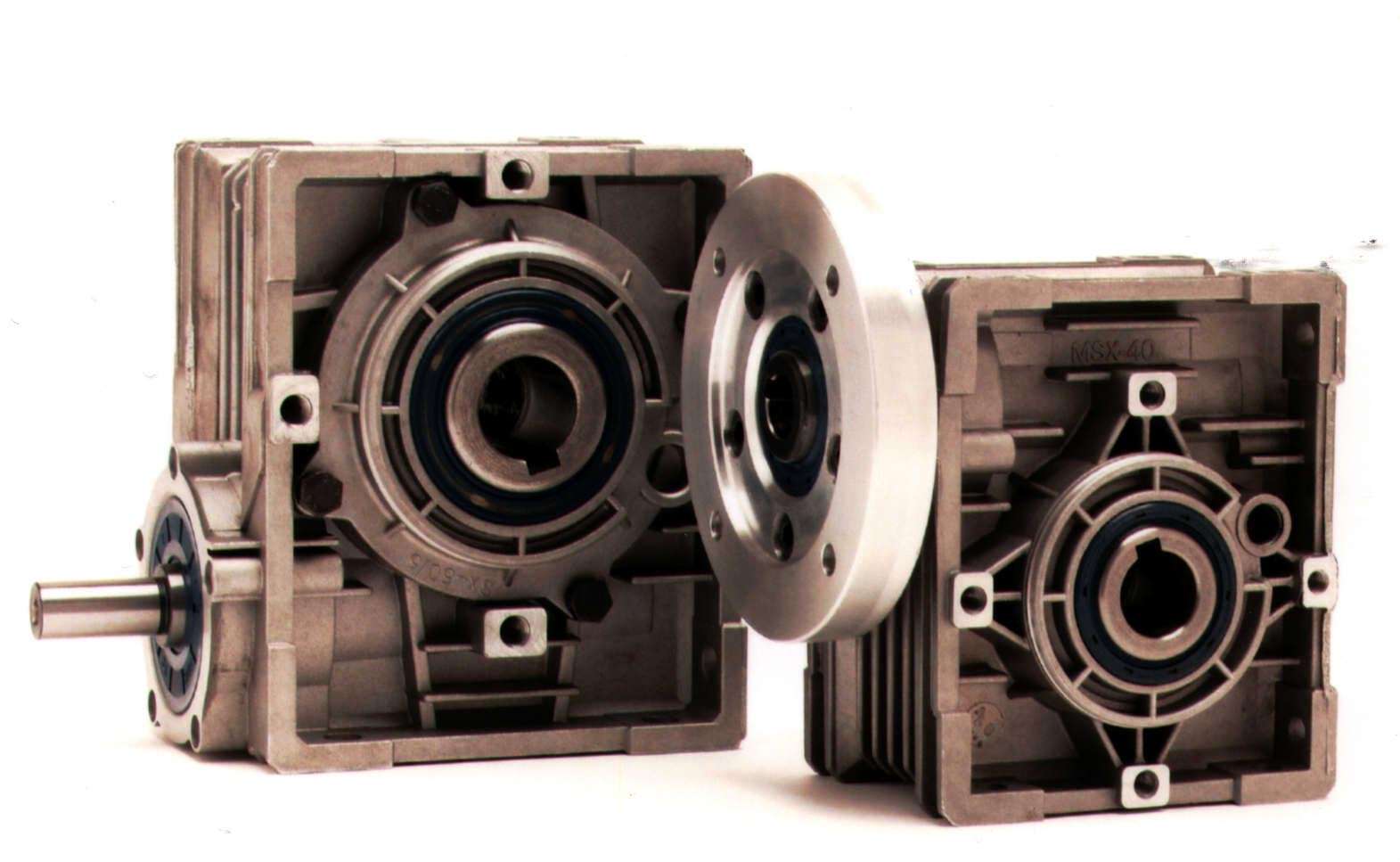

Renold Power Transmission Corp.    West Chester, OH 45069
Dec 19, 2002 Series e.JW is available in 10 sizes with gear ratios from 5:1 to 100:1, and is suitable for use with IEC and NEMA motors. Double reduction units provide option of 4000:1 ratio. Mounting surfaces are incorporated on all sides of gear case. Hollowed output shaft allows direct mounting with option of plug-in single or double extension output shafts. Sizes 30–60 have 1-piece aluminum gear case and sizes 75 and 86 have fine grain cast iron gear case.

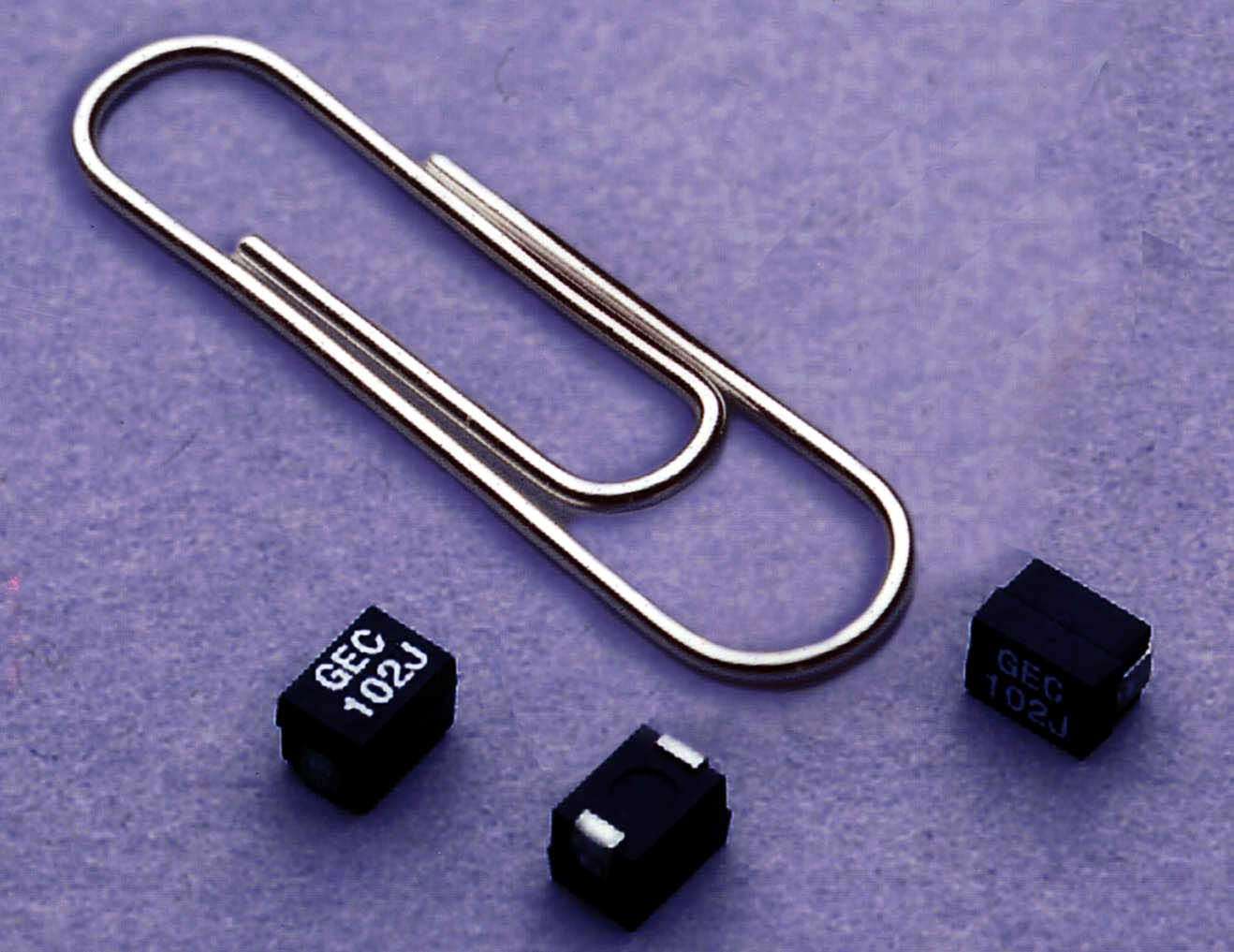

Gowanda Electronics Corp.    Gowanda, NY 14070
Dec 19, 2002 Series SMRF 1812S features inductance from .10 ±20% to 1000 ±10% µH and current ratings from 1959-85 mA. Shielding minimizes coupling between board components. Design incorporates high temperature magnet wire and utilizes semiconductor grade epoxy molding compound. Coil is centered within device to minimize stress on internal parts. Applications include RF signal circuitry in communications, test and measurement, and industrial process control equipment.

Cogiscan, Inc.    Bromont, QC J2L 2N8
Dec 19, 2002 Moisture Sensitive Device (MSD) Control System meets IPC/JEDEC J-STD-033A, which includes revised de-rating table to address environments with humidity rated upwards of 60%. Real-time tracking of moisture sensitive components ensures that components are assembled within specified floor life. System tracks part number, moisture sensitivity level, expiration date/time, body thickness, category, and type. Trays and reels containing MSDs are identified with re-usable RF tags.

Harmonic Drive, LLC    Peabody, MA 01960
Dec 19, 2002 CSF-1U size 5 precision gearhead delivers 3 arc-min positional accuracy in package that measures 20 x 20 x 37 mm. Product has rated torque of 5 lb-in. and maximum torque of 24 lb-in. Gearhead has both input shaft and output shaft for coupling. Unit is available in 30, 50, and 100:1 gear ratios.

HPS Div., MKS Instruments Inc.    Boulder, CO 80301
Dec 19, 2002 HPS® Filter Housings are offered in draining model to decrease hold-up volume and clean-in-place model for fast system maintenance. Silicone foam HPS® Heater Jackets improve heat distribution while complying with agency and corporate personnel safety standards. Heating elements are thermostatically controlled with redundant circuitry for over- and under-temperature conditions. Molded shape conforms to piping which minimizes gaps and subsequent heat loss.

Yokogawa Corp. Of America    Newnan, GA 30265 1040
Dec 19, 2002 Green Series model UT351 Digital Indicating Controller, with Active Color PV Display, allows controller to change color of PV display from green to red or from red to green based on status of process conditions. Condition of standard alarms triggers change in active color display automatically. Also, deviation of PV from SP will trigger active color display. Users can select between constant green or red PV display.
