APG Cash Drawer, Inc.    Minneapolis, MN 55421-1012
Dec 18, 2002 Cash Drawer Caddyâ„¢ System cleans up cable clutter of POS workstation. Series 100 units are 16 x 19.5 in. and Series 4000 offers 18.8 x 21 in. or 20 x 21 in. sizes. All include steel cap, injection molded plastic base, and heavy-duty cash drawer. They accommodate nearly all major keyboard, printer, and monitor brands and allow for peripherals to be placed with left- or right-hand orientation.

Diagraph Corp.    St. Charles, MO 63304
Dec 18, 2002 Model IJ/3000® offers touch screen controls, worldwide networking connectivity, and 24/7 monitoring/diagnostic functions. Graphical user interface allows operator to enter product identification, batch codes, and logos. Batch codes may be changed during run without interruption of production line. Machine is able to print alphanumeric information from ½â€“2 in. in height as well as logos on corrugated cartons, pipe, carpet, metal, glass, and plastic.

CyberResearch, Inc.    Branford, CT 06405 2932
Dec 18, 2002 Model USBH 3204, 4-port hub offers USB 2.0 speed and connectivity to existing USB 1.0 or 1.1 devices. It provides 500 mA per port surge protection for applications such as data acquisition and digital I/O. Model USBH 3117 is offered with 7 downstream ports for users who need more downstream ports but do not require USB 2.0 speed. Each hub comes with drivers, USB cables, and power supplies and offers USB plug-and-play functionality and hot-swap features.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Dec 18, 2002 Model A4 features 120° bottom prism seating surface and insert holder with top guide that is locked by clamp. It performs side turning at up to 0.016 in. per revolution. Model A4 is offered in 3, 4, and 5 mm groove widths with square shank grooving/turning tools for OD operations, boring bar type grooving tools for ID operations, and modular blades that fit both KM and square shank tooling systems. Inserts are available in four different grades.

JNJ Industries Inc.    Milford, MA 01757
Dec 18, 2002 AquaSonic® AQS-7500 combines PLC controlled, fully automatic ultrasonic stencil cleaning machine with wastewater recycling. All machine functions are controlled via an operator touch screen interface. Cleaning system has 2 tank design that utilizes ultrasonic wash tank and spray chamber. It uses integral pulse and sweep ultrasonic generation, 5 µ wash tank filter, stainless steel pump, 4,000 W heated wash tank, and 1-button operation.

Alemite Corporation    Charlotte, NC 28226 3515
Dec 18, 2002 Spring-powered, self-retracting Model 8051 includes 52 ft of 5/16 in. hose, molded plastic housing, and pivoting bracket for mounting. When hose is extended, ratchet-type latch controls reel. Easy pull on hose releases latch and enables hose to retract into reel. Model 8051 is suitable for air powered tools, windshield washer fluid, antifreeze dispensing, and power washers. It can be used for hot or cold water.

ProductionLine Testers    Pleasanton, CA 94588
Dec 18, 2002 Model IC240 bench top test system combines software interface with configurable hardware core, providing freedom to fully expand/migrate capabilities as needed. It is not limited by preprogrammed software or built-in components. Prototyping board comes with decoder, buffers and software drivers for fast bread-boarding of custom instruments. System is built around C-sized card chassis with variety of application cards available.

Tripp-Lite    Chicago, IL 60609
Dec 18, 2002 Line-interactive, rack-mount SmartPro® 1500 RMXL2U provides 1500 VA battery backup and external battery connector and occupies only 2U space. It offers 8 outlet receptacles to connect multiple pieces of equipment. Internal microprocessor monitors incoming voltage levels and corrects under and overvoltages. Unit includes SNMP slot for remote network management. DB9 and USB communication ports work with PowerAlert software to monitor and control multiple servers simultaneously.

StockerYale, Inc.    Salem, NH 03079
Dec 18, 2002 Bow-tie fiber is available at operating wavelengths of 1300 and 1550 nm, has cladding diameter of 80 µm and coating diameter of 165 µm. Reduced outer cladding diameter improves coil-turn density. Applications include fiber-optic gyroscopes, voltage and current sensors, high-data-rate communications systems, laser pigtailing, connectivity between source lasers and modulators, and polarization-sensitive components.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Dec 18, 2002 LCD Digital Refractometer provides concentration percent measurements of cutting oils, industrial fluids, brine, and coolants in concentration range of 0-32% with readability of 0.1%. Handheld, battery-operated unit includes corrosion-resistant, stainless steel sample stage, 0.5 in. LCD display, and automatic temperature compensation. With sapphire prism, it provides instant measurement from drop of solution.

FKI Logistex North America    St. Louis, MO 63132
Dec 18, 2002 PC-based, OPC-compliant BOSS(TM) Sorter Control Module combines conveyor and sorting controls, system diagnostics, real-time data collection, and human-machine interface. It handles sorter speeds up to 600 fpm and 200+ cartons per minute, and includes machine level control and productivity-tracking tools. Module offers connectivity for networking and remote troubleshooting via support for TCP/IP message exchanges (sockets), RS232/422 serial, and PLC data highway type interfaces.

Convertech    Wharton, NJ 07885 1800
Dec 18, 2002 Lateral Motion Shafts are offered in diameters of 70 mm and larger for unwind/rewind applications. They are suitable for printing presses, inspection machines, and collators that support light loads and utilize webs of 20 in. and under.

Rockwell Automation    Milwaukee, WI 53204
Dec 18, 2002 Modular SMC-Flex(TM) is available in current ranges from 108-480 A, and voltage ranges from 200-600 Vac. Built-in line-monitoring capabilities allow for monitoring of 3-phase voltage, current, kilowatts, and system power factor. Bypass automatically closes when motor reaches nominal speed, resulting in cooler-running component. In addition to controlling motor starting torque, SMC-Flex prevents power system disturbances associated with full voltage starting methods.

FKI Logistex North America    St. Louis, MO 63132
Dec 18, 2002 Power Column(TM) 2 features tilt-tray that ergonomically tilts items at rear of tray toward operator for easy retrieval. Picking accuracy is enhanced using laser pointer that directs operator to proper cell location. Rack and pinion lift system positions trays continually for insertion and extraction without requiring adjustment. Unit offers tray width up to 100 in., and includes adjustable dividers, touchscreen monitor, and inventory control software.

FatWire Corp.    Mineola, NY 11501
Dec 18, 2002 UE Secure Deploy is a principle component of UpdateEngine ECM Suite. It provides security and scalability among separate environments while supporting content authoring, workflow, and publishing fucntionality. Software promotes production of structured and unstructured content across firewalls, and removes content and files from production servers. Fetch function provides retrieval of content submitted by site visitors for processing through workflow.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005

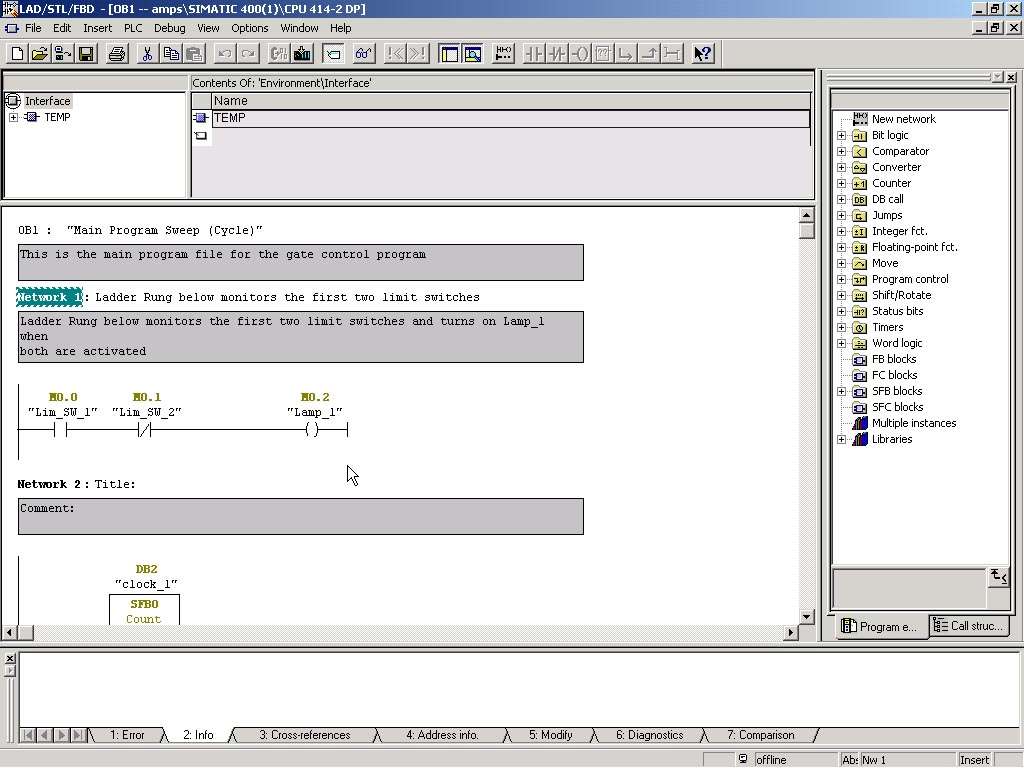

Dec 17, 2002 SIMATIC® STEP 7 v5.2 provides engineering, management, and maintenance tools for plant-wide automation. It includes fully integrated SCADA and HMI configuration tools. Programs engineered in SCADA configuration element can supervise production processes up to 64,000 tags. Fully compliant with IEC 61131-3 conventions, software offers common engineering and configuration environment for dedicated hardware, PC-based, or Windows CE control solutions.

Cattron-Theimeg, Inc.    Sharpsville, PA 16150 1198
Dec 17, 2002 Pendant Station controllers combine ergonomic design with remote control technology for no-cord operation. With metal housing, handheld units are suited for heavy-duty industrial environments. Controllers are available for use with company's portable, radio-remote control systems to provide message security, quick response time, and safe, accurate control of overhead cranes and industrial equipment.

Snap-on Industrial    Kenosha, WI 53141 1410
Dec 17, 2002 Blue Point® Model AT351 3/8 in. square-drive pneumatic wrench features ball-bearing-mounted, rotary-action air motor that achieves maximum free speed of 9,700 rpm. Lightweight aluminum housing is fitted with air-inlet swivel. Standard operating torque is 15–160 lb-ft, which is controlled via 8-position power regulator. Recommended air pressure is 30–90 psig. Butterfly-throttle impact wrench is suitable for driving and loosening threaded fasteners.

FMC Corp., Food Systems & Handling Div.    Chicago, IL 60606

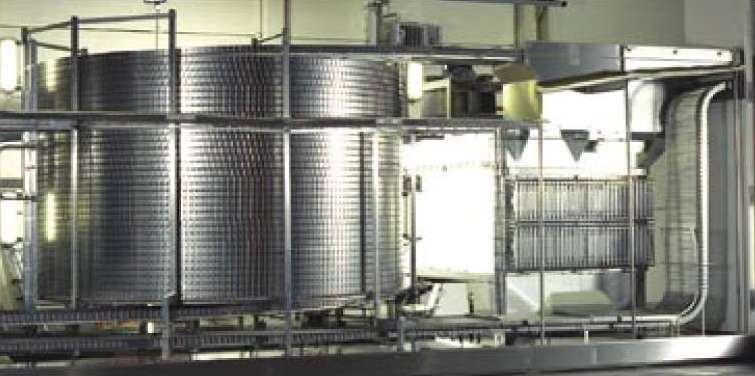

Dec 17, 2002 M-Series GYRoCOMPACT® spiral freezers are based on self-stacking belt that eliminates need for bulky and difficult-to-clean support structure. Freezing zone is thoroughly cleanable, allowing units to meet food safety demands. Increased access to evaporators and other areas inside freezer also facilitate cleaning process.

Kinetic Systems, Inc.    Boston, MA 02131

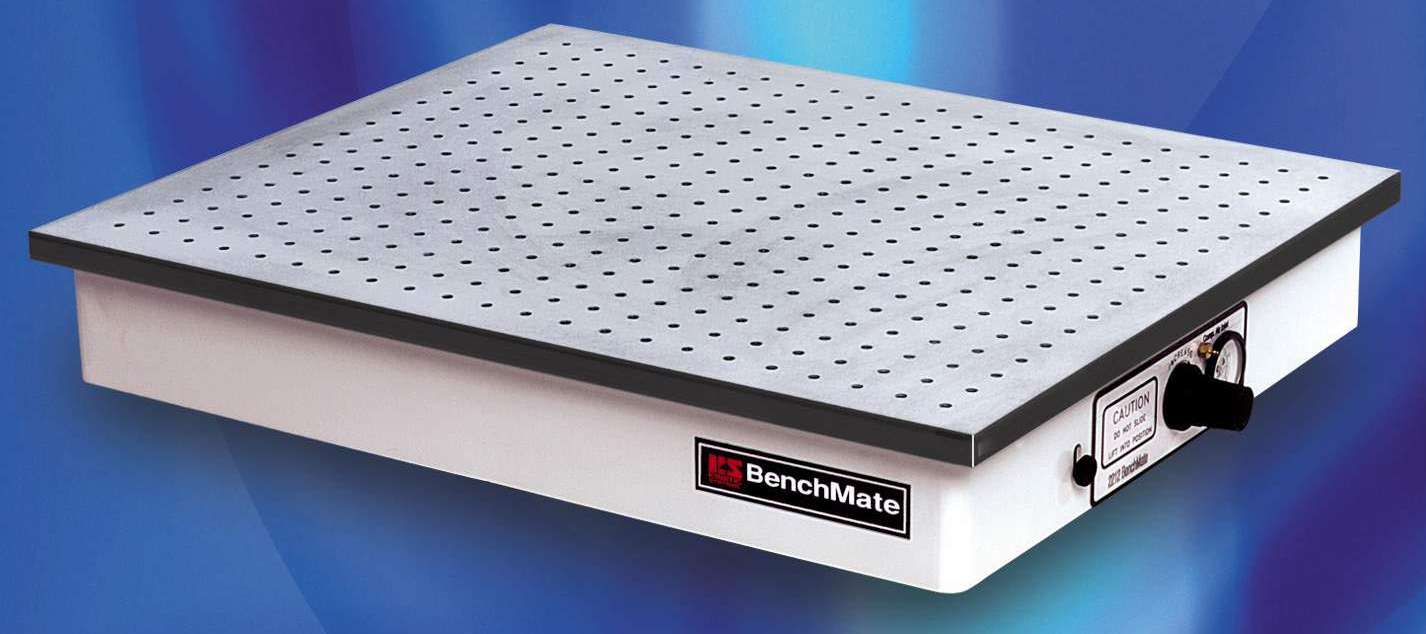

Dec 17, 2002 Cleanroom-compatible Model 2212 with load capacity to 450 lb, is available in 4 table sizes up to 24 x 36 in. Tabletop is offered with mounting holes tapped on English or metric grid. It is available in white or black, plastic laminate and white, antistatic laminate. Portable unit weighs 130–160 lb. Applications include atomic force microscopes, microhardness testers, profilometers, balances, audio components, and other precision tabletop equipment.
