Cogiscan, Inc.    Bromont, QC J2L 2N8
Dec 19, 2002 Moisture Sensitive Device (MSD) Control System meets IPC/JEDEC J-STD-033A, which includes revised de-rating table to address environments with humidity rated upwards of 60%. Real-time tracking of moisture sensitive components ensures that components are assembled within specified floor life. System tracks part number, moisture sensitivity level, expiration date/time, body thickness, category, and type. Trays and reels containing MSDs are identified with re-usable RF tags.

Harmonic Drive, LLC    Peabody, MA 01960

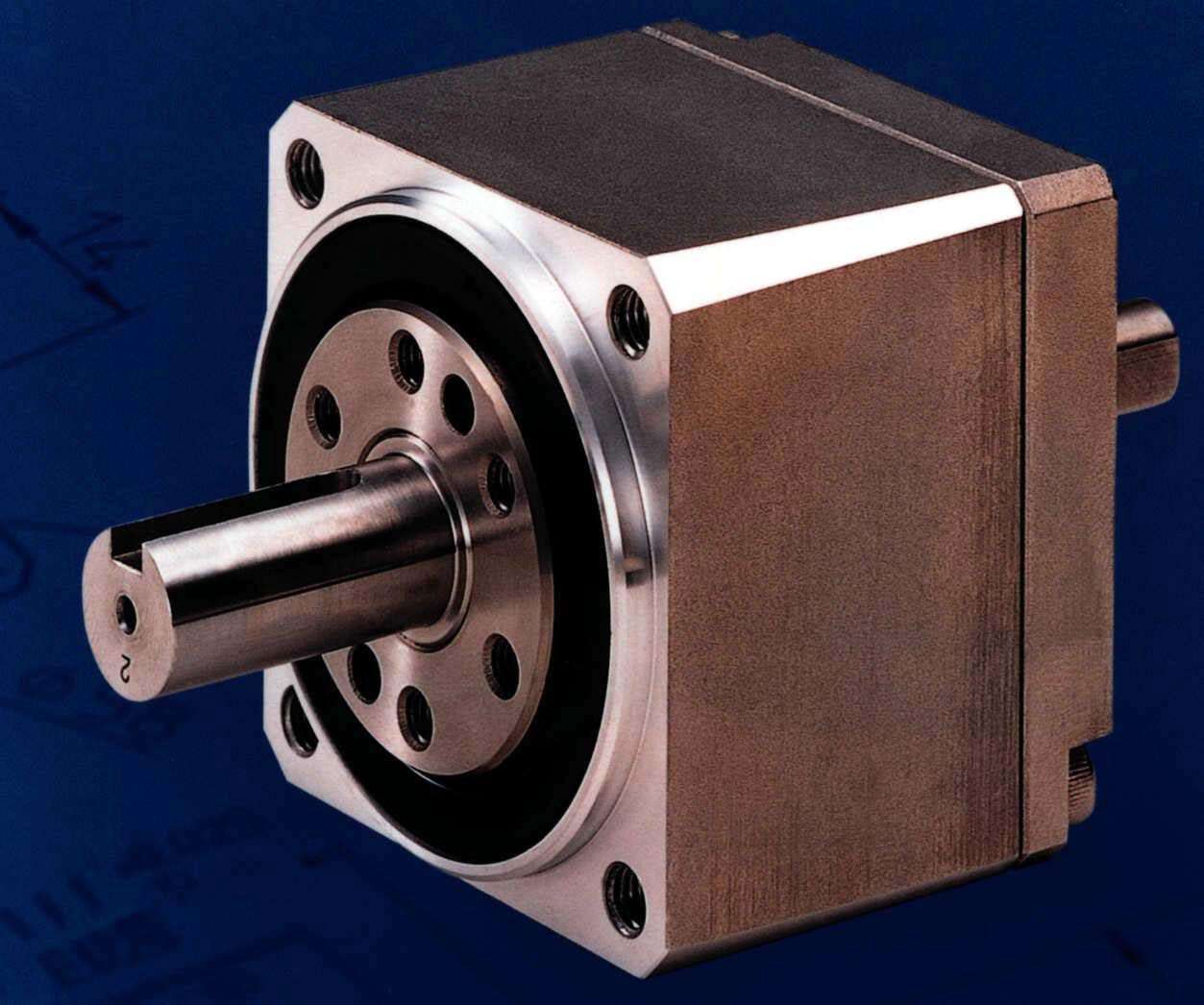

Dec 19, 2002 CSF-1U size 5 precision gearhead delivers 3 arc-min positional accuracy in package that measures 20 x 20 x 37 mm. Product has rated torque of 5 lb-in. and maximum torque of 24 lb-in. Gearhead has both input shaft and output shaft for coupling. Unit is available in 30, 50, and 100:1 gear ratios.

HPS Div., MKS Instruments Inc.    Boulder, CO 80301
Dec 19, 2002 HPS® Filter Housings are offered in draining model to decrease hold-up volume and clean-in-place model for fast system maintenance. Silicone foam HPS® Heater Jackets improve heat distribution while complying with agency and corporate personnel safety standards. Heating elements are thermostatically controlled with redundant circuitry for over- and under-temperature conditions. Molded shape conforms to piping which minimizes gaps and subsequent heat loss.

Yokogawa Corp. Of America    Newnan, GA 30265 1040
Dec 19, 2002 Green Series model UT351 Digital Indicating Controller, with Active Color PV Display, allows controller to change color of PV display from green to red or from red to green based on status of process conditions. Condition of standard alarms triggers change in active color display automatically. Also, deviation of PV from SP will trigger active color display. Users can select between constant green or red PV display.

SURFCAM, CAD/CAM Systems By Surfware    Westlake Village, CA 91362
Dec 19, 2002 SURFCAM® 2002 Plus, with Predator CNC Editor Software, develops CNC verification and turnkey DNC software and shop floor networking solutions. Common platform gives users ability to share data and components. Additional offerings include global feeds and speeds adjustments and ability to insert/edit comments, blockskips, sequence number and time. Backplotting includes automatic calculation of cycle time and simulated tool motion.

Morrison Timing Screw Co.    Gleenwood, IL 60425

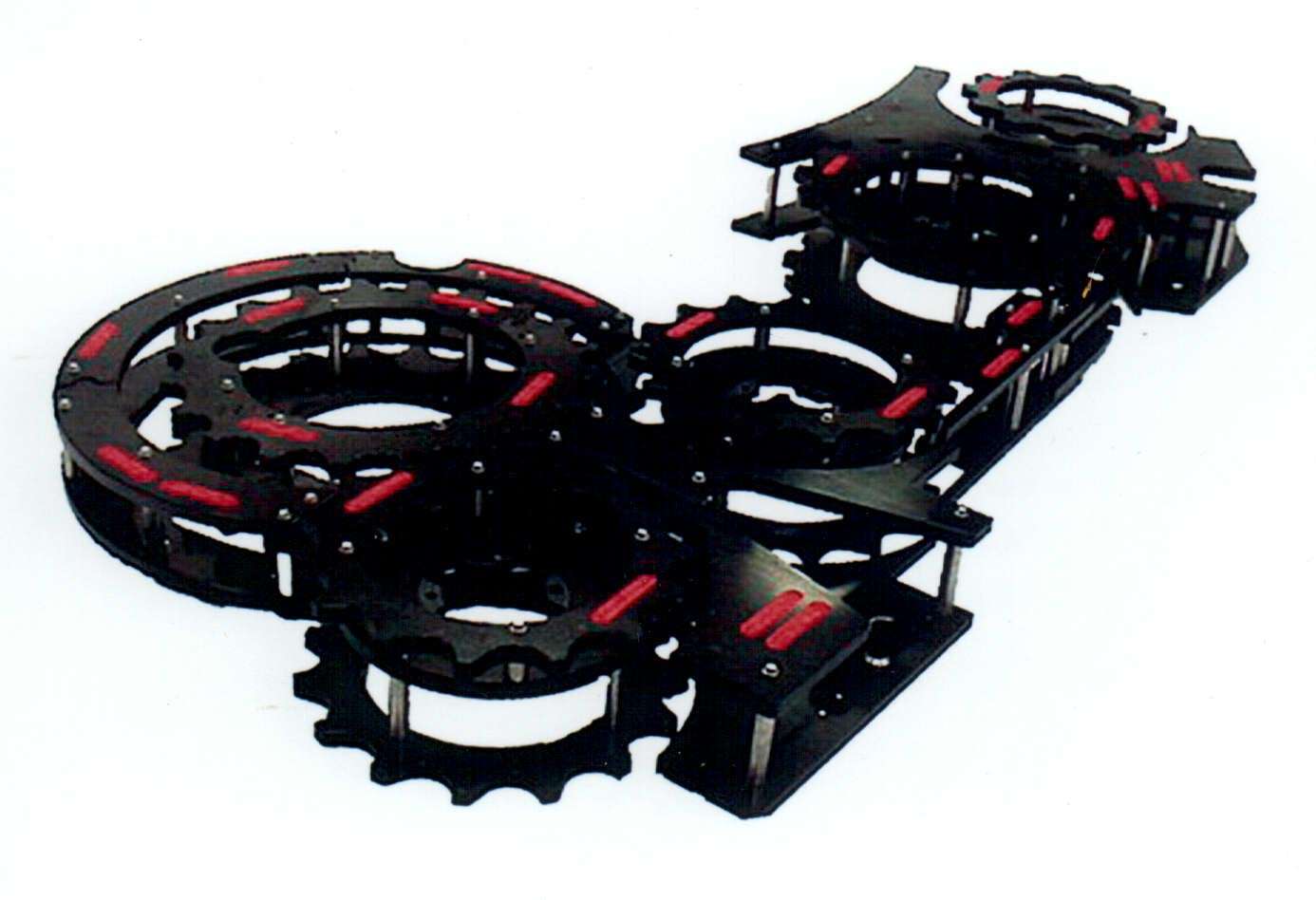

Dec 18, 2002 Monoblock Change Parts feature star wheel design that provides flexibility to isolate specific functions as needed. They combine container and bottle control with tool-less changeovers. Parts are available in variety of materials and 14 colors to meet production requirements. They can be incorporated into new monoblock filler/capper machinery or used to upgrade existing machinery.

Newport Corp.    Irvine, CA 92606

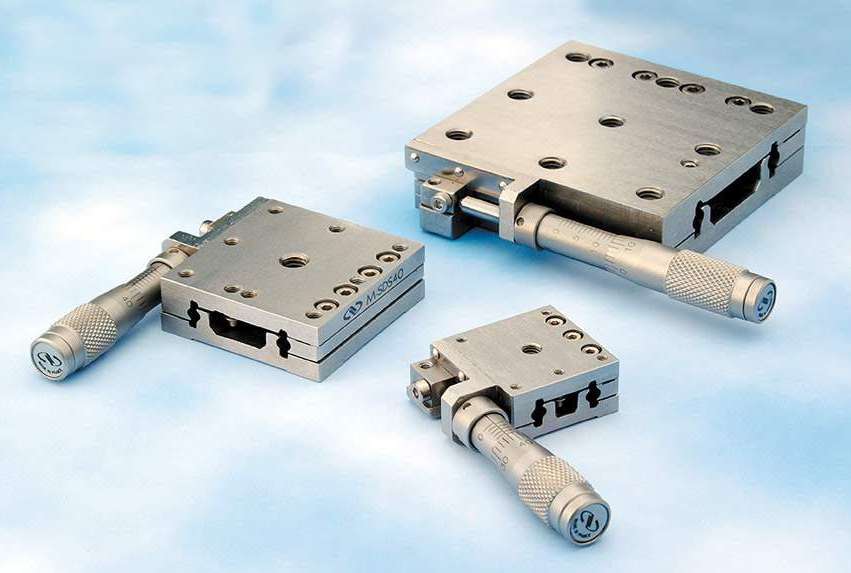

Dec 18, 2002 Series SDS Linear Translation Stages have side-mounted micrometer, profiled bearing ways for extended contact with ball bearings, and locking mechanism that secures stage position with negligible motion when lock is engaged or disengaged. Units provide 25 mm travel and load capability up to 39 lb. They are suitable for applications requiring pitch and yaw of less than 200 and 100 microradians, respectively. Sizes include 25 x 25, 40 x 40, and 65 x 65 mm.

GIW Industries, Inc.    Grovetown, GA 30813
Dec 18, 2002 Model LSR pump features thick cross-sectioned wear parts, bearings selected for 100,000 hour L-10 bearing life, ductile-iron bearing housing, fitted with Inpro® labyrinth seals, and ductile-iron pedestal. Bearing housing lubrication can be grease or oil, depending on operating speed and loading conditions. Pump has 40,000 gpm flow capacity, provides heads up to 200 ft, and is suitable for fine particle copper, iron ore, gold, and oil sands applications.

Buckhorn, Inc.    Milford, OH 45150 9778
Dec 18, 2002 SecureToteâ„¢ measures 25 in. long and offers interior walls that fit Regular, Kings, 100's, and some 120's cartons for split-case or 30-carton distribution. Made of HDPE plastic, attached lid protects contents from theft, crushing, and moisture. Product stacks when full and nests when empty. Lid features recesssed interlocking finger design for secure closure. Unit is available with 4 reinforced tie holes in lid and ergonomic handles.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338

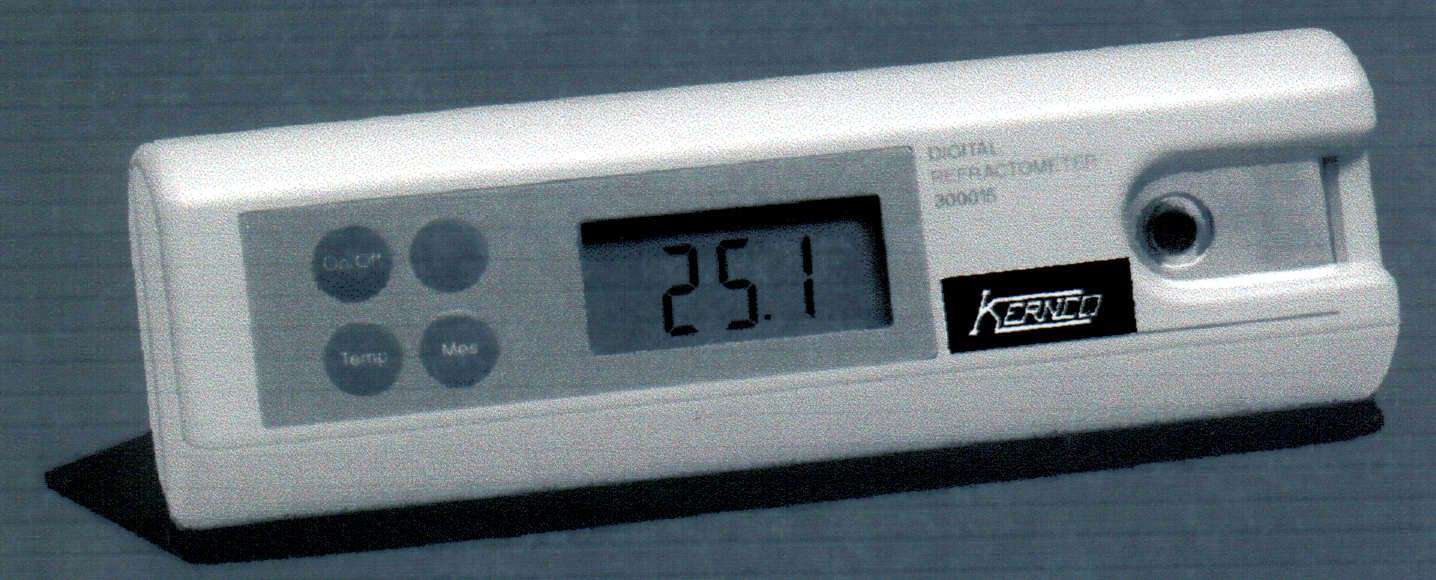

Dec 18, 2002 Model DR35-Glycol Digital Refractometer reads measurements of propylene glycols, ethylene glycol, and specific gravity of batteries in cars, trucks, and other vehicles. It provides accuracy of ±0.5°F and ±0.01 specific gravity. Handheld, battery-operated unit includes corrosion-resistant, stainless steel sample stage, 0.75 in. LCD display, and automatic temperature compensation. It requires only 0.4 ml sample and provides automatic measurement with optical sensor.

Performance Motion Devices, Inc.    Lexington, MA 02421

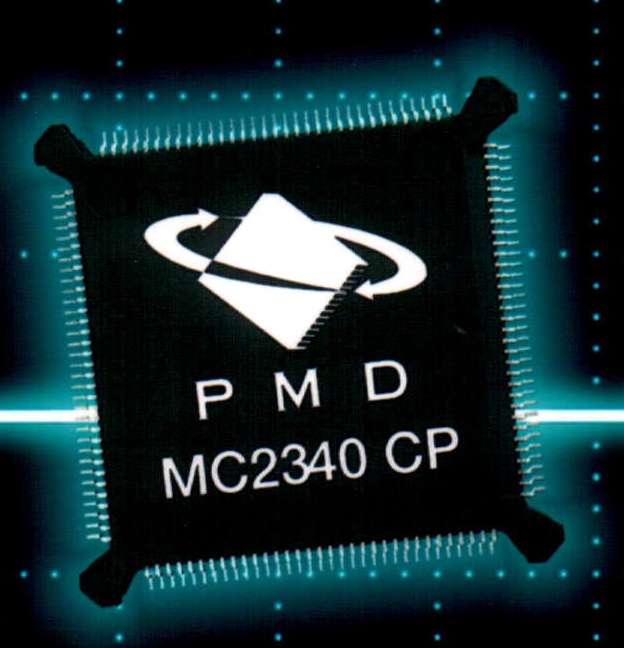

Dec 18, 2002 Series MC2300 motion processor provides 1, 2, and 4 axes of control for brushless motors. Providing breakpoint programming, 2-IC chipset allows user to create profiles by having an internal or external signal cause profile change. Chipset is programmed via language that uses one command word followed by one or more data words. Windowsâ„¢-based Pro-Motion software permits high-level programming based on external positions, external trigger signals, velocity, and time.

Key Technology, Inc.    Walla Walla, WA 99362

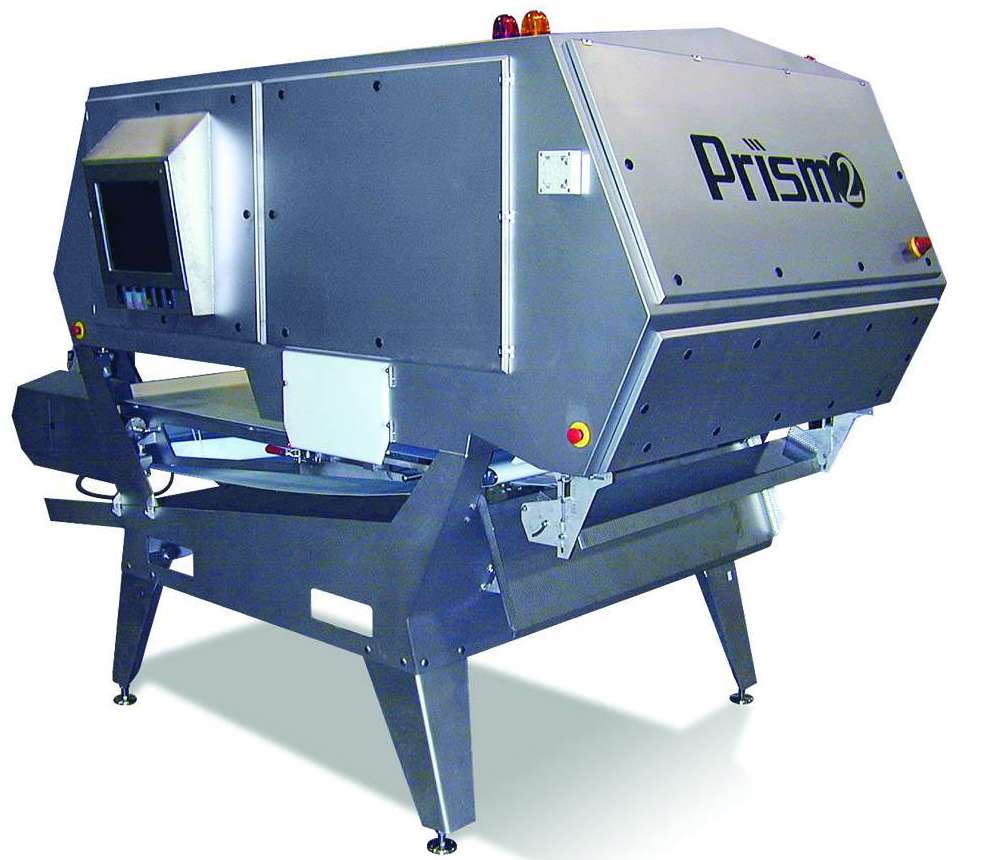

Dec 18, 2002 Prism®2 includes built-in graphical user interface and control module. Additional features include sorting engine, which consists of electronics, cameras, and camera configurations; full-color, Vis/IR, or monochromatic camera options; and High Intensity Discharge (HID) lamps. Color recognition distinguishes over 2.1 million different shades, and Advanced Vision Processor (AVP) combines industrial PC and vision engine using pipeline architecture.

NKK Switches    Scottsdale, AZ 85260-3420

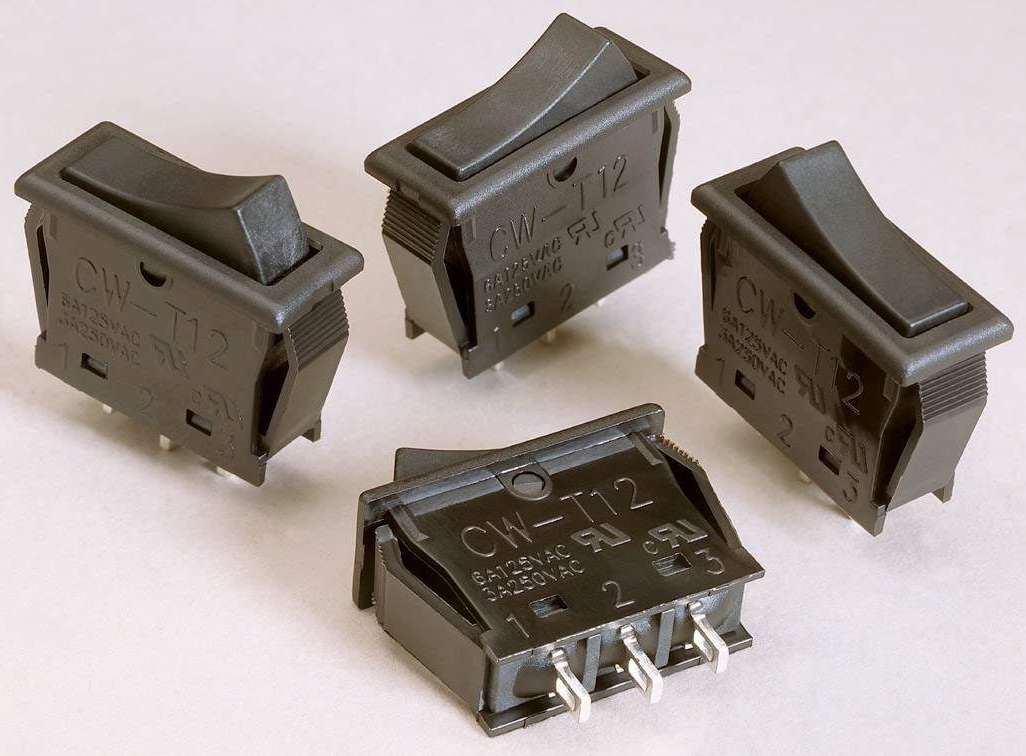

Dec 18, 2002 Series CWT, with black actuator and housing, measures .756 x .269 in. Available in SPDT configuration, solder-lug-terminal unit is 2-position, ON-ON switch, rated for resistive load of 6 A @ 125 Vac, 3 A @ 250 Vac, and 4 A @ 30 Vdc. Angle of throw is 30 degrees. Protecting contact area, molded rocker offers dust-proof construction and front panel, snap-in design.

Citizen/CBM America Corp.    Torrance, CA 90501
Dec 18, 2002 Model MLT-389 operates from one 5 V battery and has clamshell design for fast, easy paper loading. Suited for mobile printing applications, its uses include kiosk installations, instrumentation, and portable data terminals.

Kardex Remstar LLC    Westbrook, ME 04092

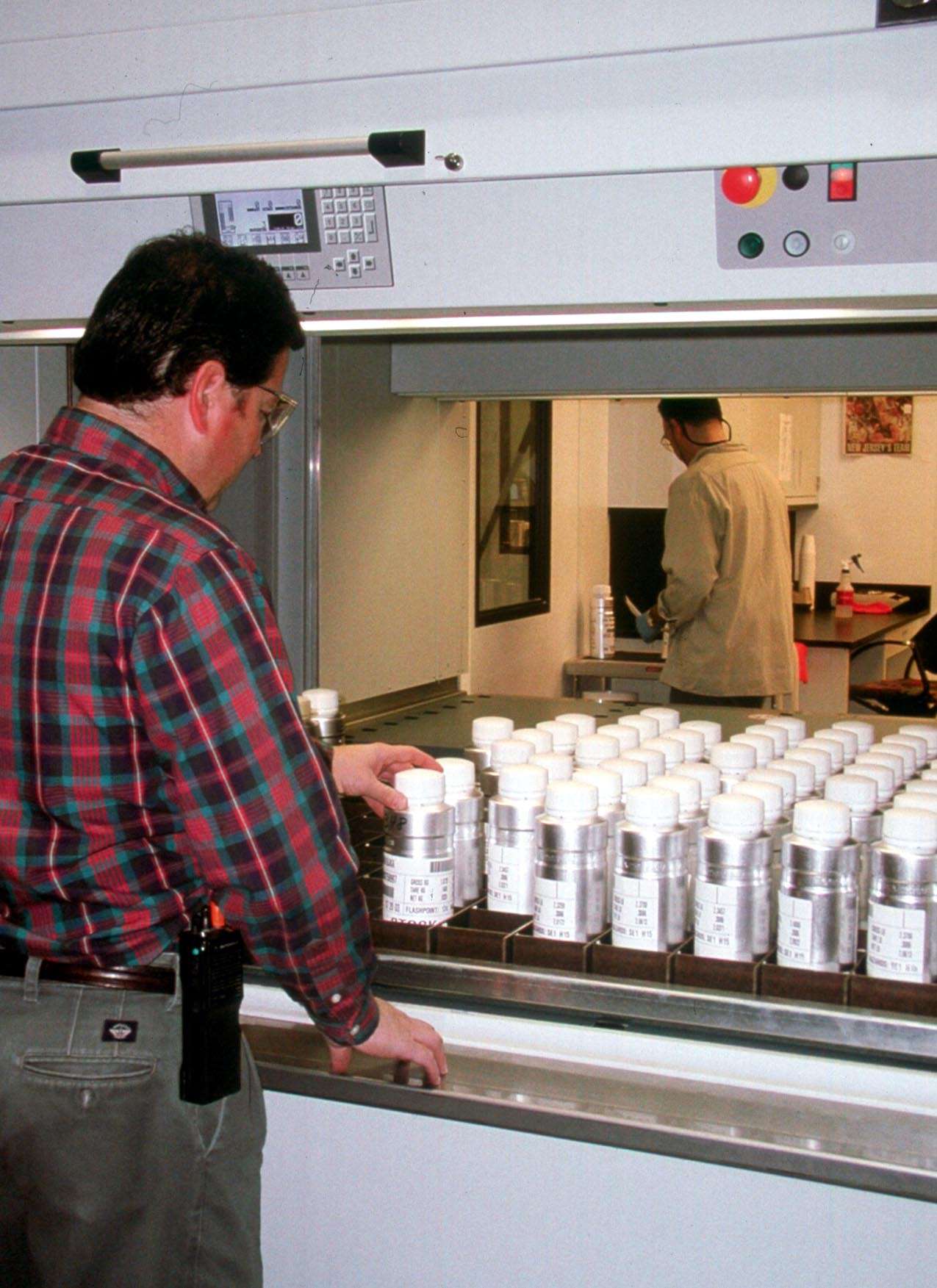

Dec 18, 2002 Shuttle(TM) VLM provides vertically arranged trays, computerized controls, and ergonomically designed extraction platform, which delivers requested tray to any pick window. Multiple pick windows allow organizations to link multiple floors/work zones and receive materials on one level and extract them on another without sorting and duplicating inventory. Multiple windows provide queuing and sequencing of parts, kits, or completed orders. Modular design is fully customizable.

Banner Engineering Corp.    Minneapolis, MN 55441

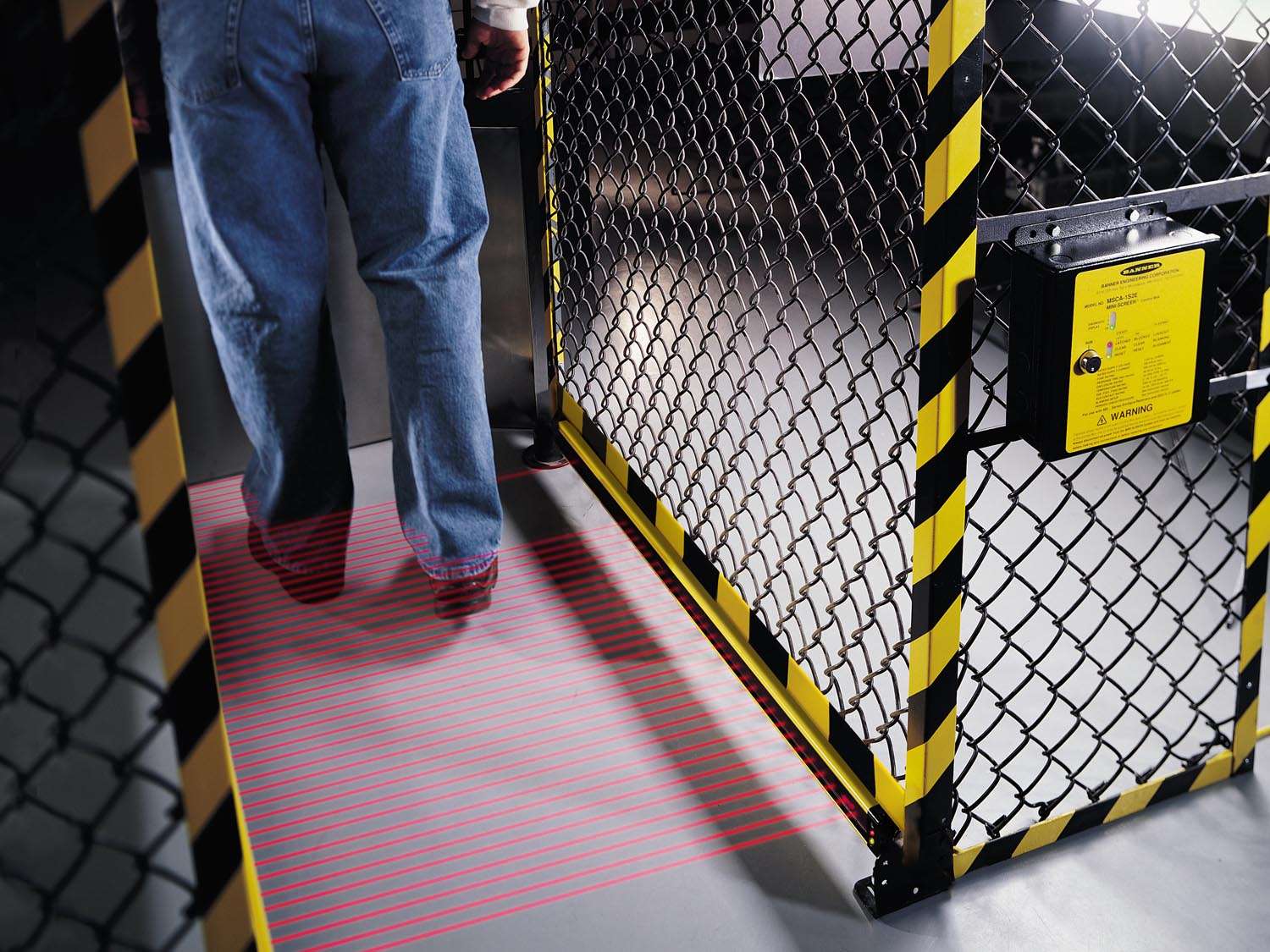

Dec 18, 2002 Heavy-Duty MINI-SCREEN® machine guarding sensors are constructed of yellow aluminum and offer ambient light immunity greater than 10,000 lux at 5° angle of incidence. Long-range capabilities provide for distances up to 60 ft with 1.5 in. minimum object sensitivity. MSC control boxes can be configured for Trip Output (automatic reset) or Latch Output (monitored manual reset) via pair of DIP switches. Features include 3 system status indicating LEDs and diverse-redundant microprocessor design.

Data Modul Inc.    Hauppauge, NY 11788

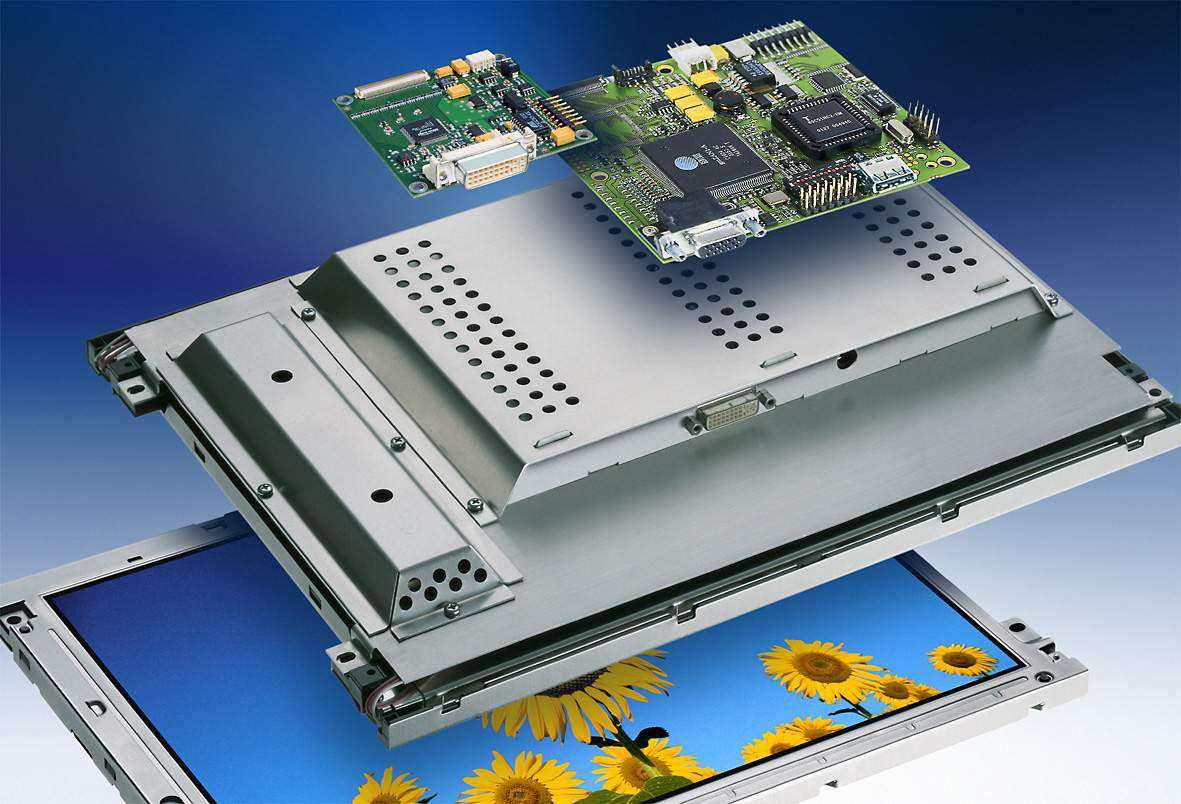

Dec 18, 2002 EasyPanel module consists of 15 in. TFT panel in MVA technology, controller, cables, and inverter to drive backlight. Controller comes with OSD board, which includes features to adjust brightness, contrast, and other parameters. EasyPanel offers wide viewing angle of 160° symmetrical, 400:1 contrast, brightness of 250 nits, and minimum CFL lifetime of 50 kh. User can choose between digital or analog RGB controller.

InterlinkBT, LLC    Minneapolis, MN 55441

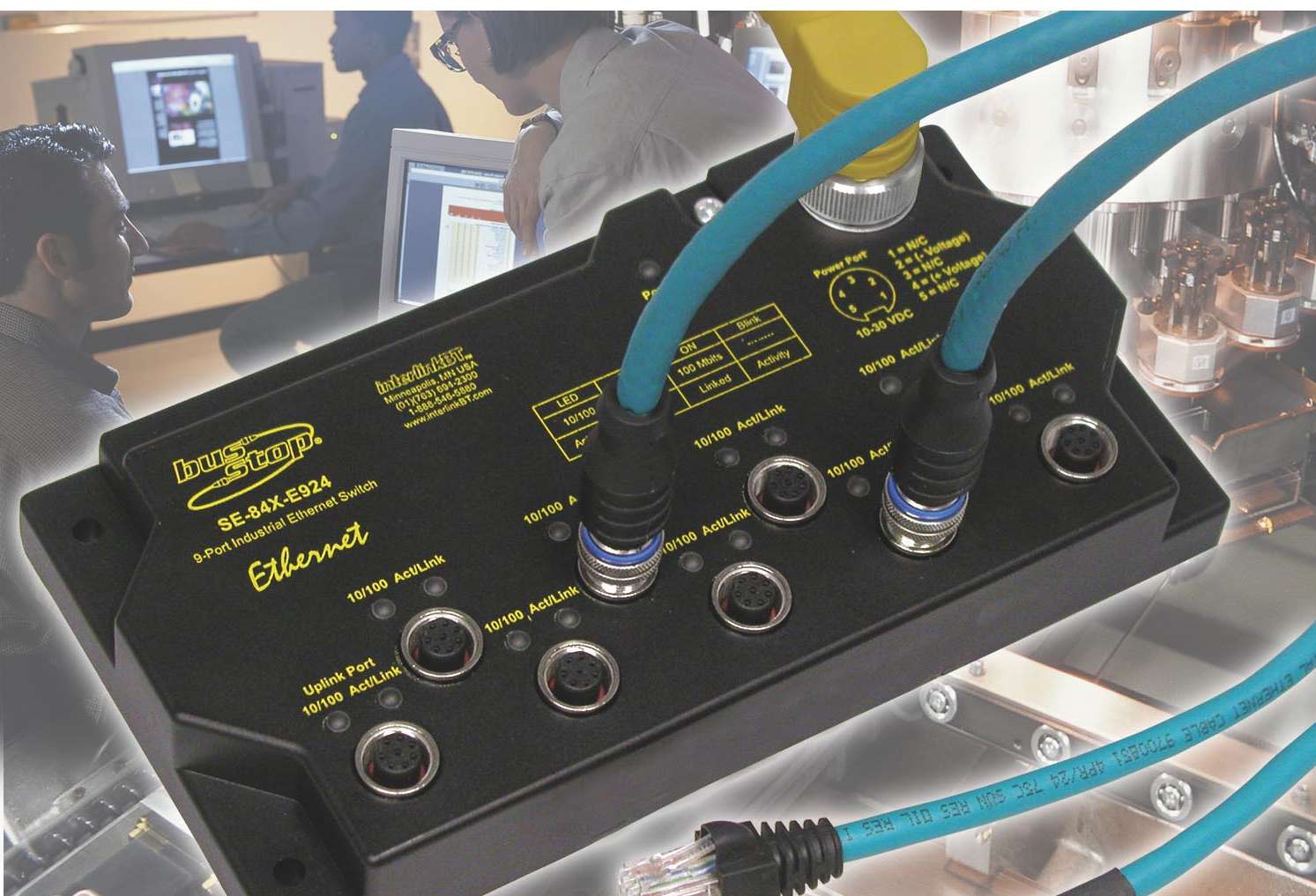

Dec 18, 2002 Fully-connectorized switch includes nine, 10/100 Mbps, 8-pin, eurofast® ports to segment network traffic, extend Ethernet connection distance, and convert data packets between transmission speeds. Compliant with IEEE 802.3 10Base-T Ethernet and 802.3u 100Base-TX Fast Ethernet standards, product has NEMA 1, 3, 4, 12, 13, and IEC IP67 rated housing. Compact unit runs one horizontal cable to the work cell.

InterlinkBT, LLC    Minneapolis, MN 55441

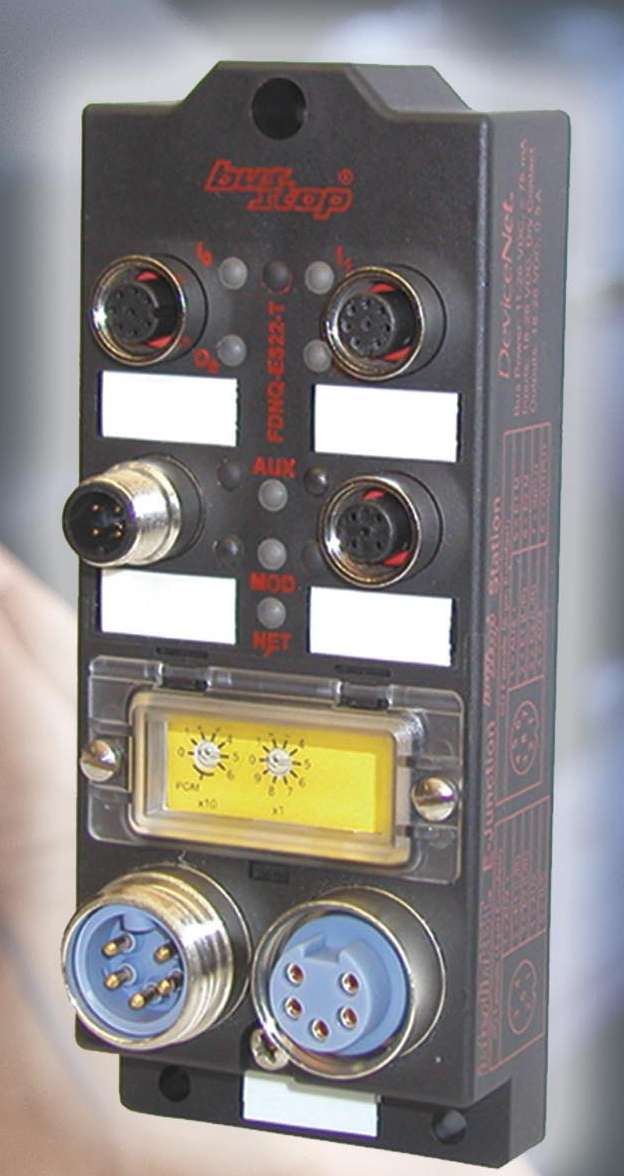

Dec 18, 2002 E-connect(TM) plug-and-work solution connects traditional e-stop devices and safety relay modules. Station operates in background to monitor where stop was initiated and annunciates system status. Able to be used on any DeviceNet system, product is available to connectorize 1, 2, and 8 e-stop devices. It isolates safety circuits form auxiliary power and DeviceNet communications circuits. E-stops can be initiated while bus or PLC are down.

APG Cash Drawer, Inc.    Minneapolis, MN 55421-1012
Dec 18, 2002 Cash Drawer Caddyâ„¢ System cleans up cable clutter of POS workstation. Series 100 units are 16 x 19.5 in. and Series 4000 offers 18.8 x 21 in. or 20 x 21 in. sizes. All include steel cap, injection molded plastic base, and heavy-duty cash drawer. They accommodate nearly all major keyboard, printer, and monitor brands and allow for peripherals to be placed with left- or right-hand orientation.
