Dispensing Technologies International Corp.    Clinton, MA 01510-2412
Feb 04, 2003 EZ-mix®HI hand-held dispenser eliminates repetitive squeezing and permits fine-tip dispensing. Portable, cordless unit incorporates light-touch trigger and instant retraction button for cartridge changes. Able to dispense up to fifty 50 ml dual cartridges on 1 charge, Drip-Freeâ„¢ design reduces/eliminates oozing from mix-tip. Made of ABS plastic, ergonomic tool has hardened steel drive mechanism and variable speed DC motor control with torque limiter for overload protection.

CyberResearch, Inc.    Branford, CT 06405 2932
Feb 04, 2003 GDO 23 in. monitor offers bright 250 nit screen and UXGA resolution of 1600 x 1200 pixels. Allowing engineers/scientists to spot physically small but significant variations in processes or experiments, unit displays 16.7 million colors with typical contrast ratios of 500:1. Subtle color variations can be detected over 170° horizontal and vertical viewing angles. Unit is available with analog-resistive touchscreen, and has built-in speakers and on-screen display controls.

RAE Corp.    McHenry, IL 60050 7001
Feb 04, 2003 Model G250 Right Angle Gear Box features bevel gears that transmit power from motor through gear box more efficiently, allowing higher torque with smaller motors.

Numberall Stamp & Tool Co., Inc.    Sangerville, ME 04479-0187
Feb 04, 2003 Models 301 and 301-A are cylindrical presses offered in hand and air powered versions. Three ton rated Models 136, 136-A, and 137 and 4-ton rated Models 131, 131-A, and 133 are for flat stamping and are available in hand, air, and motorized versions. Fixtures can be modified and built for specific applications.

Lytron, Inc.    Woburn, MA 01801 1039
Feb 04, 2003 OEM Coil Series Copper Tube-Fin Heat Exchangers range from 20W/°C at ½ gpm to 250W/°C at 4 gpm. Seamless copper tubing is expanded into aluminum fins for thermal connection. Liquid circuit is silver brazed and finned tubes are assembled into galvanized steel frame. Six configurations are available with beaded, straight tube, or 37° flare nut fluid connections. Air side pressure drop ranges from 0.06–0.2 in. of water and liquid side pressure drop ranges from 2–12.5 psi.

VISTAS Corporation    North Huntingdon, PA 15642
Feb 04, 2003 RadVentLocâ„¢ Covers install on hand holes and inspection ports of secondary-side steam generators during outage service. Model RVL-60 is for 6.0 in. hand holes while Model RVL-27 is for 2.4 in. inspection ports. Two-layer design reduces millirem emissions and meets FME standards. Close-mesh stainless steel screen deflects external debris without impeding airflow, and 2 in. thick lead shield with diagonal channels absorbs and disperses gamma rays, all while maintaining ventilation.

Huntron Instruments, Inc.    Mill Creek, WA 98012
Feb 04, 2003 Dual channel, bench-top Tracker 2700 has 21 selectable voltage/resistance ranges available at 5 frequencies for total of 105 combinations of voltage, source resistance, and test frequency. With SigAssistâ„¢, users can select optimal ranges for testing and analyze dynamic changes in signatures. Variable 5 Vdc generator lets users test SCRs, optical couplers, and other gate-fired devices in both on and off states.

Surftran    Madison Heights, MI 48071 1612
Feb 04, 2003 Large-capacity, 5–station EURO-TEM P–350 Thermal Energy Method system deburrs cast-iron, steel, stainless steel, brass, and aluminum parts, and deflashes zinc parts, completely eliminating burrs and flash internally and externally without parts wear, media or metallurgical change. Parts from 8 in. dia x 7 in. deep to 12.5 in. dia x 12 in. deep are accommodated. While parts are being deburred/deflashed in thermal chamber, other stations can be loaded and unloaded.

Montezuma Welding & Manufacturing Inc.    Montezuma, KS 67867
Feb 04, 2003 Largest of 3 models, Model LA400 accommodates metric and SAE tools. Models ME300 and SM200 accommodate SAE tools. T handle latch can be locked with built-in lock or by using spring loaded padlock eye. Toolboxes accommodate longer combination wrenches and can hold deep and regular sockets. All are offered in black, red, or white.

UniMeasure Inc.    Corvallis, OR 97333
Feb 04, 2003 Series JX-P420 offers 13 measurement ranges from 0–2 in. to 0–80 in. Designed for wet or dry environments, it features corrosion resistant thermoplastic body. Unit is actuated by extending stainless steel wire rope, which is maintained in constant tension by internal spring. Using potentiometer as sensing device, unit outputs loop powered 4–20 mA current. It includes adjustable zero and span control, integral wire rope dust wiper, and NEMA 4X ingress protection.

Grieve Corporation, The    Round Lake, IL 60073-2898

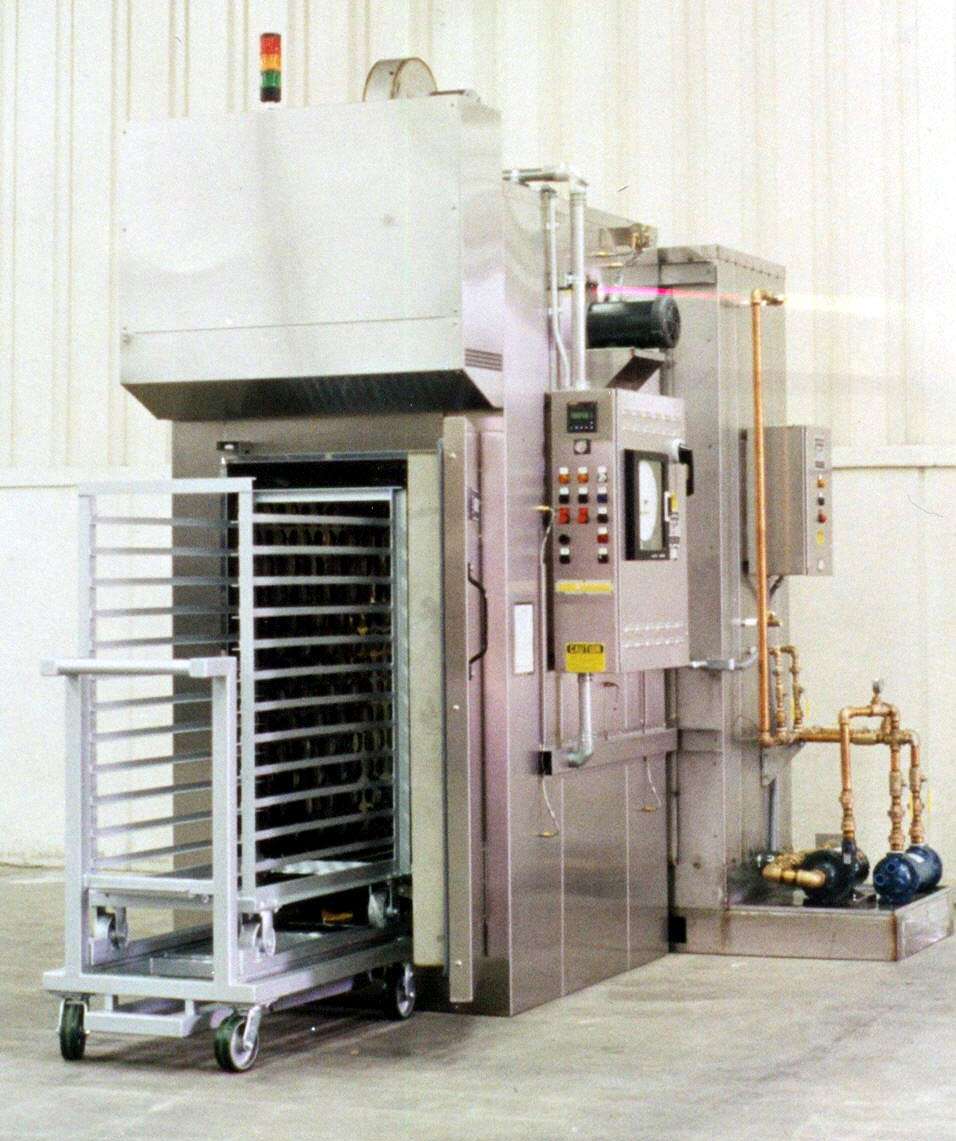

Feb 04, 2003 Gas-fired Model 909 500°F oven generates 175,000 Btu/hr and offers workspace dimensions of 30 x 48 x 57 in. Recirculating 2 hp blower motor produces 2,000 cfm and provides horizontal airflow from top-mounted heat chamber. Oven has 4 in. thick insulated walls, stainless steel exterior, and Type 430 stainless steel interior with continuously backwelded seam construction. It includes 10 in. dia circular chart recorder and 10 permanently mounted survey thermocouples.

Amacoil Inc.    Aston, PA 19014
Feb 04, 2003 Linear Motion Assembly is linked to production machine's main motor and does not require separate motor or controller to provide automatically reciprocating linear motion. Threadless shaft prevents clogging and jamming. Assembly offers axial thrust capacity to 800 lb, accuracy to ±0.005 in. and travel speed up to 13 ft/sec at constant rpm over max distance of 16 ft. Linear pitch may be adjusted on-the-fly, without changing motor speed or other controls.

Gore, W. L., & Associates, Inc.    Newark, DE 19711
Feb 04, 2003 Multi-cavity, board-level snapSHOTâ„¢ is made of metallized, thermoformed plastic. It installs and removes easily and accommodates intricately shaped designs. Electrically insulated on inside, shield allows for significant thickness reduction over conventional shielding. Unit is attached to PCB panel using BGA spheres. Packaged in bulk, trays, and in tape and reel, shield can be installed using manual, semi-automated, and fully automated equipment.

Donaldson Co., Inc.    Minneapolis, MN 55440-1299
Feb 04, 2003 Torit® Dalamatic® stand-alone, cased Model DLMC continuously filters large dust concentrations at high velocities and constant resistance levels. With basic module size of 160 sq ft of media, additional tiers and banks can be added, providing 323–15,000 sq ft. Collector is suitable for air volumes of 1,500–150,000 cfm. Insertable Model DLMV handles high dust concentrations and filter velocities when inserted into application. Both use RN487â„¢ automatic reverse-jet media bag.

IXYS Corp.    Santa Clara, CA 95054 2704
Feb 04, 2003 Discrete NPT 1700V IGBTs offer solution for applications requiring 1700V power switching. Housed in TO-247 discrete packages or surface mount TO-268, "non-A" model is for frequencies <15 kHz and have VCE of 3 V, increased gain, and fall time of 300 nsec. They feature 90°C current ratings of 6 to 32 A, and provide transient pulse current capability of 24–200 A. "A" model for fast switching has fall time of <50 nsec.

Titan Industries    South Gate, CA 90280
Feb 04, 2003 Ultravac Oil Field Vacuum Hose is made of compounded Nitrile tube and corrugated SBR cover that is abrasion, weather, and ozone resistant. It provides extreme bend radius equal to inside diameter of hose. Hose is offered in 100 ft lengths in sizes from 1–6 in. It is suitable for oil field waste pit recovery applications, as well as diluted industrial chemicals, sludge, slurries, crude oil, and water.

nCode International    Southfield, MI 48034
Feb 04, 2003 Software suite includes tools that measure, assess, and model data for product life and performance testing. Able to simulate proving ground and rig test scenarios, product helps detect fatigue/potential failure locations and correct flaws early in product design. Software, which determines critical attributes prior to prototype development, is suitable for aerospace industries and agricultural equipment design.

Equinox Systems Inc.    Sunrise, FL 33351 6709
Feb 04, 2003 Multi-interface, 2-port ESP-2 MI offers TCP/IP connectivity, management diagnostics, and DIN Rail mounting options. LAN connectivity is provided for 2 serial devices via DB9 ports that accommodate RS-232, RS-422, or RS-485 connections. Equipped with 32 MB SDRAM and 4 MB flash, unit makes devices respond with direct-connect speed. Port management tools facilitate mode selection for each port and allow system managers to hide unused ports from network.

Pentek Inc.    Upper Saddle River, NJ 07458
Feb 04, 2003 Model 6236 Velocity Interface Mezzanine module is based on Model AD6645-105 14-bit monolithic A/D converter. Two-channel VIM-2 board features configurable XC2V1000 or SC2V3000 FPGA. Both A/D converter outputs are connected directly to FPGA to facilitate compute-intensive signal processing functions. FPGA can deliver wideband A/D data or processed results directly to processor board through dual 400 MB/sec mezzanine interfaces.

Ion Physics Corp.    Fremont, NH 03044
Feb 04, 2003 Model CM-1-MGS5 Wide Band Current Monitor features risetime of 20 nanoseconds and 3 dB bandwidth, which extends from 0.7 Hz to 25 MHz. Sensitivity is 10 mV/A and saturation is 5 As. Using inner diameter of 3.2 cm, unit monitors AC and pulse currents without physically contacting conductor, eliminating ground-loops, and interference noise. Electrostatically shielded, monitor provides output voltage that is equal to current times sensitivity.
