Scientific Technologies Inc.    Fremont, CA 94555
Feb 04, 2003 Model SR18A relays offer dual channel inputs with 3 configuration possibilities, 5 safety outputs, selectable automatic/manual reset function, and 2 auxiliary outputs for status monitoring. Units are 90 mm wide, mount to 35 mm DIN rails, and contain 5 LEDs for status and diagnostic indication. Models SR19E units offer 3 additional safety outputs, automatic reset function, and 1 less status LED indicator.

Moore Industries International, Inc.    North Hills, CA 91343
Feb 04, 2003 HIM Smart HART Loop Interface and Monitor is offered with HART-to-MODBUS option that converts digital signal from smart HART instrument to standard MODBUS RTU protocol output. HIM provides for redundant MODBUS communications link identical to primary link. Converter provides 4-20 mA analog output that may be mapped to any HART variable. Dual alarm trip outputs can be individually configured to warn of high/low process conditions.

Panduit Corp.    Tinley Park, IL 60477 3091
Feb 04, 2003 PTS installation tool, for subminiature through standard cross section cable ties, utilizes pneumatic operation to automatically tension and cut off cable ties in less than 1 sec. Ergonomic design incorporates cushioned, non-slip handle and controlled tip ejection that retains cut-off tip. Tension-adjustment knob and fine-adjustment dial confirm and change tension settings. Narrow nose provides visibility and access to bundles in confined areas.

Cincinnati Automation Ltd.    Erlanger, KY 41018
Feb 04, 2003 Automated Inspection Machine includes EZVisionâ„¢ machine vision system with camera optics and lighting, plus necessary material handling needed for user's application. EZVisionâ„¢ system includes application engineering for lighting, optics, and methodology inspection setup. Mechanical configurations vary, and include vision-guided robots, feeder bowls, part-positioning tracks, conveyors, and laser making.

ATS Automation    Cambridge, ON N3H4R7  Canada
Feb 04, 2003 Four-station Rotoflex 4 incorporates single-point load/unload station for manual or robotic load operations. Servo-driven 6-position turret heads or tool change option, at each of 3 machining stations, performs fully programmable CNC machining. Each of 3-axis slide units is extendable within operating envelope of 300 mm per axis at rapid traverse speeds to 24 m/min. Machine includes fully-enclosed steel guarding and tempered safety-glass windows.

Despatch Industries    Minneapolis, MN 55440 1320
Feb 04, 2003 SEMI S2- and CE-compliant LLC/LLD oven provides thermal processing alternative for electronics and semiconductor packaging applications such as die-bond curing. With recirculation motor mounted on back, oven components are accessible for servicing. Products can be stacked up to 3 units high to save floor space while keeping loading heights ergonomically acceptable. Chambers, with non-corrosive, stainless steel interior, are offered with volumes of 1.6 and 5.1 cu ft.

Fishman Corp.    Hopkinton, MA 01748
Feb 04, 2003 Retractable Blower Hose is offered in EDW thermally bonded, PVC coated polyester fabric, reinforced with steel spring wire for temperatures from -20° to +180°F; TPW thermoplastic rubber coated fabric, reinforced with steel spring wire for -70 to +325°F; and silicone coated polyester, which is sewn for applications up to 600°F. Featuring high compressibility with up to 15:1 ratio, hose comes in 4–36 in. ID with 4–7 in. pitch, and meets UL94V-0 requirements.

Royal Machine & Tool Corp.    Berlin, CT 06037
Feb 04, 2003 With 15 in. dia and 4.81 in. through-hole, 6 Jaw Power Chucks are configured with American Standard Acme Serrated Master Jaws, 3/8 in. jaw movement (3/4 in. on diameter), and 8 in. type A Mount with 1,500 rpm max recommended speed. Additional applications include gripping of thin wall components or castings that cannot withstand standard chucking methods without distortion.

Sandstrom Carbide Products Corp.    Warwick, RI 02886 1435
Feb 04, 2003 Custom manufactured parts that extend life of wear-prone mechanisms can be fabricated from tungsten, boron, and silicon carbides; steels; and cast metals. They offer carbide pads, silver-solder brazed or epoxied at selective wear points, to provide abrasion-resistant surface and can be manufactured in various simple and complex shapes. Parts range in size from 0.010-18 in. long with weights from fractions of 1 oz to several pounds.

Mica-Tron Products Corp.    Braintree, MA 02184
Feb 04, 2003 Machineable ceramic components perform in environments with temperatures to 1,000°C and thermal conductivity to 2,800°C, depending on material. Products offer tolerances to ±.0001 in. as well as flatness and parallelism within ±.0001 in. per 12 in., depending upon part material and configuration. Insulators can be precision machined from Mycalex®, Mykroy®, Arclex®, Grade A LAVA, Boron, Nitride, Macor®, and ceramic filled materials.

Dispensing Technologies International Corp.    Clinton, MA 01510-2412
Feb 04, 2003 EZ-mix®HI hand-held dispenser eliminates repetitive squeezing and permits fine-tip dispensing. Portable, cordless unit incorporates light-touch trigger and instant retraction button for cartridge changes. Able to dispense up to fifty 50 ml dual cartridges on 1 charge, Drip-Freeâ„¢ design reduces/eliminates oozing from mix-tip. Made of ABS plastic, ergonomic tool has hardened steel drive mechanism and variable speed DC motor control with torque limiter for overload protection.

CyberResearch, Inc.    Branford, CT 06405 2932
Feb 04, 2003 GDO 23 in. monitor offers bright 250 nit screen and UXGA resolution of 1600 x 1200 pixels. Allowing engineers/scientists to spot physically small but significant variations in processes or experiments, unit displays 16.7 million colors with typical contrast ratios of 500:1. Subtle color variations can be detected over 170° horizontal and vertical viewing angles. Unit is available with analog-resistive touchscreen, and has built-in speakers and on-screen display controls.

RAE Corp.    McHenry, IL 60050 7001
Feb 04, 2003 Model G250 Right Angle Gear Box features bevel gears that transmit power from motor through gear box more efficiently, allowing higher torque with smaller motors.

Numberall Stamp & Tool Co., Inc.    Sangerville, ME 04479-0187
Feb 04, 2003 Models 301 and 301-A are cylindrical presses offered in hand and air powered versions. Three ton rated Models 136, 136-A, and 137 and 4-ton rated Models 131, 131-A, and 133 are for flat stamping and are available in hand, air, and motorized versions. Fixtures can be modified and built for specific applications.

Lytron, Inc.    Woburn, MA 01801 1039
Feb 04, 2003 OEM Coil Series Copper Tube-Fin Heat Exchangers range from 20W/°C at ½ gpm to 250W/°C at 4 gpm. Seamless copper tubing is expanded into aluminum fins for thermal connection. Liquid circuit is silver brazed and finned tubes are assembled into galvanized steel frame. Six configurations are available with beaded, straight tube, or 37° flare nut fluid connections. Air side pressure drop ranges from 0.06–0.2 in. of water and liquid side pressure drop ranges from 2–12.5 psi.

VISTAS Corporation    North Huntingdon, PA 15642

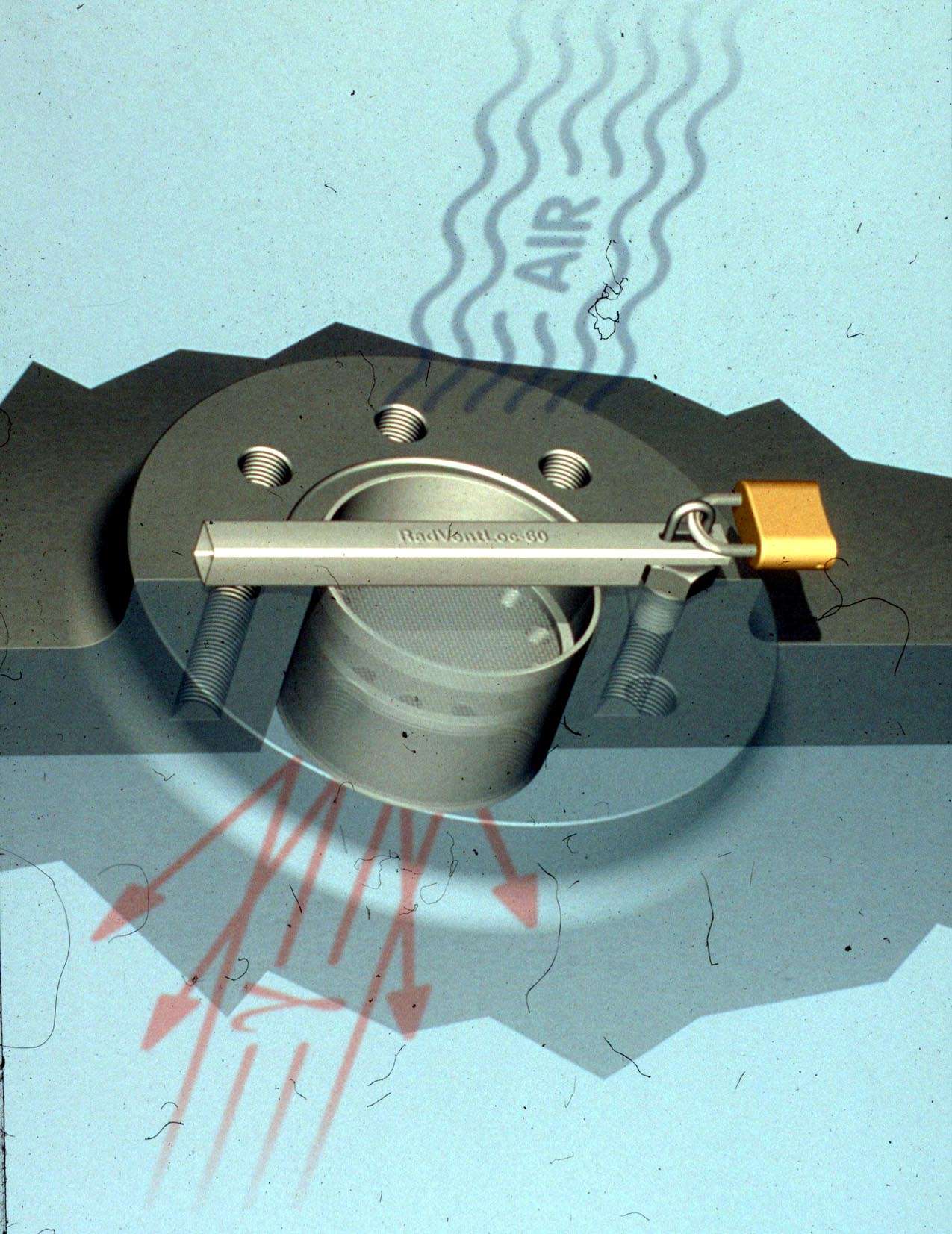

Feb 04, 2003 RadVentLocâ„¢ Covers install on hand holes and inspection ports of secondary-side steam generators during outage service. Model RVL-60 is for 6.0 in. hand holes while Model RVL-27 is for 2.4 in. inspection ports. Two-layer design reduces millirem emissions and meets FME standards. Close-mesh stainless steel screen deflects external debris without impeding airflow, and 2 in. thick lead shield with diagonal channels absorbs and disperses gamma rays, all while maintaining ventilation.

Huntron Instruments, Inc.    Mill Creek, WA 98012
Feb 04, 2003 Dual channel, bench-top Tracker 2700 has 21 selectable voltage/resistance ranges available at 5 frequencies for total of 105 combinations of voltage, source resistance, and test frequency. With SigAssistâ„¢, users can select optimal ranges for testing and analyze dynamic changes in signatures. Variable 5 Vdc generator lets users test SCRs, optical couplers, and other gate-fired devices in both on and off states.

Surftran    Madison Heights, MI 48071 1612
Feb 04, 2003 Large-capacity, 5–station EURO-TEM P–350 Thermal Energy Method system deburrs cast-iron, steel, stainless steel, brass, and aluminum parts, and deflashes zinc parts, completely eliminating burrs and flash internally and externally without parts wear, media or metallurgical change. Parts from 8 in. dia x 7 in. deep to 12.5 in. dia x 12 in. deep are accommodated. While parts are being deburred/deflashed in thermal chamber, other stations can be loaded and unloaded.

Montezuma Welding & Manufacturing Inc.    Montezuma, KS 67867
Feb 04, 2003 Largest of 3 models, Model LA400 accommodates metric and SAE tools. Models ME300 and SM200 accommodate SAE tools. T handle latch can be locked with built-in lock or by using spring loaded padlock eye. Toolboxes accommodate longer combination wrenches and can hold deep and regular sockets. All are offered in black, red, or white.

UniMeasure Inc.    Corvallis, OR 97333
Feb 04, 2003 Series JX-P420 offers 13 measurement ranges from 0–2 in. to 0–80 in. Designed for wet or dry environments, it features corrosion resistant thermoplastic body. Unit is actuated by extending stainless steel wire rope, which is maintained in constant tension by internal spring. Using potentiometer as sensing device, unit outputs loop powered 4–20 mA current. It includes adjustable zero and span control, integral wire rope dust wiper, and NEMA 4X ingress protection.
