Feintool Equipment Corp.    Cincinnati, OH 45242
Jan 06, 2003 Equipped with 1250 mm bed and PC-based control, CNC HLT-1250 triple-acting hydraulic fineblanking and forming press offers cutting force of 4,000 kN. It has 2 additional 500 kN pressure pads integrated in press table or tool change plate and accepts compound and progressive tools. Upper die clamping area measures 1250 x 900 mm. Product provides ram opening/closing speed of 200 mm/sec, blanking speed to 80 mm/sec, and max stroke rate of 60 strokes/min.

Landoll Corp.    Marysville, KS 66508 1265

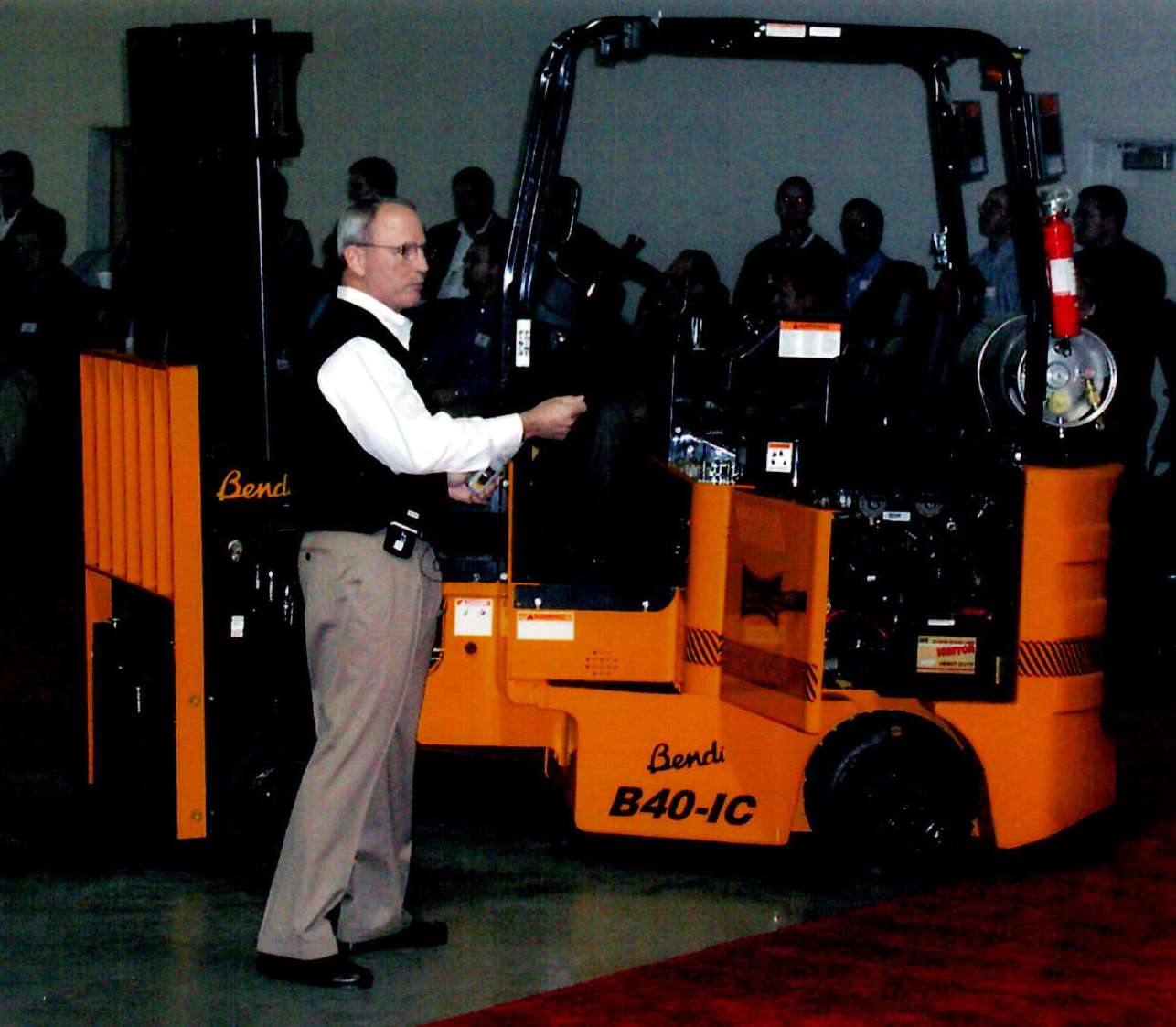

Jan 06, 2003 Bendi B40IC Forklift utilizes 3.0-liter, 4-cylinder, GM Vortec® 3000 internal-combustion engine that turns out 67 hp at 2,400 rpm. It incorporates 180° steering, front-end articulation, and rear-wheel drive. With 4,000 lb load capacity, truck measures 48 in. wide and can carry loads from truck or dock to rack or factory floor without staging. Able to climb 15% grades, it turns in 8 ft intersecting aisles and stacks 48 x 40 in. loads in aisles as narrow as 6½ ft.

Dorner Mfg. Corp.    Hartland, WI 53029 0020

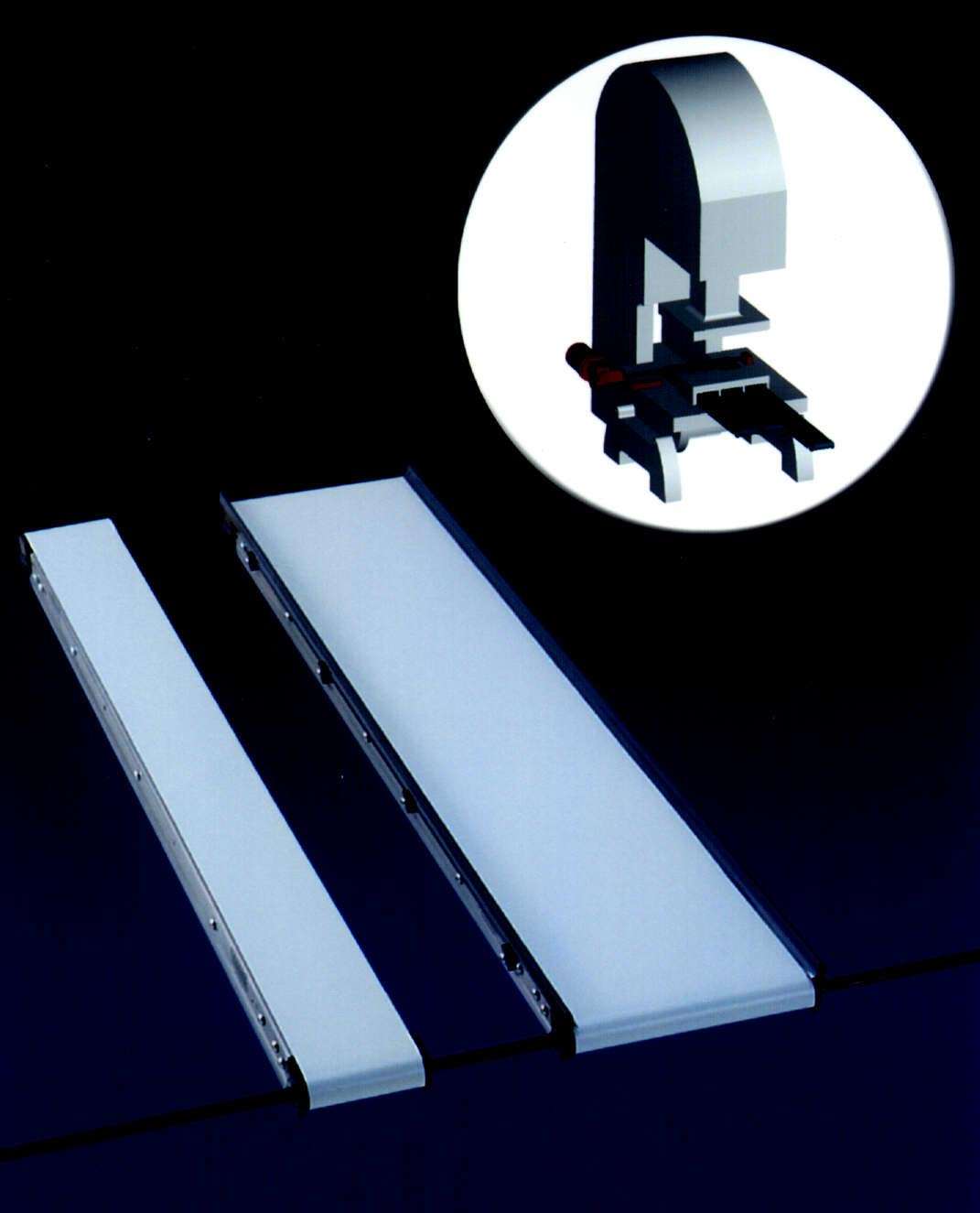

Jan 06, 2003 Gang drive option on Series 2200 conveyors allows multiple conveyors to be driving from one drive shaft by using thru-hex-bored pulleys. V-guided belt widths are available up to 18 in. wide and pulley diameter is 1 in. Gang drive option allows stamping press part and scrap removal, conveying of wide products across multiple belts, multiple lane conveying, and access to underside of parts being conveyed.

Cooper Crouse-Hinds    Syracuse, NY 13221

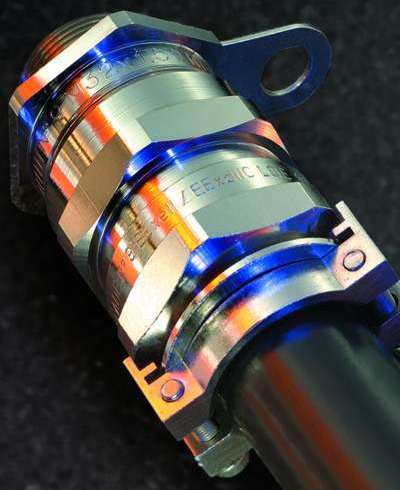

Jan 06, 2003 Brass CAPRI® series glands, for indoor and outdoor use, terminate steel-wire armor, steel-wire braid, and steel-tape cable with only one gland. Suitable for use with CENELEC-certified equipment in Zone 1 or 2 hazardous areas, products offer nickel-plate finish, flameproof seal on inner sheath of cable, weatherproof seal on outer sheath, and IP68 ingress protection. Glands are available with metric or NPT entry threads and fit cables with inner sheath diameter of 4–82 mm.

S-K Hand Tool    Chicago, IL 60632 2929

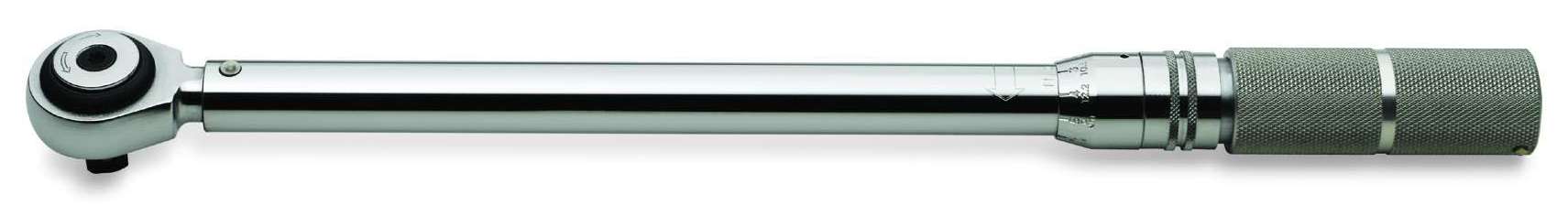

Jan 06, 2003 Fine Tooth Micrometer Clicker Torque Wrench, with non-slip knurled handle, offers compact head and 5° effective swing arc for accessibility in tight work spaces. Precision and accuracy is rated at ±4% of reading. Wrench also offers dual scale, positive locking mechanism, and reversible head. Series includes 6 wrenches with drives from ¼â€“½ in.

Edlon, Inc.    Avondale, PA 19311 0667

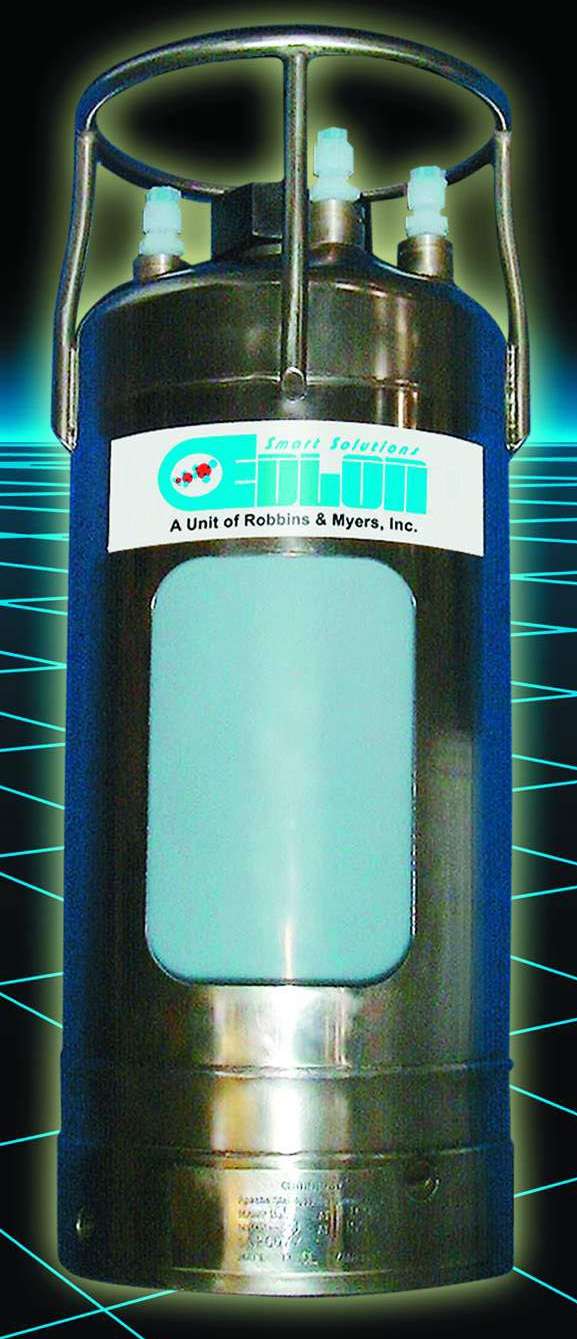

Jan 06, 2003 Custom designed Secure & Pure™ fluoropolymer lined tanks eliminate metallic ion contamination, ensure product purity at PPT level, and accommodate concentrated acids. Custom ports ensure connection compatibility in any application. Products meet certified D.O.T. specifications – UN 1A1 Container and Specification 51. Available models include: 1–35, 55, and 120–600 gal Transporters; 10,000–20,000 L ISO/IMO Containers; and 3,500–5,000 gal Tank Trailers.

Hoffer Flow Controls, Inc.    Elizabeth City, NC 27909 6726

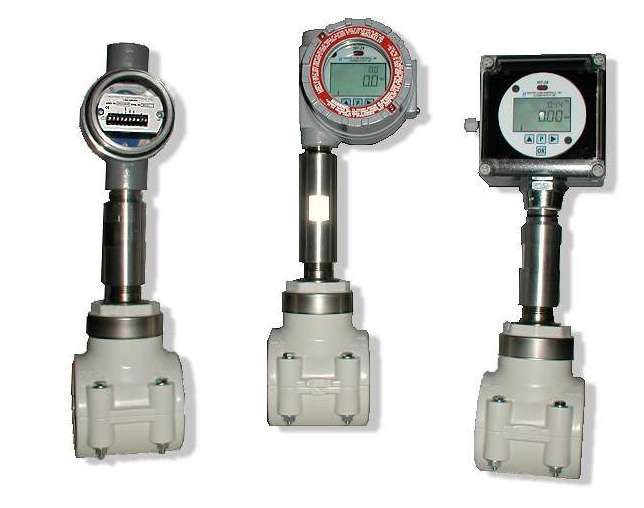

Jan 06, 2003 Clamp-on flowmeters, offered as alternative to plastic paddle wheel flowmeters, offer stainless steel construction and hybrid ceramic ball bearings. Additional bearing choices include tungsten carbide and hard carbon composite sleeve. Construction of clamp-on saddle is offered in CPVC, stainless steel, or ductile iron, depending upon pressure and flow media compatibility. Flow measurement for pipe sizes up to 8 in. is available.

GSI Lumonics    Northville, MI 48167

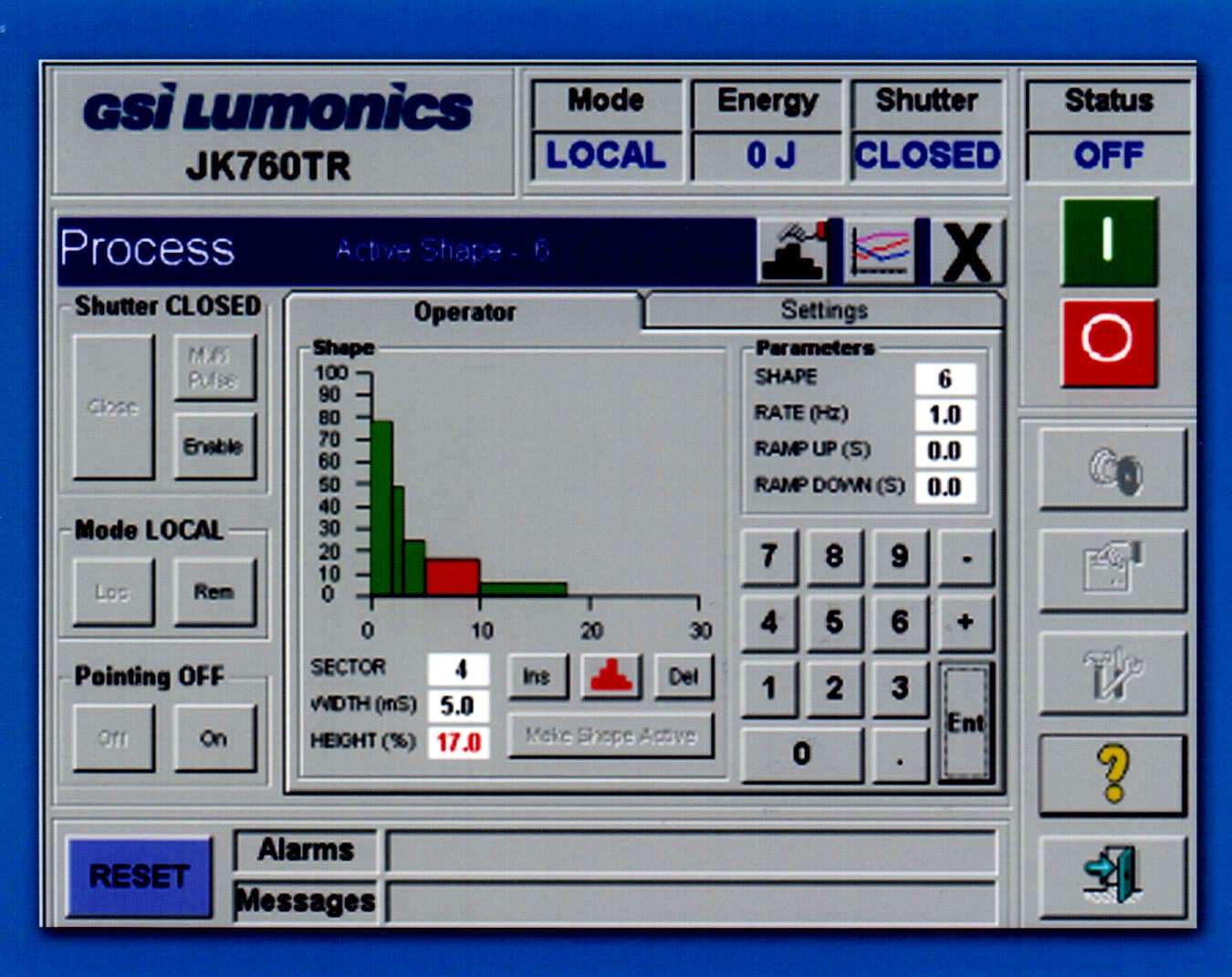

Jan 06, 2003 Graphical User Interface software, for Series JK continuous wave and pulsed laser systems, provides access to all laser parameters, I/O, data logging, and networking features. Driven by Windows® operating environment, software is available as touchscreen interface option or for use with standard PC. It offers 3 levels of password protection for data and operational security. Tabbed pages allow quick selection of system preferences, including user language and network options.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Jan 06, 2003 Model S151cnc features modular design and digital control and drive systems. Swing diameter is 350 mm, between-centers grinding length is 200 mm, and chuck capacity is 150 kg. Turret head arrangement presents 2 grinding spindles for rough and finish grinding in same set-up. Spindle configuration is ID/ID or combination ID/OD for universal applications. Grinder features max spindle diameter of 170 mm, ID spindle speed of 24–51,000 rpm, and OD spindle speed of 6,000 rpm.

CyberResearch, Inc.    Branford, CT 06405 2932

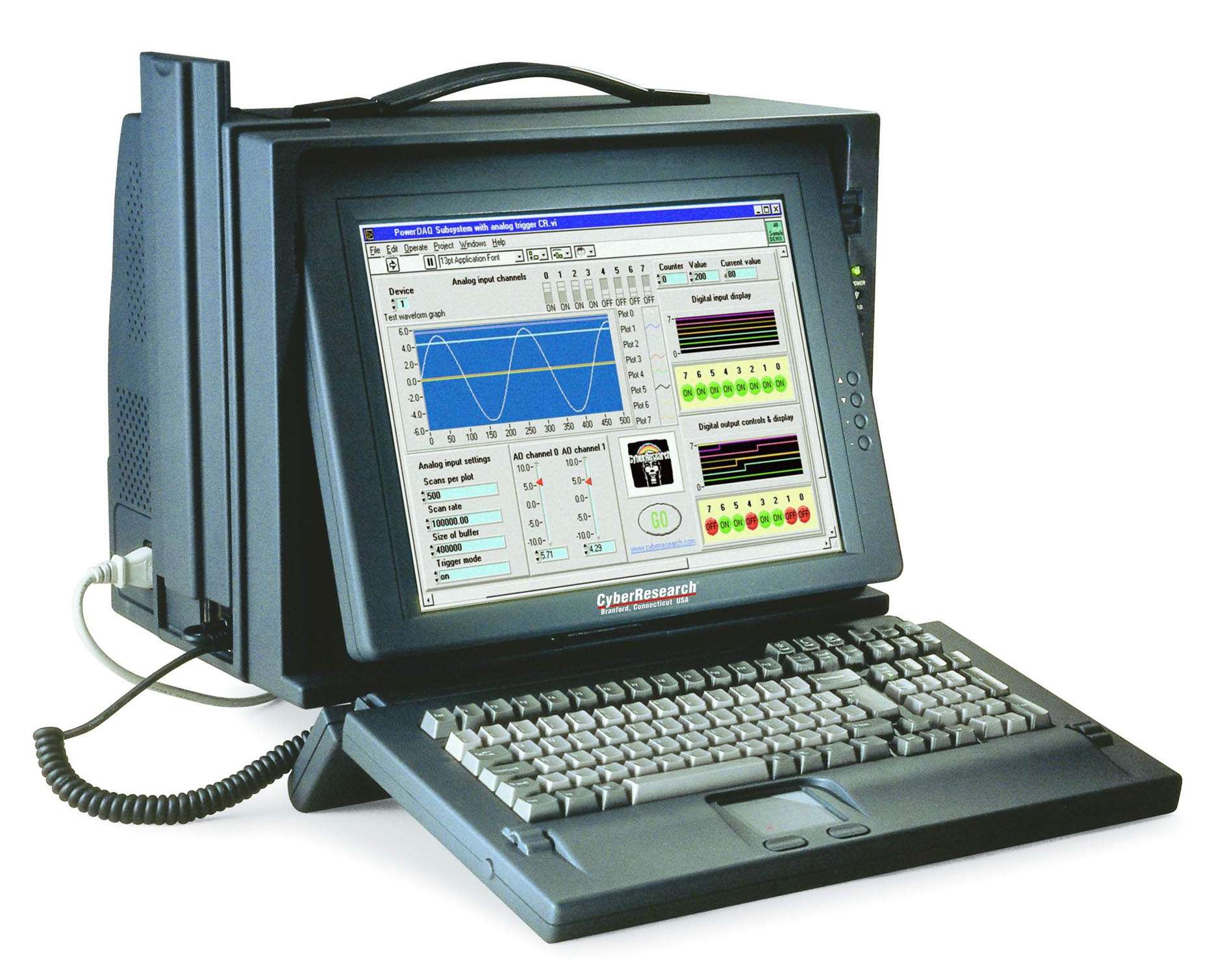

Jan 06, 2003 Series NBX combines 5 or 6 built-in drive bays with 3 ISA slots and 3, 5, or 6 PCI slots. Unit includes 128 Mbyte RAM, 40 Gbyte hard drive, CD-ROM, floppy drive, detachable 108-key keyboard, two 9-pin, RS-232 ports and one EPP port. Aluminum chassis with impact-resistant, molded ABS shell makes unit suitable for rough field conditions. PC offers choice of 14.1, 15.4, or 15.4 TFT LCD color display that shows 256 K colors at resolutions up to 1400 x 1050 pixels.

Automatic Timing & Controls    Lancaster, PA 17605

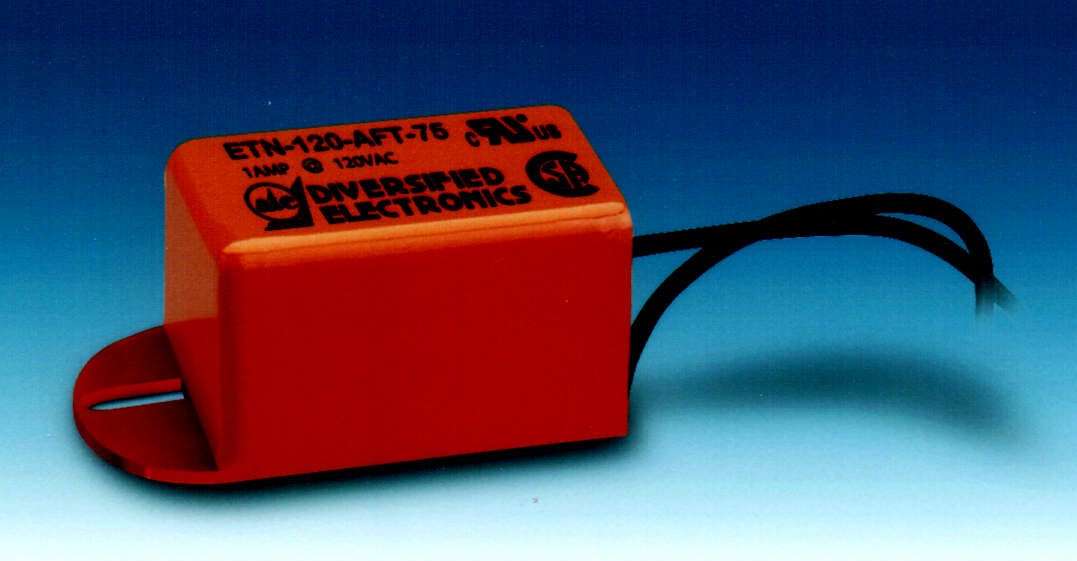

Jan 06, 2003 Model ETN-120-AFT-75 AC Flasher features 2 wire leads, totally encapsulated circuitry, and molded case with built in mounting unit. Flash rate is factory set at 75 flashes per minute. Custom rates between 45 and 150 are available.

Integument Technologies, Inc.    Tonawanda, NY 14150-6711
Jan 06, 2003 FluoroGripâ„¢ linings are made of DuPont Teflon® and offered in rolls of film offering peel-and-stick installation. They have no VOCs or hazardous solvents, making them safe to apply over various substrates including steel and metals. Linings offer chemical resistance to withstand repeated cleanings. They remain effective over expanding, contracting, and flexing substrates. Applications include kitchens, showers-restrooms, and crew living quarters on ships.

Industrial Specialties Mfg, Inc.    Englewood, CO 80110

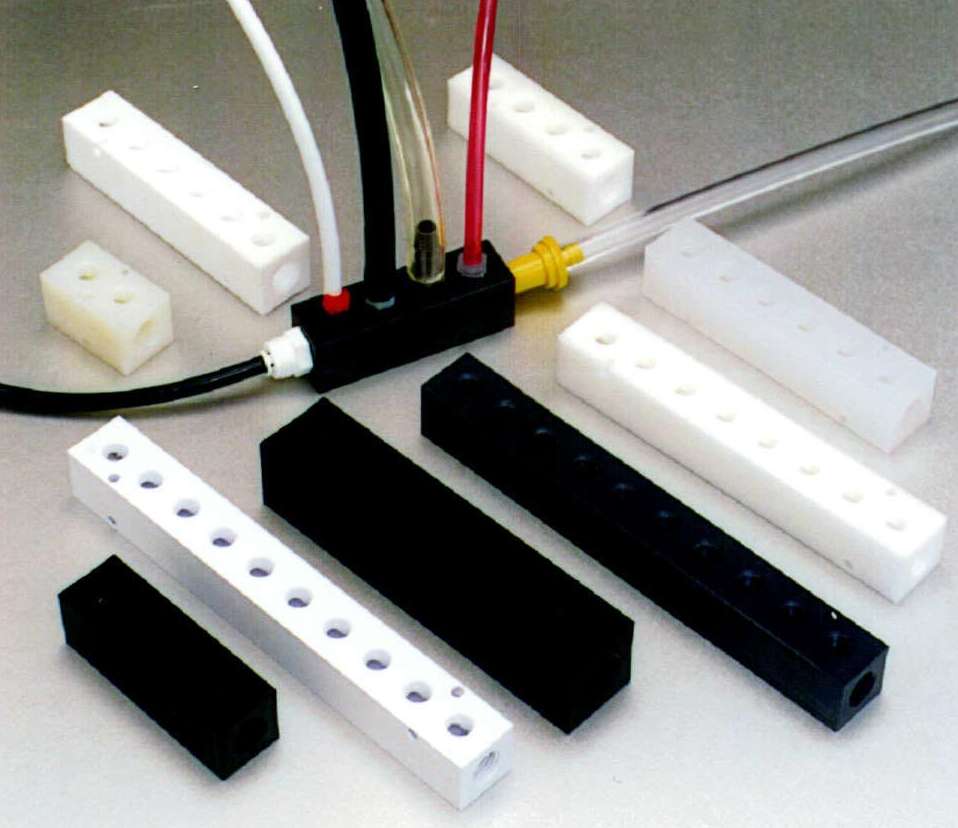

Jan 06, 2003 LNM Series compact manifolds are available in Nylon, Natural or Black Delrin®, Teflon, Natural or Black Polypropylene, Kynar®, and White or Gray PVC materials. Flow can be diverted to various ports, while unused ports can be plugged. Inlet ports range from ¼-½ in. female NPT and distribution ports range from 1/8-3/8 in. female NPT. Fittings and tubing are also available for product consistency.

Spence Engineering Co., Inc.    Walden, NY 12586-0230

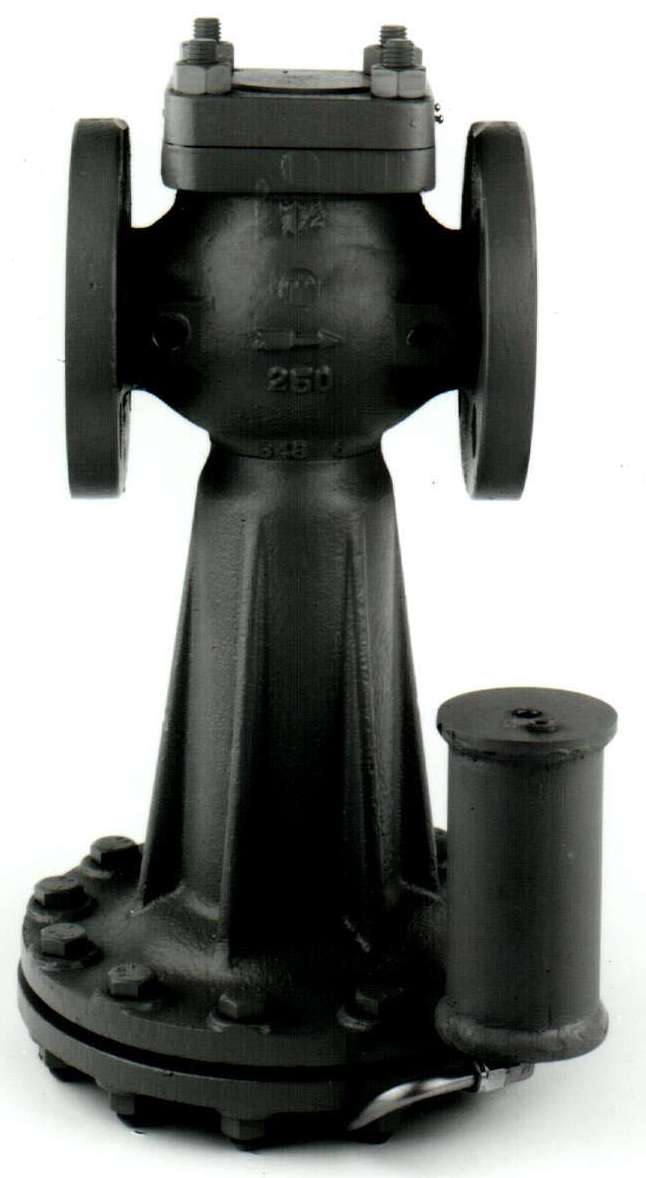

Jan 06, 2003 Available in sizes from ¾â€“12 in. and in cast iron and cast steel, E5 Self Contained Regulator operates on as little as 5 psi differential pressure while handling conditions as high as 300 psig at 600°F. Regulator eliminates need for support systems, sensors, and air input, typically required with control valves. Unit offers packless construction, hardened stainless steel trim, and few moving parts.

Haewa Corp.    Duluth, GA 30097

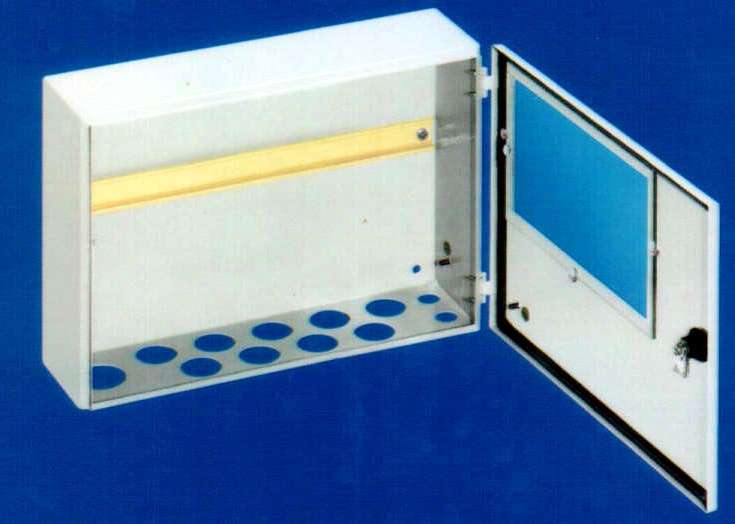

Jan 06, 2003 Offered in 5 standard sizes, enclosures have 0.12 in. Makrolon windows that permit visual display of bus components. To aid in cable routing, 3 bus enclosure sizes come with pre-punched PG fitting holes and side hinged doors with 180° hinges and key locks. Also, 2 sizes have bottom hinged front covers. All bus enclosures are made of 16 GA cold rolled steel and are equipped with 7.5 x 35 mm DIN rails, ground studs on body and door, and foamed-in-place seal.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502

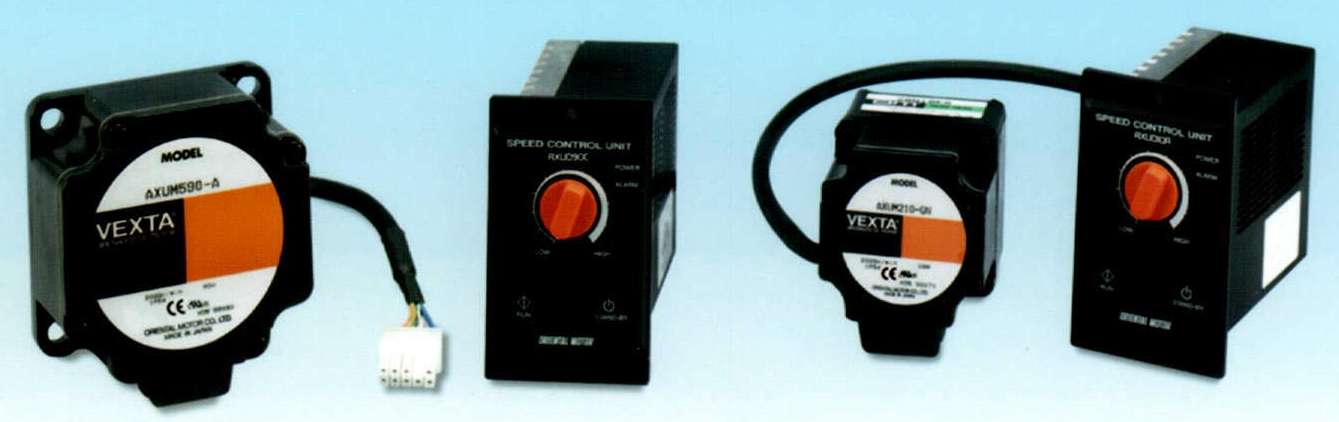

Jan 06, 2003 Brushless DC Series AUX, comprised of BLDC motor and speed control unit, provides 10, 25, 40, and 90 W output power levels. Available with single-phase 100-115, single-phase 200-230, and 3-phase 200-230 Vac power inputs, system does not require external DC power supply. Series maintains constant torque value over entire speed range of 100-2,000 rpm. It provides speed regulation of ±1% maximum with voltage, ±1% maximum with temperature, and -2% maximum with load.

Mastercam/CNC Software, Inc.    Tolland, CT 06084
Jan 06, 2003 Mastercam® v9 employs Focus Cutting tool containment feature, which transitions between two definable shank clearance points and gradually adjusts head position while contained within tool control points defined by user. Tip Control checks tool tip against plane, rail, or multiple surfaces. Tool Axis Control sets axis automatically or manually within lines, points, or at surface normal. Mill Level 3 capabilities include part modeling, full associativity, and 5-axis to 4-axis conversion.

Seco Tools Inc    Troy, MI 48083

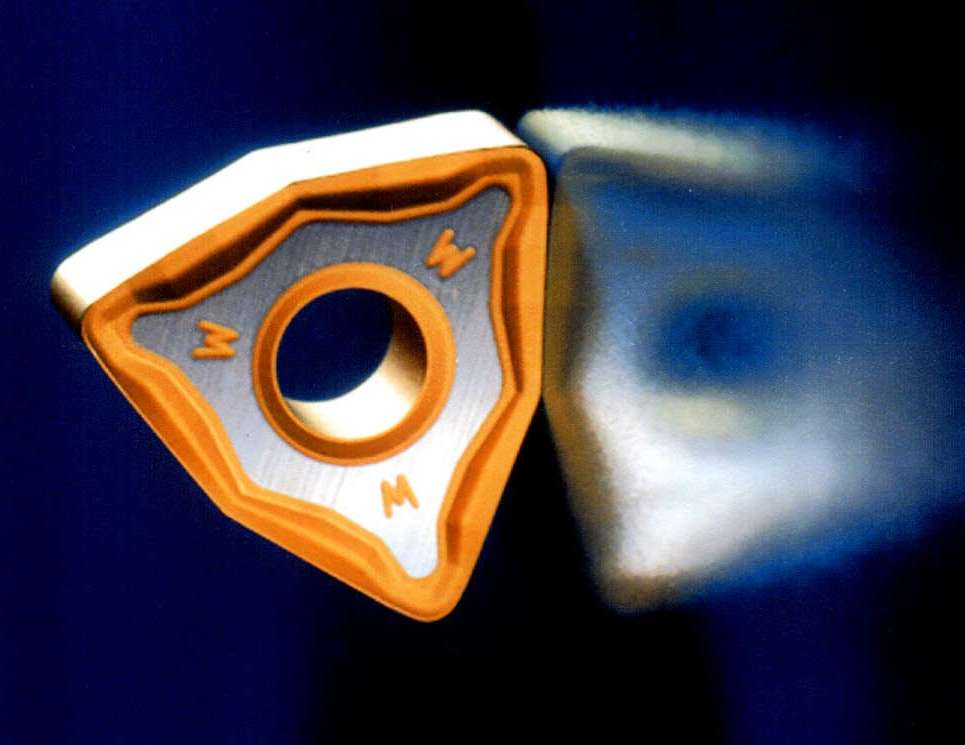

Jan 06, 2003 Negative C- and D-style pin-type, double-sided inserts are offered in chipbreaker M3 for general finishing purposes; or MF2 for high-accuracy applications. Both come in grades TP1000 or TP2000. Positive W- and T-style inserts are offered in chipbreaker F1 for high-feed finishing with low cutting forces. T-style comes in grade TP100 or TP2000 and W-style comes in TP2000 only. Geometry WZ is available in PCBN-grade CBN300 for finishing of pearlitic gray cast iron.

Hagglunds Drives, Inc.    Columbus, OH 43228
Jan 06, 2003 Compact CB motors are shock proof and offer 98% mechanical efficiency. They provide full torque at any speed from standstill to maximum and can stop instantly. Units offer torque up to 210,000 lbf-ft with displacements from 920–3,220 in³ per revolution, speeds to 125 rpm and pressures up to 5,000 psi continuously. Motors are suitable for shredders, feeders, and roll mills.

Densitron Corp.    Santa Fe Springs, CA 90670

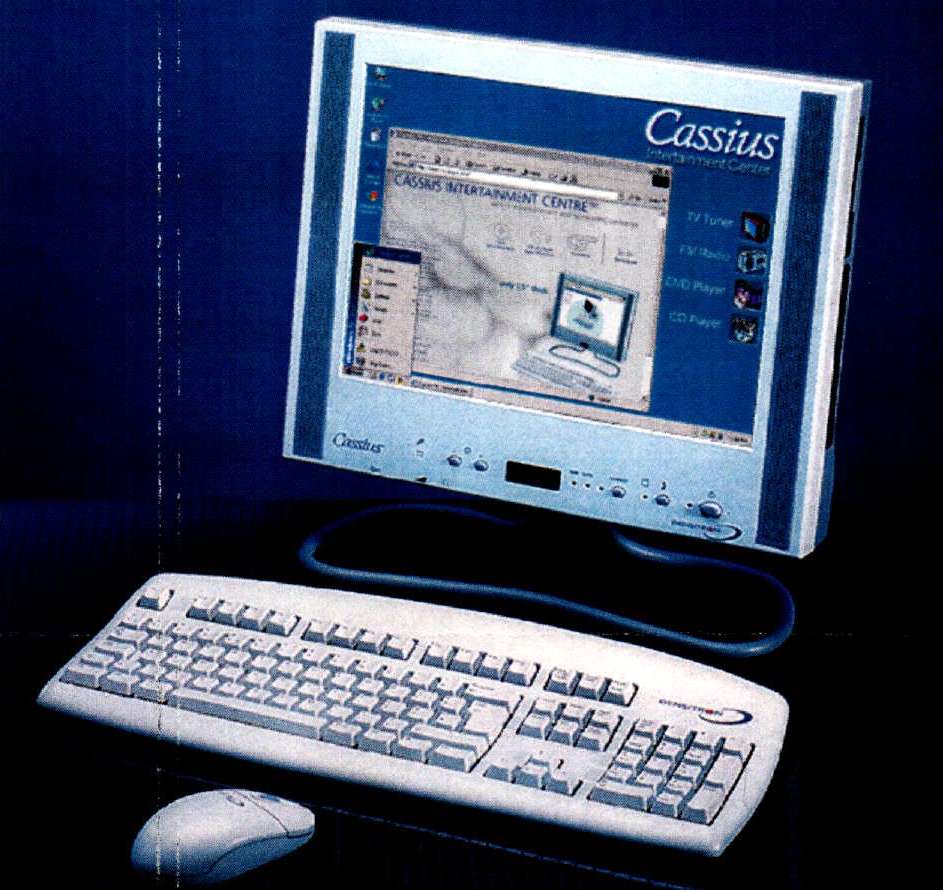

Jan 06, 2003 Cassius PRO resembles LCD monitor but combines Pentium® III 800 MHz processor, Touchscreen, 128MB RAM, 20 GB hard drive, LAN, 56 K modem, CD drive, and floppy drive in 1 package that measures 2.5 in. thin. Built around steel frame, product withstands shock and vibration specs to Mil-Spec 810F. LCD screen has 15.1 in. viewable diagonal area and flicker free display image. Unit also includes VESA FPMPMIâ„¢ mounting options for desktop, wall, or ceiling mounting.
