AirLoc Products    Franklin, MA 02038

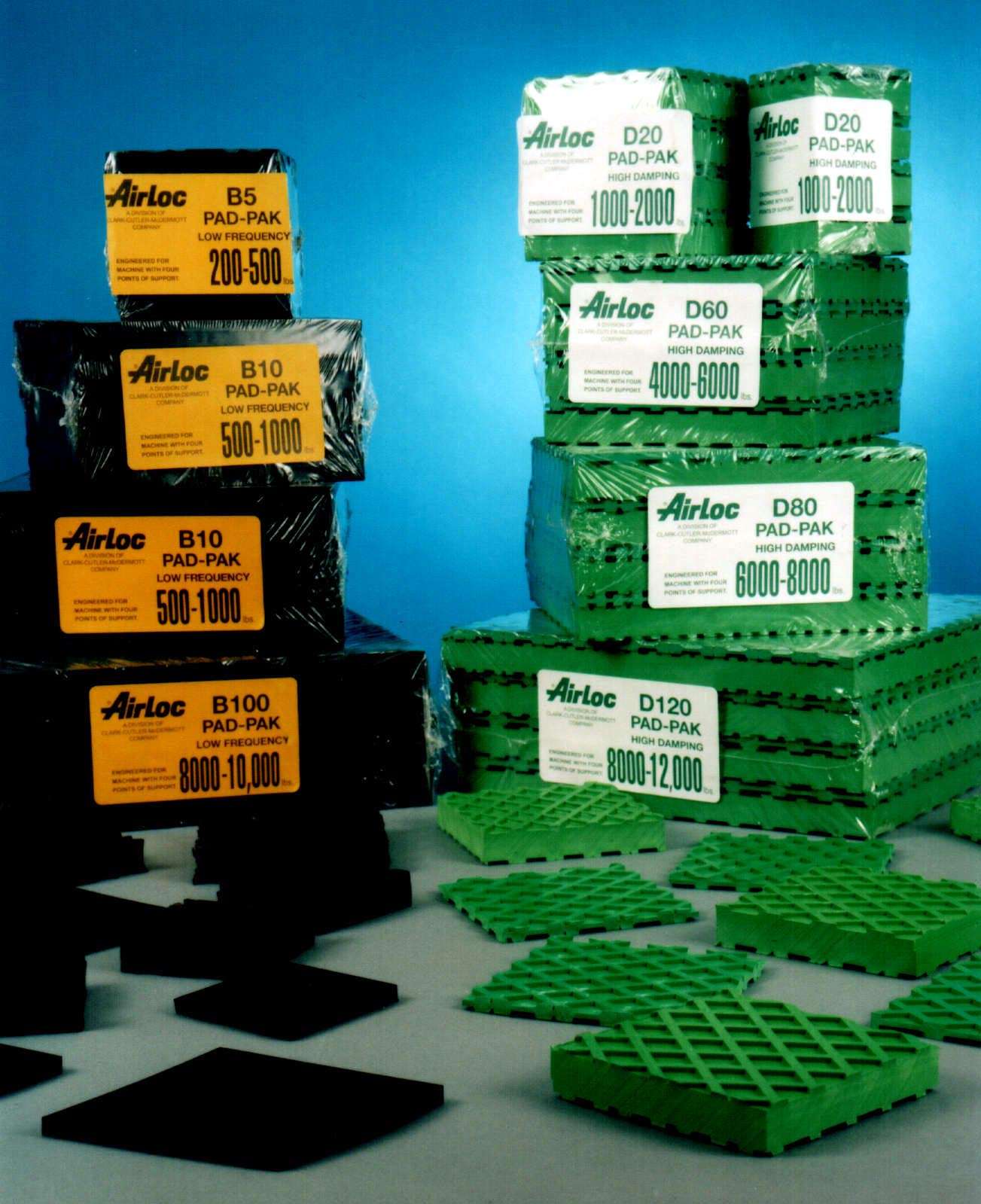

Jan 09, 2003 PAD-PAK® Vibration Control Pads are prepackaged to provide proper leveling and loading for machines having 4 points of support. Offered in 45 durometer neoprene, for low-frequency applications, and 70 durometer nitrile, for high damping, each set contains 4 base pads and 4 shim leveling pads. Cross pattern on tops and bottoms assures stable, non-slip surface. Sizes range from 2–10 in. sq with varying thickness to support machine weights from 200–20,000 lb.

Carbis Inc.    Florence, SC 29502 6229

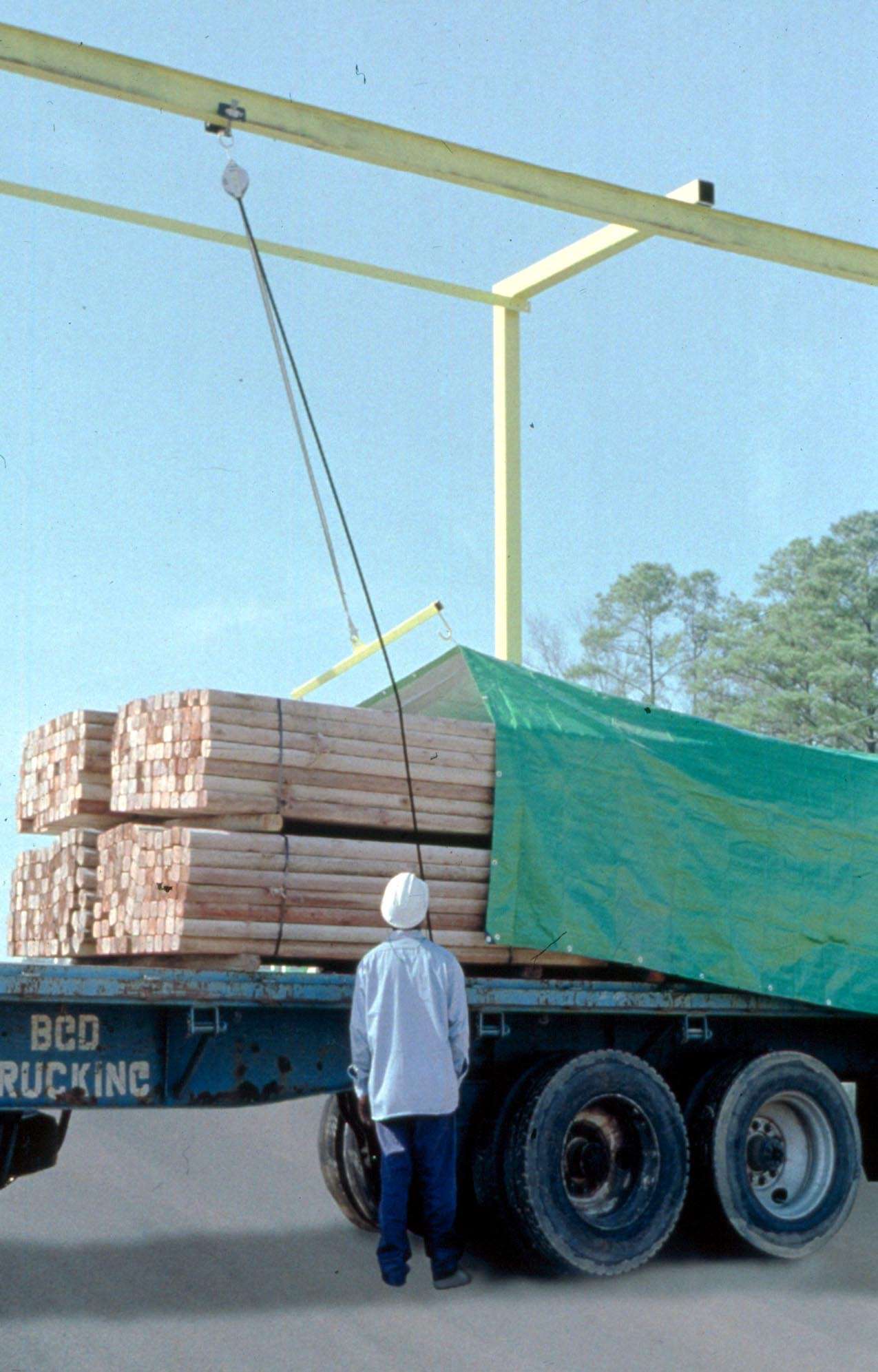

Jan 09, 2003 Powered Tarping System eliminates need for worker to climb on back of trailers or on top of loads. Operator connects tarp to spreader bar and guides tarp along length of trailer via hand held pendant control and powered winch system. Tarping system can be customized to fit specific applications and is available in variety of materials. Optional platform and stairs provide safe access to side of trailers.

ILX Lightwave Corp.    Bozeman, MT 59771 6310

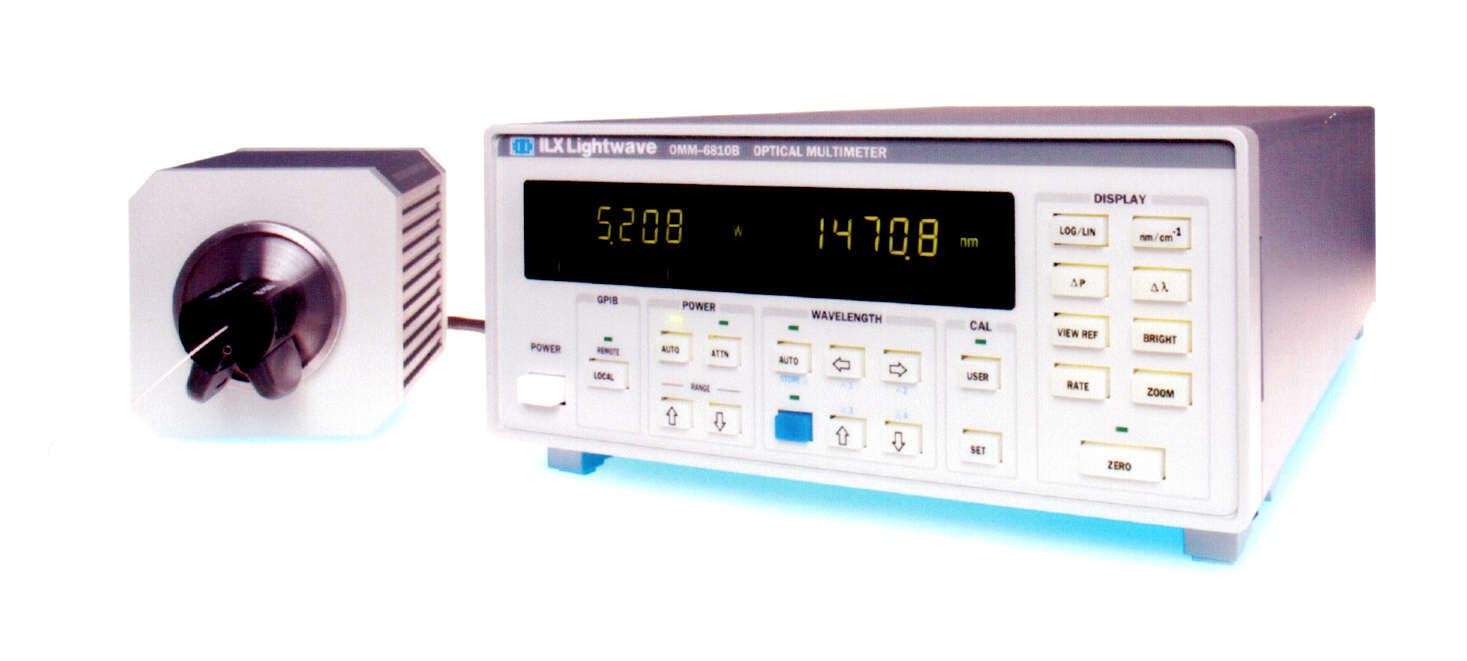

Jan 09, 2003 Model OMH-6780B or 6790B Power/Waveheads with OMM-6810B Optical Multimeter or LPA-9080 Series Parameter Analyzer measure up to 10 W and wavelength within 0.2 nm. Fiber exit port allows connection to OSA to make spectral measurements.

Bently Nevada Corp.    Minden, NV 89423
Jan 09, 2003 Through online monitoring and trending of critical seals, Seal-Leak Detection (SLD) system detects failures on process pumps in refineries and chemical plants. It directly measures pressure across seal’s face, allowing operators to detect pressure changes indicative of failing seals. SLD system is part of Trendmaster® PRO distributed condition monitoring system, which provides real-time mechanical condition dashboard for industrial equipment assets.

Diversified Technology Inc.    Ridgeland, MS 39157

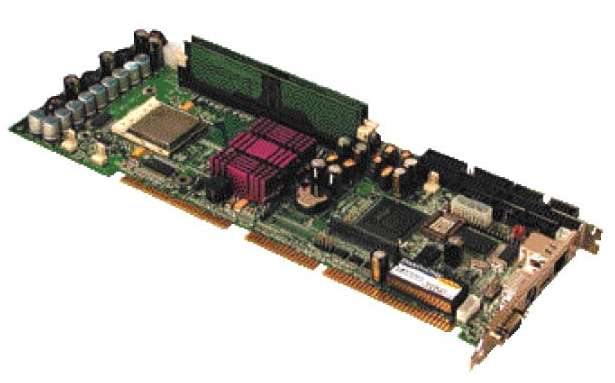

Jan 09, 2003 Model LBC9216 Intel® Pentium®4/Celeron® processor-based PICMG® 1.0 Rev. 2.2 compliant passive backplane SBC combines scaleable processor and memory processing performance. PCI to ISA bridge supports ISA bus mastering, up to 20-slot drive capability, and DiskOnChip solid state disk. Offerings include 512 or 128 KB full core speed L2 cache, Intel 845 GV chipset with 400/533 MHz front side bus, and up to 2 GB DDR200/266 DIMMs, with full ECC support on 2 sockets.

Emerson Energy Systems, A Division of Emerson Network Power    Kettering, OH 45429

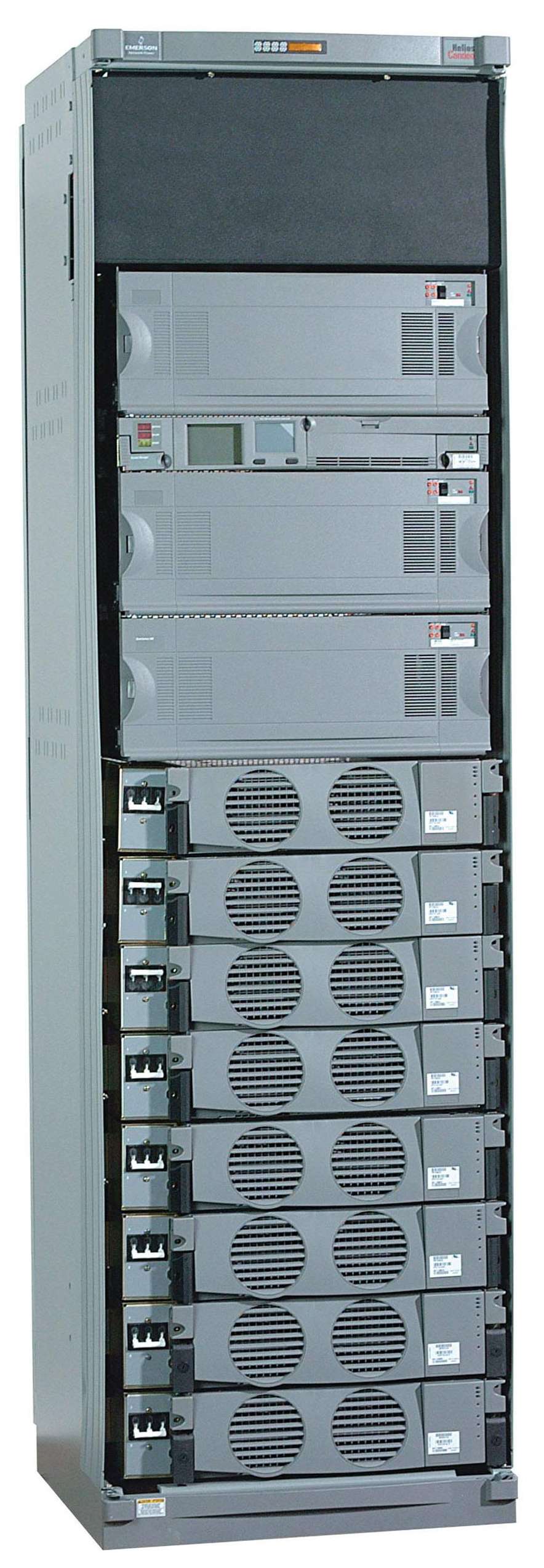

Jan 09, 2003 Candeoâ„¢ XL is offered with up to 1,600 A of rectifiers and sixteen 600 A fuse positions for power distribution in one 24 x 24 in. cabinet. Product provides system power density solution using 93% efficient, power factor corrected, hot plug-in, 200 A switch mode rectifier and is compliant to class B electromagnetic compatibility standards. Cabinet can be configured with 3 or 4 distribution modules with 12 or 16 fuses per cabinet.

PITTMAN    Harleysville, PA 19438 0003

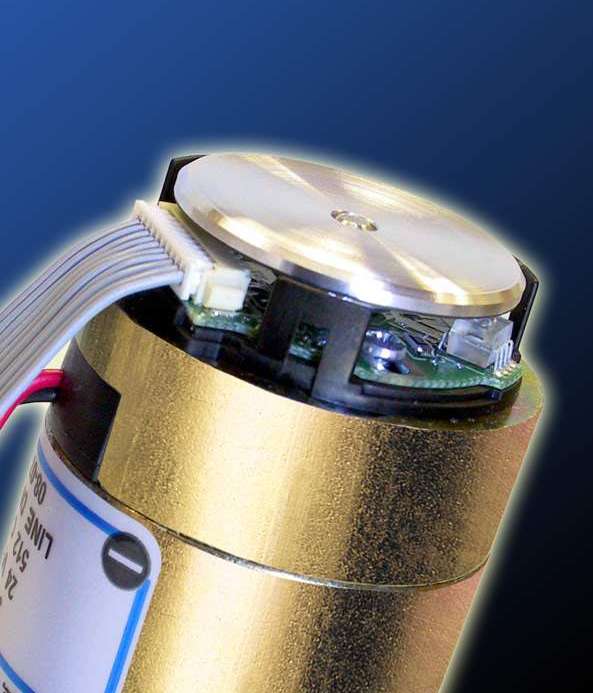

Jan 09, 2003 Reflective Optical Sensing 35 mm Encoder for brush-commutated and brushless DC motors, features PC board-based modular design and multi-tracked code discs to enable resolutions from 192–512 counts/revolution. Incremental, non-contacting rotary-to-digital feedback device translates real-time shaft angle, speed, and direction of rotation to TTL-compatible outputs. Outputs are 2-channel, in quadrature, with medium resolution encoding.

High Energy Corp.    Parkesburg, PA 19365

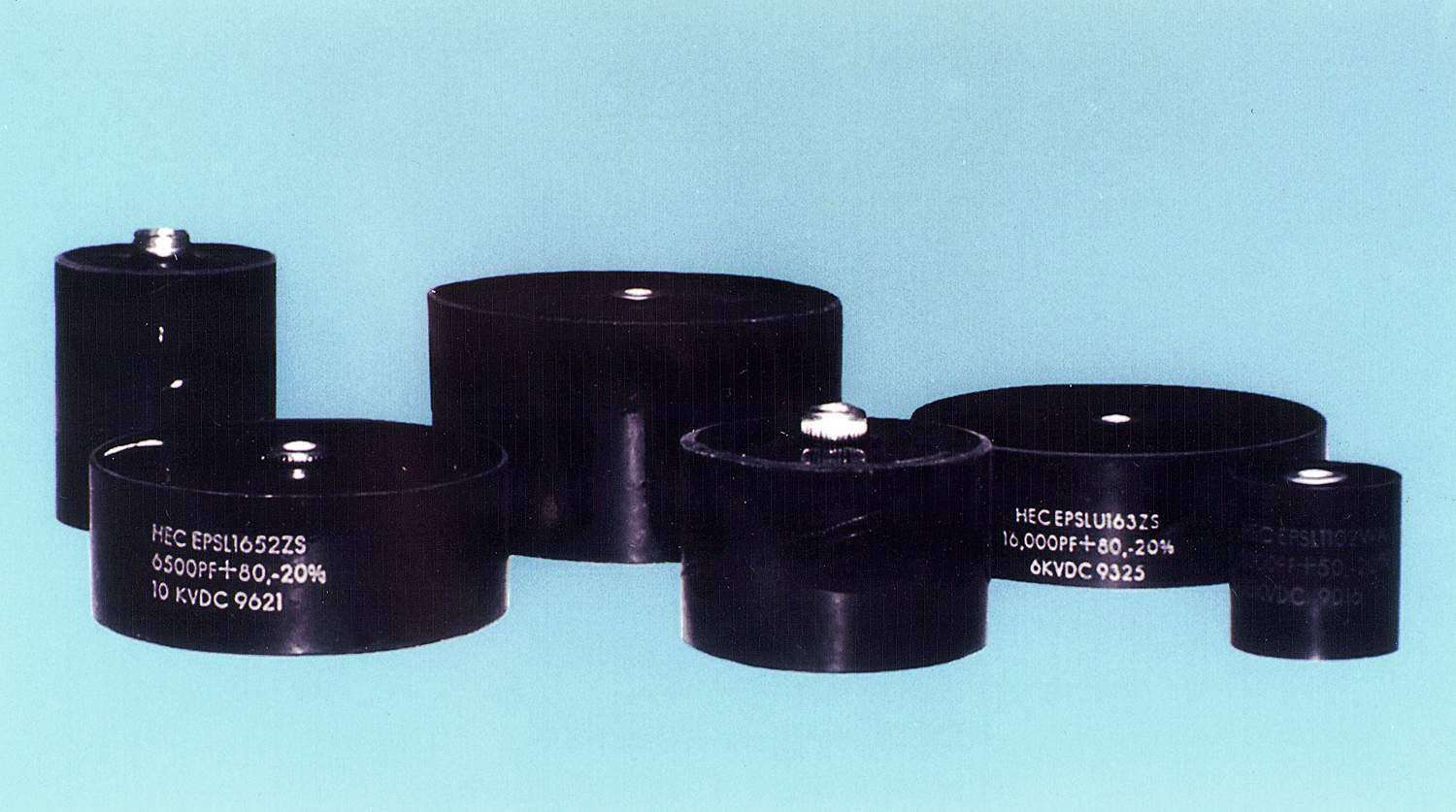

Jan 09, 2003 Series EPSR 50 KV pulse capacitors offer up to 3,000 pF for single pulse unit. They feature Class 1 ceramic dielectric, low inductance and losses, and small case size. Units are offered from 6-50 KV in capacitance values up to 16,000 pF. Applications include medical lasers, laser marking equipment, HVDC power supplies, lightning arrestor systems, and electron microscopes.

Taylor Products Co., Inc.    Parsons, KS 67357
Jan 09, 2003 Vertical Model V2448 handles bags that measure up to 24 x 48 in. long, weighing from 15–100 lb, containing liquids, granulars, or powders. It operates at up to 20 bags/min depending on product. Operator control interface stores up to 120 filling and package routines. Open-frame design and modular construction provides access to all components for cleaning and maintenance.

Repeat-O-Type Mfg. Corp.    Wayne, NJ 07470-6892
Jan 09, 2003 Ink set, for rechargers and kit manufacturers, includes Super Pigment Black for use in 28 and 56 cartridges; Cyan, Magenta, and Yellow inks for use in 27 and 57 cartridges; and Photo Cyan, Photo Magenta, and Photo Black for use in 58 cartridge. Inks are formulated for full compatibility with HP brand inks. They are packaged in pint, gallon, 5-gal, and 55-gal containers.

Greenheck Fan Corp.    Schofield, WI 54476 0410
Jan 09, 2003 Model IGX-HV indirect gas-fired make-up air unit can heat space to desired temperature, and can provide outside air to meet ASHRAE-62 ventilation requirements. Eight mixing box control options and 5 thermostat options provide range of ventilation and return air functions and settings. Furnace is 80% thermal efficient and includes post purge cycle which runs combustion fan after unit is shut down to vent corrosive hot air and moisture out of heat exchanger.

ITW Fluid Products Group    Glenview, IL 60025
Jan 08, 2003 Accu-Lube® #10 Perfect Tapping Oil consists of heavy-duty paste with lubricating properties. Natural based oil, suited for use in tapping and drilling operations, allows users to tap and drill several holes before recoating is required. Product does not need to be diluted with any other material and may be used with all metals. Pink, viscous oil is biodegradable and does not cause contamination or discoloration of products.

United Electric Controls    Watertown, MA 02472

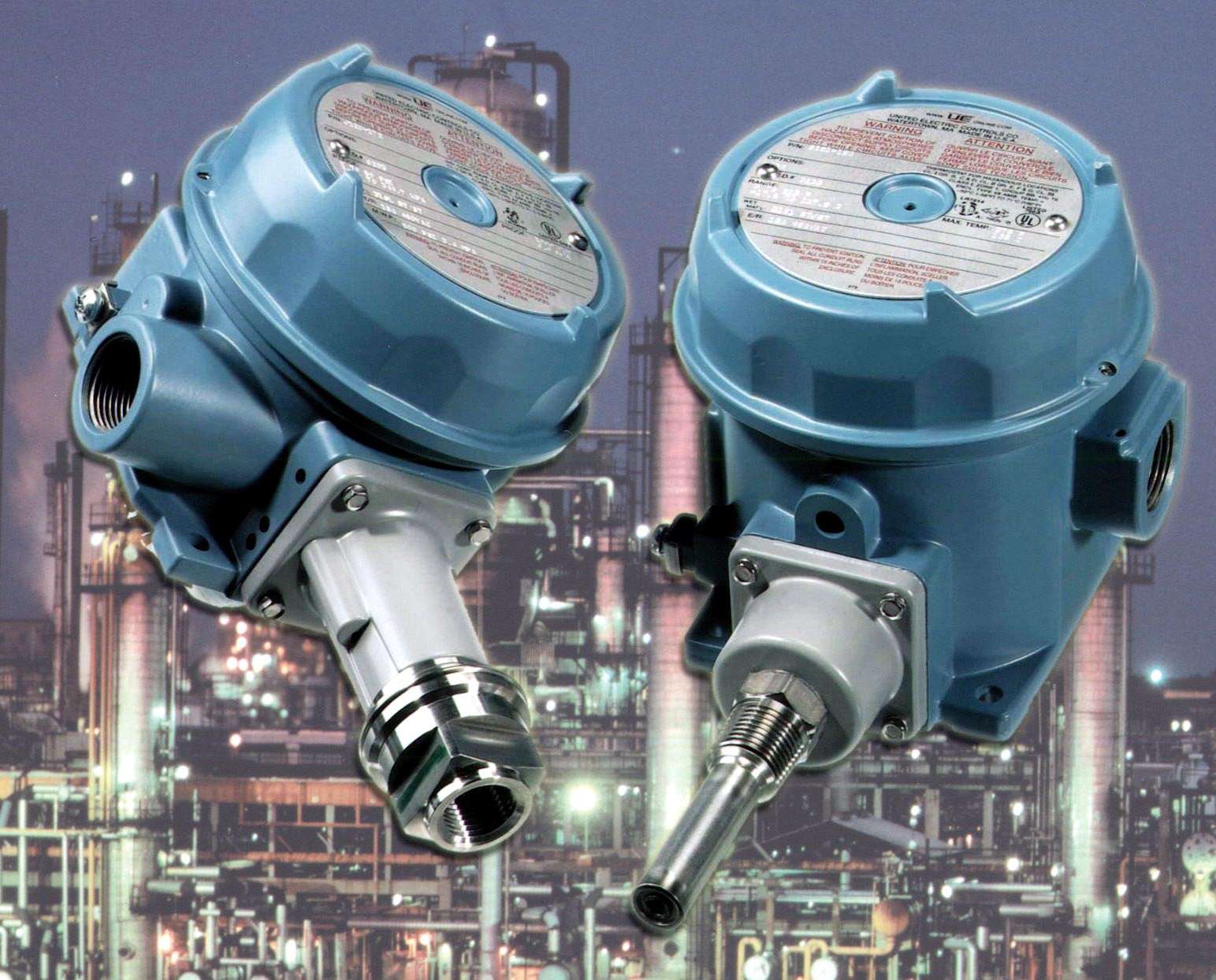

Jan 08, 2003 Explosion-proof 120 Series switches provide dual-conduit wiring and cover lock. Wetted materials and pressure port configurations are available for pressure ranges from vacuum to 6,000 psi. Differential pressure models start at pressures of 0.2 in. WCD and extend to 500 psid. Temperature switches offer remote bulb and capillary sensing or local immersion stem and cover ranges from -180 to +650°F. Single/dual outputs provide threshold detector.

Valco Instrument Co., Inc.    Houston, TX 77255

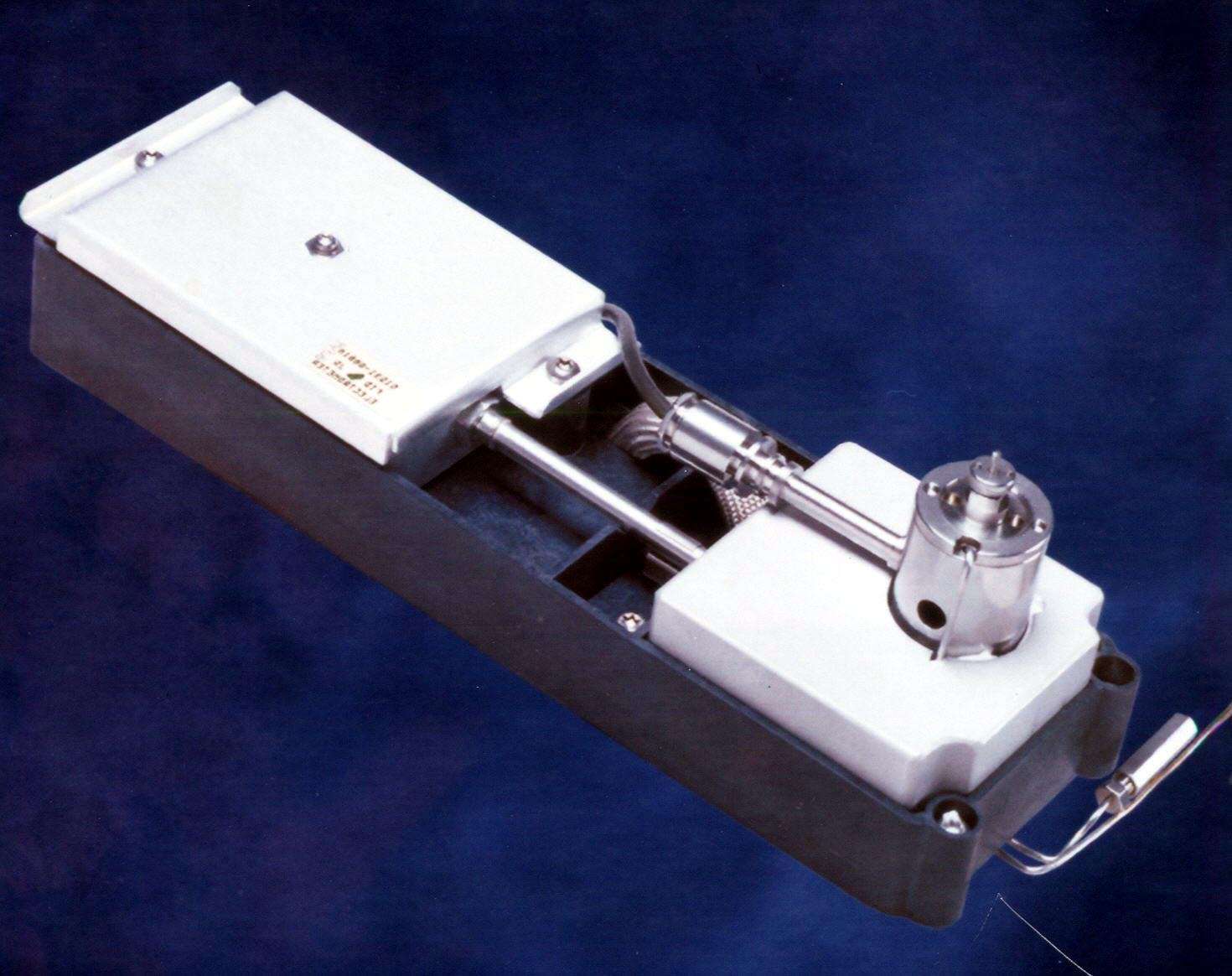

Jan 08, 2003 Model D3-1-HP helium ionization detector, with Valco Helium Purifier, is specified for HP 6890 gas chromatograph. It includes helium purifier and is suitable for use with columns from 50 micron capillaries to 1/8 in. packed. Universal detector is non-radioactive and non-destructive. With no open flame, no hydrogen requirement and close-to-true-mass response, unit can upgrade FIDs in petrochemical environments.

Aremco Products, Inc.    Valley Cottage, NY 10989
Jan 08, 2003 Non-flammable, environmentally safe, single-part, water-dispersed Aremco-Sealâ„¢ 4030 seals porous ceramics and refractories. Formulated with viscosity of 600–1,200 cps, product is applied by brush, roller, or spray equipment, drying at room temperature in less than 1 hr with full cure in 30–60 min @ 450°F. Solids content is 40% and theoretical coverage rate at 1 mil is 535 ft²/gal. Sealant contains no volatile organic compounds.

B & K Precision Corp.    Placentia, CA 92870
Jan 08, 2003 Benchtop Model 2121 provides dual-channel operation within DC to 30 MHz frequency bandwidth. Waveforms are displayed on 6 in. rectangular CRT. Unit offers AUTO/NORM triggered sweep operation with AC, TVH, TVV, and line coupling. It has calibrated 23-step time base with x10 magnifier. Since input of counter is coupled with either input channel of oscilloscope, counter uses same trigger level setting, allowing it to be used with complex waveforms.

AMTROL Inc.    West Warwick, RI 02893
Jan 08, 2003 StorageMateâ„¢ insulated tanks are offered in 41, 80, and 119 gallon models. Smallest model utilizes dense, polyethylene liner, while larger models are constructed of stainless steel. Tanks can function as recirculating aquaboosters with tank-less coils, hydronic buffer tanks for low-mass boilers and radiant systems, and as additional storage. Optional mechanical aquastats control temperature. Applications include whirlpool baths, hot tubs, dishwashers, and laundry machines.

Sho-Rack, Inc.    Elkhart, IN 46517

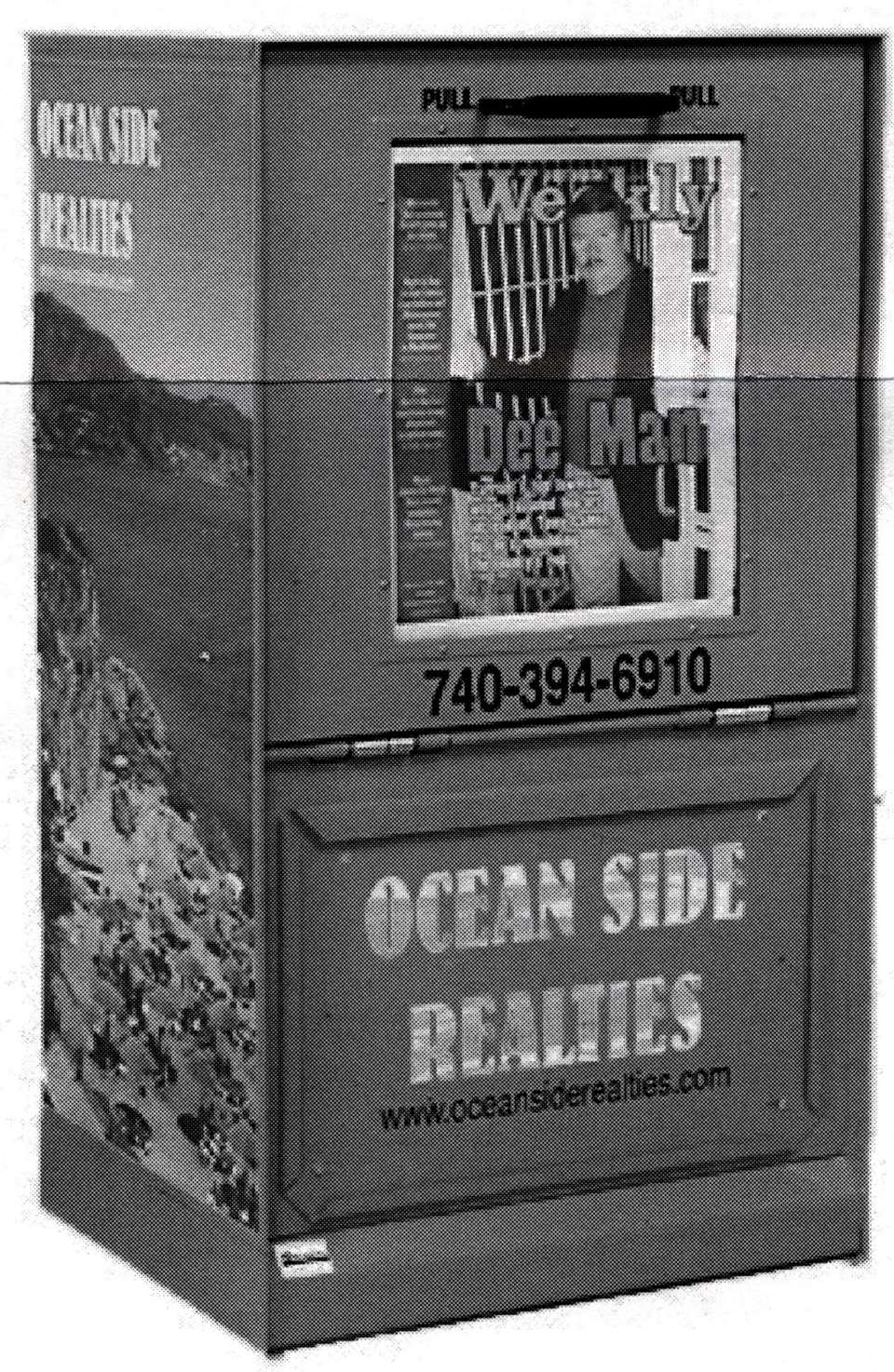

Jan 08, 2003 Sabre 83 Honor, with one-piece, galvanized cabinet, has elevator shelf with springs and plastic paper holder with Z-Bar. With 12 ga galvanized step-down base, unit offers HD UV-coated .080 window plastic. Magazine Model RR-1, offered with split shelves or divider options, includes built-in trough at front of shelf area to trap moisture and drain it away without damage to publications. Unit, with paper capacity of 16 ½ in., offers ½ in. U-channel display paper holder and spring-loaded door.

HPS Div., MKS Instruments Inc.    Boulder, CO 80301

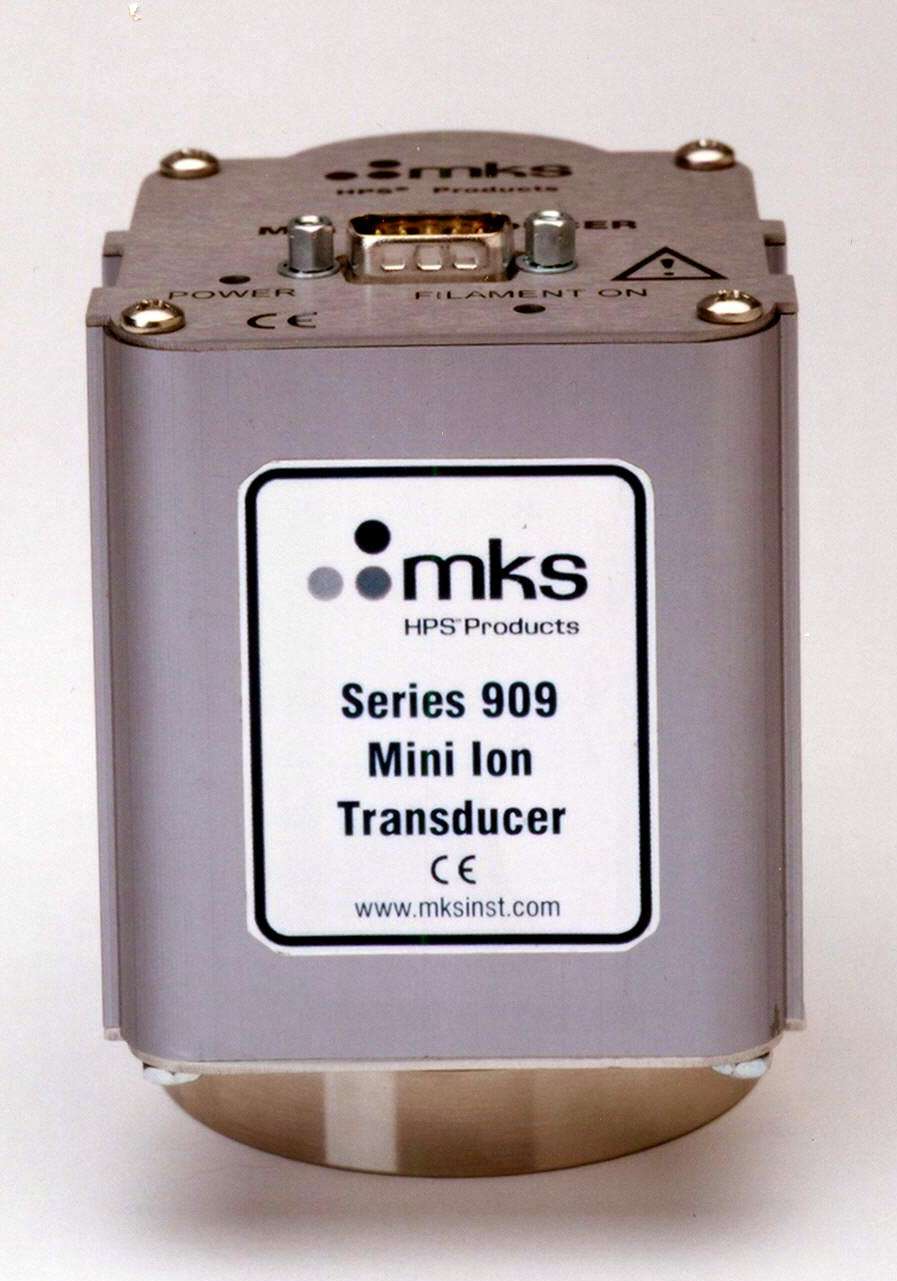

Jan 08, 2003 HPS® Series 909 Mini Ion Transducer integrates hot cathode sensor and electronics control package. Bayard-Alpert type transducer measures vacuum from l0^-10 to 10^-2 Torr. Electron bombardment degas function is pressure controlled, automatically stopping and restarting at preset pressures. Each unit has 2 yttria-coated iridium filaments and screen to shield grid and filaments from large particles. RS485 digital communications are standard.

Beckhoff Automation LLC    Minneapolis, MN 55337

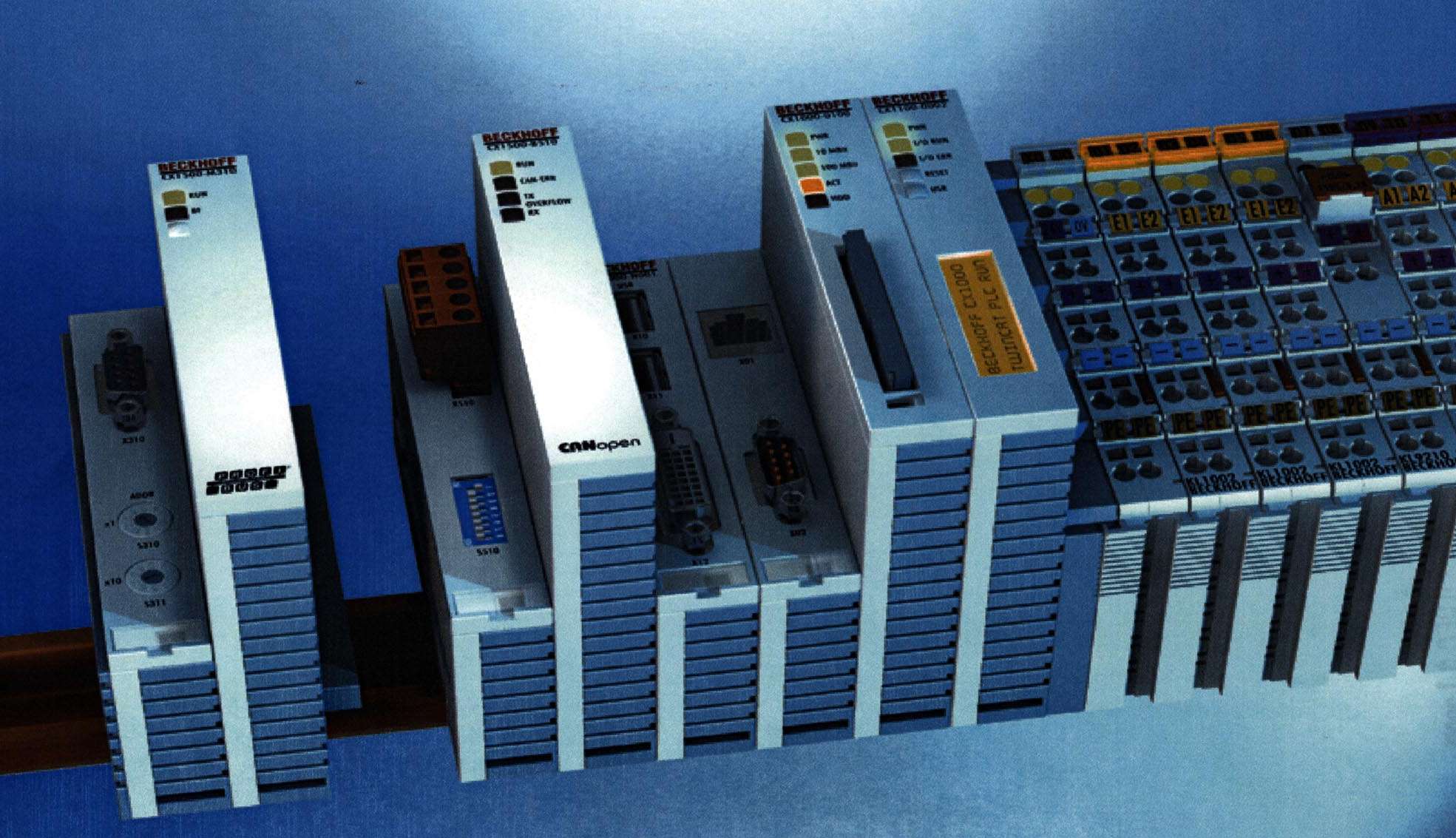

Jan 08, 2003 Model CS1000 Automation Control is a modular, DIN-rail-mounted unit that combines Microsoft© embedded operating systems and TwinCAT® CE PLC and motion control software in ruggedized hardware platform. It can handle up to 4 PLC tasks and run 1,000 PLC commands in 52 µsec. It operates up to 5 axes with control cycle time of 2 ms in parallel with PLC program. CX1000 contains 266 MHz Pentium MMX-compatible CPU, 16 Mbyte Flash memory, and 32 Mbyte RAM.
