Stingray Lighting, Inc.    Escondido, CA 92029
Jan 02, 2003 Stingray Complement Series HID light fixtures include floodlights, industrial lighting, surface mounted fixtures, and landscape lighting. Suited for commercial, institutional, and industrial lighting requirements, all models are UL listed. Products include HID high- and low-bay units as well as surface wall mounts, parking and commercial garage lights, and flood lighting. Fixtures are also available with compact fluorescent lamping options.

Saint-Gobain Performance Plastics, Pressure Sensitive Tape    Hoosick Falls, NY 12090

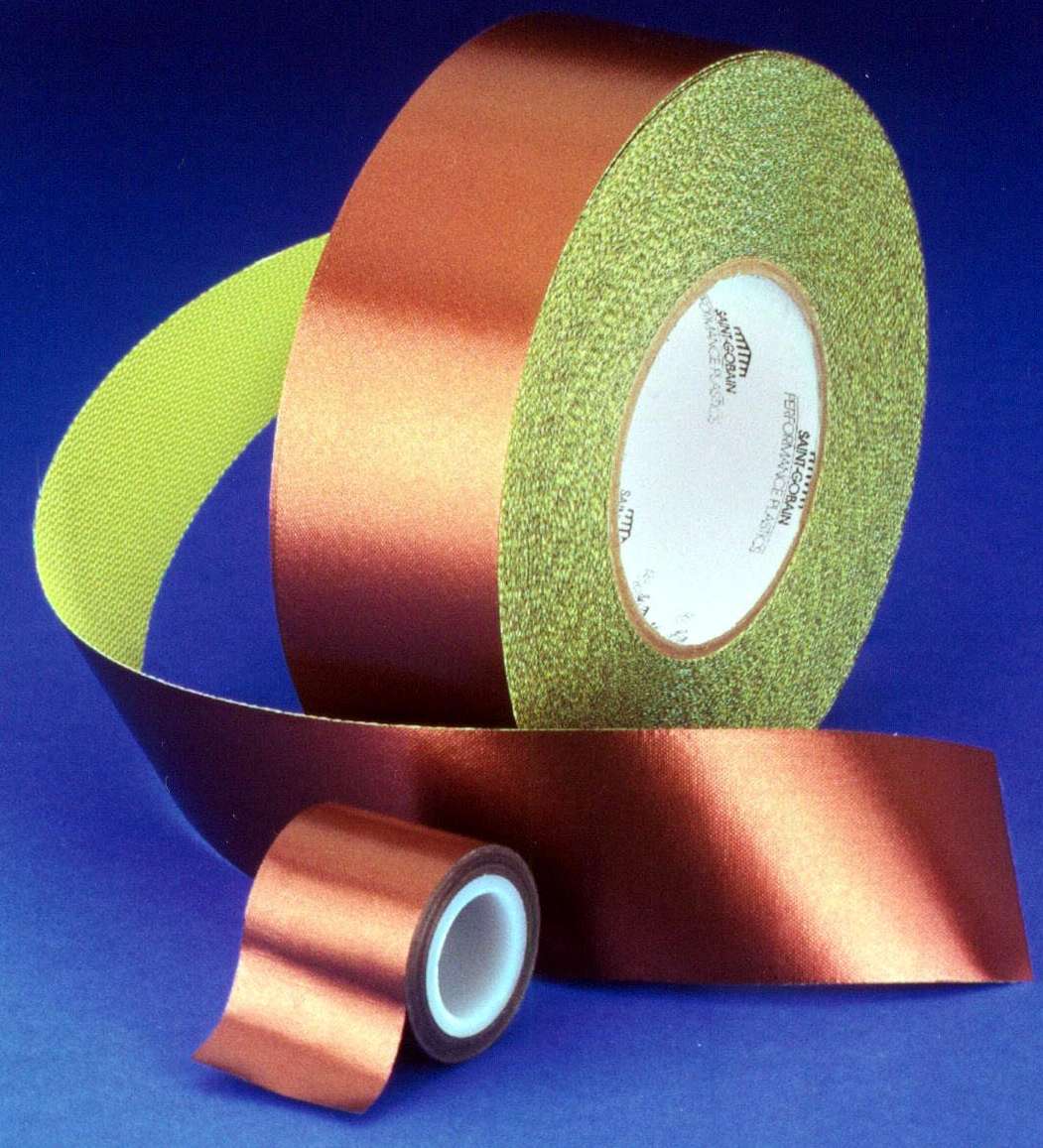

Jan 02, 2003 CHEMLAM® uniform, pinhole-free, hardened film is dimensionally stable and resistant to tears, punctures, abrasion, and wear. With layer of PTFE film over PTFE impregnated fiberglass fabric, tape acts as replaceable non-stick surface and prevents flexible packaging films from melting onto heating element and impeding production. It operates effectively at temperatures from -100 to +500°F and is suitable for acrylic adhesive and silicone adhesive processes.

Vestil Manufacturing Co.    Angola, IN 46703-0507

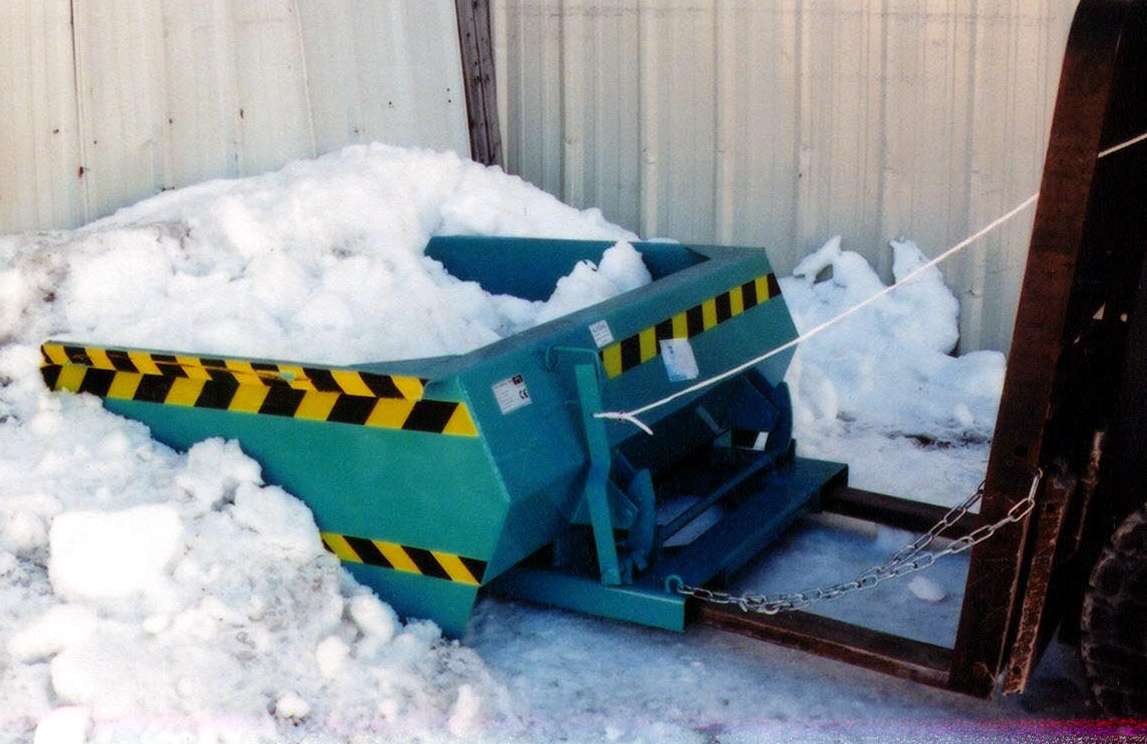

Jan 02, 2003 Engineered for use with existing fork trucks, units transport snow, gravel, sand, or refuse. Fabricated of steel with leak-proof welds, 1 1/3 cu yd loaders have capacities of 4,000 lbs. Beveled front edge and 90° dump angle permit complete dumping of materials being moved. Fork pockets measure 7½ in. wide x 2½ in. high on 24 in. centers. Overall size is 69 3/4 x 62 5/8 x 22 9/16 in. high.

Sensortechnics Inc.    Dublin, CA 94568

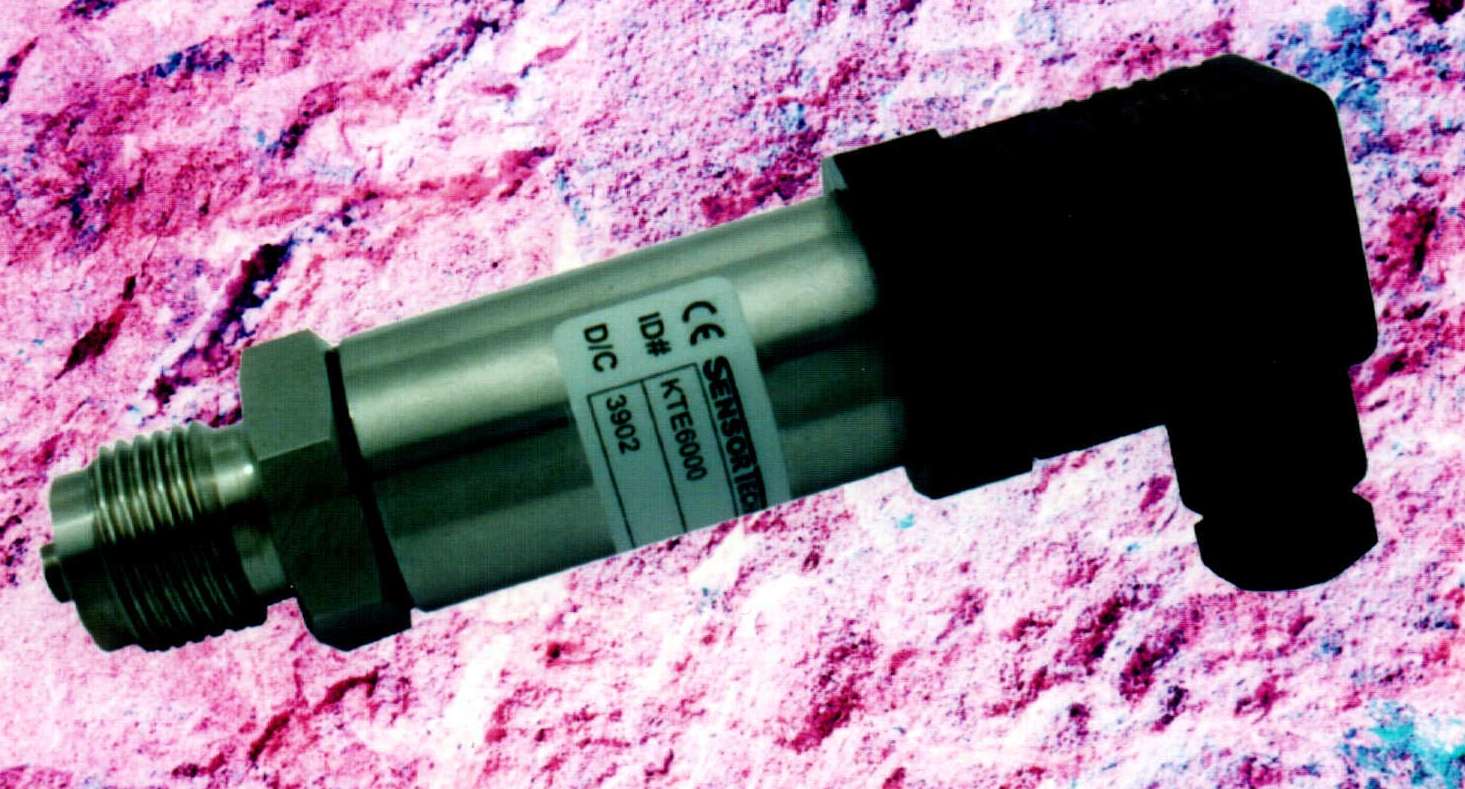

Jan 02, 2003 Series KTU6000 offers operating pressure ranges from 15–2000 psi, gage or absolute. Typical accuracy is 0.1% for combined non-linearity and hysteresis. Units have stainless steel housing and are compatible with many industrial liquids and gases. Standard pressure connection is ¼ in. NPT thread. Different electrical connectors and cable versions are available. Output signals include 4–20 mA, 0.5–4.5 V, 1–6 V, and 0–5 V.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145
Jan 02, 2003 Duratemp® thermometers feature molecular sieve design, which uses chemically unreactive gas and activated carbon. Direct-drive helical Bourdon tube eliminates need for movement assembly. Bulb is 3 in. long by 3/8 in. OD, and made of AISI 316 stainless steel. Lower or back connections with surface or flush mounting in dial sizes of 4½, 6, and 8½ in. are offered. Thermometers come in remote and direct mount with relatively linear dial.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145
Jan 02, 2003 Thermometers incorporate Maxivision® dials, which eliminate parallax error and can be read at any angle. Manufactured to ASME B40.3 Grade A accuracy of 1% of span, models come in 2, 3, and 5 in. dial sizes in °F, °C, or dual scale ranges. Configurations are offered with hermetically sealed cases; lower, rear, or everyangle connections; and tamper proof case or with external adjustment. Stem lengths range from 2½ to 24 in. Non-standard stem lengths are offered up to 60 in.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145
Jan 02, 2003 Ashcroft® A2 offers absolute and standard gauge pressure ranges from vacuum through 10,000 psi. It is offered with explosion-proof; NEMA 7, 9 or watertight; or NEMA 4X, IP67 enclosure. Accuracy classes include 1.0, 0.5, and .25% with choice of temperature compensated ranges of -40 through 257°F. Wetted materials include 17-4PH, Hastelloy C and 316L SS. Transmitter suits applications with wide temperature fluctuations, harsh process fluids, or changes in environment.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145
Jan 02, 2003 N-Series electronic indicating pressure switch provides pressure indication and switch functions. Users observe values on ½ in. LED display and can toggle between process pressure, setpoint, and reset point. Unit utilizes K Series thin film pressure sensor and circuit board housed in NEMA 4X/IP 66 rated, epoxy-coated, aluminum enclosure. Setpoints with adjustable deadband are available for alarm, shutdown, and control applications to 20,000 psi.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145
Jan 02, 2003 Heise® PTE-1 consists of base unit and 1 or 2 Quick-Selectâ„¢ pressure modules offering interchangeable ranges of ±0.125 in. H₂O through 10,000 psi. Dual range capability lets user monitor 2 ranges simultaneously. Unit provides measurement of pressure, flow volume and velocity, vacuum, calculation of leak rate, current, voltage, and change-of-state for switch testing. Accuracy ranges from .1–.025%, depending on user's requirements.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145
Jan 02, 2003 PLUS!â„¢ Performance option on stainless steel and sanitary gauges dampens effects of pulsation and vibration. It provides benefits of liquid fill in dry gauge. Feature keeps pointers steady while eliminating problems associated with liquid-filled gauges such as leakage. PLUS!â„¢ Performance option is offered on Ashcroft® 2½ and 3½ in. dial size Type 1009 Duralife® Gauge; 4½ and 6 in. Type 1009; 63/100mm Type 1008S; and 2½, 3½, and 4½ in. sanitary gauges.

Trion Industries, Inc.    Wilkes Barre, PA 18702 6997

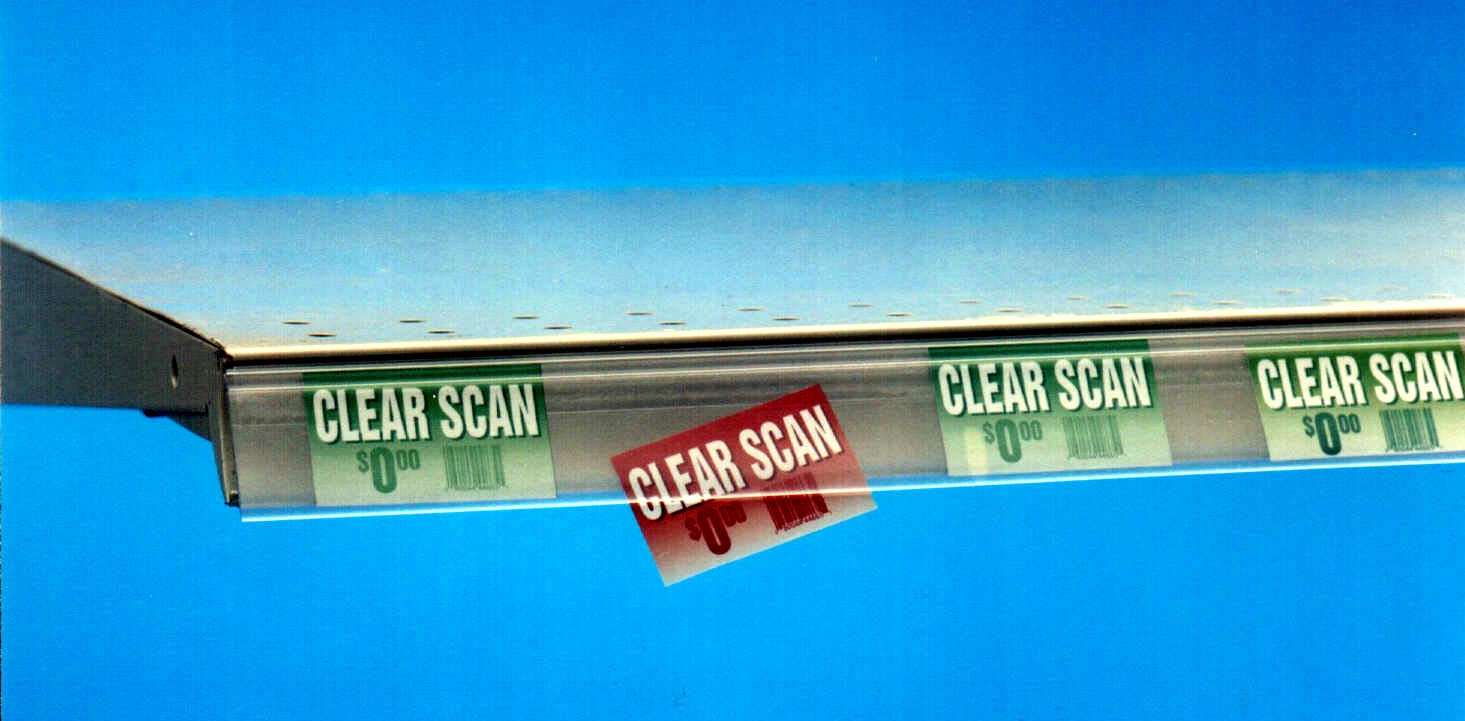

Jan 02, 2003 Model B30 Bottom Load Label Holder eliminates saturation and bleeding of labels caused by washdown solutions entering through open top of top-load label holders. One-piece, sealed-at-the-top design shields labels from water, cleaning fluids, and dirt. Soft, integral bead under clear front window provides added grip to hold labels in place. Bottom opening allows promotional signage to hang below scan strip for added merchandising impact.

Fairchild Semiconductor    South Portland, ME 04106

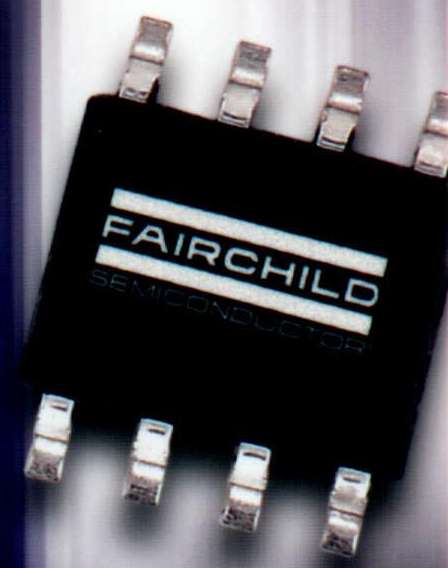

Jan 02, 2003 Models FDS4770, FDS4470, FDS4780, FDS4480, and FDS4672A are N-channel 40 V MOSFETs that provide DC/DC conversion in power supplies for laptop, computer VRM, telecom, and datacom/router applications. Model FDS4770, at 7.5 mOhms, has max junction temperature of 175°C. Depending on input and output voltages demanded by application, MOSFETs can be used as synchronous rectifiers or as primary or high-side switches in isolated and non-isolated power supplies. Units come in SO-8 package.

Fairchild Semiconductor    South Portland, ME 04106

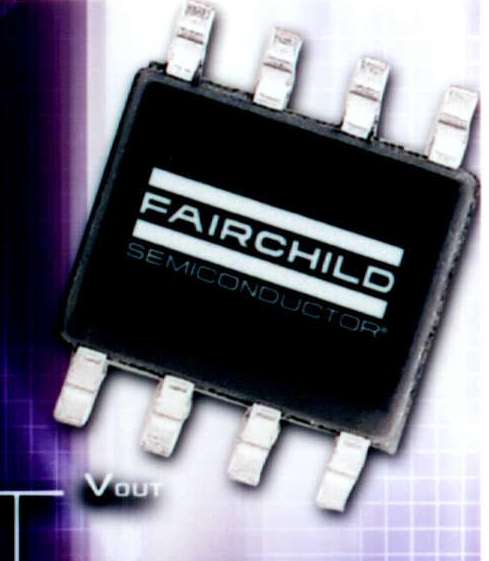

Jan 02, 2003 Fixed frequency, voltage mode FAN7556 offers power saving mode current of 200 µA and stand-by current of 100 µA. Unit includes current sensing comparator, trimmed oscillator, temperature compensated reference, and high current totem pole output. Auto-restart circuit provides over-voltage protection, over-current protection, and over-load protection. Available in DIP-8 and SOP-8 packages, device incorporates on/off control and soft-start circuit.

Lista International Corp.    Holliston, MA 01746

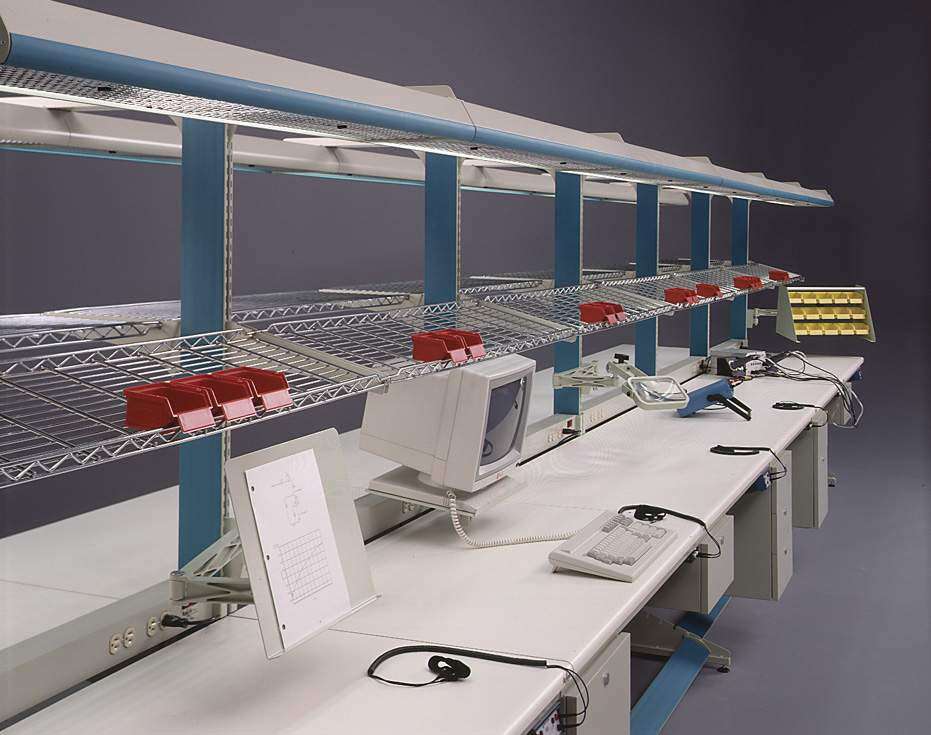

Jan 02, 2003 Able to be configured in various heights and lengths to suit specific needs, Arlink® Series 8000 modular workstation is available in 6 widths and 5 heights up to 84 in. For components above, below, and including worksurface, Definite Positioning System(TM) positions components and relocates/adjusts worksurfaces, storage, shelving, lights, power beams, and footrests. Worksurfaces are available in laminate or static dissipative. Product is also available on casters.

InterlinkBT, LLC    Minneapolis, MN 55441

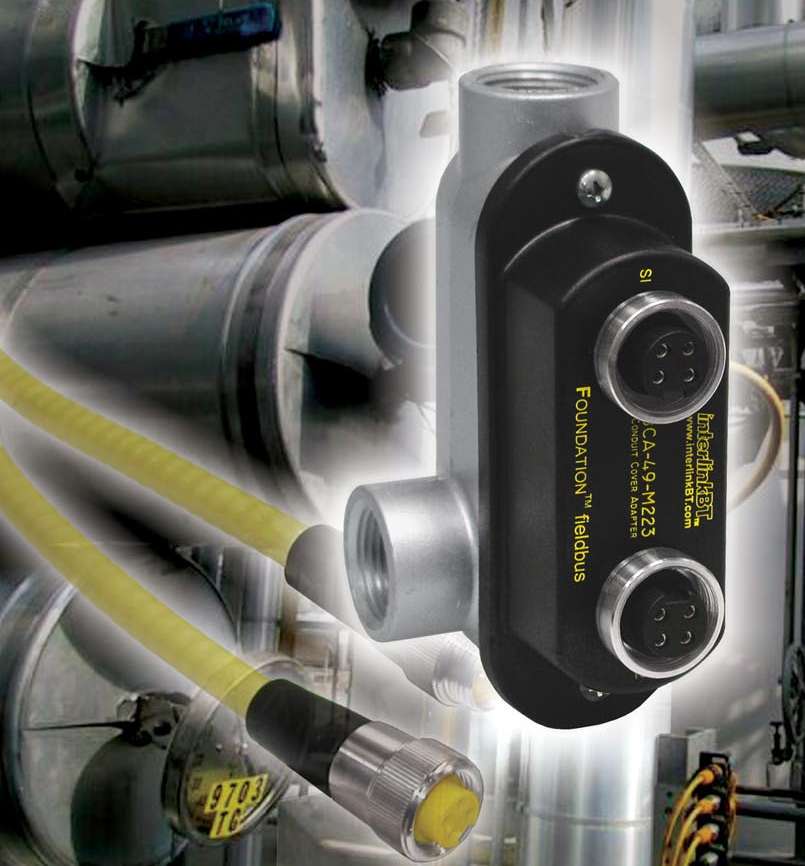

Jan 02, 2003 InterlinkBT(TM) attaches to standard conduit body for transition to minifast® or eurofast® connectors. Able to minimize point-to-point wiring in fieldbus systems, it eliminates need for troubleshooting. Adapter is efficient drop from trunk cable running in conduit; trunk cable is terminated into screw terminals of conduit adapter for connection to 1 or 2 devices. Product includes gasket and 8-32 x ½ in. mounting hardware.

TURCK, Inc.    Plymouth, MN 55441
Jan 02, 2003 Measuring 8 mm in diameter, barrel sensors rated at 20–132 Vac incorporate noise immunity and stainless steel housing. Products come in quick disconnect versions as well as potted in PUR cable for durability with chemicals and cutting coolants. Molded connectors with varying lengths of cable are also available. Units offer visible LED at cable entry.

Trombetta Motion Technologies    Menomonee Falls, WI 53051
Jan 02, 2003 Bi-Directional Latching Actuator can be customized to work in various switchgear applications. Suited to vacuum switchgear applications, product offers remote actuation, 2-position permanent magnet latching features that prevent demagnetization, and electromechanical design with no linkages/springs required. Unit requires 25 joules or less per unlatch for 15.5 KV vacuum bottles. Operation time is typically less than 2 cycles.

Arlyn Scales    East Rockaway, NY 11518
Jan 02, 2003 Equipped with 12 x 16 in. platform and load sensors, Series 6200 scales are corrosion-resistant. With resolution as low as .002 lb and weight capacities to 150 lb, units incorporate digital indicator with 1 in. high graphics attached to base by swing arm. Additional offerings include pushbutton tare, metric conversion, automatic zero, and automatic calibration. Options include 4–20 mA output, 8-level set-point controller, and USB/RS-232 computer interface.

Unisorb Installation Technologies    Jackson, MI 49204 1000
Jan 02, 2003 Able to prevent machines from walking, IMW 3-piece wedge mounts offer true vertical lift with adjustment range suitable for machine alignment applications. Standard with oil-resistant nitrile butyl rubber isolation pads, mounts are used with machines that have no holes in mounting feet. They are available in 2 sizes with capacities of 6,000 and 20,000 lb. Available sizes include: 6.23 x 4.26 with 2.00–2.50 in. height and 10.17 x 6.82 with 3.00–3.70 in height.

Electronic Materials, Inc.    Breckenridge, CO 80424 8817
Jan 02, 2003 With hardness rating of 84 and rated viscosity of 60,000 cps, DIEBOND 4460 resists temperatures to 110°C. Solvent-free, 2-component, 100% epoxy system cures overnight at room temperature or in 1.5–2.5 hr @ 50°C to form low stress bonds with various substrates. Minimal out-gassing occurs in applications with temperatures up to 200°C. System is available in bulk packaging as 2-component kit, in pre-measured MIXPAC cartridges, or in pre-mixed and frozen syringes.
