Interroll Corp.    Wilmington, NC 28405
Jan 06, 2003 Models 138E and 165E measure 5.45 and 6.44 in. in diameter, respectively. Model 135E is offered in 0.13–1.0 hp with belt speeds of 10–300 fpm, while Model 165E is available in 0.15–2.0 hp with belt speeds of 12–480 fpm. Each has 3-phase squirrel cage induction motor for 230, 380, 460, or 575 V power supplies. Triple shaft sealing system meets IP66/67 sealing standards necessary for harsh food and beverage processing applications.

iWork Software LLC    Greensboro, NC 27403
Jan 06, 2003 Automated data collection platform, iWork® ADC v4.0, assimilates, synchronizes, and distributes data and business processes across entire supply chain in real time. Software provides XML technology for integration and scripting functionality. It feeds plant floor data to any application that needs it, allowing validation of data from anywhere on system and guarantees transaction delivery, even when host is off line.

LIS Warehouse Systems    Charlotte, NC 28273-5542
Jan 06, 2003 Configurable Dispatcher-ActivityBilling software package tracks storage and movement of inventory for warehoused products, attaches cost to every transaction within warehouse, and sends invoices based on client-specific variables. System allows 3PLs to charge for services such as kitting, repacking, and returns handling. Using web-based screens, users can monitor billable activity collated from multiple sites in multiple languages and currencies.

DIRAK    Chantilly, VA 20151-1220
Jan 06, 2003 Suited for use with E-LINE devices, model S2001 enables users to manage E-LINE network using web browser via TCP/IP connection. Additional functionality allows users to administer E-LINE network remotely while maintaining system security. Server configures and controls up to 32 E-LINE devices and uses protocols such as HTTP. Product has integrated real-time clock and supports multiple user levels, with up to 50 simultaneous users.

Yokogawa Corp. Of America    Newnan, GA 30265 1040
Jan 06, 2003 FOUNDATION Fieldbus®-compatible Plant Resource Manager (PRM) vR2.03 integrates and manages maintenance information from field instruments, monitors on-line conditions, and records historical data. It enables users to remotely access devices that feature field communication capability and perform centralized management of parameters. Version includes PLUG-IN application software, HART® parameter management, and interface for Computerized Maintenance Management System (CMMS).

MSC Pre Finish Metals, Inc.    Elk Grove Village, IL 60007-5995
Jan 06, 2003 Laminated material structure of MagnaDamp(TM) couples constrained layer viscoelastic damping with magnetic attaching layer. Suitable for enclosure applications, material provides energy absorption and eliminates ringing of sheet metal exterior wrappers. Structure eliminates need for release liner peel-off and pressure-sensitive adhesive attachment. Material is available in continuous coil, blanks, slit, embossed, and piece parts.

Air Technical Industries    Mentor, OH 44060

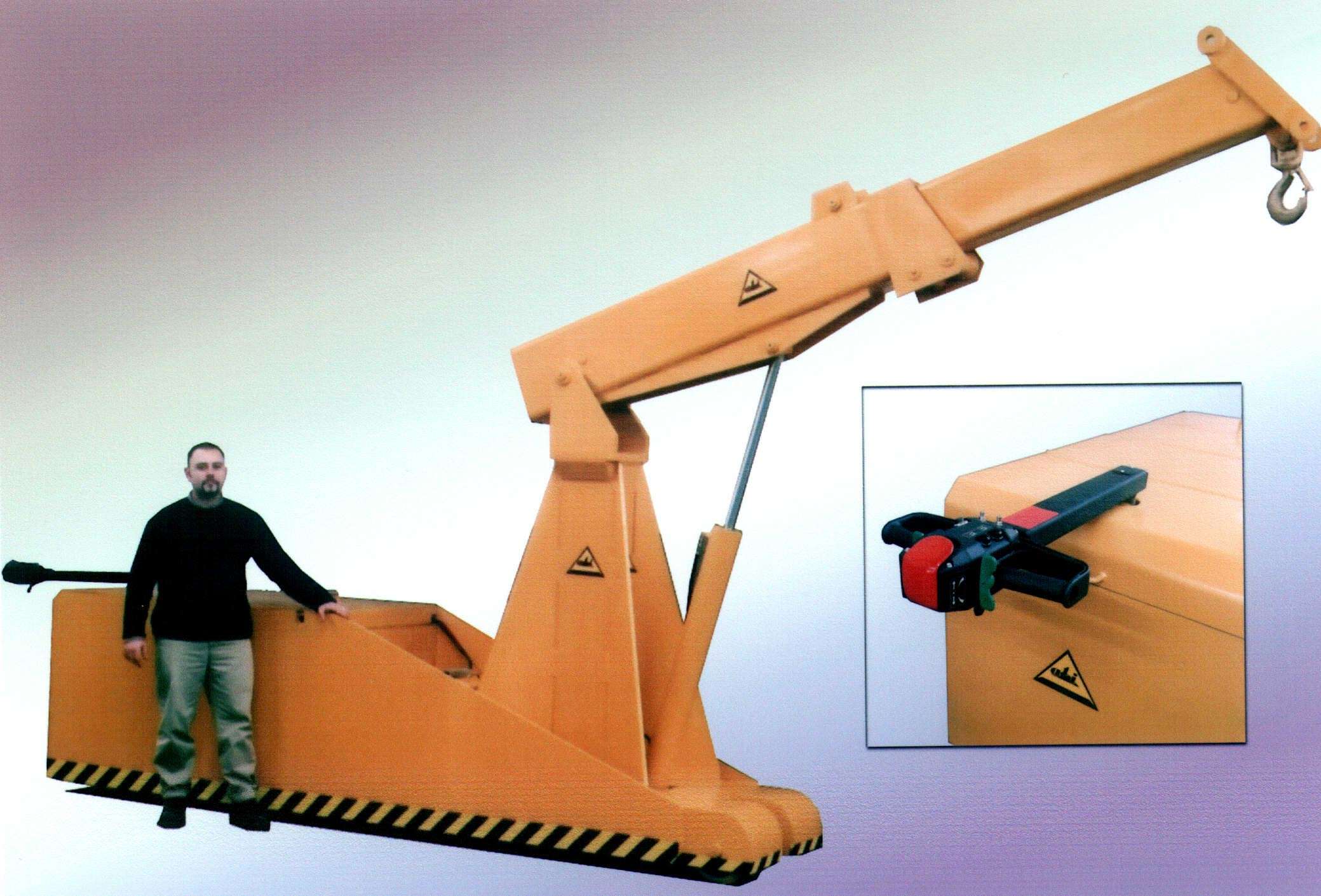

Jan 03, 2003 Constructed with welded steel, heavy-duty reversible boom crane offers reach that extends beyond its wheelbase and narrow design. Lifting and telescopic boom functions are hydraulically operated. With built-in overload relief valve and heavy-duty industrial battery powered propulsion, unit offers power steering and variable speed drive from 0–4 mph. Equipped with electro mechanical brake and polyurethane wheels, capacity is rated to 20,000 lb.

Sealevel Systems Inc.    Liberty, SC 29657
Jan 03, 2003 SeaLINK® drivers connect serial devices directly to Ethernet network. Available in 8, 4, 2, and 1 port versions, each port can be configured via software as RS-232, RS-422, or RS-485, enabling connectivity to variety of devices. Once connected to network, serial devices can be controlled and monitored over Internet. Based upon embedded microprocessor, SeaLINK® products are able to communicate over multiple ports at sustained rates up to 230 Kbps.

Lumex Inc.    Carol Stream, IL 60188

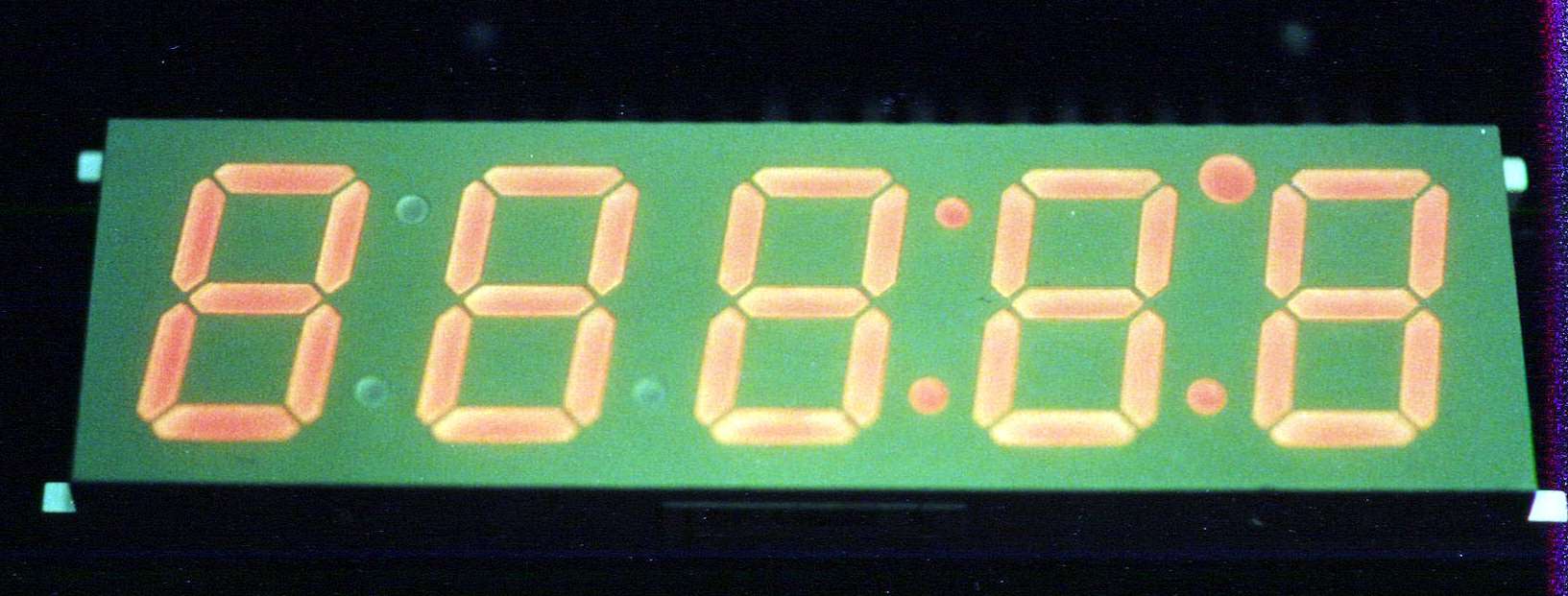

Jan 03, 2003 Model LDP-A566RI features five 0.56 in. high numeric characters, plus decimal points, colons, and degree symbol, in dual in-line package. Unit has gray face with milky white diffused segments when not illuminated. Standard emitted color is Super Red, with green, blue or white available. Typical operating current is 10 mA, and both storage and operating temperature range is -40 to +85°C. DIP package features 44 pins in 2 rows of 22 each.

JH Technology, Inc.    Sarasota, FL 34233 2432
Jan 03, 2003 Thermocouple Transmitters, available in DIN rail, plug-in, and 2-wire models, have compensators potted directly into terminal to minimize errors under varying ambient conditions. They include low-drift input circuitry, AC and DC power choices, and Quick-Check output LEDs. Plug-in HI/LO temperature alarms are available.

Banner Engineering Corp.    Minneapolis, MN 55441
Jan 03, 2003 Series VS4 Opposed-Mode self-contained sensors utilize optically correct lens, which redirects visible red sensing beam 90° off internal circuit board, sending light out narrow side of sensor. Designed for presence sensing inside machinery, 10-30 Vdc sensors have max output rating of 50 mA. Constructed of thermoplastic with polycarbonate mounting holes and lenses, sensors include noise suppression and meet IEC IP67 and NEMA 6 standards.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jan 03, 2003 Using metal telescoping antenna sensor, Series MVT can detect air flows up to 2358 ft/min and temperature up to 176°F. Accuracy of ±2% for air velocity and ±1.5°F for temperature is assured with low friction ball bearing mini-vane. Air flow can be measured in CMM or CFM and temperature is selectable in either °F or °C. Unit includes 4-digit LCD display, data hold, record/recall max and min, RS232 output, averaging up to 20 measurements, and auto shut-off.

Scapa North America    Windsor, CT 06095
Jan 03, 2003 Bioflex® Rx733P consists of non-woven cloth coated with medical-grade, acrylic, pressure-sensitive adhesive that carries Device Master File Number with Bureau of Medical Devices. Conformable tape is suitable for TENS, ECG electrode, and bandage applications and removes cleanly without causing skin trauma. Stay-flat, easy-release liner facilitates die cutting.

Amplifier Research Corp.    Souderton, PA 18964 2412
Jan 03, 2003 EM Test UCS500M/6B includes burst, surge, power fail, plus optional built-in ESD and 100 kHz Ringwave test modules. It can test to IEC 61000-4-2, 4-4, 4-5, 4-8, 4-9, 4-11 and 4-12, as well as ANSI/IEEE C62.41, European Generic Standards EN61000-6-1 and 6-2, and EN60601-1-2. Windows-based software provides complete test report that can be exported to RTF file or Excel for editing. Unit suits industrial, residential, medical and telecom applications.

Interpower Corporation    Oskaloosa, IA 52577-0115
Jan 03, 2003 Interpower(TM) cordsets supply power to system accessories and are offered in 0.5, 1.0, 1.5, 2.0, 2.5, and 3.0 m lengths. Products are molded with Harmonized cable and have UL recognition, CSA certification, and VDE approval. They are terminated on one end with IEC 60320 C13 connector and on other end with IEC 60320 Sheet E plug connector. Both terminations are molded directly onto cable. Cordsets are rated at 10 A, 250 Vac. Connector locks are available.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Jan 03, 2003 For use with fiber-optic cables, PD60CNK contrast sensor is suitable for packaging and labeling equipment. Sensing distance is set via programming pad on back of sensor. Available with 10–30 Vdc supply voltage, sensor has NPN/PNP outputs that can be configured as NO or NC.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Jan 03, 2003 Microprocessor-based, polarized PD60CNG detects transparent and highly reflective objects such as glass and plastic bottles. Single optical axis provides precise measurement of objects. Applications include packaging, bottling, and pharmaceutical equipment. Pushbuttons, on back of sensor, for teach-mode programming, allow sensing distance, timing, and NO/NC adjustments. Sensor is available with 10–30 Vdc supply and NPN/PNP outputs.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Jan 03, 2003 Series PD12 has sensing distance of 2–60 mm, depending on type of fiber used. User places object in front of sensor and pushes Teach button. Sensor automatically sets itself to detect only that color. Each output has built-in timer function to prevent false outputs at color boundaries. Sensor, with NPN/PNP outputs, can be configured for normally open or normally closed operation.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 03, 2003 Available with dovetail or flat base, medium-duty Series 900 NEMA terminal blocks are molded from UL 94V-0 plastic, rated up to 150°C. Gray, markable surface eliminates need for painted marking area. Contacts, rated for up to 50 A @ 600 V, accept wire sizes from 22-8 AWG. Available contact styles include blade, strap, quick connect tab, and tubular. Copper alloy is used for base contact material, and platings include silver, zinc, nickel, and tin.

MegaStar Systems    Marietta, OH 45750
Jan 03, 2003 MegaStar vertical storage systems with MM550 inventory management control system allows operators to pick parts by entering SKU numbers via on-board keyboard. Controls can be configured to manage item heights and weights, FIFO with store back function, and manage empty locations. Alphanumeric item and location info includes actual and minimum quantity and stock turnover. Able to control up to 31 machines via Ethernet, control stores up to 512 trays or shelves.
