Flexicon Corporation    Bethlehem, PA 18020 8006
Jan 15, 2003 Self-contained, gain-in-weight system receives bulk ingredients from multiple upstream sources, and weigh-batches, blends, and discharges material into surge hopper for conveying or discharging into process equipment or storage vessels. Controller with touch screen displays images of system components in operation, indicating material fill levels of weigh hopper, blender and surge hopper, as well as upstream and downstream vessels, in real time.

PHD, Inc.    Fort Wayne, IN 46899
Jan 15, 2003 Series GRS Grippers feature angled cam drive mechanism, precision ground and hardened jaws, hardcoated bearing surfaces, and internal jaw seals. Spring assist provides part retention upon loss of air pressure. Units are double acting for both internal and external gripping applications. Five sizes are available with 2 jaw travels per size. Jaw position interfacing with electronic system controls can be monitored through optional inductive proximity switches.

PCD Inc.    Peabody, MA 01960
Jan 15, 2003 In-line fusing module provides fusing and blown fuse indication for every circuit in distributed I/O systems. Consisting of board-mounted fuse and indicator elements housed in mounting system, module secures to DIN track. It connects to system I/O connector through board-mounted terminal blocks on interface module through multi-pin electronic connector (D-sub, ribbon cable, RJ style, Centronic, or DIN) or through pre-wire plug harness.

Siemens Energy & Automation Inc., Motors & Drives Div.    Alpharetta, GA 30005
Jan 15, 2003 Medallion NEMA Premium® RGZEESD Motors are totally enclosed, fan-cooled electric motors with high grade steel motor core and copper motor windings. Depending on power rating and type, motors operate at efficiencies ranging from 77 to 97%.

Cummins Power Generation    Minneapolis, MN 55432 3702
Jan 15, 2003 PowerCommand® 2.7 MW, 1800 rpm generator set, for utility peaking and distributed generation, as well as standby applications, is available for either 60 Hz or 50 Hz operation. Units can be upfitted with selective catalytic reduction option. Major components include QSK 78 L diesel engine, alternator, and digital control system. The 3740 hp, 18-cylinder, turbocharged engine features technologies to meet EPA Tier 1 off-road emissions regulations.

Stearns Div., Rexnord Corp.    Milwaukee, WI 53202 6002
Jan 15, 2003 Series 321 includes 6 armature-actuated, electric, disc brakes with enclosures that reduce noise and protect against hostile environments. Brakes decelerate or hold inertial loads when voltage to brake coil is disconnected. They feature asbestos-free friction discs and require no adjustments. Low-voltage design operates in applications that are susceptible to weak battery or brownout. Static torque ratings are 3, 5, 7, 15, 35, and 50 lb-in.

Bio-Chem Valve Inc.    Boonton, NJ 07005
Jan 15, 2003 Inert Solenoid Pumps and Valves have 0.5 in. footprint and threaded-collar design for mounting to manifold. Locked-in mounting collar, hand tightened into manifold port, ensures even load on gasket seal for pressures up to 100 psi. Units can be customized in PEEK, PPS, Ultem, acrylic, Chemraz, EPDM, Viton, or Teflon. Multiple manifold sizes achieve flows from 10 µL/min to 2 L/min.

CAT PUMPS    Minneapolis, MN 55449
Jan 15, 2003 Gas Model 3SP30G1I delivers 3.0 gpm @ 3000 psi, while electric Model 3SP34GEI provides 3.5 gpm @ 2500 psi. Both are direct-drive, direct-mount, flange-style pumps with ribbed crankcase. Pumps include concentric, polished, solid ceramic plungers; V-packing seals; and pressure-regulating unloader with adjustment handle, bypass hose and chemical injector. Fixed chemical injector mounts onto pressure regulating unloader, providing optional cleaning choices.

Spectronics Corp.    Westbury, NY 11590
Jan 15, 2003 TITAN® Stinger® 2 features flip-up filter, which changes UV/Blueâ„¢ inspection light to standard flashlight. Cordless, portable unit pinpoints leaks in cramped, hard-to-reach areas of air-conditioning and refrigeration equipment. Output of instant-on, Xenon-filled bulb is magnified by dichroic filter lens. Adjustable focus beam permits spot beam for tight inspections and flood beam for wider coverage. Flashlight is powered by rechargeable NiCad battery.

Mag-Tek    Carson, CA 90746 3503
Jan 15, 2003 MICRImageâ„¢ provides automated confirmation of MICR data for check conversion and electronic check transactions. With Enhanced Reading technology, MICRImage reads check up to 3 times automatically, comparing results of multiple reads and reporting discrepancies to POS terminal or check processing application. If check reads identically on multiple passes, captured data may be deemed accurate; checks that do not can be stopped from initiating erroneous transaction.

Mencom Corporation    Oakwood, GA 30566
Jan 15, 2003 ILME 16 Amp Insert models CNEF and CNEM 06-24 T offer captive wire protection system and fluted wire openings. Products utilize combination Phillips Slot Screws within screw area. Units aid in wire insertion because wire protection plate will not drop down. Inserts, able to accommodate oversized ferrules, may be used with any screwdriver including large and power screwdrivers.

Raindrop Geomagic    Durham, NC 27713
Jan 15, 2003 Geomagic Studio v5 reverse engineering and custom design software generates polygon and parametric surface models. Able to save and load matrices that enable recording and reloading of known camera locations, it offers polygon wrapping, surface shaping tools, and customizable GUI. Geomagic Qualify v5 computer-aided inspection (CAI) software enables feature-based alignment, direct feature comparison and reporting, and sheet-metal part dimensioning.

VX Corporation    Palm Bay, FL 32905
Jan 15, 2003 VX® CAD/CAM software v7 enables users to edit assembly alignment constraints, position assembly components, and investigate movement of mechanism to diagnose operational problems. Using 3D design constraint manager, VX variational constraint system simultaneously solves and regenerates assembly. Software can deform surfaces by pulling any point on face in any direction, while automatic extension function extends curves to boundary then trims sets of faces.

StockerYale, Inc.    Salem, NH 03079
Jan 15, 2003 Bend insensitive fiber employs numerical aperture (NA) that delivers lower bend loss at 1310 and 1550 nm without significantly affecting splicing performance. Available in 125 or 80 µm clad diameter, fiber is suited for tight bend radius conditions, multiple fiber wraps on mandrel, fused fiber couplers, and sensors.

Anthro Corp.    Tualatin, OR 97062 8591
Jan 15, 2003 LCD Arm lifts flat panel monitors off desktop. It extends 22 in. from where it is mounted and can be adjusted to counterbalance different weights of flat panel monitors ranging from 8–22 lb. With vertical travel range of 16 in. in height, arm adjusts at 3 joints and rotates 360°. It mounts by drilling through desktop or attaching with C-clamp to any shelf edge. Cables can be guided inside hidden trough leading down arm.

Anthro Corp.    Tualatin, OR 97062 8591
Jan 15, 2003 Hanging Rack accessory screws into bottom of shelf and puts Rack equipment within reach on workstation. Available in 1, 3, and 9 unit sizes, and made of 11 gauge steel, assembly holds up to 100 lb. Height of 1 Unit Rack is 1.75 in., 3 Unit Rack is 5.25 in., and 9 Unit Rack is 18.25 in., all with width of 22 in. Two Hanging Racks can be used to securely hold extra long rack equipment.

A & D Weighing    Milpitas, CA 95035

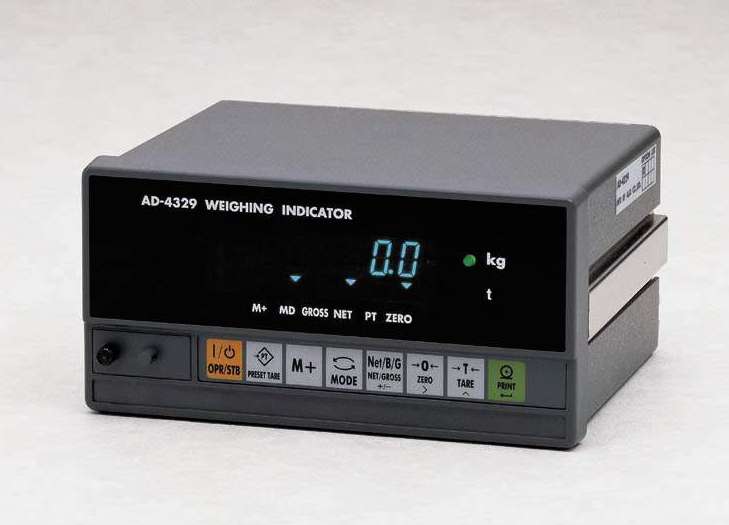

Jan 14, 2003 Model AD-4329 meets standards set forth by National Conference on Weights and Measures Handbook 44 for legal-for-trade use. It offers comparator function, RS-232C serial interface, 4 set points for batching, and display resolution of 1/20,000. Unit can power up to eight 350 ohm load cells. Front panel is IP65 waterproof when panel mounted. Indicator suits mixing, batching, checkweighing, and truck scale applications.

Repeat-O-Type Mfg. Corp.    Wayne, NJ 07470-6892

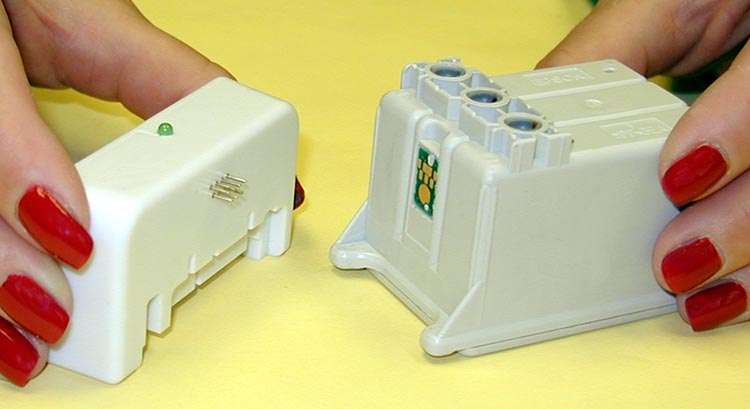

Jan 14, 2003 No. R168 Multi-Model Chip Resetter is used to reset smart chips on cartridges to read full, without removing chip. It contains alignment notches that mate with each Epson cartridge type. Flashing light confirms each successful reset. Chip resetter is capable of performing unlimited resets and is suitable for use by rechargers and refill kit sellers.

Southworth Products Corp.    Portland, ME 04104 1380
Jan 14, 2003 Container Transporter/Rotator transports containers from staging area to work cell and back again. While in work cell, unit raises 1,500 lb load up to 35 in. and rotates it, with side-tilting forks, up to 90° in either direction. Lift and tilt are controlled independently. Product permits workers to walk into containers to access parts without bending, reaching, or stretching. Model CTR-15-ME offers manual drive and powered lift. Model CTR-15-EE has powered drive and lift.

Diversified Technology Inc.    Ridgeland, MS 39157

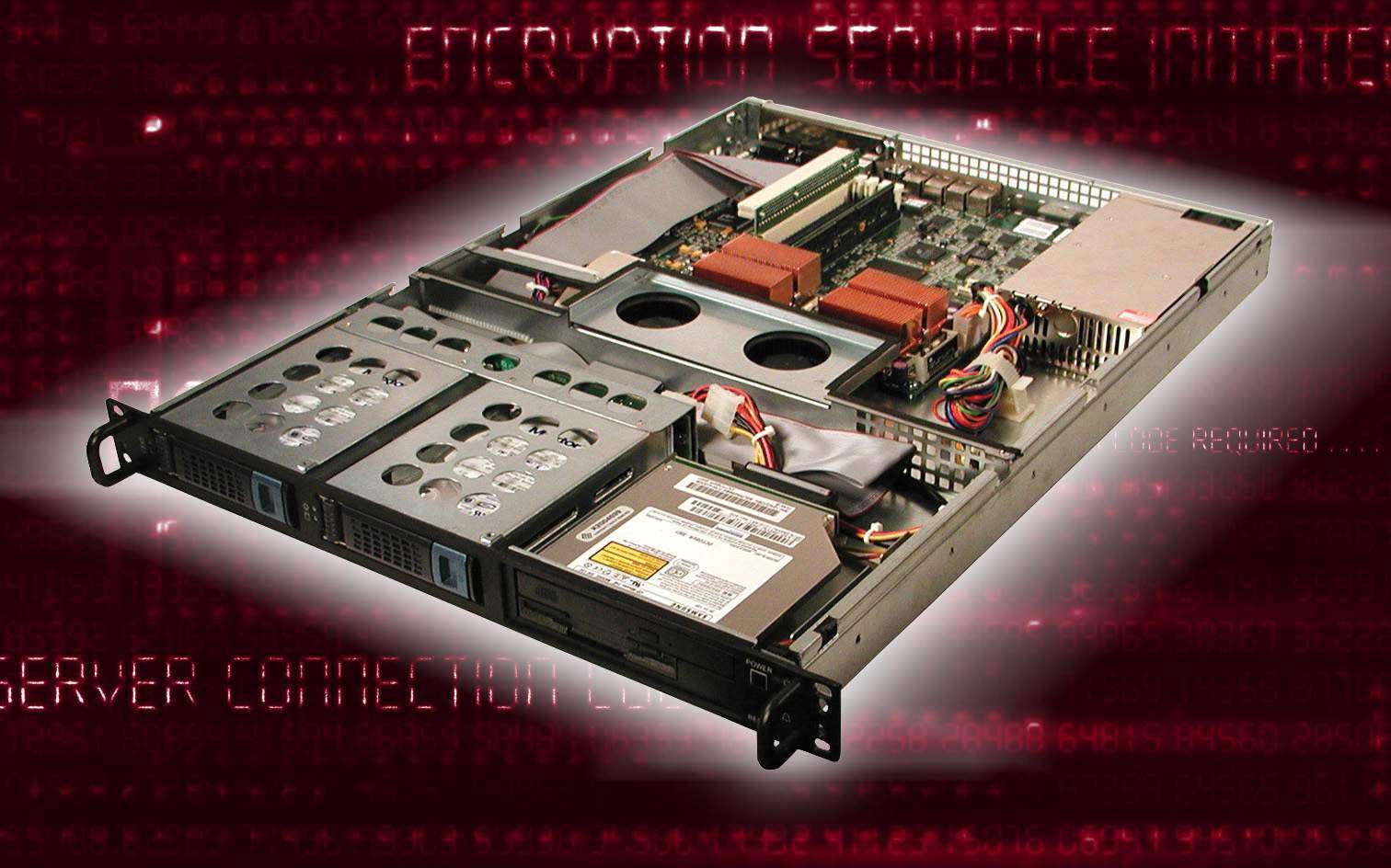

Jan 14, 2003 Rack-mounted, embedded-platform, Model DES-1030 1U server features 1 or 2 Intel Pentium III-S processors with 512 Kbyte full core speed L2 cache, ServerWorks CNB30LE/CSB5 chipset with 133MHz front side bus, and up to 4 Gbyte PC133 ECC SDRAM. Four 10Base-T/100Base-TX Ethernet adapters, with 3DES IPSec encryption engine, provide secure, fast Ethernet connectivity. Server provides Ultra ATA/66 IDE controller, USB/serial/parallel ports, graphics controller, CD-ROM, and floppy drive.
