FastPic Systems    Westbrook, ME 04092
Feb 13, 2003 FastPicâ„¢ IC provides operators of automated storage and retrieval systems with capability to enter part number into system and have stored items automatically delivered. It allows warehousing companies to control access to specific trays, carriers, and bins in automated storage and retrieval systems. System can be programmed to limit access by individual employee or department, allowing operators to have access to only items necessary to conduct business.

Siemens Building Technologies Ltd.    Sudbury, ON P3A 2A3  Canada
Feb 13, 2003 FireFinder incorporates audio system with 8-channel digital voice amplifiers that operate in 200 Hz to 12 KHz range. System is used for voice/evacuation emergency notifications and can also provide building-wide communication with surround-sound music and paging. Its 6 in. interface screen simultaneously displays up to 5 events using HAZMAT icons for safety and highlighting critical information. Interface also displays locator maps.

Reed Manufacturing Co.    Erie, PA 16512
Feb 13, 2003 One Hand Wrench, with comfort-grip handle, features all-forged steel construction and one-piece handle. Wrench has fitting capacity up to 1¼ in. and offers narrow profile for working in tight places such as meter pits. Handle provides user with leverage to securely and immediately tighten/loosen without removing wrench from pipe. Tool grips meter nuts, round pipe, or parts of fittings without adjustment.

Aerospace Control Products, CME Div.    Davenport, IA 52806
Feb 13, 2003 Model 60B Smart Digital Flowmeter constantly processes pressure, temperature, and flow data. It provides standard, volumetric, or mass flow measurements with accuracy of ± .75% of flow rate. Unit features multiple gas calibration, automatic temperature and pressure compensations, and backlit LCD display that switches between flow ranges, calibration gases, and engineering units by push of front-panel buttons. RS-232C and analog outputs are available.

Fox Electronics    Fort Myers, FL 33905 5022
Feb 13, 2003 Surface-mount Model FVS25AXT 3.3 V oscillator features pullability of ±100 ppm and frequency range of 2–52 MHz. Frequency stability is ±50 ppm, and standard operating temperature is -14 to +158°F. Output symmetry is 40–60% at 50% Vdd over frequency range. Low-profile unit is suitable for wireless, portable, and handheld applications where size is critical.

JNJ Industries Inc.    Milford, MA 01757
Feb 13, 2003 Quick-Frame accommodates PCBs in various sizes and shapes, and fits into basket or machine that normally holds 29 x 29 in. stencil. Framework features slide blocks located inside aluminum tubular extrusions that slide into any position along frame. Adjustable cross bars accommodate various board widths, and each includes spring-loaded clips that firmly clamp PCB in place. Quick-Frame accommodates stencil foils up to 25 x 25 in.

Force-Flo, Inc.    Cleveland, OH 44124-0279
Feb 13, 2003 Aqueous Mixers blend chemicals with water automatically for uniform emulsion at any proportion. All-metal units have no moving parts and require plant water line pressure of 25 lb. Fingertip control allows fine adjustment of mixing ratios from 3:1 to 100:1. Models are offered in stainless steel, brass, or nickel-plated and are rated at 3 or 10 gpm. They accommodate 5 gal pails, and 15, 30 or 55 gal drums.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Feb 13, 2003 Series SF2 protects electronic equipment from coolant flow failure. Units have brass unibody, 1-piece composite rotor and ceramic shaft. Temperature range is -20 to 212°F and pressure limit is 200 psig at 70°F. Model SF2-1 features SPDT relay output. Set points are adjustable over specified flow range. Model SF2-2 provides 4.5-24 Vdc pulse output that is proportional to rate of flow and compatible with most digital logic families.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Feb 13, 2003 Direct lift unit accepts and elevates food product containers, then discharges contents at 80 in. above floor level. With washdown duty 304 stainless steel construction and No. 4 finish, product offers Teflon (PTFE) coated discharge chute that rotates 60° past horizontal. Dumper utilizes direct hydraulic lift system that is free of lifting chains and sprockets, and is custom designed for specific application requirements.

UpRight Inc.    Selma, CA 93662 3621
Feb 13, 2003 SuperCharger, designed for Models MX and X electric scissor lifts, has waterproof rating to avoid damage from pressure washing. It provides auto-seek voltage ranging from 90–250 V, coupled with 50–60 Hz cycle range. Unit will charge batteries from empty up to 98% of their capacity. Low voltage cut-out helps prevent high amperage spikes from running batteries too low.

UpRight Inc.    Selma, CA 93662 3621
Feb 13, 2003 Measuring 32.5 in. wide, Model X26 Ultra-N moves along aisles as narrow as 3 ft. With driveable maximum work height of 32 ft, product utilizes powered wheel motors with integral multi-disc brakes and traction control system. Capable of handling grades to 26%, unit has 8 in. inside turning radius and 500 lb platform capacity. Additional offerings include retracting guardrails, non-marking tires, and fork truck pockets.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Feb 13, 2003 Grade KC9325, suited for gray cast and nodular irons, performs under interrupted cut conditions, and Grade KC9315, suited for use with ductile irons, employs coating that resists flank wear. Both grades reduce production time without any reduction in tool life. Grade KC9325 has MTCVD TiCN coating and fine grain aluminum oxide coating layer for total thickness of 16 microns, while Grade KC9315 has same 2 layers plus outer layer of TiN/TiCN for total thickness of 18 microns.

SpaceAge Control, Inc.    Palmdale, CA 93550
Feb 13, 2003 Series C delivers displacement measurement up to 85 in. in 3.5 x 3.5 x 3.8 in. package. Flexible product uses stainless steel cable wound around spring-powered, precision-machined drum. Bearing-mounted drum is mated to sensor assembly that translates linear position information to electrical signal. Features include DirectConnectâ„¢ technology, which eliminates backlash; AccuTrakâ„¢ threaded drum; and 2D-Freedomâ„¢ cable exit that allows 270° displacement cable flexibility.

Honeywell Advanced Composites    Newark, DE 19713
Feb 13, 2003 Integrated Substation Communications System (iSCS) features Utility Communications Architecture (UCA) upgrade, which allows power utilities to access substation data with greater ease and flexibility. Generic Object-Oriented Substation Event (GOOSE) agent provides high-speed communication of plant status changes over substation LAN. ICCP protocol has also been added.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060
Feb 13, 2003 Series 483 Model MS 3320 single pole, miniaturized, aircraft style thermal circuit breaker features tease-free, trip-free snap action mechanism and push/pull on/off manual actuation. Indicator band on push button shows tripped/off position. Dual chamber construction allows unit to handle large DC currents. Circuit breaker exceeds specifications for mechanical endurance, vibration, and shock. It is temperature compensated from -67 to +257°F.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060
Feb 13, 2003 Offered in current ratings from 0.1-10 A, Series 1180 thermal circuit breaker is for voltages up to 250 Vac or 65 Vdc. It replaces fuses commonly used in DIN-rail terminal block applications that protect factory control equipment. Hot swappable unit avoids nuisance tripping during harmless short-term surges, and protects against long-term, low-value current overloads. Push-button actuator clearly indicates tripped position, and enables fast, manual reset.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Feb 13, 2003 E5023A hard disk read/write test system, with VXI modular architecture and Option 426, allows disk drive manufacturers to test drive heads developed for next-generation products. Option utilizes silicon germanium (SiGe), 32-bit, parallel-to-serial data converter as well as de-skewing algorithm and circuit to cancel time differences between clock and data signals. It also includes data generator module E5037D and head amplifier control unit E5043C.

Emerson Process Management / Rosemount Div.    Chanhassen, MN 55317
Feb 13, 2003 With on-line process functionality, TOC 2100C provides measurements that are used to determine organic contamination in processes, indicating potential loss of raw material, environmental hazards, or damage to capital equipment. Providing real-time analysis of process streams, product utilizes continuously operating, ultra-violet-promoted persulfate oxidation and non-dispersive BINOS 100 infrared detector. Wall-mount enclosure has 2 combined cabinets.

Leuze electronic, Inc.    New Hudson, MI 48165

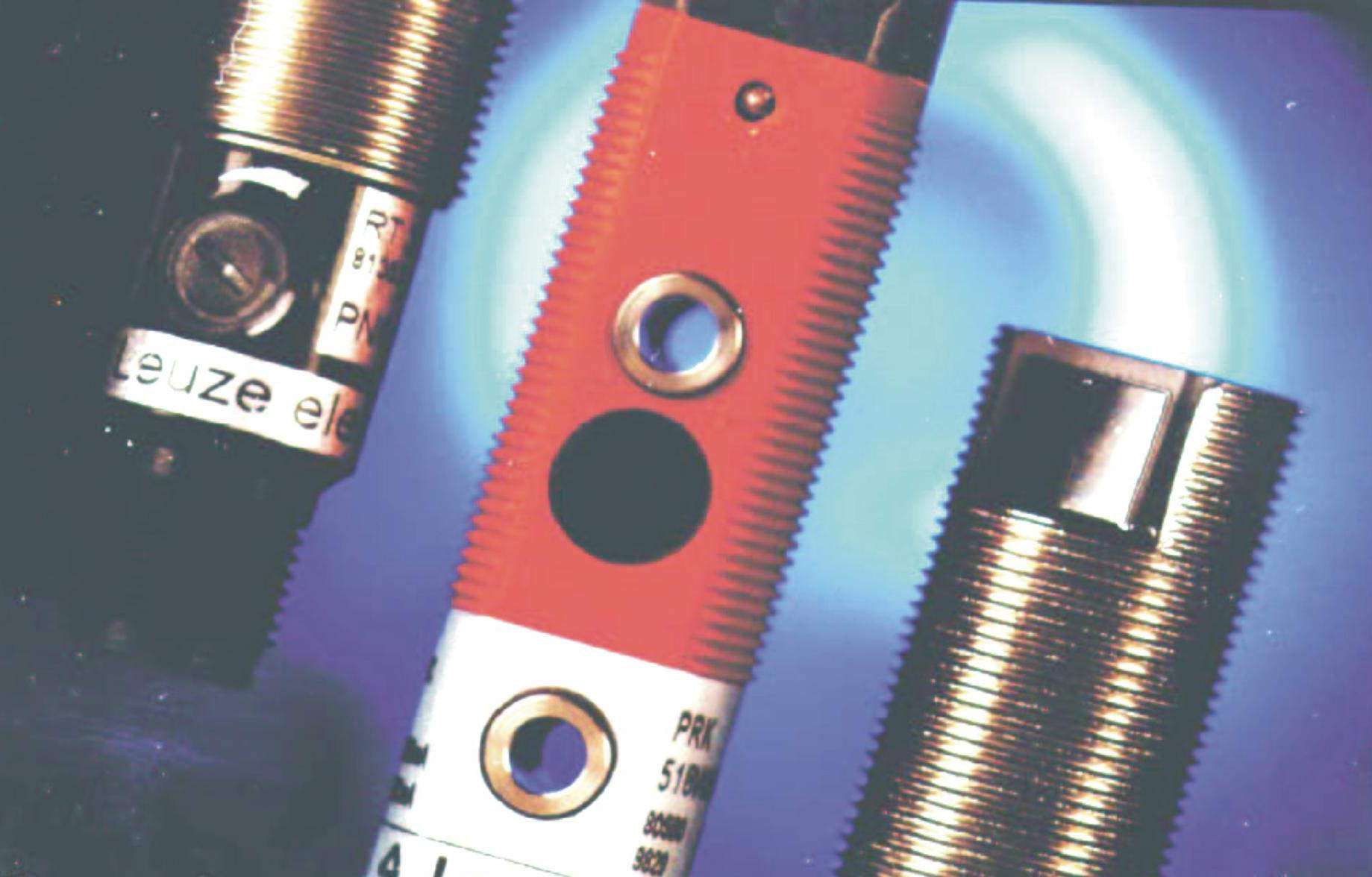

Feb 13, 2003 With cylindrical M18 housings, Series 318 is available in Through Beam, Retro-Reflective, Background Suppression, or Diffuse-Reflective versions. Optical ranges are adjustable via potentiometer screw. Offered in polyamid or stainless steel housing, product operates with switching frequency of 1000 Hz max. Suited for severe environments and wash-down applications, sensor comes with 2 M cable or M12 connector.

PrioSoft    Baltimore, MD 21209
Feb 13, 2003 Priority One Plus includes Contact Management module which offers appointment scheduling, mailing, emailing, and faxing of letters and forms, and reporting. Business Administration module provides complete accounting systems such as quotations, invoices, purchase orders, and job costing. All outputs may be automated, allowing user to incorporate all processes of business. Employee Relations functionality offers estimating, work order project management, and job scheduling capabilities.
