Lista International Corp.    Holliston, MA 01746

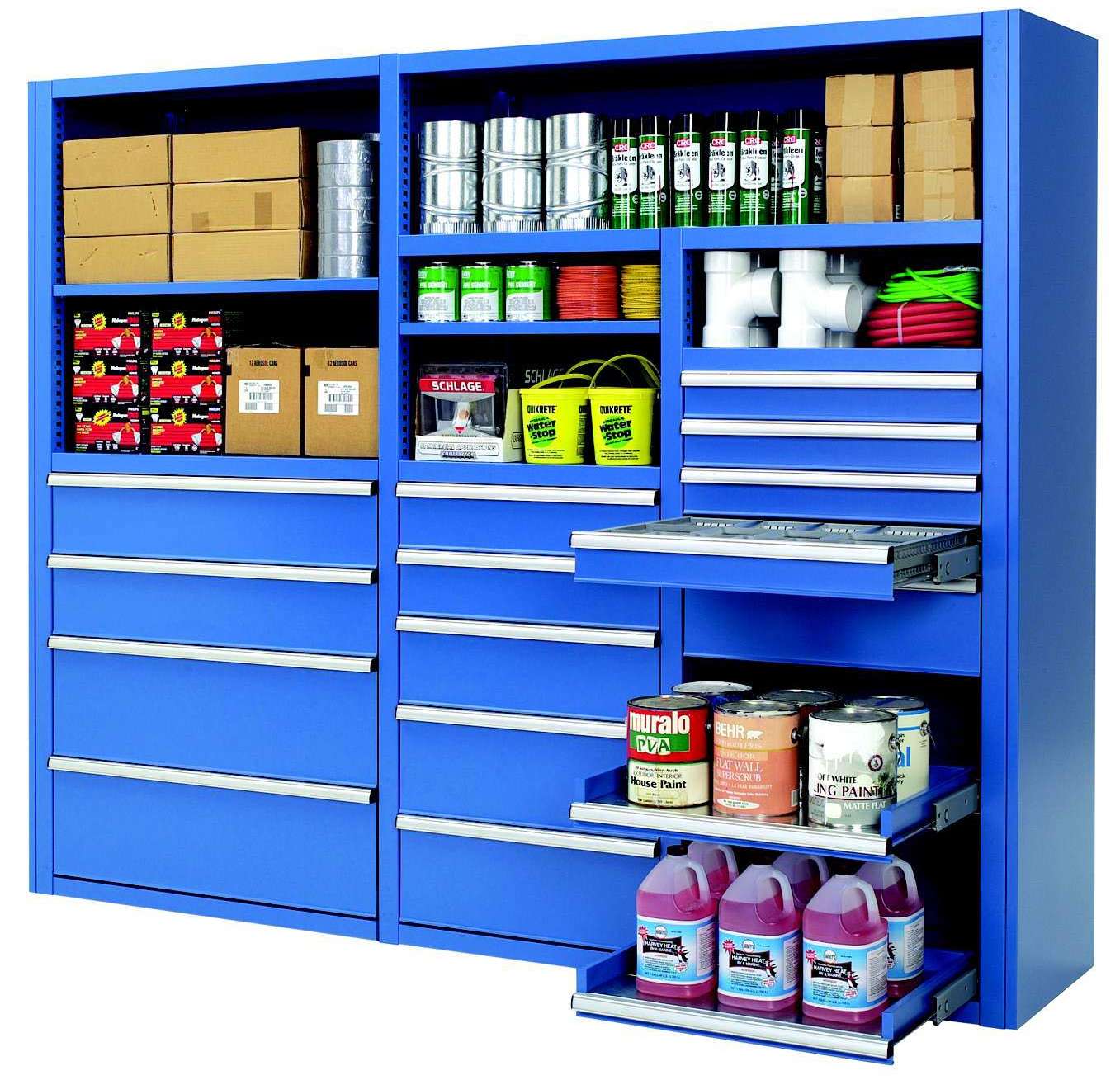

Jan 23, 2003 Storage Wall®, available in standard (B251) and shallow depth (B255) models, offers various drawer heights to provide storage for range of items. Modular system provides full extension drawers and roll-out trays for access to stored items. Drawer and tray capacity is rated to 440 lbs each. Span beams, designed for bulk items, hold up to 1,500 lbs and are available with assorted deckings. Unit can also include order/issue counter and 12 in. deep, recessed bookcase.

EDC International, Inc.    Shelton, CT 06484

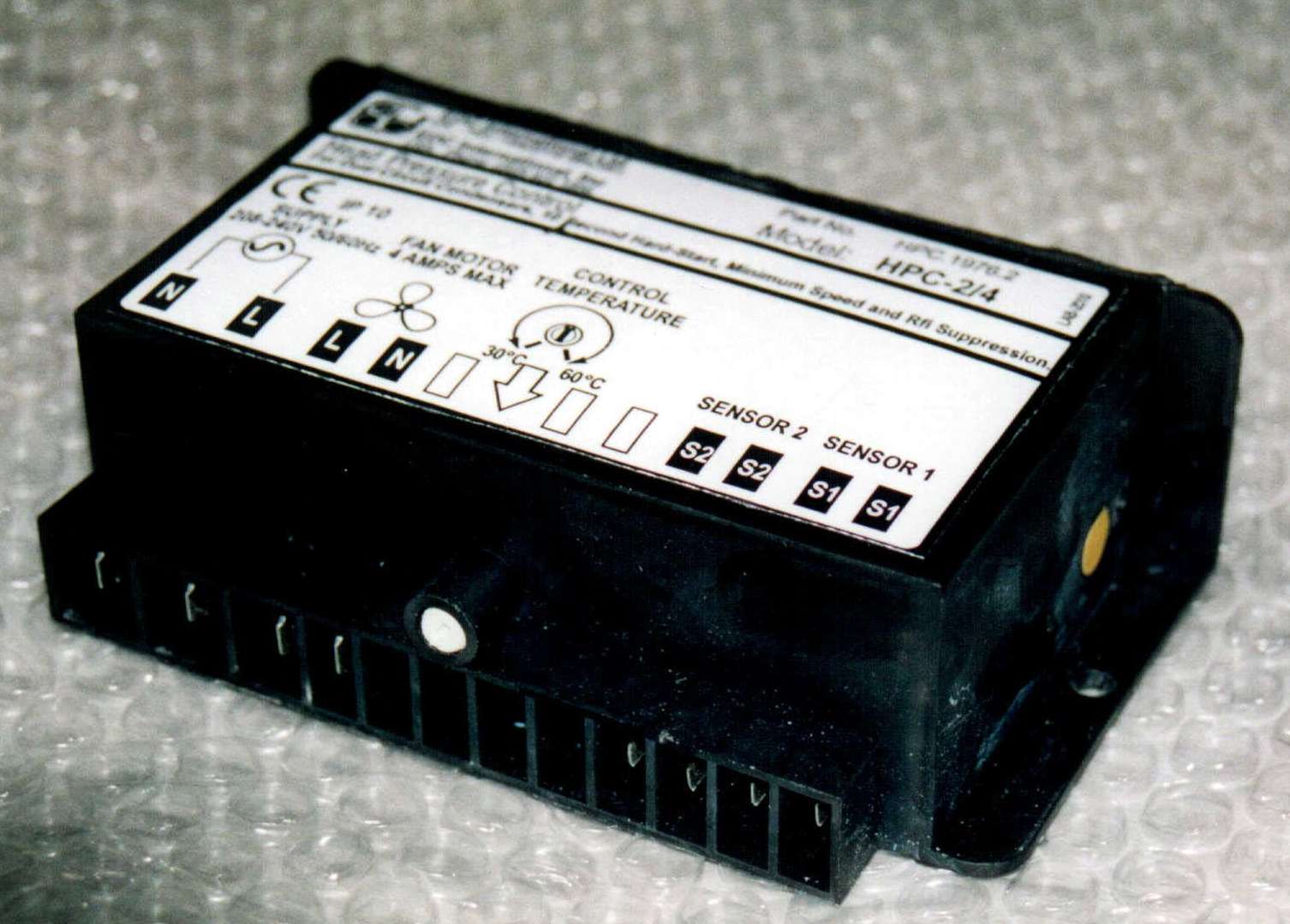

Jan 23, 2003 Head Pressure Controllers sense refrigerant temperatures and modulate condenser fan speed to balance high to low side circuit vapor pressure. On start up, fan is given initial hard start at full speed for 10 seconds and then slows to speed to give required condensing temperature. As ambient temperatures fall further, fan gradually slows to about 1/3 full speed to maintain bearing lubrication and can be re-set to any desired level.

Adalet    Cleveland, OH 44135 3301
Jan 23, 2003 IP66/NEMA 4 rated units are offered with bi-directional mounting lugs that permit vertical or horizontal mounting orientation. Ductile aluminum alloy lugs adapt to irregular surfaces so lug bolts can be tightened without damaging enclosure. Offered as alternative to cast on lugs, certifications include UL Standard 1203, CSA Standard C22.2 No. 30, and ATEX 0539 Ex II 2GD. Additional certifications include Class I, Groups C, D; Class II, Groups E, F, G; and Class III.

Diesel America West    Friday Harbor, WA 98250
Jan 23, 2003 Model DPL70-HHLF centrifugal fire pump is built with oil-resistant, saltwater-rated internal parts, and class 30 cast iron or bronze housing. It features anti-vibration isolator and is framed with tig-welded, 1 in. stainless steel. Recoil starting with auto compression release feature and self-bleed fuel system makes starting consistent. Utilizing 2 in. NPT suction and discharge flanges and gaskets, pump has max flow of 150 gpm, 90 psi of pressure and suction lift of 25 ft.

Esco Tool    Medfield, MA 02052

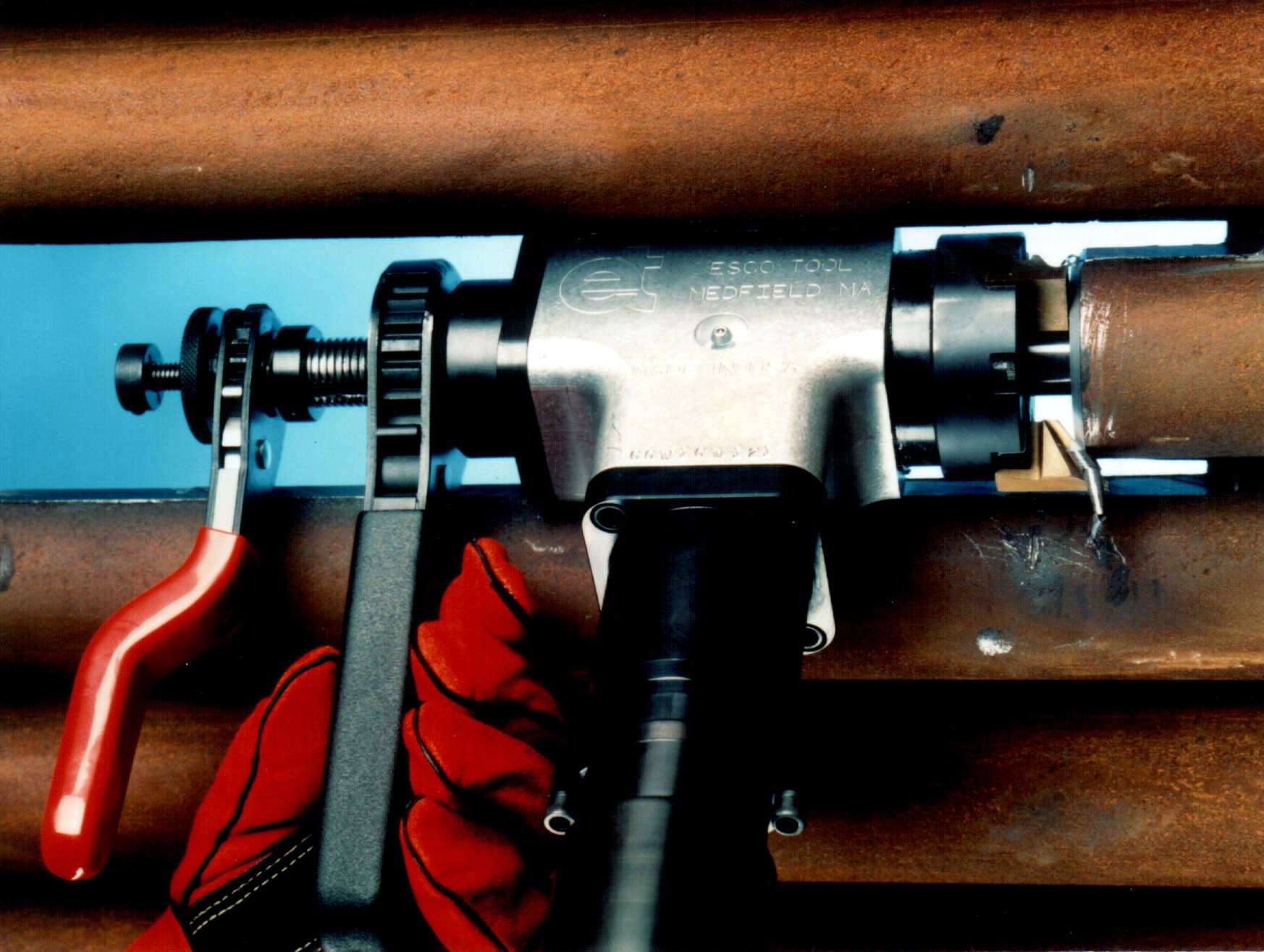

Jan 23, 2003 Wart MILLHOG® Right Angle ID Clamping End Prep Tool features gear drive supported by dual-opposed tapered roller bearings, separate bearing to support cutter head, and EscoLockâ„¢ wedge-style blade lock system. Requiring only 2 5/8 in. wide clearance to fit between boiler tubes, tool features handle with ratchet for clamping to tube ID and knurled knob to simplify positioning. Tool provides torque-free operation and is used on tubes from 0.75 in. ID to 4.5 in. OD.

RF Connector Operations    Danbury, CT 06810
Jan 23, 2003 Cutters, able to cut small wire and coax through aluminum and copper cable, handle wire sizes from 2 AWG to 250 mm². Strippers handle wire as small as 30 AWG and as large as 10 AWG, coaxial cables to .600 in. dia, multi-conductor cables, and various CAT 5 and 6 wires and cables. Crimpers handle insulated and non-insulated terminals to 4, 6, and 8 conductor modular plugs such as RJ11, RJ12, and RJ45 voice/data connectors.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 23, 2003 Permanent Magnet Linear Displacement sensors use electromagnetic induction principle, which has primary winding around soft magnetic core. Units operate without being mechanically connected to driving mechanism and can be actuated through walls made from non-magnetic materials. Contactless sensors have measurement range of 15-400 mm with sensor magnet gap range of 1-20 mm. Environmental sealing is rated at IP67.

Druck, Inc.    New Fairfield, CT 06812
Jan 23, 2003 Series PTX 400 enables temperature/pressure measurements to be made directly on subsea wellheads and production manifolds by utilizing micromachined piezo resistive silicon pressure measuring technology. Able to handle external pressure to 9,500 ftH₂O, pressure ranges are available to 10,000 psi with proof pressure at 1.5 x FS range and secondary pressure containment in excess of 15,000 psi. Temperature measurement range is from -40 to 150°C.

Steinmeyer Inc.    Bedford, MA 01730
Jan 23, 2003 Ball screws with rotating nuts are suitable for automated machinery that operates at high speeds. Nuts are offered in 16 x 30, 32 x 40, and 65 x 80 sizes. Any ball nut can be modified and converted into rotating nut, by adding precisely ground bearing seat on outside diameter, together with lock nut threads.

Acculab    Newtown, PA 18940

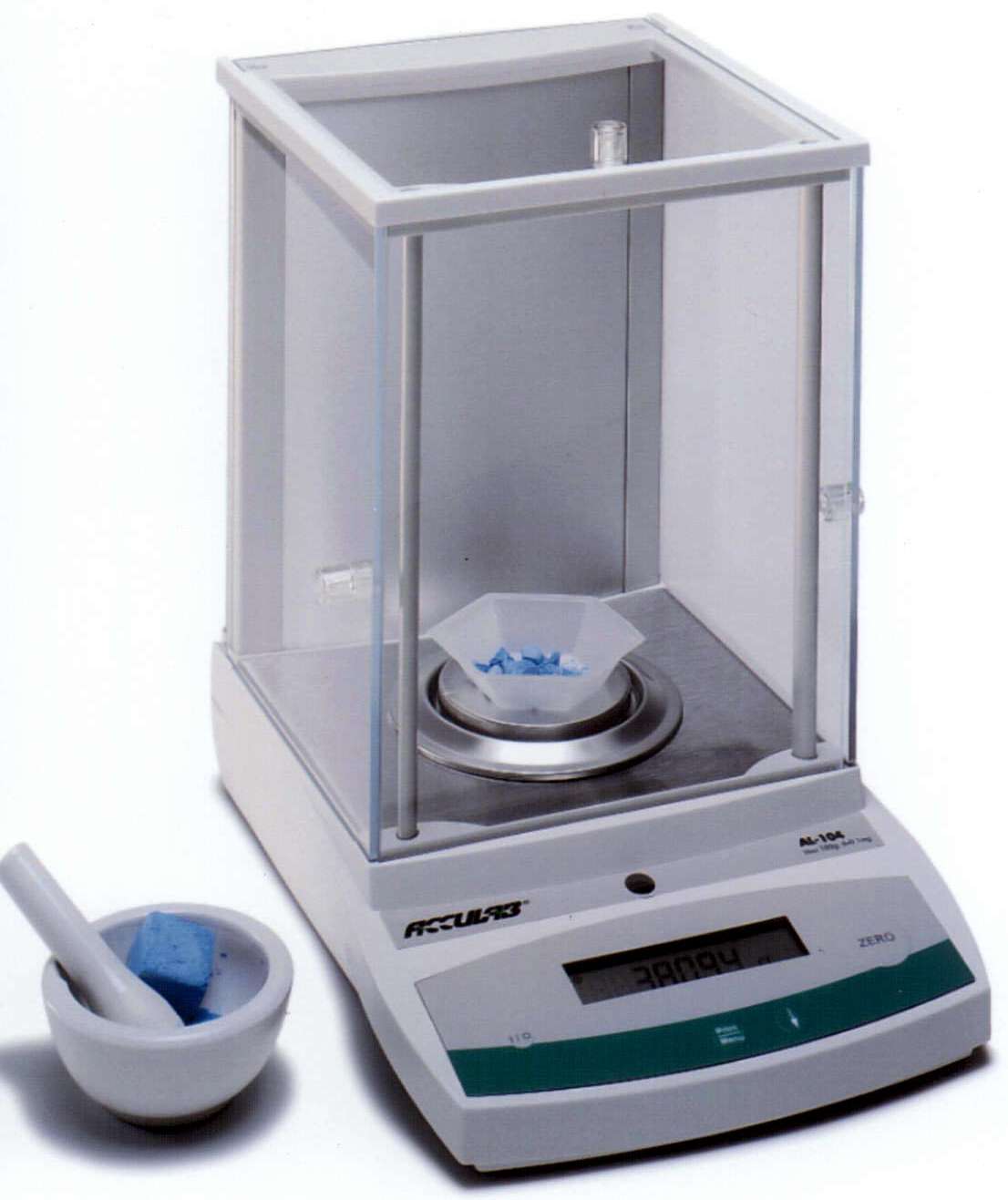

Jan 23, 2003 AL-Series includes 3 analytical models and 7 toploaders, with capacities from 60–6,000 g and readabilities from 0.1 mg to 0.1 g. Portable unit offers stainless steel weighing pan, RS232 data port, LCD display, and sealed keypad to protect against spills. Providing stabilization and resistance to temperature fluctuations, series is suited for educational, laboratory, and industrial applications.

FCI/Burndy Products    Manchester, NH 03108

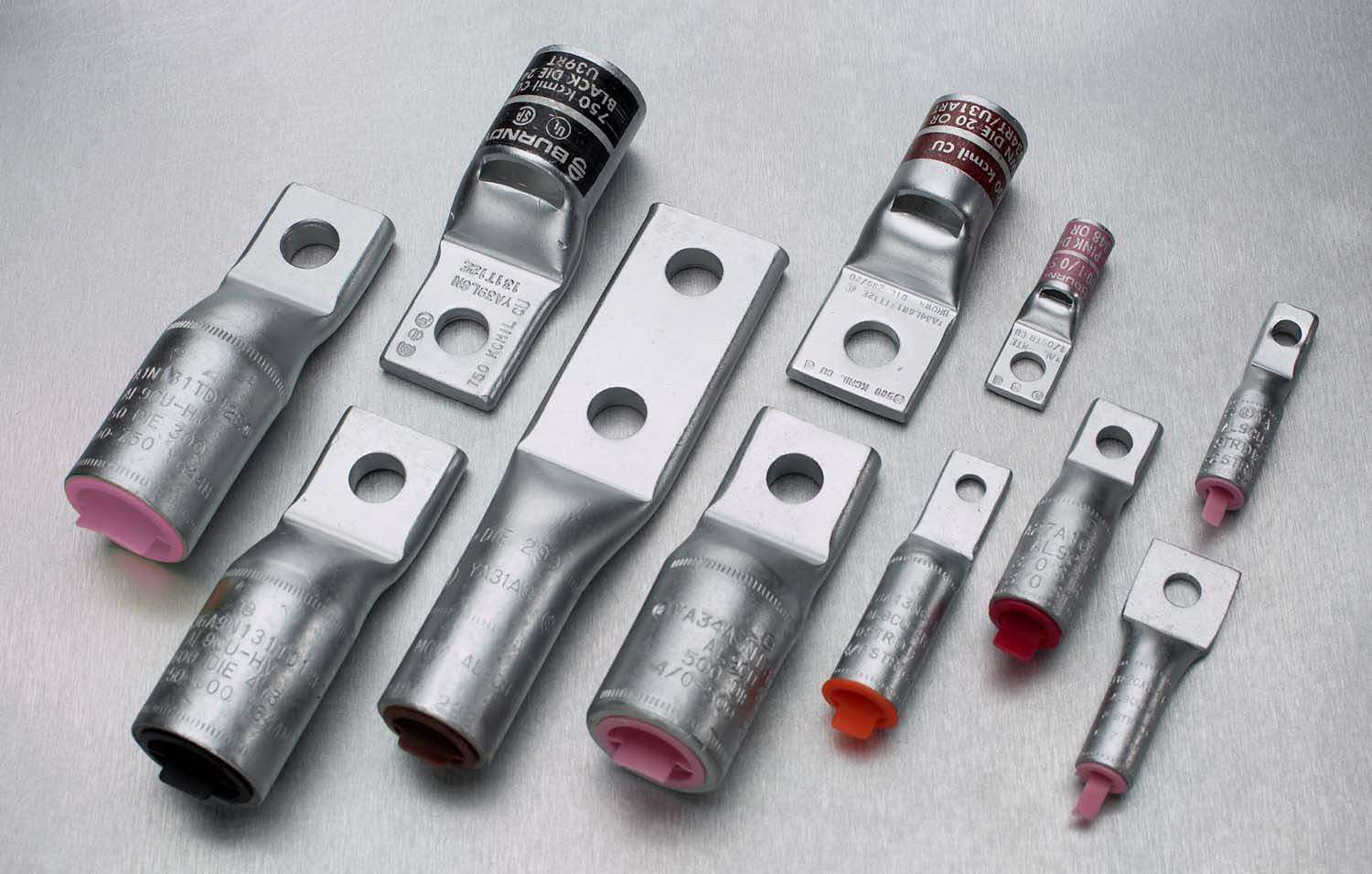

Jan 23, 2003 E-Line Compression Terminal Connectors and E-Line Maintenance Kits feature narrow tongue lug and are suitable for space restrictive OEM and repair and maintenance applications. Connectors come in copper or aluminum, and are UL listed 90°C, 600 V to 35 kV. Maintenance Kits include copper or aluminum E-Line Compression Terminal Connectors and heat shrink tubing for proper terminations.

Thales Computers Corp.    Raleigh, NC 27610
Jan 23, 2003 Multi-function Model PMC-DAADIO incorporates onboard Motorola DSP56F807 Digital Signal Processor, enabling it to manage external I/O-intensive applications while minimizing demands on processing capability of PMC host. It provides 8 differential analog input channels, as well as 8 single-ended analog outputs, all operating at 12-bit resolution, in addition to 18 TTL digital I/O lines and counter/timer I/O. PLX9030 32-bit, 33 MHz PCI interface includes memory-mapped I/O.

CTI Electronics    Stratford, CT 06615

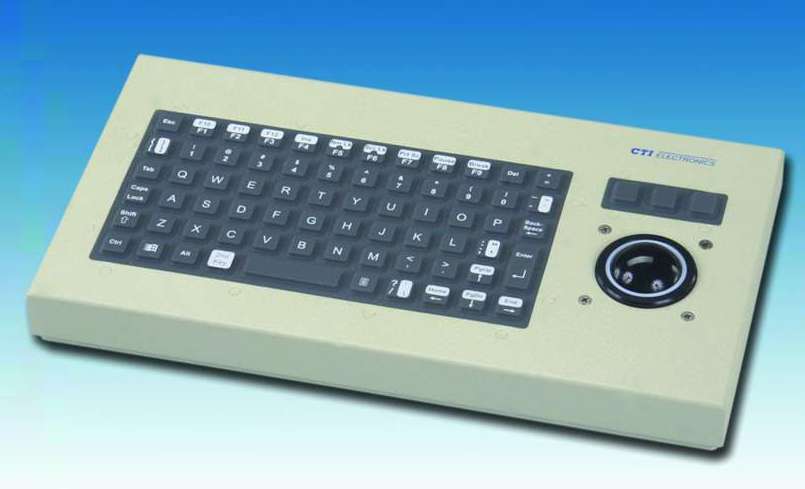

Jan 23, 2003 Sealed, backlit NEMA 12 Model KIT6003, with painted aluminum enclosure, offers full 101/104 functionality. Drain-hole below trackball allows water to exit bottom. Full size keys, made of molded silicone rubber, have 2 mm travel, tactile feel, and gold contacts. Enclosure, measuring 6.1 x 11.3 in. with total depth of 1.6 in., fits in standard 1U rack-mount drawers and other tight applications. Keyboard is plug-and-play compatible with all computers.

PHD, Inc.    Fort Wayne, IN 46899

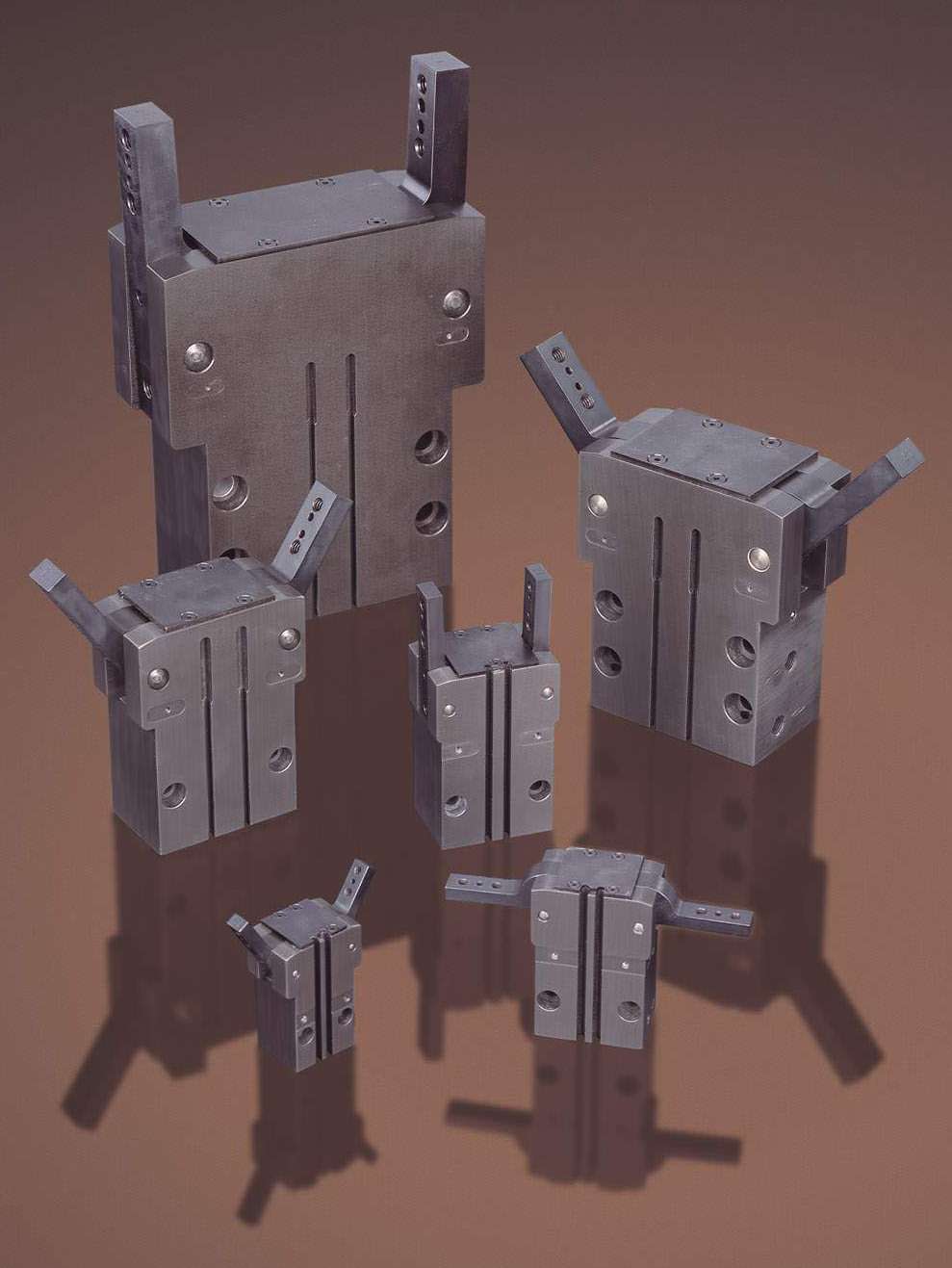

Jan 23, 2003 Series GRB Grippers come in 12, 16, 20, 32, 40, and 50 mm sizes, and provide up to 180° of total jaw rotation allowing jaws to rotate completely clear of work area. One piece body incorporates 2 mounting surfaces with dowel pin holes to provide accurate mounting in variety of attitudes. Internal shock pads reduce end of rotation shock and ensure quiet operation. Internal speed restriction eliminates need for external speed controls.

Precision Brand Products, Inc.    Downers Grove, IL 60515 4054

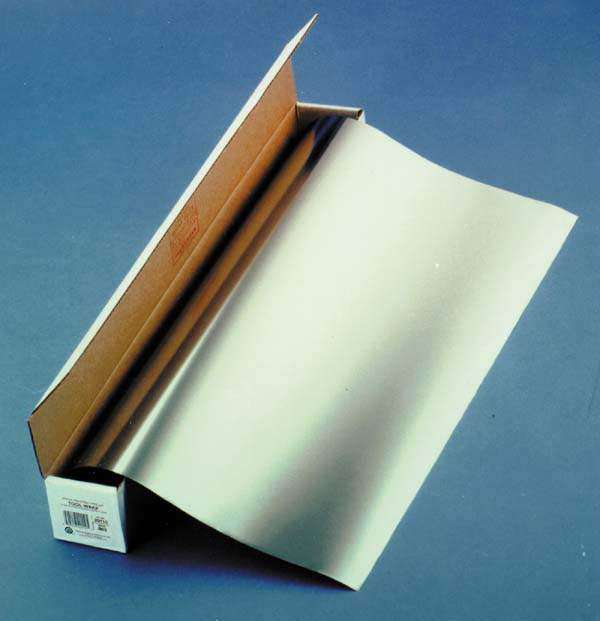

Jan 23, 2003 Hi-Temp 309 Tool Wrap material, offered in 24 in. width, operates at 2040°F. Material is .002 in. thick and is available in 50 and 100 ft lengths to help protect tools and parts from scale and oxide buildup during heat treating in atmospheric furnaces.

Omega Engineering, Inc.    Stamford, CT 06907
Jan 23, 2003 Series DP1000 scanner/meter accepts J, K, and T thermocouples. Setup and programming is jumper-free, featuring straightforward push buttons that allow user to input any parameter from front panel. Series has 3½-digit LED display to inform of process temperature at all times. On alarm models, deviations from target temperature can be evaluated by looking at setpoint shown on front panel. Series includes 6-channel monitor/alarm and 10-channel temperature scanner.

Toman Tool Corporation    Viroqua, WI 54665
Jan 23, 2003 Intelligent 2020 VISION pneumatically operated bench-top system includes 3-post/in-cycle cool modes, 2 parts counters (1 resetable and 1 lifetime), program memory for up to 5 setup parameters, and maintenance screen. Plug-and-play heat staking system allows for instant change of machine operation between Basic Machine Operation and Optional Slide Table and 2-position Rotary Table. Adjustable head height includes column clamp handle pair and counter balance spring.

Adalet    Cleveland, OH 44135 3301

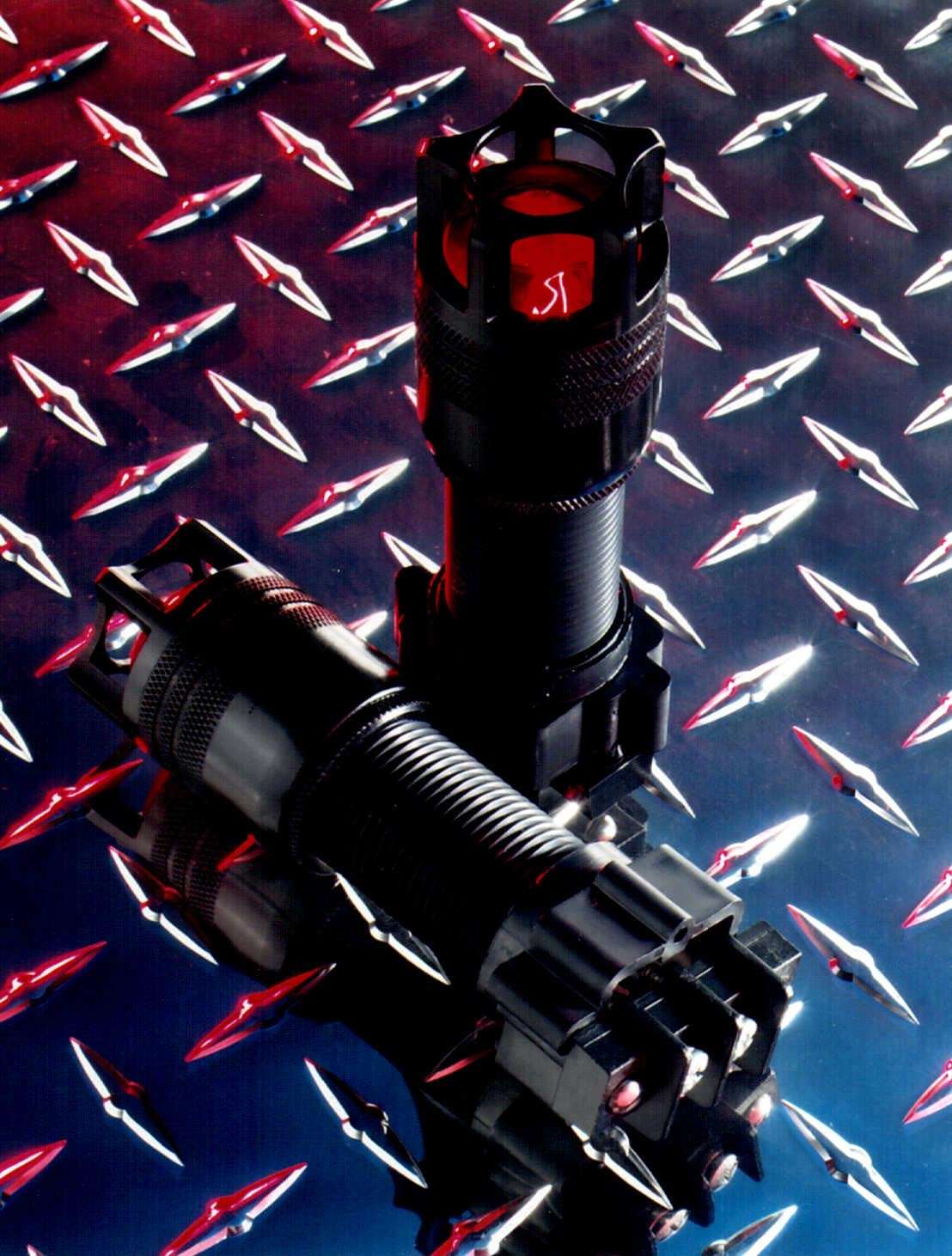

Jan 23, 2003 Screw terminals permit direct attachment of wire leads to pilot light. When used with crimp style connectors, they provide tight connection with high pull-out resistance and accept most wire gauges. All operators are ¾ in. nspm in 2 barrel lengths for surface or panel mount. They are alodine coated to minimize corrosion, and are suitable for use in Class I, Groups B, C, and D hazardous gas; Class II, Groups E, F and G dust atmospheres.

Brooks-PRI Automation, Inc.    Chelmsford, MA 01824
Jan 23, 2003 SPACE statistical process control (SPC) software, integrated with FACTORYworks® Manufacturing Execution (MES) software suite, helps implement and maintain online SPC to detect, monitor, respond to, and reduce processing and equipment non-conformances. It detects exceptions, contains problem, and provides operator with trouble-shooting guides. SPACE’s offline web reporting capability gives FACTORYworks users instant access to SPC status reports from remote locations.

Fluid Metering Inc.    Syosset, NY 11791
Jan 23, 2003 Model RO CeramPump® incorporates fixed displacement design that utilizes Rotating/Oscillating ceramic piston to accomplish all fluid control functions. Sapphire-hard internal ceramic components coupled to precision stepper motor results in drift-free accuracy for millions of cycles. It is suited for flush, wash, and waste solutions used in fluid transfer applications with flows from 2–1,000 ml/min.
