A.W.T. World Trade, Inc.    Chicago, IL 60641
Feb 21, 2003 Super Turbo G Series Modular Gas Textile Dryers cure-dry solvent and water-based textile inks at speeds to 110 dozen pieces per hour. Optional preheat Quartz tube chamber obtains correct curing temperature of inks. Jet-air knives and hot air fully cure textile ink while removing evaporates through exhaust system. If airflow becomes restricted, heating system shuts down automatically and safety alarm sounds. Conveyor widths are 48, 60, and 72 in.

Universal Instruments Corp.    Binghamton, NY 13902 0825

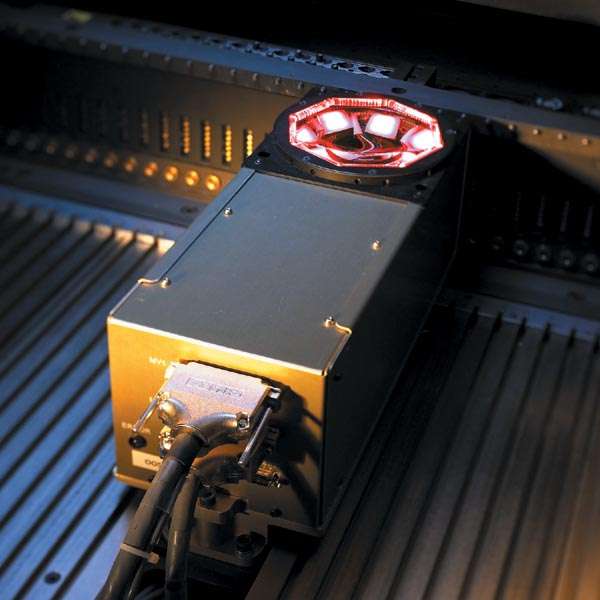

Feb 21, 2003 High-resolution Magellanâ„¢, incorporated in GSM® Platform, captures most large components in single 60 mm field of view to accelerate throughput. It includes front, side, and on-axis lighting and offers pixel resolution of 1024 x 1024 to facilitate small part feature recognition. Lighting intensity is consistent across viewable area. Lighting calibration is performed on machine, eliminating machine-to-machine lighting intensity variation and providing seamless portability.

Endicott Research Group, Inc.    Endicott, NY 13760
Feb 21, 2003 Model E2598VF closed-loop power supply, measuring 1.25 x .93 x .545 in., provides stable, negative DC output voltage ranges of 21.6–26.4 Vdc (-V1) and 27.9–34.1 Vdc (-V2) over input voltage range of 4.5–5.5 Vdc. Model E2577VF converter measures 1.40 x 1.09 x .539 in. and provides 1 positive DC output voltage and one center-tapped AC voltage. Model E2578VF has same dimensions as E2577VF and provides up to 2 negative DC output voltages and 1 center-tapped AC voltage.

Computer Conversions Corp.    East Northport, NY 11731
Feb 21, 2003 Scalable Absolute Encoders for severe electrical and physical environments convert any shaft input to BCD or binary information corresponding to shaft angle with accuracy of ±1 point in 3600. Data outputs are TTL compatible and data transfer lines are provided for interfacing to computers. Basic update rate is 2.5 ms with LED displays of 3, 4 or 5 digits available. Operating temperature range of 0–70°C is standard.

Gems Sensors Inc.    Plainville, CT 06062
Feb 21, 2003 Detector® Micropower Impulse Radar Sensors consist of Series MIR-800 with solid waveguide rods, and Series MIR-900 featuring fully encapsulated, flexible rods. Units measure distance to surface of tank contents and output 4–20 mA signal proportional to liquid level. Sensors pulse microwaves every 2 µsec and capture fresh readings every 310 msec. Resolution and repeatability are 0.01 in. with response time less than 2 sec.

Guest Industrial, Marinco Industrial Group    Napa, CA 94558

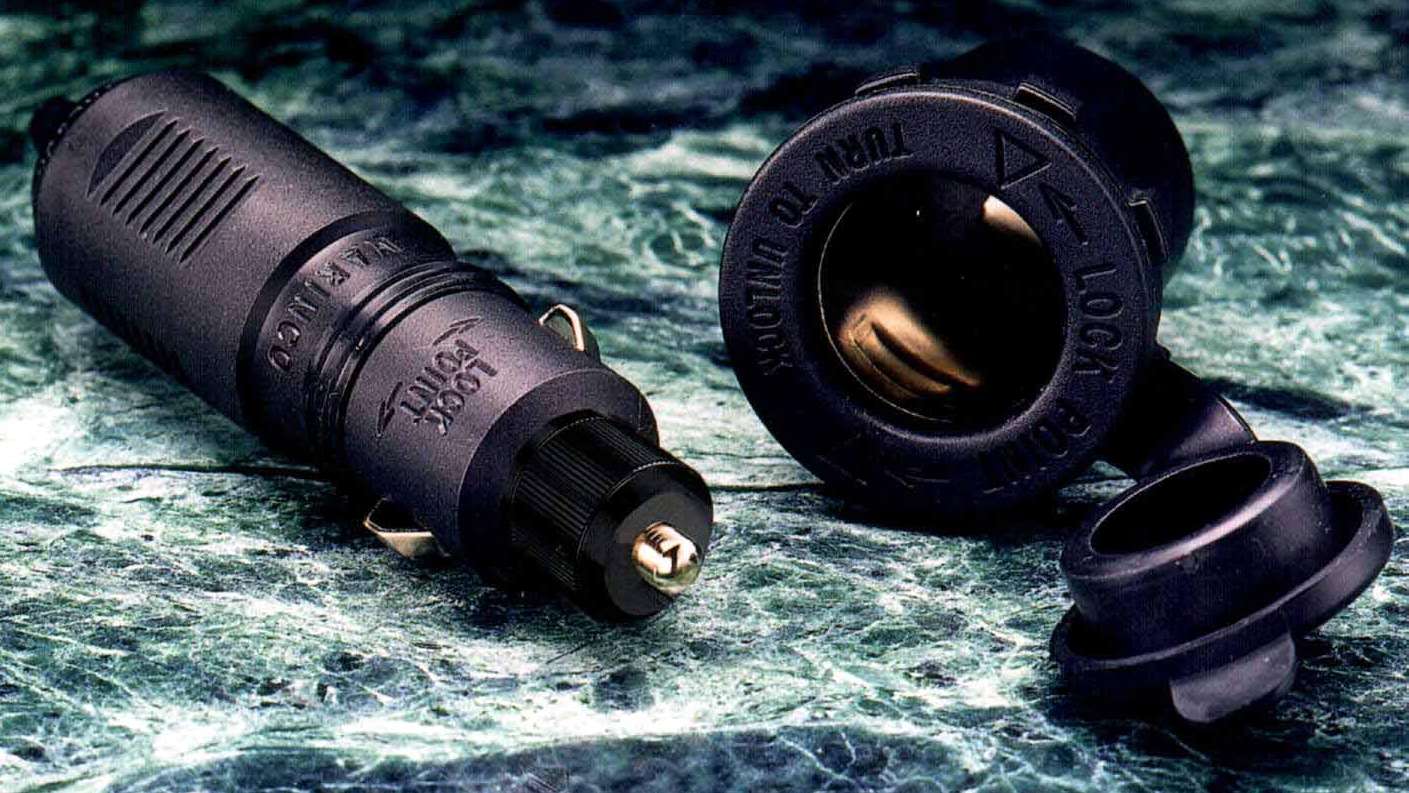

Feb 21, 2003 Weather-resistant, 12 V plug incorporates interconnecting design that provides locking, moisture-proof connection. Proprietary design, optimized for metal connection points, offers user-replaceable 10 A fuse, 15 A rating, and internal strain-relief and cord seal. Plastic parts are made from glass-filled nylon, while metal, current-carrying parts are nickel-plated copper alloy. Product is suitable for use in coolers/warmers, inflators/compressors, air ionizers, and auxiliary lights.

Keystone Electronics Corp.    Astoria, NY 11105

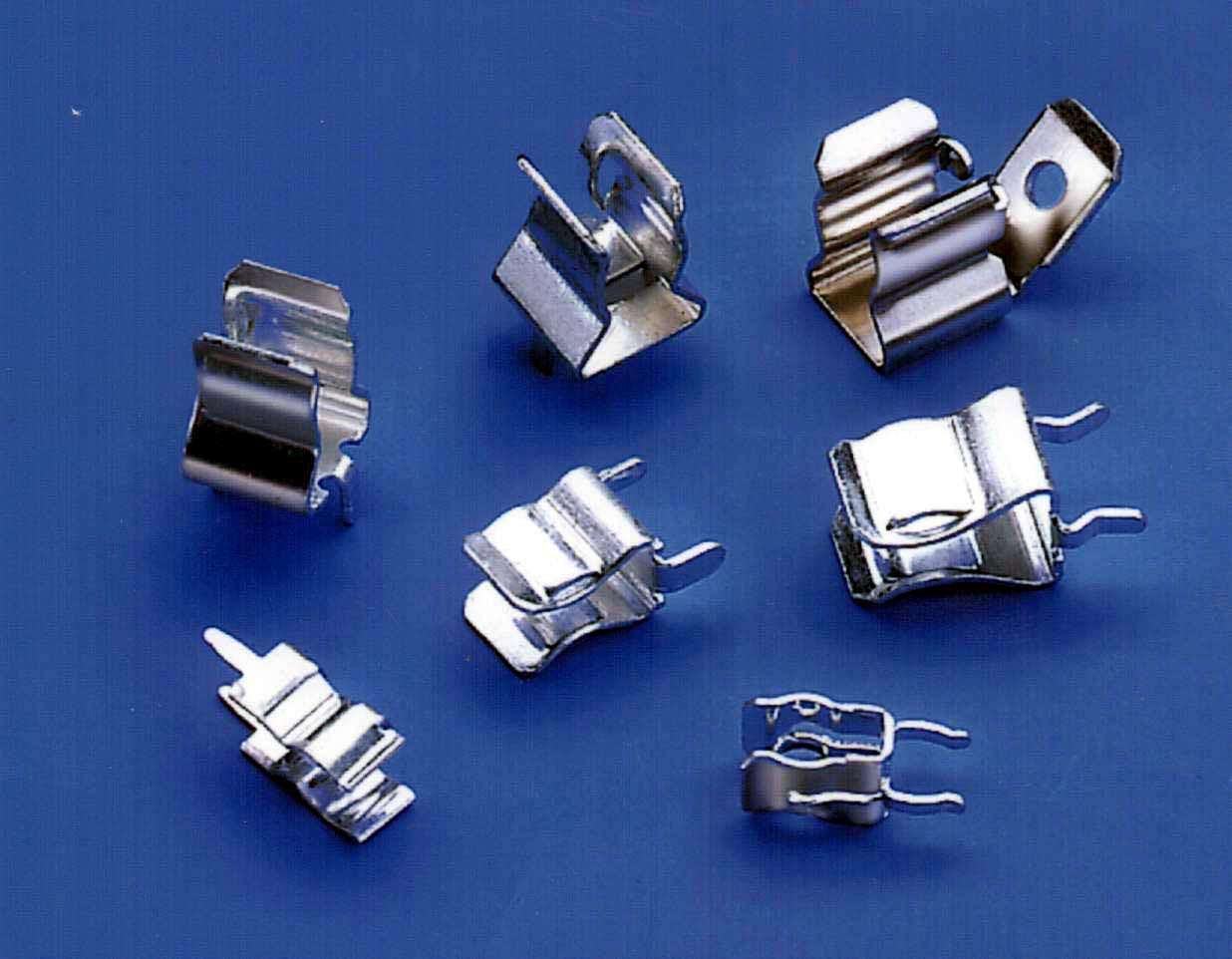

Feb 21, 2003 Snap-in or Press-in 2AG, 3AG, and 5 mm PCB mounted fuse clips are rated for 6.3–15 A operation and are offered with or without orientation tabs and end stops to ensure safety. Tin plated, brass units enable low contact resistance and retain stable positioning during wave soldering. Vinyl fuse covers in 5 mm and 3AG sizes protect and insulate fuses.

J. W. Winco, Inc.    New Berlin, WI 53151
Feb 21, 2003 Available in lock-out and non lock-out types, plungers provide hardened and ground steel pins with zinc plated steel mounting plate. Products offer non-removable, matte black, glass-filled, reinforced nylon plastic knob. Lock-out type is used in applications where plunger pin is required to stay in retracted position for predetermined amount of time; lock-out position is achieved by retracting knob and rotating it 90°.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Feb 21, 2003 Series FE7W offers 3 m sensing range suited for automatic guided vehicles (AGVs) and other scanning applications. Each sensor incorporates one front scanner, two side scanners, and two independently adjustable scanning zones within one housing. Offerings for diffused mode photoelectric sensor include eight operating frequencies, three sensitivity adjustments, and NPN and PNP outputs.

Channellock, Inc.    Meadville, PA 16335-0519
Feb 21, 2003 LCS-4 gift set contains 4 LITTLE CHAMP® precision pliers: No. 30, 4 in. Flush Cutter; No. 31, 5 in. Long Nose; No. 32, 4 in. End Cutter; and No. 33, 4 in. Short Nose. Drop-forged from Solingen high-carbon steel, product is suitable for working on small components or intricate wiring. Offerings include European box joint style, induction-hardened cutting edges (60/62 HRC), leaf-spring joint mechanism, and ergonomic handles.

Intermec Technologies    Everett, WA 98203
Feb 21, 2003 With wireless security protocols built directly into terminal systems, Series 2400 handheld data collection terminals offer transmitted data that is protected from unintended access or malicious tampering. Protocol 802.1x is an IEEE standard that provides authentication framework for 802.11-based LANs for wireless security and ease of device management.

Cotronics Corp.    Brooklyn, NY 11232
Feb 21, 2003 Stress-free Duralco(TM) 125N forms flexible, electrically conductive bonds with moisture, chemical, and solvent resistance. Able to cure at room temperature, product exhibits flexural strength of 1,150 psi, 70 Shore D hardness, and compressive strength of 6,000 psi. With density of 2.7-3.0 gm/cc, epoxy requires no measuring and does not put forth any odor. Product bonds to glass, ceramics, metals, plastics, and dissimilar materials.

Entrada Software    Scottsdale, AZ 85260
Feb 21, 2003 Autodesk CAD-compliant eChange v3.1 incorporates Cimmetry's AutoVue17, allowing users to view, markup, and collaborate on more than 200 different document formats, from single interface. It provides visualization and collaboration for 2D/3D CAD, EDA, and office documents. CAD support includes CATIA 5, Pro/ENGINEER 2001, Unigraphics NX, SolidWorks 2003, Solid Edge 12, Inventor 6, SolidDesigner 9, and Scalable Vector Graphics.

Thermo Electron Corp.    Waltham, MA 02454-9046
Feb 20, 2003 AQUAfast® analysis kits offer AQ4000 colorimeter and company's portable meters, electrodes, and reagents for wastewater and environmental measurement and testing. Kits provide complete portable laboratory in one package for on-site field measurements. Water Analysis Kits, designed for field measurements of Ammonia, Nitrate, Sulfide, Chlorine, Fluoride, Cyanide, conductivity, and pH, are targeted for clean water, dirty water, and water conditioning tests.

Kalatel Inc.    Corvallis, OR 97333 1612
Feb 20, 2003 KTC-240CCE CCTV Camera provides solution for areas where lighting is difficult to control. It offers 480 lines of resolution, 0.02 lux sensitivity, and digital signal processing. Automatic backlight compensation prevents foreground objects from becoming silhouetted against bright backgrounds. High-speed electronic shutter compensates for bright sunlight and low-light environments. Digital auto-tracking white balance provides accurate color renditions.

Lion Precision Div. Of AQT Inc.    St. Paul, MN 55126 7014
Feb 20, 2003 Non-contact, 3 mm diameter, capacitance displacement probe is offered with both axial and right angle cable exits. Ranges include 0.004–0.012, 0.004–0.008, and 0.003–0.004 in., as well as metric ranges of 100-300, 100-200, and 75-100 µm. Probe is suitable for applications with very small areas available for gage heads. Applications include disk drive and semi-conductor industries.

Sealevel Systems Inc.    Liberty, SC 29657
Feb 20, 2003 COMM+16.PCI provides 16 RS-232 ports, allowing connection to data acquisition/control devices. Designed using XR16C850 UART, product supports PC data rates and offers top speed of 460.8 Kbps. Board provides 128-byte FIFO and Universal Bus that allows compatibility with 3.3 V computers as well as 5 V systems. Connection to board is made through two 68-pin connectors. Two single fan-out cables provide connection to each serial port through individual DB-25 male connectors.

Caterpillar, Inc.    Peoria, IL 61629
Feb 20, 2003 Series II Models 950G and 962G feature Cat 3126B diesel engine with air-to-air aftercooling. Model 950G delivers 183 net hp and accommodates buckets from 3.5–4.5 cu yd. Model 962G is rated 204 net hp and works with 3.75–5.0 cu yd buckets. Both include planetary electronic power shift transmission with 4 speeds forward and 4 reverse. Electronic Clutch Pressure Control modulates clutches individually, and Integrated Braking System performs transmission neutralizing and downshifting.

Jordan David    Horsham, PA 19044
Feb 20, 2003 SPIDERZ™ Over-The-Sock High Traction™ Footwear utilizes rubber compound in combination with double-depth sole. Boots are 100% waterproof and exceed ASSE/ANSI A1264.2-2001 Standard for Provision of Slip Resistance on Walking/Working Surfaces. SPIDERZ™. They are offered in plain toe and steel toe, in whole sizes from 7–13. All styles are black in color. They provide traction in water, oil, grease, and fats and are suitable for food processing and manufacturing facilities.

TMP, Technical Machine Products    Cleveland, OH 44102 4431
Feb 20, 2003 Model T770 770–ton press features 32 x 32 in. platens and produces rapid shot size of 20 lb or higher. Servo hydraulics control size and velocity of shot. Platens are equipped with 3 zones of electric temperature control, while other sections of system employ liquid temperature control. Controls also notify machine tender when recharging of material is required. Molded parts are ejected into tote system, which automatically conveys parts down line.
