Computer Conversions Corp.    East Northport, NY 11731

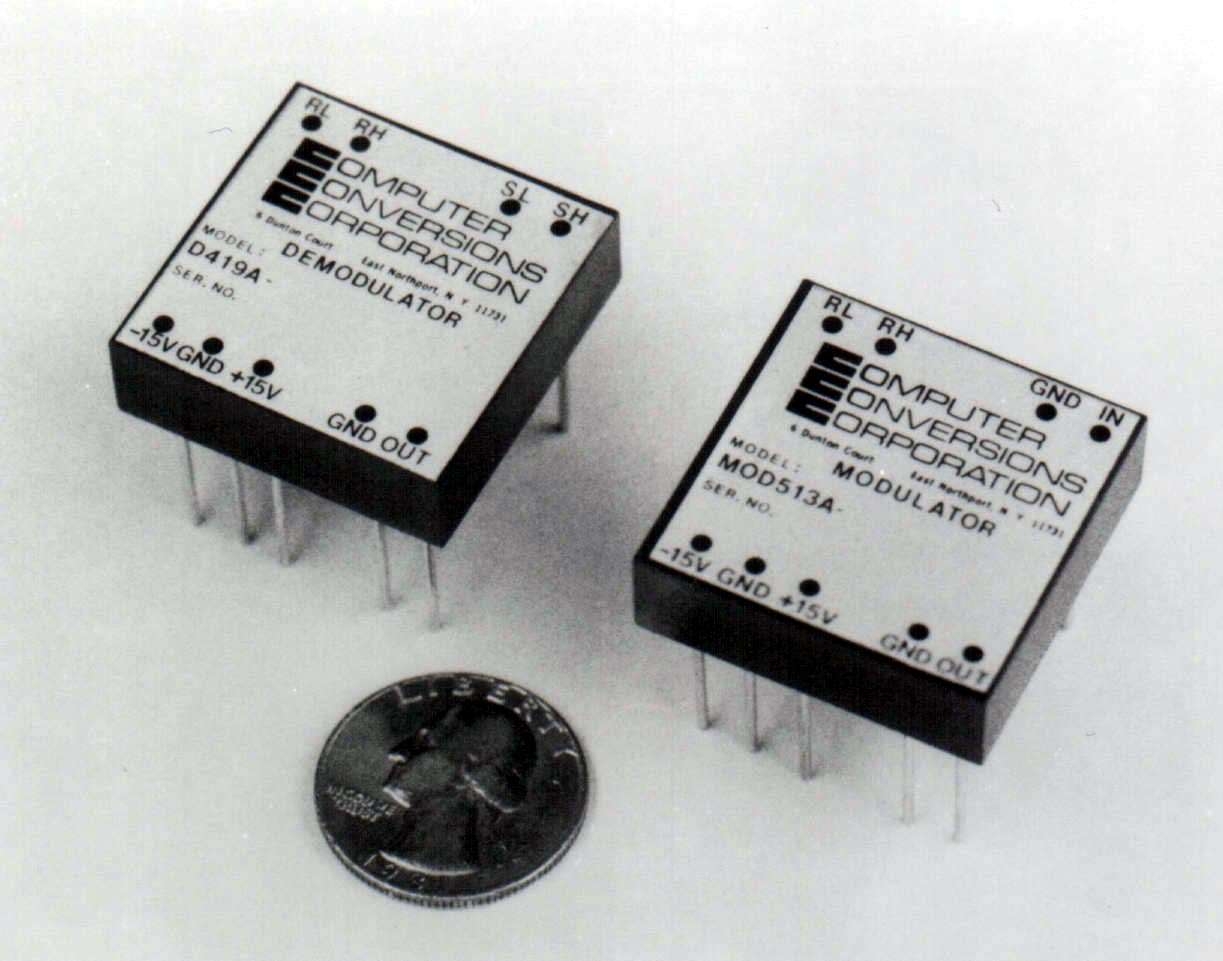

Jan 22, 2003 Series MOD513A converts DC input signals to linearly proportional AC output signals, accepts ±10 Vdc or ±100 Vdc inputs, and provides AC output of 0–7 Vrms. Units have output impedance of 1 Ohm and are insensitive to ±10% reference line changes. Any AC output voltage can be provided via internal or external transformers. Modulators measure .7 cu in. and require ±15 V @ 50 ma max. Temperature range is 0 to 70°C for MOD513A-1 and -55 to +70°C for MOD513A-2.

Computer Conversions Corp.    East Northport, NY 11731

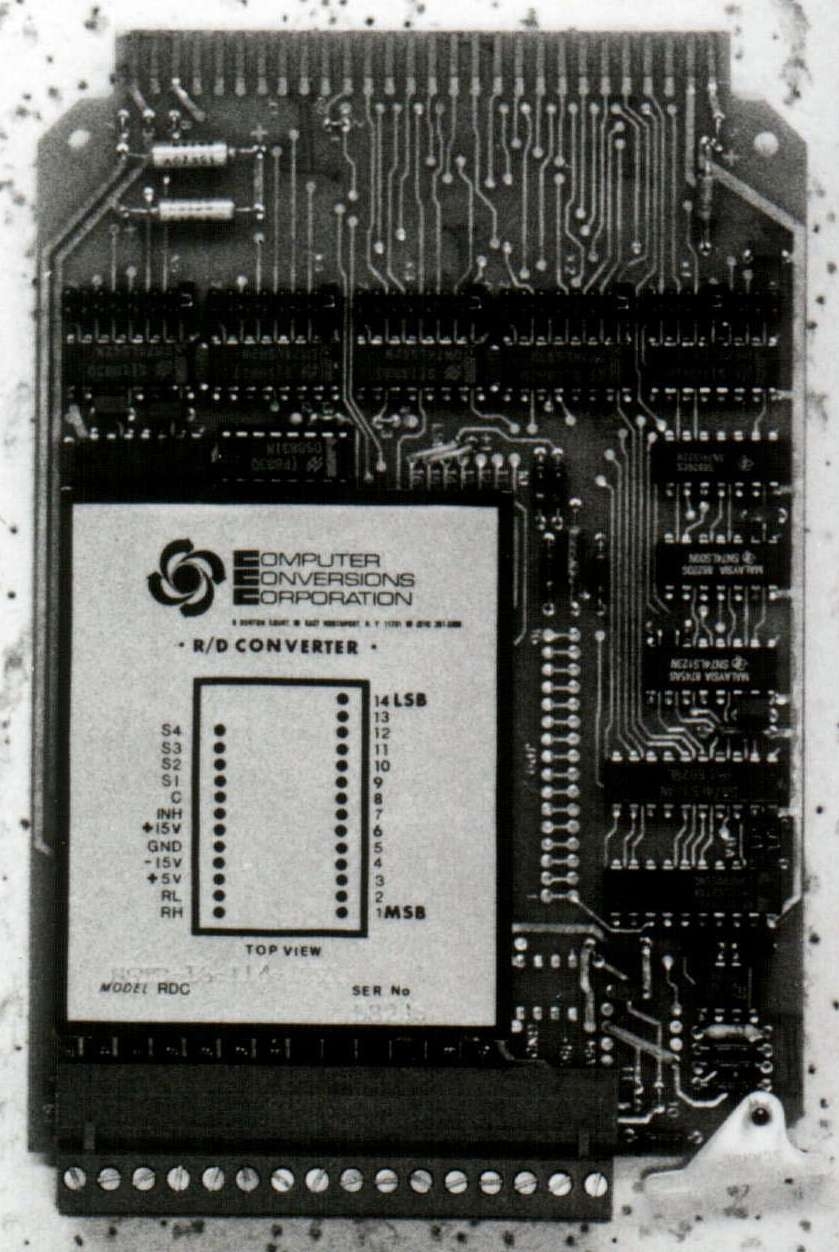

Jan 22, 2003 Series STB/DSC single-slot STD Bus converters accept natural binary information from 10–16 bit and convert it to 11.8 or 90 V synchro or resolver information from 50 Hz to 5 KHz. Data is addressable in 2-byte format over STD backplane. Outputs are short-circuit proof and current limited. Only 60 Hz units require external transformer. Operating temperature ranges are 0 to 70°C and -55 to +105°C, and output ratings include 1.5, 2, and 5 VA.

Grove Worldwide    Shady Grove, PA 17256 0021
Jan 22, 2003 Powered by Cummins ISM450, 6-cylinder, turbo-charged and after-cooled diesel engine, Model TMS900E, 90-ton crane travels at speeds up to 65 mph. Upper portion provides 5-section, full-power MEGAFORM™ boom with TWIN-LOCK™ boom pinning system. Electronic Crane Operating System controls pinning and extension of boom sections to selected configuration. Bi-fold lattice 33–56 ft swing-away extension provides machine-tip height of 204 ft. Optional hydraulic offset increases height to 237 ft.

Scapa North America    Windsor, CT 06095
Jan 22, 2003 Black, fiberglass-backed, cloth Scapa 260 is formulated for protective harness wrapping and automotive wire-harness applications that require high-temperature and abrasion resistance. Single coated with rubber, pressure-sensitive adhesive, it withstands temperatures to 300°F, is non-flammable, and may be torn by hand. Product conforms to Delphi specification ES-M-2277 and Ford specification ESB-M3G38-A.

Lee Industries, Inc.    Philipsburg, PA 16866
Jan 22, 2003 Heavy-duty, double-motion, scraped-surface No. 9M handles gums, gels, pastes, and similar products with viscosities as high as 2,000,000 cps. It includes piggyback motors for independent speeds, inclined shaft, and variety of turbine/crossbar and spacing designs. Units are offered in tanks and kettles for vacuum/pressure and special sanitary applications.

Davis-Standard, Killion Specialty Systems    Pawcatuck, CT 06379
Jan 22, 2003 Mono- and Multi-Layer Tubing Systems offer 60 mm sleeve diameter capacity. Cutter slices tube by making small nick around circumference of sleeve at 1,500 rpm. Finished cut face is exactly 90° square because cutting head moves during extrusion cut cycle at rate of 120 cuts/min. Typical tube line includes 60 mm extruder, two 32 mm extruders, multi-layer die head and tooling, dual vacuum, dual heat water tank, haul-off and peripheral cutter.

Clark Solutions    Clinton, MA 01510

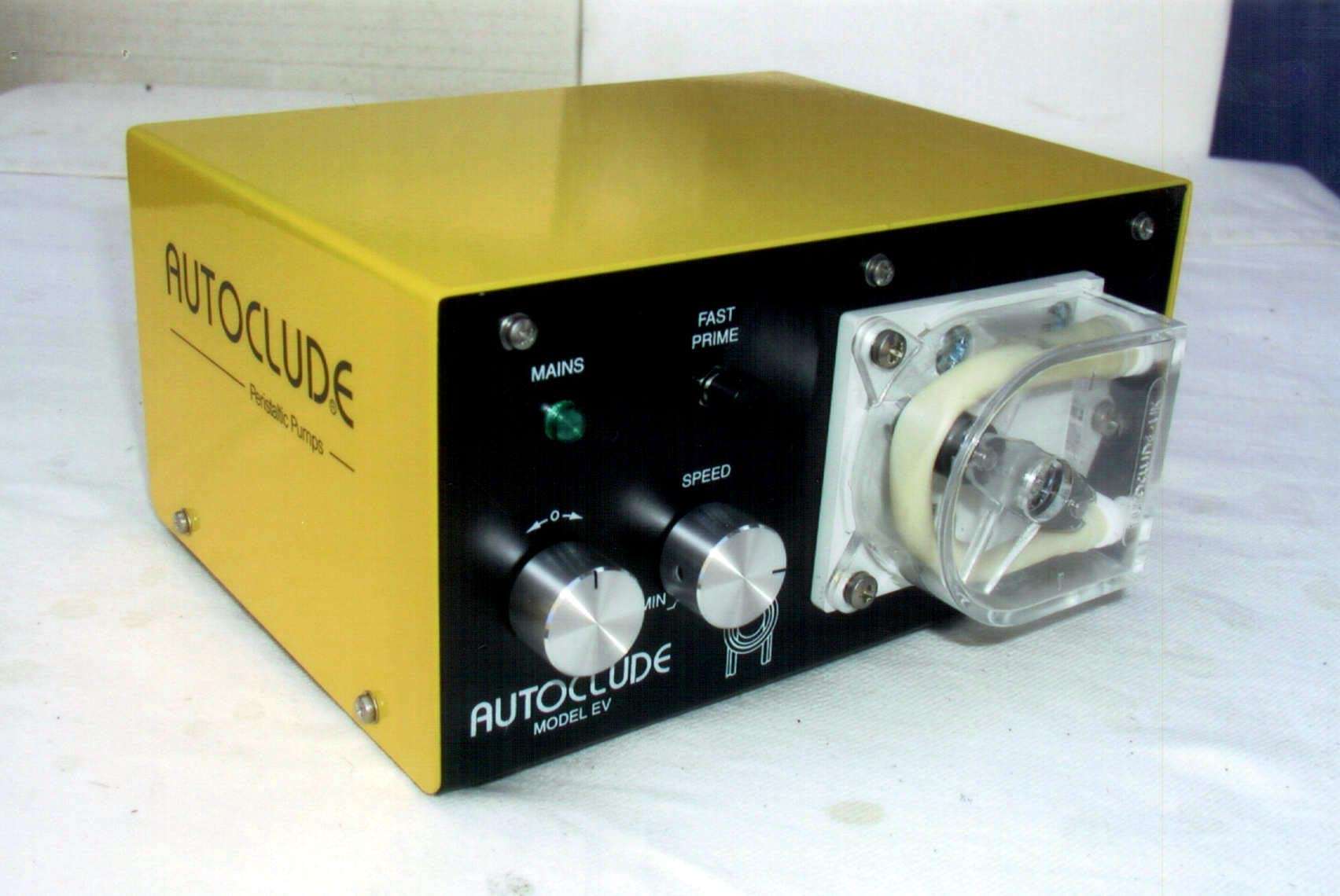

Jan 22, 2003 Bench-top Models EV-1500 and EV-3000 provide flow rates to 3850 ml/min and accommodate tube sizes from 3.2–10.0 mm. Available in 2- and 3-roller models, pumps feature fast prime switch for quick priming, and polycarbonate/ABS pumphead which accepts Autoprene, Silicone, or Viton tubing.

Stafford Mfg. Corp.    Woburn, MA 01888 0670
Jan 22, 2003 Grip & Go Clamping Handle replaces clamp screw in clamp-type shaft collars to allow repositioning without wrench. With knurled O.D. for grip, handle is offered in 4-40, 6-32, 8-32, 10-32, 1/4-28, and 5/16-28 English sizes and M-3, 4, 5, and 6 metric sizes. Handle is available in steel, stainless steel, and aluminum, and is suited for making frequent linear adjustments to feed mechanism, adjusting stroke length or table height, and positioning test instrument.

Gilway Technical Lamp    Woburn, MA 01801 1005

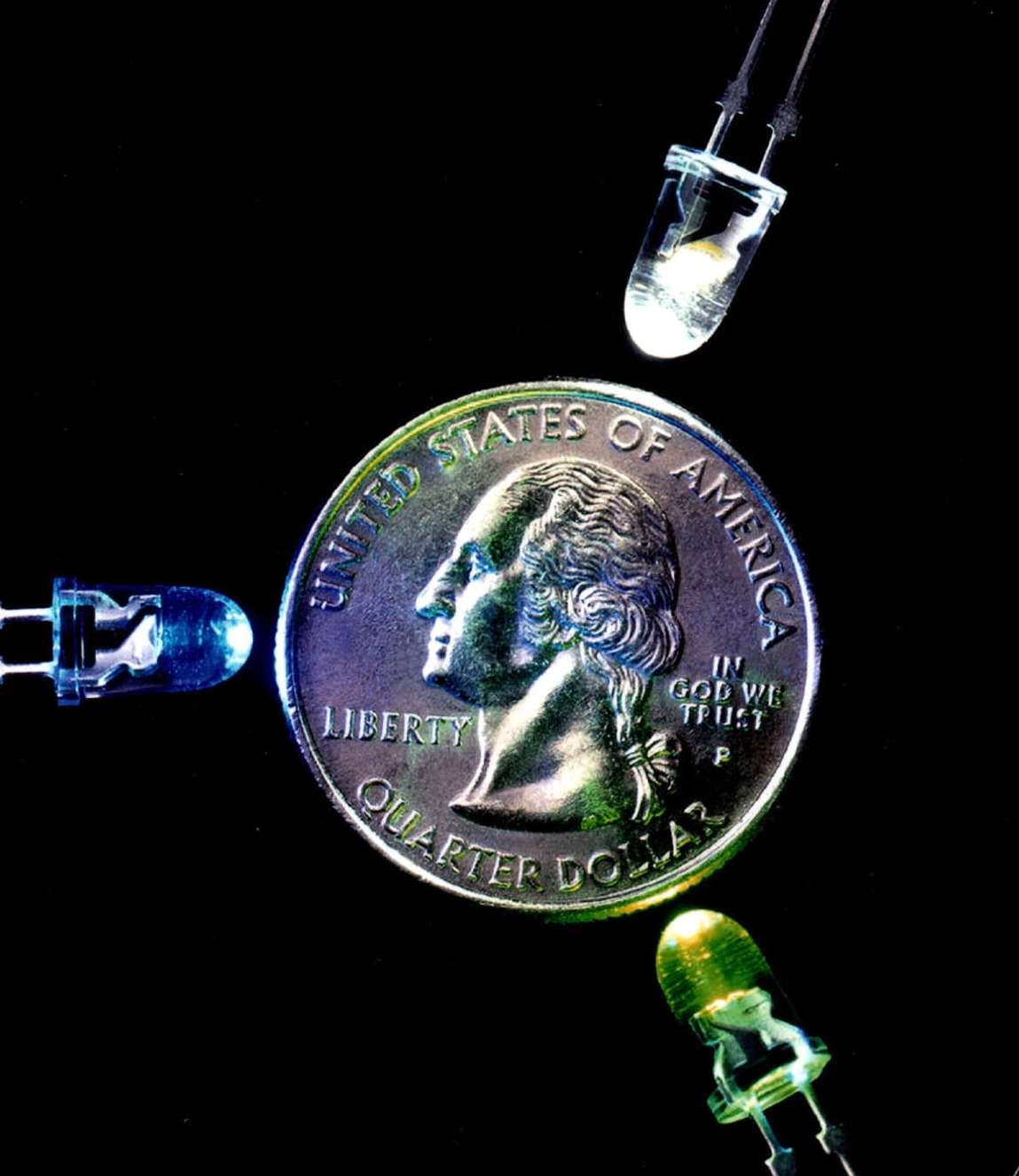

Jan 22, 2003 Ultra-bright GaN green, blue, and white LEDs offer up to 17,000 mcd luminous intensity at 20 mA and 3.4 and 3.5 Vdc operating voltages (depending upon color and version). Suitable replacements for subminiature incandescent lamps in various applications, LEDs provide uniform light and come in water clear resin or UV resistant epoxy packages. Depending on color, products are available in T-1 and T-1 ¾ sizes with bi-pin leads for thru-hole mounting.

ABB SSAC    Baldwinsville, NY 13027
Jan 22, 2003 Single probe LLC8 series uses AC current sensing to prevent thermal runaway and excessively high internal pressure in hot water tanks by detecting presence of conductive liquids. With open board design and UL353 recognition, it offers factory fixed time delay of 1–60 sec and is available for input voltages of 24, 120, or 230 Vac, 50/60 Hz. Sense resistance is factory fixed from 5K–250K ohms. SPDT relay contacts are rated 10 A resistive at 120/240 Vac.

NLB Corporation    Wixom, MI 48393 2824
Jan 22, 2003 Series 225 pump operates at pressures of 10,000, 12,000, 20,000, or 24,000 psi. Swing-out fluid end allows for access to change plungers and related components without requiring manifold or gauge change. Series can be ordered with 200, 230, or 275 hp diesel engine and produces flows from 10 to 38 gpm. Slow-running triplex design minimizes wear with hard-coated valves and plungers. Corrosion-resistant stainless steel is used throughout pump.

Kurt Manufacturing    Minneapolis, MN 55421
Jan 22, 2003 Series HD double station vise is 13.75 in. x 6 in. with clamping power up to 7,800 lb, repeatable to .001 in. CarvLock manual tower vise is 16.875 in. high and comes on 300, 400, 500, or 630 mm bases. Back-to-back vises have similar height with same base sizes. Equipped with machinable, quick-change Anglock jaws in aluminum or cast iron, vises, towers, and tombstones have enclosed bodies to keep out chips and contaminants.

Avery Dennison, Soabar Systems    Philadelphia, PA 19111
Jan 22, 2003 AVERY DENNISONâ„¢ AP 5.4 employs flat-head print technology to produce 1D and 2D bar codes, graphics, and human-readable copy at max print speed of 8 ips with print resolution of 200 dpi. It processes standard tags and labels, film, fabrics, and other media up to 4½ in. wide. Multilingual display and graphical user interface prompts operators symbolically and guides them through setup. Printer includes serial, parallel, USB, and Ethernet connectivity options.

MTS Sensors Group    Cary, NC 27513
Jan 22, 2003 Temposonics® Mobile Hydraulic sensor provides non-contact measurement inside hydraulic cylinders. It is constructed of 3 primary components: magnetostrictive sensing element, sensing electronics, and application housing that protects internal components from environmental conditions. Pressure housing comes in 7 and 10 mm dia, with static pressure rating of 4,300 and 5,000 psi, respectively. Measuring range is 50–1,000 mm with 0.005% accuracy.

Edlon, Inc.    Avondale, PA 19311 0667
Jan 22, 2003 Secure & Pure™ vessels feature fluoropolymer seaming technology and fabrication techniques. Engineered to meet application-specific requirements, high-purity products are available in solid PFA, PTFM, ETFE, ECTFE, PVDF, Polypropylene, and lined FRP versions in sizes from 5–50 liters. Available with flanged or dished top and bottom heads, units are offered in vertical and horizontal configurations with various port options.

Labelmaster    Chicago, IL 60646-6797
Jan 22, 2003 King Pin Lock secures truck transportation trailers and ocean containers to protect cargo. Made of solid-cast, ductile, cast-iron steel alloy, lock's single-component design is user-friendly, including carrying handle. Unit locks without key, and carrying handle prevents accidental locking when stored in ready-to-use position.

Nematron Corp.    Ann Arbor, MI 48103
Jan 22, 2003 Model OL4228 Remote Terminal Unit extends OptiLogic family of products to systems using Modbus communications. Any Modbus/TCP capable, PC-based application can interface with line of OptiLogic Ethernet I/O modules.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jan 22, 2003 In-Line TEDS Adaptor features interface chip that allows identification, location, and sensitivity relative to attached piezoelectric sensor to be stored. Device allows ICP® accelerometers that do not have TEDS functionality to be used in typical TEDS applications such as large channel count modal analysis and structural testing. Use of adaptor eliminates cable connection errors and reduces set-up time.

Algae-X International    Fort Myers, FL 33905
Jan 22, 2003 Model LG-X 3000 Diesel Fuel Conditioning Unit improves combustibility and fuel economy, and reduces smoke emissions. It improves and maintains quality of diesel fuel, hydraulic oil and other distillate fuels, and prevents tank sludge and clogged filters. Benefits include reliable filtration systems for less tank maintenance, improvement in fuel economy, and lower overall operating costs.

Malcom Co., Inc. (Distributor of LEISTER Hot Air Tools)    Tiverton, RI 02878
Jan 22, 2003 Semi-automatic Leister® TriacDrive Overlapp Welding Tool features motorized hand-steered drive with knurled steel roller that allows constant nozzle position and speed to assure consistent seam weld at speeds to 10 fpm. Triac S hot air tool provides adjustable temperatures from 70 to 1400°F and air speed control to 8 cfm. Designed for vertical and horizontal use, tool is suitable for seam-welding roofing membranes, tarps, liners, and banners.
