RIDGID    Elyria, OH 44035
Feb 25, 2003 RIDGID® Model 418 includes heavy-duty, abrasion- and rust-resistant reservoir that resists impact without denting, cracking, piercing, or permanently deforming. Reservoir's integral molded body design, combined with flat hose port, eliminates leaks at hose-reservoir connection. Fastener-less, twist-and-lock mechanism allows user to lock drip pan into place. Pump delivers 50% more thread cutting oil per stroke than other handheld oilers.

Industrial Indexing Systems, Inc.    Victor, NY 14564-9795
Feb 25, 2003 Intelligent Servo Driveâ„¢ (ISDâ„¢), built around series of hardware and software modules, can incorporate servo driver with brushless motors up to 750 W, variable frequency drives to 1 hp, and logic and I/O power supplies. Available features include 24 Vdc isolated I/O, analog I/O, and 8051 microprocessor core with flash memory. Also available: RS-232 and RS-485 serial busses for communications, velocity, position and torque control; operator display; and keypad functions.

American Allsafe    Tonawanda, NY 14150 2593

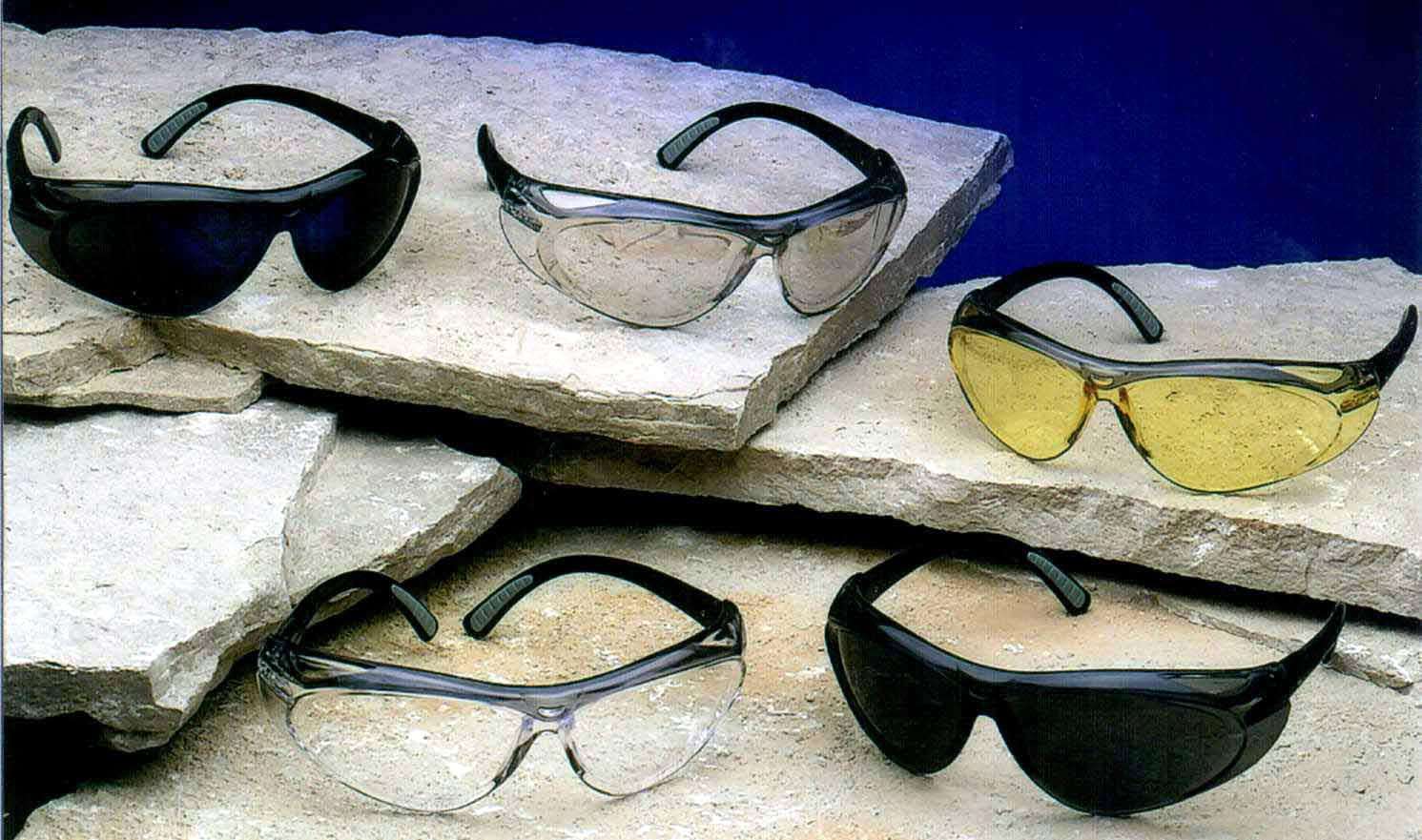

Feb 25, 2003 With wrap-around design, Envisionâ„¢ spectacle incorporates adjustable ratchet temple for custom fit and soft-grip comfort temple, which provides additional comfort for extended wear time. Product has single-lens design, side shields, molded nosepiece, and brow protection. Lens options for 8-base lens curve include clear, clear FogGard®Plus, smoke, amber, indoor/outdoor, and blue mirror. Product meets/exceeds ANSI Z87.1 and CSA Z94.1 standards.

Seco-Larm    Irvine, CA 92606-5012

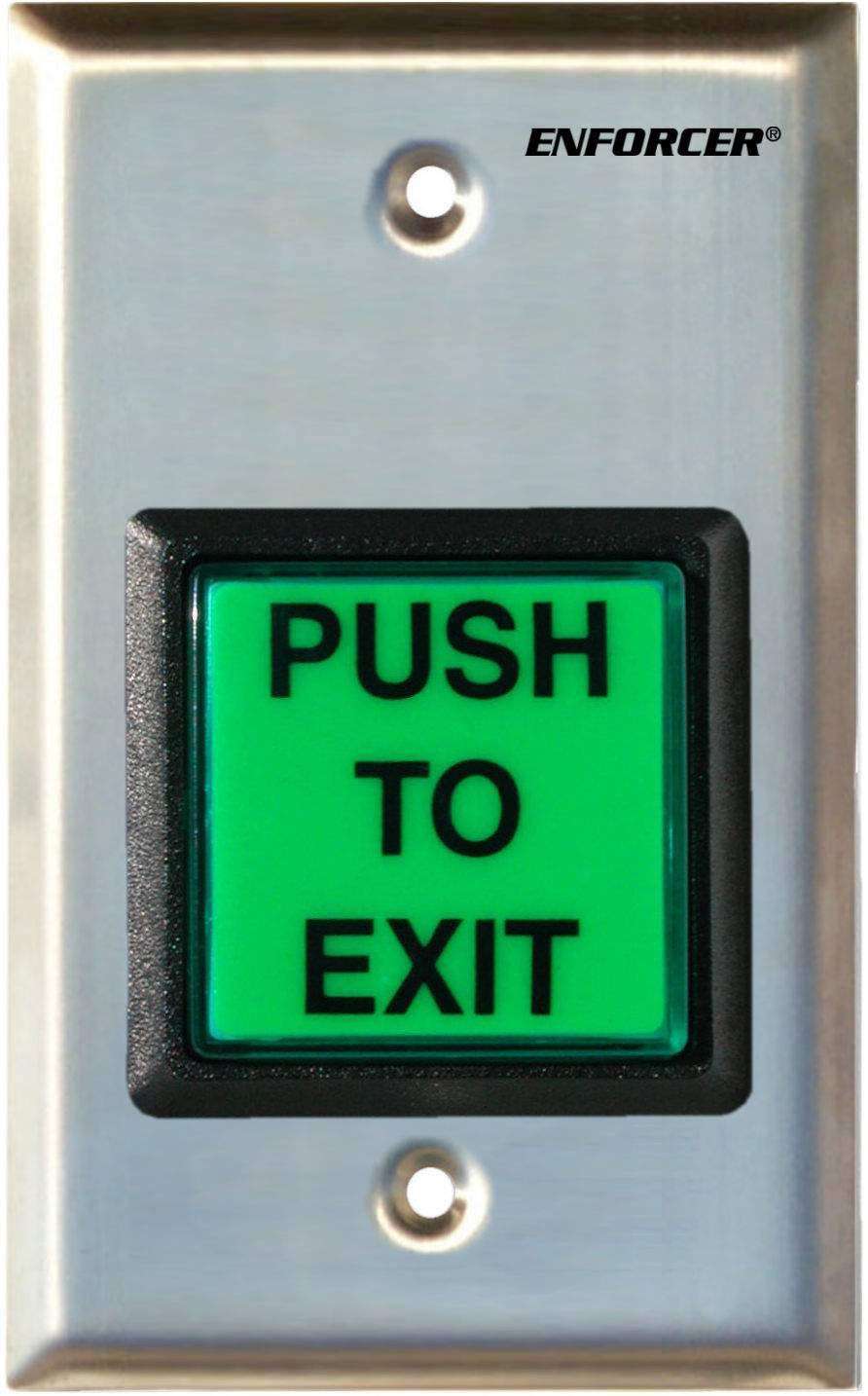

Feb 25, 2003 Model SD-7202GC-PE consists of single-gang, stainless-steel plate with 2 in., square, green, illuminated pushbutton. Additional offerings include NO/NC contacts rated 10 A @ 125–250 Vac, 5 color-coded wires with spade lugs, and replacement bulb and resistor. Model SD-7103GC-PE combines slimline, stainless steel plate with 1 x 11/16 in., green, illuminated pushbutton. Each model offers 2 interchangeable message plates: PUSH-TO-EXIT and PRESIONE PARA SALIR.

Saelig Co., Inc.    Pittsford, NY 14534

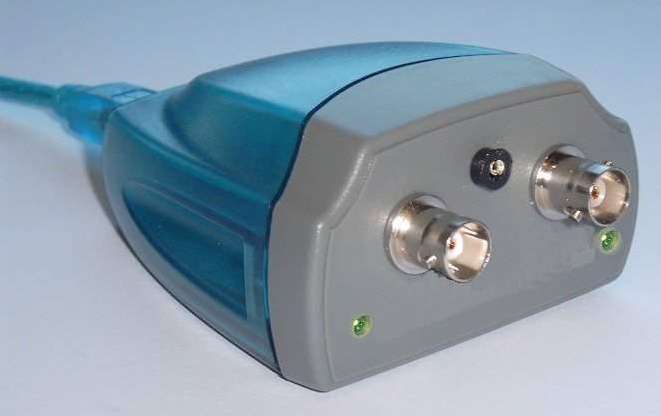

Feb 25, 2003 Dual channel, 12-bit Model DS2200C samples at rates to 200 ksample/sec. Digital sampling oscilloscope adapter connects to USB port of any computer and fits in laptop carrying cases along with 2 optional probes. EasyScope software, provided with DS2200C, provides front panel appearance for changing of settings. Software also saves screen settings when quitting program. FFT button shows frequency information instantly. Product, in case, measures 3 x 2 x 1.5 in.

Norma Products, Inc.    Wixom, MI 48393
Feb 25, 2003 TORRO® hose clamps eliminate sharp edges and welds and are available with built-in spring, which improves clamping force and destruction torque while compensating for compression set. Band widths include 9 mm in aluminum-zinc and 12 mm in stainless steel. Aluminum-zinc offers corrosion resistance and withstands exposure to salt spray for 144 hours without red rust. Combination head screw can be tightened with hex or slotted tool.

PFERD, Inc.    Leominster, MA 01453

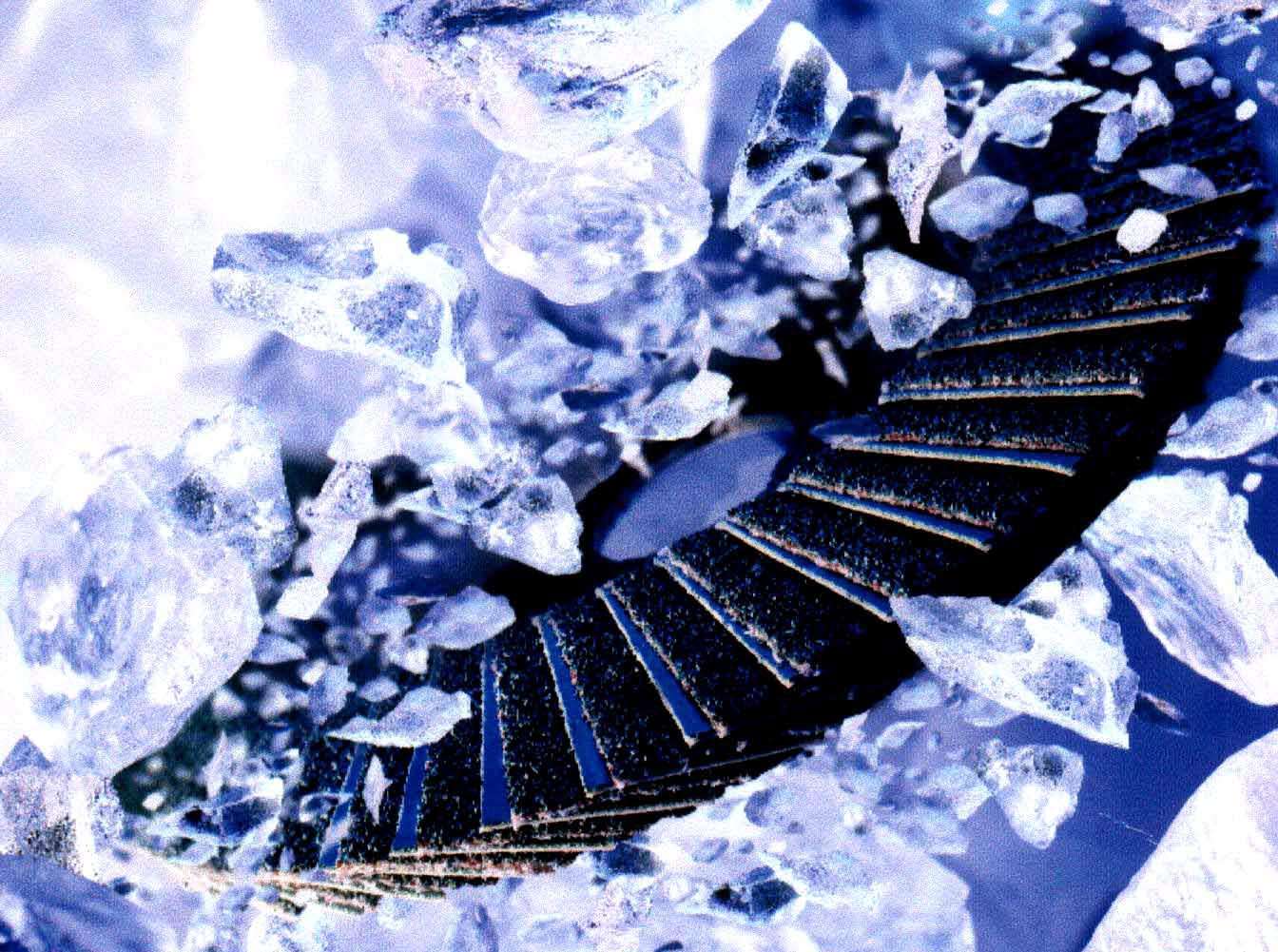

Feb 25, 2003 POLIFAN® SGP-ZIRKON-COOL features flaps made of COOLFLAP® material layered in sequence with regular Zirconia Alumina flaps to effect cool grinding. COOLFLAP® allows aggressive grinding with no glazing of flaps or deterioration. Available in 40, 60, and 80 grits, in flat and conical styles, and in 4 ½ and 5 in. diameters, disc handles grinding applications ranging from heavy stock removal to fine finishing. It is also suitable for grinding weld seams.

Emuge Corp.    West Boylston, MA 01583-2121

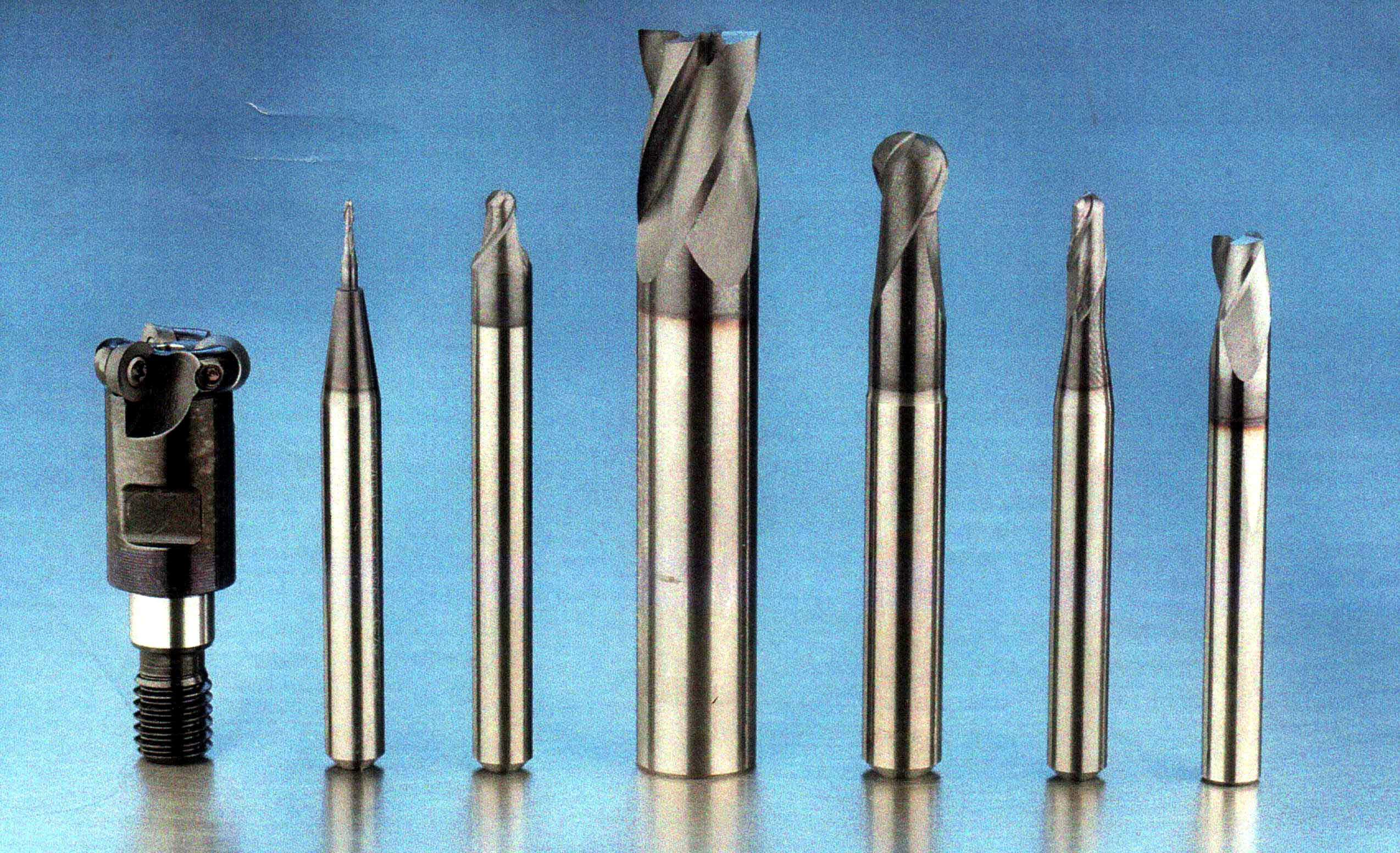

Feb 25, 2003 Solid Carbide End Mills are pre-engineered to incorporate appropriate substrate, cutting geometry and coating for specific application. Line includes over 900 items in more than 25 different styles, including ball nose, torus, and flat end, and configurations from 2-16 flutes. Tools are suitable for heavy roughing through fine finishing operations in cutting diameters from 1/32 to 1 in. Time-S Cutter indexable insert end mills provide aggressive stock removal.

Thomas & Betts Corp.    Memphis, TN 38125

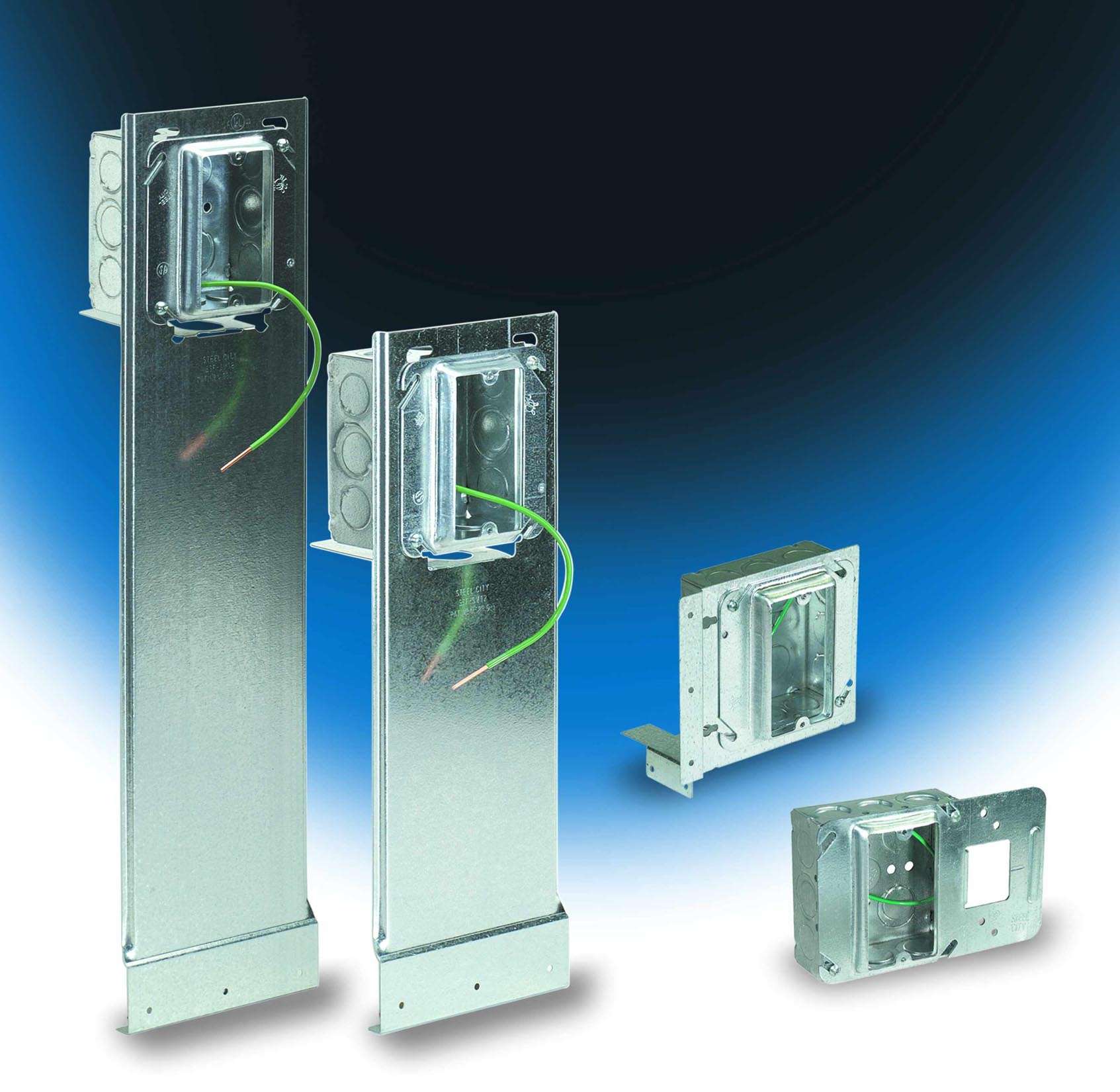

Feb 25, 2003 Steel City? Box and Cover Assemblies are UL-listed and include 48 combinations of boxes, brackets, and covers that speed installation because they are pre-assembled. Each assembly comes with 1 ? or 2 1/8 in. deep, 4 in. square box with pre-installed grounding pigtail, and choice of bracket and cover options. Covers are offered in single and two device configurations, raised ?, 5/8 and ? in. Brackets allow attachment to steel and wood stud and floor track.

Drake Mfg. Services    Warren, OH 44485 1147
Feb 25, 2003 Smart Formâ„¢ maintains correct form in part over life of grinding wheel. It provides off-helix internal thread grinding, precise control of wheel form and part form in all operating conditions, and form correction for high helix external threads. Software offers custom designer forms and forms from CAD .dxf files. It includes high speed fiber optic link from CNC to PC.

Anorad Corp.    Hauppauge, NY 11788
Feb 25, 2003 Series LC steel core, brushless linear motors feature insulation system and motor coil design, which achieves Class H 180°C protection and 650 Vdc bus voltage rating. Model LC-80-240 is 80 x 240 mm and rated at 62 lbf continuous, and Model LC-80-340 is 80 x 340 mm and rated at 94 lbf continuous. Molding completely encapsulates face of motor, sealing laminations and eliminating moisture migration path. Stainless steel shroud covers magnets providing additional protection.

Emission Control Ltd.    Butler, WI 53007
Feb 25, 2003 FL Series EMI filter provides protection from conducted electronic noise in 3-phase applications. Suited for inverter, variable speed motor drive, RF generator, and uninterruptible power supply requirements, product incorporates integral coil design with characteristics that make it suitable for use in existing products as well as in new designs.

JACO Inc.    Franklin, MA 02038
Feb 25, 2003 J-Mobilityâ„¢ SLâ„¢ slimline carts have 7° angled post and 5° angled handle design, which brings work surface closer to operator and allows for more natural posture and height adjustment from 29–39 in. Keyboard tray is retractable, and features bi-directional mouse tray for left or right hand mouse placement. Portability is achieved through 5 ¼ in. rubber casters. Carts are welded steel and aluminum with scratch and spill resistant, powder coated finish.

Aremco Products, Inc.    Valley Cottage, NY 10989
Feb 25, 2003 Thermally conductive, silicon carbide-based Ceramacastâ„¢ 673N can be used in applications with temperatures to 2,450°F. Chemical setting, ceramic compound is formulated as two-part, powder base and hydrophobic liquid binder system. Product is fully hardened by air setting for 8 hr then step curing for 1-2 hr at 200 and 250°F, respectively. Cured material demonstrates shrinkage of less than 0.3% at 1,000°F and compressive strength of 5,000 psi.

Harmonic Drive, LLC    Peabody, MA 01960
Feb 25, 2003 Harmonic Planetary® HPG Series is offered in size 50, which is only 175 mm long with 170 mm square mounting flange. Rated torque is 2,610 lb-in. and max torque is 16,375 lb-in. Gear ratios range from 5 to 45:1. Applications include automation equipment, semiconductor equipment, and machine tools.

nMetric    Costa Mesa, CA 92626
Feb 25, 2003 4C enables managers to assess, in real time, impact of production events on short, medium, and long-range schedule commitments. Orders are continuously monitored throughout production process to assure status and provide notification to all members in supply chain if delivery expectations are not going to be met. When and if resources or demands change or might change, 4C attempts to resolve any problems that could affect delivery dates.

Syware, Inc.    Cambridge, MA 02142
Feb 25, 2003 Visual CE® for FileMaker Pro offers support for FileMaker Pro databases, allowing users to create mobile forms in minutes, then transfer and synchronize data between Pocket PCs or Windows CE devices and FileMaker Pro on desktop. Software provides way to create forms and database applications without programming. Drag and drop controls are used to customize electronic forms. Offerings include Macros, Wireless Connectivity, and Report Writing capabilities.

CML USA, Inc.    Davenport, IA 52804
Feb 25, 2003 Model EN180 adjusts to notch any angle between 0-60° degrees in pipe or tube with 1-4½ in. dia. Product produces notches in heavy or thin wall pipe or tube. Single slide handle movement allows operator to control in feed and cross feed motion simultaneously, while graduated vise pivots and adjusts vertically for offset notching. Quick-change rollers are available in multiple diameters, and wide frame design accepts up to 7 in. belt widths.

Syspro Group    Costa Mesa, CA 92626
Feb 25, 2003 Business Alerts pushes alerts to desktops of managers and other key personnel upon occurrence of pre-defined events as they are happening internally, at customer sites, or along entire value chain. It scans mission-critical information systems on 24/7 basis to notify functional areas of enterprise and supply chain in real-time via LAN, WAN, Internet, Wireless, and Fax technology. Alert messages can be configured in HTML, Text, RTF, and XML formats.

Paslode, An Illinois Tool Works Co.    Vernon Hills, IL 60061
Feb 24, 2003 Equipped with carbide-tip nose, hardened-steel driver blade, and housing wear plates, Roofer's Choice R175-C Roofing Coil Nailer drives nails flush into all roofing materials. Ergonomic tool drives up to 8 fasteners per second and accepts fasteners with lengths from 7/8–1 3/4 in. and diameters to .120 in. Adjustable shingle guide keeps roofing shingles straight and properly aligned. Features include aluminum magazine, 2-fingered trigger, and adjustable diffuser cap.
