NLB Corporation    Wixom, MI 48393 2824
Jan 22, 2003 Series 225 pump operates at pressures of 10,000, 12,000, 20,000, or 24,000 psi. Swing-out fluid end allows for access to change plungers and related components without requiring manifold or gauge change. Series can be ordered with 200, 230, or 275 hp diesel engine and produces flows from 10 to 38 gpm. Slow-running triplex design minimizes wear with hard-coated valves and plungers. Corrosion-resistant stainless steel is used throughout pump.

Kurt Manufacturing    Minneapolis, MN 55421

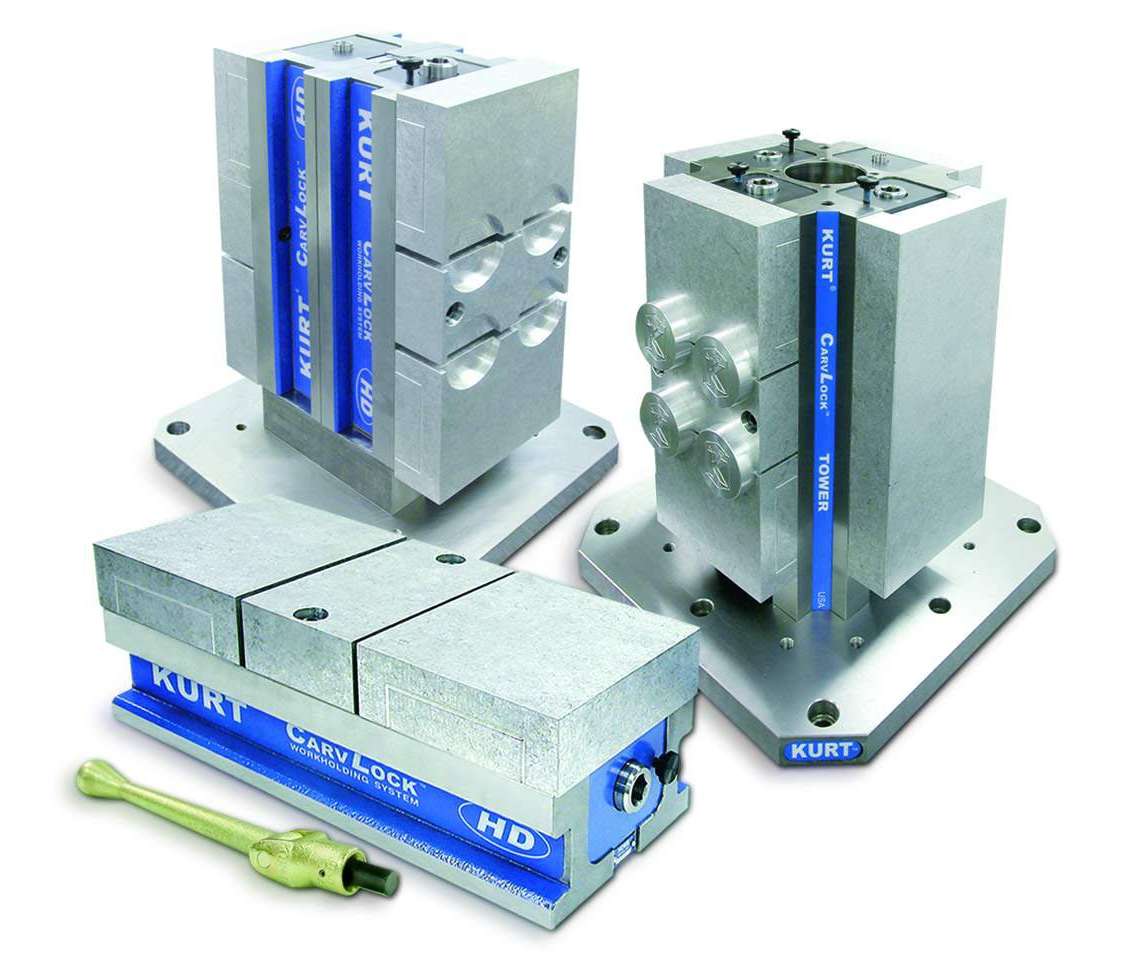

Jan 22, 2003 Series HD double station vise is 13.75 in. x 6 in. with clamping power up to 7,800 lb, repeatable to .001 in. CarvLock manual tower vise is 16.875 in. high and comes on 300, 400, 500, or 630 mm bases. Back-to-back vises have similar height with same base sizes. Equipped with machinable, quick-change Anglock jaws in aluminum or cast iron, vises, towers, and tombstones have enclosed bodies to keep out chips and contaminants.

Avery Dennison, Soabar Systems    Philadelphia, PA 19111
Jan 22, 2003 AVERY DENNISONâ„¢ AP 5.4 employs flat-head print technology to produce 1D and 2D bar codes, graphics, and human-readable copy at max print speed of 8 ips with print resolution of 200 dpi. It processes standard tags and labels, film, fabrics, and other media up to 4½ in. wide. Multilingual display and graphical user interface prompts operators symbolically and guides them through setup. Printer includes serial, parallel, USB, and Ethernet connectivity options.

MTS Sensors Group    Cary, NC 27513
Jan 22, 2003 Temposonics® Mobile Hydraulic sensor provides non-contact measurement inside hydraulic cylinders. It is constructed of 3 primary components: magnetostrictive sensing element, sensing electronics, and application housing that protects internal components from environmental conditions. Pressure housing comes in 7 and 10 mm dia, with static pressure rating of 4,300 and 5,000 psi, respectively. Measuring range is 50–1,000 mm with 0.005% accuracy.

Edlon, Inc.    Avondale, PA 19311 0667
Jan 22, 2003 Secure & Pure™ vessels feature fluoropolymer seaming technology and fabrication techniques. Engineered to meet application-specific requirements, high-purity products are available in solid PFA, PTFM, ETFE, ECTFE, PVDF, Polypropylene, and lined FRP versions in sizes from 5–50 liters. Available with flanged or dished top and bottom heads, units are offered in vertical and horizontal configurations with various port options.

Labelmaster    Chicago, IL 60646-6797
Jan 22, 2003 King Pin Lock secures truck transportation trailers and ocean containers to protect cargo. Made of solid-cast, ductile, cast-iron steel alloy, lock's single-component design is user-friendly, including carrying handle. Unit locks without key, and carrying handle prevents accidental locking when stored in ready-to-use position.

Nematron Corp.    Ann Arbor, MI 48103
Jan 22, 2003 Model OL4228 Remote Terminal Unit extends OptiLogic family of products to systems using Modbus communications. Any Modbus/TCP capable, PC-based application can interface with line of OptiLogic Ethernet I/O modules.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jan 22, 2003 In-Line TEDS Adaptor features interface chip that allows identification, location, and sensitivity relative to attached piezoelectric sensor to be stored. Device allows ICP® accelerometers that do not have TEDS functionality to be used in typical TEDS applications such as large channel count modal analysis and structural testing. Use of adaptor eliminates cable connection errors and reduces set-up time.

Algae-X International    Fort Myers, FL 33905
Jan 22, 2003 Model LG-X 3000 Diesel Fuel Conditioning Unit improves combustibility and fuel economy, and reduces smoke emissions. It improves and maintains quality of diesel fuel, hydraulic oil and other distillate fuels, and prevents tank sludge and clogged filters. Benefits include reliable filtration systems for less tank maintenance, improvement in fuel economy, and lower overall operating costs.

Malcom Co., Inc. (Distributor of LEISTER Hot Air Tools)    Tiverton, RI 02878
Jan 22, 2003 Semi-automatic Leister® TriacDrive Overlapp Welding Tool features motorized hand-steered drive with knurled steel roller that allows constant nozzle position and speed to assure consistent seam weld at speeds to 10 fpm. Triac S hot air tool provides adjustable temperatures from 70 to 1400°F and air speed control to 8 cfm. Designed for vertical and horizontal use, tool is suitable for seam-welding roofing membranes, tarps, liners, and banners.

Klein Tools, Inc.    Lincolnshire, IL 60069
Jan 22, 2003 Constructed of No. 8 natural canvas, Tool Bags come in 16 and 18 in. lengths with 8 or 10 interior pockets, respectively. Both are 14 in. deep and 6 in. wide. Reinforced bag bottom extends 3 in. up sides to support heavier tools and block moisture. Leather-bottom bags feature 2 in. wide, 900-lb. test polypropylene web handles. Naugahyde®-bottom bags have 2 black harness leather handles and retaining straps. Both have wide opening and steel frame mouth with hinge.

Haestad Methods    Waterbury, CT 06708
Jan 22, 2003 StormCAD® v5.0 offers automated design for pipes and inlets, analysis of storm events, scenario management for tracking design alternatives, and construction drawing preparation. Profile Manager allows engineers to customize, store, recall, and modify profiles. Software can leverage data from other civil design packages, GIS, and data sources. It can run as Stand-Alone application, directly within AutoCAD®, or be integrated with GIS applications.

FKI Logistex North America    St. Louis, MO 63132 3207
Jan 22, 2003 Pallet Mat Conveyor, with continuous slider pans that fully support conveyor belt, has continuous surface to eliminate damage to plastic pallets that often separate. With standard lengths of 5 and 10 ft, conveyor utilizes shaft-mounted reducer/motor with square shaft and metal tooth sprockets. Take-up is pulley-augmented cantenary, which permits jog reverse capability. With 3,000 lb weight capacity, conveyor provides standard speeds from 30-90 fpm.

DLoG Logistics, Inc.    Westminster, MD 21157
Jan 22, 2003 DC-Engine Data Collection Control Engine® Software provides automatic report generation of machine tool performance plus work order status and utilization. When used with DTU-3 Data Transmission Unit, it provides real time status, event time line, and historical analysis reports via Microsoft® Excel. With DC-Engine, staff can share data and information and reach out and instantly tap into informational data on machine performance and utilization.

InterTest Corp.    San Jose, CA 95125
Jan 22, 2003 Model 1014-CBL Bubble Detection System exceeds MIL-STD requirements for Gross Leak Testing of Microelectronic Components per MIL-STD-883, Method 1014, Test Condition C. Thermo-Barrier chill ring with extended free-board eliminates indicator fluid loss. Internal auto/manual filtration system achieves 0.45 micron results. Magnifying lens provides 1.5x magnification using bezel mounted lens. Unit is 12 x 22 x 17 in. and is circuit breaker protected.

nMetric    Costa Mesa, CA 92626
Jan 22, 2003 Used to install 4C@Siteâ„¢, nTegratorâ„¢ consists multi-threaded Java-application server, comprised of input and output channels; and administrator, which configures all aspects of nTegrator. Software provides real-time scheduling, monitoring and tracking of manufacturing status. It easily exchanges data with other applications, including ERP, MES, finite scheduling, and factory-floor data collection.

GEOCOM tms    Smyrna, GA 30080
Jan 22, 2003 A.MAZE optimizes routing and scheduling of fleet operations with fuzzy zones, which allow customers to flex zones in response to dynamic demand. This permits users to maintain concept of territories while targeting highest asset utilization. Software represents real life business processes and constraints, while providing optimization flexibility, resulting in utilization of distribution assets with less manual intervention when routing.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jan 21, 2003 Model 240A01 Dynamic ICP® Strain Sensor measures dynamic and quasi-static stress on stationary and moving machinery. With piezoelectric sensing elements, and integrated microelectronic signal conditioning, unit interfaces with monitoring and data acquisition systems to detect inconsistencies or upsets. Positioning device in direction of maximum strain permits indirect measurement of forces on mechanical devices and machines.

Feige Filling Technology USA, L.P.    Houston, TX 77017
Jan 21, 2003 Rapid Filler features computerized flow control capability and modular design. It dispenses liquids, pastes, and other products into pails and drums weighing up to 66 lb at 2,000 pails per hour. Onboard weighing system, controlled by PC, synchronizes filling process and flow rate, and ensures filling accuracy and compliance with weights-and-measures regulations. System is suitable for plug-and-fill operations and can be moved via forklift.

Lumex Inc.    Carol Stream, IL 60188

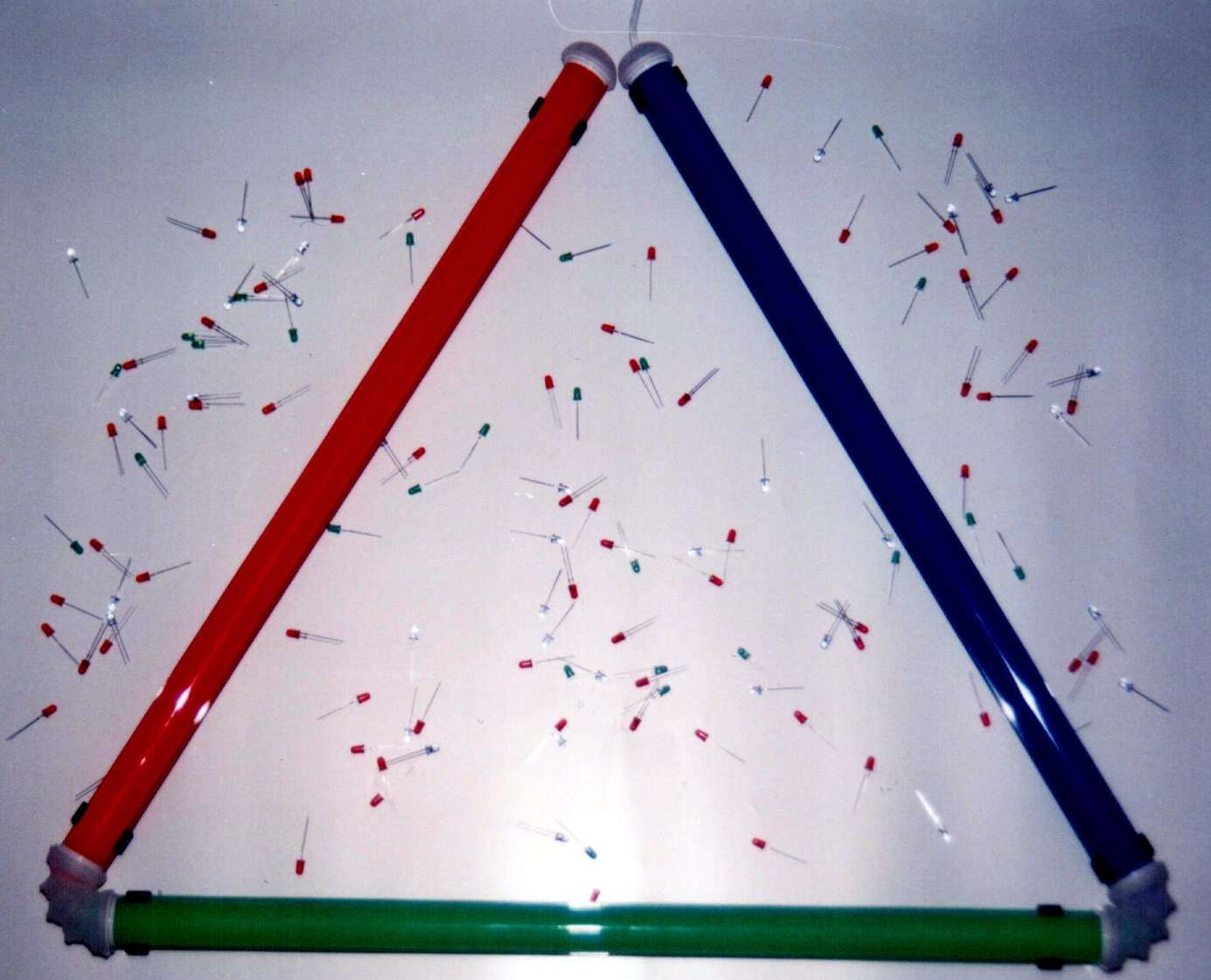

Jan 21, 2003 With operating life of 100,000 hr, Light Stix provides low-maintenance alternative to incandescent and neon lighting sources with high-brightness LEDs in plastic tube. Typical tube with 36 LED chips produces light intensity level >400 cd/m² with 60° viewing angle while utilizing 3 W at 24 Vdc. Colored enclosure measures 23.6 x 1.35 in., has one flat side, and built-in mounting brackets. Units can be mated together to create any length.
