Festo Corp.    Hauppauge, NY 11788

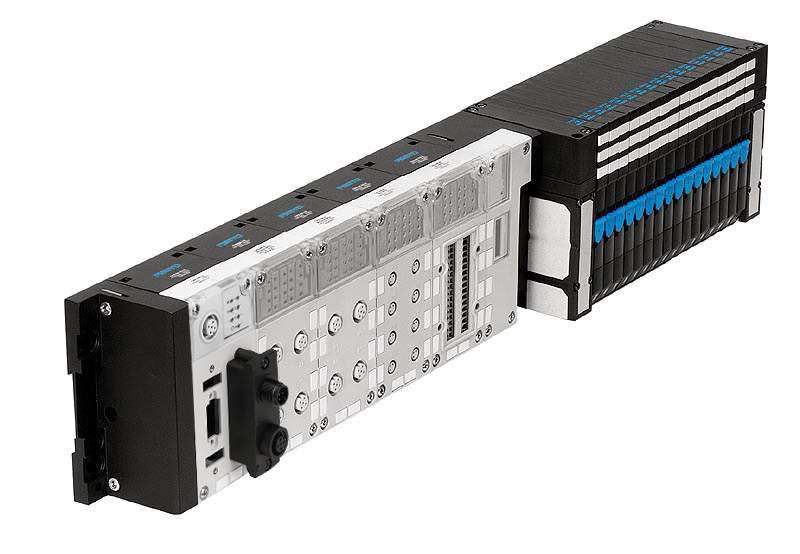

Jan 30, 2003 CPX system is based upon configurable modules, where different electrical functions and pneumatic interface can be assembled to meet requirement. It is constructed in sandwiched functional layers consisting of interlinking base block, electronics intermediate module, and connection top block. Electronics modules are either analog or digital. System supports DeviceNet, Profibus-DP, Interbus, CANOpen, and CC-Link and provides point level diagnostics.

Sensors, Inc.    Saline, MI 48176
Jan 30, 2003 For stationary or portable use, PM-300 particulate analyzer enables real-time measurement of particle sizes emitted by internal combustion engines in 100 nm increments down to 300 nm. Exhaust is drawn through analyzer via heated sample line and temperature controlled dilution system with mass flow controllers. Mini-diluter mixing chamber combines raw exhaust fraction with clean air. Analyzer generates curves with data-sampling rate of 1 sec.

E-A-R Specialty Composites    Indianapolis, IN 46268 1650

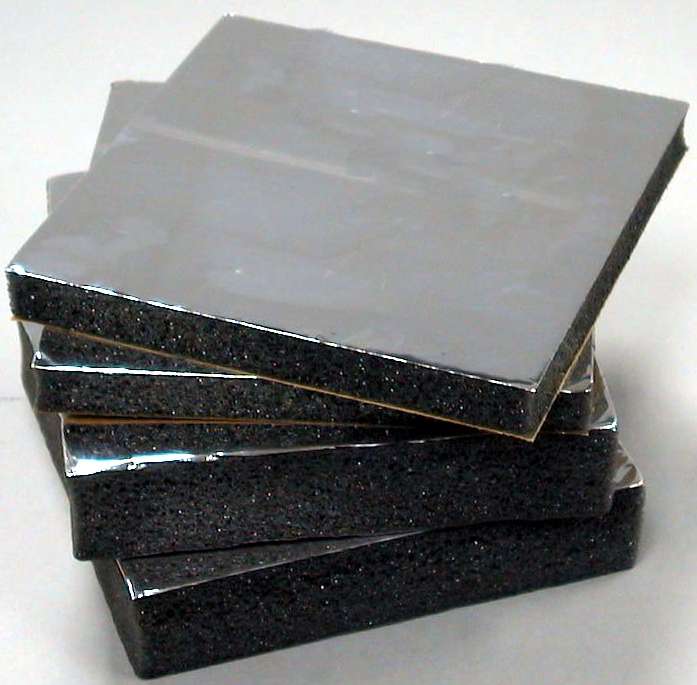

Jan 30, 2003 TUFCOTE H-Series SM is for noise control applications near high radiant heat and in enclosed equipment. Aluminized polyester-film facing reflects radiant heat and protects foam from soil and fluids. Layers of facing and foam fuse during processing to create bond that resists delamination. Foam is available in rolls, sheets, and custom die-cut parts in thicknesses from 1/2–2 in.

Despatch Industries    Minneapolis, MN 55440 1320

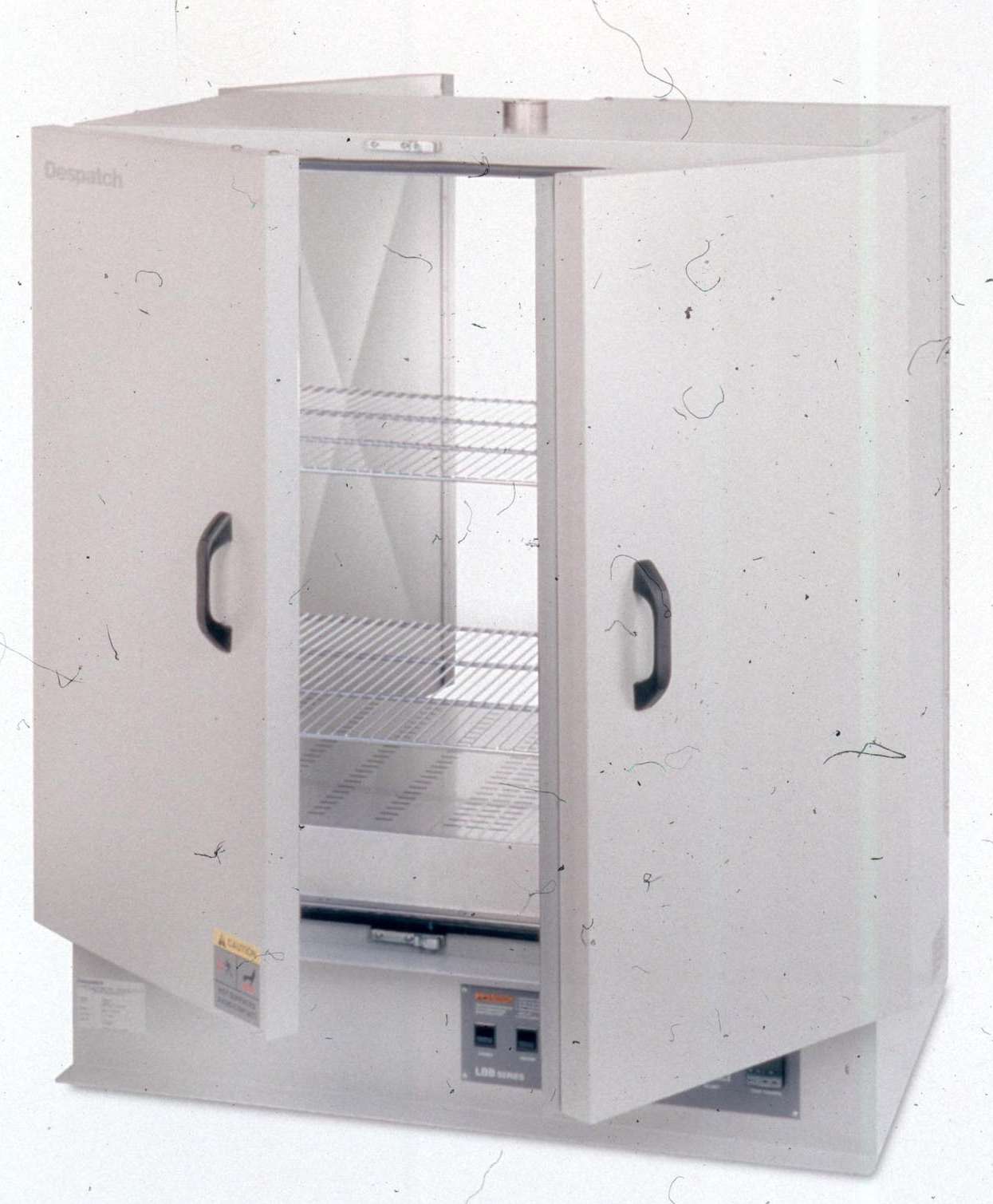

Jan 30, 2003 Model LBB Forced Convection Bench-Top Oven features front and back doors creating pass-through design, which increases throughput by maintaining continuous flow of products. Available in digitally controlled temperatures up to 400°F, oven offers chamber volumes of 18 or 27 cu ft. Corrosion-resistant stainless steel interior and nickel-plated shelves clean easily. Standard shelves hold up to 50 lb. Temperatures are displayed on ¾ in. LED panel.

Midland Machinery Co., Inc.    Tonawanda, NY 14151

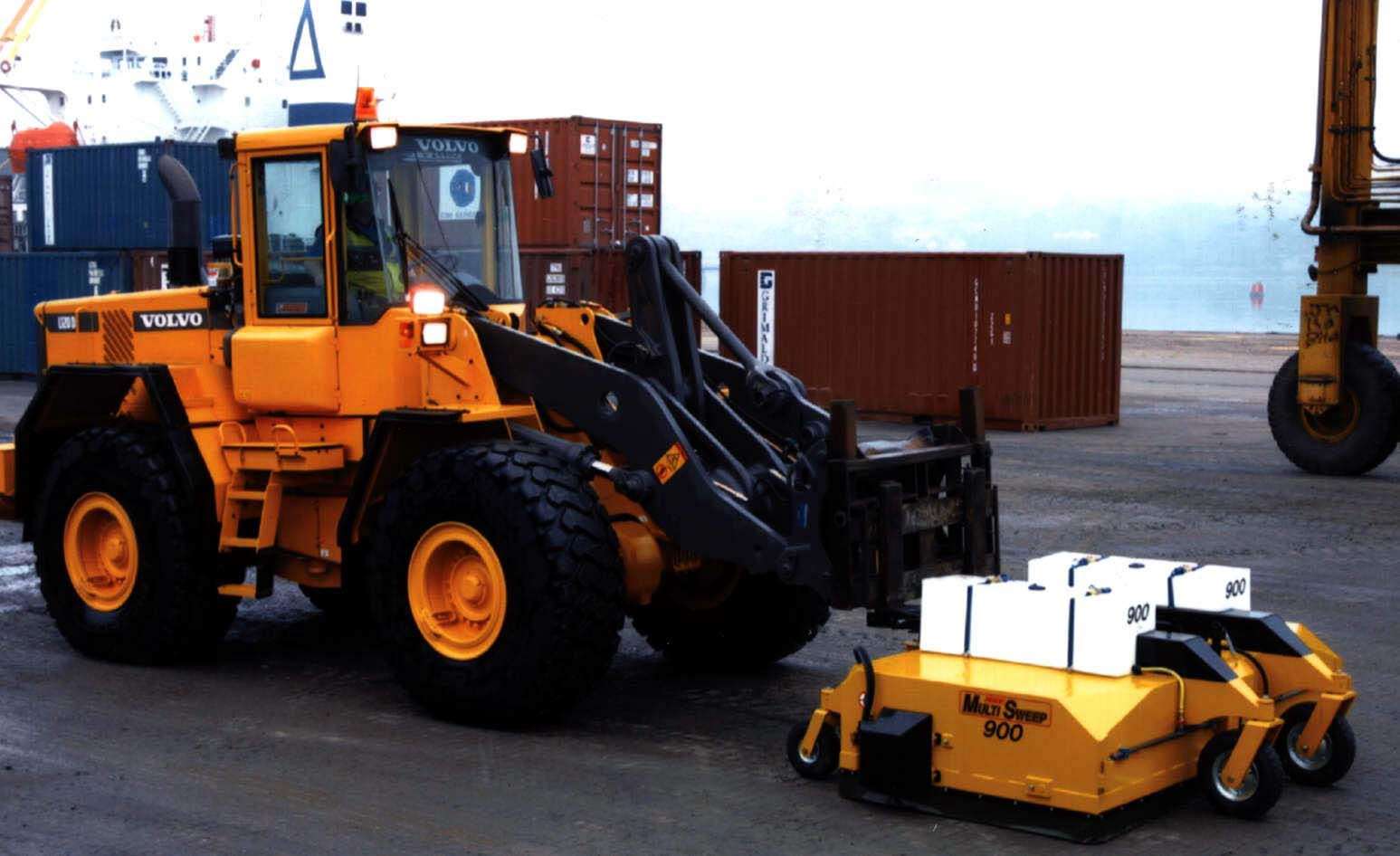

Jan 30, 2003 Multi-Sweep attachments, available in sweeping widths of 46, 59, 80, and 98 in., feature debris-collecting hoppers of 9.5, 14.0, 25.5, and 31.8 cu ft, respectively. They attach to wide range of prime movers with forks. Mix of 50% wire/50% poly rotating sweeper brushes pick up anything from fine granular materials to construction debris and mud. Direct-drive sweeper motor is powered by PTO through hydraulic wet lines of prime mover. Engine-powered models are also available.

Bonfiglioli North America    Concord, ON L4K 4L6  Canada
Jan 30, 2003 Series C helical speed reducers and gearmotors can be quickly configured to meet specific drive applications. Compact design allows for installation in space-restricted applications. Sizes 11-21-31 are available in cast aluminum.

Advance Transformer Co.    Rosemont, IL 60018 5625
Jan 30, 2003 Advance Centium® ICN-2S28 operates one or two 35, 28, 21, or 14 W T5 fluorescent lamps. IntelliVolt® technology allows 120–277 V operation at 50 or 60 Hz. Power factor is greater than 98% and Total Harmonic Distortion is less than 10%. High-frequency operation between 40–54 kHz prevents interference with infrared control systems. Ballast features 20 ft remote/tandem wiring, 0°F cold-starting capability, anti-arcing protection, and end-of-life lamp protection.

Automatic Filters, Inc.    Los Angeles, CA 90034
Jan 30, 2003 Tekleen® fully automatic, self-cleaning water filters feature stainless steel body and range in size from 1–24 in. dia with flow rates of 5–12,000 gpm. Absolute filtration to 50 microns is standard; 5 micron is optional. Filters are offered in on-line, in-line, parallel, and bell-shaped configurations. They can be manifolded together for unlimited flow capacities. Applications include utility water, chemical processing, irrigation, plastics, HVAC, and oil refining.

Carr Lane Manufacturing Co.    St. Louis, MO 63119
Jan 30, 2003 Marine Ball Lock Pins have 300 Series stainless steel handle and button, and Marine Detent Pins are made of stainless steel. Ball-lock pins come with L, T, button, or ring handles. Single-acting lifting pins are also available, as well as adjustable grip length pins and 3 types of double-acting pins. Ball-lock pins are positive locking, while detent pins have spring-loaded locking balls.

Druck, Inc.    New Fairfield, CT 06812
Jan 30, 2003 With all welded construction, PTX 300 Series is fully submersible with ambient pressure rating to 4,000 psi. Product utilizes micromachined piezo resistive silicon pressure measurement technology and is packaged to suit specific requirements of subsea hydraulic control systems. Series, offered with pressure ranges from 1,000–15,000 psi sealed gauge or absolute, offers better than 0.1% accuracy.

Pumpex Inc.    Lebanon, NJ 08833

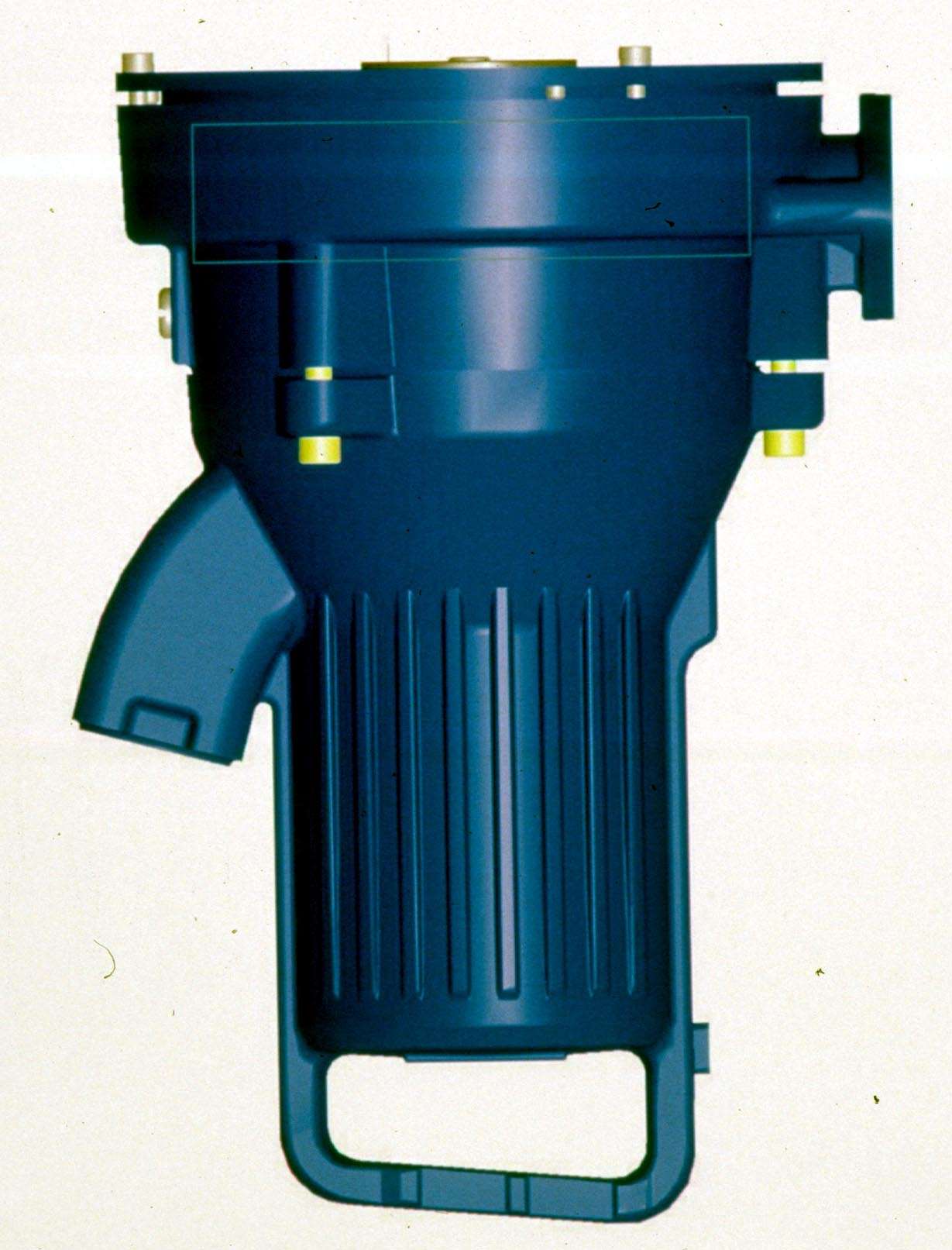

Jan 30, 2003 Models K60 and K63 non-clogging, submersible centrifugal sewage pumps are designed to pump solids, fibrous material, and sludge without suffering failure due to heat generation. Motor/pump unit is set into air-filled, watertight casing. Motor sizes range from 1.3–4.7 hp, single and 3-phase, producing flows through 280 gpm and heads of 84 ft. Portable version of pump, fitted with hose or flange connection, is also available.

PAM Fastening Technology    Charlotte, NC 28208
Jan 30, 2003 PILM Jumbo Joint Manual EC combines double vertical hold down clamps with nailing head and can be used with any type of moulding up to 4 ¾ in. wide. Joystick allows operator to position nailing head under moulding without moving frame. Machine operates on air and requires minimum of 120 psi. It measures 14 x 18 x 28 in. and uses variety of staples, including 4, 7, 10, 12, and 15 mm standard or double sharp sizes.

ARO - Ingersoll-Rand Fluid Products    Bryan, OH 43506

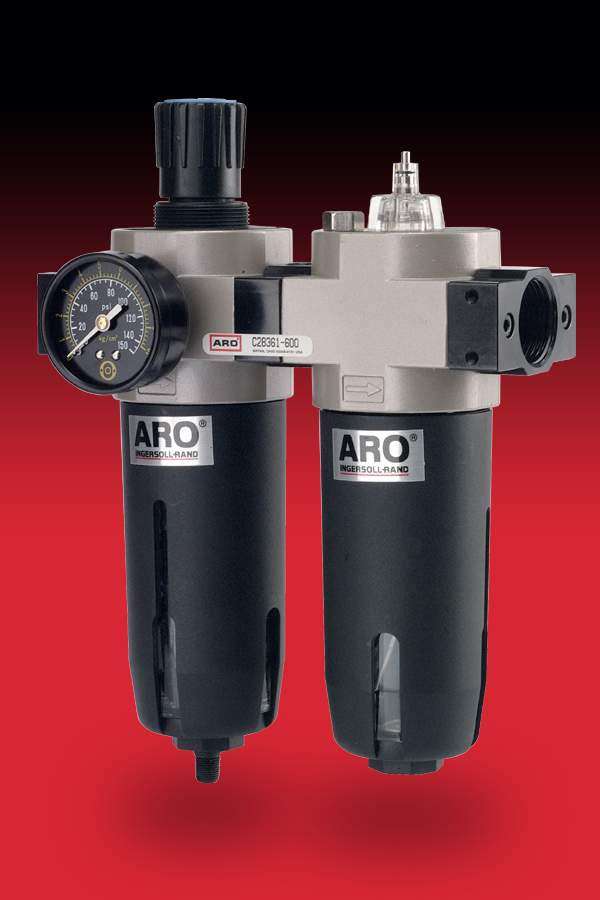

Jan 30, 2003 Module/Air® 3000 units are offered in piggyback filter/regulator model and piggyback filter/regulator/lubricator configuration. Both include site gage, polycarbonate bowls with metal guards, and mounting hardware. Automatic drain has pipe connection for draining away contaminates. Push-pull, non-rising adjustment knob avoids unwanted or accidental adjustment. Components protect against mechanical failure caused by oil, water, and particle contaminants in air line.

Leica Microsystems, Inc.    Buffalo Grove, IL 60089
Jan 30, 2003 Model DFC 300F, 1.3 Megapixel, color digital camera offers imaging for documentation and publication. DFC 350F, 1.3 Megapixel, monochrome camera offers near infrared sensitivity for analysis and quantification. Products, with Peltier cooling system, achieve exposure times in excess of 10 min and are built with CCD sensor design. They offer IEEE 1394 FireWire interface and are supported by driver architecture for OS X operating system.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Jan 30, 2003 Handheld, pneumatic, spray applicators dispense adhesive in 1.75 in. diameter areas. Hysol® 175-SPRAY achieves 180°C temperatures for dispensing EVA hot melts, while Hysol® 175-SPRAY-HT achieves 195°C temperatures for polyamide hot-melt dispensing. Both 500 W units feature adjustable flow controls and automatic end-of-cycle purge. Dispense rate is controlled by 45-100 psi air pressure, and timing is restricted with trigger mechanism.

Faspac Systems, Inc.    La Jolla, CA 92037
Jan 30, 2003 FASPAC-SQLâ„¢ Release 4.5 consists of applications for distribution, manufacturing, financials, eCommerce, business intelligence, and reporting. Radio Frequency (RF) warehousing capabilities allow pulling of product from inventory for multiple orders and pick lists in one warehouse walk-through. Intelligent Notes System and Instant Messenger enable information transfer and associativity, while Executive Dashboard functionality accesses up-to-date information in real-time via single Web page.

Mettler-Toledo Process Analytics    Bedford, MA 01730
Jan 30, 2003 InPro® 7000-VP Sensors have 2 electrodes for low-conductivity ranges and InPro® 7100 Sensors have 4 electrodes for medium- to high-conductivity ranges. All feature watertight VarioPin (VP) cable connection that assures reliable signal transmission even under wetted conditions. Process connections include NPT, 1 ½ and 2 in. Tri-Clamp, and 13.5 and 25 mm fittings. Hygienic designs are available for CIP and SIP applications.

Wonderware    Lake Forest, CA 92630
Jan 30, 2003 InTouch® v8.0 graphical human-machine interface software provides security and alarming capabilities and offers over 800 graphic symbol controls. It provides visualization for plant-centric, operator-centric manufacturing information systems. When using FactorySuite A² Industrial Application Server, it can leverage server's security model, component architecture, application logic, scalability, diagnostics and networked namespace.

Stoelting Co.    Wood Dale, IL 60191 1164
Jan 30, 2003 Products preserve levels of enzyme-regulated neurotransmitters and metabolic substances in brain at concentrations that exist in living tissue. Microwave Focusing Applicators act as catalysts, while uniform fixation of entire brain is achieved without changing/damaging hypothalamus or other soft, deep brain structures. Interchangeable applicators and holders are available from 20–500 g. Systems are available in max power output of 5 or 10 kW.

Farris Engineering, A Div. Of Curtiss-Wright Flow Control Corp.    Brecksville, OH 44141
Jan 30, 2003 PCM Modulating Pilot Control valve opens in proportion to overpressure to minimize emissions and product loss. Set pressure is not affected by constant or variable backpressure. ASME NB Certified for air, gas, vapor, and liquid services, unit is offered in sizes 1 x 2 in. through 8 x 10 in. with set-pressure range from 15–2,220 psig. Standard valve has all stainless steel construction and may be converted to NACE-compliant materials for sour-gas service.
