Hach Company    Loveland, CO 80539-0389
Jan 28, 2003 pHDâ„¢ series uses 3 measuring electrodes. Process electrode and standard electrode measure pH differentially with respect to third ground electrode. Technique provides reduced reference junction fouling and virtually eliminates ground loops.

C & D Technologies    Blue Bell, PA 19422-0858
Jan 28, 2003 Liberty Series 1000® FAM 12-100 valve regulated lead-acid battery has front terminal to simplify installation and reduce maintenance. Battery, with 100 A-hr rating, uses low-calcium lead alloy, which extends battery life through low grid corrosion and low gassing. Features include flame retardant polypropylene jar and cover that meet UL94 VO and flame arresting one-way low-pressure release vent that prevents flashback hazards from external sparks.

C & D Technologies    Blue Bell, PA 19422-0858
Jan 28, 2003 Liberty Series 2000 SuperMAX® Battery System offers 295–2,000 A-hr capacity. Positive grids improve plate performance an average of 4.6% at 8 hr rate to 1.75 vpc cutoff. Able to maintain cell compression without mechanical devices, plates are oriented horizontally. Maximizerâ„¢ internal catalyst reduces float current and limits oxygen and hydrogen loss. Rack base incorporates solid steel plate and clear faceplates for visual inspection.

C & D Technologies    Blue Bell, PA 19422-0858
Jan 28, 2003 Liberty® Series 2000 SuperMAXâ„¢ HD-2000 valve regulated lead-acid battery features horizontal plate orientation and movable positive post seal. System has rack frames, removable shelves, and solid base plate. Two Maximizerâ„¢ catalysts aid in recombination process, reduce float current, and maintain cell capacity. Low gravity model SuperMAX HDL-1700 is for low float applications at 2.2O Vpc and has 1.215 specific gravity flooded batteries.

Rockwell Automation    Milwaukee, WI 53204
Jan 28, 2003 Updates to PanelView(TM) 600 Touch Only display provide vibrancy with advanced color separation and consistent backlighting for heightened clarity. With flat-panel design, operator interface terminals offer alarm handling, screen security, analog gauges, universal language support, and online printing. Display can be networked through communication protocols including DeviceNet(TM), EtherNet/IP, Data Highway Plus(TM), Remote I/O, RS-232, and Profibus.

Algor Inc.    Pittsburgh, PA 15238
Jan 28, 2003 FEMPRO single user interface with full finite element modeling, results evaluation, and presentation environments is a Windows-native interface that increases productivity of engineers. Software features docking toolbars, multiple views, keyboard and mouse controls, tree view of model parts, and real-time data checking. Suite of modeling capabilities includes InCAD technology for direct CAD/CAE data exchange and support for CAD universal files.

Diversified Technology Inc.    Ridgeland, MS 39157

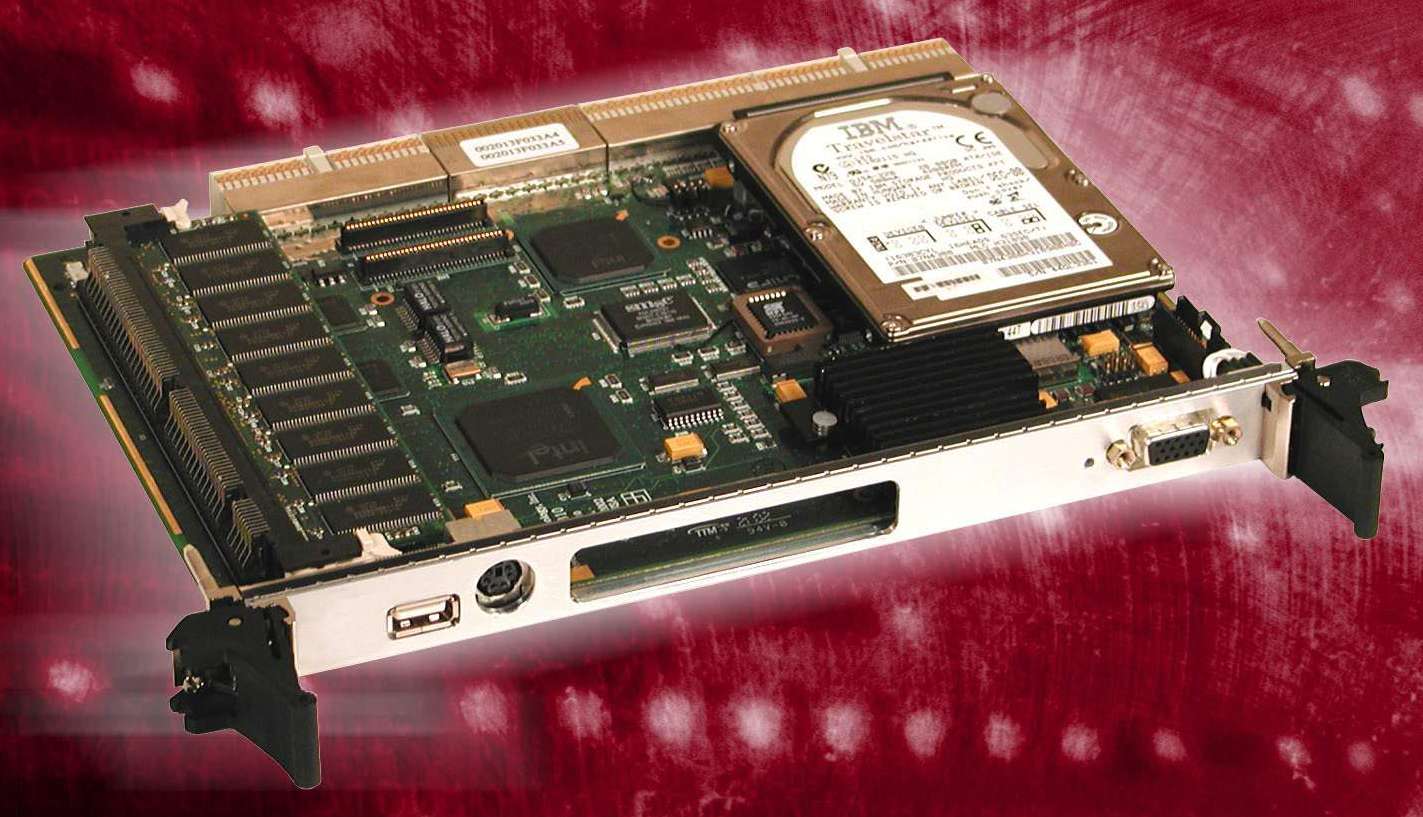

Jan 27, 2003 cPB-4311 dual use compute blade provides 2.16-based Ethernet communications or 2.17 mesh communications as either host or node blade. Offerings include 700 MHz Intel® Pentium® III processor, up to 512 MB ECC SDRAM, two 10/100 Mbits/sec Ethernet auto-negotiating controllers, optional Ultra DMA/33 IDE hard drive, and 32-bit/33 MHz PMC site. StarGen SG2010 bridge provides links to dual StarFabric meshes, and 2 Ethernet controllers provide links to 2.16 Packet Switched Backplane.

NewAge Industries Inc.    Southampton, PA 18966
Jan 27, 2003 Multi-layered hose, with smooth, conductive, polyamide core, transfers coating materials such as paints, isocyanates, polyols, solvents, and chemicals. Construction includes double-braid reinforcement of polyester and protective outer jacket of chemical- and abrasion-resistant polyurethane. Able to retain its flexibility between -40 and +212°F, hose is offered in 8 sizes from 3/16–1 in. ID for working pressures from 3,625–1,015 psi.

Dwyer Instruments, Inc.    Michigan City, IN 46361

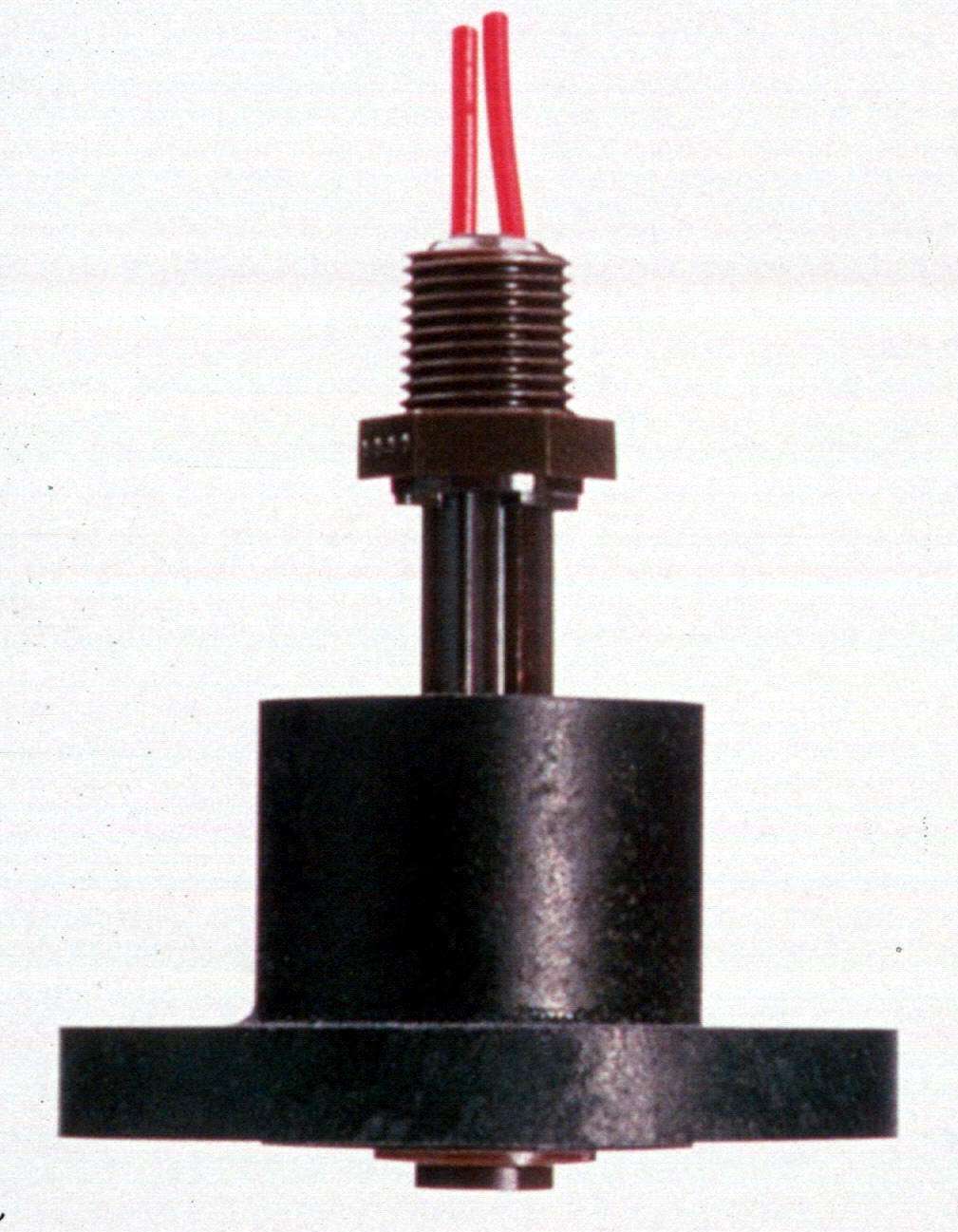

Jan 27, 2003 Model F7-LL Low Liquid Level Switch detects levels as low as 5/8 in. from tank bottom. Device has hermetically sealed reed switch, Polysulfone stem and mounting, and Buna-N float. Applications include water, gasoline, petroleum products, and some oils and chemicals. Switch has temperature range of -40 to 180°F, pressure limit of 50 psig max at 70°F, and approximate deadband of 1/16 in.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117

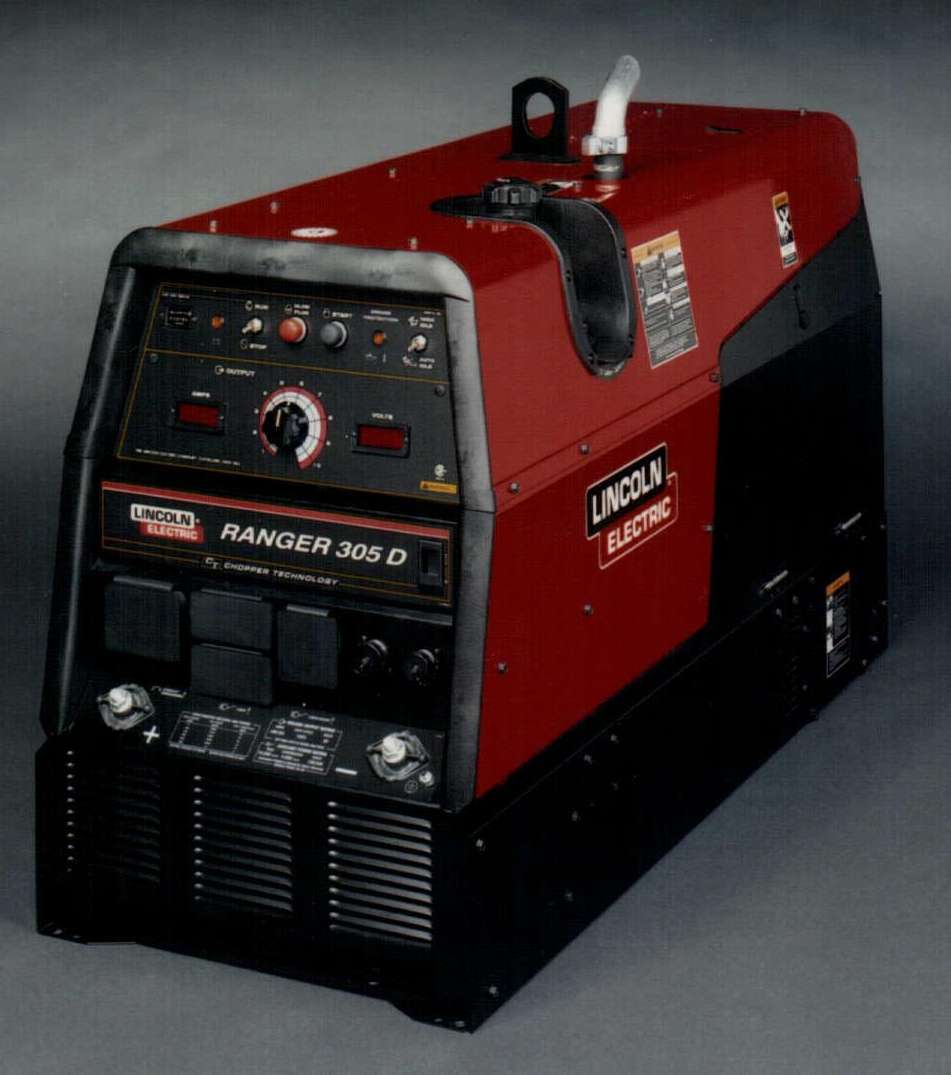

Jan 27, 2003 Stick, TIG, wire, and pipe-welding Rangerâ„¢ 305D has enclosed case, Chopper Technologyâ„¢, and 12 gal fuel tank. Powered by 3-cylinder Kubota® D722 diesel engine, it delivers 9,500 continuous W of 120/240 Vac generator power. Multi-process 300 A dc diesel-engine drive welder offers arc-control adjustment, plus fuel pump with air-bleed system that eliminates manual air bleeding if tank is run dry.

Edmund Optics    Barrington, NJ 08007

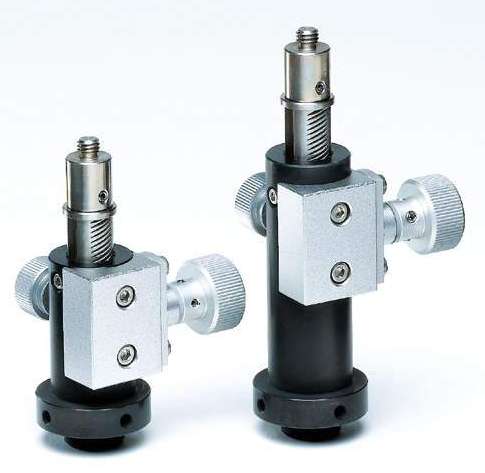

Jan 27, 2003 Manual positioners employ positive spring-loaded carriage that provides smooth motion with no backlash. Offered with 80 thread/in. lead screw drives and covered rails, they can combine to create 2- or 3-axis positioners. Size A stages travel 0.125 in. with max runout of 1 µm, return force of 113-312 g, and direct top or side load capacity of 0.25 kg. Size B stages travel 0.500 in. with max runout of 1.5 µm, return force of 170-567 g, and direct top or side load capacity of 0.34 kg.

NKK Switches    Scottsdale, AZ 85260-3420

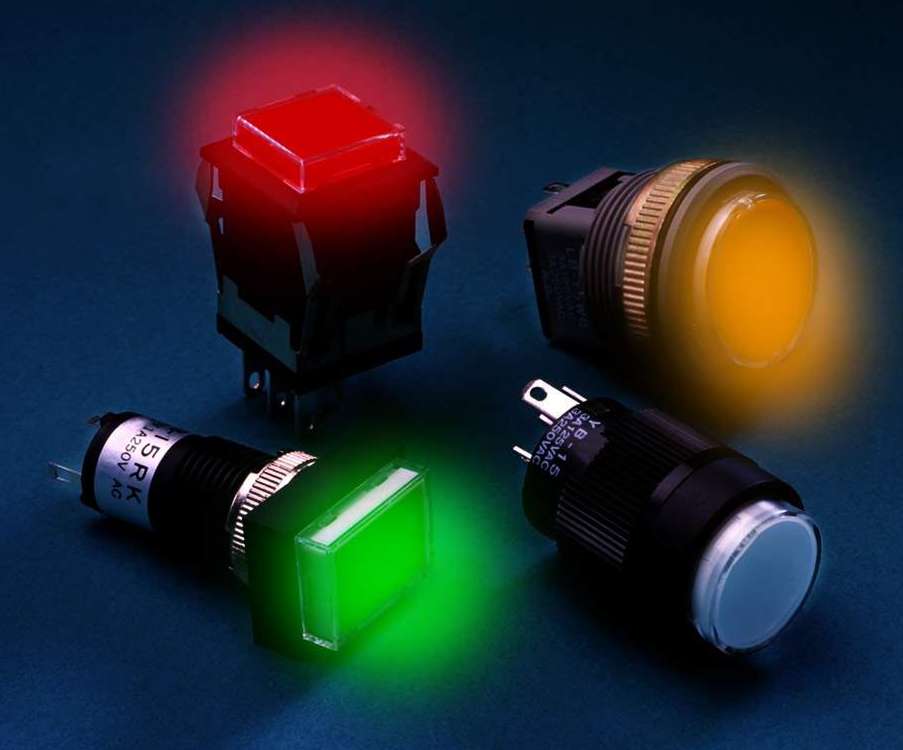

Jan 27, 2003 Series YB, LB, and KB pushbuttons, with single-element LEDs, are offered with or without built-in resistors. LEDs with built-in resistors are available in 5, 12, and 24 V ratings. LEDs are available in red, amber, and green to illuminate full face of pushbutton cover. Various models offer PC adapters in single- or 2-pole configurations, with straight-PC or right-angle mount for single-pole options. Ambient temperature range is -25 to +50°C.

Advanced Fiber Solutions, Inc.    Milton, MA 02186
Jan 27, 2003 OM200 series data storage meters include OM220, for general purpose applications, OM210, for POF and short wavelength applications, and OM230, for high powered CATV applications. Meters feature auto power down, zero reference capability, user selectable resolution of 0.1 or 0.01 dB, and storage for 500 time and date stamped readings. Units come with PC software for reporting and documentation.

Spectrum Sensors & Controls    St. Marys, PA 15857

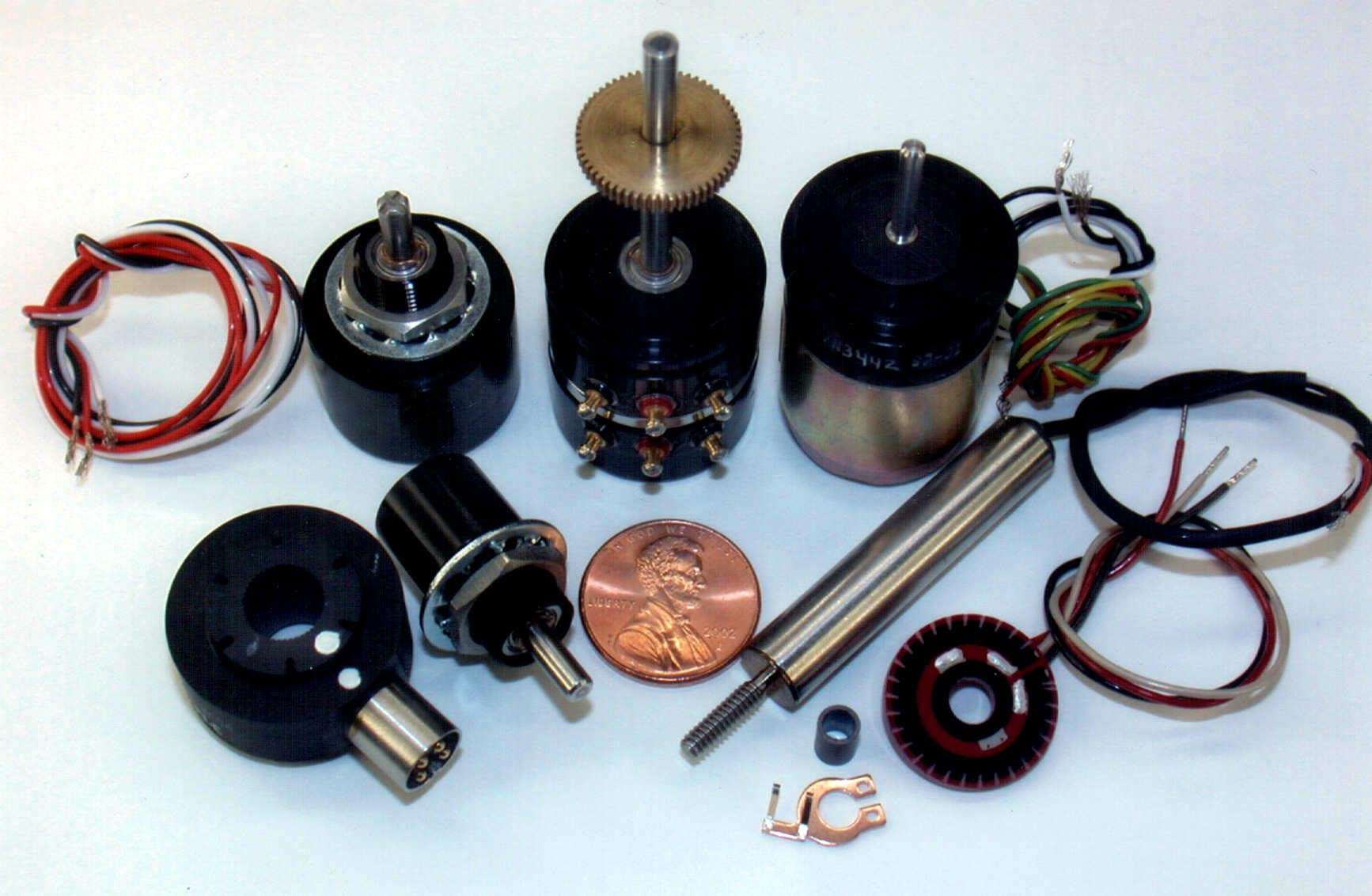

Jan 27, 2003 Potentiometers offer 100,000,000 revolutions/strokes minimum life, providing alternative to encoders, LVDT's RVDT's, and resolvers. Flush circuit element produces long life. Units are available in standard or custom designs, with open or closed packaging. Applications include actuators, robotic joints, motor feedbacks, valve positioning, engine controls, and joysticks/video controls.

Maag Pump Systems Textron Inc.    Charlotte, NC 28273
Jan 27, 2003 Viscorex® 20 in. polymer gear pump manages throughputs up to 70,000 lb/hr. It comes standard in cast steel or corrosion resistant steel. Temperatures can reach up to 662°F with discharge pressure up to 1,000 psi for cast steel and 1,700 psi for corrosion-resistant steel.

Extech Instruments Corp.    Nashua, NH 03063
Jan 27, 2003 Model 42530 uses built-in laser pointer to target area to be measured, and provides measurements from -58 to 1,000°F with 1° resolution. LCD with backlight allows viewing in dim light. Narrow field of view measures 1 in. target at 6 in. distance. Fixed emissivity of 0.95 covers 90% of surface temperature applications. Thermometer includes automatic data hold feature and audible and visual over range indicators.

Komatsu America International Company    Vernon Hills, IL 60061
Jan 27, 2003 Model BR480RG-1 is powered by 306 hp SAA6D125E-2 engine and equipped with KR1313 impact crusher. Rotor with variable speed drive enables processing volume and gradation to be adjusted quickly. Semi-auto feeder system adjusts feed if crusher becomes overloaded. Grizzly feeder with muck extraction uses upward slope feeder and 2-stage grizzly bar to remove muck and make it difficult for finer material to enter impactor. Rotating beacon flashes during malfunction.

Square D Co.    Palatine, IL 60067
Jan 27, 2003 POWERLOGIC® Power Server 750 self-contained web server can be used as stand-alone system for local power monitoring or for enterprise-wide applications. It connects up to 64 compatible devices. Once installed, users can access data over web through preconfigured web pages. Using intelligent data-publishing feature, unit can transfer collected information to enterprise system server, making it possible to analyze and monitor large number of sites.

Renishaw, Inc.    Hoffman Estates, IL 60192
Jan 27, 2003 Laser Model RLE interferometer-based encoder uses fiber optic links to transport laser beam directly to axis measuring position. Optical beam-steerer reduces laser alignment to simple bolt-down and dial-in process. Using retroreflectors or plane mirrors, system can be applied to axis lengths up to 4 m. It allows outputs in digital RS422 format quadrature, with resolutions from 10-633 nm, or 1 Vpp Sin/Cos signals.

OSI Systems Inc.    Cherry Hill, NJ 08003

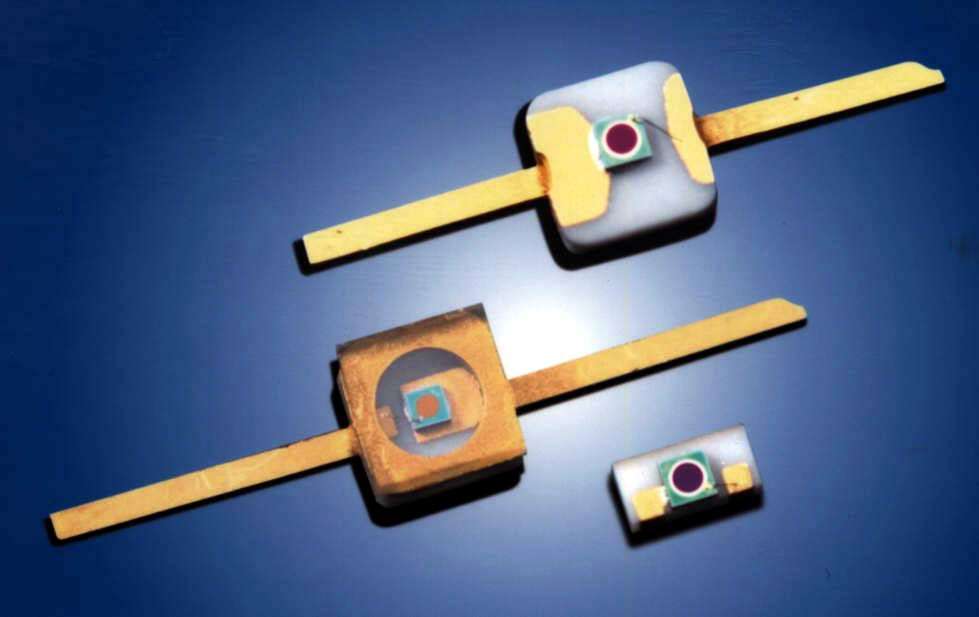

Jan 27, 2003 InGaAs Photodiodes offer active area sizes of 120, 300, 400, and 500 µm. IR-sensitive units have responsivity of 1310-1550 nm and operate in spectral range from 900-1700 nm. Model FCI-InGaAs XXX-CCER is mounted on gull wing ceramic substrates with glass windows. Model FCI-InGaAs XXX-WCER features monitor photodiodes mounted on metallized ceramic substrates. Angled surface of 5° on ceramic substrate of Model FCI-InGaAs-XXX-ACER reduces back reflection.
