Mettler-Toledo Process Analytics    Bedford, MA 01730
Jan 30, 2003 InPro® 7000-VP Sensors have 2 electrodes for low-conductivity ranges and InPro® 7100 Sensors have 4 electrodes for medium- to high-conductivity ranges. All feature watertight VarioPin (VP) cable connection that assures reliable signal transmission even under wetted conditions. Process connections include NPT, 1 ½ and 2 in. Tri-Clamp, and 13.5 and 25 mm fittings. Hygienic designs are available for CIP and SIP applications.

Wonderware    Lake Forest, CA 92630
Jan 30, 2003 InTouch® v8.0 graphical human-machine interface software provides security and alarming capabilities and offers over 800 graphic symbol controls. It provides visualization for plant-centric, operator-centric manufacturing information systems. When using FactorySuite A² Industrial Application Server, it can leverage server's security model, component architecture, application logic, scalability, diagnostics and networked namespace.

Stoelting Co.    Wood Dale, IL 60191 1164
Jan 30, 2003 Products preserve levels of enzyme-regulated neurotransmitters and metabolic substances in brain at concentrations that exist in living tissue. Microwave Focusing Applicators act as catalysts, while uniform fixation of entire brain is achieved without changing/damaging hypothalamus or other soft, deep brain structures. Interchangeable applicators and holders are available from 20–500 g. Systems are available in max power output of 5 or 10 kW.

Farris Engineering, A Div. Of Curtiss-Wright Flow Control Corp.    Brecksville, OH 44141
Jan 30, 2003 PCM Modulating Pilot Control valve opens in proportion to overpressure to minimize emissions and product loss. Set pressure is not affected by constant or variable backpressure. ASME NB Certified for air, gas, vapor, and liquid services, unit is offered in sizes 1 x 2 in. through 8 x 10 in. with set-pressure range from 15–2,220 psig. Standard valve has all stainless steel construction and may be converted to NACE-compliant materials for sour-gas service.

Omron Electronics, LLC    Schaumburg, IL 60173
Jan 30, 2003 Model G3TC features built-in hold down screw, which fastens relay to board to eliminate loosening by vibration. AC input module's operating voltage is 90-140 Vdc/ac and 180-280 Vdc/ac, while DC input module's range is 10-32 Vdc/ac. Logic level output supply voltage is 5-24 Vdc on both input modules. AC output module's applicable load is 3 A @ 75-280 Vac depending on model. Input voltage is 5-24 Vdc. DC output module's applicable output load is 3 A @ 5-60 Vdc and 1 A at 5-200 Vdc.

Intek Integration Technologies    Bellevue, WA 98004
Jan 30, 2003 Slot Logikâ„¢ helps justify storage media expenditures by analyzing products and recommending appropriate storage media. Software also performs slotting of high velocity SKUs by product families in optimal pick locations, and minimizes travel time by allowing users to fine-tune and test forward pick locations' min/max levels. Able to automatically determine ideal slot size for item's forward pick face and overstock locations, software optimizes space and cube utilization.

Metrolux Lighting    Franklin Park, IL 60131

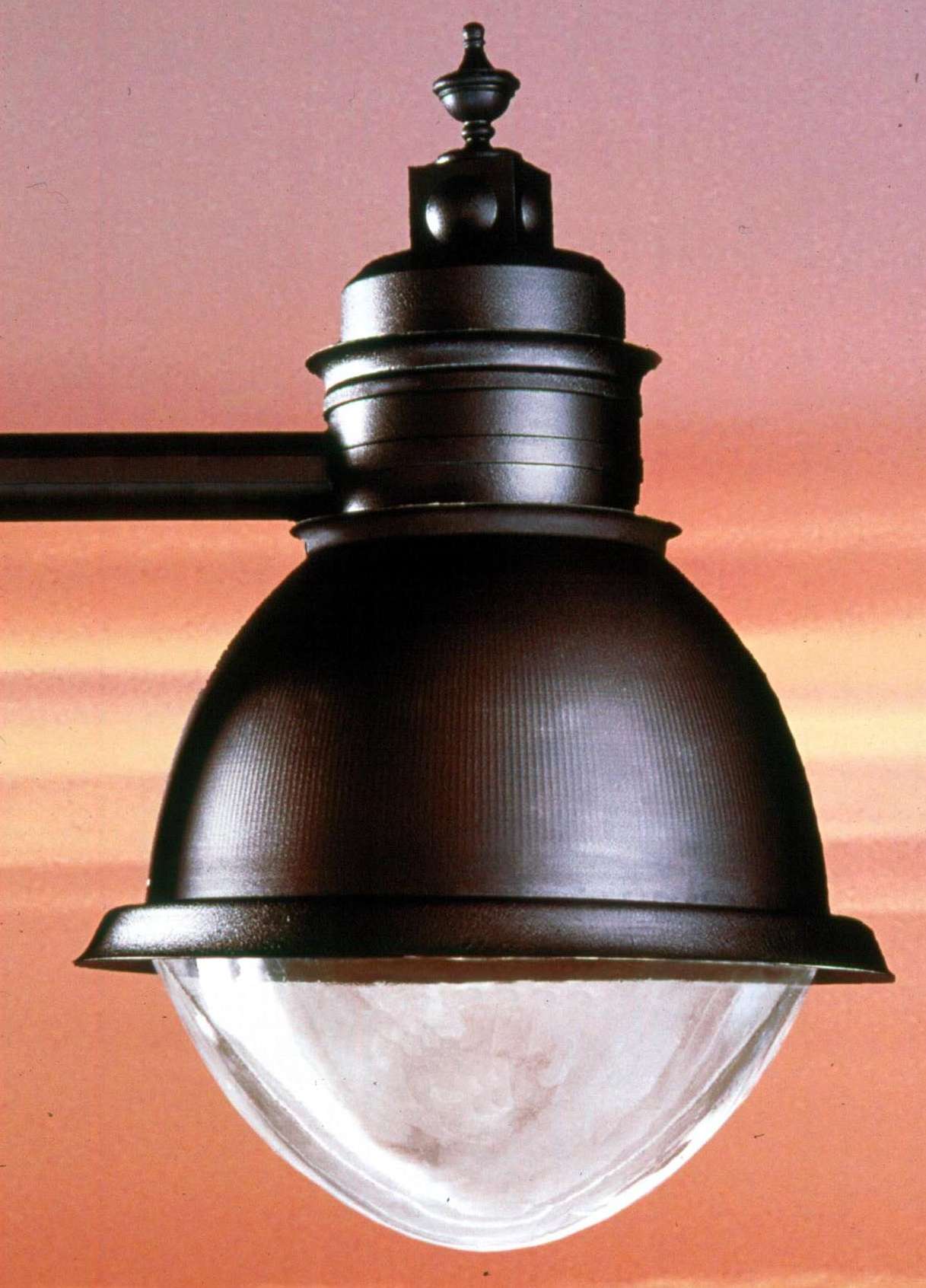

Jan 29, 2003 VillageMasterâ„¢ luminaires produce evenly distributed, glare-free illumination. Housing has integral metal ballast housing across metal shade, with ornamental center finial on top. Raised metal lip on lower edge of shade deflects moisture and airborne debris. One-piece rotatable reflector features clear anodized surface with 288 computer enhanced facets that maximize output. Vertically oriented MH, MHP, or HPS lamp options deliver effective projected light area of 2.8 sq ft.

Kliklok Corp.    Decatur, GA 30035-4023

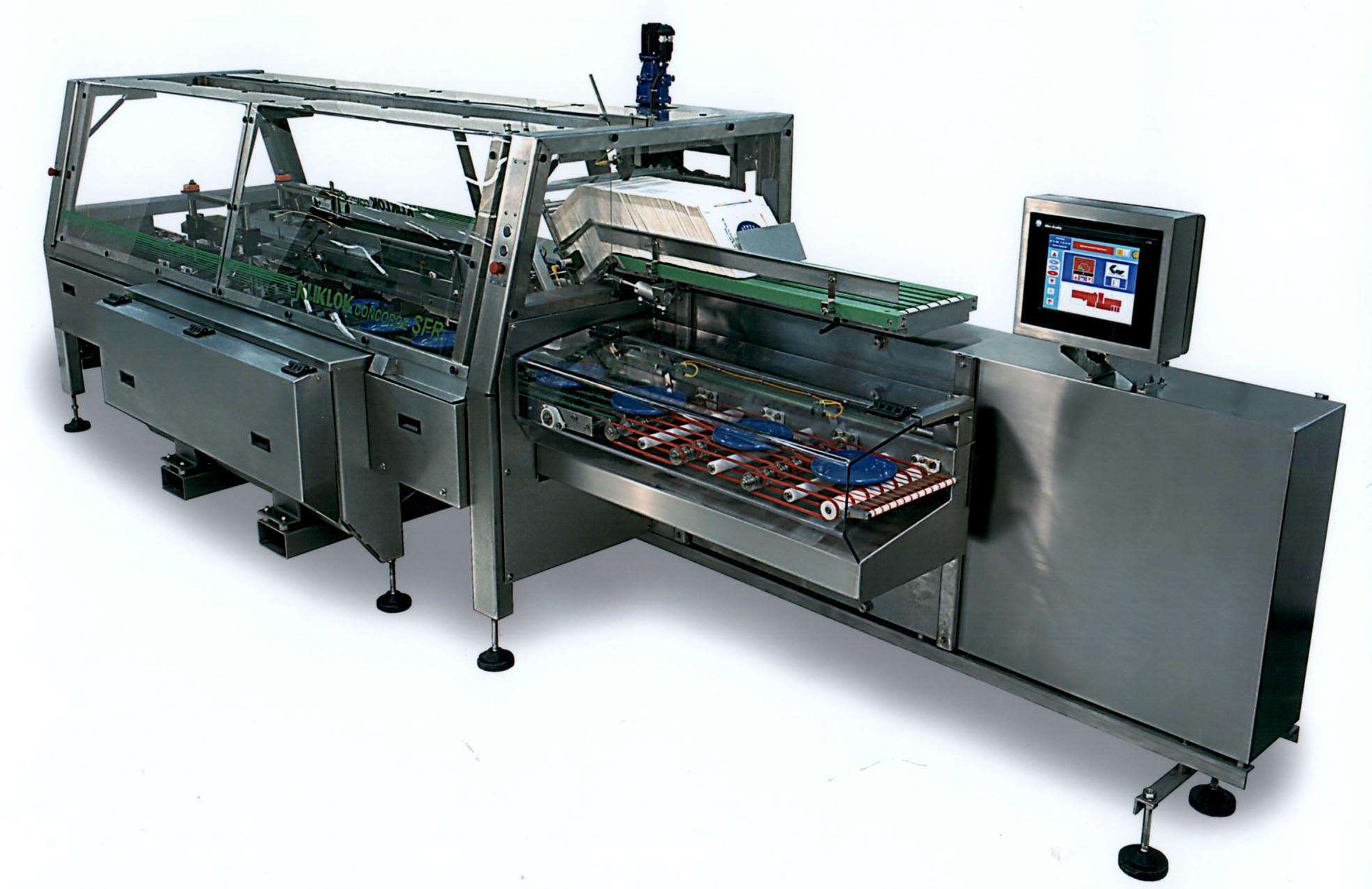

Jan 29, 2003 Horizontal end-load Model SFR Servo (Small Footprint Rotary) cartoner provides complete automatic product handling and cartoning at speeds to 120 cpm. It includes 3-arm rotary carton feeder and adjustable 4-chain captured carton conveying system, which insures maximum carton squareness and control. Stainless steel machine is equipped with Allen-Bradley controls and offers 5 min tool-less changeovers, machine diagnostics, and reporting.

Freedom Applications Ltd.    Cleveland, OH 44112
Jan 29, 2003 AMMO (Access Manufacturing Management Overlay) v3.2 includes standard forms and modules to run both office and shop. Software allows users to track time and materials through shop floor data entry, scan prints and sketches into engineering files, and maintain up-to-date inventory. Tailored to small manufacturers, AMMO fills the gap between simple accounting packages that produce invoices and checks and more complicated ERP/MRP systems.

Koskovich Engineering Services Co.    Rochester, MN 55906 6843
Jan 29, 2003 Fed by automated material handeling system, Omni Miser pushes material through machine at 51 in./sec and prints part ID's and other information. Wood processing system downloads optimized component cutting and marking lists from design office, selects raw stock from magazines or bunk feeder, and dispenses it to saw. Product, with servo-controlled gripper and pneumatic gripper/pusher, confirms length of material selected is long enough to produce intended components.

Solar Compounds Corp.    Linden, NJ 07036
Jan 29, 2003 Non-abrasive Solarite EA-0504 cures at room temperature and does not become brittle. It offers high-impact and vibration resistance and is suitable for use in automatic dispensing equipment. Epoxy provides adhesion to wood; metals, including aluminum, stainless steel, copper, and brass; and plastics, including ABS, polycarbonate, and fiberglass. It requires no special surface preparation, and maintains peel and shear strengths even after prolonged exposure at 140°F.

Master Appliance Corp.    Racine, WI 53403
Jan 29, 2003 Butane-powered, hot-melt Model GG-100 PORTAPROâ„¢ comes with gun, brass application nozzle, and four ½ x 6 in. glue sticks. It provides fast start up with pushbutton piezo ignition, and offers continuous run time of up to 140 min. Instant glue-flow cut-off reduces dripping. Safety lock on fuel flow prevents unintentional gas flow. Glue gun has 200 W heater that operates up to 392°F, delivering 1.9 lb of glue per hour. Kit package is also available.

Scapa North America    Windsor, CT 06095

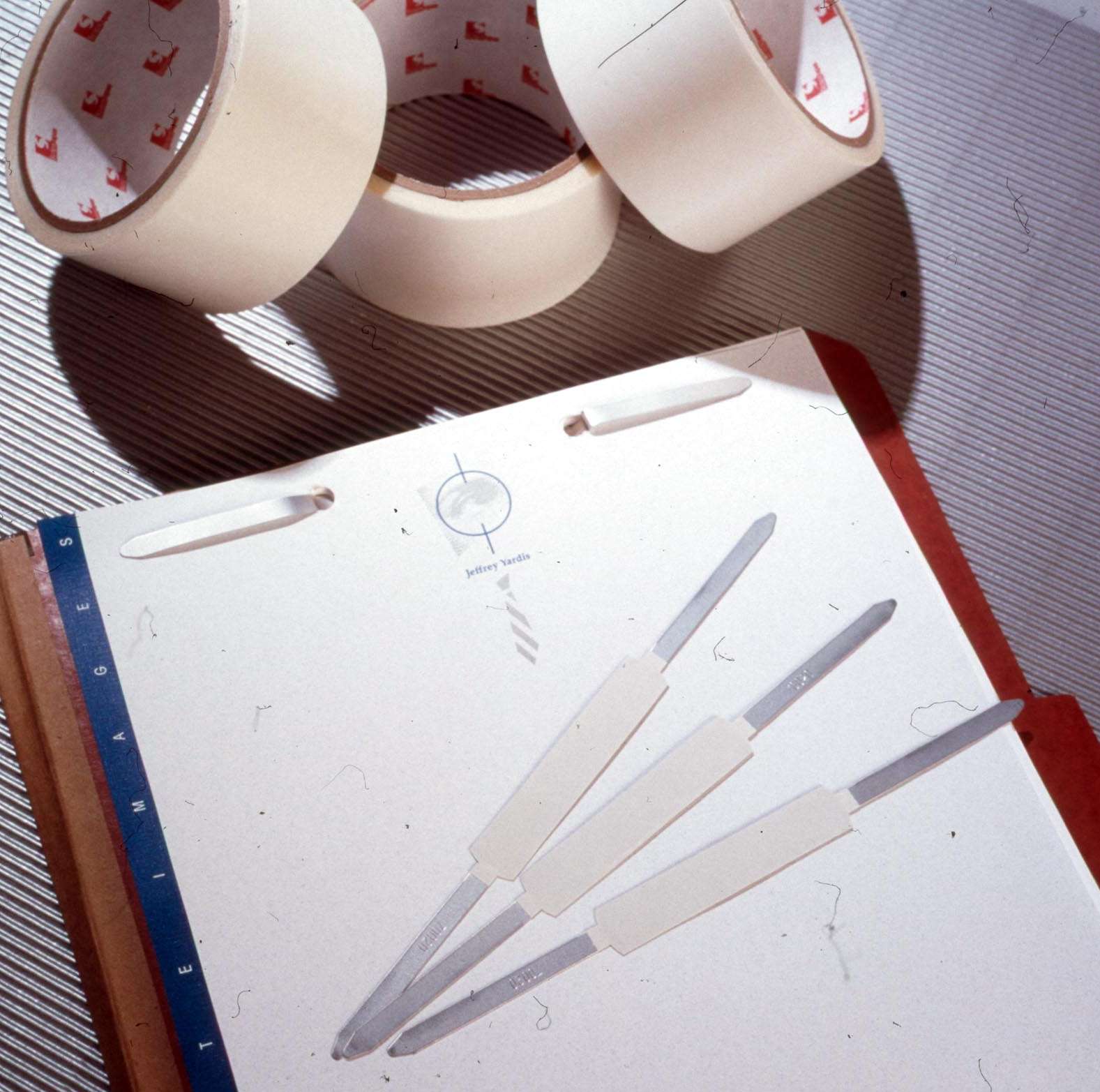

Jan 29, 2003 Pressure-sensitive Dublfilm® S500 exhibits chemical resistance and high-temperature performance. Firm, acrylic film adheres to metals and engineered plastics, offering balance of tack and peel, and can be die cut without gumming up dies. Dublfilm S500 is pattern coated onto polyester film carrier, creating dry edge that allows for easy handling and facilitates removal of paper release liner.

Baumer Ltd.    Southington, CT 06489 1534
Jan 29, 2003 Absolute Cam Encoder monitors speed, direction, and position, allowing user to control 16 outputs through 250 programmable cams. Able to retain cam position information in event of power loss, product has IP65 housing that measures 58 mm in diameter and 78 mm deep. Encoder can be programmed through serial interface with Windows-based PC using PROGEBER. Unit offers 24-bit overall resolution and single and multi-turn steps that can be adjusted separately.

JJI Lighting Group    Mamaroneck, NY 10543 2257

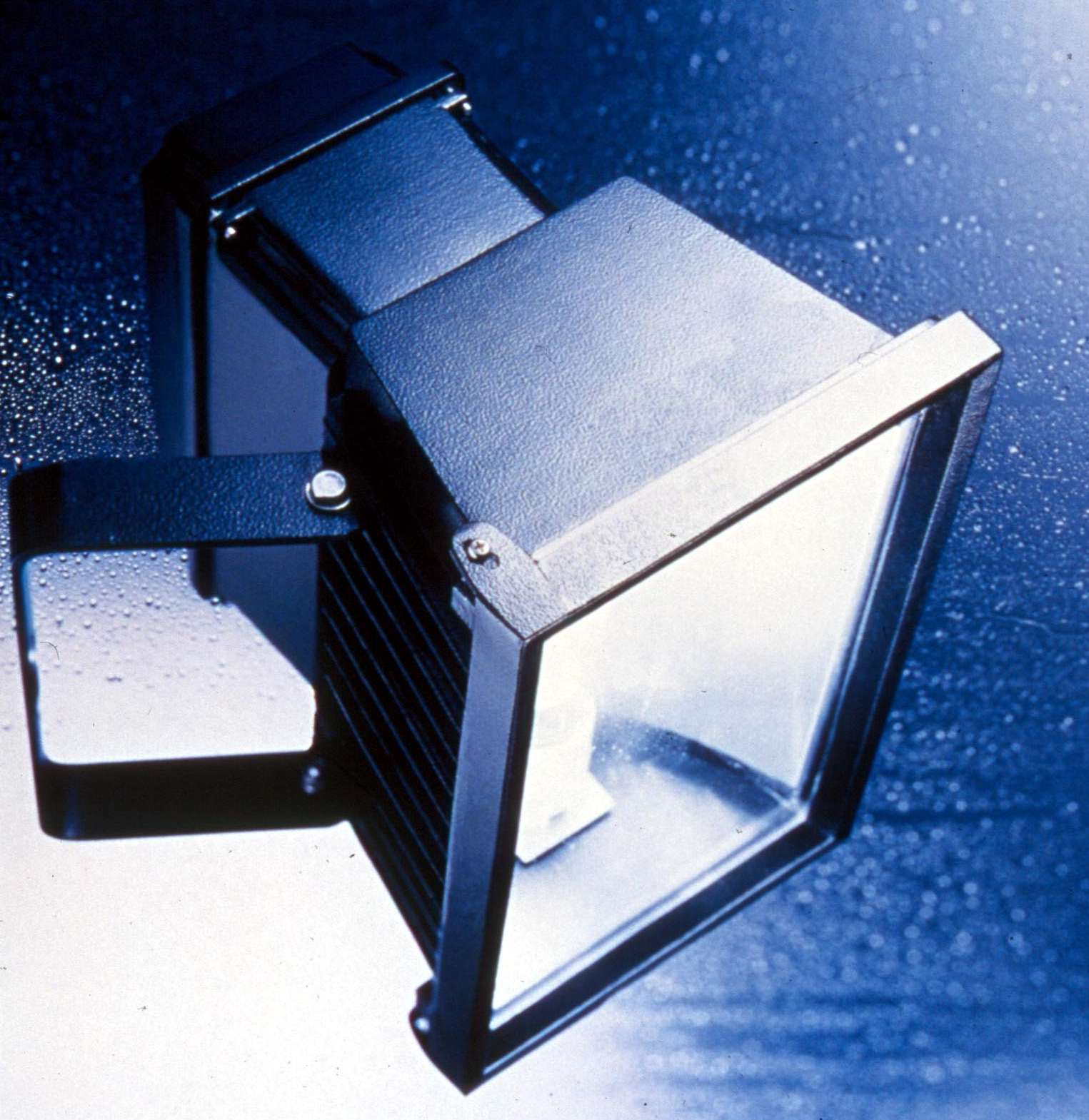

Jan 29, 2003 Eurocastâ„¢ FLV-52 produces crisp, controlled illumination in choice of short, medium, and tall light patterns. It features aimable stepped housing, flat rectangular lens, and low EPA rating of 2.35 sq. ft. Illumination is provided by metal halide, metal halide pulse-start, or high-pressure sodium lamps in wattages between 600–1000. FLV-52 ballast operates within ±10% of lamp power and is rated for temperatures to -200°F.

Retsch, Inc.    Irvine, CA 92614
Jan 29, 2003 Model PK 1000 Rotary Tube Divider extracts samples from granular or powdered substances with feed size up to 10 mm. Introduced to divider through vibratory feeder, product passes into cone where rotary tube rotates at constant speed of 50 rpm. With each rotation, portion of sample is deposited by rotary tube through slot into sample collector. Dividing ratio and volume of extracted sample are determined by width of slot, which can be adjusted continuously from 0-73 mm.

C & D Technologies    Mansfield, MA 02048-1151

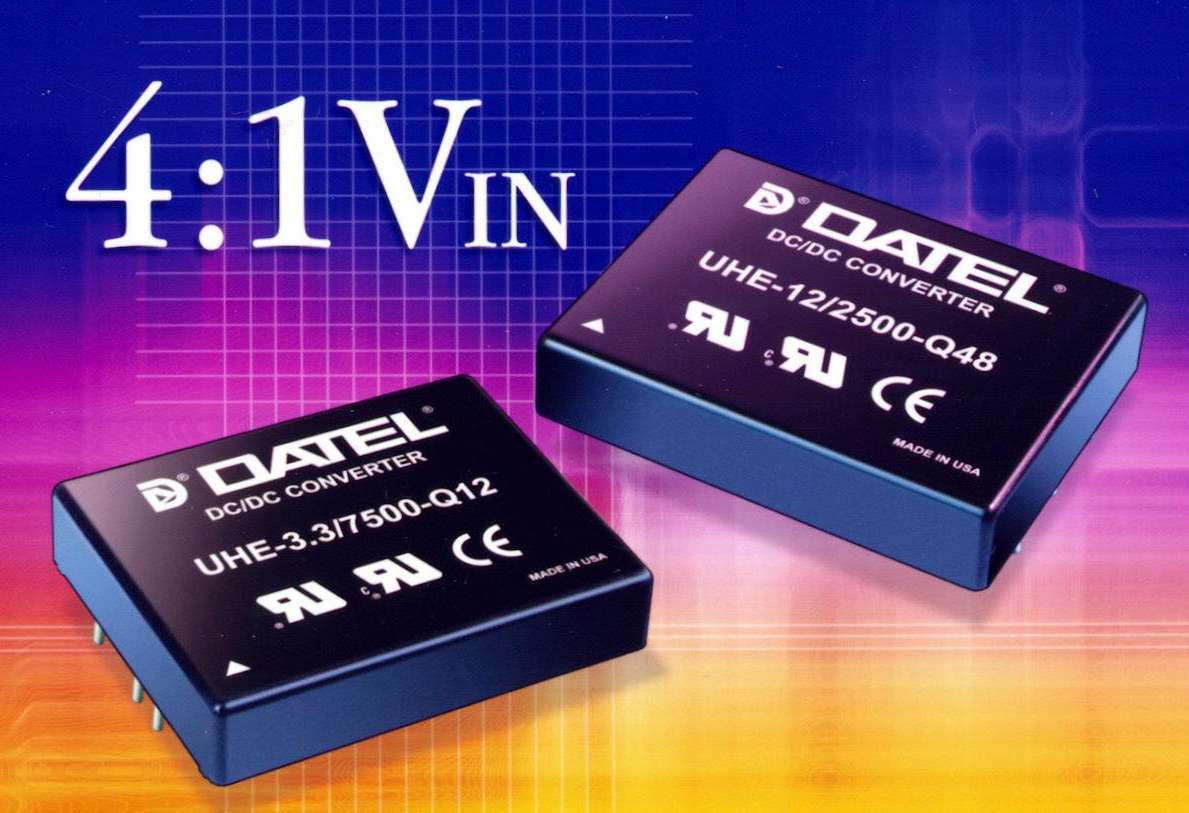

Jan 29, 2003 Series UHE 25-30 W converters include Model Q12 with input range of 9-36 V, and Model Q48 with input range of 18-75 V. They come in 1.6 x 2 x 0.4 in. encapsulated plastic package, and feature 1500 Vdc isolation, efficiencies as high as 90% and I/O protection. Output voltages and currents include 3.3 V @ 7.5 A, 5 V @ 5 A, 12 V @ 2.5 A, and 15 V @ 2 A. Units are UL/EN/IEC60950 certified and suited for mobile IP routers, wireless base stations, and multi-continent instrumentation.

Alfa Laval Inc.    Richmond, VA 23231
Jan 29, 2003 AlfaChill models include 3 single-circuit brazed heat exchangers (models AC10, AC20, and AC50), and 1 dual-circuited unit (model) AC80. Units offer low hold-up volume and cooling capacity from 0.3–23 tons refrigeration. Able to be used for refrigeration duties, all models have CE or UL approval.

Alfa Laval Inc.    Richmond, VA 23231
Jan 29, 2003 Automated AlfaVap(TM) concentrates process liquids that contain dissolved and finely dispersed proteins of animal or fish origin. Utilizing forced circulation, unit can be supplied as single-stage, 2-stage, or 3-stage evaporator depending on heating medium, throughput, or concentration requirements of end product. Capacities are offered from 2,000-35,000 lb/hr. Acceptable process fluids include stick water from fishmeal, glue water from meat by-products, and gelatin products.

Alfa Laval Inc.    Richmond, VA 23231

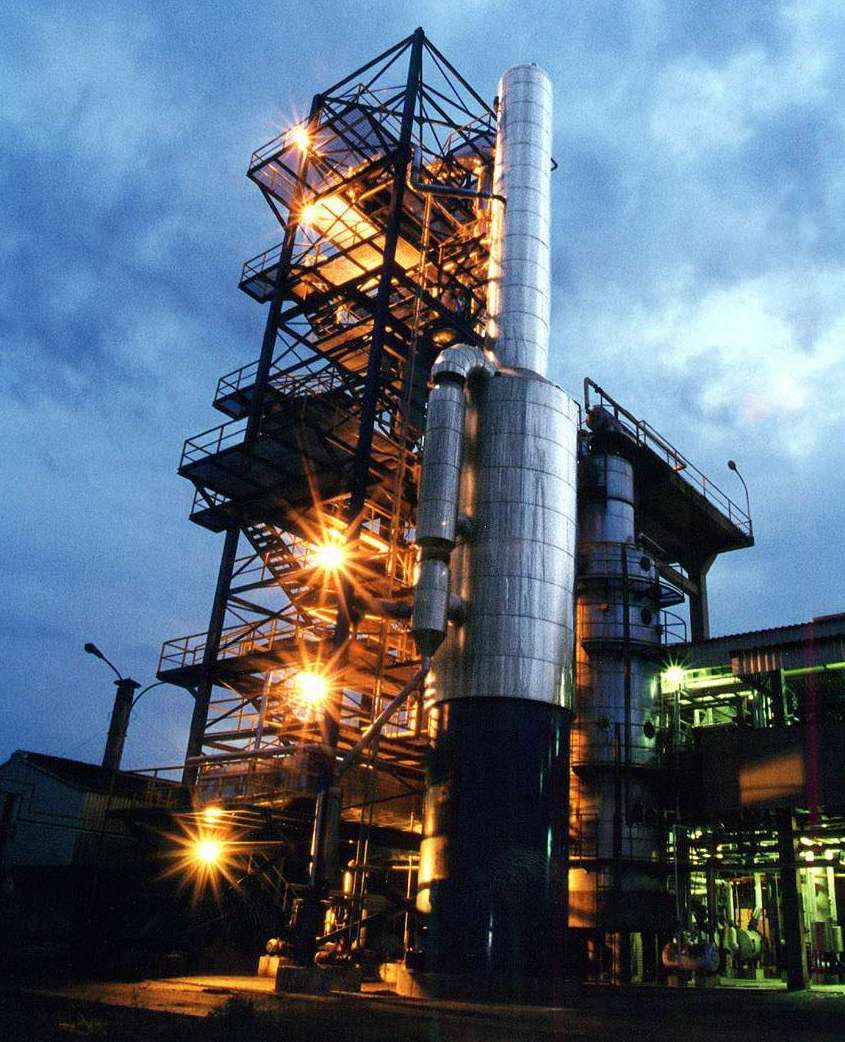

Jan 29, 2003 SoftColumnâ„¢, using as few as 3 additional components, retrofits to existing systems with minimal interruption of production. Able to remove volatiles at lower temperatures, unit uses approximately 110 lb of stripping steam for each ton of final product. Vertical array of plates create thin film of oil from which unwanted compounds are quickly removed, minimizing unwanted reactions.
