Pneucleus Technologies LLC    Hollis, NH 03049
Feb 03, 2003 MicroFlo miniature mass flow controller features InSitu-Senseâ„¢ sensing technology, which incorporates microchip-sized, in-line flow transducer to achieve repeatable and stable flow regulation in 40 msec. It is specifically for gases used in chromatography, elemental analyzers, gas detectors, gas monitoring, and vacuum coating applications.

Precision Airconvey Corp.    Newark, DE 19702
Feb 03, 2003 TrimPAC(TM) cuts and evacuates edge trim from slitters and die cutters to provide clog-free conveying. Pre-engineered with in-line cutter, material handling fan, piping, air separator, and 2 inlet pickups, TrimPAC conveys film, foil, laminate, paper and other water material up to 300 ft at 5,500 fpm. TrimPAC may be customized with pedestal base, silencer, static eliminator, and range of motors to suit virtually any application.

Almetek Industries, Inc.    Hackettstown, NJ 07840 9600
Feb 03, 2003 TRIDENTâ„¢ Safety Signs are made of tri-extruded, UV stabilized, high density polyethylene. Danger, Warning, Caution, Safety First, and Notice signs are impervious to acids, alkalis, and caustic chemicals. Manufactured using no inks, paints or laminates, they will not fade, crack, chip or peel, and will withstand extreme temperatures and harmful weather conditions. Sizes include 7 x 11, 10 x 14, and 14 x 20 in. in thicknesses from .125 to .250 in.

Pacific Scientific    Rockford, IL 61105 0106
Feb 03, 2003 T-Series NEMA 23, 1.8° motors provide up to 380 oz–in. torque with accuracy of .0360 for precise load positioning. Housingless square frame optimizes magnetic circuit, reducing space required for motor and providing smooth microstepping. Standard options include leaded or terminal box construction as well as encoders and encoder mounting provisions. Shafts, gears, sprockets, leads, connectors, and windings can be customized to meet application needs.

General Micro Systems, Inc.    Rancho Cucamonga, CA 91730 3839
Feb 03, 2003 Millennium C2000, equipped with AGP graphics/video interface, incorporates 2 Coppermine-256 Embedded Pentium III processors, each with speeds to 1 GHz and 256 kbytes on-die L2 cache. Processors are connected to Intel 82443 BX or GX North Bridge, whose 100 MHz Front Side Bus provides access to up to 2 Gbytes of 100 MHz SDRAM/RSDRAM. Additional offerings include AGP connector, PCI bus, and watchdog timer. Almost all I/O is accessible via rear panel transition module.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Feb 03, 2003 SuitCase(TM) 8RC and 12RC remote voltage-control wire feeders weigh between 22.5 and 25 lb, permit wire spools in 8 and 12 in. sizes, and perform MIG and flux-cored welding with wires from .023 to 5/64 in. in dia. They are suited for construction, manufacturing, and shipbuilding applications.

Bussmann Div., Cooper Industries    St. Louis, MO 63178
Feb 03, 2003 Class J fuse holder enables direct power connections to be made through product to busbars. Offered in BUSS® Bar and panel-mount styles, 3-pole units with covers are available in 100, 200, and 400 A versions. Compact size saves busbar or panel space, while 3-pole fuse cover reduces possibility of contact with live parts. Design aids in complying with NFPA70E, Standard for Electrical Safety Requirements for Employee Workplaces.

Dickson Co.    Addison, IL 60101-4917
Feb 03, 2003 Model TK500 logs temperature and humidity measurements, while Model SK500 logs temperature only. Both feature delayed start capability, data storage of almost 4,000 sample points, and accuracy of ±1.8°F for temperature and ±2% for relative humidity. Units are slightly larger than a quarter and can be placed almost anywhere. They are compatible with Dicksonware(TM) SECURE Software for 21CFR11 Compliance.

Kubota Tractor Corporation    Torrance, CA 90503
Feb 01, 2003 Model M4800SU has 4-cylinder, 43 PTO horsepower, E-TVCS indirect-injection, liquid-cooled diesel engine. Equipped with 8-forward/4-reverse speed, partially synchronized main transmission, tractor includes range shift lever that can act as synchronized shuttle transmission between forward (low range) and reverse. Independent 540 rpm PTO uses hydraulic, wet-type PTO clutch with self-modulating engagement. Safety features include foldable ROPS and retractable seatbelt.

Polymer Laboratories, Inc.    Amherst, MA 01002

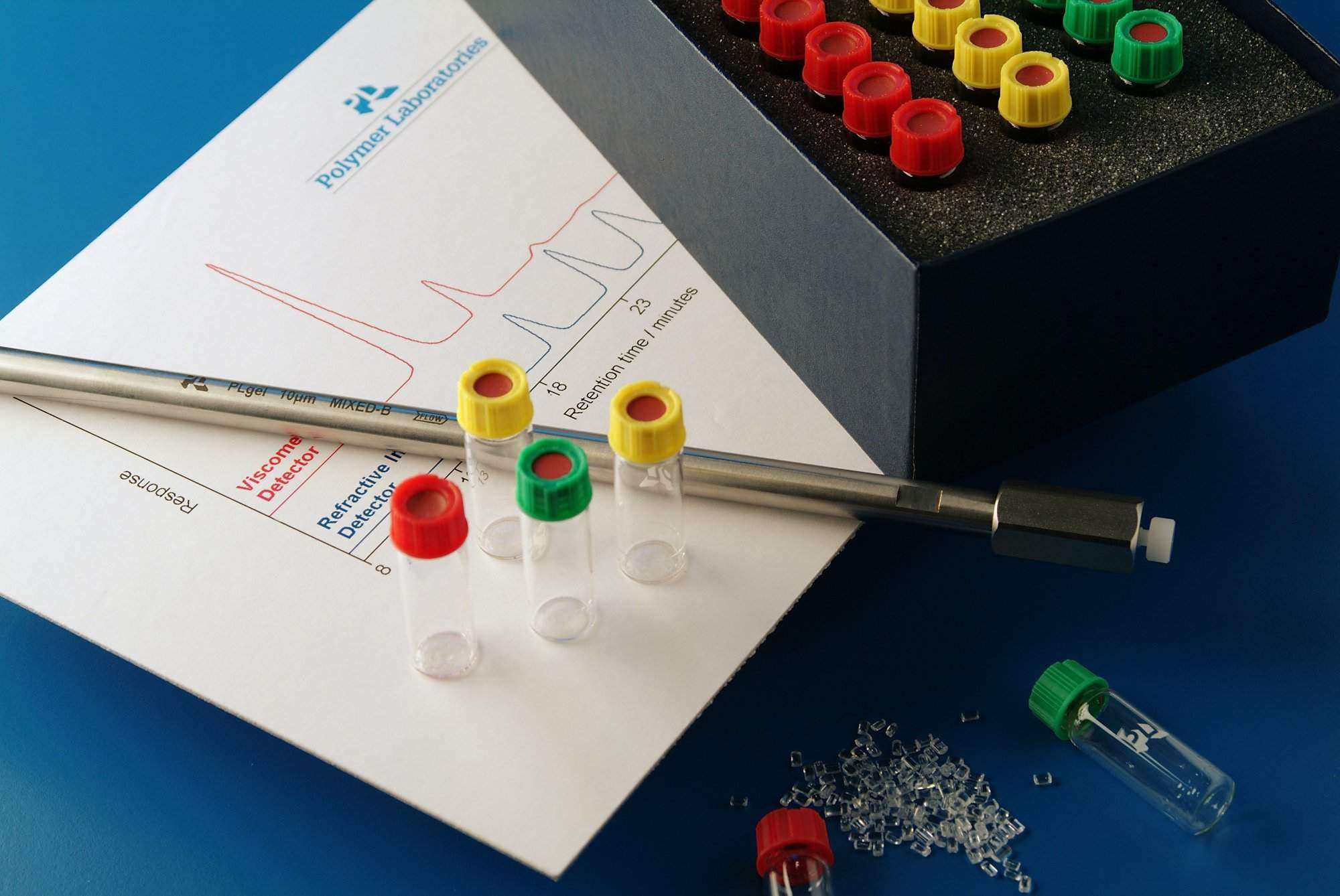

Feb 01, 2003 EasiVial kit consists of three 4 ml vials, each containing mixture of 4 pre-weighed polymer standards. Each kit contains 30 color-coded vials and characterization data for each supplied polymer. Molecular weights of polymer standards achieve baseline resolution when used with column configurations and multi-detector GPC systems. User adds solvent to vial, awaits dissolution, and can generate 12-point GPC calibration with 3 injections.

Polymer Laboratories, Inc.    Amherst, MA 01002

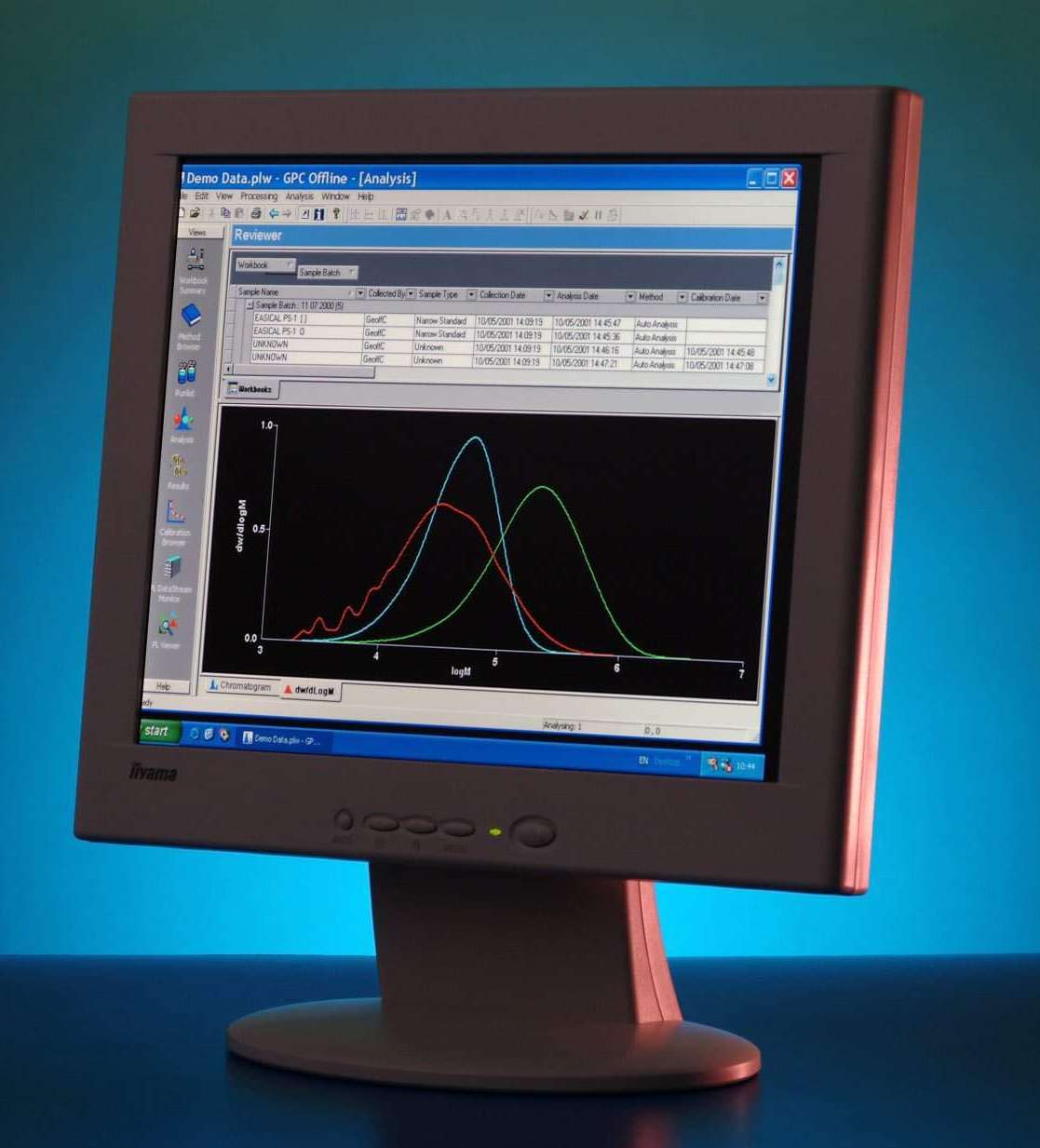

Feb 01, 2003 Cirrusâ„¢ v2.0 includes Data Reviewer modules for post-analysis reviewing and reporting of chromatograms and calculated results. It graphically reviews set of sample chromatograms and molecular-weight distribution plots. Result summaries for set of sample analyses can be generated with direct data transfer to third party software. Cirrus includes normalization routines, reporting options, and optional, automatic data filtering.

Polymer Laboratories, Inc.    Amherst, MA 01002
Feb 01, 2003 Model PLRP-S 3 µm column comes in 100Ã… and 300Ã… pore sizes. Media is offered packed in short columns for rapid resolution LC/MS, where complete chromatographic resolution is not required, as MS is used to provide detailed information. Longer columns in 2.1 and 1.0 mm ID are available for higher resolution separations. PLRP-S 100Ã… 3µm is suitable for peptide separations, while larger pore size PLRP-S 300Ã… 3 µm is recommended for protein analysis.

Polymer Laboratories, Inc.    Amherst, MA 01002

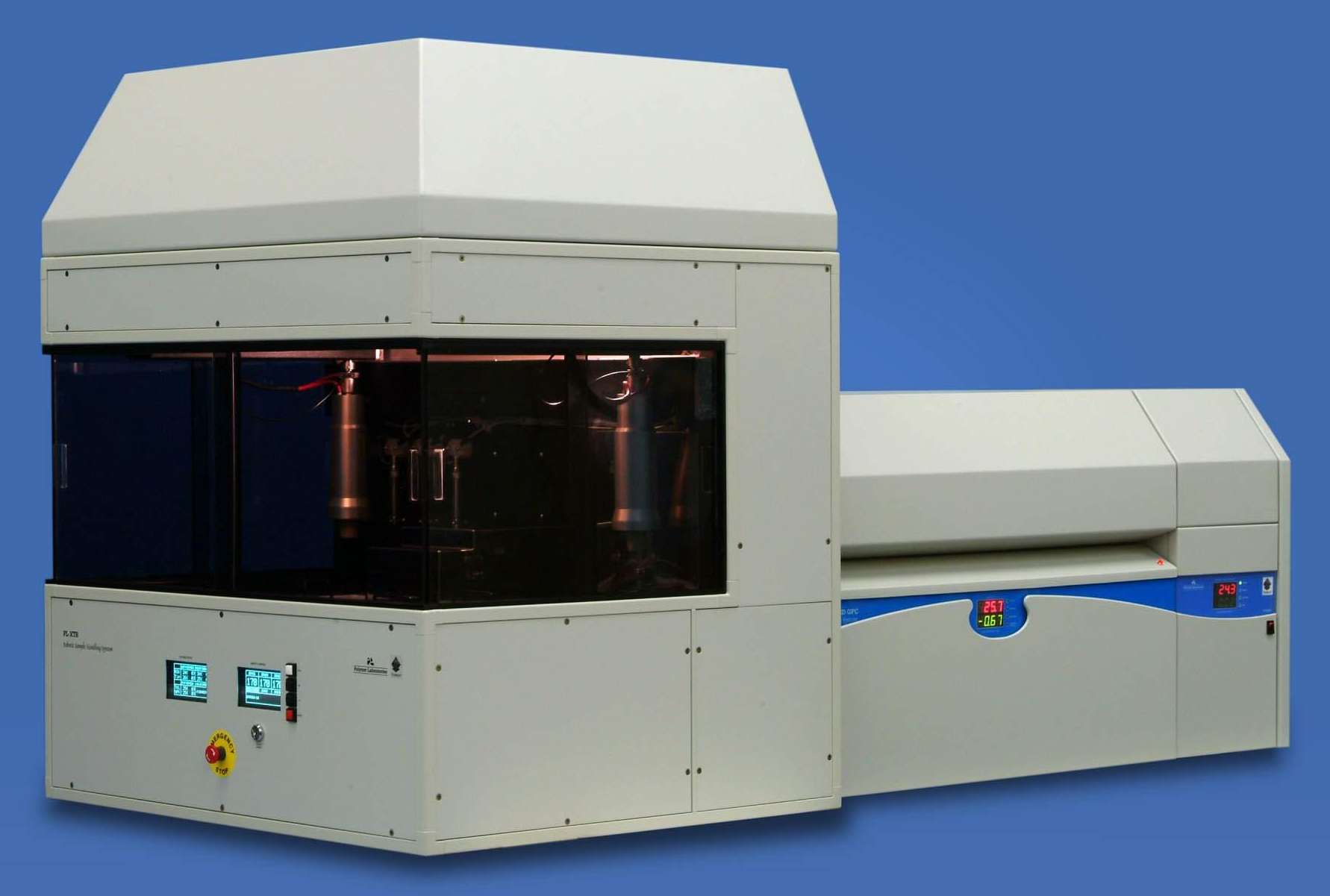

Feb 01, 2003 Suited for Gel Permeation Chromatography (GPC), PL XT-R is based on robotic platform and integrates sample preparation and autosampling functions. Product supports all GPC chromatographs operating in temperature range from 30-220°C. Up to 96 sample-filled vials are accommodated in blocks in X-Y array. Solvent-filled vials are subjected to controlled heating and magnetic stirring. System includes robotic arm dispenser, heated injection valve, and heated transfer line.

JK Microsystems Inc.    Davis, CA 95616

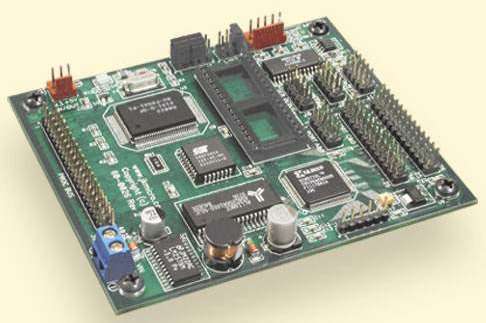

Feb 01, 2003 Programmable Flashlite 186 is built around 33 MHz 186 compatible processor. Single Board Computer offers 44 configurable digital I/O lines, 512 K DRAM and 512 K Flash memory, 2 serial ports, and console/debug port. Additional offerings include onboard 7–34 Vdc voltage regulator, two 16-bit timers, and watchdog timer. Unit supports addition of LCDs, keypads, 12-bit A/D channels, relay outputs, optically isolated inputs, and high current drivers.

Ion Physics Corp.    Fremont, NH 03044

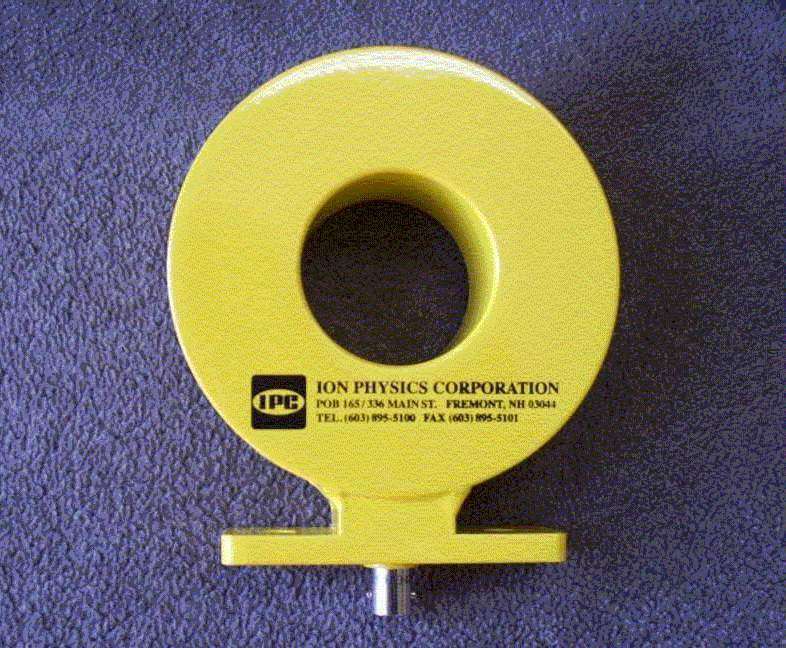

Feb 01, 2003 Wide Band Current Monitor measures high currents with fast risetime. CM-1-MGS5 offers risetime of 20 nsec, 3 dB bandwidth extending from 0.7 Hz to 25 MHz, sensitivity of 10 mV/A, and AC saturation of 5 As. Current transformer monitors AC and pulse currents without contacting conductor, and eliminates ground-loops and interference noise. Electrostatically shielded, monitor provides output voltage equal to current times sensitivity.

Kubotek USA, Inc.    Marlborough, MA 01752
Feb 01, 2003 CADKEY Workshop(TM) V21 integrates drafting, wireframe, freeform solid modeling, surface modeling, and mechanical libraries. CADKEY Workshop EX V21 combines freeform solid and surface modeling with 4 translators, including Import CATIA® 4, Export CATIA® 4, Import Pro/E®, and Import Unigraphics®. CADKEY GraphX(TM) V21 allows user to create drawings from scratch or generate drawings from solid, surface, and polygon models that are imported from other systems.

Liberty Industries, Inc.    East Berlin, CT 06023
Feb 01, 2003 Model 4015 Peripheral Flow Horizontal Laminar Flow Clean Bench features high-velocity, return-air intake slots along side panels, front top, and front edge of work surface. Recovered return air is HEPA filtered before returning to work area. Bench is offered in 4, 5, 6, and 8 ft models. It can be fabricated from high-pressure plastic laminate, cold-rolled painted steel, stainless steel, or polypropylene. Work surface and side panels can be stainless steel or polypropylene.

Snap-on Industrial    Kenosha, WI 53141 1410
Jan 31, 2003 Commemorating 10 seasons with Richard Childress Racing (RCR), model KRL7023PJCWS workstation has stainless steel work surfaces, risers, and overhead compartments, as well as full-width, 3 and 5 in. deep drawers with 3,406 in.³ and 6,348 in.³ capacities, respectively. With wooden worksurface, model KRA5213PJCWS depicts winning RCR team vehicles, while Combination Tool Box model KRA410714PJC commemorates 3 series victories and 2003 edition No. 29 car.

Encoder Products Co.    Sandpoint, ID 83864

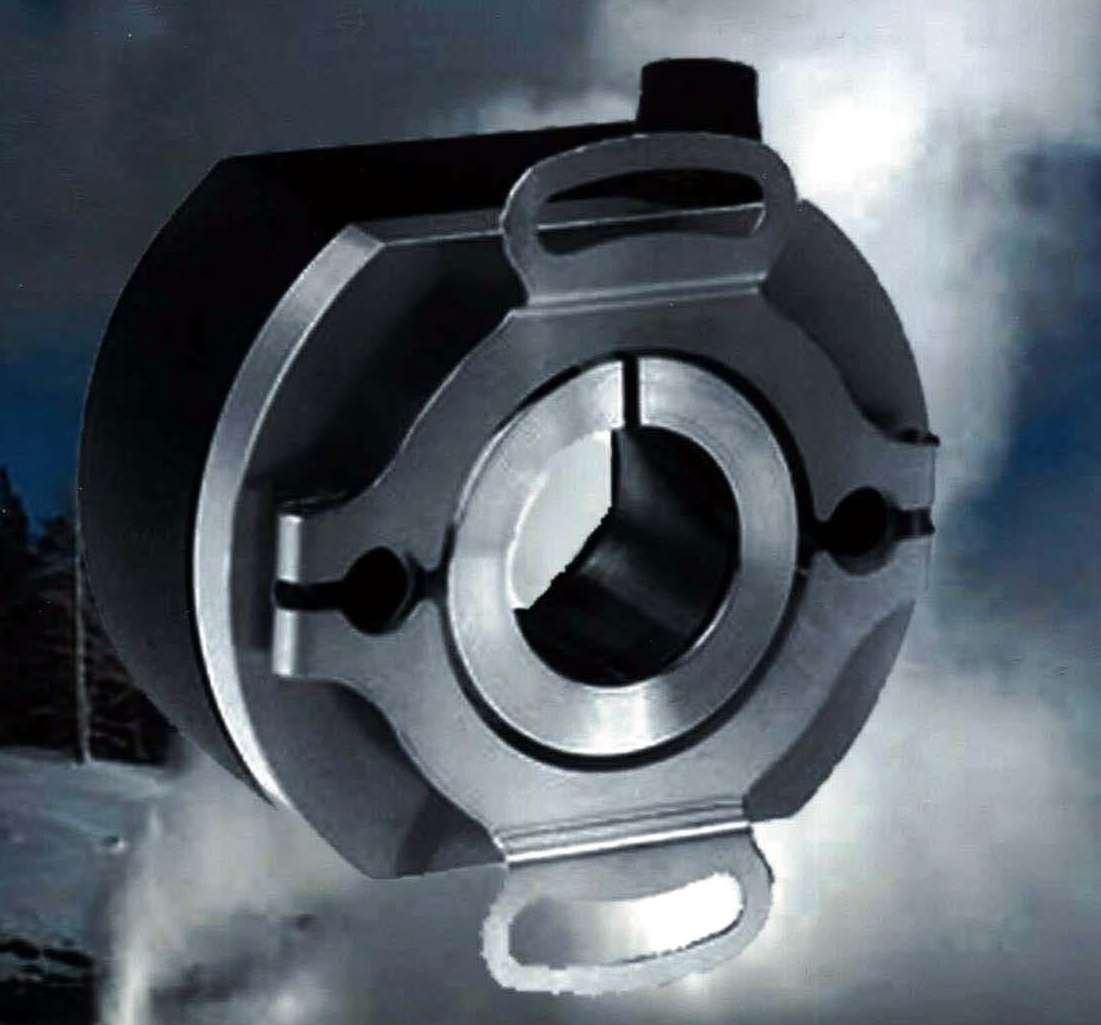

Jan 31, 2003 Available in operating configurations up to 248°F, Model 260 Thru-Bore Series Accu-Coderâ„¢ Encoder is offered with optional extended low temperature capability down to -40°F. Flexible mounting systems ease installation. Two inch unit can be ordered with 5/8 in. bore.

Dwyer Instruments, Inc.    Michigan City, IN 46361

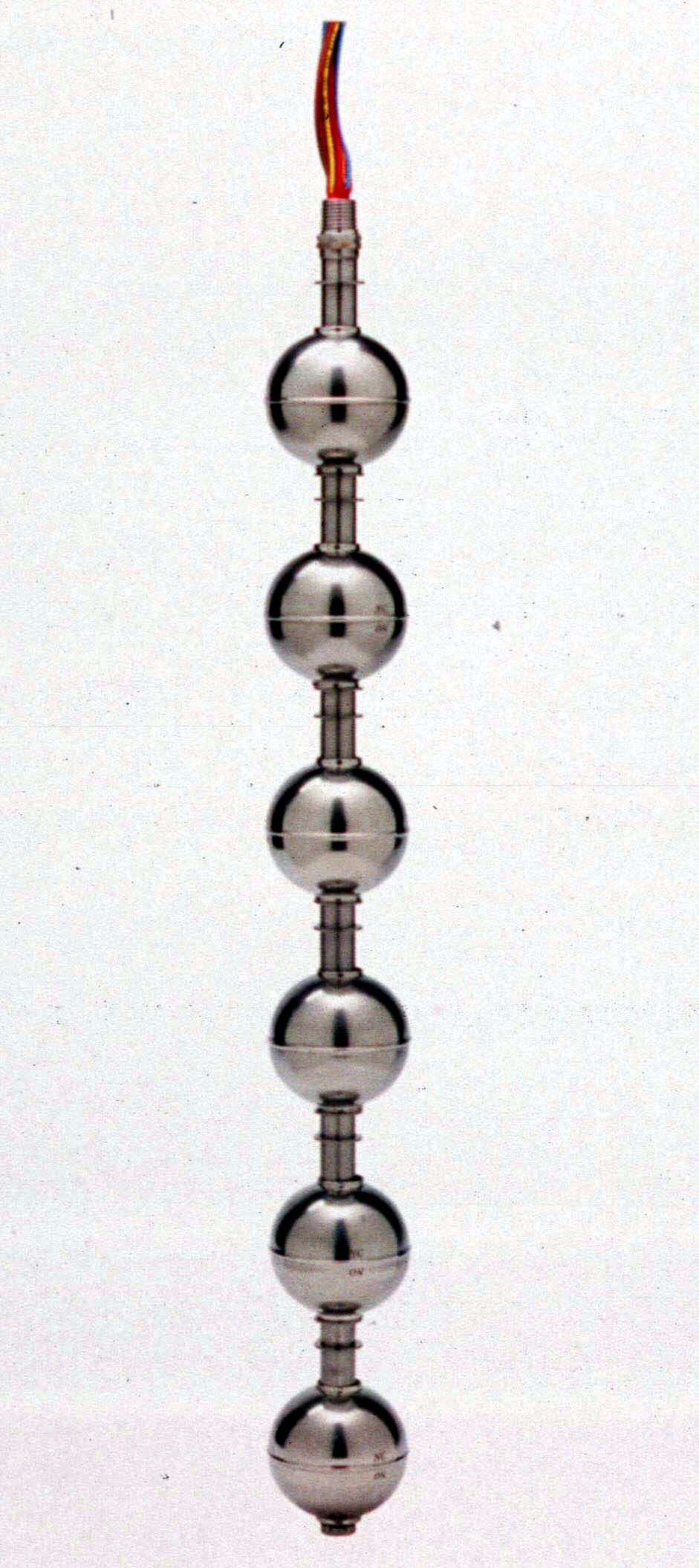

Jan 31, 2003 Series F7-M Multi-Station Level Switch is available in lengths from 12-72 in. Mounting and stem materials are offered in brass or 316 stainless steel, and float materials are offered in polypropylene, 316 stainless steel, or Buna N. Type of switch, mounting, electrical specifications, media temperature, and actuation levels are chosen by user. Switch is suitable for applications that require high/low level alarm, and pump actuation and de-actuation.
