C&S Equipment Co.    Caldwell, ID 83605
Feb 06, 2003 UVC Tumbling Machines incorporate rotating drum or screw conveyor that gently lifts and tumbles product to ensure exposure of all surfaces to germicidal UVC energy. Shatter-resistant, plastic-sheathed UVC Emitters(TM) prevent chance of glass contamination from tube breakage. Lights kill or inactivate mold, yeast, viruses, and bacteria. They produce no ozone or residues, and will not chemically alter food products. Tumbling machines may be floor or ceiling mounted.

SKF Magnetic Actuators    Olney, IL 62450

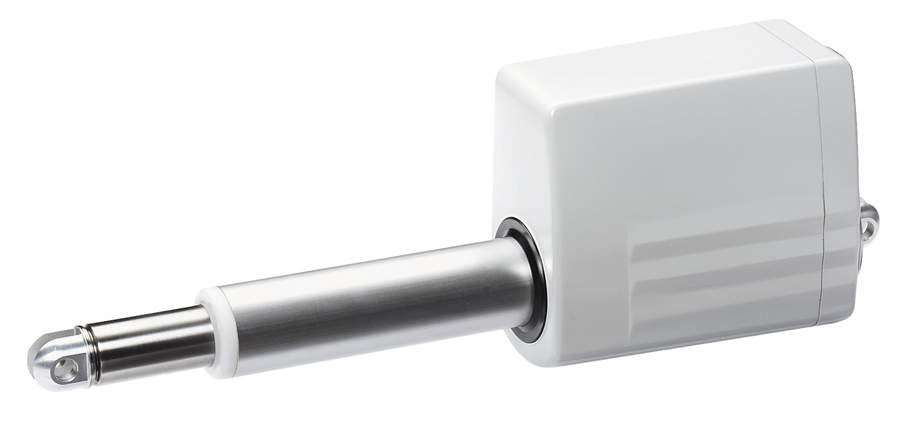

Feb 06, 2003 RUNNER provides high push and pull force for medical and industrial applications. Speeds at full load range from 4.5-7.5 mm/sec, and stroke lengths range from 100-700 mm. Actuation system includes failure-safe control unit for operation of up to 3 actuators. Control unit can be operated as stand-alone unit or mounted directly on actuator. With safety factor of 4 for stroke length up to 250 mm, actuators incorporate cycle counting feature.

NP Photonics, Inc.    Tucson, AZ 85747

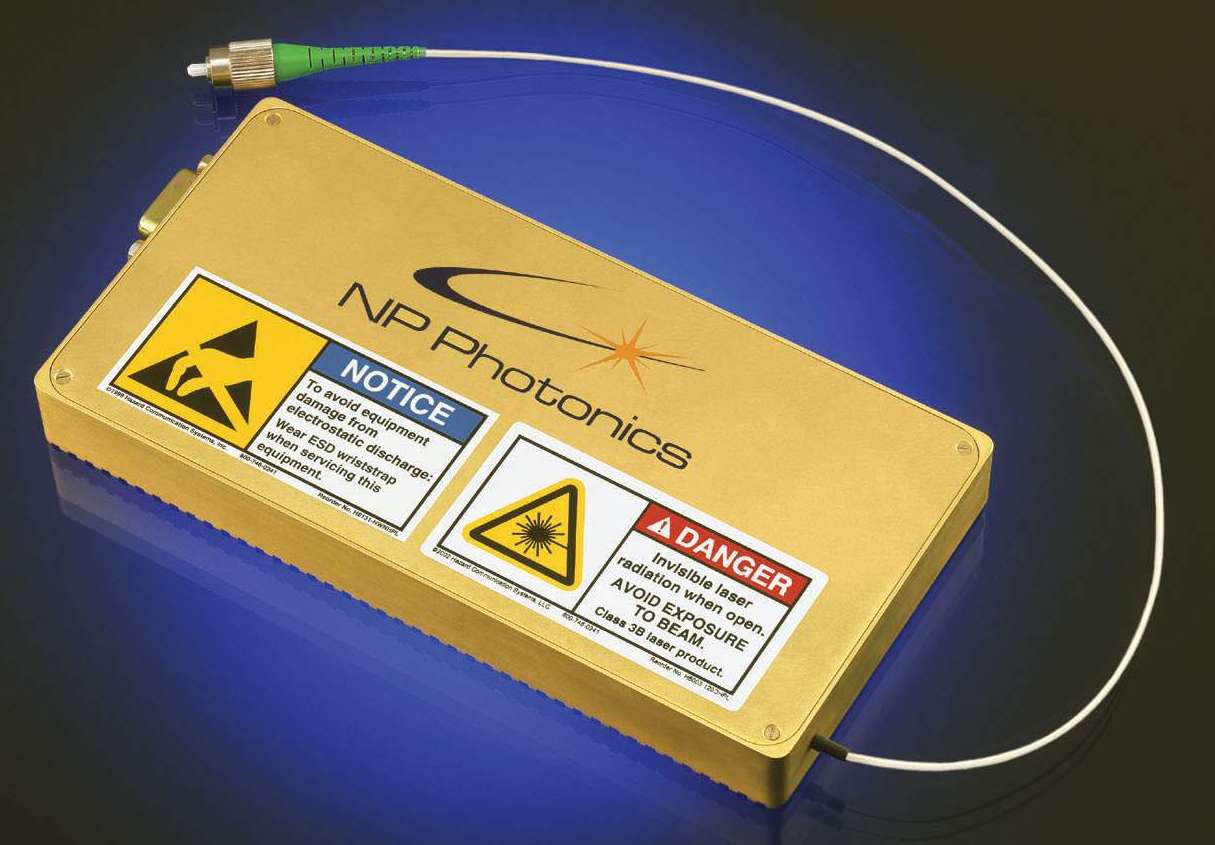

Feb 06, 2003 Scorpion SMPF-2030 Erbium Micro Fiber (EMF) laser module operates in C-band from 1530–1560 nm and is narrowly tunable. Linewidth is less than 3 kHz, and relative intensity noise is less than -140 dB/Hz at 2 MHz. Suitable for fiberoptic sensing applications, unit does not require external booster amplifier. Measuring 168 x 70 x 19 mm, it is completely integrated with Telcordia-qualified pump laser and control electronics.

Vexcel Corp.    Boulder, CO 80301
Feb 06, 2003 Vexcel Data Capture System (VxDCS) incorporates disk array, which may contain up to 10 disk units, into rack mountable chassis. System also houses Vexcel Ionâ„¢ circuit boards and PC components. Tape drive, for data archiving, is optional. Machine is available in low-end and high-end configurations at respective processing speeds of 200 and 380 Mbps. Product is suited for direct-to-disk data acquisition and optional retransmission of satellite downlinks.

SynQor    Boxborough, MA 01719 1316
Feb 06, 2003 Non-isolated NiQor® series, with on-board input and output filtering, eliminates need for I/O capacitors. Point-of-load converter series has 3.0-3.6 V input range and delivers up to 15 A of current at 2.5, 1.8, 1.5, 1.2, and 0.9 V. Unit measures 2.0 x 0.55 x 0.335 in. and can be configured in vertical or horizontal orientations. Module employs synchronous rectification to achieve efficiencies of 92% at full load, allowing full power with no derating at elevated ambient temperatures.

Enpac Corp.    Eastlake, OH 44095

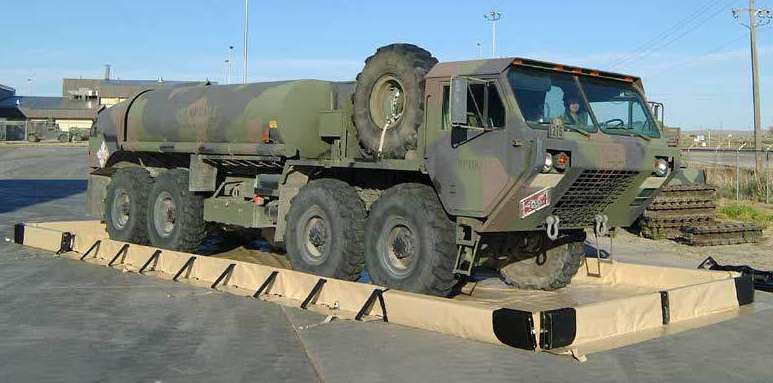

Feb 06, 2003 Combination snap-foam AIRE-Stinger Bermâ„¢ captures leaks, drips, and spills during tanker transfer, maintenance, and staging. It features snap-up sidewalls on 2 sides and foam end caps on entry and exit ends. Berm is made of geotextile fabric and includes Instant Fabric Repair Kit. Available 140 mil Ground Pad offers puncture resistance.

Madison Company    Branford, CT 06405

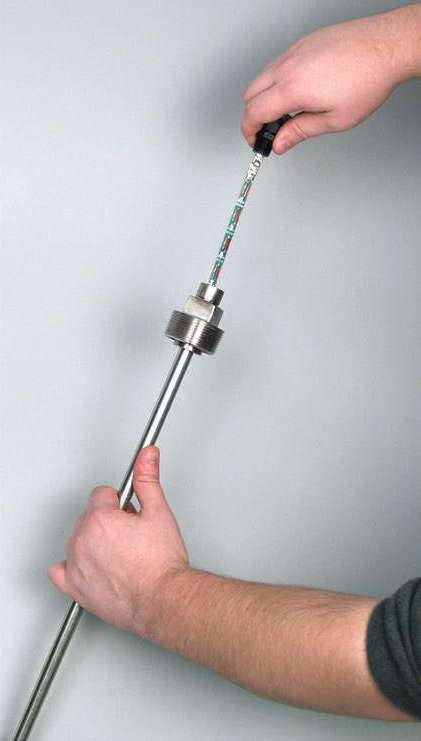

Feb 06, 2003 Continuous Level Switch is designed so that entire stem and face mount can be permanently sealed to vessel. Top mount can be unscrewed and entire switch assembly removed without compromising vessel's interior environment. With stainless steel stem and fitting and choice of polypropylene or Buna-N floats, level switch operates at temperatures from -40 to +105°C. Lengths from 12–96 in. are standard. Temperature sensing and additional alarm levels are optional.

Metalfab, Inc.    Vernon, NJ 07462-0009

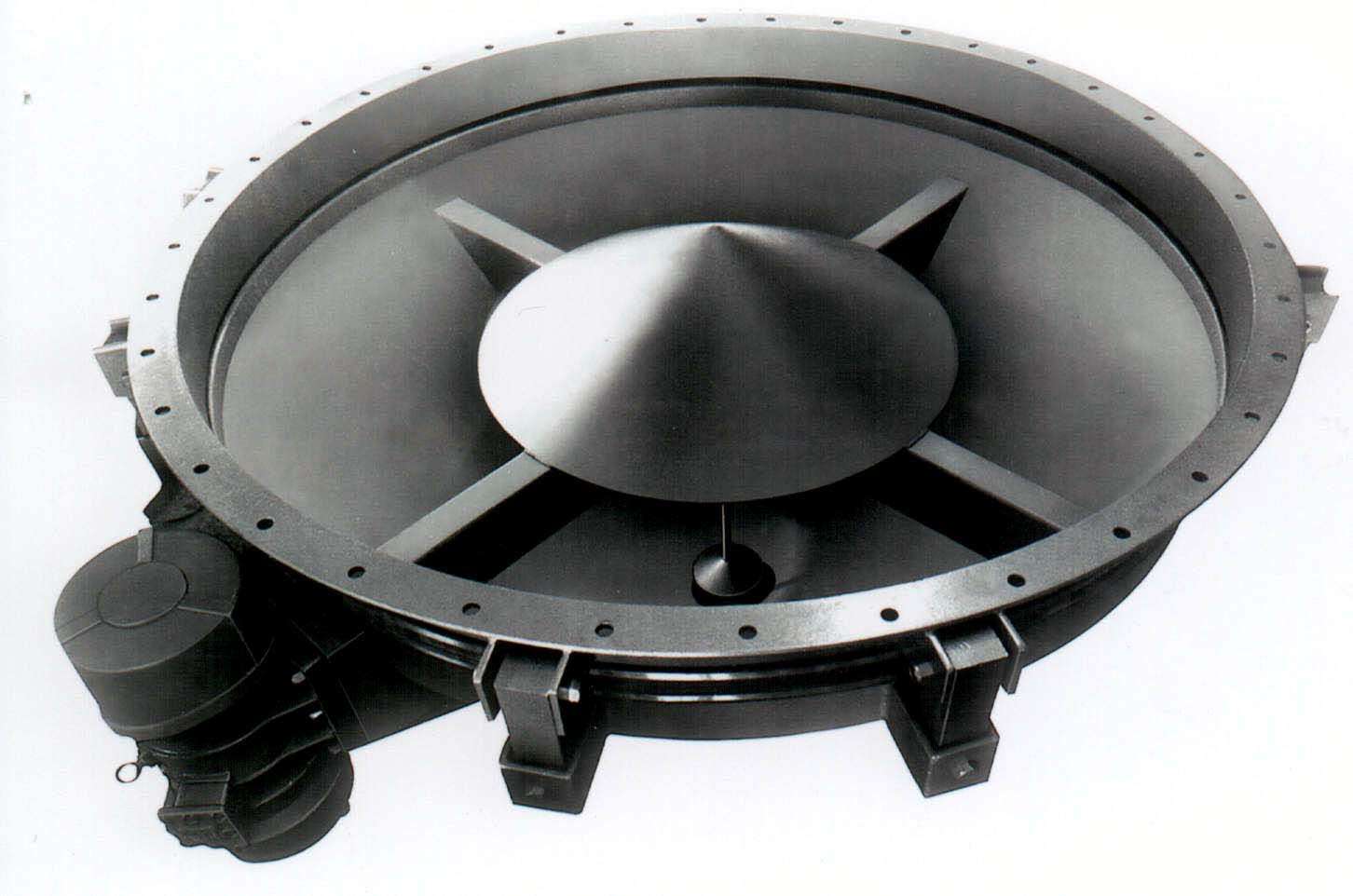

Feb 06, 2003 Bin Activators incorporate dual-baffle design for continuous flow of dry materials without plugging, jamming, or bridging. Endless beaded flexible sleeve is 7/16 in. thick with 3-ply reinforcement that will not puncture, slip, or leak. Solid steel suspension arms are bolted at 90° and support up to 500,000 lb each to ensure activator remains attached to bin. Unitized motor vibrator and motor are included in single, sealed enclosure with no belts to slip or break.

EFD Inc.    East Providence, RI 02914-1342

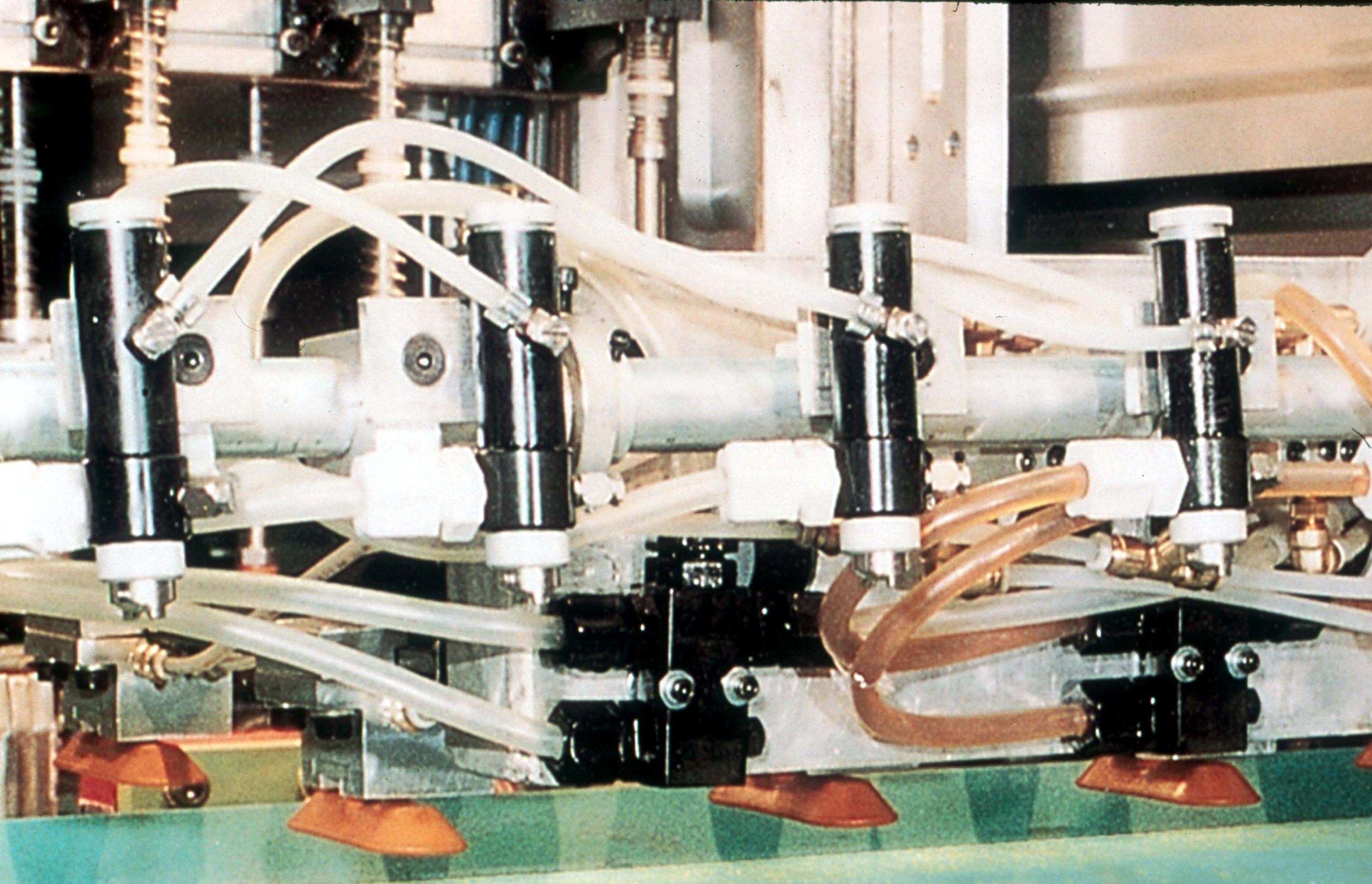

Feb 06, 2003 MicroCoat® 780 Series provides steady or pulsed lubrication up to 300 times/min. It includes valve, valve controller, and 1, 5, or 20 gal tank. Valves use low volume, low pressure air to evenly coat stock or dies with fine, consistent film of oil. One valve covers area from 3/16-6.5 in. wide. If wider coverage is required, additional valves can be mounted side-by-side. Stroke control adjustment permits amount of lubricant to be fine-tuned for each job.

IOtech, Inc.    Bedford Heights, OH 44146-1833
Feb 06, 2003 Model WBK18â„¢ offers 8 channels of dynamic signal input for WaveBookâ„¢ systems. It provides all signal conditioning and biasing required to accept accelerometers, sensors, microphones, or other dynamic input source. All channels are sampled simultaneously to insure phase matching between channels. Up to 8 units can be attached to one WaveBook for total ICP® sensor capacity of 64 channels. WBK18 contains ICP® fault detection with front panel LED indicator.

Aaeon Electronics, Inc.    Hazlet, NJ 07730
Feb 06, 2003 Powered by NS Geode GX1 300MHz CPU, Model GENE-4312E features NS CS5530a chipset, dual PCI-bus Intel® 82559ER Fast Ethernet 10/100 Base-T ports, onboard 144-pin SODIMM socket allowing for up to 128MB of SDRAM, 2 serial ports, 1 parallel port, and CompactFlash® disk Type I/II socket. It suits multimedia and networking applications.

Excel Comfort Systems, Inc.    Blackville, SC 29817
Feb 06, 2003 SH10B heat pump offers 2–5 ton cooling capacity and up to 7.00 HSPF. Copeland Compliant scroll compressor has insulated cabinet for sound control and vertical air discharge. Unit has evaporator coil with anti-microbial coating, permanently lubricated motors, and galvanized steel base rails. All models feature adjustable time and temperature defrost controls and 4- and 5-ton models are convertible to downshot for rooftop applications.

Excel Comfort Systems, Inc.    Blackville, SC 29817
Feb 06, 2003 DPGB downflow gas furnace with pilotless ignition can be up to 30% more efficient than older units. Furnace has 80% AFUE with narrow cabinet and low silhouette for installation in tight spaces. It offers heating input range of 50,000–125,000 BTUH, supports cooling capacities up to 5 tons, has 3 speed blower motor, inshot burners, and heavy gauge, insulated cabinet for quiet operation. Unit features LED diagnostics for troubleshooting purposes.

Lambda Physik, Inc.    Fort Lauderdale, FL 33309

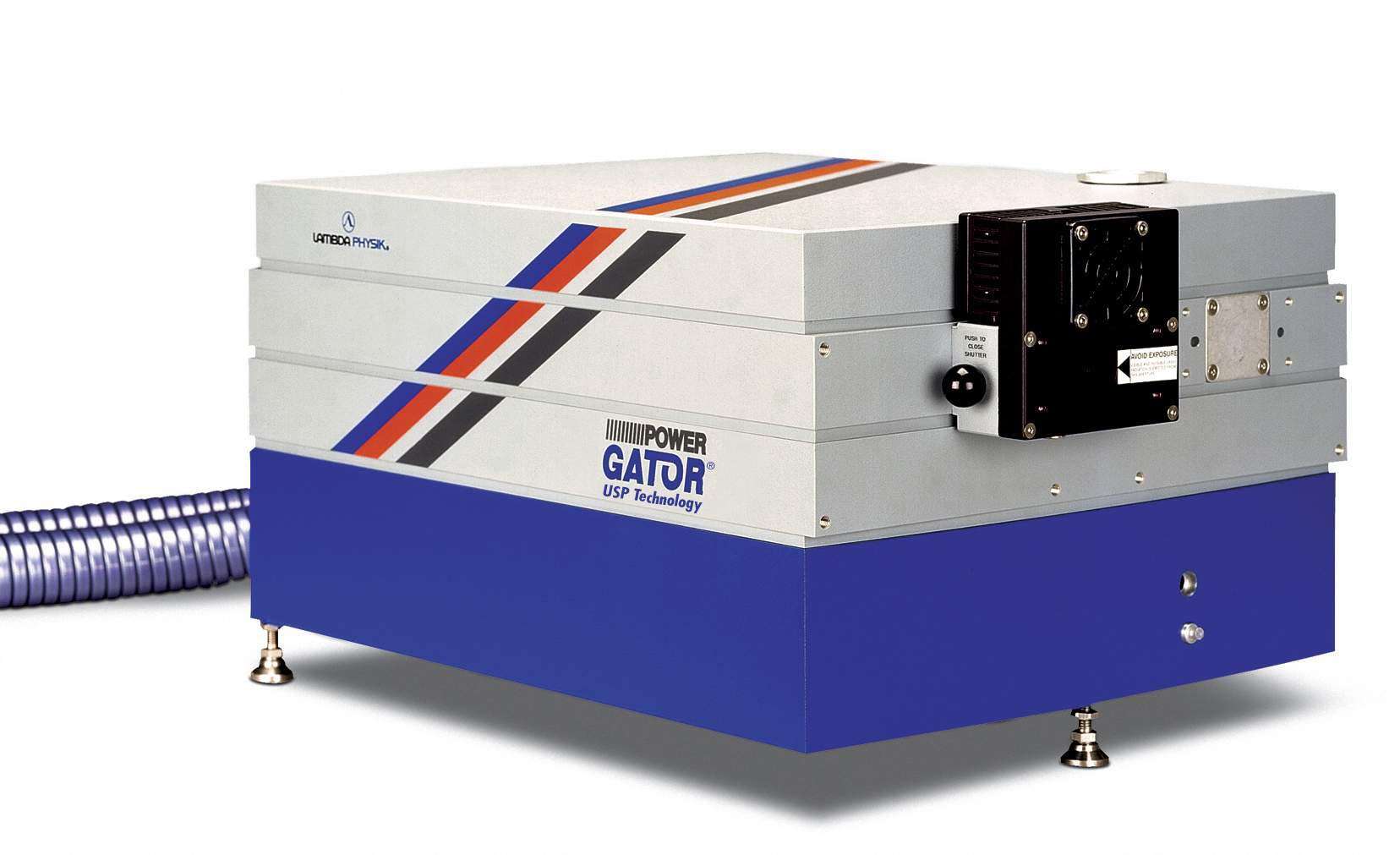

Feb 06, 2003 Gator® Series solid-state lasers deliver over 10,000 hr of continuous operation. They are completely sealed and can be controlled via RS232 or parallel interface. Ability to vary repetition rate from 5–15 kHz allows user to match laser’s repetition rate to varying feed rates, and variable output power helps user adjust output power to changing process conditions. Units offer option to switch wavelength between 1064 nm and higher harmonics wavelengths.

Lambda Physik, Inc.    Fort Lauderdale, FL 33309
Feb 06, 2003 Compact NOVATEXâ„¢ features 248 nm operation and is also optimized for ArF operation, providing stabilized output energy of 6 mJ at 193 nm. Average output power of up to 6 W at 1 kHz make laser suitable for low pulse energy and high repetition rate micromachining. Laser complies with SEMI S2 standards, and features optics lifetimes of up to a billion laser pulses. Fluorine-optimized NovaTube® lasts several billion laser pulses.

Kinetic Technologies, Inc.    Wickliffe, OH 44092

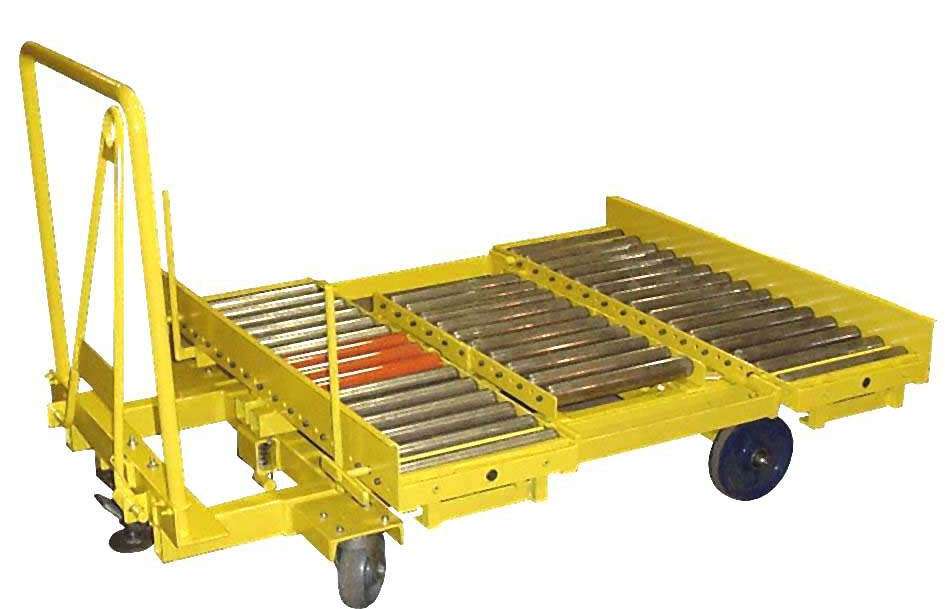

Feb 06, 2003 ProFlow Series(TM) Model KT2 features H-shape roller-conveyor upper frame with optional side tilting, 360° rotation, and low 13 in. working height. Safety lockouts secure loads from rotating and sliding during transport. Optional Mini-Might(TM) low-profile 2500 lb capacity lift, with 4½ in. lowered height, fits under transport frame. Non-rotational conveyor with flat, diamond-plate upper frames is also available.

Hendrickson Trailer Suspensions Systems    Canton, OH 44707 2641

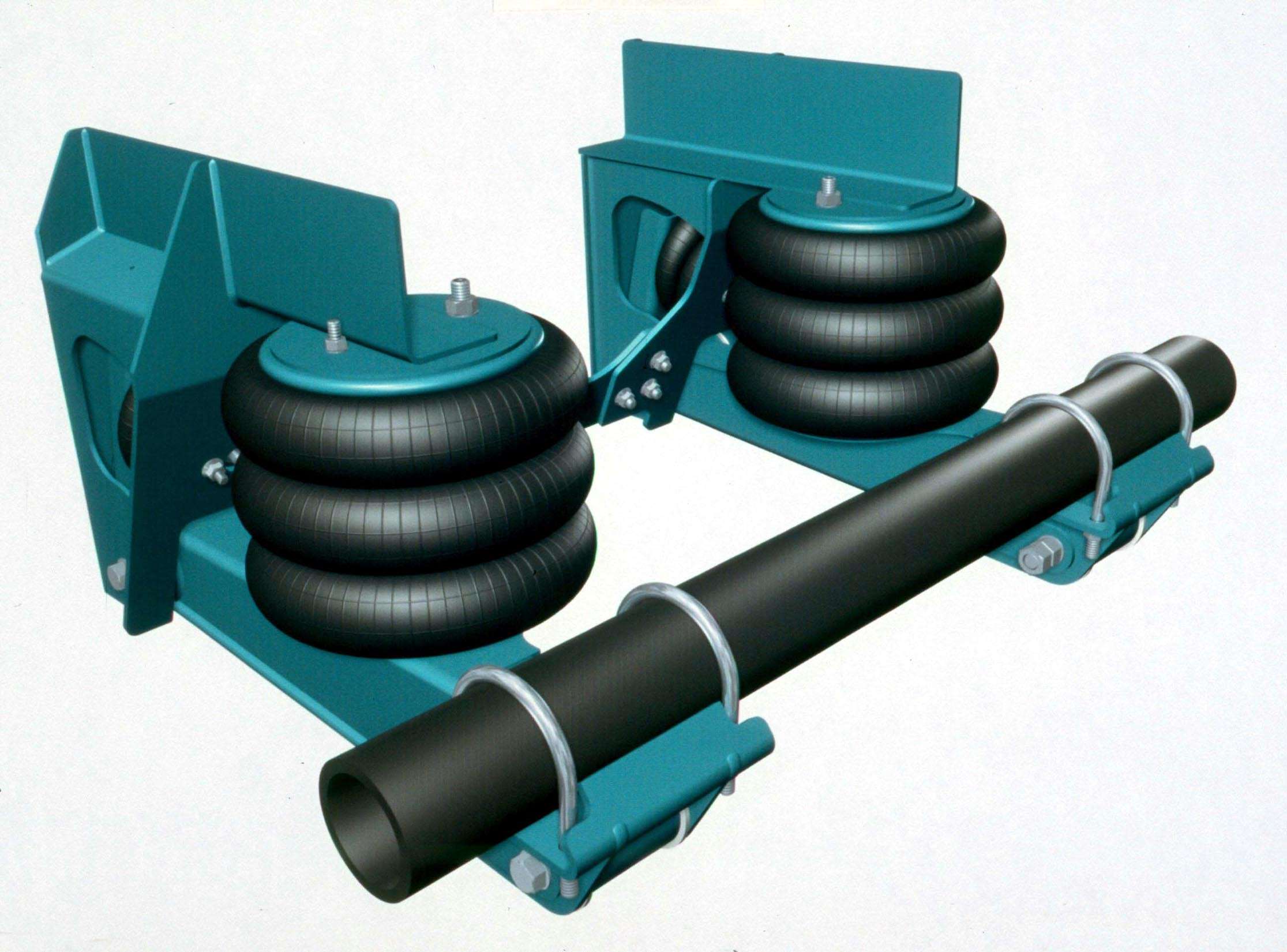

Feb 06, 2003 Series HLR-2 lift axle is offered in short-, medium-, and long-beam versions to fit space requirements of varying truck applications and configurations. It accommodates ride heights of 8-14.5 in. Short beam version measures 29.5 in., provides 7 in. of lift, and is rated at 13,000 lb. Mid-beam version measures 33.25 in, provides 10 in. of lift, and is rated 13,000 lb. Long beam measures 37 in., is rated at 10,000 lb, and provides 11 in. of lift.

Hendrickson International    Woodridge, IL 60517-4904
Feb 06, 2003 PRIMAAXâ„¢ is available in single, tandem, and tridem axle ratings of 23,000, 46,000, and 69,000 lb. Up to 8 in. of axle travel improves articulation. Geometry reduces suspension-induced driveline vibration. Heavy-duty forged support beams and outboard-mounted torque rods provide up to twice the amount of roll stiffness as other air ride suspensions. Suspension is approved for vocational and heavy-haul applications as well as fire and rescue applications.

CTC Parker Automation    Milford, OH 45150 9792
Feb 06, 2003 InteractXâ„¢ enables users to run true Windows applications without rotating storage media. Product provides unlimited tags, 30+ communications drivers, and OPC interface. Scalable to various runtime systems, software includes OS-independent features such as user lockout, adding unique users, password aging, and inactivity timeout. Offerings include object-based development interface, Pack and Load feature, and vector-based, scaleable, 3-D shaded objects.

VXI Technology Inc.    Irvine, CA 92614

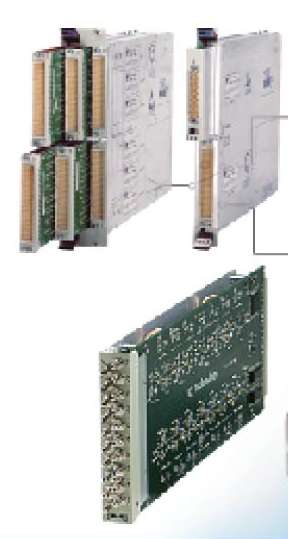

Feb 06, 2003 Model SMP6103, with one 1 x 31 Coaxial Tree, and SMP6301, with four 1 x 4 Self-terminated Coaxial Trees, ensure that crosstalk and isolation specifications are maintained by using RF relays with bandwidths that exceed 2 GHz. Offered with low-loss coaxial interconnect cabling, modules are configured to avoid unterminated stub effects. Additionally, modules can be combined with other SMIPIIâ„¢ modules to configure larger high-density switch systems.
