HARTING, Inc.    Elgin, IL 60123 5538

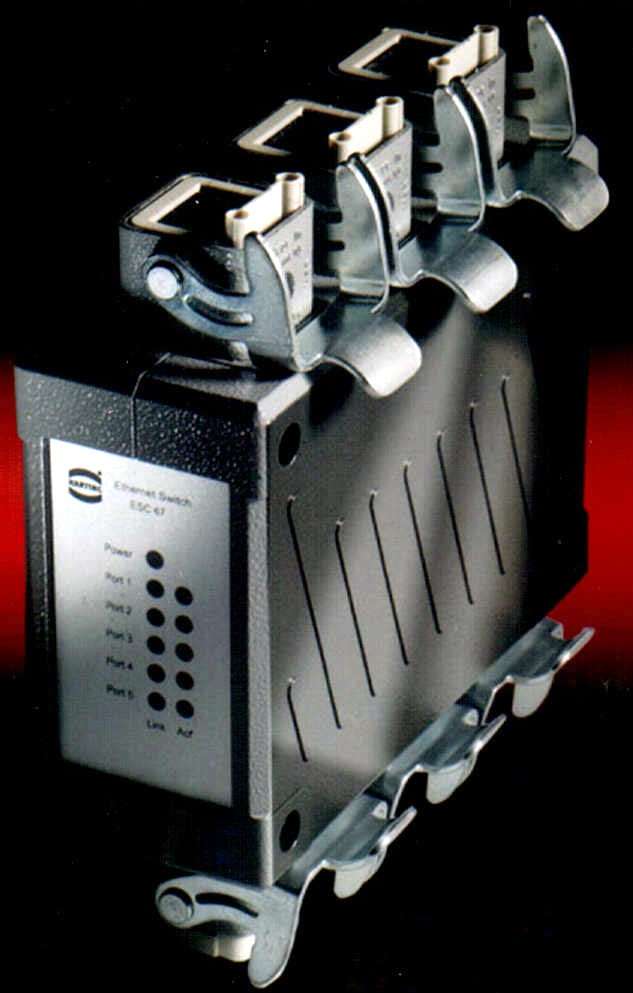

Mar 11, 2003 Five-Port Ethernet Switch ESC 67-10 for 10BASE-T or 100BASE-TX comes in metal housing with protection to IP65, IP67 standards. Mounting options enable switch to be mounted directly on or near machine in production area without additional protection in temperatures from -40 to 70°C. All connections to network are made via plug and play connectors.

HARTING, Inc.    Elgin, IL 60123 5538

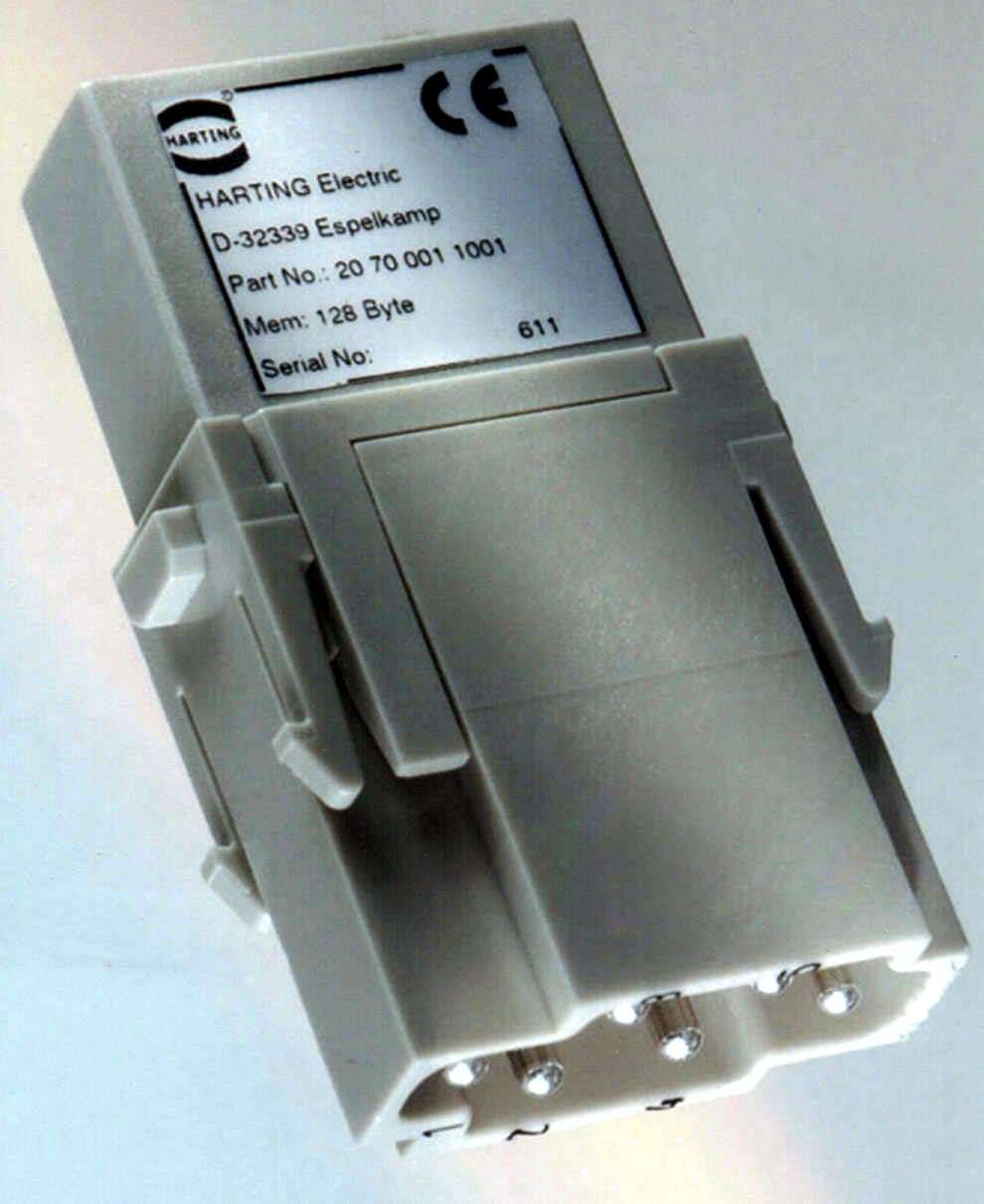

Mar 11, 2003 ID-Module contains integrated electronics including E2PROM with data storage capacity of 128 Bytes. Module provides non-volatile memory for decentralized storage of process parameters and coding of machine parts within industrial connector. Communication with ID-Module can be achieved with digital 24 V I/O unit using I²C-bus protocol. Module is operated and programmed via standard PLC.

HARTING, Inc.    Elgin, IL 60123 5538

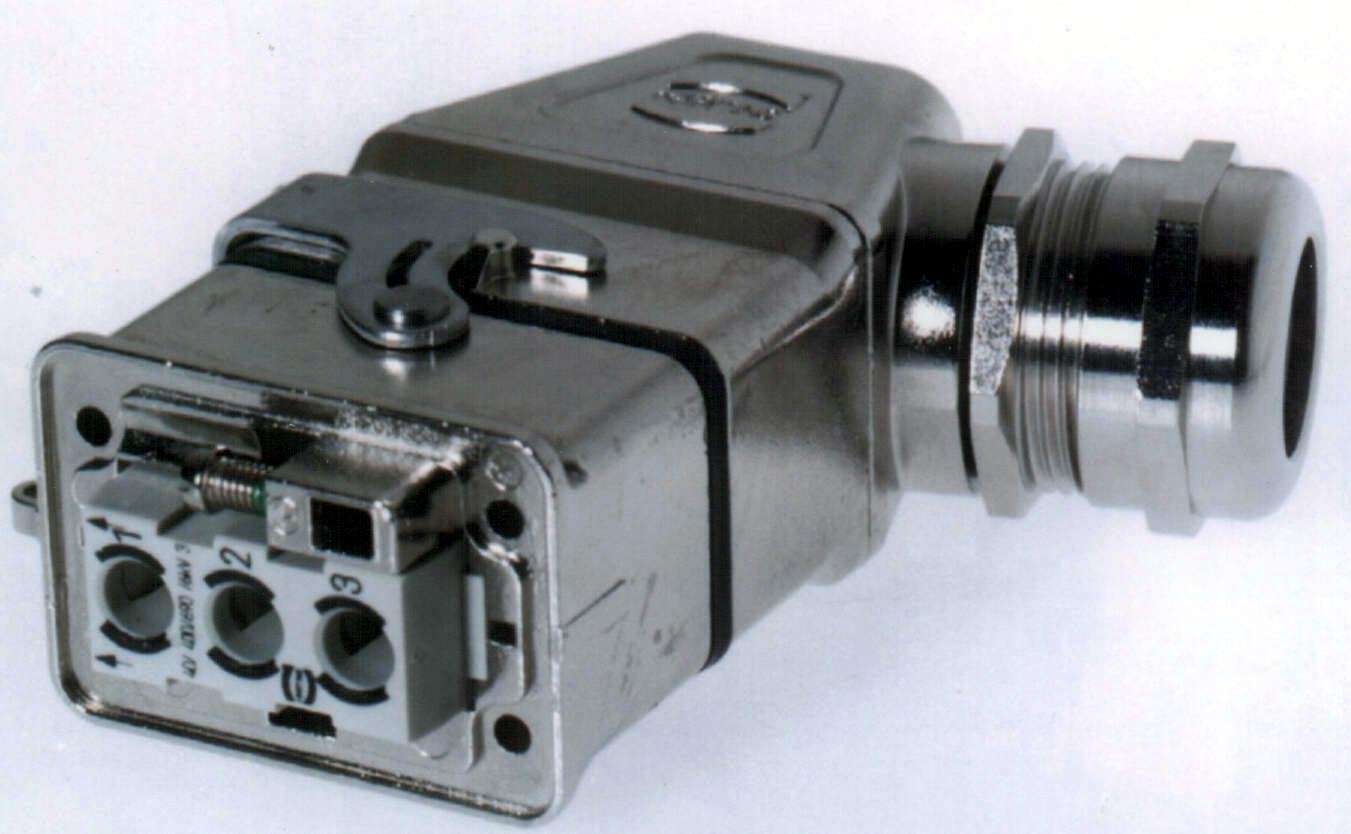

Mar 11, 2003 Han-Compactâ„¢ connector provides space-saving connection with hood and housing that accepts any single-space company Han-Modularâ„¢ power or signal inserts. Amperage connections of up to 60 A per contact can be made in smaller footprint than traditional circular connectors. Nickel-plated, die-cast zinc construction provides IP65 protection for applications such as rack-mounted power distribution units, conveyors, and drives.

Nicholson Steam Trap    Walden, NY 12586 2000

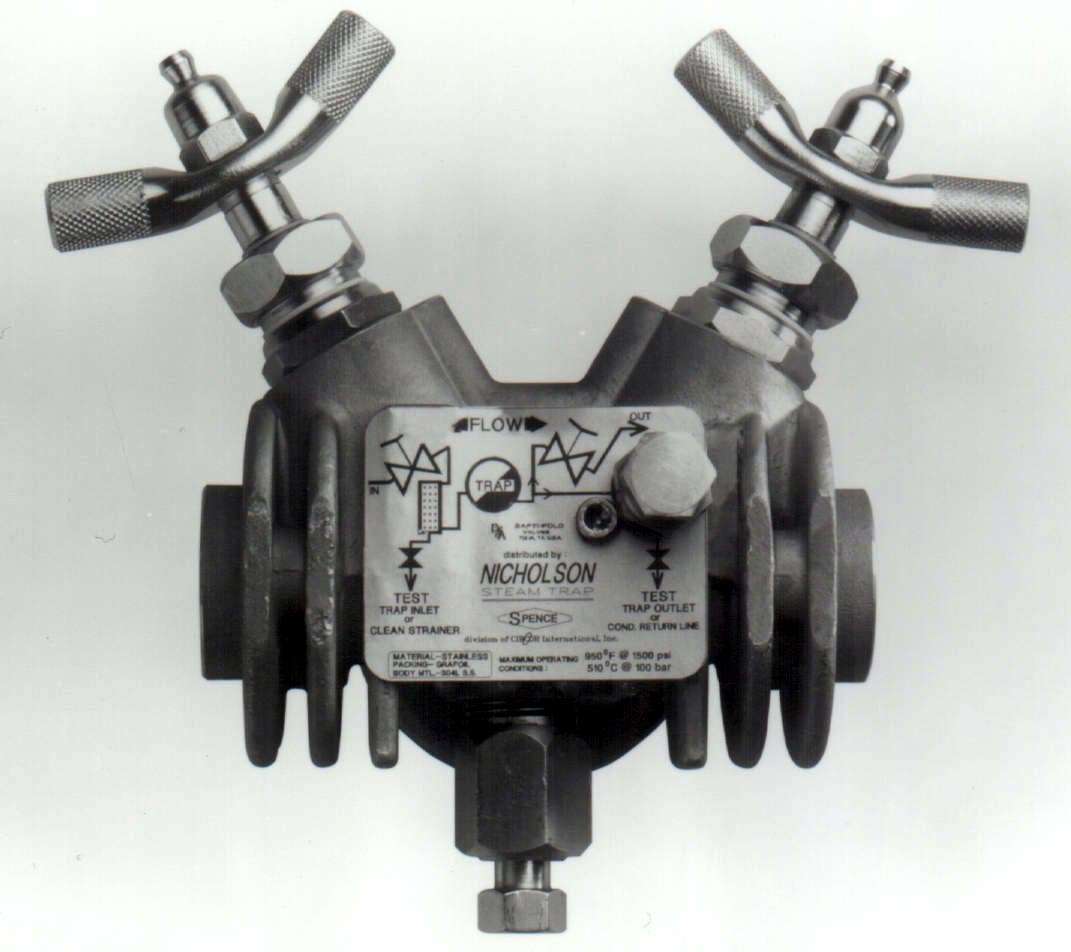

Mar 11, 2003 Big Block Universal Mount Trap Valve Station combines isolation valves, test ports, strainer, and blowdown valve in mounting block with 2-bolt universal, swivel-mount connection pattern. Station features blowout-proof isolation valves with grease fittings. All stainless steel construction, with Grafoil packing and leak-proof seal, withstands pressures to 1500 psig and temperatures to 950°F. Station is available with 1/2 or 3/4 in. NPT or socket-weld connections.

DVT, Inc.    Norcross, GA 30093

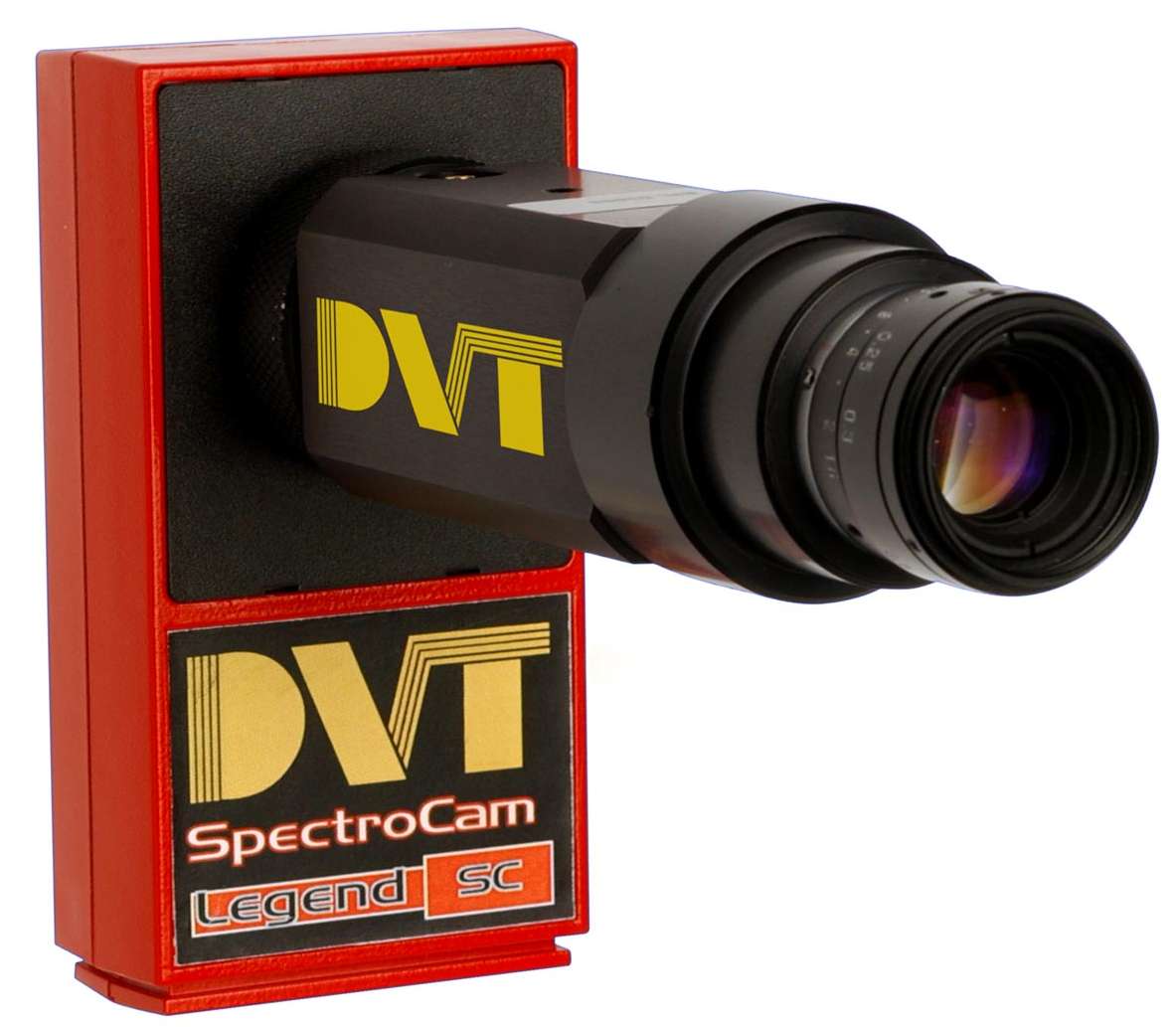

Mar 11, 2003 SpectroCam merges spectrophotometer color sensitivity with SmartImage Ethernet-ready, in-line vision sensor. Built-in spectrograph splits incoming light into constituent wavelengths along X-axis and spatially along Y-axis. Complete spectrum (380–900 nm) of sample can be learned, enabling unit to detect deviations. With unlimited color learning capabilities, system is suited for color applications where small color variations are critical.

DVT, Inc.    Norcross, GA 30093
Mar 11, 2003 IntelligentScanner, with integrated light, reads up to 180 codes/sec. It provides automatic identification and data capture by reading bar codes, Data Matrix, and OCR characters to communicate coordinate information to motion control, SPC, HMI, and PLC packages. Built-in Ethernet communications allow data acquisition and simultaneous transmission for date/lot code verification, documentation, and part tracking. Unit interprets all popular code formats.

ITT Goulds Pumps    Seneca Falls, NY 13148

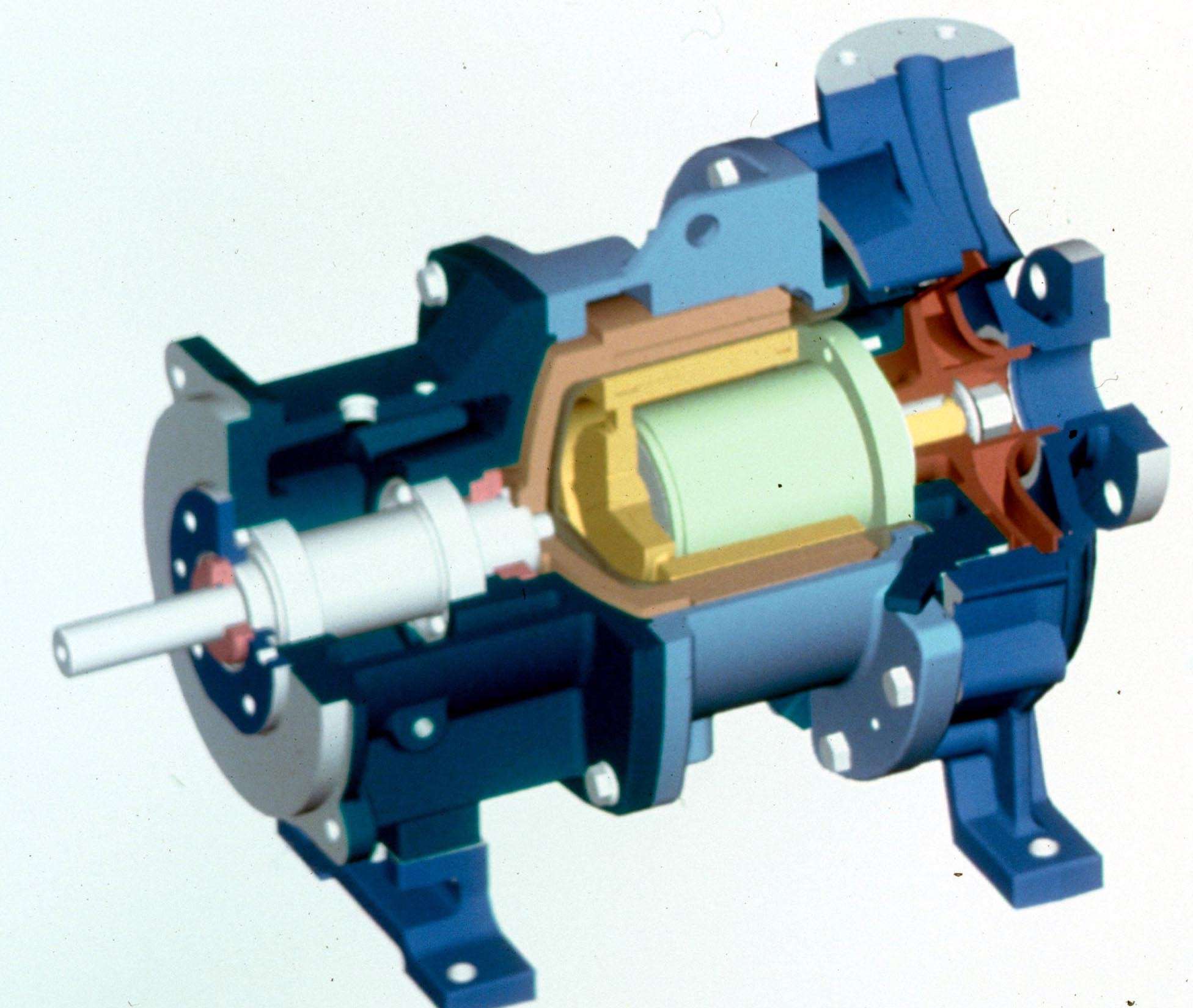

Mar 11, 2003 Magnetic-drive, sealless Model 3296 EZMAGâ„¢ handles corrosives, pollutants, ultra-pure liquids, and toxics. Seamless, deep-drawn Hastelloy containment shell seals liquid from environment and has integral anti-vortex vane, which helps prevent erosion. Product utilizes SAFEGLIDEâ„¢ silicon carbide bearings housed in bearing cartridge, which protects pump in event of bearing failure. Unit handles flows to 750 gpm, heads to 520 ft at 3,500 rpm, and pressures up to 275 psi.

Lanner Group Inc.    Houston, TX 77042

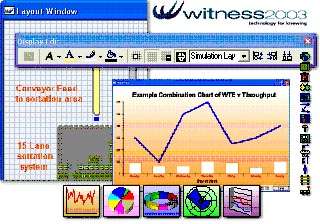

Mar 11, 2003 WITNESS 2003 simulation modeling software features flexibility for complex labor and resource management, dynamic variable concept, wide element attribute coverage, and containers functionality. Toolbar options are provided for model layout including isometric grids and flexible coordinate systems, grouping concepts, and multi-designer template. Software includes customizable charts and reports and supports group displays.

ITT Goulds Pumps    Seneca Falls, NY 13148

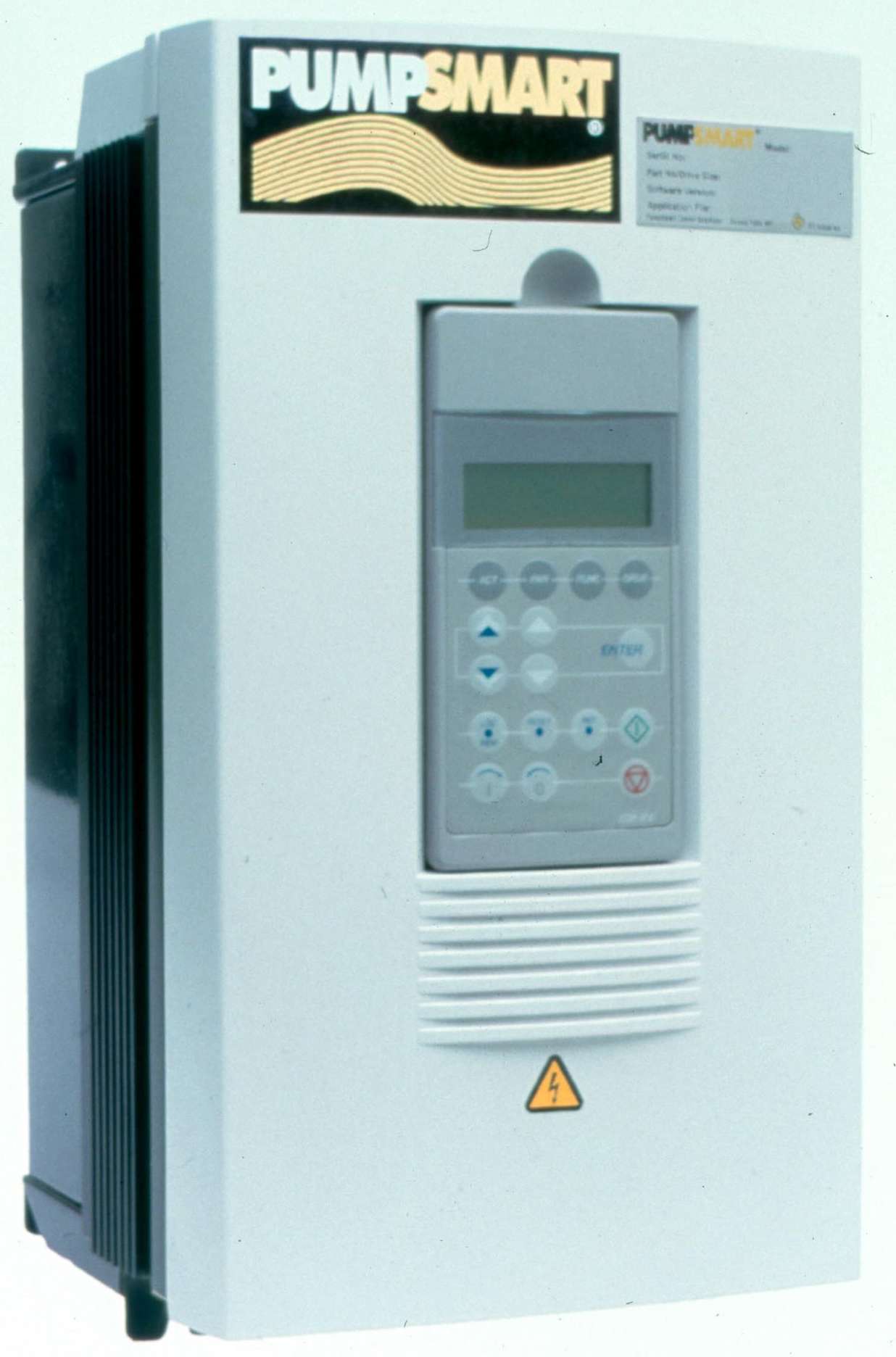

Mar 11, 2003 PumpSmart 200 v2.1 requires 7 parameters for set up and start of single pump pressure control applications. Unit also allows users to start up to three fixed speed pumps. Microprocessor based, variable speed drive is programmed for centrifugal pumps up to 700 hp, providing control of process parameters by continuously monitoring and reacting to pump conditions/system demands. Unit alerts user when sensor fails and automatically changes to speed control.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039

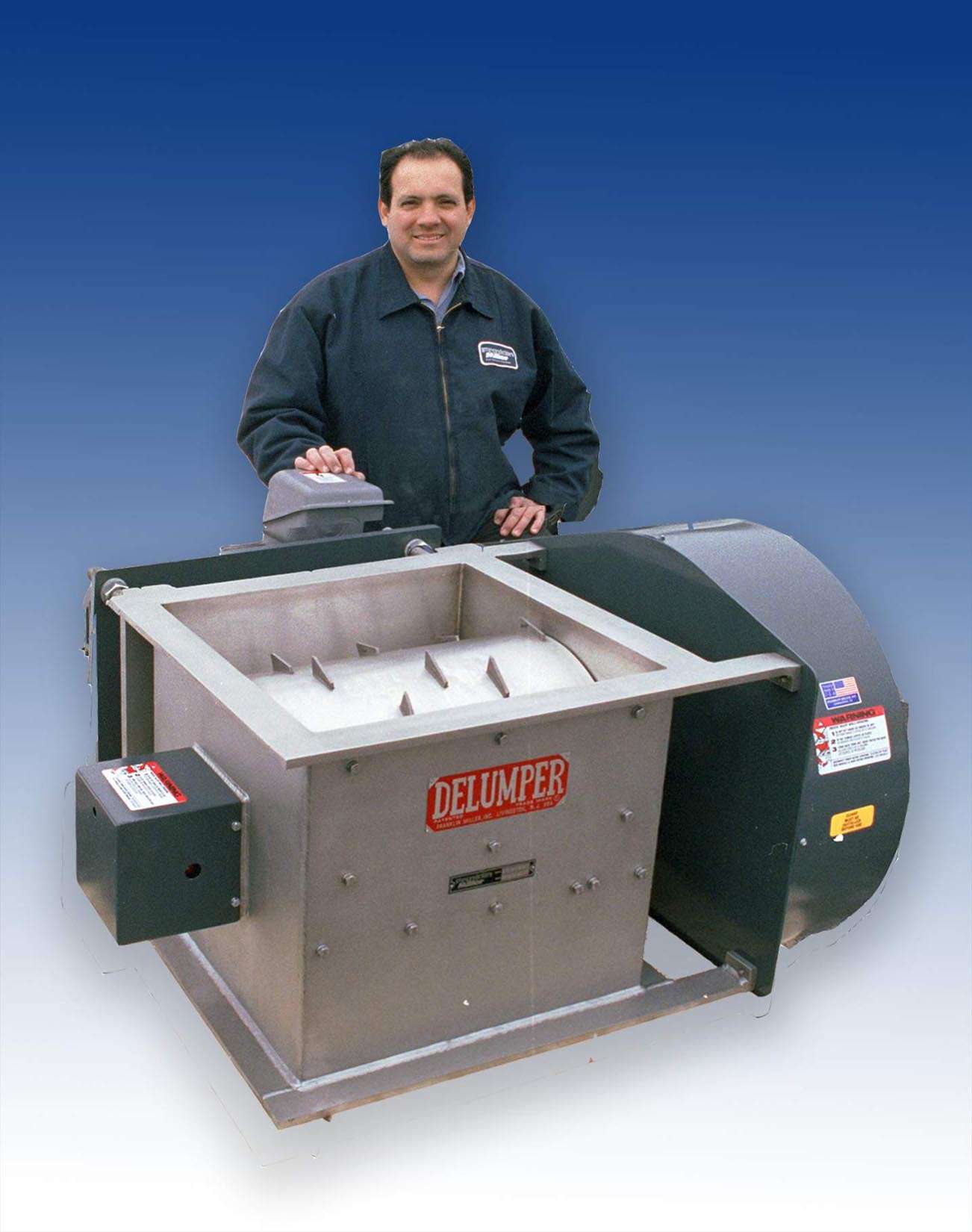

Mar 11, 2003 Model DC2020L DELUMPER® Crusher features seamless, stainless steel body, 20 x 20 in. inlet and discharge opening, and wide mounting flanges for connection to systems or hoppers. Teeth mounted on smooth rotating drum intermesh with sizing combs, reducing solids to basic grain size without overgrind, heat rise, or fines. Model DC2020L is dust tight and includes shaft seals, heavy tapered roller bearings, and belt or direct drive.

Structural Research & Analysis Corp.    Los Angeles, CA 90025 1170

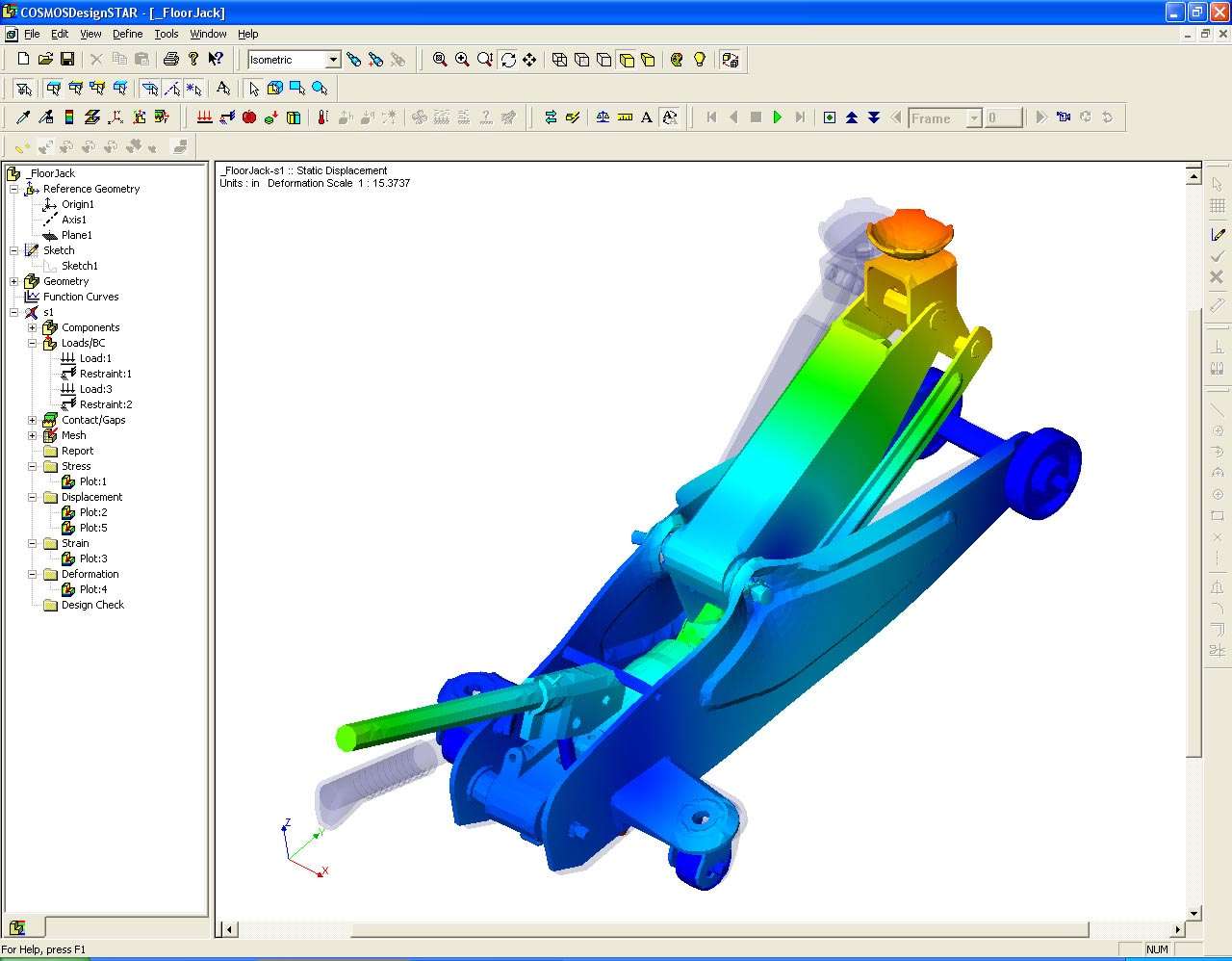

Mar 11, 2003 COSMOSDesignSTAR v4.0 multi-CAD design analysis tool allows users to detect potential design problems and fix them by being able to conduct multiple what if scenarios. Product provides insight into real-world behavior of solid models, allowing users to analyze overall structural integrity of parts and assemblies. Product includes automatic mesh tools and sketcher tool as well as tools that enable users to breakdown 3D models into 2D planar body representations.

Lascar Electronics, Inc.    Palo Alto, CA 94303-0727

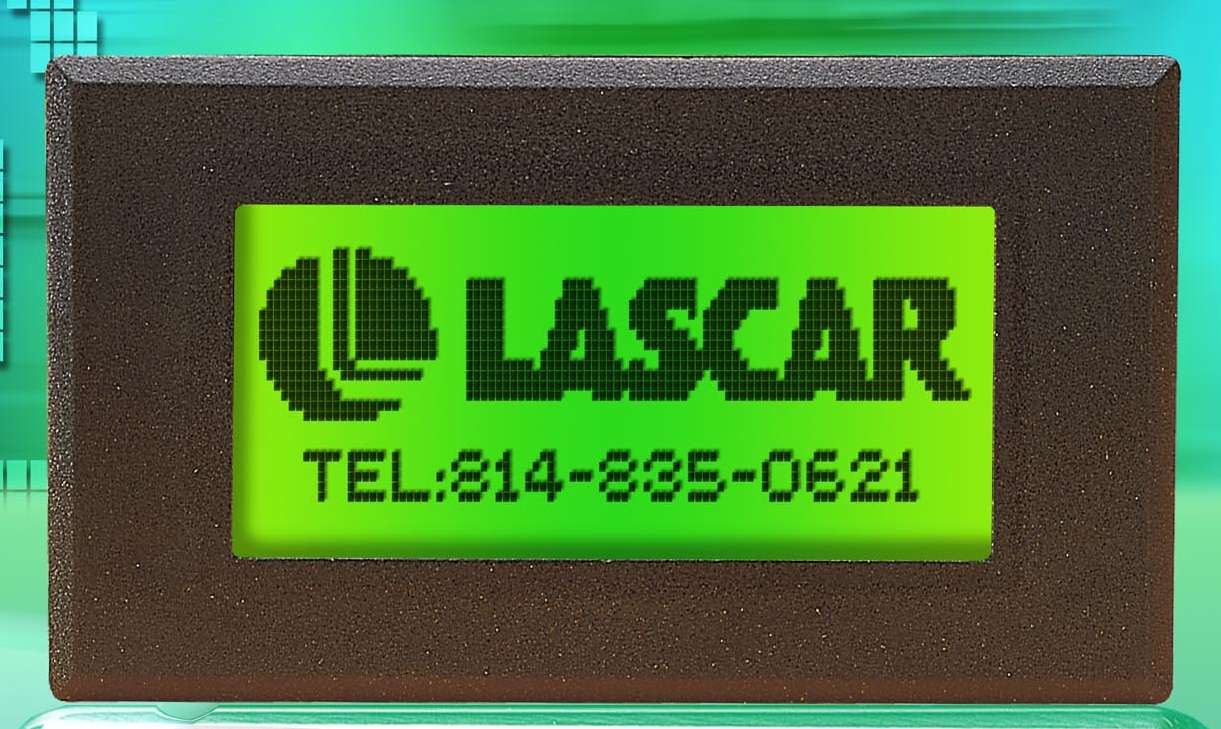

Mar 11, 2003 With supertwist LCD and Epson SED 1530 controller, dot-matrix DMX 973B provides 100 x 32 pixel display. LED backlighting ensures visibility under low-light conditions, while optional NEMA4X rated bezel, BEZ 900-IP, provides protection against ingress of water in hostile environments. Display incorporates 16-pin, dual, in-line connector, parallel and serial microprocessor interfaces, and electronic contrast control. Plastic bezel, window, and mounting clips are included.

Migatron Corp.    Woodstock, IL 60098
Mar 11, 2003 Self-contained in 30 mm housing with quick-disconnect connector, Intrinsically Safe Series RPS-409A-IS detects presence, proximity, level control, volume, and distance measuring in explosive and hazardous locations. With range from 4 in. to 18 ft, chemical-resistant product is UL listed and offers built-in temperature compensation, analog voltage output, sync/enable input line, and short circuit protection.

Sloan Valve Co.    Franklin Park, IL 60131
Mar 11, 2003 Equipped with intelligent sensor, Optima® i.q.â„¢ Faucet is available with select-temperature control adjusting lever and is also suited for use with tempered water. Incorporated i.q.-cliqâ„¢ button is provided for user-directed modes, and remote control is available for performance parameter adjustments. Pre-installed lithium cell and environmentally encapsulated electronics provide ease of installation and maintenance.

Microchip Technology, Inc.    Chandler, AZ 85224 6199

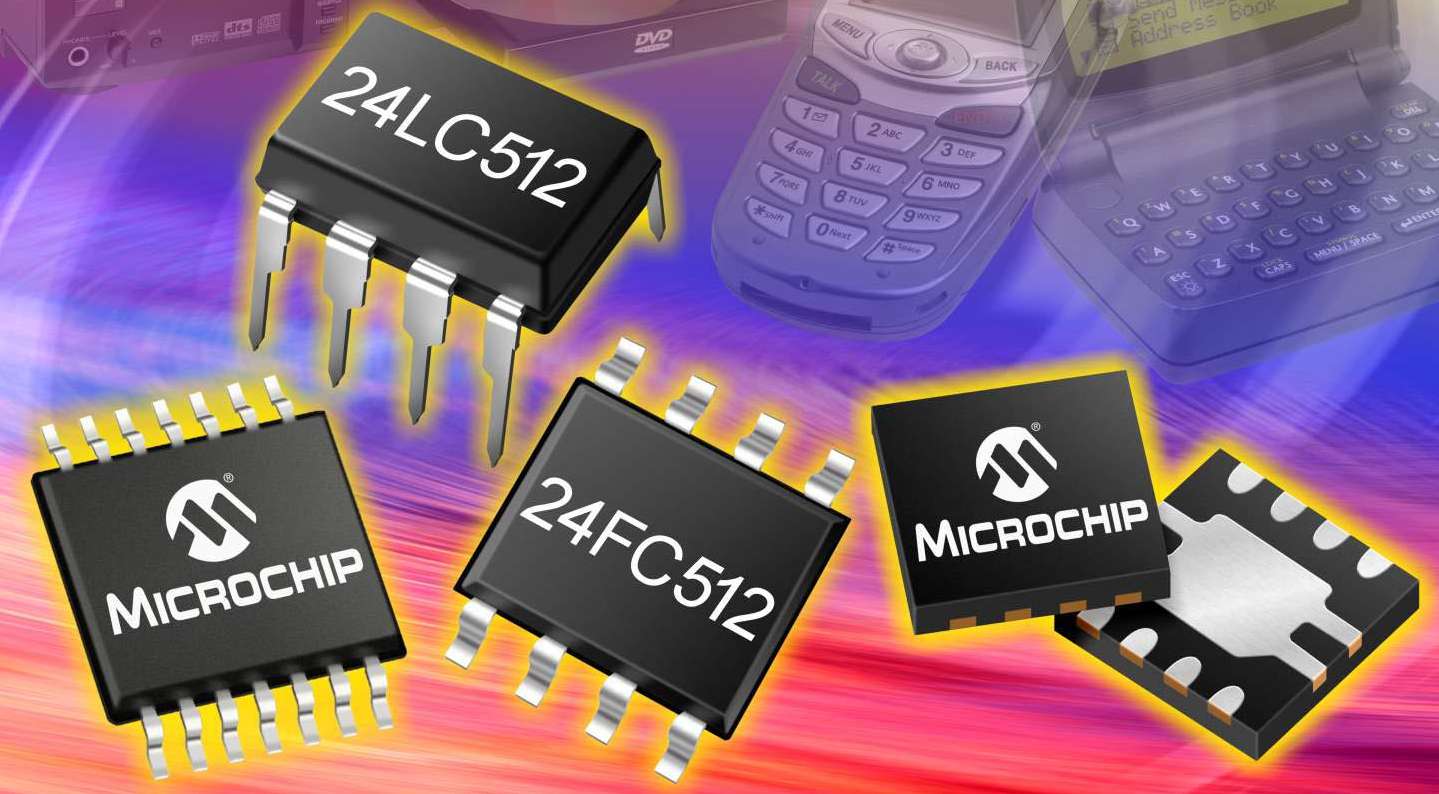

Mar 11, 2003 Housed in 8-pad, dual flat no-lead (DFN), 6 x 5 mm package, Models 24LC512, 24AA512, and 24FC512 are implemented in PMOS Electrically Erasable Cell (PEEC) process technology. Measuring 0.9 mm thick, devices have page-write capability of up to 128 bytes and are capable of random reads throughout entire array. Additional features include 5 msec write time, 400 KHz clock rate throughout operating voltage of 2.5–5.5 V, and temperature range of -40 to +85°C.

Rietschle Inc.    Hanover, MD 21076 1342
Mar 11, 2003 Quiet operation of oil-less Series 6025 eliminates need for sound insulation. Simple design employs few moving parts, and low pulsation does not require pulsation chamber. Series is available in pressure and pressure-vacuum models and for 60/50 Hz operation. Product provides max continuous and restart pressures to 4.0 psi, max intermittent pressure to 5.5 psi, max vacuum to 7.5 in. Hg, and max flow of 1.5 cfm.

Rietschle Inc.    Hanover, MD 21076 1342
Mar 11, 2003 Available in pressure and pressure vacuum models, 917 series includes permanently lubricated bearings, stainless steel valves, aluminum valve plates, and inlet filter. Series is balanced for smooth, low vibration operation and is equipped with 6 ft grounded cord and plugs. Utilizing 115 V, UL recognized motor and thermal protector, pump provides 30 psi max continuous/restart pressures, 40 psi max intermittent pressure, 25 in. Hg max vacuum, and 1.5 cfm max flow.

GILLIS Associated Industries (A Div. Of Leggett & Platt)    Prospect Heights, IL 60070

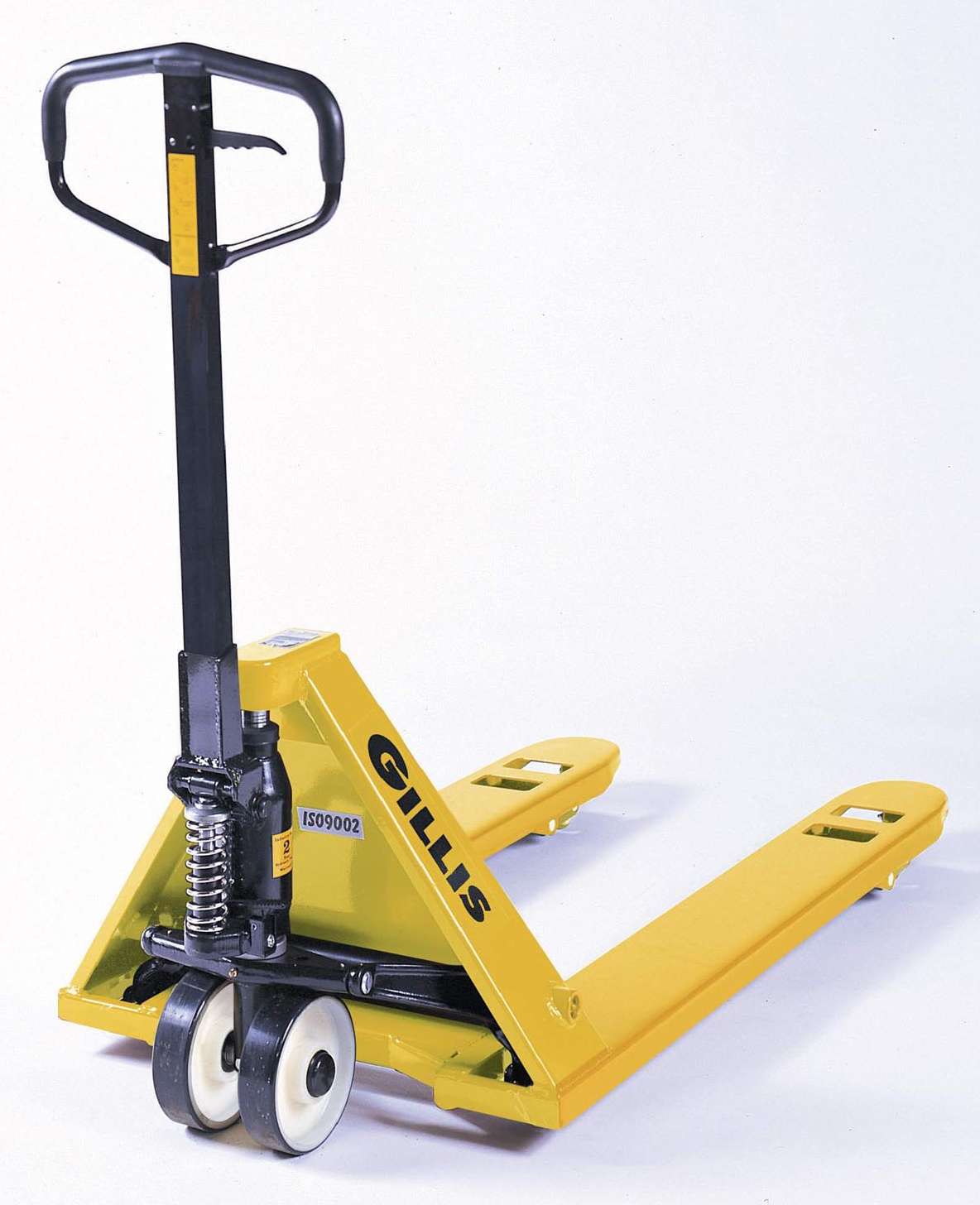

Mar 11, 2003 Premier Pallet Trucks are offered in three styles: Standard and Low Profile models, each with 5,500 lb capacity, and 4-Way Entry model with 4,500 lb capacity. Components include pump, adjustable push rods, hand control with built-in foot release, and entry and exit rollers. Offered with 1-piece reinforced forks, trucks require 400 psi pump force to raise 1,000 lb. load.

Sony Precision Technology America Inc.    Canton, MI 48187
Mar 11, 2003 Laserscale Model BL55 features Optical Integrated Circuit technology, which reduces size of reader head. It is offered with Neoceram glass, featuring temperature coefficient of -0.7x10^-6/°C, ensuring that effects of changes in temperature, humidity, or air pressure are minimized. Linearity is ±0.5 µm on travel lengths to 220 mm. Output signals include 0.4 µm analog output, 0.1 µm A/B phase output, and high resolution 0.05 µm A/B phase output.

Zendex Corp.    Dublin, CA 94568

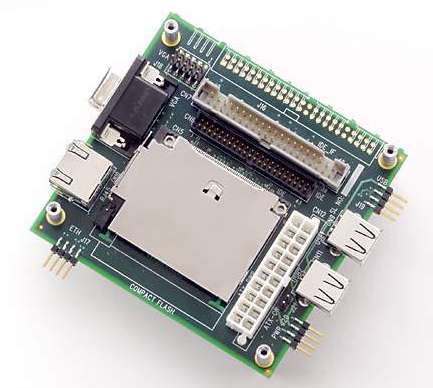

Mar 11, 2003 Built with CompactFlash socket, ZXE-ICB/104 includes Ethernet, CRT video, two USB, and 40- and 44-pin IDE connectors. Connection between SBC and Connector Card utilizes 0.1 in. headers. Standard components are soldered on, which allows device to withstand shock and vibration within rugged environments.
