Arista Corporation    Tustin, CA 92780-2137
Feb 06, 2003 ARP-1615 Cougar Series Panel PC supports Intel® Pentium® III and Celeron® processors. Modular, PC-based computer, suited for automation applications, offers 15 in., 1024 x 768 XGA color TFT LCD display with touch-screen. Panel PC is equipped with up to 512 MB SDRAM, 2.5 in. hard drive, CD-ROM and integrated Realtek 10/100 Base-T Ethernet controller. Flat panel PC comes equipped with 2 parallel ports, two PS/2 interfaces, dual USB and 3 RS-232 ports.

Marathon Electric, a Regal-Beloit Company    Wausau, WI 54401
Feb 06, 2003 Motor PhD(TM) provides advanced warning and control of equipment that could lead to unscheduled downtime. It detects vibration conditions that indicate potential misalignment or bearing failure, and temperature levels in excess of user-defined limits. Red, yellow, and green LEDs indicate warning, alarm, or fault status. System includes processing module, 15 ft signal cable, dual function vibration and temperature sensor, and integral stud mounting pad.

Spraying Systems Co.    Wheaton, IL 60189
Feb 06, 2003 AutoJet Tank Cleaning System consists of tank washer or tank cleaning nozzle, control panel containing AutoJet Spray Controller, pump, and process control package. Users can add chemical injection and liquid recirculation features to automatically maintain consistent tank cleaning results. Powered by Spray Logic(TM) software, product utilizes push-button control and offers multistage centrifugal pumps up to 160 gpm at 175 psi.

Dynisco Instruments    Franklin, MA 02038
Feb 06, 2003 Oil filled pressure transducers, suited for food and medical extrusion markets, meet FDA requirements 21 CFR 178.3620, 21 CFR 172.878, and 21 CFR 573.680 as well as H1 status from USDA. DyMaxâ„¢ proprietary coating for melt pressure transducer diaphragms adds abrasion resistance without limiting performance. Product does not add to thickness of machined, high-grade stainless steel transducer diaphragms or negatively impact sensitivity.

Dynisco Polymer Test Systems    Morgantown, PA 19543 0709
Feb 06, 2003 Series LCR7000 employs 32-bit microprocessor, which enables temperature control, digital recognition of sensor, real-time multi-sensor data output, and dynamic speed range of 20,000:1. Used with LAB KARS data processor/software package, LCR7000 units can provide shear rate vs viscosity, shear stress vs viscosity, and thermal degradation vs time. LAB KARS permits detailed analysis for Non-linear curve fitting, Bagley and Rabinowitsch corrections and SQC reporting.

Dynisco Extrusion    Hickory, NC 28602 4244
Feb 06, 2003 Model EM-10 manually actuated, 2-cavity, discontinuous slide plate screen changer targets extruder sizes from ¾â€“4.5 in. dia. With leak-free performance to 10,000 psi, bolt through design incorporates 3-position handle. Model MSDP-050/006 extrusion melt pump offers 0.1 cc/revolution, and is suited for medical extrusion processes. MSDP 050 and 090 series pumps employ bearing and gear design that is suited for processes requiring enhanced thermal and color dispersion.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Feb 06, 2003 Surface-mount QTLP6XX series low V_F LEDs offer low voltage operation and narrow forward voltage range without requiring auxiliary circuitry. FAN56XX LED driver ICs accommodate architectures from serial and parallel to matrix configurations and use active matching techniques. Offered with built-in digital, analog, and PWM control, products allow LED current to be programmed with 1 external resistor and provide current matching for narrow band spectrum LEDs.

Daikin America, Inc.    Orangeburg, NY 10962
Feb 06, 2003 EFEP can be processed in conventional thermoplastic co-extrusion equipment and bonds to variety of polymer substrates, including nylon, modified PE, EVOH, and ETFE. Functional reactivity allows bonding of EFEP to glass and metal surfaces without etching or adhesives. Melt points range between 165–195°C. EFEP offers chemical resistance and high clarity, making it suitable for chemical processing industry where liquid levels must be viewed through valves or pipes.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Feb 06, 2003 AZ8 and AZ942H relays meet 6 kV lightning surge test outlined in IEEE 587. Relays withstand positive and negative 1.2 x 50 µs, 6 kV unidirectional pulses and 0.5 µs–100 kHz, 6 kV ring wave from contact to coil. Relays have 3 kV rms dielectric strength rating from contact to coil. High surge-voltage withstand capability is desirable in devices that are connected to AC mains, such as white goods controllers, machine controls, and HVAC controllers.

Pinpoint Laser Systems    Peabody, MA 01960
Feb 06, 2003 Model PL-100 produces bright red beam for positioning equipment, aligning production parts, guiding forklift operators, and positioning conveyors. It measures 1 in. in diameter and 5 in. long and has 6 ft cable to wall-mounted power supply. Casing is machined from solid aluminum and protected by clear anodized coating. Mounting hole features ¼-20 thread for attaching to fixtures.

Klein Tools, Inc.    Lincolnshire, IL 60069
Feb 06, 2003 CSA-certified eyewear, suited for all-day use, is offered with anti-fog, scratch-resistant, anti-UV lens coatings; adjustable temple lengths; and wrap-around designs. All coatings are permanently bonded. Temple end holes allow for lanyard attachment. Offered in standard, frameless, and contemporary styles, eyewear promotes clear peripheral vision and includes ventilation channel to reduce moisture build-up and fogging.

IDEAL Scanners & Systems, Inc.    Rockville, MD 20852
Feb 06, 2003 IntraSCAN is compatible with Contex manufactured scanners, including IDEAL/Contex, Vidar, and HP DesignJet copier series. Optional features of IntraSCAN include output to multipage PDF and TIFF files, and batch print capabilities. Scanner is compatible with touch screen and conventional displays, and is compatible with TabletPC.

The Modal Shop, Inc.    Cincinnati, OH 45241
Feb 06, 2003 Based on TMS LanSharc(TM) Smart Digital Controller, ePIG(TM) (cutting Energy Process Integrity Gauge) uses statistical vibration analysis to alert machine operators of change in single spindle machine's condition. It runs constant diagnostics during cutting, milling, drilling, and boring without interrupting flow of production. Using non-intrusive vibration sensor, ePIG analyzes cutting energy during machining cycle and ambient rotating energy while machine idles.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Feb 06, 2003 Model 33220A 20 MHz function/arbitrary waveform generator combines variable edge pulse and PWM functionality with 50 MSa/s, 14-bit, 64 K-point arbitrary waveform capability. Direct digital synthesis techniques create stable output signals with low distortion. USB, Ethernet, and GPIB interfaces are standard, allowing connectivity to PC, other instruments, or network. Unit can be operated from remote location using 33220A Web page virtual front panel.

PTC    Needham, MA 02494
Feb 06, 2003 Pro/ENGINEER Wildfire enables users to focus on product design processes by providing options for contextual collaboration, in real-time or asynchronously, from within application. Users do not have to leave Pro/ENGINEER Wildfire to collaborate with colleagues, thereby eliminating need to trade files and designs through email attachments or delivery services.

Automatic Timing & Controls    Lancaster, PA 17605
Feb 05, 2003 Model 3830 SMART Rate/Totalizer panel meter includes up to one Form-A, 5 A and three Form-C, 5 A output relays. Microprocesser-based process controller offers 4 analog outputs or RS 232 serial communication. Active in background or foreground, 6-digit totalizer delivers scaled pulsed output to PLCs or other controllers. Unit is available in various DC voltage or current inputs: 0–5 Vdc, 0–10 Vdc, and 4–20 mA. Aluminum case and NEMA 4 front bezel are standard.

Panduit Corp.    Tinley Park, IL 60477 3091
Feb 05, 2003 GTH installation tool, for standard to heavy cable ties, controls tension and cutoff of cable tie during installation. Product provides consistent use over many cycles with tension adjustment for changing and confirming settings. Narrow nose allows for access within space-restricted areas.

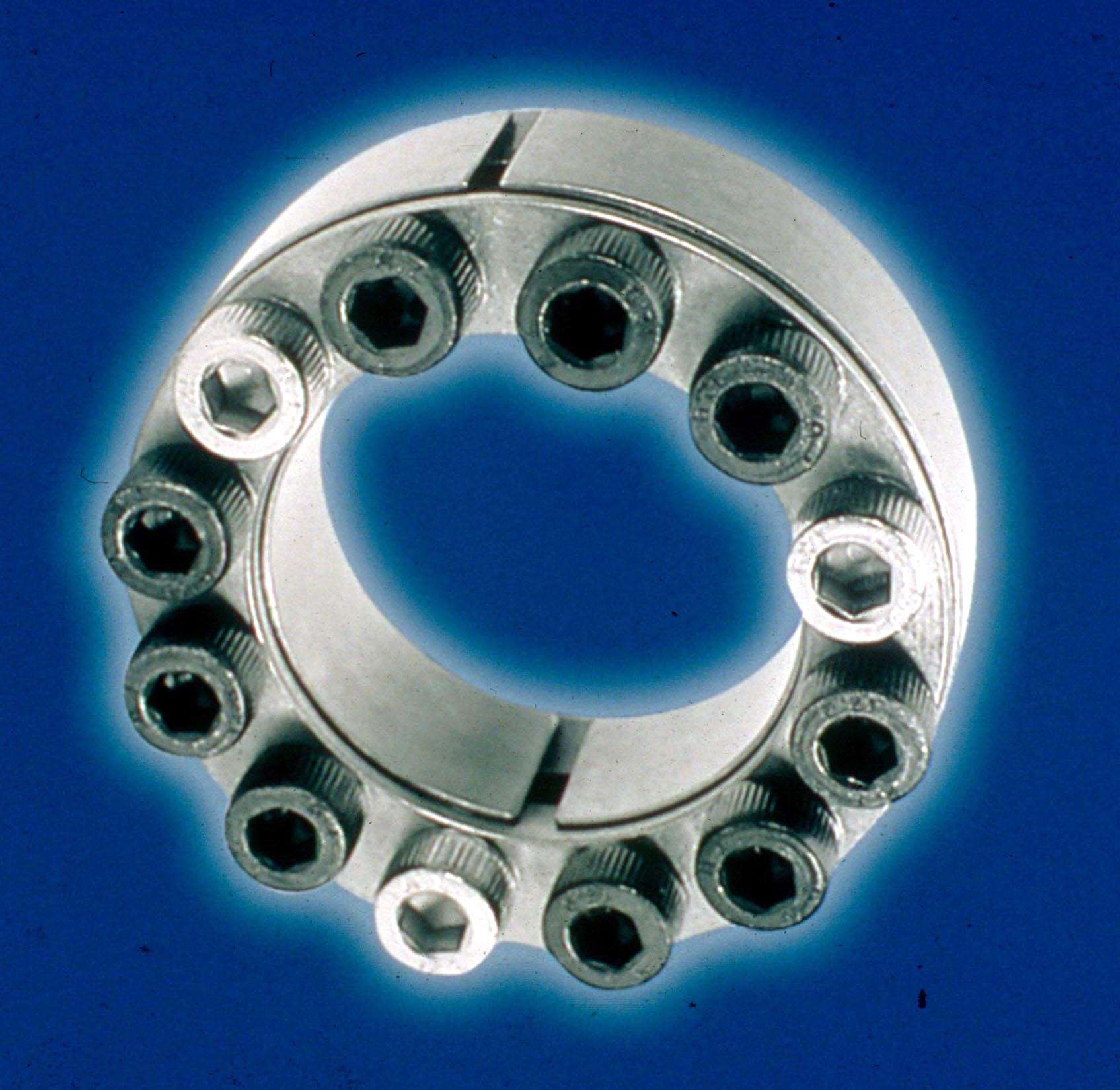

Gerwah Drive Components    Forest Park, GA 30297
Feb 05, 2003 Series PSV 2001 is offered in sizes from 20-200 mm and 3/4-7 7/8 in. Unit provides backlash-free, 360° grip without use of keyways that cause frequent failures. Stainless steel and electroless nickel-plated assembly is corrosion resistant. Mechanism is self-releasing and non-self-centering. It is suited for reversing applications where keyways develop stress fractures, such as pulleys, bevel gears, sprockets, and sheaves.

Haewa Corp.    Duluth, GA 30097
Feb 05, 2003 Housed in 14.96 x 47.24 x 8.07 in. enclosure, Model WW3500S offers dual top and bottom water connections and operates in polluted and high-temperature environments. Design offers fan that produces 259 cfm of air flow, as well as cooling water flow of 1.76 gpm at temperature of 50°F. Features include external thermostat, operating temperature to 167°F, and foamed-in-place seals that provide NEMA 12/IP 55 protection. Unit cools electronic and electrical control cabinets.

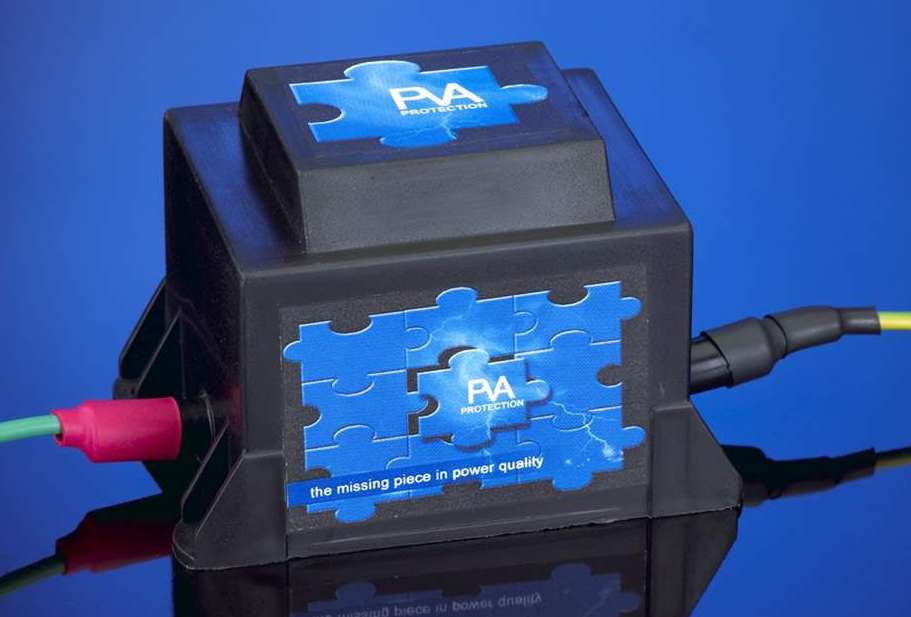

PVA Enterprises Corporation    LaGrange, IL 60525
Feb 05, 2003 PVA Transient Block helps prevent malfunctions in electronic equipment. UL-recognized, stand-alone filter goes directly on ground line of electronic equipment. Weighing 340 gm and measuring 2.5 x 2.16 x 2.16 in., it prevents disruptions due to ground transients and incorporates circuit with no moving parts or sensitive electronics and does not pose any threat to intrinsic safety ground.
