Logility Inc.    Atlanta, GA 30305
Feb 18, 2003 Voyager Global Sourcing Management(TM) gives brand owners ability to optimize sourcing decisions, extend visibility into offshore production, monitor movement of goods, and improve flow of information with supply-side trading partners. It automates strategic sourcing process from proposal management and product specification package delivery, to bid analysis and supplier performance management, through production management, quality monitoring and supplier shipment tracking.

Algor Inc.    Pittsburgh, PA 15238
Feb 18, 2003 NASTRAN computer-aided engineering solution provides CAD support, finite element modeling, hybrid solid FEA meshing, results evaluation, and presentation capabilities. FEMPRO interface offers complete data exchange with third-party software in industry-standard NASTRAN format. Solution processes input data and generates binary output files. Software features InCAD technology for direct CAD/CAE data exchange with Autodesk Inventor, CADKEY, and Solid Edge.

McLaren Inc.    Gaithersburg, MD 20879-3436
Feb 18, 2003 Business Action Manager is a scalable application that manages electronic and physical documents while assisting companies to comply to legislative and regulatory requirements associated with archiving and auditing documents. Software is a kVisia Solutions Enabling tool that works with kVisia Industry Process Server to provide flexible environment in which forms, processes, and lifecycles can be configured to meet needs of specific businesses.

Scapa North America    Windsor, CT 06095
Feb 14, 2003 Bioflex® Rx895S double-coated adhesive tape consists of 3 mil matte, polyethylene film, coated on exposed side with 1.75 mils of rubber, pressure-sensitive adhesive. Liner side of film is coated with 1 mil acrylic, pressure-sensitive adhesive. Clear film is supplied on 80# kraft paper release liner and provides conformability to curved area of body, while adhesives bond well to non-woven and film substrates.

AKCP Inc.    Pathumtanee, CA 12000
Feb 14, 2003 Simple Network Management Protocol (SNMP)-enabled, Web-based sensorProbe monitors equipment's environmental variations, requiring user only to assign IP address and connect to embedded web server. Sensors, attached to device, monitor temperature, humidity, water leakage, and airflow. Unit supports other sensors, which can monitor voltage drop, security, and analog and dry contacts. Product notifies users of problems via e-mail, SMS, or SNMP alerts.

FlexLink Systems, Inc.    Bethlehem, PA 18017 2266
Feb 14, 2003 Genesis PCB material handling platform is built with rigid extrusion profiles. Configurable voltage settings range from 110–220 Vac, 50 or 60 Hz. CE-compliant system includes zinc-plated metric hardware, ESD safe belts with dual stepper motors, and standard SMEMA interfaces.

Beta Max Hoists, Inc.    Melbourne, FL 32902
Feb 14, 2003 Maxial Track Hoist offers lifting capacity of 450 lb. Aluminum track weighs 3 lb/ft and is offered in lengths of 3 ft 3 in., 6 ft 6 in., and 9 ft 9 in. For safety, hoist includes upper and lower limit switches, electromagnetic disc brake, and universal carriage-locking device in event of cable breakage. Voltmeter signals insufficient power and LED informs operator of motor status. Hoist is suitable for confined spaces in interior or exterior applications.

Acton Research Corp.    Acton, MA 01720

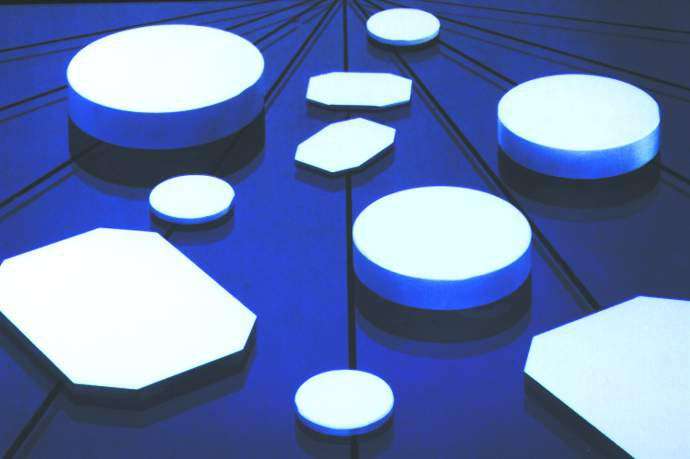

Feb 14, 2003 No. 3000-SI Al+SiO2 optical coating is optimized for maximum UV reflectance with greater than 89% reflectance from 250–300 nm, and broadband reflectance of 200–700 nm. Coating survives mil-spec adhesion and temp/humidity cycling and is more durable than conventional UV Al+MgF2 coatings. It is suited for N2 laser use and for analytical applications that require stability and UV-VIS reflectance. Coating can be cleaned using recommended solvents and procedures.

FloCat    Kenosha, WI 53144
Feb 14, 2003 FloCat C-YD50-C Compact Ultrasonic Transit Time Clamp-on Flow Meter measures liquids containing less than 40% total suspended solids or aeration. Non-invasive unit is offered with or without local display. It provides 4–20 mA analog output and choice of simulated turbine meter or TTL–pulse frequency output, allowing direct interface to data collection systems. UltraLink Windows®-based software allows user to configure, calibrate, and troubleshoot via notebook PC.

LAP Laser, LLC    Cincinnati, OH 45227

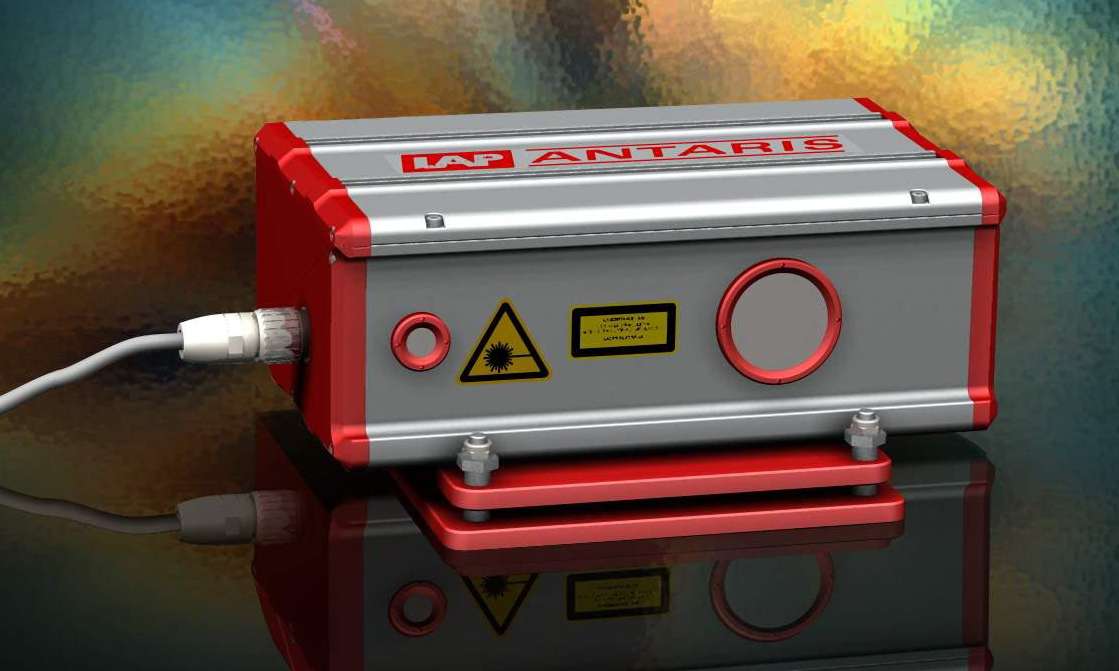

Feb 14, 2003 Long-range ANTARIS measures thicknesses of diffused reflection materials, as well as high-contrast colors and surfaces. Integrated circuits compensate for changing reflectivity, while digital multi-drop interface allows for single- and multi-track, or traversing measurement using single port. Sensor measures up to 18 ft at 60,000 steps resolution with accuracy better than 0.1% full scale. Sensors can be interconnected and offer readouts of 4–20 mA.

Radius Power, Inc.    Orange, CA 92867

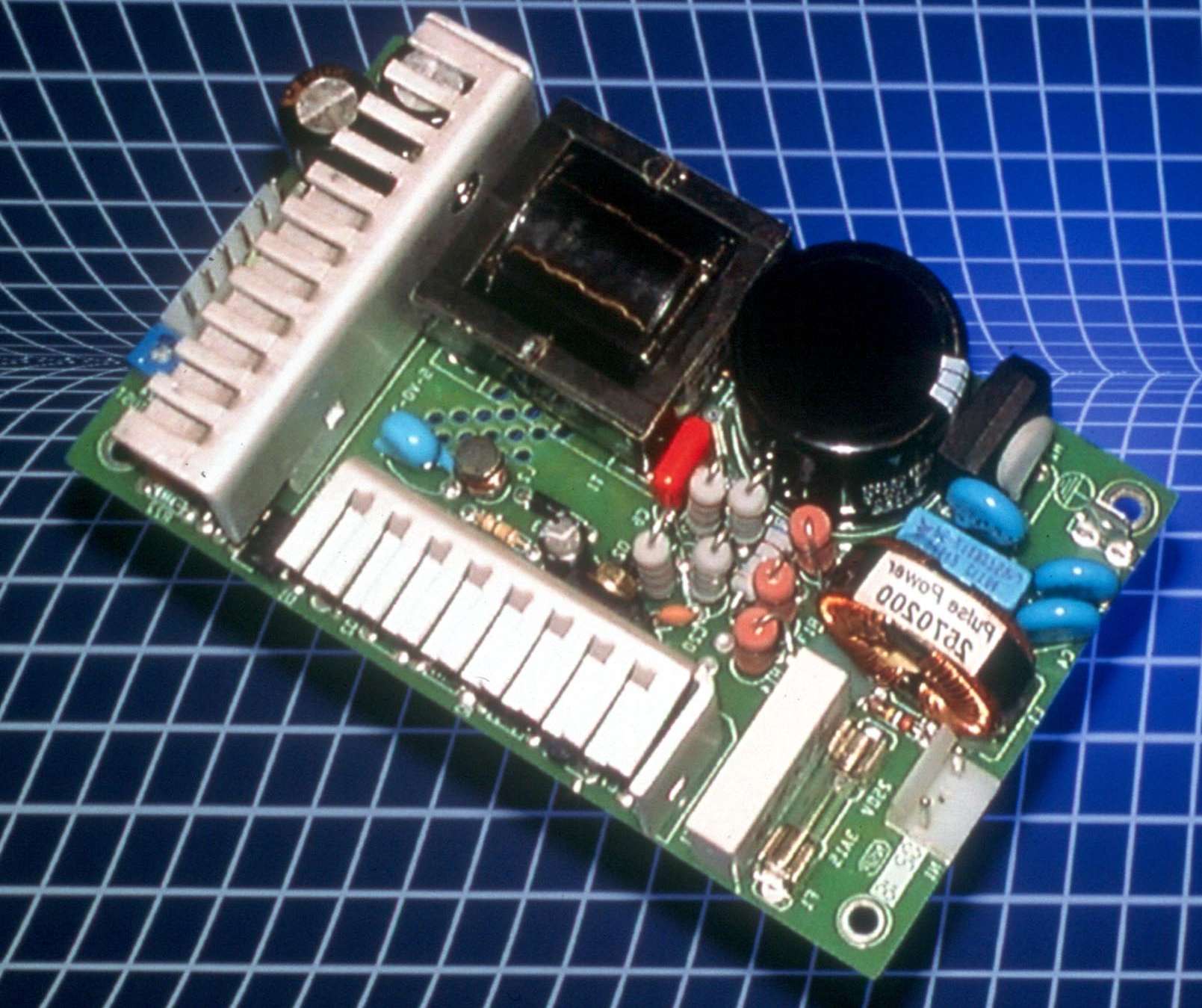

Feb 14, 2003 Model R65 65 W single output power supply unit features universal autoranging input voltage of 90-265 Vac. Five models are available with output ratings ranging from 5-48 V, with continous output power of 65 W, and currents from 1.35-12 A. Short circuit protection, 1% Vp-p at max load, and +1% line and load regulation are included. Power supply provides full compliance to industrial and commercial EMI/EMC and safety specifications.

PCB Piezotronics Inc.    Depew, NY 14043 2495

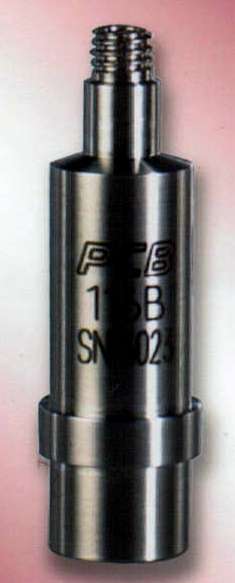

Feb 14, 2003 Model 116B03, for harsh environments, operates in charge mode and may be used with PCB In-Line Charge Converters, which convert signals into low-impedance voltage signals for operation with ICP® signal conditioners. Piezoelectric sensor is ac-coupled and ignores ambient, static pressure, and very slow pressure changes to monitor low-level dynamic pressures. Unit offers solid-state construction, no moving parts, stainless steel housing, and up to 6 pC/psi sensitivity.

Larson Davis Inc.    Provo, UT 84601

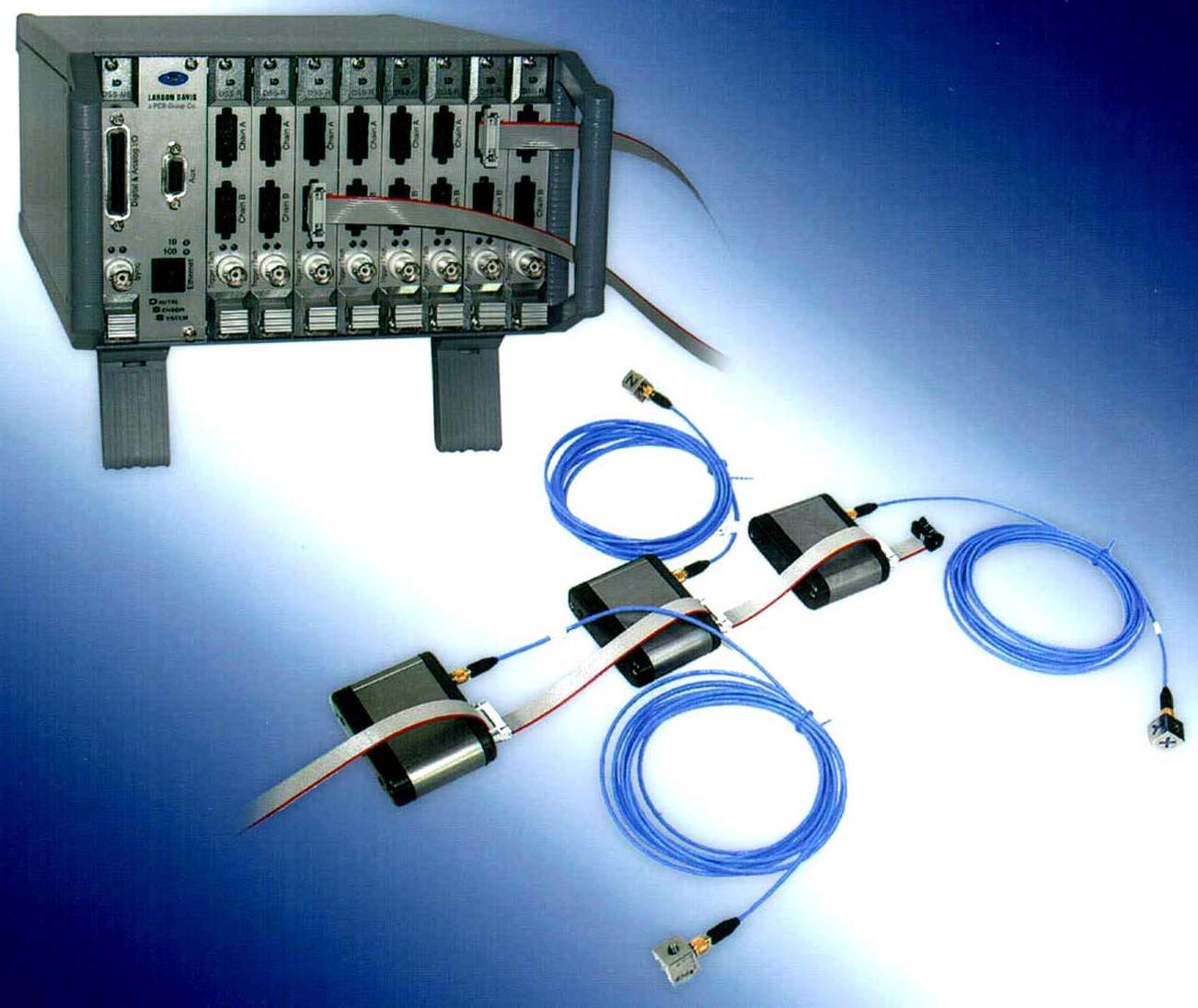

Feb 14, 2003 DSS uses DSIT (Digital Sensor Interface Transmitter) technology to optimize use of digital technology in structural dynamics and modal analysis measurements. Multi-channel, multi-drop, data acquisition system measures up to 64 channels per chassis. Remote DSITs perform 24-bit analog-to-digital conversion near ICP® accelerometers and transmit signals back digitally via ribbon cable. System offers 110 dB dynamic range, TEDS compatibility, and Ethernet communication.

Parvus Corp.    Salt Lake City, UT 84115 2913

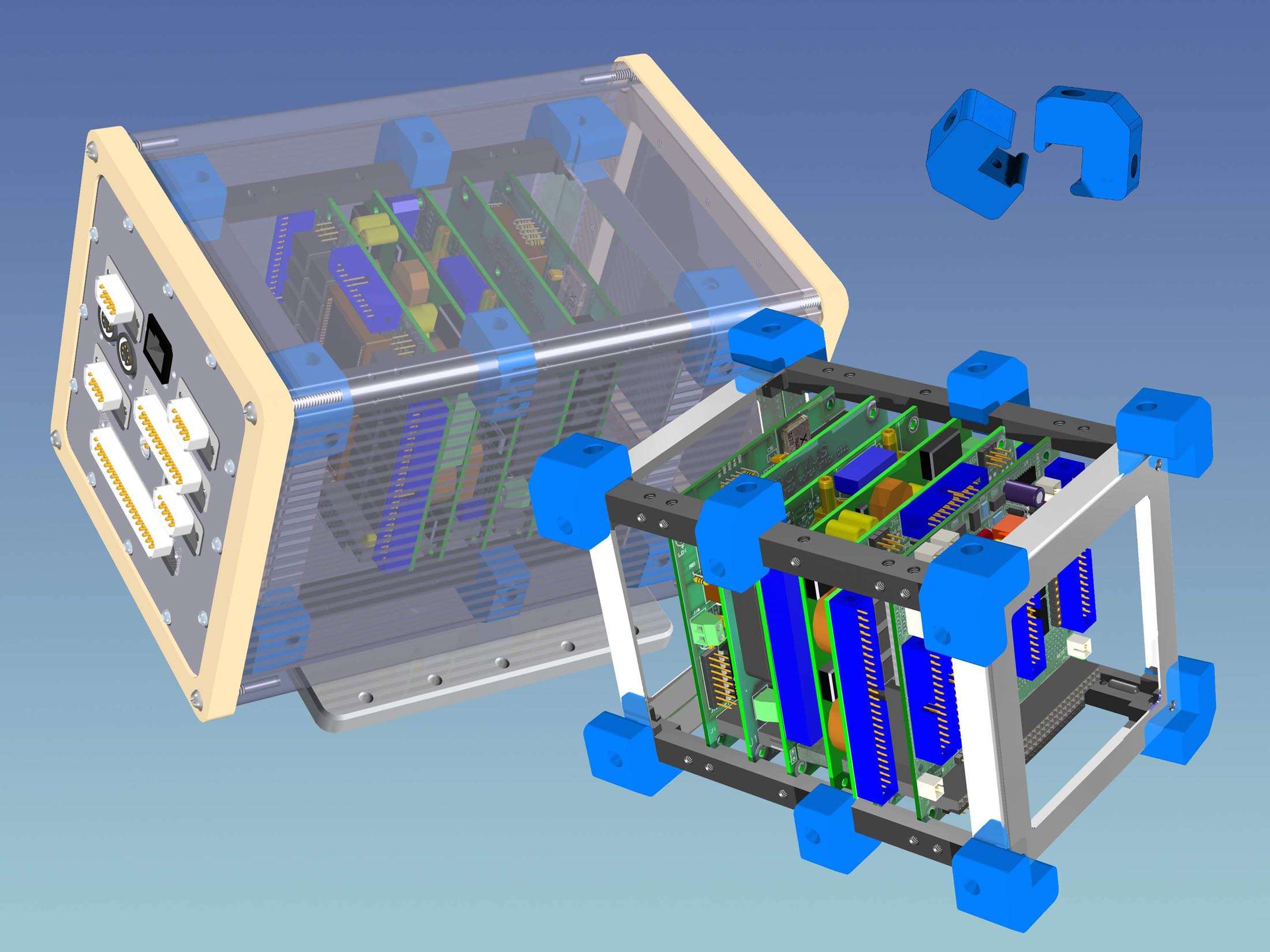

Feb 14, 2003 Shock Rocksâ„¢, made of 59-durometer Silastic® silicone rubber material, reduce g-force frequencies on 3 axes by up to a factor of 10. Designed to attach to outside perimeter of 4 x 4 in. PC/104 railed card cage, Shock Rocks isolate all points of contact between removable aluminum card cage and surrounding enclosure, eliminating need for PCB standoffs/spacers. Up to 14 PC/104 modules can be securely held in shock/vibration-dampened card cage.

Kyocera Display America, Inc.    Plymouth, MI 48170

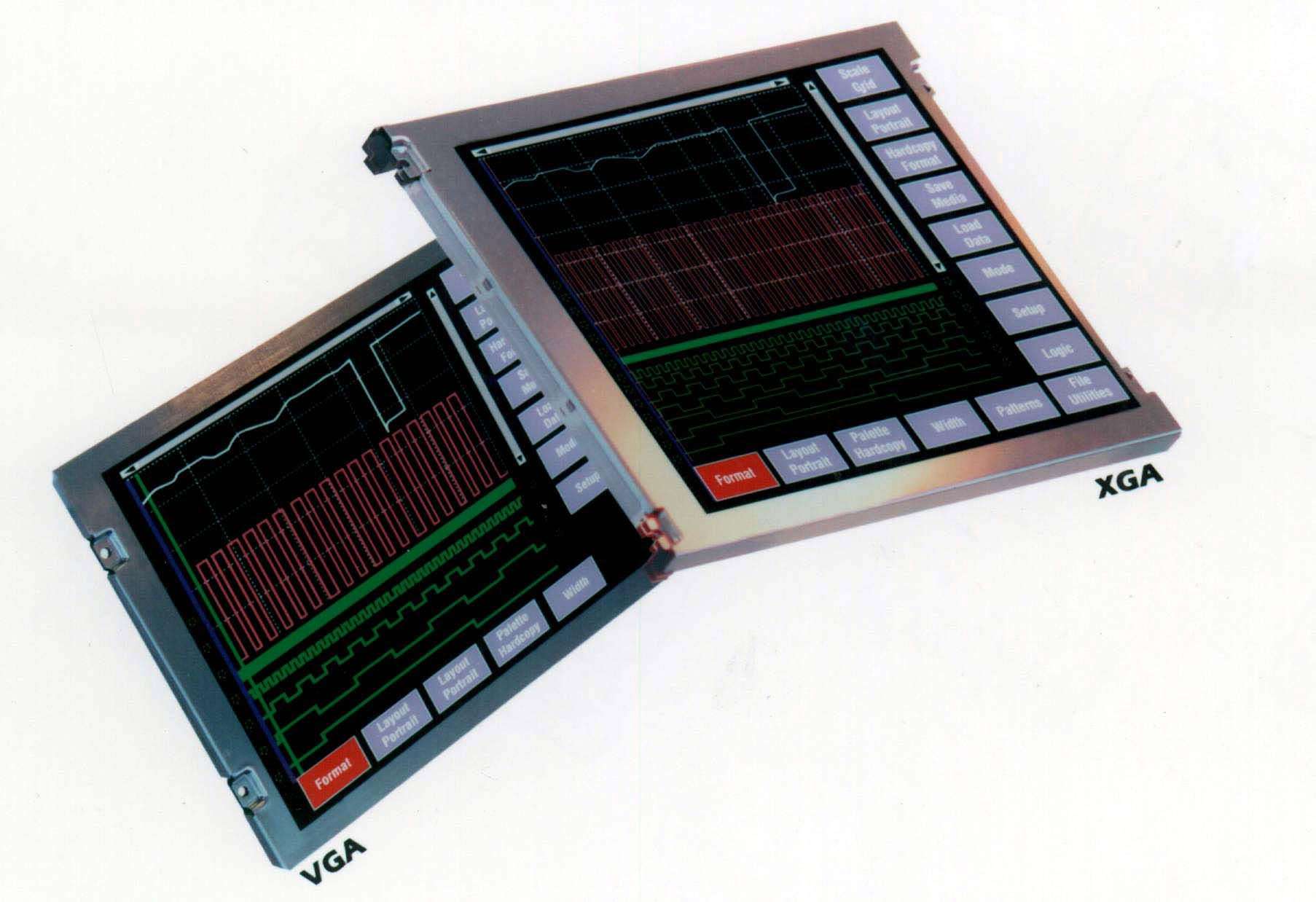

Feb 14, 2003 TFT Color LCDs have 8.4 in. diagnonal displays and include driver ICs, control circuit, and 2 replaceable CCFL backlights. They provide reverse scan capability and anti-glare, low reflection surface treatment. Viewing angle is 110° V x 130° H. VGA version offers 640 x 480 dot pixel resolution, 260 K colors, luminance of 400 nits, and 450:1 contrast ratio. XGA version provides 1024 x 768 dot pixel resolution, 260 K colors, luminance of 300 nits and 350:1 contrast ratio.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Feb 14, 2003 Video Microscope Boom Arm Stand provides adjustable, stable method to mount Series IS-3 inspection systems. Solid steel unit provides over 19 in. of reach and offers numerous mounting and inspection angles. Images can be viewed on computer or video monitor. Magnification is variable from 1–450x or 1–230x with manual zoom lens, based on 14 in. monitor. Camera captures 270,000 pixels of full color high-resolution. Maximum usable height is 14½ in., with 18 in. horizontal reach.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Feb 14, 2003 Model S33 utilizes digital, direct-drive, 3-phase servo motors with 40 mm dia ballscrews to power X- and Z-axes. Grinding spindle is powered by 7.5 kW motor. Universal turret wheelhead swivels manually or automatically, permitting external, internal, and face grinding of workpieces in single setup. Peripheral speed is up to 45 m/sec with infinitely adjustable speed control to 3200 rpm. Precision control permits fine adjustment of cylindricity to ±40 µm.

Link Lighting and Controls    Stacy, MN 55079
Feb 14, 2003 MultiBayâ„¢ uses 8 compact fluorescent lamps in uniform bat-wing distribution, allowing light output to be set at 25%, 50%, 75%, or 100% via cable or remote wireless control. Intelligent fixture monitors individual lamp on times in fractional output modes and rotates power to unused lamps at preset intervals. Consistent color output is offered in warm white, cool white, and daylight. Product is available in 16 in. dia, 208 W; 22 in. dia, 440 W; and 30 in. dia, 440 W units.

Progressive Machine Co., Inc.    Ringwood, NJ 07456

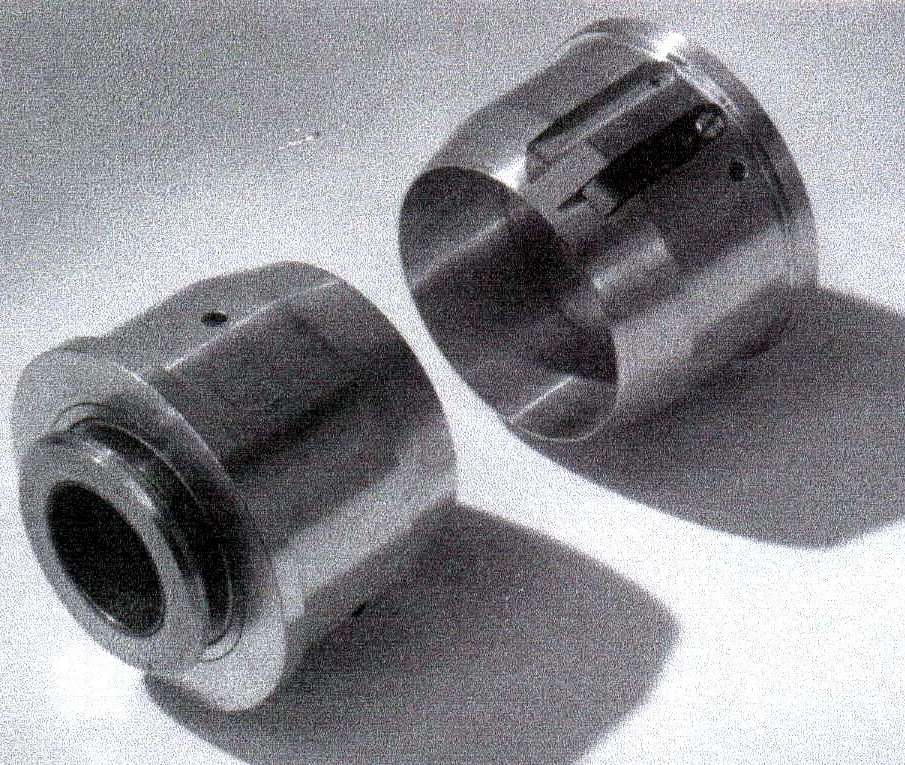

Feb 14, 2003 Spring Core Adapter mounts directly to shaft of Pay-Off or Take-Up machine. Pre-drilled holes permit springs to be located for either clockwise or counter clockwise slip, or no slip. Bowed spring design offers self-cleaning feature with each core removal. There are no grooves, clamps, or mechanical mechanisms where build up of core dust can reduce gripping action. Standard Core Adapters are offered in all shaft sizes and core sizes to 6 in.

Orion Research, Inc., A Sub. Of Thermedics, Inc., A Thermo Electron Co.    Beverly, MA 01915-6199
Feb 14, 2003 Capable of detecting chloride at levels of 10 ±5 ppb by ion-selective electrode, Model 1817LL On-Line Low-Level Chloride Analyzer exceeds Electric Power Research Institute (EPRI) guidelines for control of boiler water under equilibrium phosphate treatment (EPT) in system operating at 2,500 psia. EPT reduces phosphate hideout and acid-phosphate corrosion associated with it.
