Arcom Control Systems    Kansas City, MO 64145
Feb 13, 2003 Embedded Linux Development Kit for 133 MHz PC/104 PEGASUS embedded PC, provides ready-to-run platform for embedded Linux with option for running embedded Java applications using IBM’s J9 JVM. Capabilities include Java class and C library client support for MQIsdp protocol. MQIsdp client application publishes data on report-by-exception basis. Based on GNU/Linux OS, development kit uses 2.4 kernel and includes PEGASUS PC/104 SBC fitted with 32 Mbytes DRAM and 16 Mbytes Flash.

White, O.C., Co.    Thorndike, MA 01079
Feb 13, 2003 ProLite® magnifier products incorporate crown white glass lenses with carbon-impregnated conductive coating that minimizes ESD danger. Offerings include Big Eye family, Dual-Mag(TM) Series, and DMLC Series magnifiers. All units include flexible E-Z Swivel® feature and 10 diopter swing lens, which allows user to increase area magnification when defects are located.

Global Storage Systems, Inc.    Buffalo, NY 14219
Feb 13, 2003 Pallet Runnerâ„¢ utilizes deep carrier rails installed into existing or engineered racking systems. After operator presses put-away or put-to button on installed remove control, unit can run unattended. Each remote can control multiple Pallet Runners. True FIFO/FILO solution provides forklift safety pin, full lift tray for total pallet contact, and all wheel drive. Able to run for 22 hr on one charge, unit lifts pallet 1 in. clear of carrier rails.

Technology Answers, Inc.    San Jose, CA 95110
Feb 13, 2003 CIMSKIL(TM) software suite, with PC and Unix support, enables direct use of 3D solid-model designs in NC programming. Additional capabilities include capture and storage of optimal machining methods and automatic generation of NC tool paths and associated documentation for recognized features. Automated manufacturing feature recognition identifies 2- through 5-axis manufacturing features directly from as-designed part model.

Epicor Software Corp.    Minneapolis, MN 55426
Feb 13, 2003 Vista v6.0 provides scheduling, job tracking, and accounting functions. Offering support for Microsoft SQL Server and Progress RDBMS, software includes Quality Assurance module that streamlines quality process across entire manufacturing operation and Advanced Inventory Management module with real-time visibility of inventory. Additional modules include Vista Dashboard, for critical business information, Advanced Bill of Materials, and Contact Management.

Anthro Corp.    Tualatin, OR 97062 8591

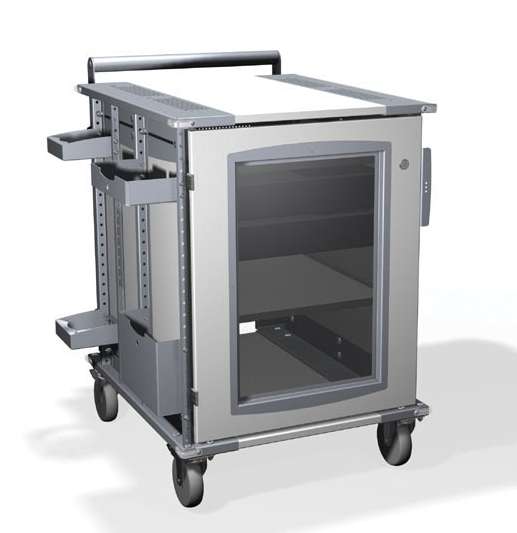

Feb 12, 2003 The eCart comes with 2 side panels, vented metal back panel, laminated top and bottom panels with ventilated metal corners, four 5 in. casters, and 8 vinyl corner guards. Vents create natural convection of releasing hot air through top, and inviting cool air from bottom. Cart can be customized by adding inboard shelves and drawers or 15U rack rails for rack equipment. Inside mounting holes are spaced .75 in. apart. Cable management hooks keep wires organized.

Fuel Tech, Inc    Batavia, IL 60510
Feb 12, 2003 ACUITIV v3.2, for computational fluid dynamics models, is compatible with Windows® 2000, UNIX, and Linux and supports Plot3D function files, STL, and TecPlot data format; grouping of sub-geometries within original model; and user-selectable isosurface colors. Users can move into data and view it from first-person perspective. Intuitive user interface is in 3D world; there is no need to exit 3D environment to change parameters or viewpoints.

Hubbell, Inc., Wiring Device Div.    Bridgeport, CT 06605
Feb 12, 2003 Non-metallic strips include 6-, 7-, and 8-outlet models with 3, 6, and 15 ft cord length options. Units offer optional fax/modem protection as well as CATV and DSS protection. LED indicators are provided for correct wiring and surge status. Industrial- and hospital-grade receptacles are housed within black aluminum housing and equipped with 6 ft black cords.

GGB Bearing Technology    Thorofare, NJ 08086

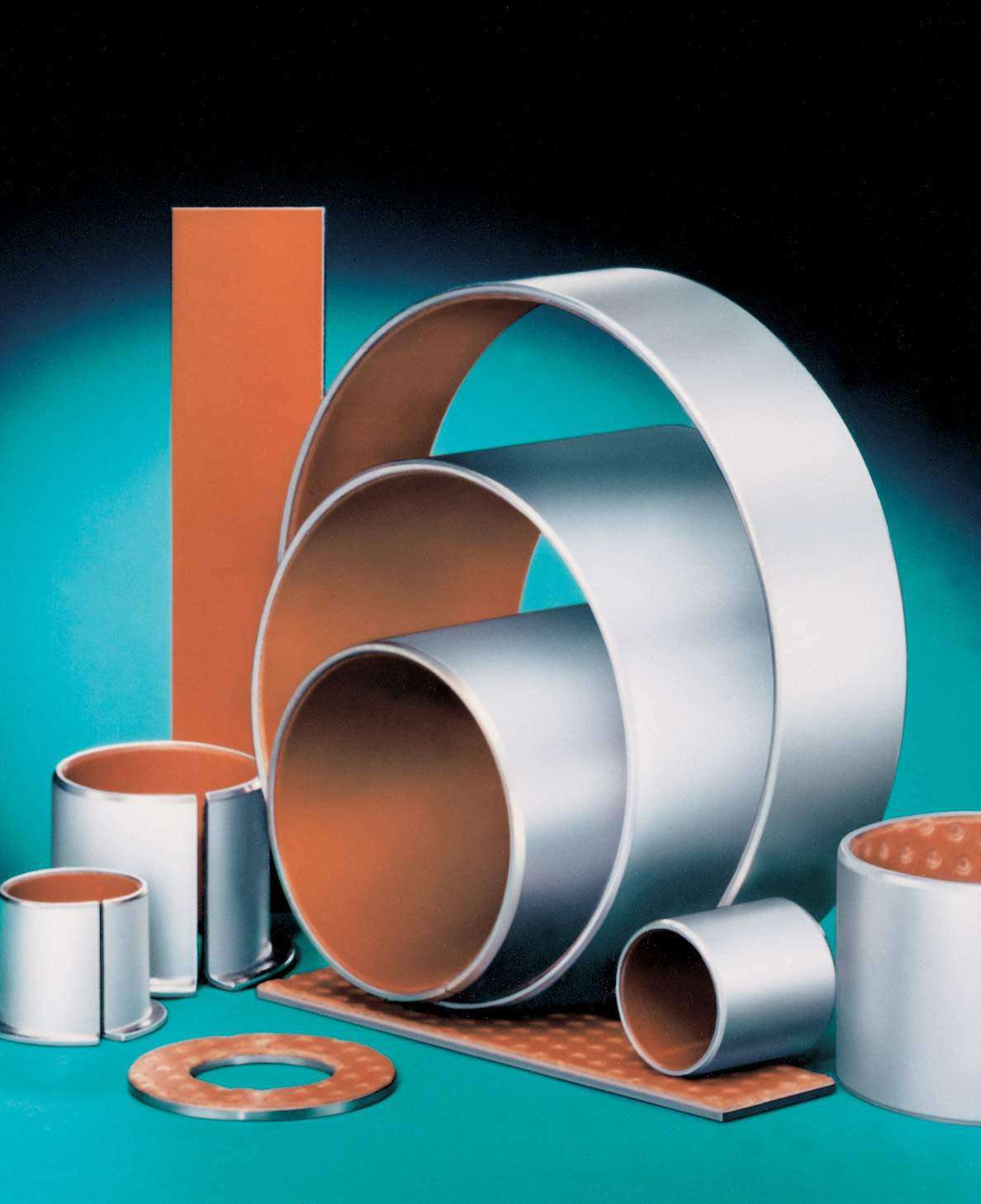

Feb 12, 2003 Series DS(TM) bearings eliminate fretting corrosion damage to shafts under low-amplitude oscillating movements. Bearings feature rigid steel backing to which is bonded porous bronze sinter layer, impregnated with filled acetal polymer bearing lining. Bearings withstand max static specific load of 16,000 psi. Max recommended sliding speed is 5 fps dry, 8 fps greased, and 33 fps with marginal lubrication. Operating temperature range is -76 to +266°F.

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112

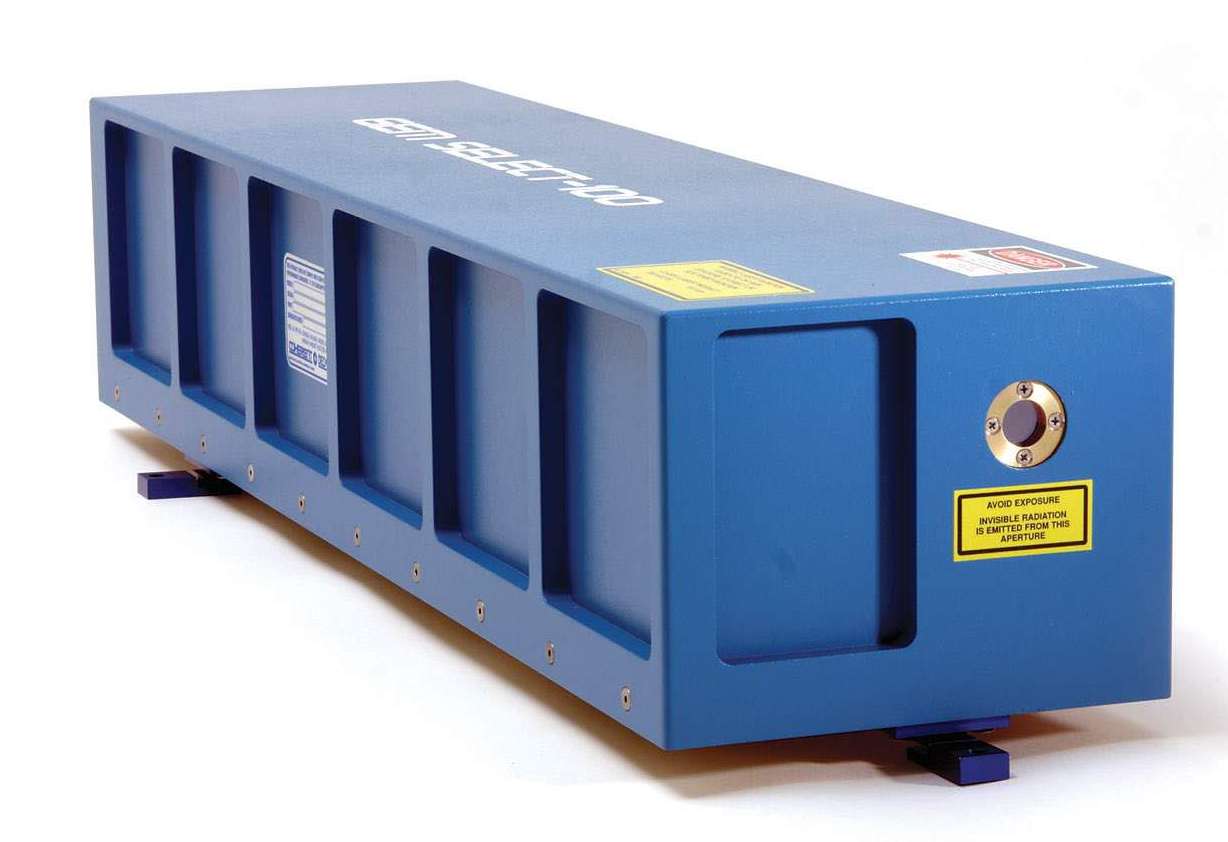

Feb 12, 2003 GEM Select 100 RF-excited CO₂ laser, for all-optical atom trapping applications, supports trapping lifetimes of greater than 10,000 sec when coupled with power supply. Conduction-cooled waveguide laser has TEM00 spatial mode and provides more than 100 W of output power at 10.6 µm. Brick-like construction consists of all-metal, sealed package that measures 31.125 x 7.75 x 6.75 in. Rear panel provides access to interlock control, key-operated on/off switch, and status indicators.

Concurrent Technologies, Inc.    Ann Arbor, MI 48108

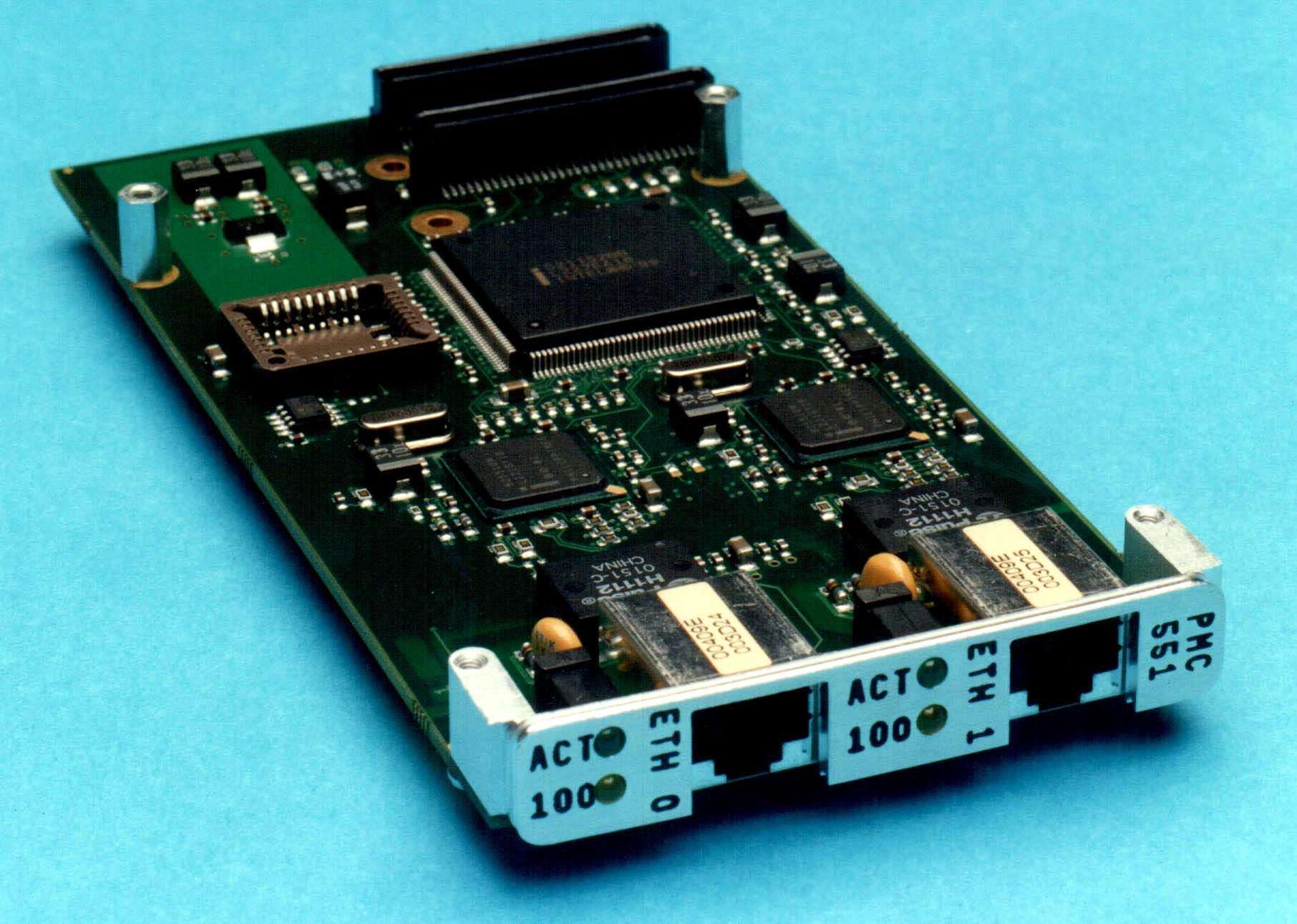

Feb 12, 2003 Model CL PMC/551 Dual Channel Fast Ethernet adaptor uses 2 Intel® 82551QM Fast Ethernet controllers, which have 3 Kbyte FIFOs and can operate full duplex. Single-size card is compliant with PCI specification and has bus master capability. It features 3.3 or 5 V signaling, 32-bit transfers, and operates at 33 MHz. Connection to Ethernet network is through RJ45 connectors and CAT 5 cabling. Boot EPROM socket is provided.

Concurrent Technologies, Inc.    Ann Arbor, MI 48108
Feb 12, 2003 Able to support up to 4 individual Gigabit Ethernet channels, single-slot PP 120/01x uses two 933 MHz Low Voltage Intel® Pentium III processors. Each processor supports 133 MHz front side bus with 512 Kbytes of L2 cache and operates within 12 W thermal envelope. Board offers Serverworks(TM) ServerSet(TM) III LE core logic, up to 1 Gbyte 133 MHz ECC SDRAM, Ultra 160 SCSI interface, and 64-bit 66 MHz PMC site. It operates in system control slot or in peripheral slot.

Rosemount, Inc.    Chanhassen, MN 55317
Feb 12, 2003 Rosemount® Model 248 includes Smart head mount temperature transmitter with connection head, sensor, thermowell, and extension. DIN form B size transmitter communicates using open HART protocol, offers user-selectable RTD and thermocouple inputs, and meets NAMUR NE21 Recommendation. Product meets NAMUR NE 43 Recommendation for breakdown information of digital transmitter and NAMUR NE 89 Recommendation for measuring temperature with digital transmitter.

ABB Metals Systems    New Berlin, WI 53151 2840
Feb 12, 2003 DriveIT direct-drive, synchronous, ac motor uses NdFeB magnets, which are resistant to demagnetization. It delivers high torque at low speed, eliminating necessity of DC motor and associated brush replacement and maintenance. Motor features radial-flux construction and is air or water cooled. Powers range from 22–670 hp and include base speeds from 220–600 rpm. Voltage ranges from 380–690 Vac. Standard IEC frame sizes from 280–400 are available.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Feb 12, 2003 Model MPF-10 bridge-type machining center provides both A-axis head swivel and C-axis table rotation. Features include head with 230 mm dia snout, TOSNUC 888.2 CNC system, and gearless, direct-drive spindle system. Spindle utilizes motor of 8000 min^-1 and 30/37 kW with stepless speed changing system. Pre-loaded linear roller guides support X-, Y-, and Z-axes, while A- and C-axis indexing have hydraulic clamp systems.

Anorad Corp.    Hauppauge, NY 11788

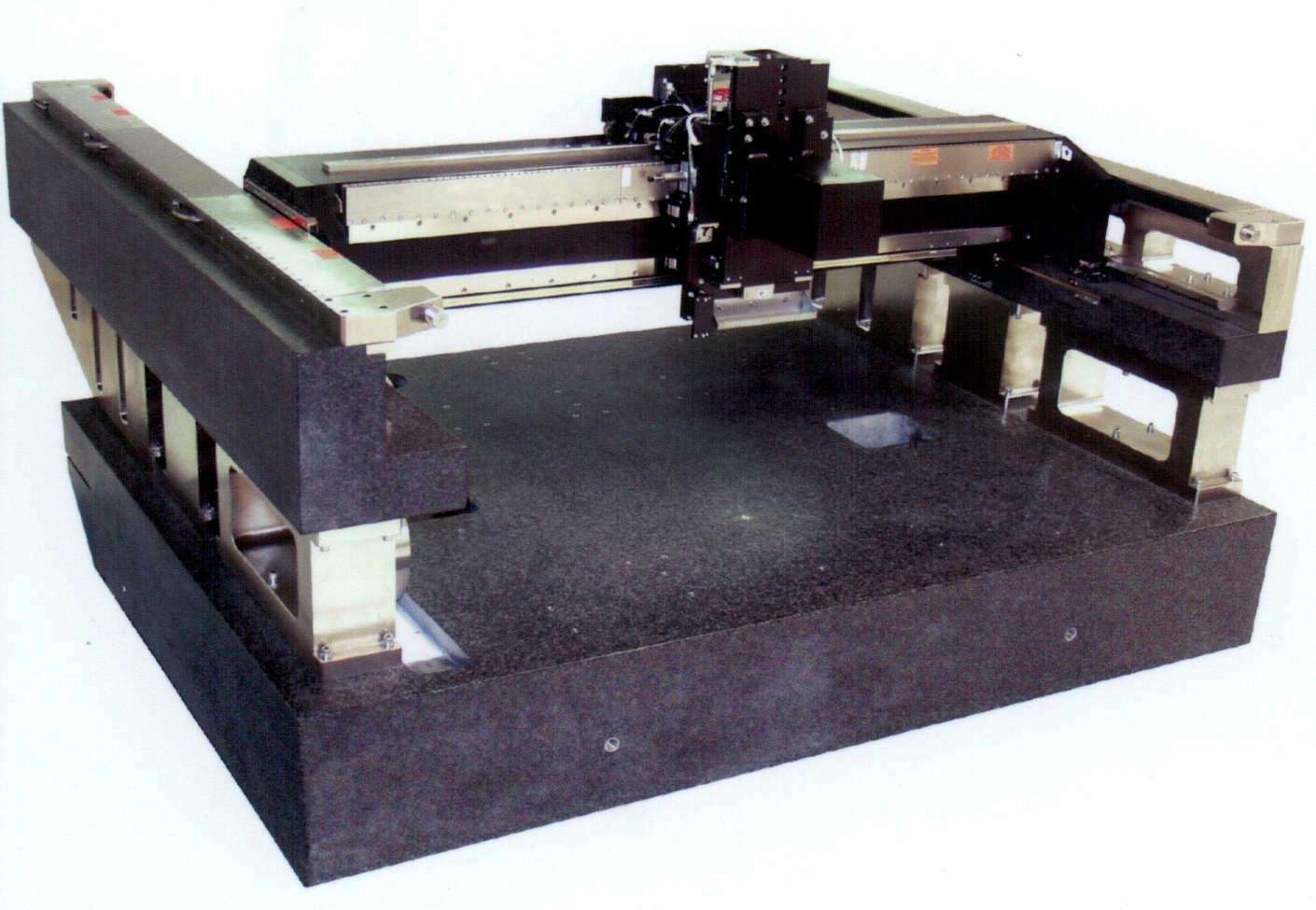

Feb 12, 2003 Ultra Precision Gantry has granite base and rigid steel risers. Magnetically preloaded XY air bearing system provides over 1 m of travel in each axis. Dynamic yaw control is achieved using dual linear encoder feedback on Y-axis and servo control algorithms that identify and compensate for workpiece misalignments. Gantry uses zero-cogging brushless servomotors driven by sinusoidally commutating servo amplifiers. Non-contact design elements assure cleanroom compatibility.

Astro-Med, Inc.    West Warwick, RI 02893

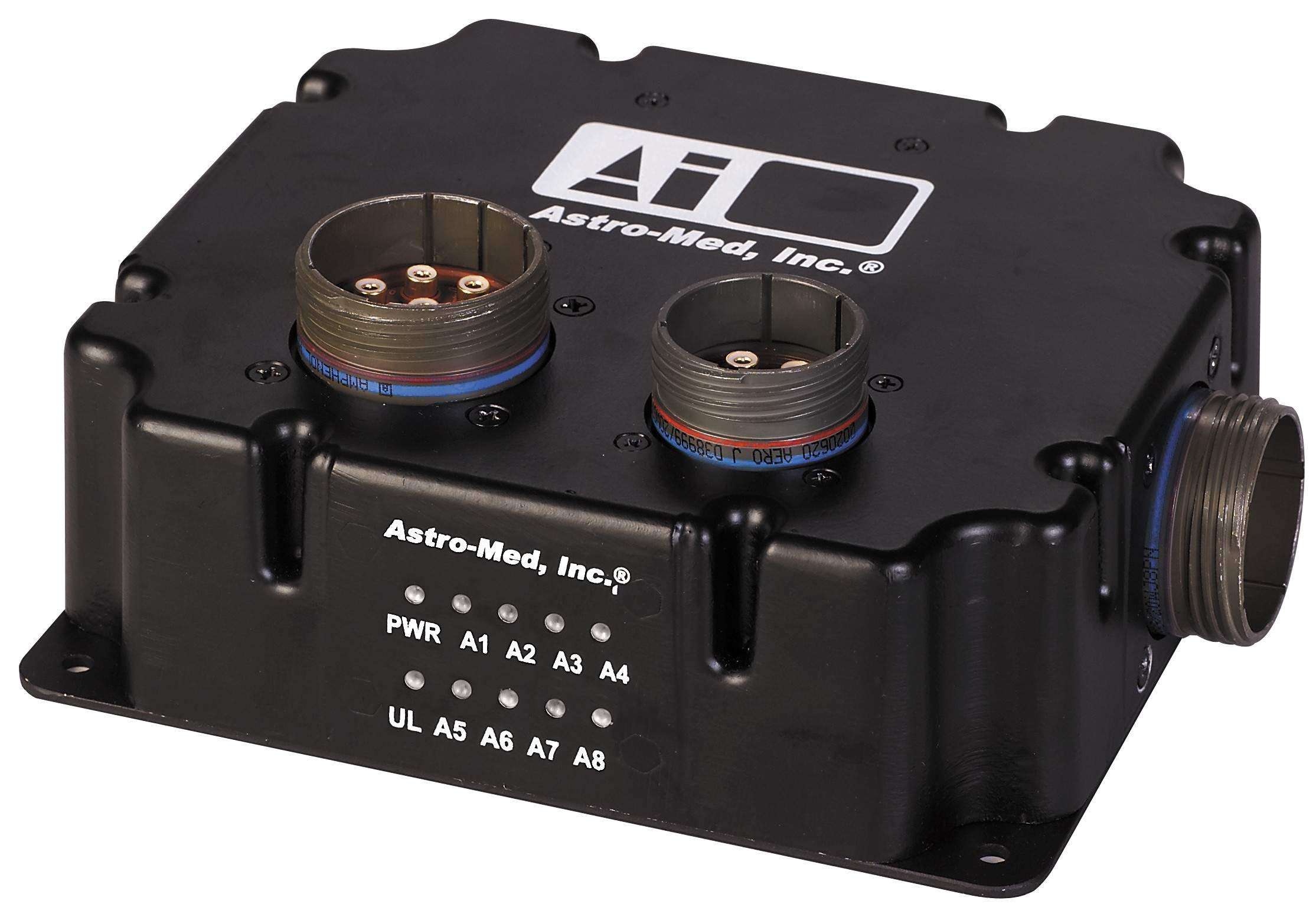

Feb 12, 2003 ToughSwitch supports 10BaseT and 100BaseT Ethernet and is fully compliant with IEEE 802.3 and 802.3u fast Ethernet operation. Up to 8 network devices can be connected. Plug-and-play and auto-negotiation capabilities allow switch to auto-detect link partner. ToughSwitch supports auto-sensing of full or half duplex on each port. It meets military requirements for temperature, shock, vibration, altitude, and electromagnetic compatibility.

Dwyer Instruments, Inc.    Michigan City, IN 46361

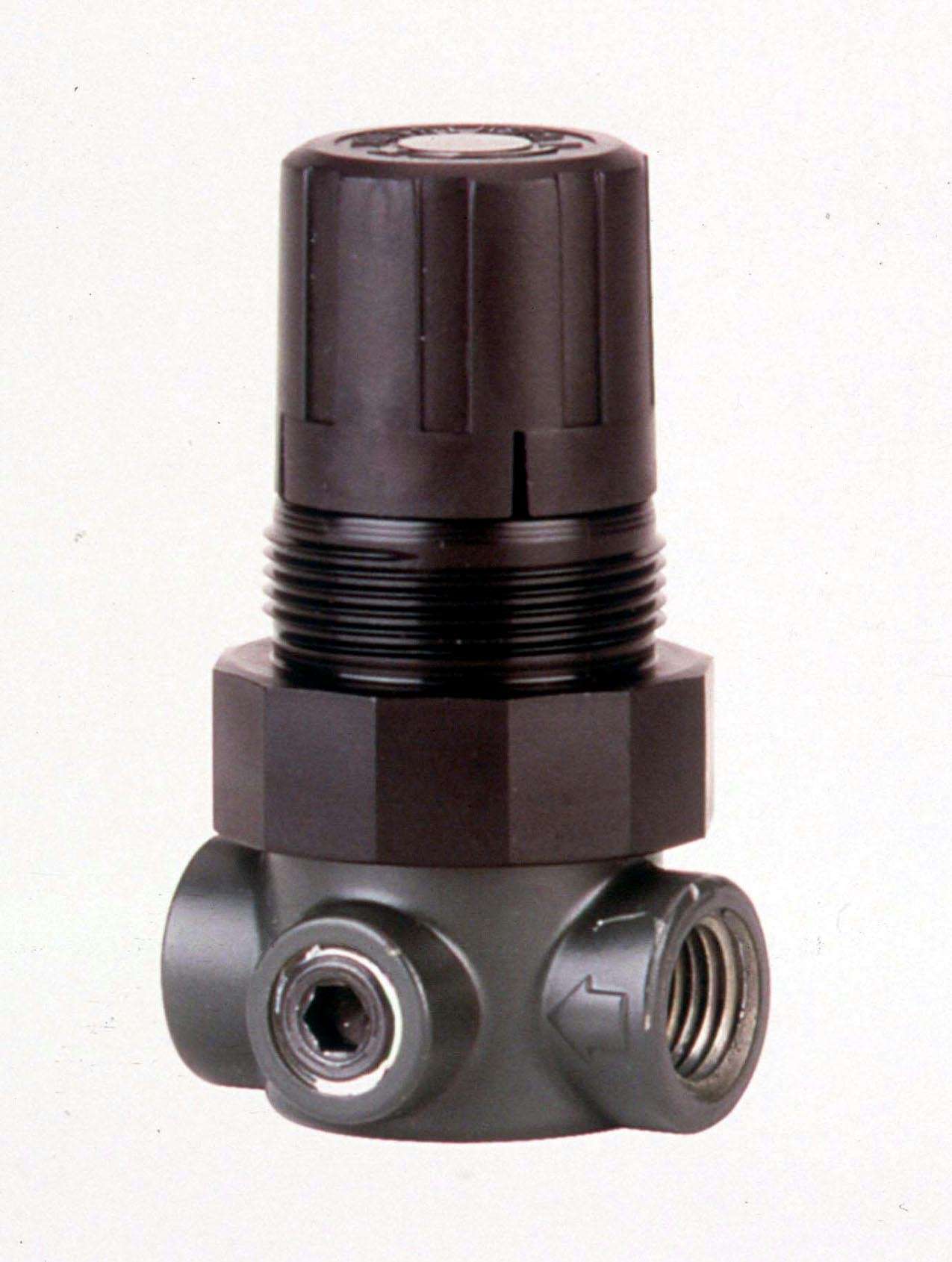

Feb 12, 2003 Series MPR features low-torque, non-rising adjustment knob with locking capabilities to provide precise adjustments. Relieving regulator, Model MPR1 is used in air applications only. Non-relieving regulator, Model MPR2 is typically used in water applications. Units are suitable for printing presses, medical equipment, spray equipment, analyzers, pumps, compressors, and welding machines.

Metabo Corp.    West Chester, PA 19380 4243

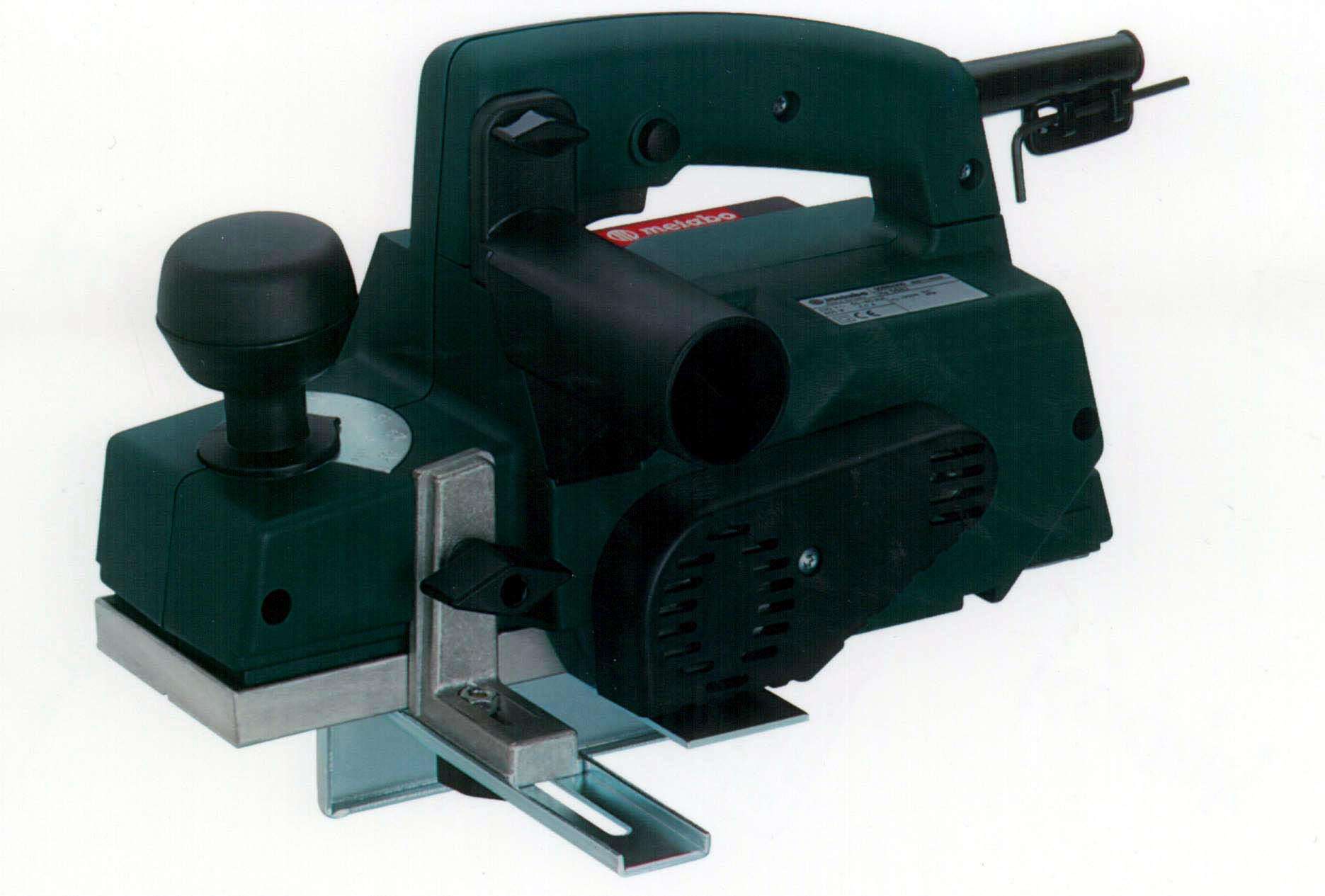

Feb 12, 2003 Model Ho0882 incorporates 6.5 A motor that generates no-load speeds of 12,000 rpm, providing chatter-free stock removal. Double-sided tungsten carbide cutting blades leave smooth surface, minimizing subsequent sanding, while front adjustment knob provides continuously adjustable planing and rabbeting depth. Die-cast, surface-milled, aluminum footplate includes V-groove for chamfering. Product provides cutting width of 3 1/4 in., depth of 1/8 in., and rabbeting depth of 7/8 in.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608

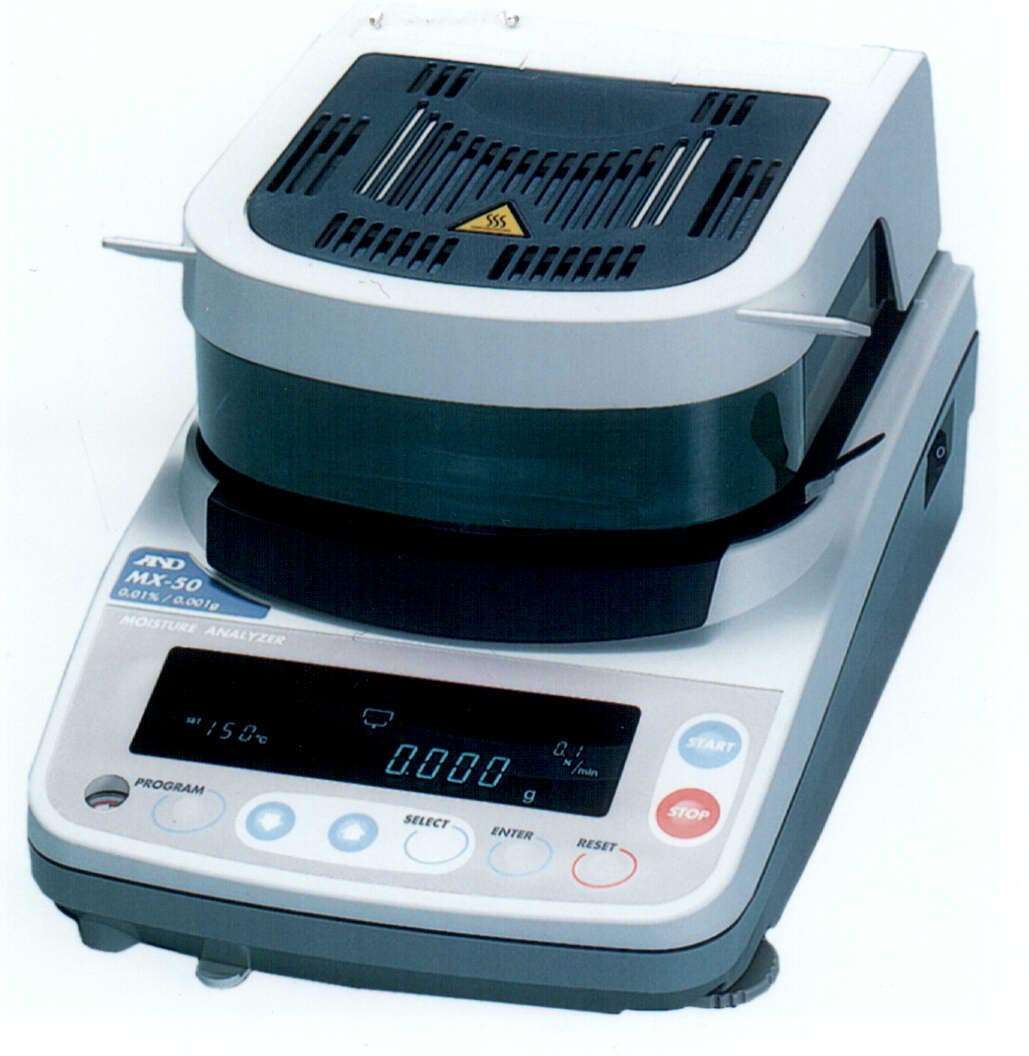

Feb 12, 2003 Utilizing Super Hybrid Sensor Technology, Models MF-50 and MX-50 are equipped with 400 W halogen lamp with Secondary Radiation Assist. Features include RS232 interface, 5 reusable sample trays, and vacuum-fluorescent display. Products offer 5 display modes and standard, quick, and temperature-stop operation modes. Auto-stop automatically stops analysis once desired drying rate is achieved. Offered with WinCT Data Collection Software, MF-50 and MX-50 hold up to 20 and 50 IDs respectively.
