Clevaflex, Ltd.    Cleveland, OH 44135

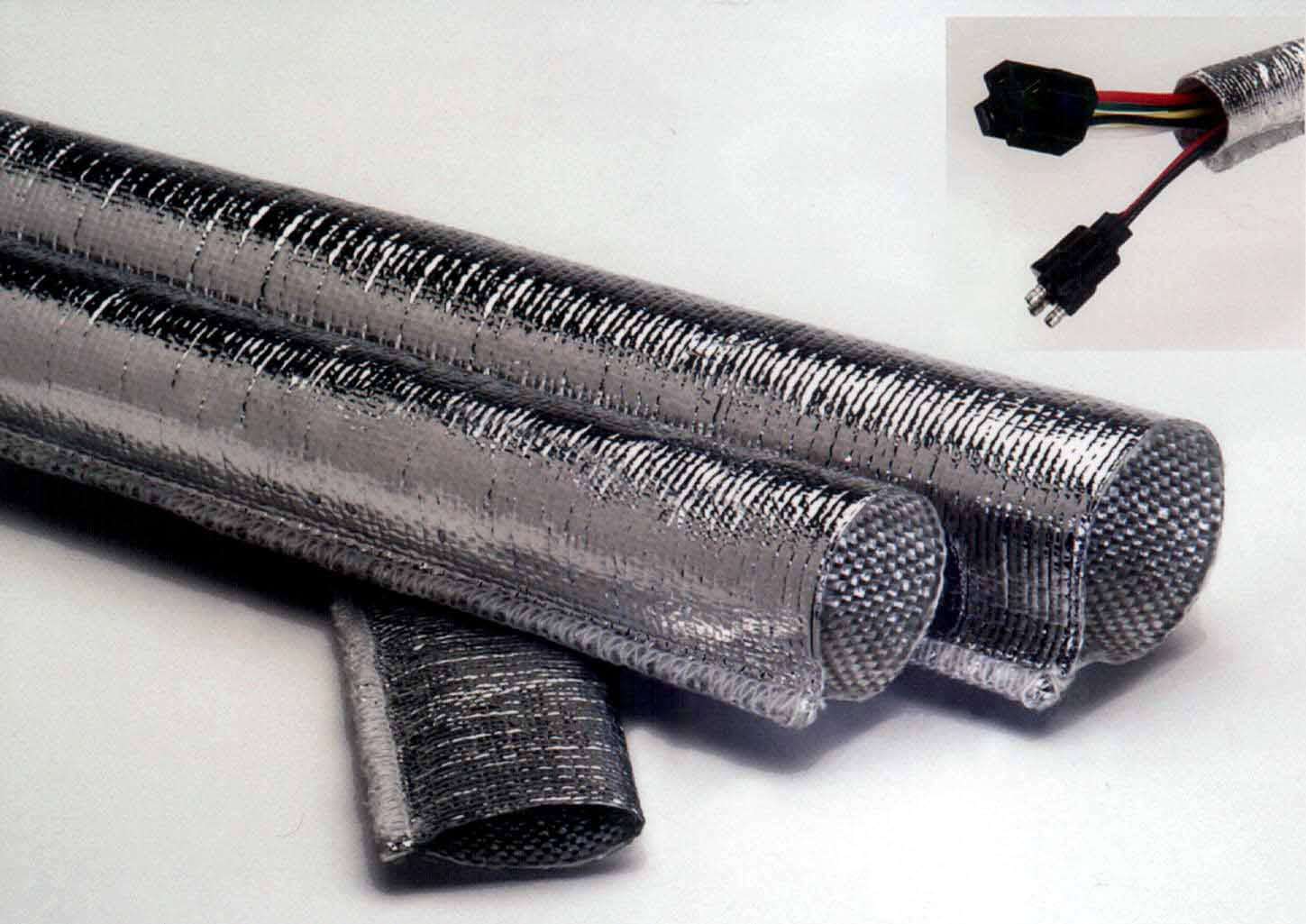

Feb 20, 2003 Clevaflex® Sewn Sleeves, made from woven fiberglass laminated to aluminum foil, provide protection of components from heat sources up to 1000°F. Laminate is folded in half and sewn along open edge. Sleeves are offered in 11 sizes ranging from 3/8 to 2 1/2 in. dia. Sleeves are resistant to fluids, fraying, and abrasion. They are suitable for protecting power steering hoses, air conditioning hoses, wire harnesses, brake tubes, and spark plug wires.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Feb 20, 2003 UL 1585 Class II approved HVAC/R power transformers incorporate split bobbin design and UL Class B rated insulation material. Individually boxed units, suited for industrial control applications, offer dielectric Strength of 2,500 V and 18 AWG, 6 in. UL wire leads. Foot and Multi-mount versions are offered with voltages from 40–50 VA with primaries from 120–240 V and secondaries from 2.5–24 V. Multi-Mount versions include adapter mounting plate and hardware kit.

Hirschmann Engineering USA, Inc.    Schaumburg, IL 60173
Feb 20, 2003 Minifix P-Holders allow variety of ways for small to medium sized electrodes to be held accurately. Four X, Y, and Z references allow 90° indexing of electrodes. Rock Solid Referencing allows ±.0001 in. on/off accuracy. P-Holders are offered in 2.3 and 5.3 in. lengths for each tooling system. Pre-formed copper blanks attach directly to Minifix holders and are offered in variety of sizes, square or round.

Pacific Bin Corp.    Bellevue, WA 98005
Feb 20, 2003 BOXX® industrial bulk conainers are made of impact-resistant HDPE plastic and can be stacked up to 10 high, full-load. Solid and vented sides can be mixed and matched based on need of application. Removable sides allow easy loading and unloading. Containers can be completely knocked down and provide haul back ratio of 3.5:1.

Acopian Technical Co.    Easton, PA 18044

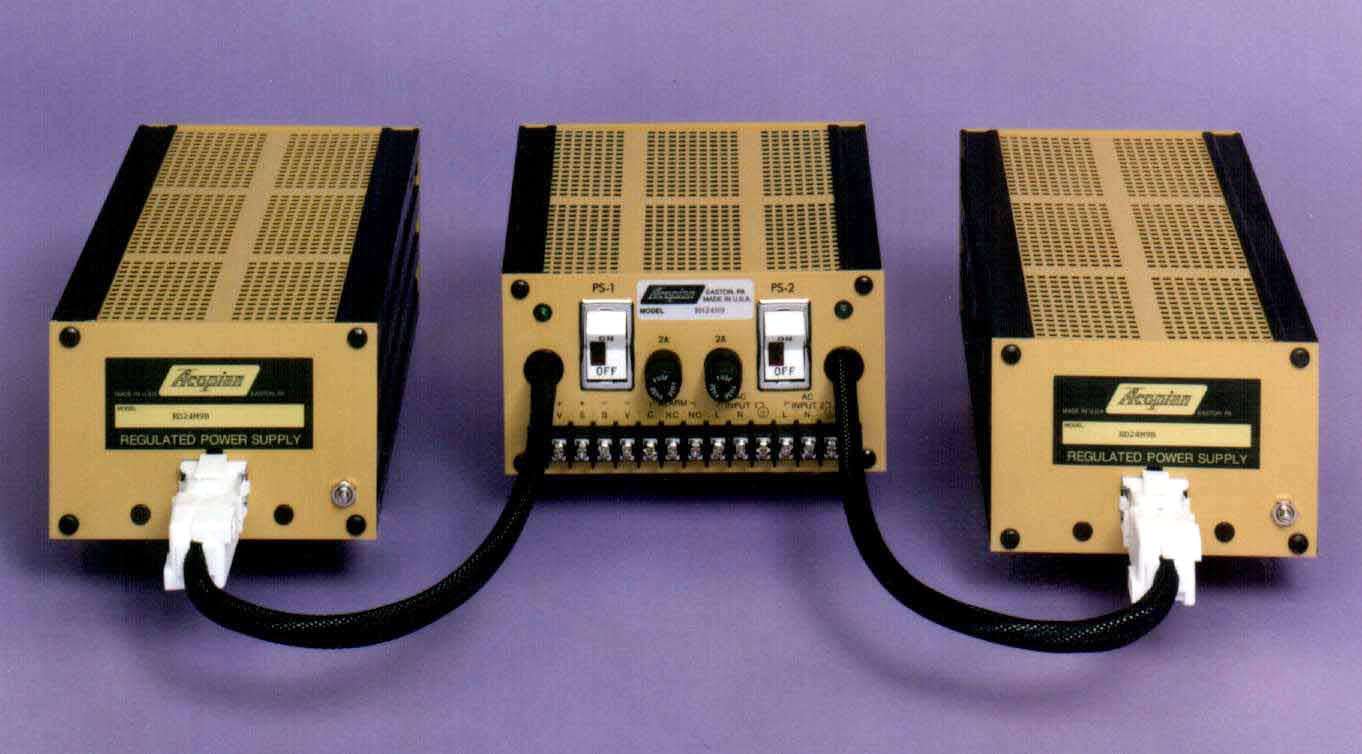

Feb 20, 2003 Modular Redundant DC Power System includes input switches and fuses, output present indicators, isolation diodes, and failure alarm circuits. Unit and 2 power supplies, which are hot swappable, may be mounted to DIN rail, wall, chassis, or cabinet frame. User plugs in 2 cables and connects AC input power and load for operation.

Pipeline Inspection Company Ltd    Houston, TX 77055

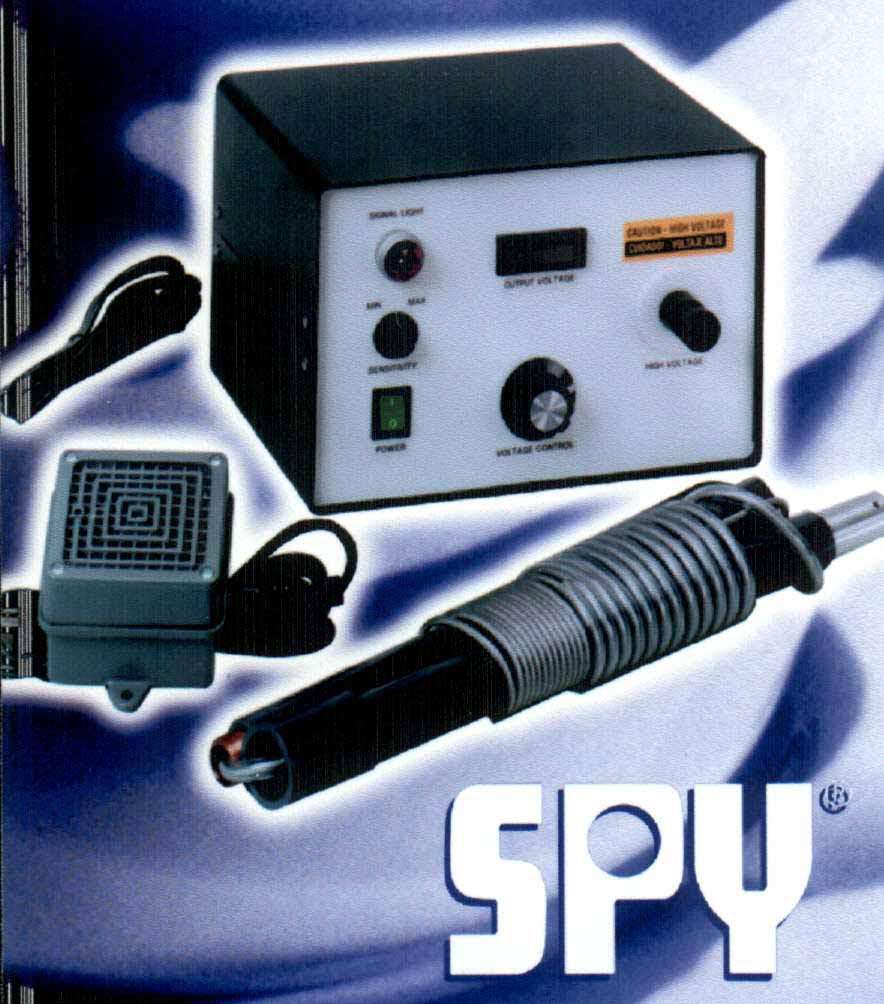

Feb 20, 2003 SPY® Model 115 and Model 125 In-Plant Holiday Detector Systems ensure effectiveness of corrosion preventative film, tape, extruded and coal tar coating processes on pipe and other metal surfaces. It can be configured for manual or incorporated into automatic manufacturing processes. Each system's output is adjustable and can detect pinhole exposure of bare metal in film or coating. Digital circuitry eliminates maintenance.

Molex Inc.    Lisle, IL 60532-1682
Feb 20, 2003 LVD Terminator and Internal Cable System matches impedances of bus to help insure that bus terminates in stable environment. Terminator supports LVD SCSI drivers. Active chips on terminator pcb detect type of SCSI drivers present on bus via voltage on DIFFENS SCSI control line. Circuitry includes 2.7–5.25 V operation, differential failsafe bias, built-in SPI-3 Mode ChangeFilter/Delay, and tightly controlled impedance and capacitance for single lines.

Witte Co., Inc., The    Washington, NJ 07882
Feb 20, 2003 Autoweirs feature pneumatically operated radius gates that automatically rotate 60° upwards and above decks of fluid bed dryers and coolers on cycle timer to permit real-time adjustment of bed depth and retention time. They enable operators to accelerate or slow rate of product advance during operation to achieve desired specifications for moisture content, shape, purity, crystalinity, and other parameters. Autoweirs permit changes in bed depth from ½ to 3 in.

Siko Products Inc.    Dexter, MI 48130

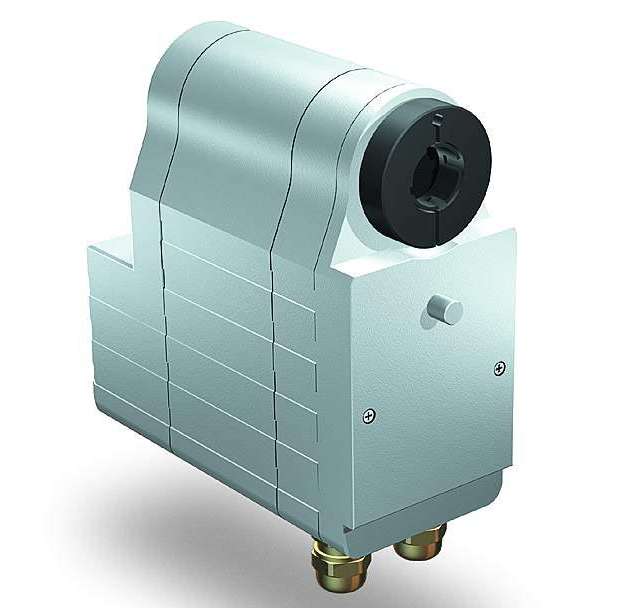

Feb 19, 2003 AG01 DriveLine series actuators retrofit manual adjustment handwheels for automatic operation. Actuators attach to spindles with clamp ring and fit shaft spacing as small as 37 mm. Unit features incremental encoder with 1024 pulses per revolution, hollow shaft diameter up to 14 mm, and interfaces for Profi, Can bus, and RS485. Unit has 70 W direct current motor with variable spur gear transmission.

APW-Wright Line    Worcester, MA 01606

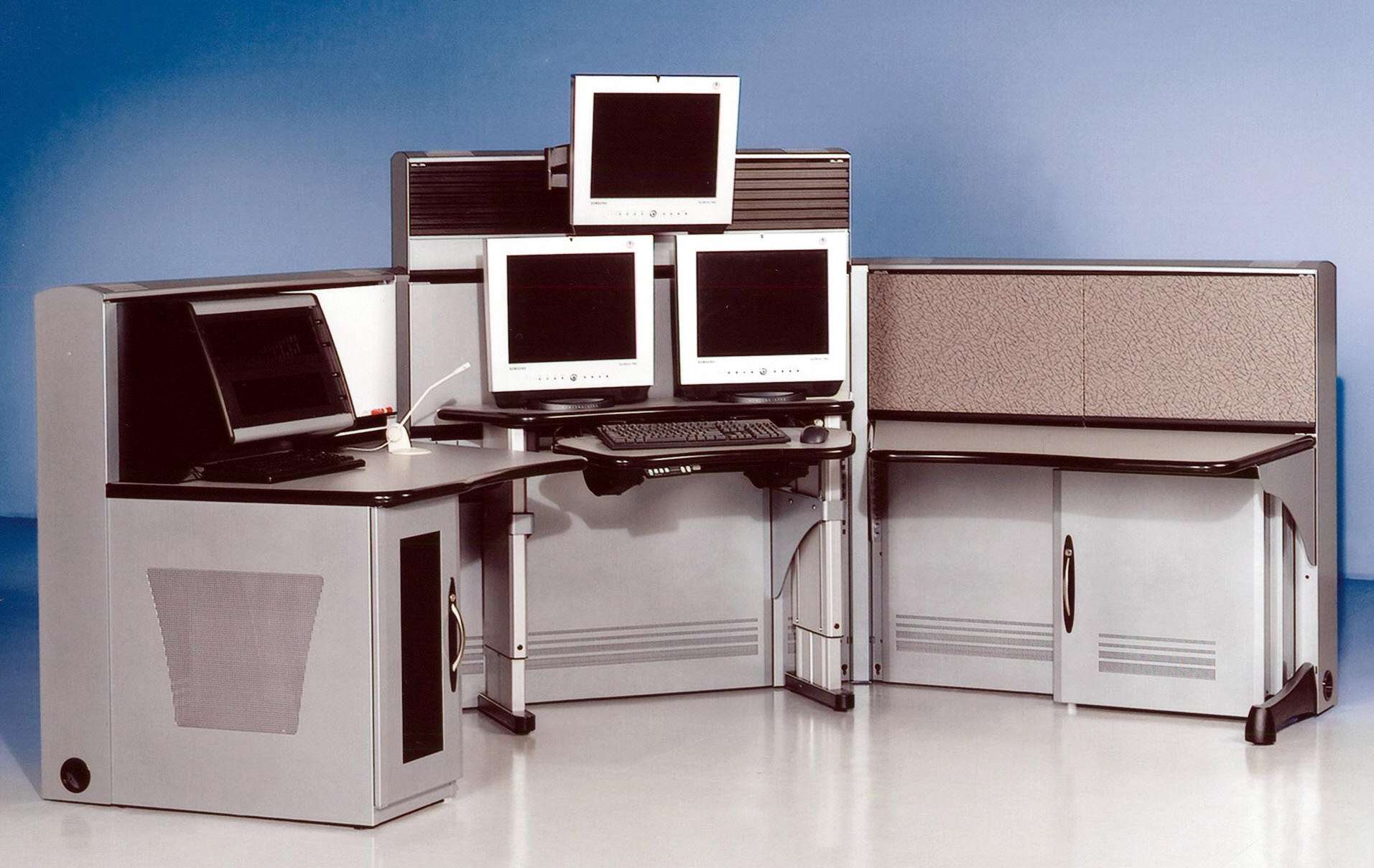

Feb 19, 2003 Profileâ„¢ Communication Consoles can be configured to house multiple CRT and flat screen monitors and computers within compact space. They include electronic, height-adjustable work surface, and adjustable monitor arms and keyboard platforms, allowing personnel to comfortably see all equipment at once. Control pad mounts beneath work surface and provides programmable memory for varying heights. Consoles feature integrated cable management and removable panels.

Gateway Safety, Inc.    Cleveland, OH 44144
Feb 19, 2003 Scorpion(TM) eyewear features adjustable-length ratchet temples with 4 positions. Polycarbonate lenses are hardcoated for scratch resistance and block 99.9% of UV-A and UV-B light. They feature 8-base curve and come in various colors including clear, gray, mocha, and amber. Mirror lenses come in indoor/outdoor clear, red, gold, silver and blue. Frame support behind lens makes glasses appear frameless. Scorpion Tail retainer attaches via preset holes in temples.

Nemal Electronics International, Inc.    North Miami, FL 33161

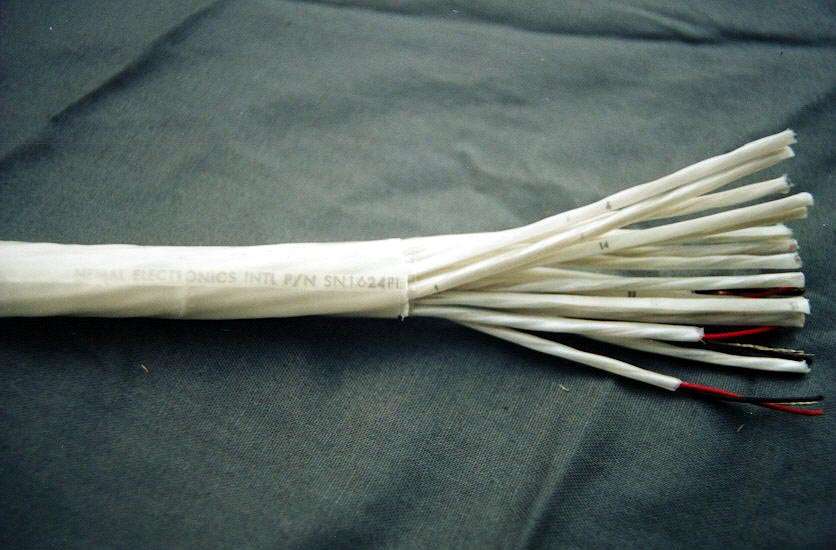

Feb 19, 2003 Series SNX24PL is available in constructions containing 2–24 pairs. Model SN1624PL consists of 16 individually shielded and jacketed pairs with overall jacket. Digital versions have 2–24 pairs with color-coded conductors and no inner jackets. Cables facilitate neat installation of systems requiring multiple audio pairs. They measure .481 in. OD with operating temperature to 150°C. Discrete numbered individual jackets provide for positive identification.

Moog, Inc.    East Aurora, NY 14052
Feb 19, 2003 Servo Gearmotor features low backlash, single stage gearbox integrated with servomotor. It is offered in frame sizes of 55, 70, and 100 mm with 2 defined gear ratios per frame size, combined with 4 motor stack lengths. Elimination of couplings reduces drive train inertia. Gearbox has lifetime lubrication and membrane feature, which keeps internal pressure at constant rate, reducing contamination and premature failures.

Bio-Chem Valve Inc.    Boonton, NJ 07005
Feb 19, 2003 CoolCubeâ„¢ allows placement of overdrive voltage on solenoid valve, which can decrease valve response time, increase operating pressure, and reduce power consumption. Control module provides step-down voltage to 1/3 of input voltage. Hit and hold circuit accepts 12 or 24 Vdc input to energize solenoid valve with full power for 110 msec. It then drops voltage and current and reduces power consumption to 1/9 of original value to hold valve in its energized mode, reducing heat generation.

International Light, Inc.    Newburyport, MA 01950 4092

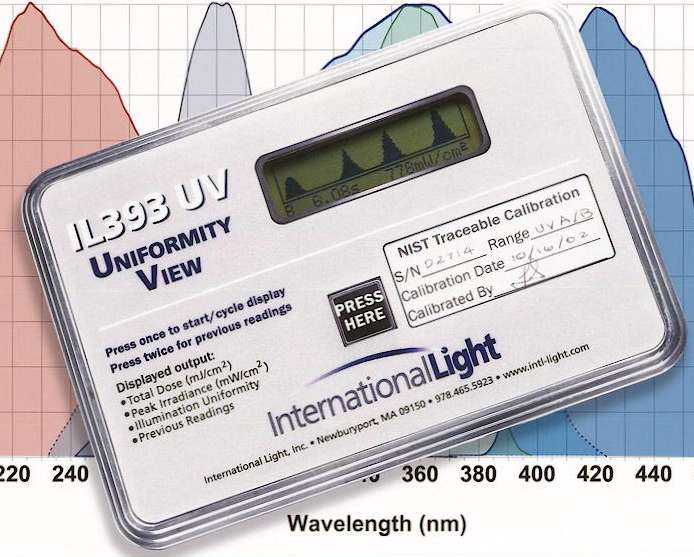

Feb 19, 2003 Able to specifically match product sensitivity to process, self-contained IL393UV Uniformity View acquires maximum irradiance at every point along curing paths to monitor process and provide graphic profiling. Filtering options are provided for sensitivity in UVA, UVB, UVC, UVA+B, and deep blue regions. Battery-powered instrument operates over dynamic range from 1 x 10^-3 to 20 w/cm² and is NIST traceable.

LEVITON    Melville, NY 11747

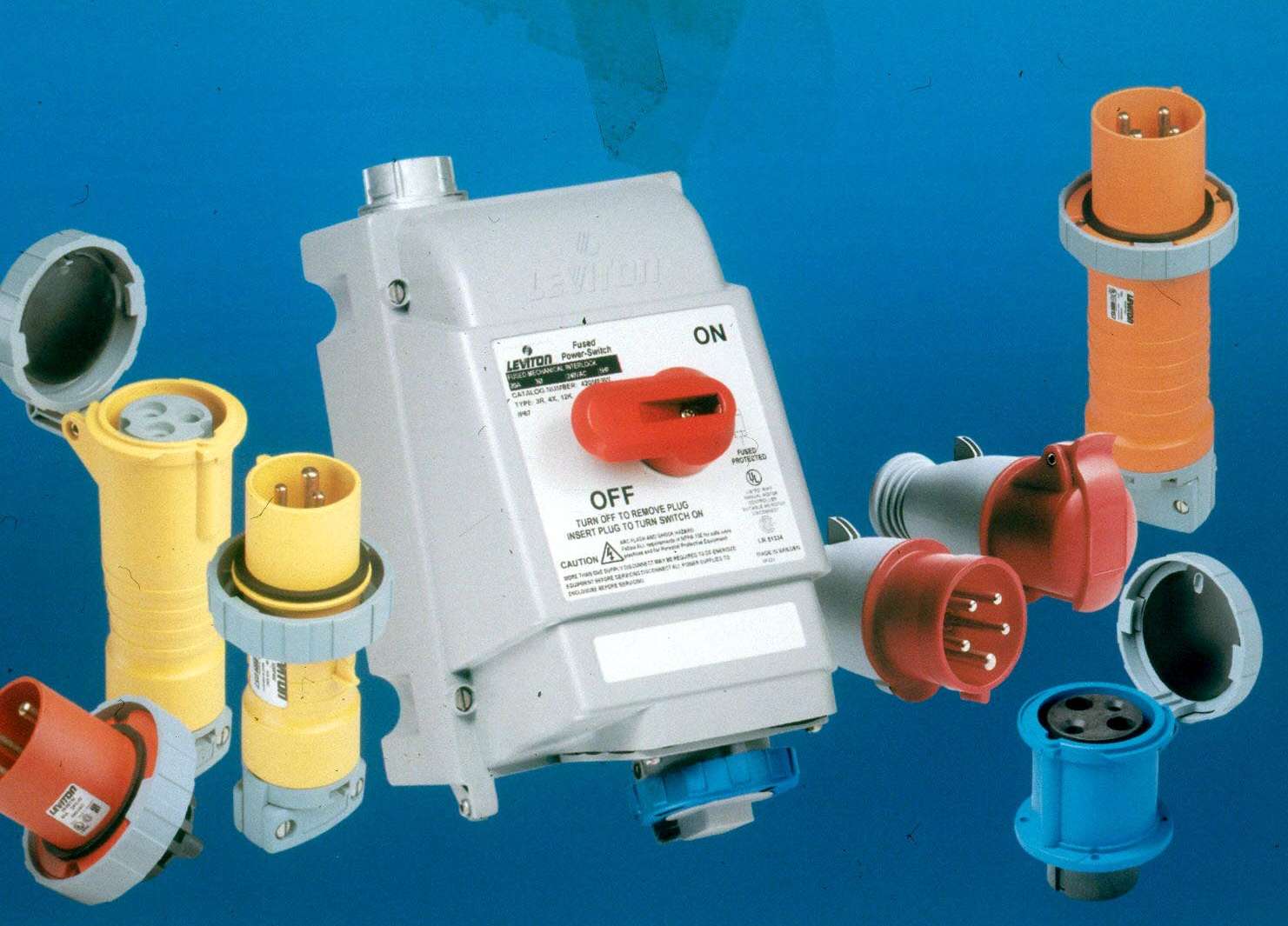

Feb 19, 2003 North American IP67 Watertight devices are offered in ratings from 20-100 A. International-rated devices come in IP44 Splashproof version rated for 16, 32, and 63 A and IP67 Watertight version rated for 125 A. Liquid-tight adapter complete with screws and gasket, provides protection from water and moisture, making them suitable for data centers and other critical applications. Valox® 357 housing offers flame and chemical resistance as well as UV stability.

Gateway Safety, Inc.    Cleveland, OH 44144

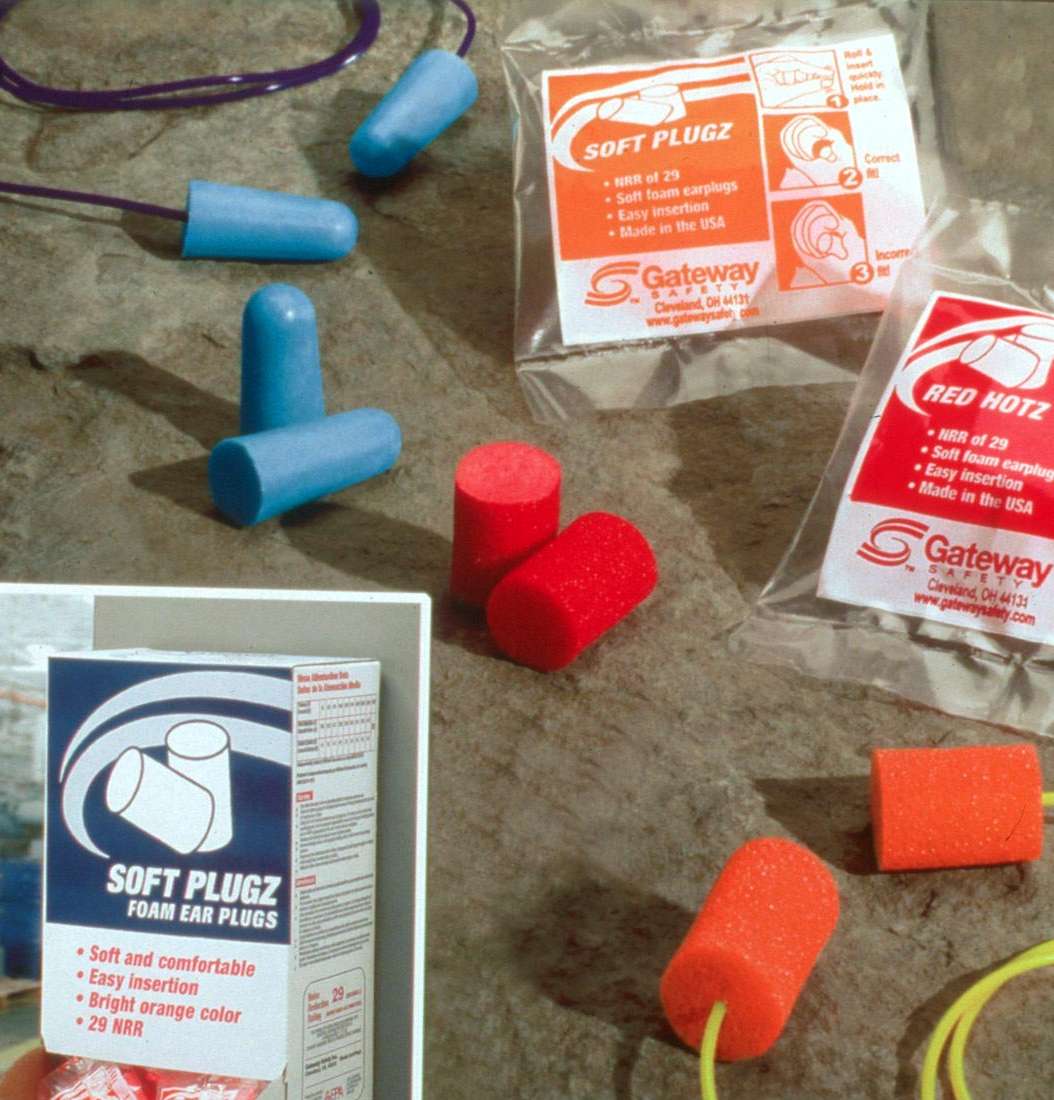

Feb 19, 2003 Disposable Z-Series is comprised of 3 styles. GloPlugz(TM), with 31 NRR, incorporate smooth, tapered design and soft, non-allergenic polyurethane formula. Blue color aids in compliance checks. Orange-colored SoftPlugz(TM) offer barrel shape with slightly longer design for deeper, more secure fit. Made of non-allergenic and moisture-resistant polyurethane, they provide sound protection and comfort. Made of soft PVC, RedHotz(TM) red earplugs feature standard length and barrel shape.

Mersen    Newburyport, MA 01950

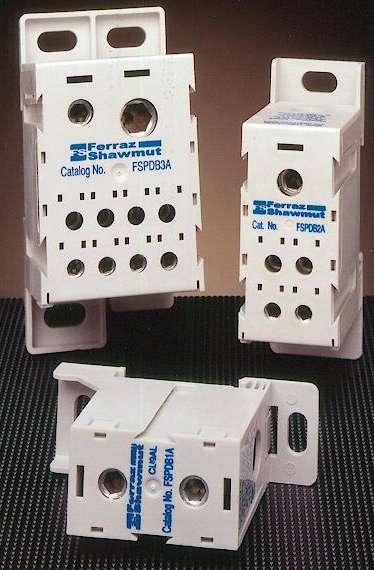

Feb 19, 2003 Meeting requirements of IEC 529, Finger-Safe Power Distribution Blocks (FSPDBs) provide IP-20 grade finger-safe protection. DIN-rail mountable units offer captive termination screws and multiple openings to accommodate various wire sizes. Options allow users to create multiple-pole units, cover unused wire openings, and identify circuit details on block itself. Units carry UL and CSA approvals as well as CE Mark.

Orion Research, Inc., A Sub. Of Thermedics, Inc., A Thermo Electron Co.    Beverly, MA 01915-6199

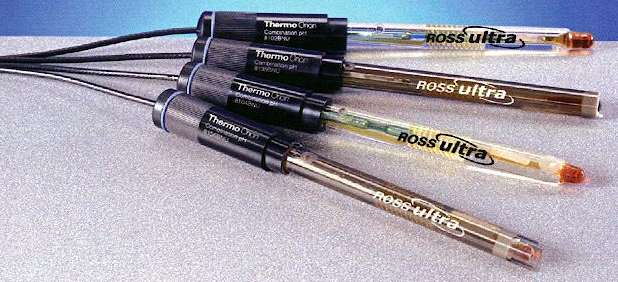

Feb 19, 2003 Available in rugged and standard glass bulb, flat-surface, semi-micro, and epoxy-bodied styles, ROSS Ultraâ„¢ pH electrodes use virtually drift-free reference system that is unaffected by temperature or composition. ROSS Ultra half-cell reference electrodes are also available for applications where separate sensor and reference electrodes are preferred.

TURCK, Inc.    Plymouth, MN 55441

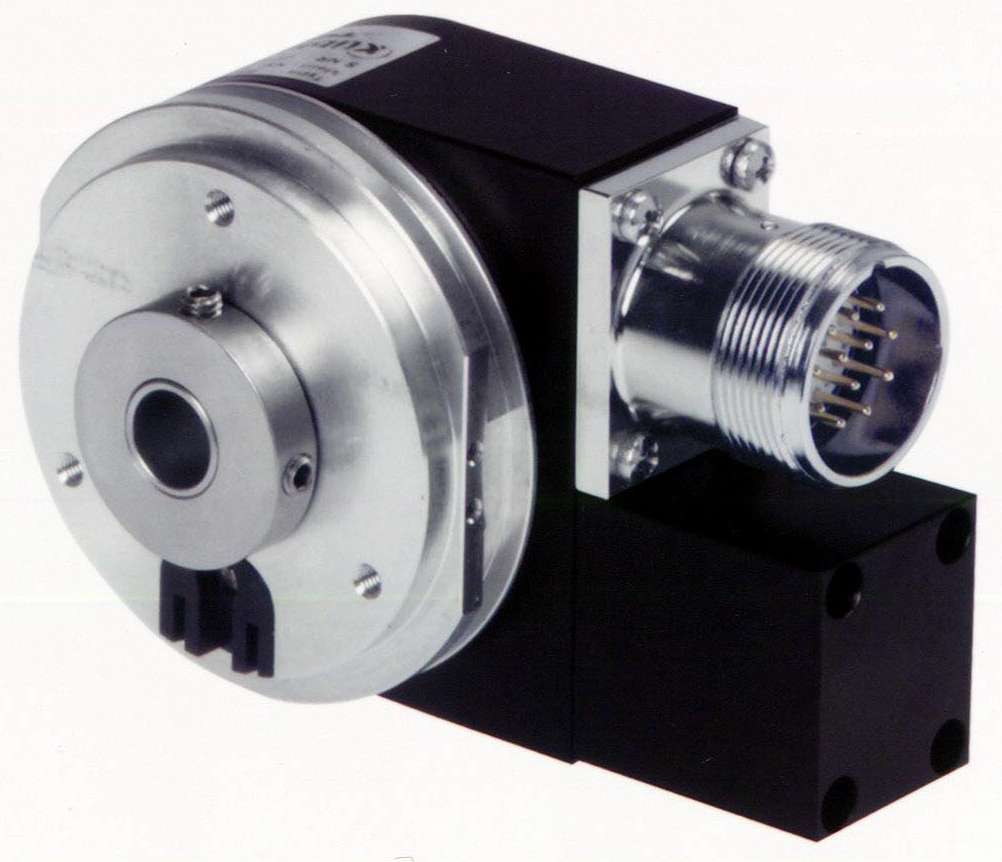

Feb 19, 2003 Model 5862/82 absolute multiturn encoder incorporates Intelligent Sensing Technology (IST). Low profile unit provides 25-bit resolution that enables 8,192 positions in first turn and 4096 turns overall. Available with SSI or RS485 output, it offers shock ratings of 250 g/6 ms and EMI resistance. Constructed without gears and custom ASIC, all components are mounted on 1 PCB. Unit, with shaft or hollowshaft, is capable of 6,000 rpm continuous duty.
