Sandvik Coromant Co.    Fair Lawn, NJ 07410

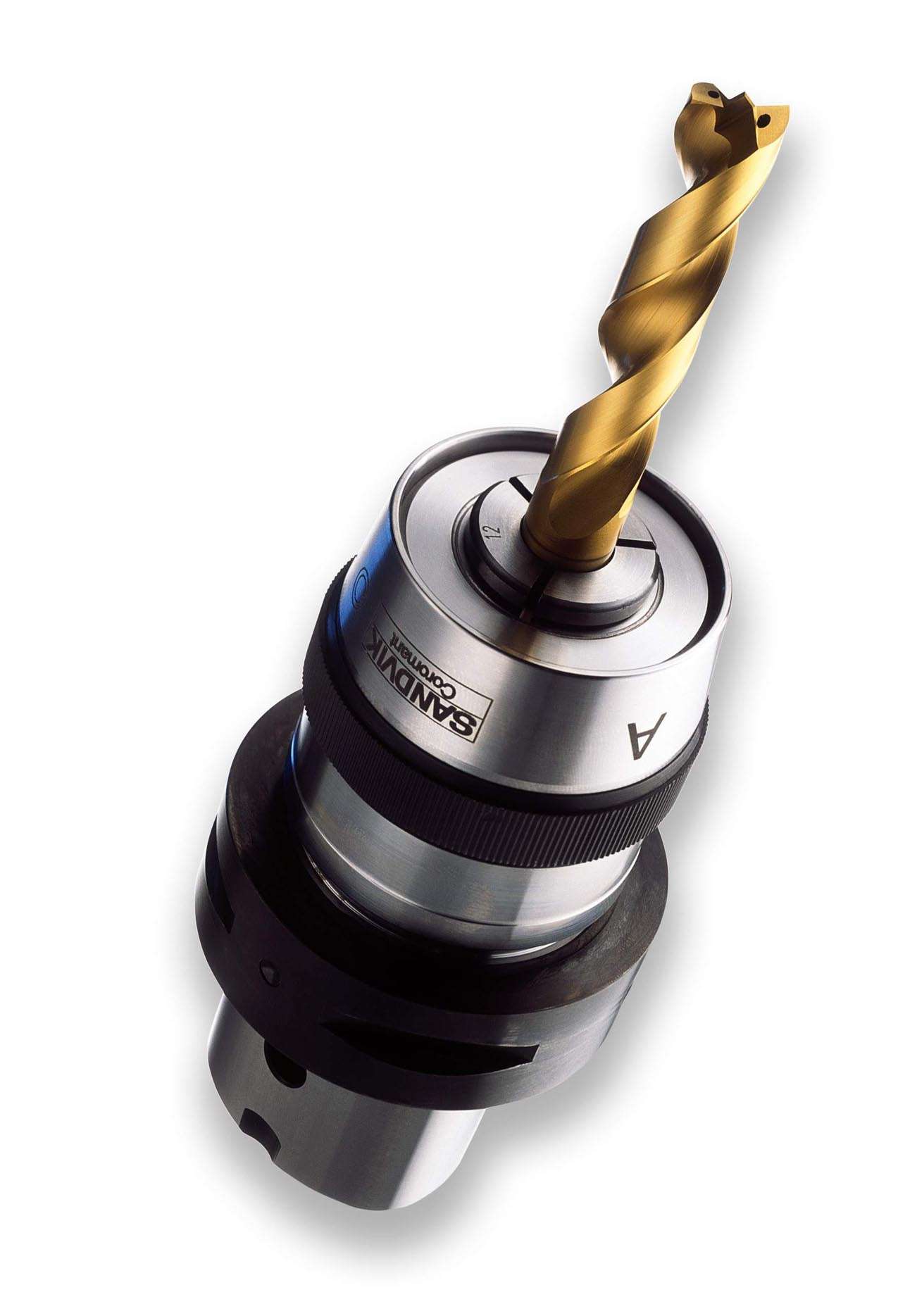

Mar 24, 2003 CoroDrill Delta-C A1 Drill focuses on ISO-N materials, particularly aluminum alloys with Si content of 8-12% or less. It ranges in diameter from .118-.787 in. and comes with or without internal cutting fluid supply, and in 5 different drill types. Precision carbide drill is suitable for aerospace and automotive applications and can replace PCD and GC conventional drilling products in many aluminum-drilling applications.

Sandvik Coromant Co.    Fair Lawn, NJ 07410

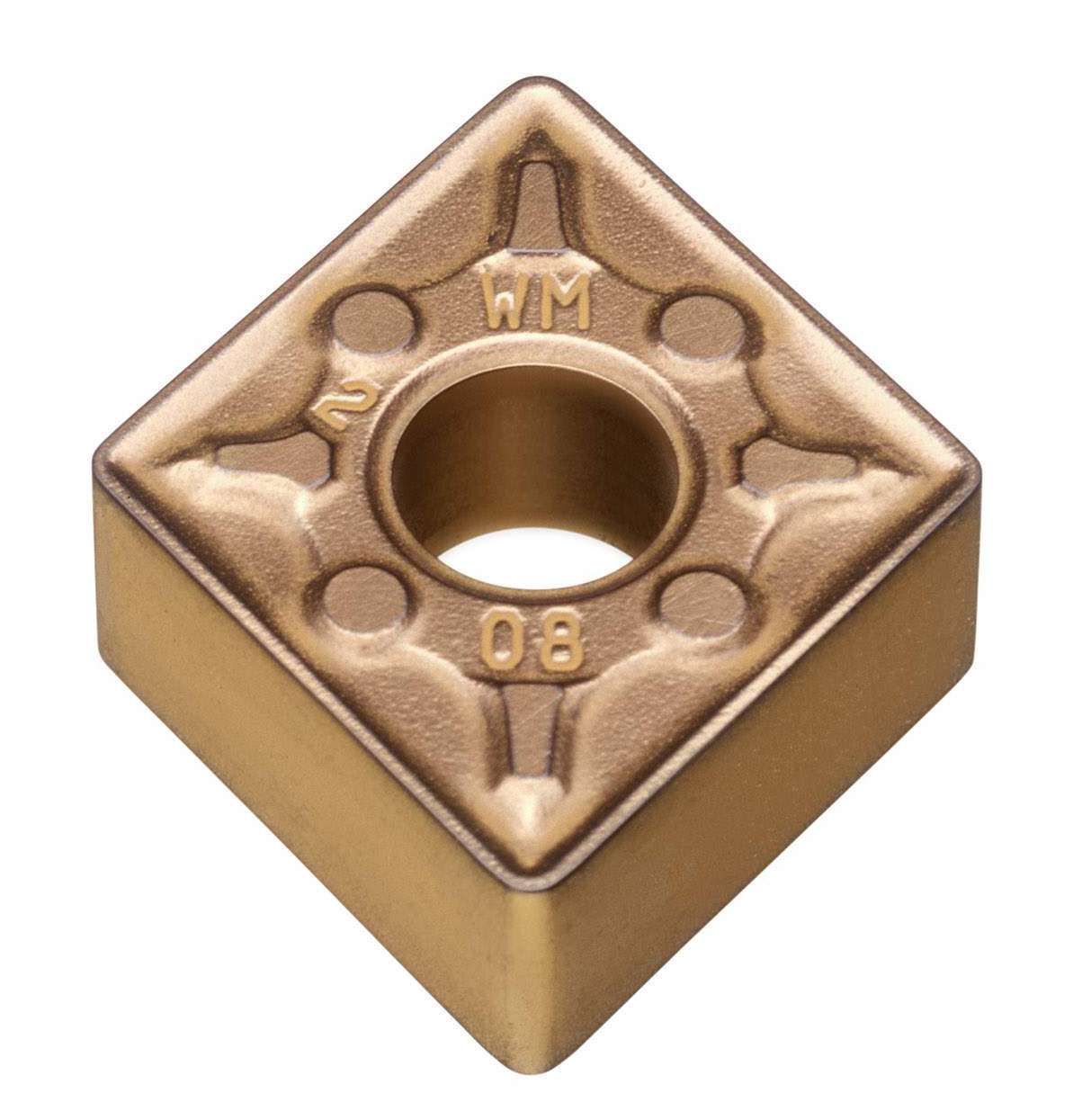

Mar 24, 2003 Grade GC4005 is also suitable for hardened steels and nodular cast iron. Long passes and dry machining are possible due to thick alumina coating. Wiper geometry expands functionality by allowing feed to be increased. Designed for automotive and ball bearing industries, GC4005 is available in different negative T-Max P insert geometries.

Acromag, Inc.    Wixom, MI 48393 7037
Mar 24, 2003 BusWorks® 966PB interfaces up to 6 RTD or resistance signals directly to Profibus-DP network. Each module contains 16-bit A/D converter, microcontroller for intelligent signal processing, and SPC3 ASIC to communicate with network. Ranges are user selectable for platinum, nickel, or copper RTD sensors and 0–500 ohm signals. Three-way 1,500 Vac isolation between input, network, and power circuits protects against surges and ground loops. Units support communication rates up to 12 Mbaud.

EAO Switch Corp.    Milford, CT 06460

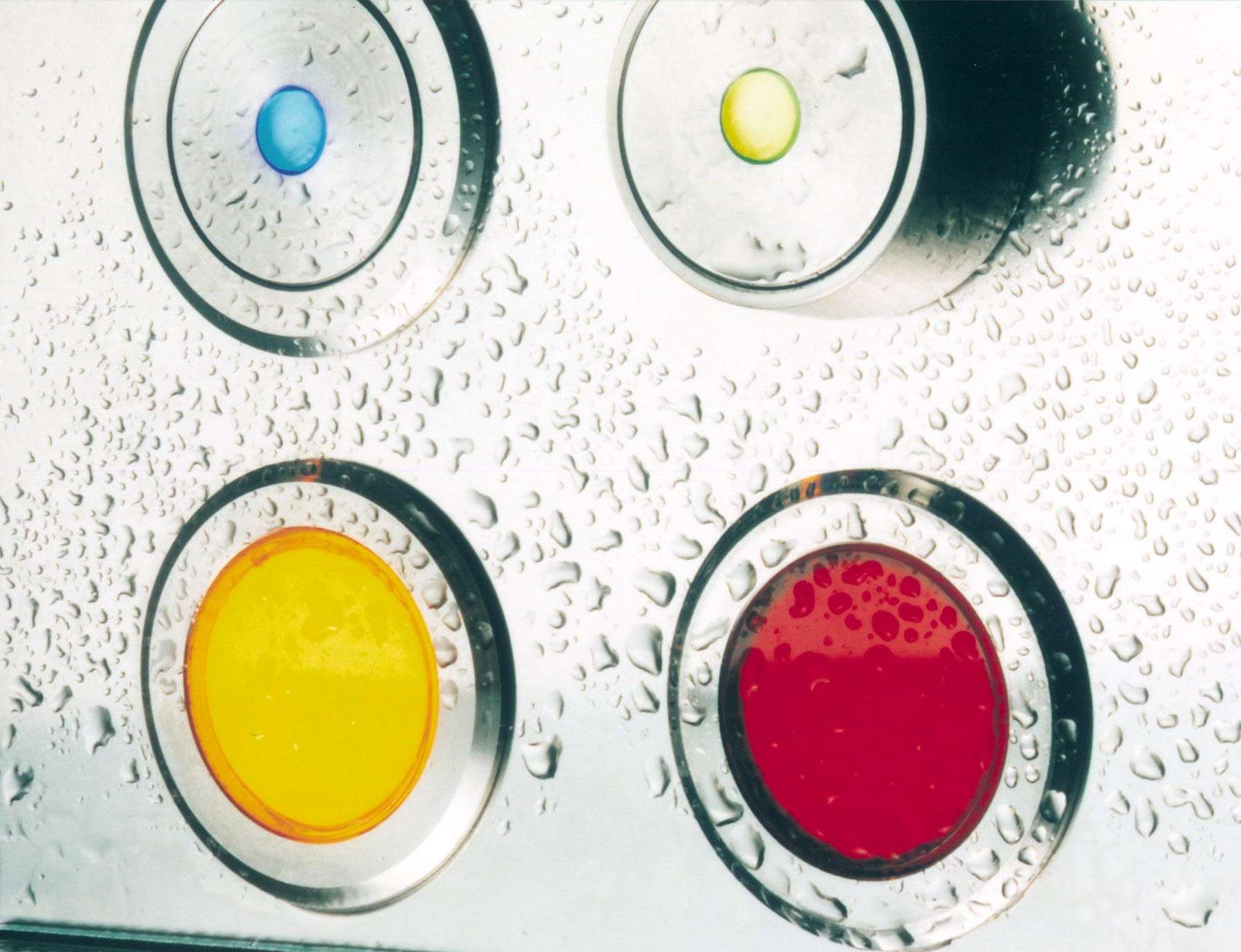

Mar 24, 2003 From Series 04 and 14 ranges, users can create LED-illuminated pushbuttons, indicators, and selector switches with stainless steel lenses, protective front rings, and bezels. With ratings up to IP 67 (Series 14), industrial switches can be flush-mounted for flat-finished interface. Switches are offered with choice of self-cleaning, snap-action switching elements with gold-plated silver or silver/palladium contacts.

Matthews International Corp., Marking Products Div.    Pittsburgh, PA 15206 4407

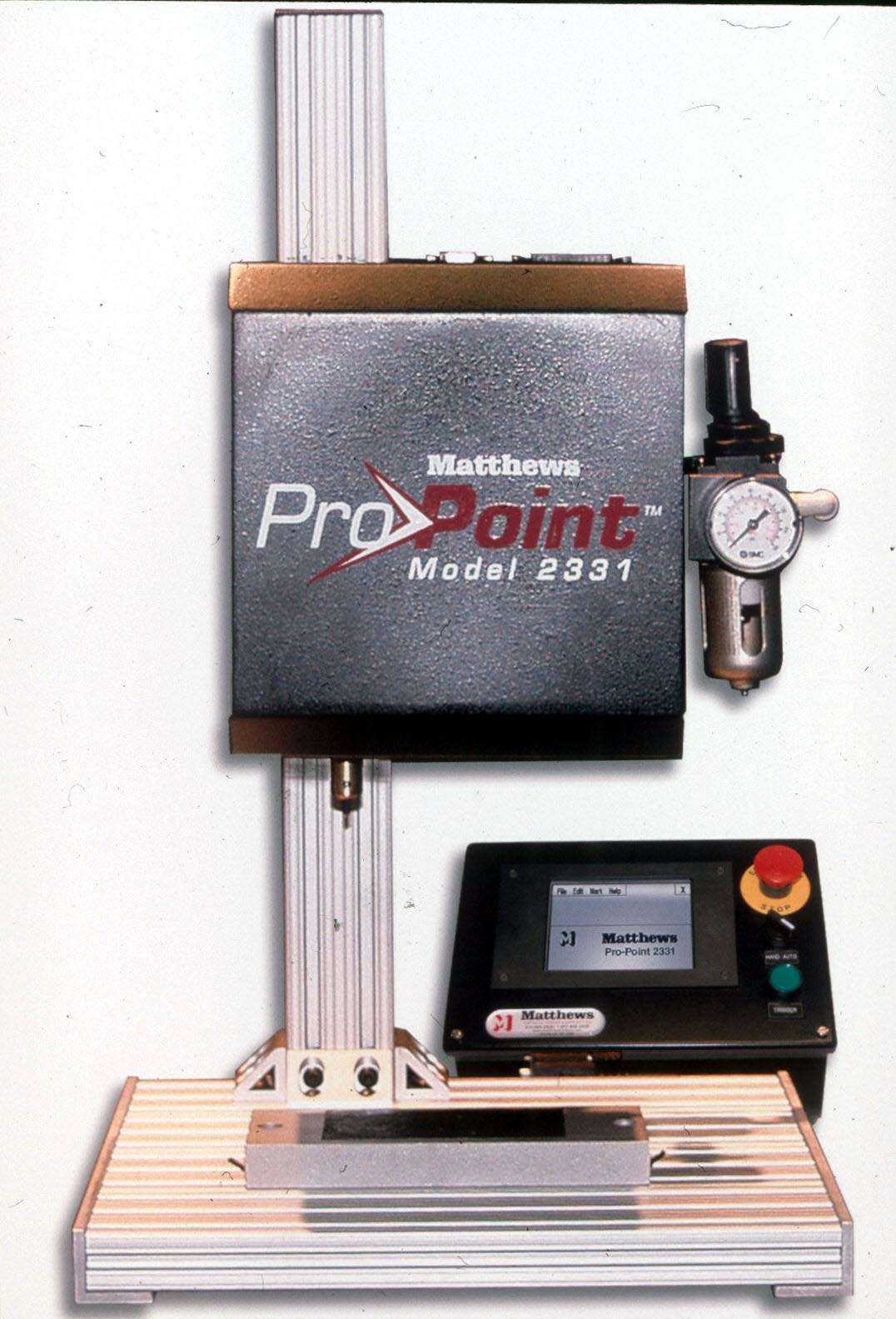

Mar 24, 2003 Pro•Point 2331 Stylus Indent Marking System features 4.5 x 3.5 in. touch screen, which permits file creating and editing. User can preview entire message exactly as it will look, before marking is made onto substrate. Control unit operates via Windows CE software. System provides permanent marking of metal and plastics up to 50 Rockwell C. It can mark 1 x 3 in. area with product information, serial numbers, date, time coding, and logos.

Scott Specialty Gases    Plumsteadville, PA 18949 0310

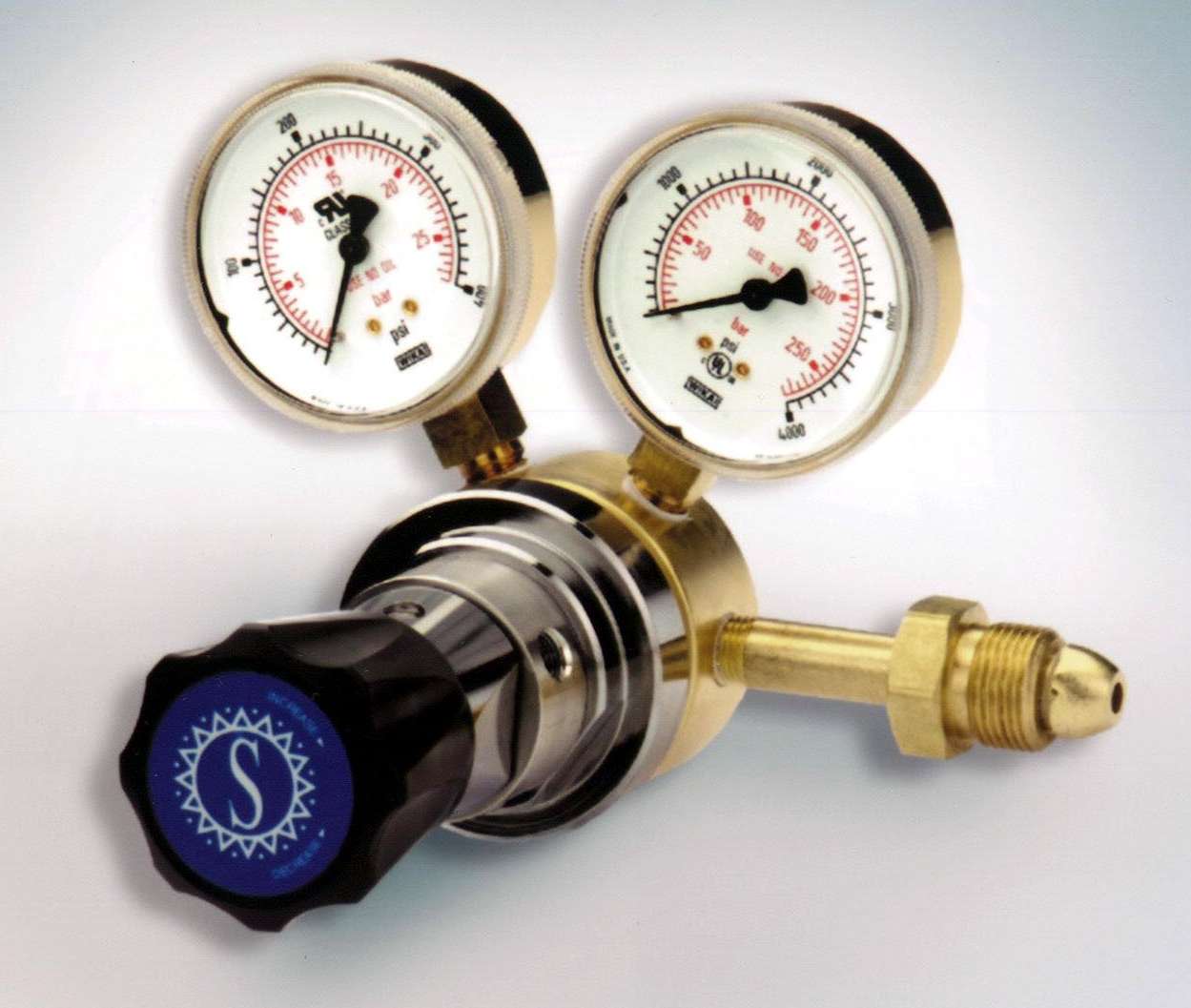

Mar 24, 2003 Series 228 single-stage regulators are available in 316 SS for use with corrosive gases or brass bar stock for use with non-corrosive gases. Balanced poppet stem design minimizes effect on delivery pressure caused by changes in inlet pressure. Regulators feature 316 SS diaphragm, PCTFE seat, Teflon® seals and nickel-plated brass bonnet. Max inlet pressure is 3,000 psig. Operating temperature is -40 to +140°F. Delivery pressure ranges include 2–30, 4–75, 10–150, and 20–250 psig.

Jotco Inc.    Cincinnati, OH 45214

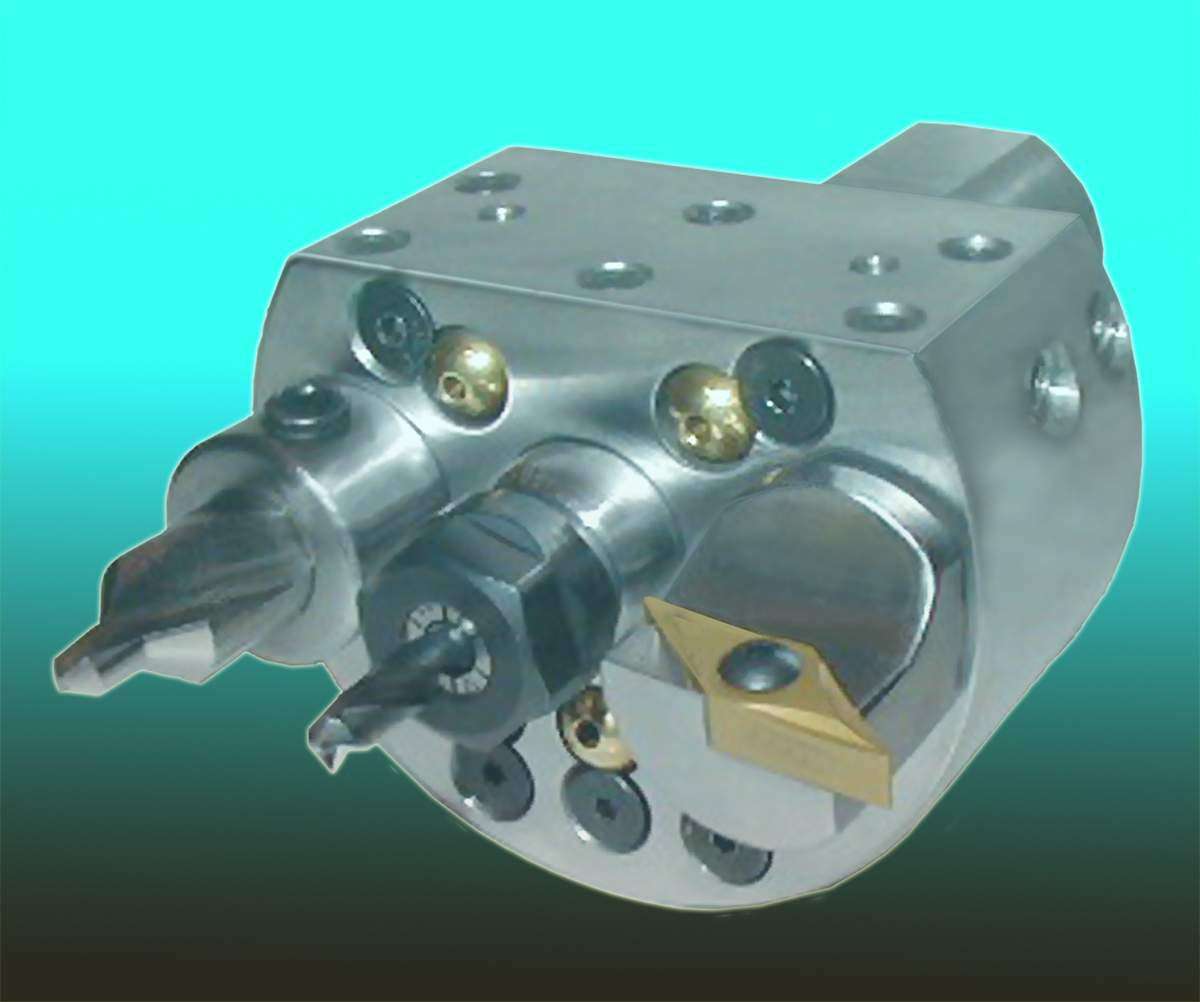

Mar 24, 2003 Triplit allows up to three tools to be mounted in single turret station. Each tool pocket is ported for through-the-tool coolant delivery. Additional tool capacity allows parts that previously required rechucking to be machined in one operation. Adjacent turret stations are freed up, further enhancing available tool configurations. Convenience tray snaps onto front of Triplit, furnishing small workbench inside lathe.

ABB Metals Systems    New Berlin, WI 53151 2840
Mar 24, 2003 NETA-01 Ethernet Module works with any ABB drive that provides fiber optic link, communicating via standard web browser. It enables remote monitoring, configuration, diagnostics, and, when needed, control. Via link, drive can provide process-related information, such as load level, run time, energy consumption, and I/O data. Intelligent module has embedded server with all necessary software for user interface, communication, and data storage. Full array of protocols are supported.

UFI, Inc.-Hydraulic Div.    Twinsburg, OH 44087

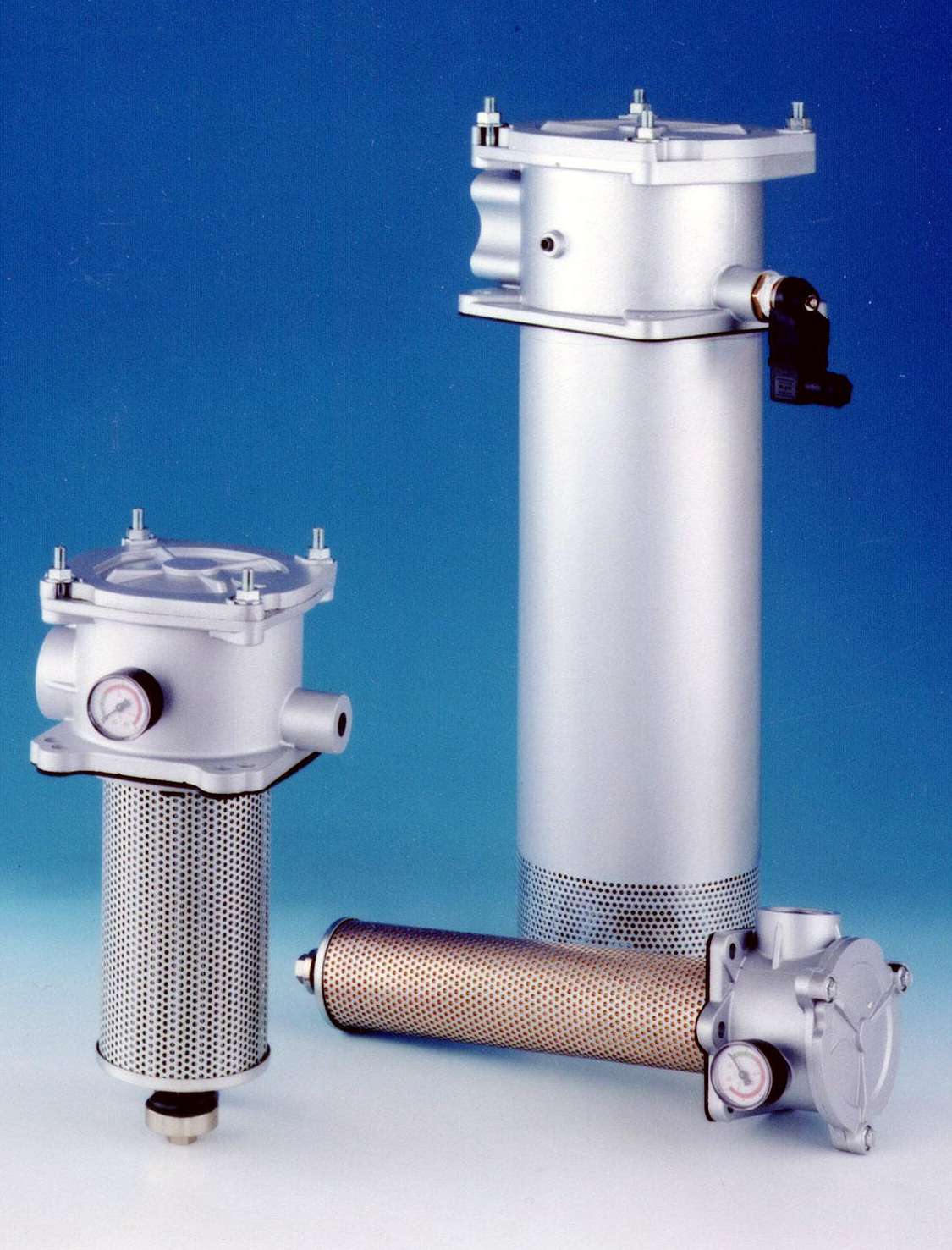

Mar 24, 2003 Series RF tank top mounted filter features inside to outside flow path through element, and magnetic pre filter as part of cartridge. Available in 11 sizes with ports to 2 ½ in. SAE flange, filter handles flows from 25–300 gpm. High capacity elements are available with wide range of media from 25 um cellulose to 6 um glass fiber with B>200. RG Series filter comprises element and support structure of RF Series with diffuser design, allowing complete assembly to be inserted inside tank.

UFI, Inc.-Hydraulic Div.    Twinsburg, OH 44087

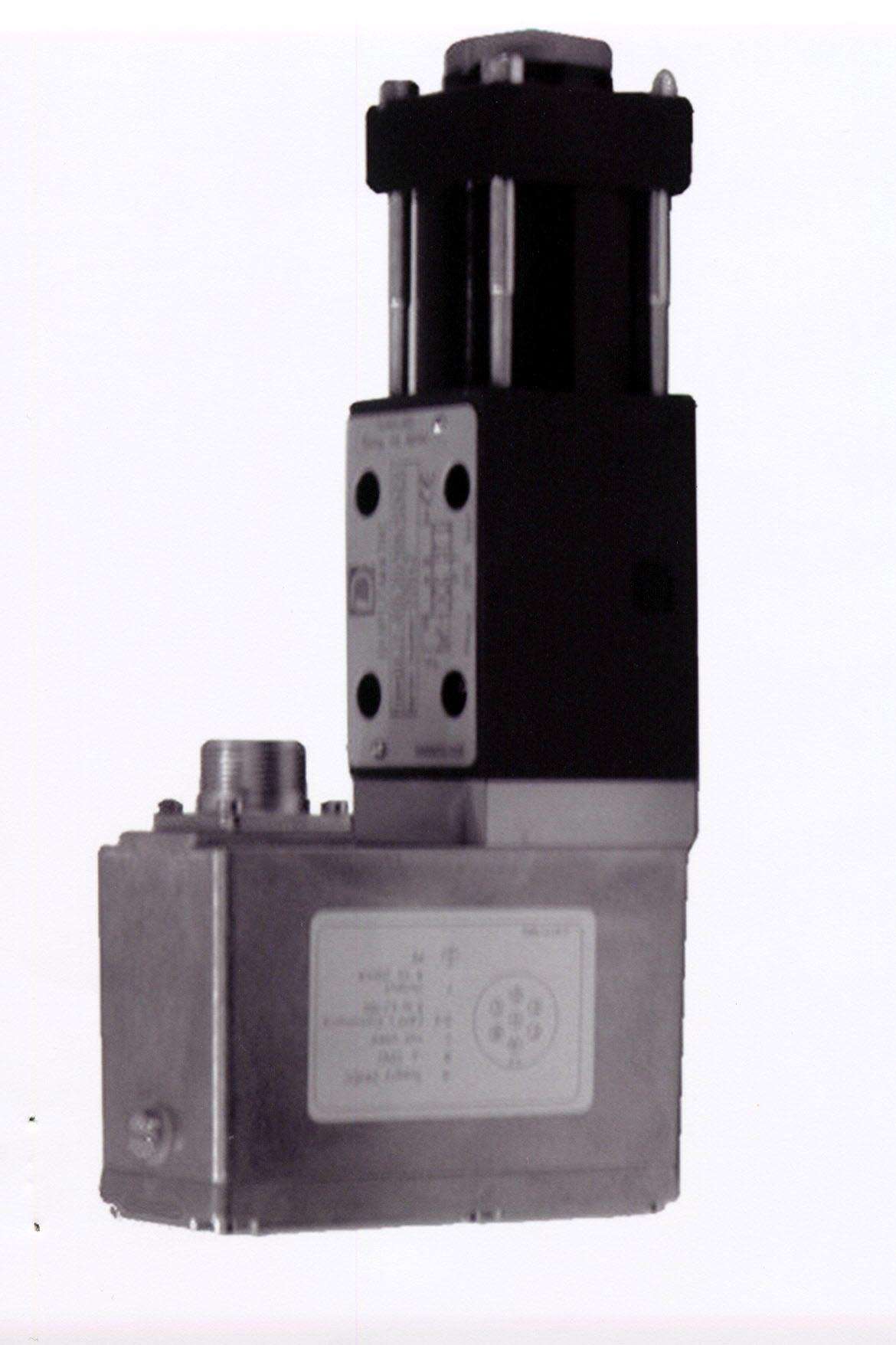

Mar 24, 2003 Duplomatic DXJ3 Series servo-proportional valve features linear force motor direct driving zero overlap spool. NFPA standard D03 footprint offers integration into standard manifold systems, and neutral fail safe position provides simple control. Operating up to 5000 psi with flows to 10 gpm, DXJ3 incorporates on board electronics that operate on ±10 V or 4/20 mA control signal. Maximum response time is 12 ms with <0.2% hysteresis through closed loop LVDT.

Kimberly-Clark Professional    Roswell, GA 30076
Mar 24, 2003 SCOTT® Coreless JRT® Jr. Bath Tissue has no hole and does not employ cardboard core, making it equivalent in length to six standard rolls of bath tissue. Keyless SCOTT Coreless JRT E-Z Load Dispensing System is designed to hold coreless tissue and can be reloaded with one hand; tissue rolls snap in and lock into place. Additional easy-maintenance restroom systems include LEV-R-MATIC® E-Z Load Hard Roll Towel Dispenser and ALL-N-1 Soap Dispensing System.

Armstrong International, Inc.    Three Rivers, MI 49093
Mar 24, 2003 Rada R Series valve provides total thermostatic control of central recirculating hot water systems. Flow-modulating internal design features control temperature of ±2°F at flows as low as 1 gpm. Thermostatic return-limiting device in valve monitors returning water temperatures and eliminates overnight temperature creep during zero-demand, idling periods. Also included: integral check valves and max temperature locking feature.

Emerson Process Management    Knoxville, TN 37932
Mar 24, 2003 Model 2130 RBMconsultant® PRO data collector/analyzer offers embedded intelligence that guides users through data collection process and dual channel functionality for simultaneous gathering of any two vibration signals. Product automatically compensates for actual turning speed when performing in-field alarming, allowing for proper diagnosis of problems. Unit offers color display, low-noise circuitry, and PeakVue® technology, which filters out normal rotational vibration.

Electro Standards Laboratories    Cranston, RI 02921
Mar 24, 2003 Tensile Tester Retrofit Kit suits manual or motorized test frames. It can include ESLSense I-Plus intelligent indicator, load cell and extensometer, and GUI software. DataView Lite-Plus software provides file management, expanded statistical reporting, real-time data plotting, expanded report generation and zooming, password security, and graphical user interface. Kit includes auto cell identifcation, dual line 24-character VFD display, and bipolar 6-digit readout.

Agie Charmilles, LLC    Lincolnshire, IL 60069
Mar 24, 2003 Robofil 240cc/440cc EDM uses CC digital, zero voltage generator to preserve surface integrity of machined material and offers cutting speeds of tool steel up to 37 in²/hr. With anti-electrolysis in rough and skim cutting, model 440cc offers increased cutting speeds for parts as tall as 15.75 in. Spark design allows machine to achieve fine surface finishes with fewer skim cuts, while ThermoCut wire-threading system stretches wire and cuts it under effect of heat.

Agie Charmilles, LLC    Lincolnshire, IL 60069
Mar 24, 2003 Utilizing mechanical, fixed table design, Robofil 390/690 EDM delivers instant cutting action without need to fill or drain work tank. Enclosed, stainless-steel cabinet protects operators against splashing of water, while ThermoCut wire threading system stretches wire and cuts it under effect of heat. Flushing nozzle provides flushing conditions around wire while maintaining regular flow during finishing and CT-Millennium CNC provides Windows-based numerical control.

Agie Charmilles, LLC    Lincolnshire, IL 60069
Mar 24, 2003 Equipped with integrated dielectric tank and short C frame, Roboform 44 has moving cross table with 19.7 x 13.8 x 13.8 in. X, Y, and Z travel. Standard with linear glass scales, machine offers close loop positioning feedback on all axes over entire axis length. Additional offerings include 6-position tool changer and servo controlled C axis with speed of 70 in/min. Program Expert selects most suitable technology for intended application.

Agie Charmilles, LLC    Lincolnshire, IL 60069
Mar 24, 2003 Roboform 35P and 55P are equipped with drop tanks, enabling operators to have access to machining table from three directions. Drop tank can be programmed to match workpiece height. All 35P, 54P, and 55P machines have glass scales and can accommodate Quick Change Robot feature. Products come equipped with Sinker Programming System. Offline system allows users to program diesinking applications with few mouse clicks.

Agie Charmilles, LLC    Lincolnshire, IL 60069
Mar 24, 2003 Brother HS-50A, 5-axis, wire EDM machine offers compact design with large X-Y travel and small footprint. Able to handle large workpieces through multiple small workpieces, machine includes taper modes that enable processing of production parts and mold and die components. Unit provides full closed loop control with linear glass scales for direct reading of table position. Automatic wire threader provides cutting line return, retry, and jump functions.

TransMagic, Inc.    Westminster, CO 80031
Mar 24, 2003 TransMagic R3.1 offers ways for clients to collaborate and view 3D files over Internet, or 3D models can be emailed as HTML documents so they can be viewed in any Internet browser. It translates, views and heals Pro/Engineer assembly files, and handles compressed and uncompressed Unigraphics .PRT files. Translator-specific settings provide enhanced file translation and healing. Log reporting functions provide file content information key to translation success.
