CDS Analytical, Inc.    Oxford, PA 19363 0277
Mar 27, 2003 Model AS2500plus Pyrolysis Autosampler performs thermal desorption and pyrolysis on same sample. Unit handles up to 36 samples and can be programmed through handheld controller or Windows® based software for unattended operation. It can be programmed for temperature rates from 0.01°C/min to 20,000°C/sec and max temperature of 1300°C. Difficult samples such as polymers, adhesives, paint, rubber, tobacco, packaging, inks, and textiles can be analyzed.

Master Bond, Inc.    Hackensack, NJ 07601
Mar 27, 2003 Two-component, room temperature curing EP21ANHT features thermal conductivity of over 22BTU/in/ft²/hr/°F. It comes in paste form and offers high bond strength to wide variety of substrates. Bonds resist water, oil, fuels, and many solvents. Shore D hardness is >85 and volume resistivity is >10¹³ ohm-cm. Cures can be accelerated by use of heat. EP21ANHT is recommended for high temperature applications. Service operating temperature is -60 to +400°F.

AMTROL Inc.    West Warwick, RI 02893
Mar 27, 2003 BoilerMateâ„¢ Series tanks have seamless inner corrosion-proof, nonmetallic, polyethylene reservoirs, and CFC-free molded insulation. Dual O-Ring Sealing System for WH-7 and WH-9 Series water heaters provides second seal that protects interior section of water heaters. Dual O-ring offers confirmation of seal and guards against future leaks. If seal is not secure, second O-ring inhibits internal water heater damage caused by internal leaks.

Yaskawa Electric America, Inc.    Waukegan, IL 60085

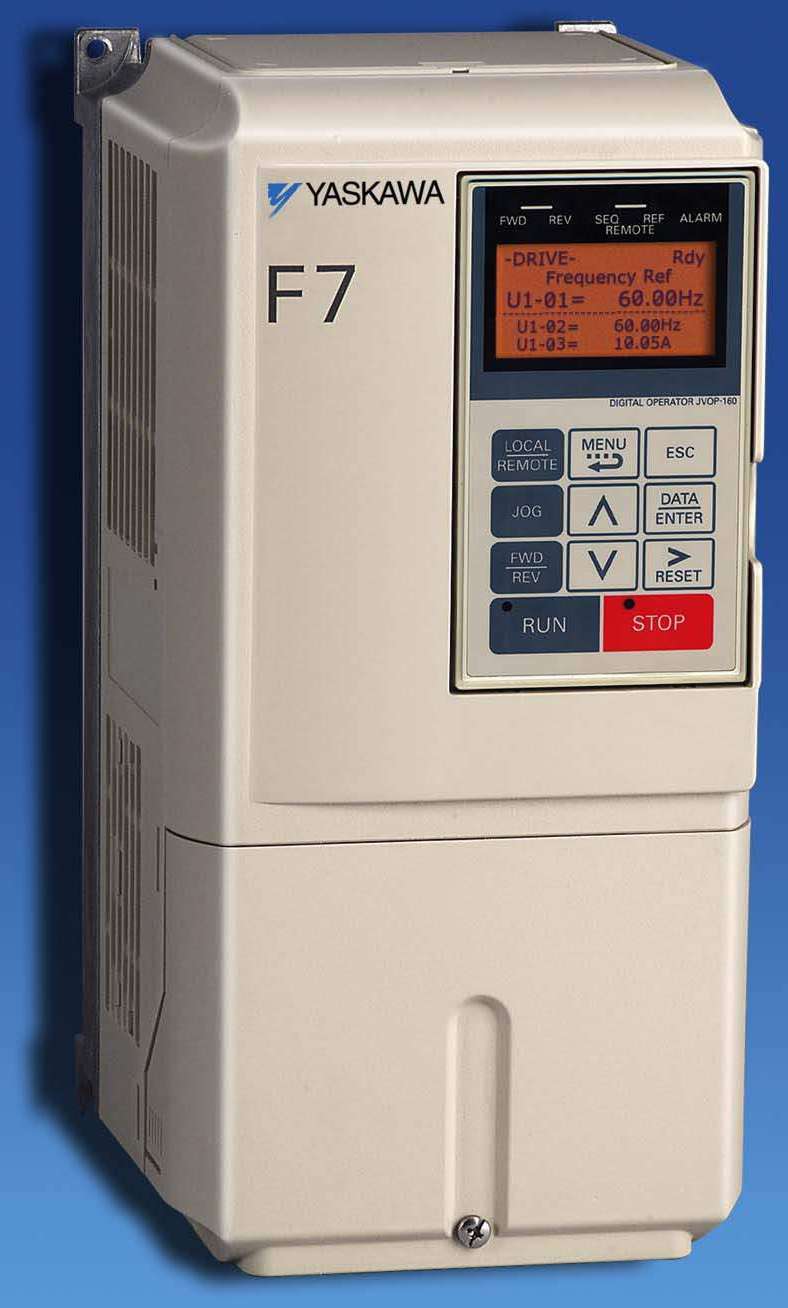

Mar 26, 2003 Available from 0.5–500 hp, general-purpose F7 utilizes flexible design platform to provide normal and heavy-duty ratings, network communication options, application-specific drive software, and various input/output choices. Capable of operating in V/f, V/f with encoder feedback, open-loop vector, or closed-loop vector modes, unit includes 5 line x 16 character LCD display, 208/240 and 480 V ratings, and built-in bus choke and 12-pulse rectification above 30 hp.

SKC, Inc.    Eighty Four, PA 15330 9614
Mar 26, 2003 UMEx Passive Samplers collect formaldehyde and other aldehydes in ppb and ppm range. Polypropylene units clip to worker's collar for personal sampling from 15 min to 8 hr, or are placed in appropriate location for indoor air sampling up to 24 hr for formaldehyde. No sample pump is needed. Each incorporates blank section in addition to active sampling section. On/off sliding cover starts and stops sampling.

Dimas North America    Olathe, KS 66061
Mar 26, 2003 Model FS 8700 D flat saw features 87 hp, Deutz 4-cylinder, turbo-charged diesel engine. Equipped with 2-speed hydrostatic transmission, unit offers infinitely variable travel speeds up to 220 fpm. Single lever controls speed and raises and lowers blade for one-hand operation. Switch-activated, positive-depth stop controls blade depth. Zinc-plated, dual multiple-jet water spray tubes provide coolant to blades. Maximum depth of cut is between 6.5 and 25 in.

Berry Plastics Corp., Tapes & Coatings Division    Franklin, MA 02038

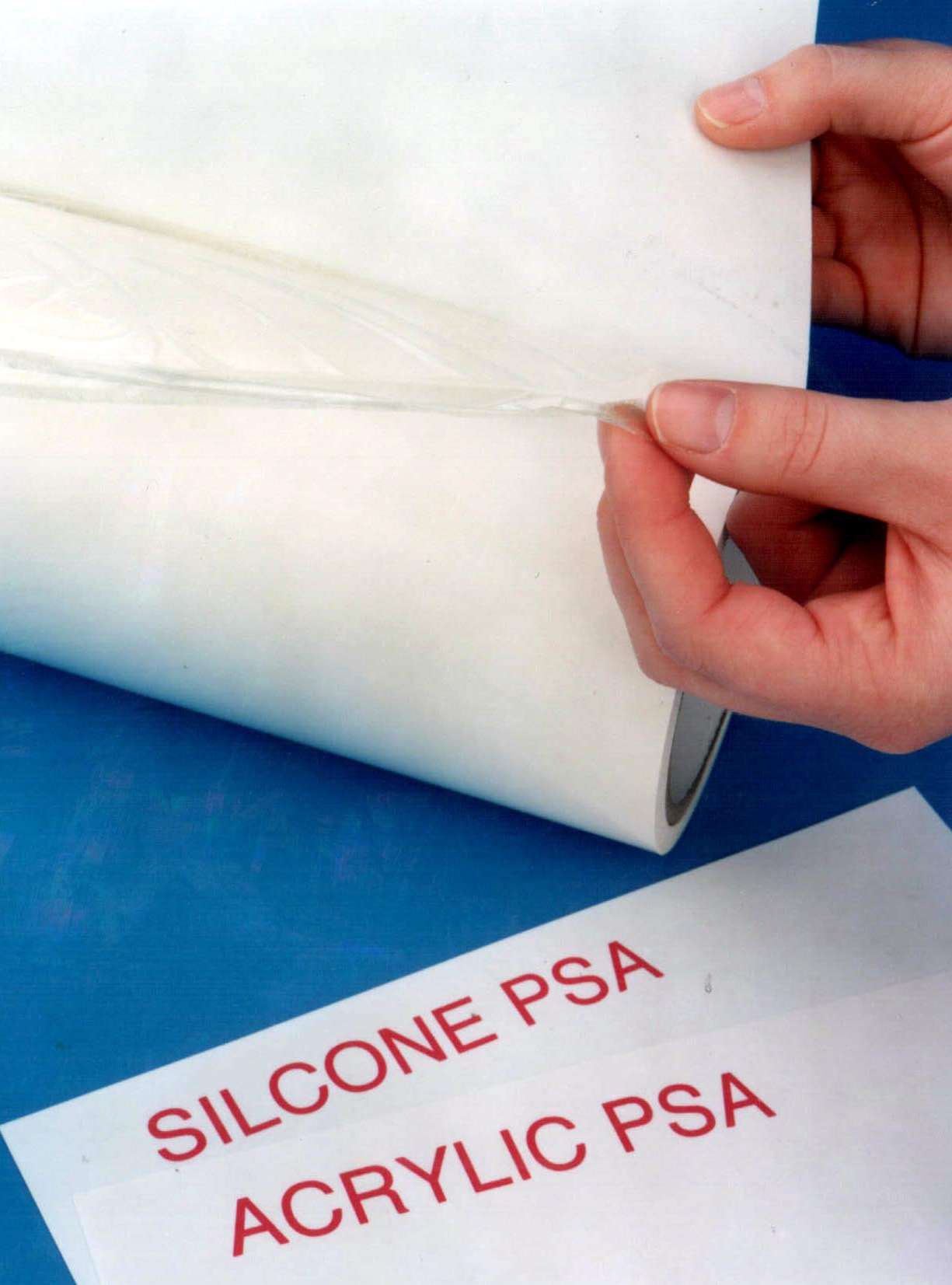

Mar 26, 2003 Suited for converters and OEMs, Type 3281A has silicone pressure-sensitive adhesive (PSA) on air-side of 0.5 mil clear polyester film carrier and acrylic PSA on liner side. With paper liner and differential release coating, product allows bonding of silicone materials to non-silicone substrates. Tape can be die-cut, and liner stays in place during lamination and conversion. Product can be used at -40 to 325°F.

Royal Diversified Products    Warren, RI 02885

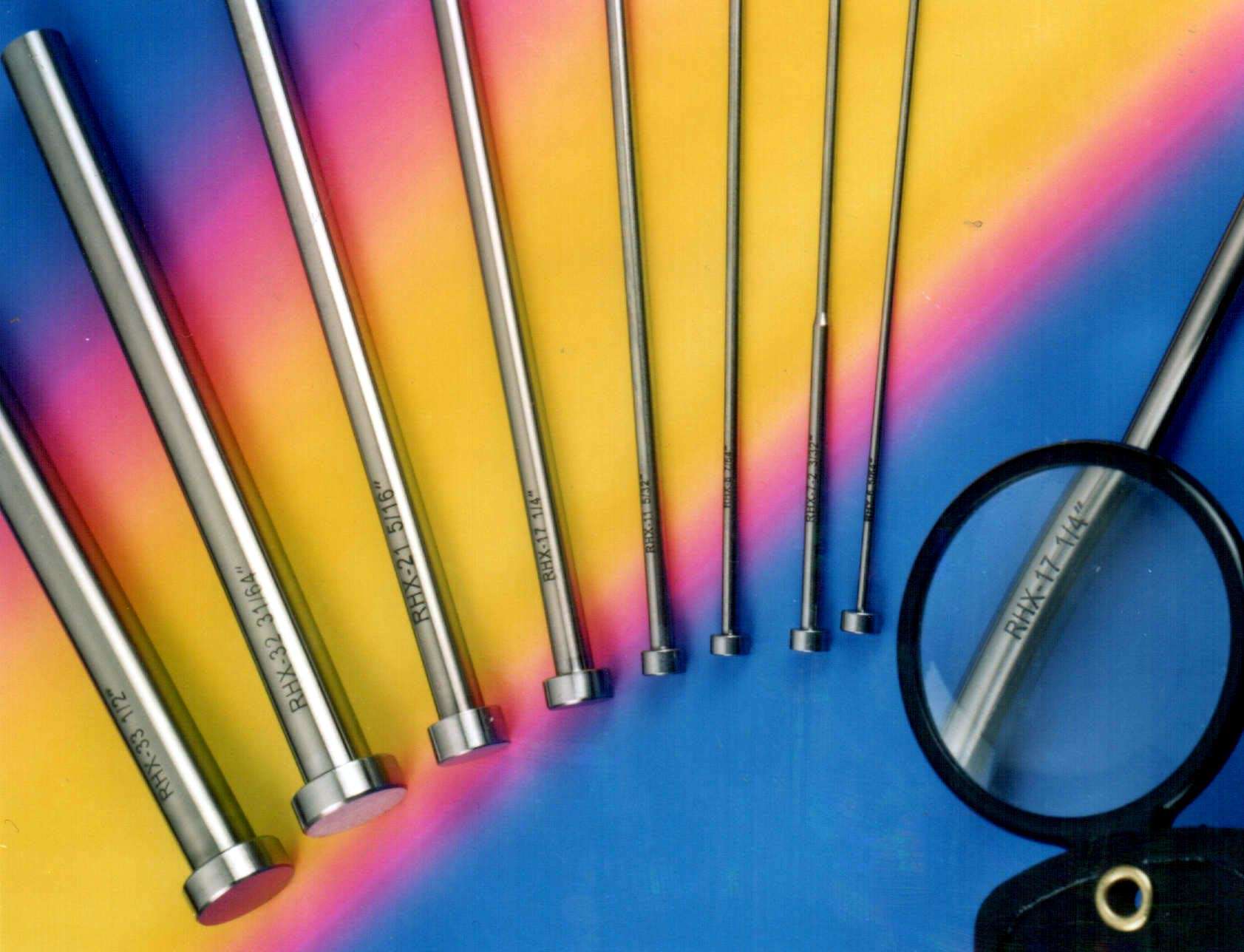

Mar 26, 2003 Series RHX HARD-COREâ„¢ H-13 Hotwork Die Steel Ejector Pins feature 50-55 Rc core hardness with ion-nitride surface of 65-74 Rc to eliminate flaking, cracking, and dishing. They are thermal resistant to 1100°F without loss of physical properties. Hot forged and annealed to facilitate machining of heads, pins come in 1/32–½ in. diameters and +.005 in. oversize in lengths from 6–14 in., with ½, 2, 3, and 4 in. shoulder lengths. Diameter tolerances can be held to .0001 in.

Clark Solutions    Clinton, MA 01510

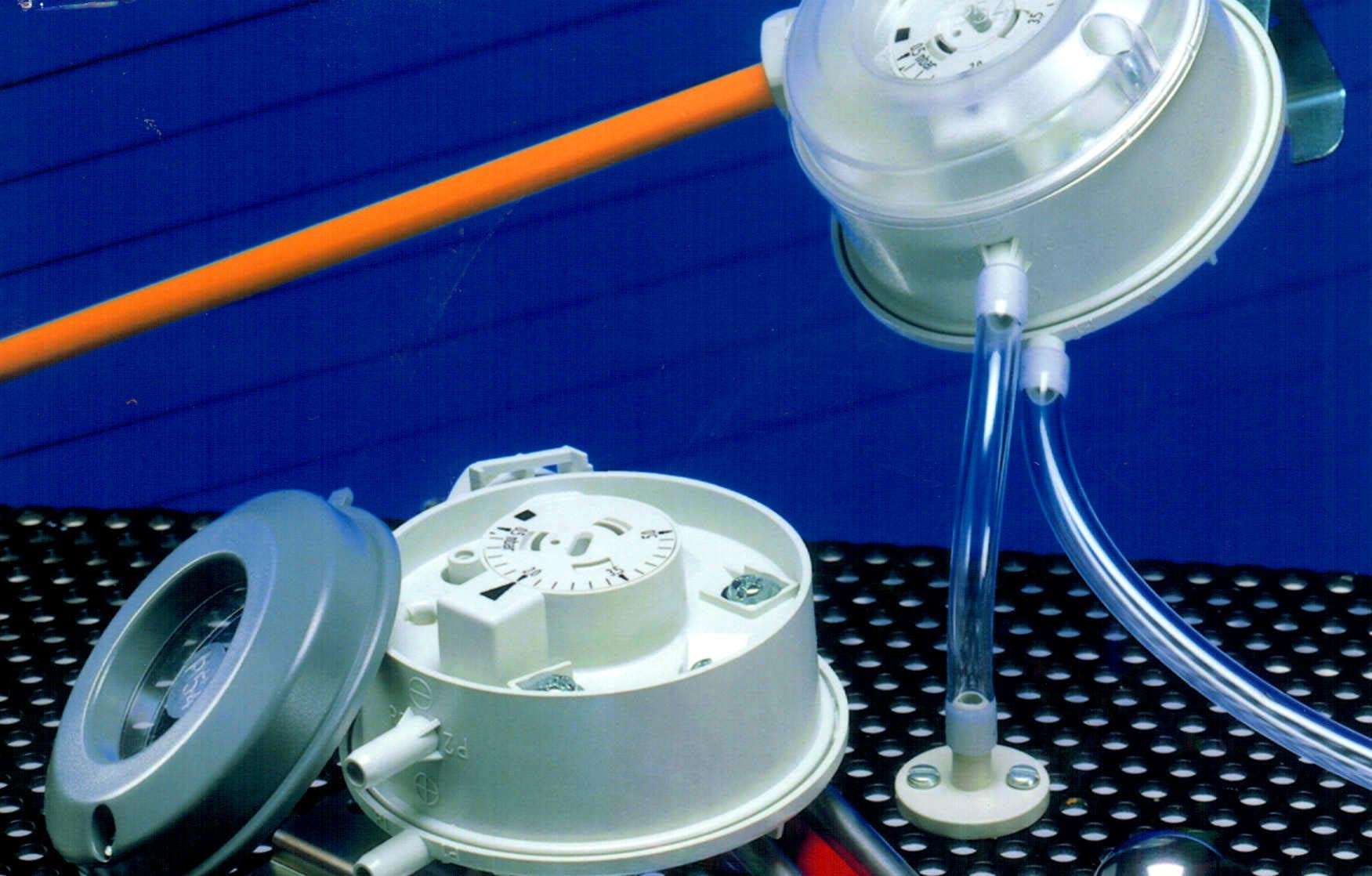

Mar 26, 2003 Equipped with automated calibration, trapezoidal bead diaphragm design, and multi-plated contacts, Series 604 is suited for use with air or non-corrosive gases. Switch withstands max pressure of 20 in. w.c. and is offered in standard ranges from 0.1–1.2 in. w.c. and 0.4–4.0 in. w.c. Each model incorporates integrated cable strain relief and 3/16 in. ID tubing connectors. Product is suited for ventilation, laboratory, and clean-room applications.

Mi-T-M Corporation    Peosta, IA 52068
Mar 26, 2003 To provide protection for tools and work gear, heavy-duty job site boxes incorporate solid steel construction with full arc-welded seams, powder-coat finish, and tamper-proof padlock protectors. Full length concealed hinges provide additional protection and strength, while reinforced support skids add protection and aid in transport. Available sizes are: 36 x 19 x 16 in., 48 x 22 x 22 in., 48 x 30 x 30 in., and 60 x 24 x 26 in.

Springer co-ax Inc.    Penndel, PA 19047
Mar 26, 2003 The cx-tec® employs direct-acting design with straight-through flow path that eliminates internal pilot orifices. Product works with forces of flow, making unit suitable for gaseous, gelatinous, pasty, contaminated, or recycled fluids and gases from vacuum to 600 psi. Equipped with coils that never burn out, pressure-balanced valve is offered in configurations to suit most commonly seen media. Function is unaffected by system pressure or pressure differential.

WAGO Corp.    Germantown, WI 53022
Mar 26, 2003 Plug and play X-COM 769 Series provides X number of connection combinations, which utilize terminal blocks and plugs that are designed to create one, self-contained plug-in connection system with unlimited variations. Components include base receptacle terminal blocks with two connections for 2 plugs or 1 plugs/1 CAGE CLAMP® and 2-way jumping. CAGE CLAMP technology provides vibration proof connections. Blocks are also available in disconnect, diode, and LED versions.

Artesyn Communication Products Inc.    Madison, WI 53717
Mar 26, 2003 Typhoon(TM) open-frame, single-board converters use synchronous rectification, and employ surface-mount components and planar, in-the-board transformer structures to limit height to 0.3 in. Single-output, 1/8 brick model offers 1.8 V output and delivers up to 40 A with 89% efficiency at full load. Dual-output, ¼ brick models offer 3.3/1.2 V or 3.3/1.8 V independently regulated output configurations. Each channel is capable of delivering up to 20 A, with 90% efficiency at full load.

Schweitzer Engineering Laboratories Inc.    Pullman, WA 99163
Mar 26, 2003 Drop-in SEL-7000 Integrated Substation System family offers pre-engineered, pre-assembled integrated systems for protection, control, and management of industrial substations. Product offers complete application solutions coupled with system automation, communication, and intelligence capabilities that enable users to manage power systems. Series includes automatic event report collection, settings management, and event report analysis software.

Elma Electronic Inc.    Fremont, CA 94538

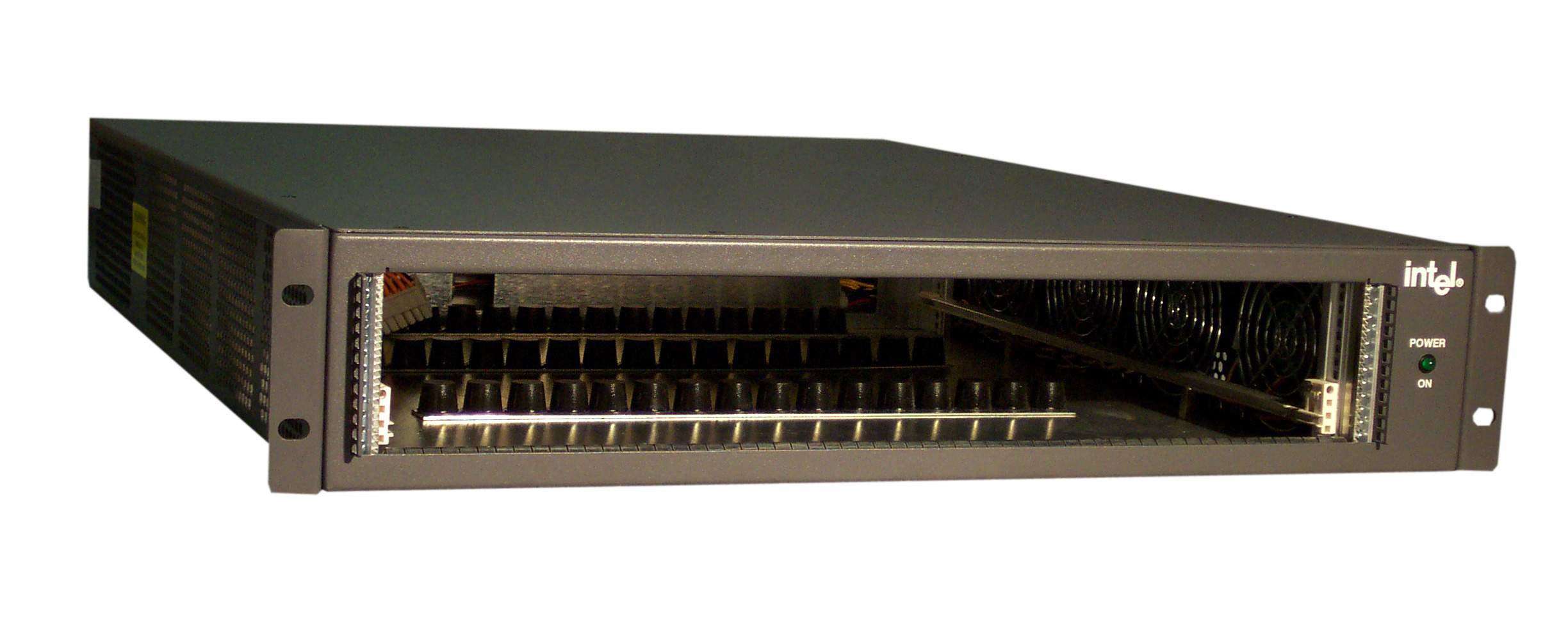

Mar 26, 2003 Model 39M horizontal 2U chassis allows fixed-mounted motherboards to be mounted on card guides inside chassis. Motherboard can be swapped out of card cage without taking unit apart. EMI springs eliminate need for traditional gasketing to shield external seams within box. With AC or DC input, Model 39M provides up to 500 W of power. Side-to-side airflow utilizes 4 fans for 180 cfm of cooling capacity. Chassis is suitable for rack-mount communications applications.

Linear Technology Corp.    Milpitas, CA 95035

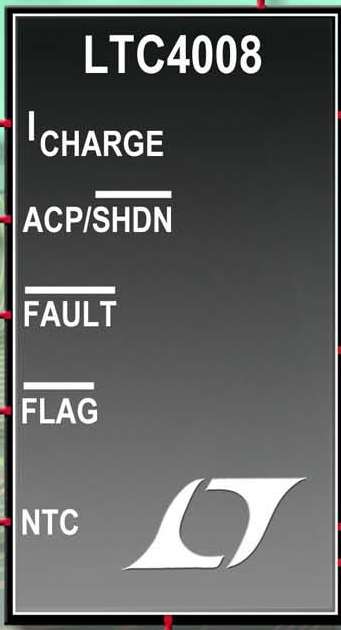

Mar 26, 2003 Multi-cell, multi-chemistry LTC4008 includes I/O signals for reporting of system status. When interfaced with microcontroller, unit is capable of charging NiCd, NiMH, Li-Ion, and sealed lead-acid batteries. Product drives external MOSFETs synchronously to achieve over 95% efficiency. With no audible noise during operation, unit offers programmable charging current to ±4% accuracy.

GEI International, Inc.    Syracuse, NY 13217 6849

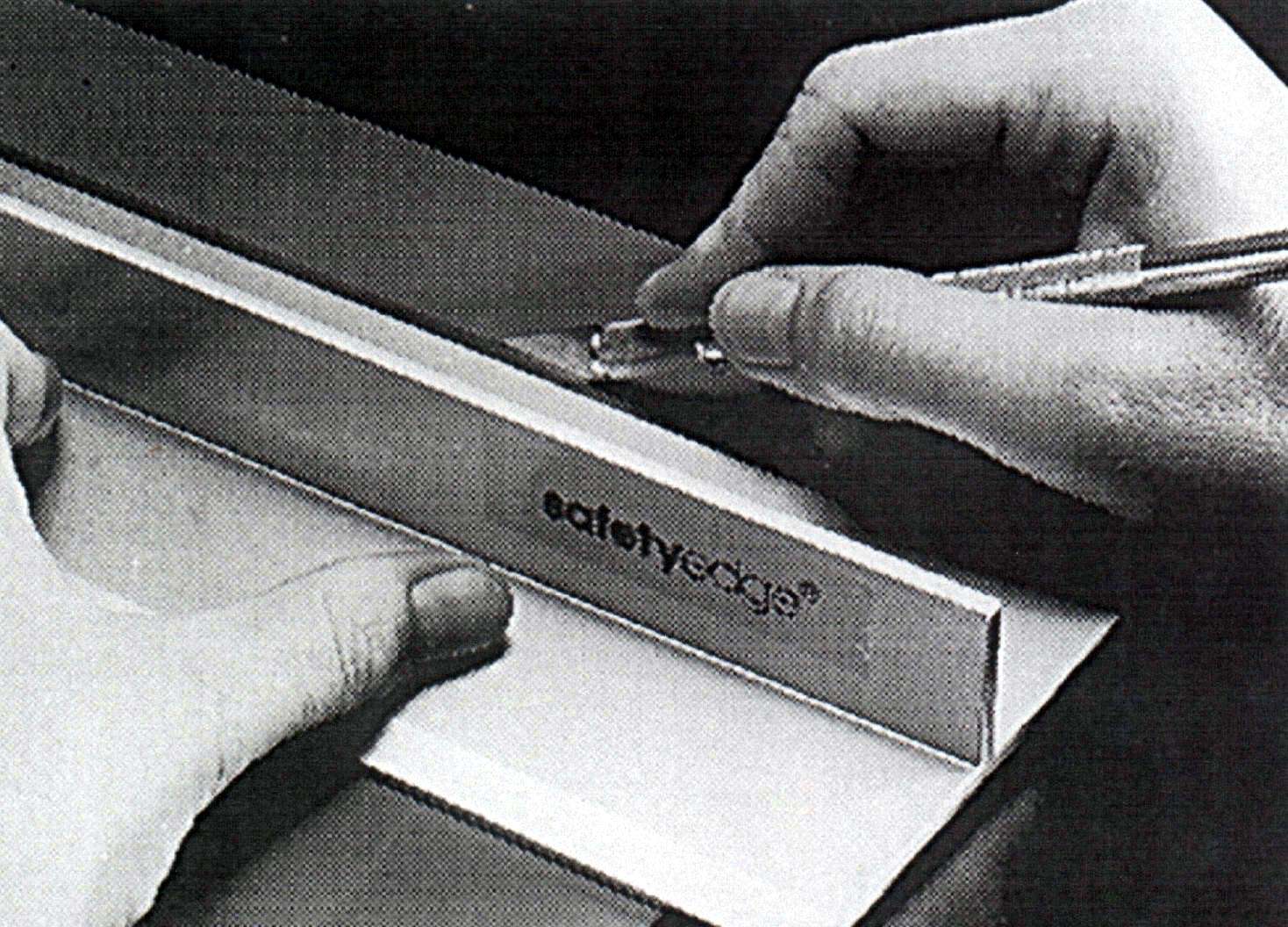

Mar 26, 2003 Safety Cutting Straight Edges feature T design, which protects operator should knife or razor blade slip or skip while material is being cut. Edges are hardened aircraft grade material with non-skid rubber backing and 3.5 in. base width. Hanging ring is provided at one end. Lengths include 12, 18, 24, 36, and 42 in.

Power Measurement Ltd.    Saanichton, BC V8M 2A5  Canada
Mar 26, 2003 ION 6200â„¢ panel-mount meter, when equipped with Megawatt option, can measure electricity in megawatt/kilovolt range and offers solution for utility-management applications such as energy-cost tracking, load profiling, and substation panel metering. Bright LED display allows readability in adverse lighting conditions. Unit provides 4-quadrant power, demand, energy, power factor, and frequency measurements.

Markland Specialty Engineering Ltd.    Rexdale, ON M9W 4M2  Canada
Mar 26, 2003 Model 502 can replace nuclear type density meters. It provides LCD local readout of percent solids, 4-20 mA output, two set-point relays, and RS-232/485 serial port. Sonic transducers fit flush with pipe wall, eliminating intrusions into flow, which avoids fouling with stringy sewage sludge. Microprocessor is housed in NEMA 4X enclosure and features diagnostics, pushbutton calibration and dynamic damping.

TE Connectivity Ltd.    Berwyn, PA 19312

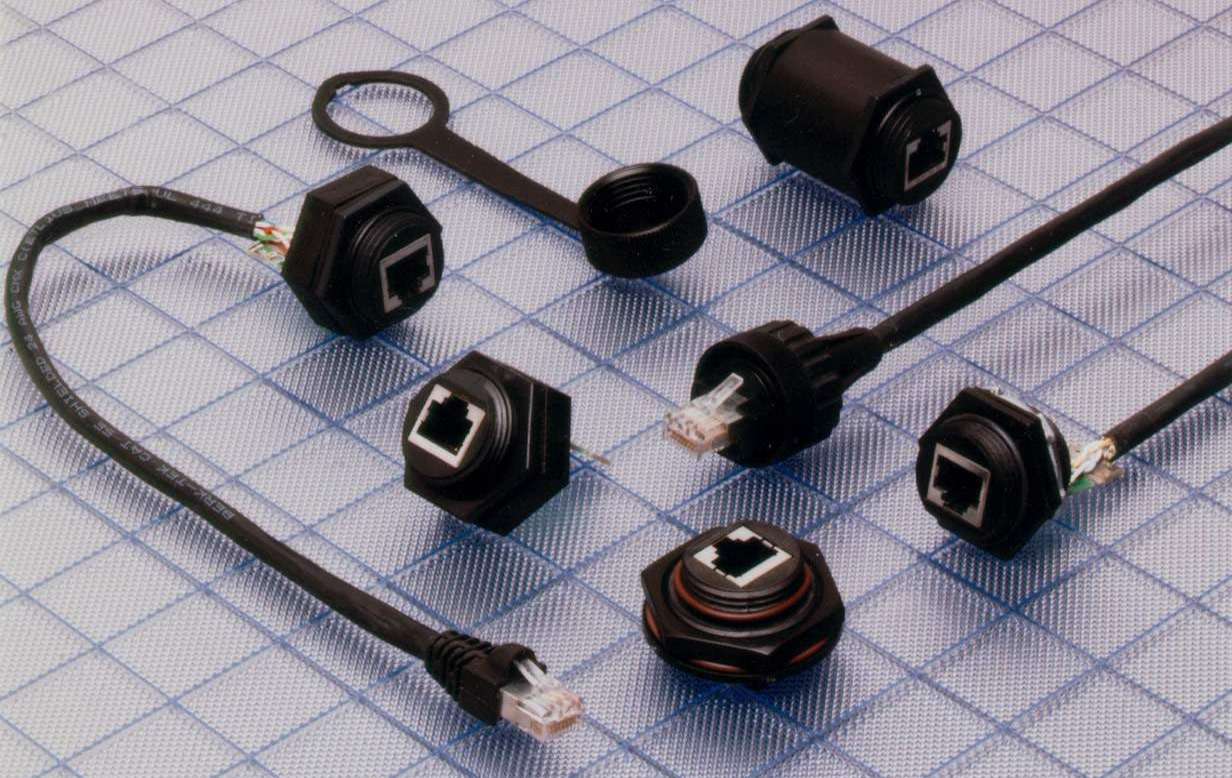

Mar 26, 2003 Sealed RJ-45 industrial Ethernet products combine mini-form circular housings with RJ-45 receptacles. Various types include 110 punchdown block, short-depth version, and bulkhead passthrough receptacle. Connectors are molded from ABS, while RJ-45 jack contacts are copper with nickel underplating and gold finish. Mating cycles are rated at up to 250 and electrical performance is rated at 1.5 A and 125 Vdc. Products include RJ-45 and RJ-11 cordsets.
