Smoot Co., The    Kansas City, KS 66103
Mar 28, 2003 Available in 6 standard models in up to 9 different sizes, heavy-duty Precision-Aire units offer housings and end plates cast from grey iron. Rotors are fabricated from steel, and vanes are welded onto shaft and then machined. Use of steel prevents vanes from breaking off when foreign objects become lodged between rotor and housing. Standard models can be fitted with specialized rotors, bearings, or drives. Dust Collector Duty model is offered for dust collection applications.

VersaLogic Corp.    Eugene, OR 97402
Mar 28, 2003 Jaguar fanless PC/104-Plus SBC, based on Intel® Celeron® 350 MHz processor, has no moving parts, 0 to 60 °C operation, and draws 38% less power than Pentium III equivalent. Product line offers 10/100 Ethernet, AGP video/flat panel, industrial I/O, and DiskOnChip. Transient Voltage Suppressors provide ESD protection on I/O ports, reducing risk of static damage. Product is suited for OEM applications in medical, transportation, automation, and military environments.

Caterpillar, Inc.    Peoria, IL 61629

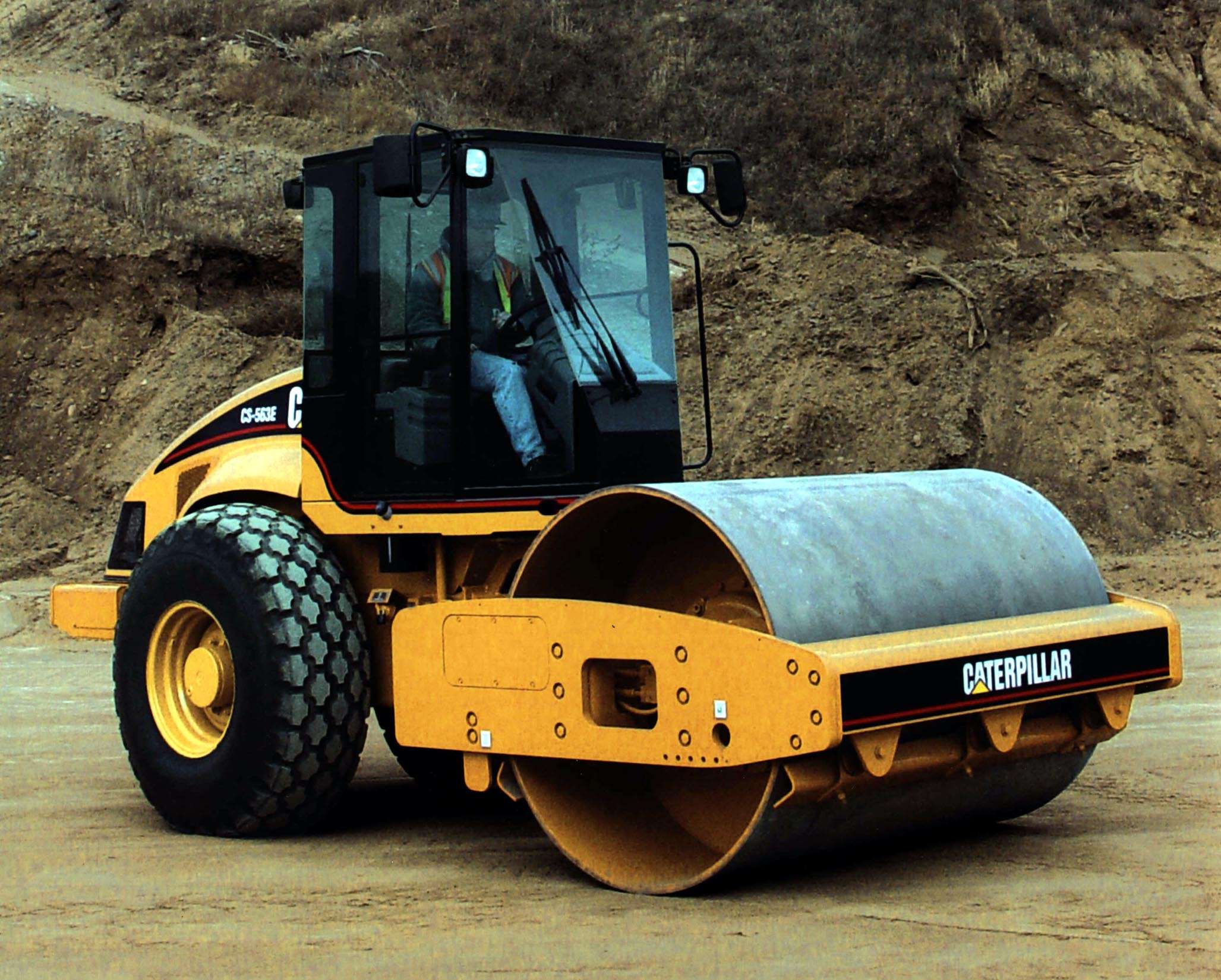

Mar 28, 2003 Series 500E Vibratory Soil Compactors are powered by 6-cylinder Caterpillar 3056E ATAAC, turbocharged and after-cooled electronic diesel engine with gross power rating of 150 hp @ 2200 rpm. Electronic Control Module provides electronic timing and fuel delivery. Dual-pump propel system provides separate hydraulic flow to rear wheels and drum for high tractive effort. Compactors are suitable for applications with common fill lift thickness from 12–188 in.

Panduit Corp.    Tinley Park, IL 60477 3091

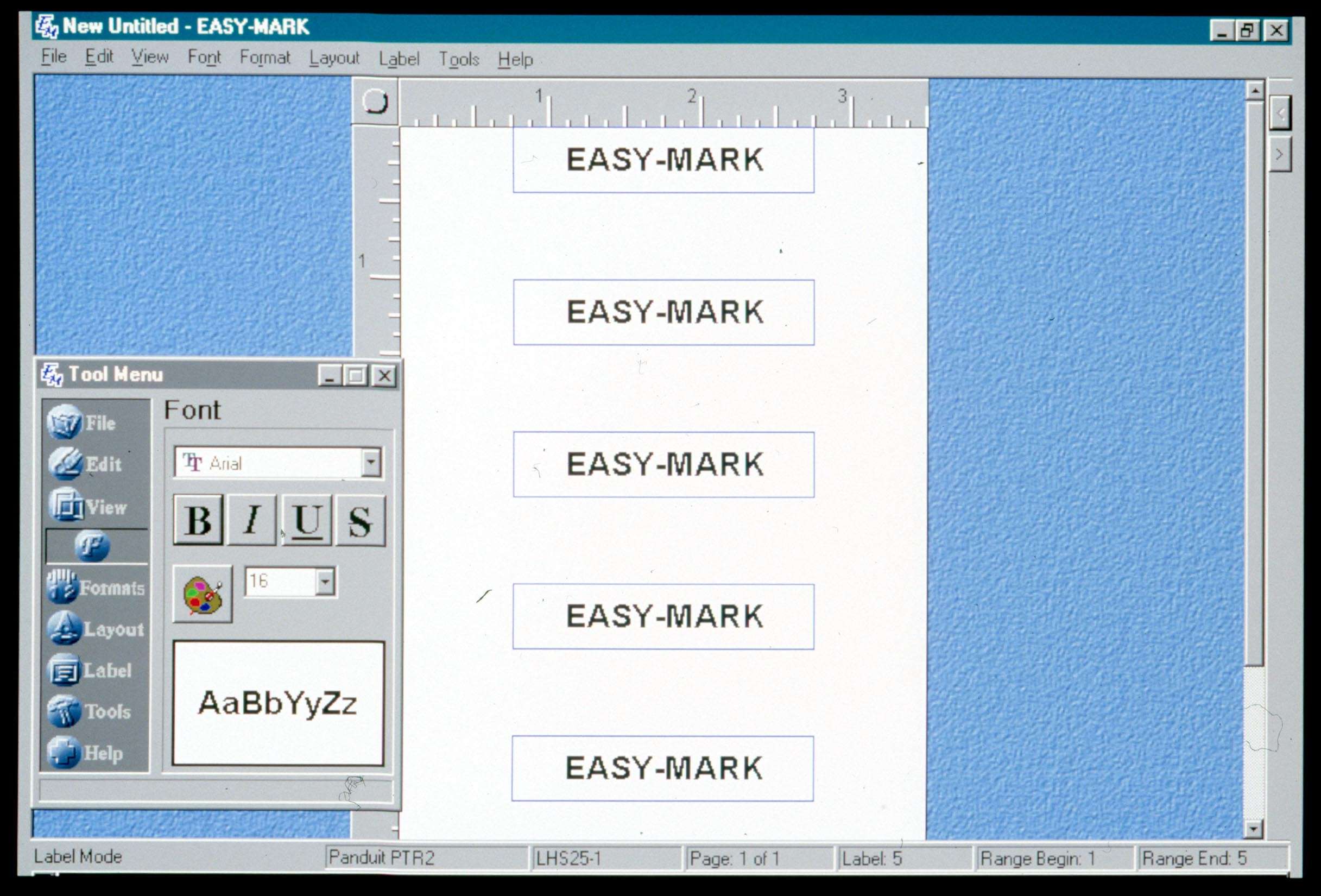

Mar 28, 2003 EASY-MARKâ„¢ allows user to create software for variety of electrical and network systems applications including wire/cable marking, patch panels, faceplates, 110 blocks, control panels, terminal block identification, and circuit board labeling. WYSIWYG program shows labels on-screen exactly as they will appear when printed. All Panduit thermal transfer, dot-matrix, laser, and ink jet label formats, including Ultimate IDâ„¢ Network Labeling System are preloaded.

AirLoc Products    Franklin, MA 02038

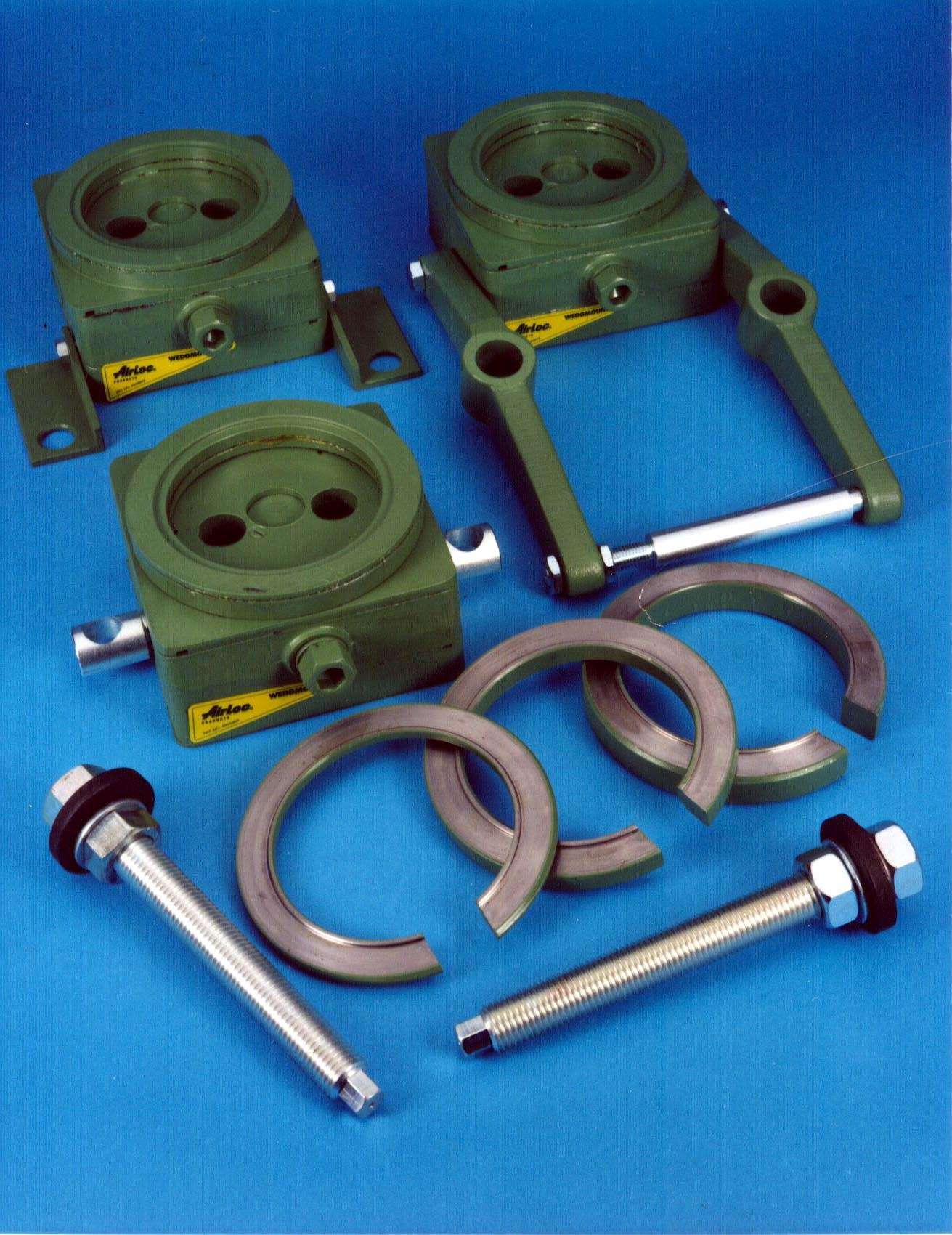

Mar 28, 2003 KaBloc Brackets for Wedgmount® Precision Levelers prevent slippage or correct twisting and bending of long-bed machines. They can be fixed with M-20 bolts and chemical anchors. Capacities range from 25,000–50,000 lb. Providing up to 3° of self alignment, with 9–25 mm vertical adjustability and 0.01 mm accuracy using hex wrench, levelers are offered with interlocking split-disc spacers in 6–30 mm thick sizes for changing height further without disassembly.

Jetline Engineering, Inc.    Irvine, CA 92618

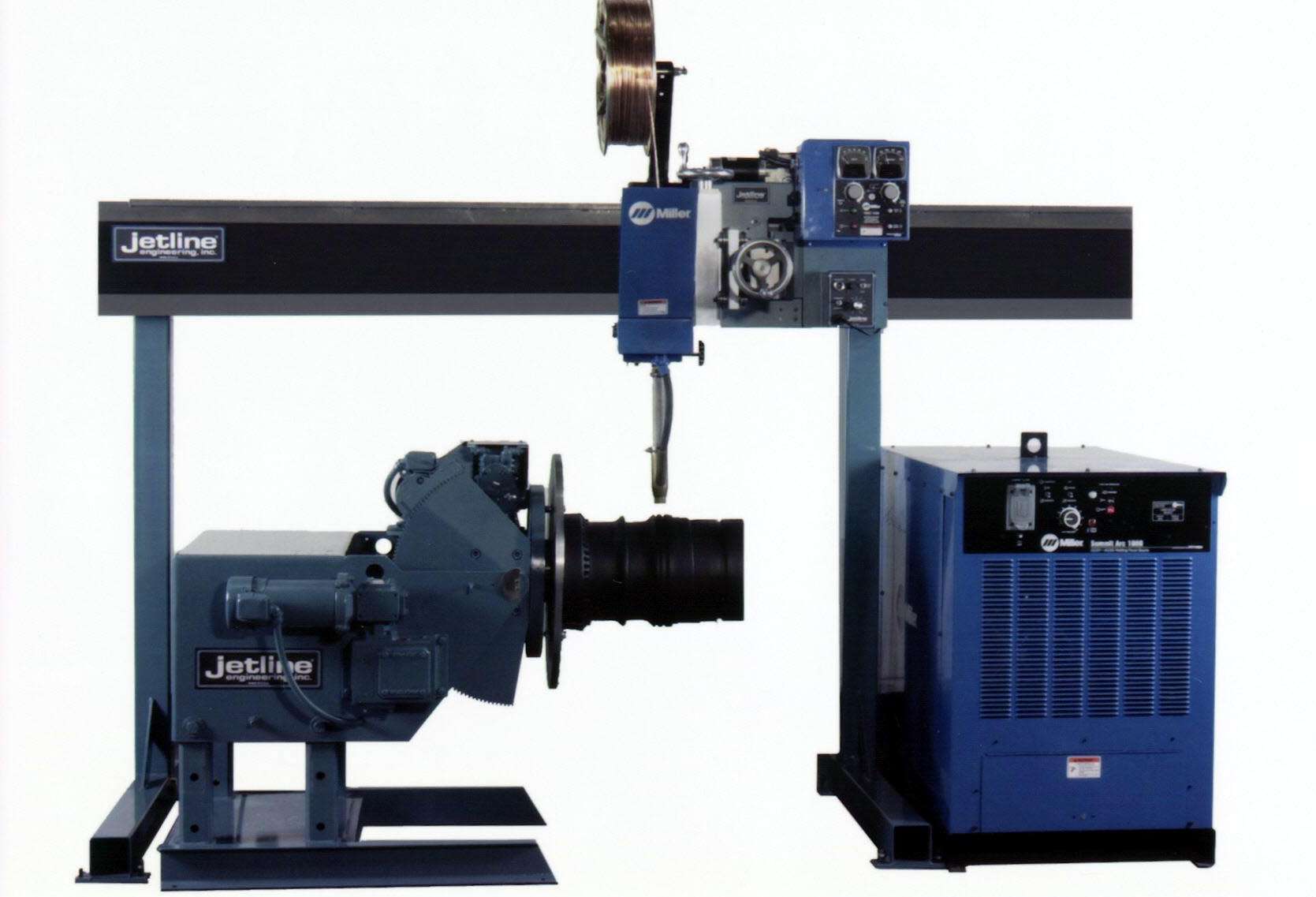

Mar 28, 2003 BKT Builders Kit includes carriage with dc motor and solid-state control, and drawing package that allows user to manufacture track and mounting columns. Carriage carries welding process and has load capacity of 300 lb at 12 in. from face plate of carriage. Kit is suitable for applications requiring fixturing for longitudinal welds or for use with positioner.

Perfecting Coupling Co.    Charlotte, NC 28206

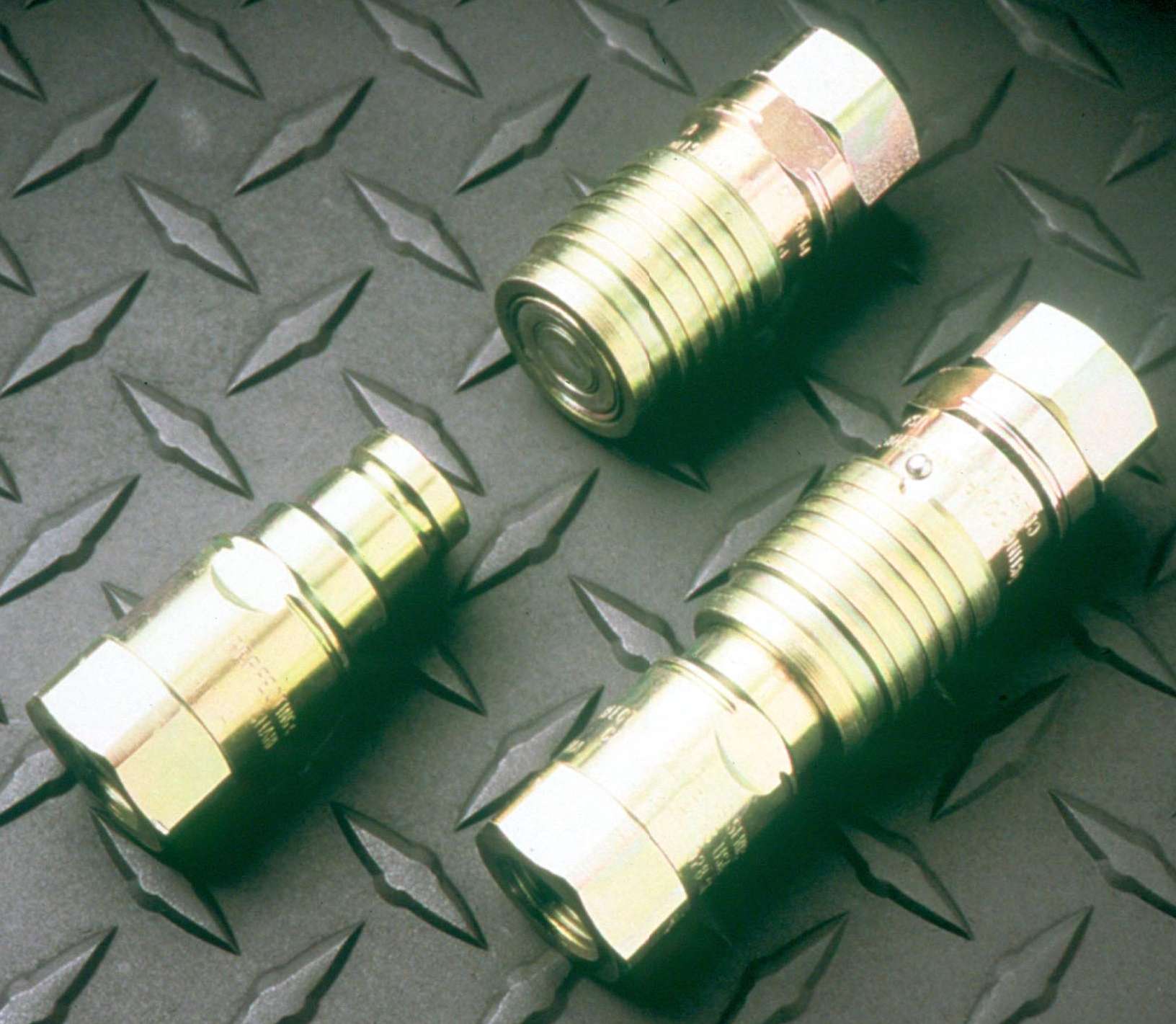

Mar 28, 2003 No-spill HT-Series meets/exceeds ISO 16028 interchange and performance standard. Resistant to brinelling and corrosion, product withstands 1,000,000 cycles during standard ISO impulse testing. It exceeds ISO 9227 requirements for zinc-dichromate plating and surpasses 120 hr of salt-spray endurance testing. Design will not eject coupler's center valve stem under extreme burst or surge-flow conditions. Coupling is available in steel and 316 stainless steel.

Total Lubricants USA, Inc. (formerly Keystone Lubricants)    Linden, NJ 07063
Mar 28, 2003 Nevastane SL Series consists of food-grade lubricants made with synthetic hydrocarbon base stocks and additives. They protect under high loads at high temperatures, while also maintaining fluidity at low temperatures. Lubricants offer anti-wear protection, rust and oxidation protection, and anti-foam properties. All viscosities are compatible with elastomers and seals. ISO viscosities of 32, 46, 68, 100, 150, 220, 320, and 460 are available.

USVibra, LLC    Tucson, AZ 85745
Mar 28, 2003 Model MPA-827 Component/Stick/Tube Delivery System feeds small quantities of tube-supplied components to placement systems. Standard tooling plates are available for SOIC 8 to PLCC-100 to SOJ and SOMC footprints. Separate amplitude and frequency adjustment controls ensure smooth part transfer and error-free host machine interface communications. MPA-827 interfaces with Panasonic placement systems via standard, pogo pin, power block, and 24 V supply.

Harman Corp.    Rochester, MI 48308 0665
Mar 28, 2003 Manufactured using dip-molding process, various colored grips are offered in PVC and foam to add comfort and gripping power for consumer product. Available in varying sizes and lengths, products include round grips, finger grabber grips, and hanger grips. Finger grabber grips provide slip resistant finger grooves and loop hanger ends for display/hanging purposes. Products support imprinting of product logos or instructional copy.

ABB Metals Systems    New Berlin, WI 53151 2840
Mar 28, 2003 Series S280U Pro M miniature circuit breakers offer branch circuit protection, DIN rail mounting, and current limitation. Available in 1-, 2-, or 3-pole models, UL489 Listed compact molded case circuit breakers are ring-tongue terminal compatible. Suited for use as branch circuit protective devices for circuits feeding resistive or inductive loads, units suit applications up to 240 Vac, 14 kAIC and from 0.2–63 A.

Renishaw, Inc.    Hoffman Estates, IL 60192
Mar 28, 2003 Model SP80 uses Renscan(TM) technology to achieve sub-micron 2D and 3D scanning performance. Passive scanning probe offers isolated optical metrology and digital readheads with 0.02 mm resolution. Product carries styli up to 500 mm length and 500 g weight without need for counterbalancing. Product also offers repeatable kinematic stylus-changing mechanism; passive, no motor design; and isolated optical metrology transducers.

US Filter    Palm Desert, CA 92211

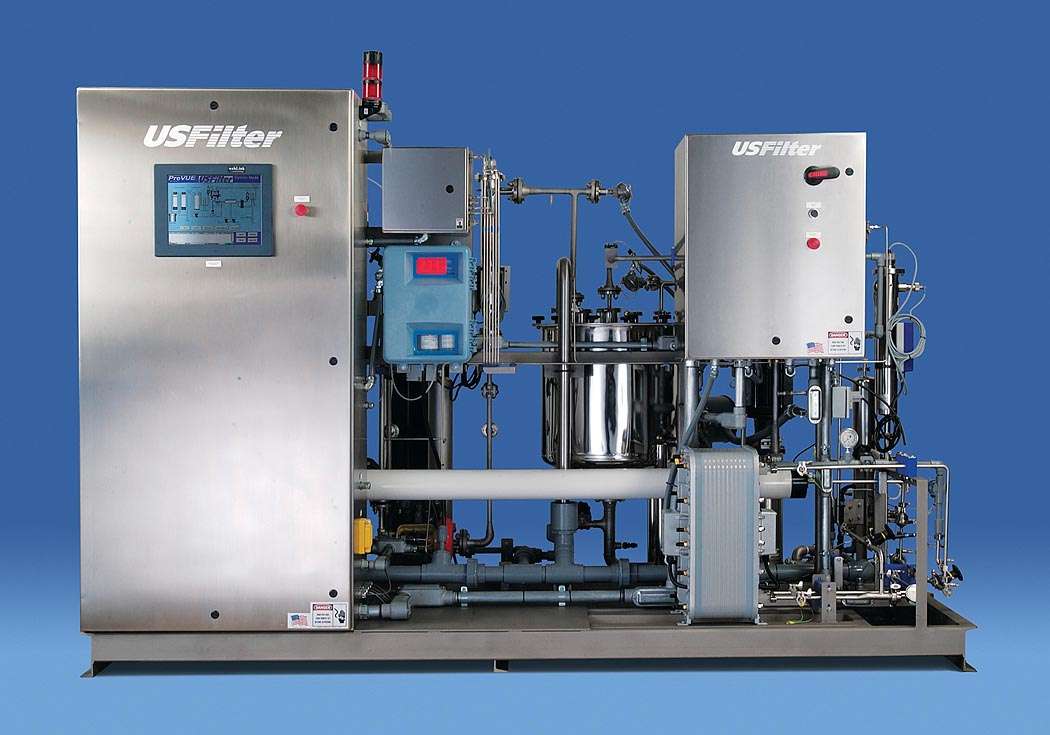

Mar 28, 2003 PreVUE(TM) modular, biopharmaceutical, water purification system combines CDI-LX(TM) continuous electrodeionization system and full fit polyamide reverse osmosis membranes into single packaged system. Hot water is sanitizable at 85°C to enhance microbiological control and is integrated through central control system that complies with 21 CFR Part 11. Skidded system includes pretreatment step, which softens and filters feedwater reducing hardness and suspended solids.

Waukesha Engine    Waukesha, WI 53188
Mar 28, 2003 VGFâ„¢ engines, with Extender package, employ wider oil pan that lengthens period between oil changes to 2,100 hr and has access panels to allow servicing of major engine components. Pan also reduces vibration and serves as base for 6- and 8-cylinder engines. Also included: valve train lubrication, polished chrome stem valves, and closed breather system element with integral vacuum regulator, which maintains negative crankcase pressure to prevent oil leaks.

Imperial Electric A Kinetek Co.    Akron, OH 44306

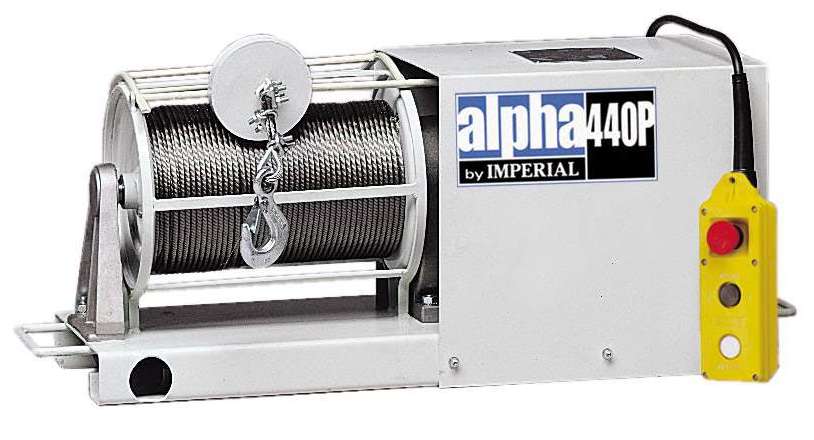

Mar 28, 2003 ALPHA 440P delivers material to upper stages and mounts hoist to scaffolding. Main unit stays on ground, while pulley support is mounted to scaffold leg. Continuous duty hoist unit is held to ground by ballast weights, and workers have 80 ft of control cable to remove themselves from beneath load. Lifting capacity is 440 lb, and wire rope length is 260 ft. All metal hoist offers power-up/power-down action with adjustable upper limit switch.

Arcom Control Systems    Kansas City, MO 64145
Mar 28, 2003 OLYMPUS ICE enclosure is offered as fan-less system using large passive heatsink or with forced air cooling for more demanding environments. Aluminum unit is suitable for wall or panel mounted installations. It includes all standard cable assemblies as well as 60 W universal AC input power supply and space to accept two PC/104 I/O modules. Enclosure is fully approved for CE/FCC EMC compliance and safety tested to EN60950.

Scapa North America    Windsor, CT 06095
Mar 28, 2003 Unifilm® U658A reverse-wound, acrylic transfer film forms durable bonds to aluminum, steel, polyurethane foams, polystyrene, polycarbonate, and ABS plastics. It provides temperature, humidity, and water soak resistance. Film is suitable for applying nameplates and decorative parts, bonding interior trim and instrument panel components, and assembling leather covered seats and steering wheels.

American Allsafe    Tonawanda, NY 14150 2593
Mar 28, 2003 Revolutionâ„¢ goggles, with proprietary CrossVentâ„¢ technology, utilize indirect ventilation system made up of paths and channels to keep air flowing in, and moisture and chemical splashes out. VisiClearâ„¢ anti-fog coating ensures clear lenses.

American Allsafe    Tonawanda, NY 14150 2593
Mar 28, 2003 Mexican Flag Head-Turnerâ„¢ allows workers to express patriotism and increase safety compliance. Helmet withstands temperature variances, humidity, and exposure to UV light. Four-point ratchet suspension fits head sizes 6½ to 8. Fully dielectric, non-slotted safety cap meets ANSI Z98.1 Class E Standards and features many designs such as American Flag, American Eagle, and NightVision.

Bindicator    Spartanburg, SC 29306
Mar 28, 2003 Model GP-4 Yo-Yo Inventory Management System consists of GP-4 weight-and-cable level-measurement sensor and NEMA 4x Remote Display. Sensor has 4–20 mA output with adjustable span, RS-485 communication, and optional integral telephone modem. Silos up to 100 ft can be measured with resolution of 0.39 in. With Remote Display, up to 99 GP-4 sensors can be remotely set-up and configured, and measurement can be requested and displayed.
