Festo Corp.    Hauppauge, NY 11788
Mar 03, 2003 Series DGE, with stepper-motor and servomotor options, incorporates spindle-drive (ball screw) and belt actuation. Offered in compact or heavy-duty configurations, profile barrel encases belt/spindle drive, and linear guides are coated with corrosion preventative. Series is available in 18-63 mm sizes. Tooth-belt style comes in 8 and 12 mm sizes, with stroke range of 1,000-45,000 mm. Spindle drives range from 100-2000 mm. Load capacities range from 50-3,160 lb.

Festo Corp.    Hauppauge, NY 11788
Mar 03, 2003 BasicLine Fittings consist of Type QB inch and Type QS-H metric hybrid versions. Available in straight, elbow, and tee configurations, each fitting includes stainless steel retaining ring, which holds tubing securely without damaging surface. Vibration and pressure surges are safely absorbed and tubing can easily be detached by pressing down release ring. NBR rubber-sealing ring guarantees tight seal between tubing and body of fitting.

Handling Specialty, Inc.    Niagara Falls, NY 14304 0279
Mar 03, 2003 Winding wire around central core can be accomplished via use of assembly platform that moves workers and materials relative to product. Providing full perimeter access at any elevation that is ergonomically comfortable for workers, design incorporates self-locking acme screw jack system and four screw drives mechanically linked through platform. Platform sizes are available up to 1,000 ft², rises to 30 ft, and capacities to 250,000 lb.

Process Electronics Corp.    Gastonia, NC 28056

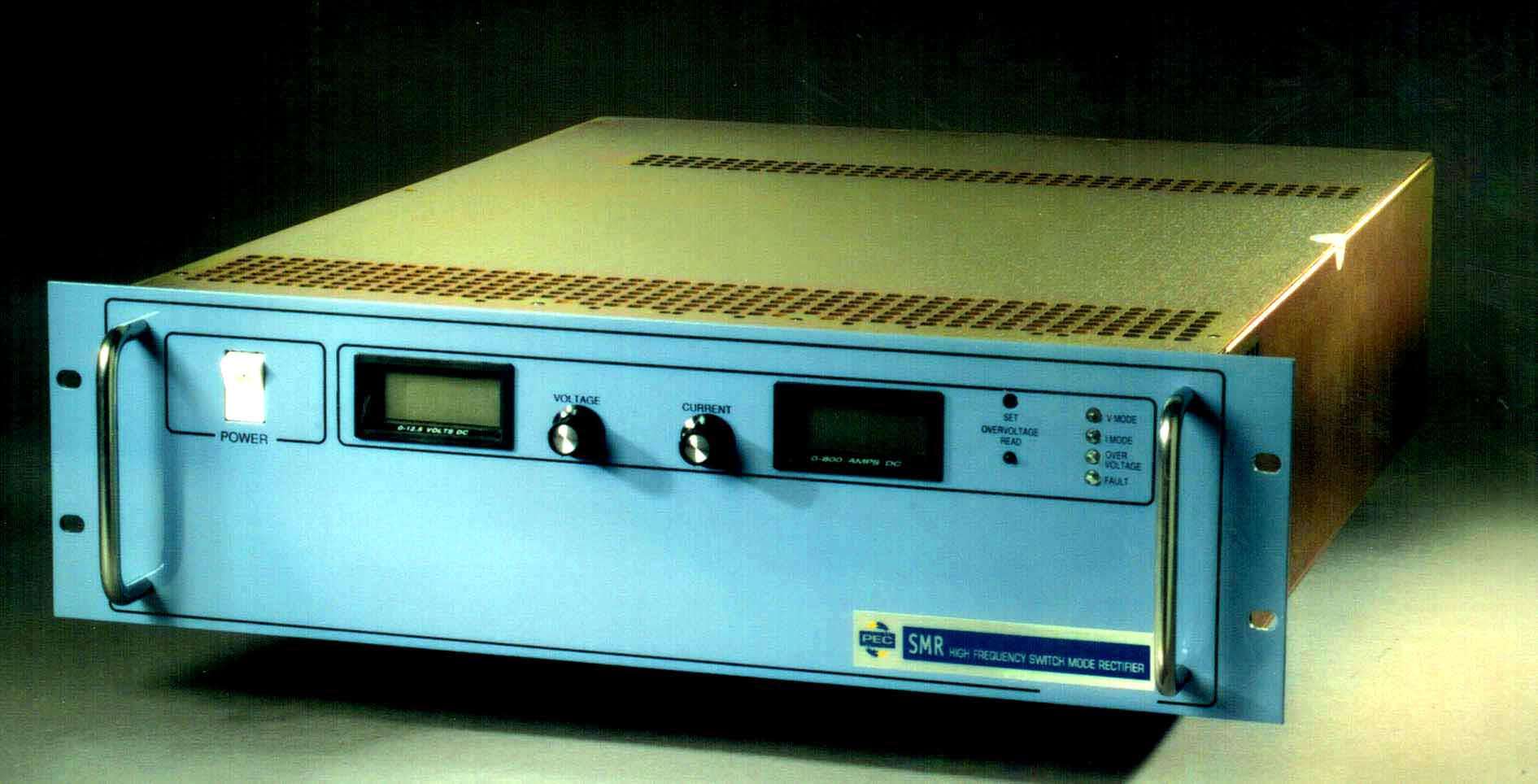

Mar 03, 2003 Series SMR high frequency, switch mode rectifiers are offered in 200 combinations of voltage and current. DC power levels range from 1–30 kW at voltages from 3–600 Vdc. All have digital front panels and controls. Rear-panel access is provided for remote control and user selectable analog programming. Each unit includes built-in protection against over voltage, over current, over temperature, brown out, turn-on surge limit and low start.

Solvay Advanced Polymers, L.L.C.    Alpharette, GA 30005-3914
Mar 03, 2003 UDEL® P-3700 HC offers near-water-white clarity for designs that require high clarity, low color, or range of bright colors. UDEL polysulfone maintains its properties at temperatures from -150 to 300°F and is resistant to hydrolysis by hot water, to acids and bases, and to cleaners and disinfectants. Resin complies with U.S. FDA and European Economic Community regulations concerning use of plastics in direct food contact.

Genie, a Terex Company    Redmond, WA 98052

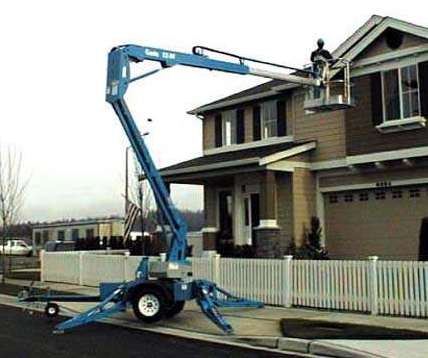

Mar 03, 2003 Trailer-mounted Model TZ-34/20, coupled with telescopic primary boom, offers working height of 40 ft and working outreach of 20 ft. Lift capacity of 34 ft platform is 500 lb. Self-leveling feature provides 11° of leveling capability from ground controls. Both ground controls and platform controls utilize pictograms to simplify machine operation. Tow-speed rating is 60 mph.

Syspro Group    Costa Mesa, CA 92626
Mar 03, 2003 Collection System automates process of collecting past due invoices by identifying overdue invoices; assigning or reassigning invoices to designated collectors based on geographic area, class, or branch; and monitoring debt collection efforts. Software retains account collection history; tracking number of times accounts go into collection phase, and number of days to pay. It automatically produces dunning letters according to pre-determined levels.

Jenesco Inc.    Amherst, NH 03031
Mar 03, 2003 Model PT109 creates ozone, neutralizing airborne bacteria, mold, fungi, spores, and viruses. Built-in timer can be set to run from 5-60 min at 5 different fan settings. Unit provides effective coverage up to 3500 sq ft with ozone output ranges from 100-1300 Mgph. It can be run continuously at lowest settings in large occupied areas having good circulation. Applications include cars, homes, offices, restaurants, warehouses, and hotels.

GiveMePower Inc.    Calgary, AB T2H 2M3
Mar 03, 2003 PowerCAD LT+â„¢ for Windows® is a 2-dimensional and basic 3-dimensional CAD system that enables users to create professional quality designs and project blueprints. PowerCAD LT+ R5.2 features operation and file opening compatibility with AutoCAD®, allowing it to be instantly implemented as alternative or companion system to AutoCAD, MicroStation®, and other CAD systems.

DP Technology Corp.    Camarillo, CA 93012
Mar 01, 2003 SolidMillTurn CAM includes traditional, advanced, production, freeform, and freeform 5-axis levels for programming multi-function lathes, Swiss-style lathes, and mill-turn machine tools. System provides control over Z, X, C, Y, and B axes, common to machine tools, as well as comprehensive feeds, speeds and material database and ANSI/ISO coded tooling library.

H2W Technologies, Inc.    Santa Clarita, CA 91350
Feb 28, 2003 Single-phase, non-commutated, rotary actuators (torquers) are available in various sizes and custom designs with continuous torque rating of 500 oz-in. and peak torque rating of 1500 oz-in. Kit style TMR-V series motors are suited for closed loop applications, while housed TMR-H motors include custom configured shaft that extends out of back for mounting encoder. Compact actuators offer acceleration to 10,000 rad/sec², accuracy of 1 arc/sec, and 0.5 arc/sec repeatability.

Grieve Corporation, The    Round Lake, IL 60073-2898

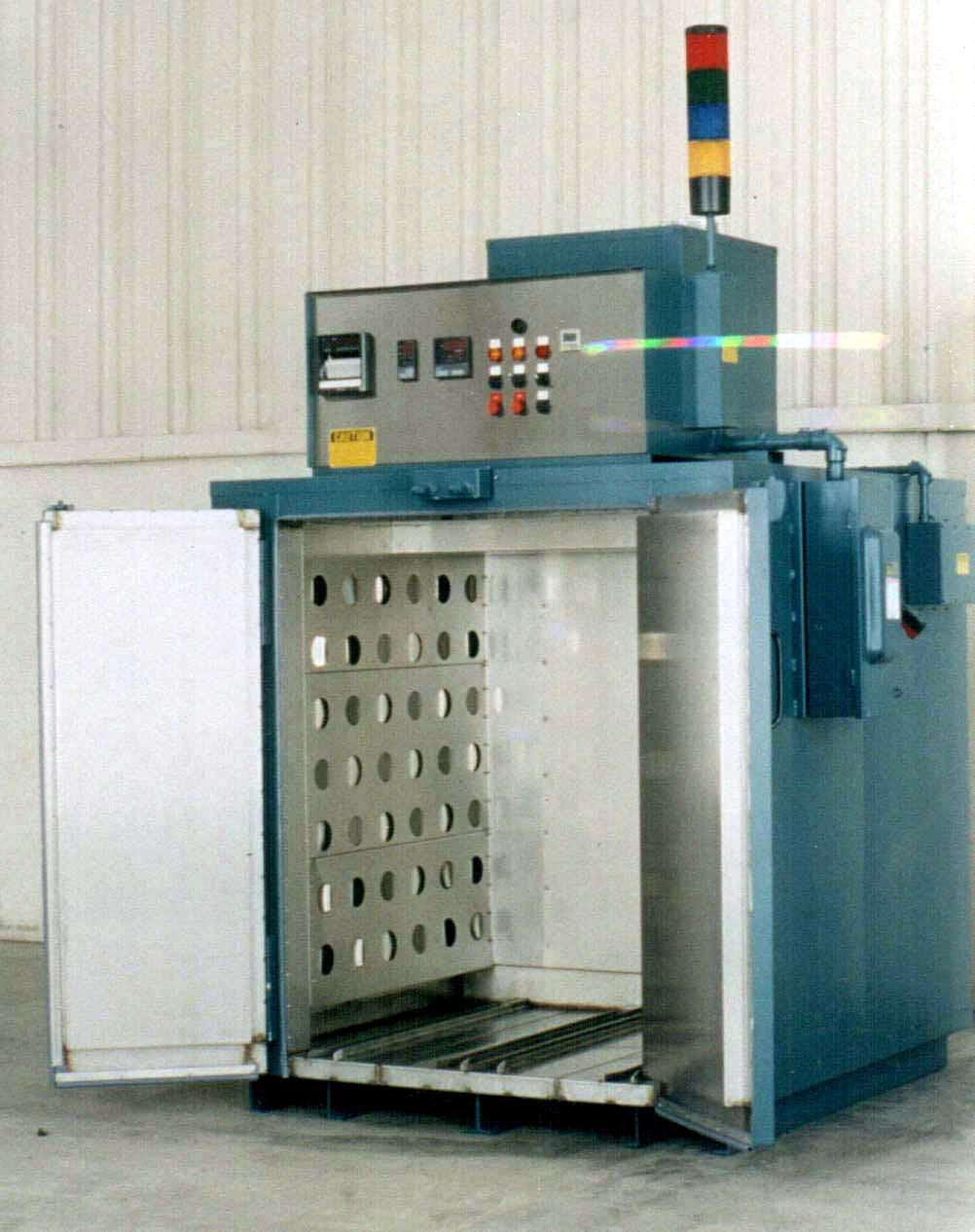

Feb 28, 2003 Electrically heated No. 911, for paint baking, offers workspace dimensions of 39 x 36 x 48 in. Heated, horizontal airflow is provided to workload by 30 kW installed in Nichrome-wire, tubular heating elements and 2,000 cfm, 2 hp recirculating blower. Construction includes aluminized steel exterior, 4 in. thick insulated walls, and Type 304, 2B finish stainless steel interior with continuously backwelded seam construction.

Banner Engineering Corp.    Minneapolis, MN 55441
Feb 28, 2003 WORLD-BEAM® QS30AF adjustable-field sensor features visible red sensing beam and background suppression circuitry, which allows it to detect only objects within defined sensing field while ignoring objects beyond cutoff point up to 12 in. Unit can be set for light operate or dark operate and features bipolar configuration with one NPN and one PNP output. Maximum output rating is 150 mA for each output. ABS/polycarbonate housing meets IEC IP67 and NEMA 6 standards.

L.J. Star, Inc.    Twinsburg, OH 44087

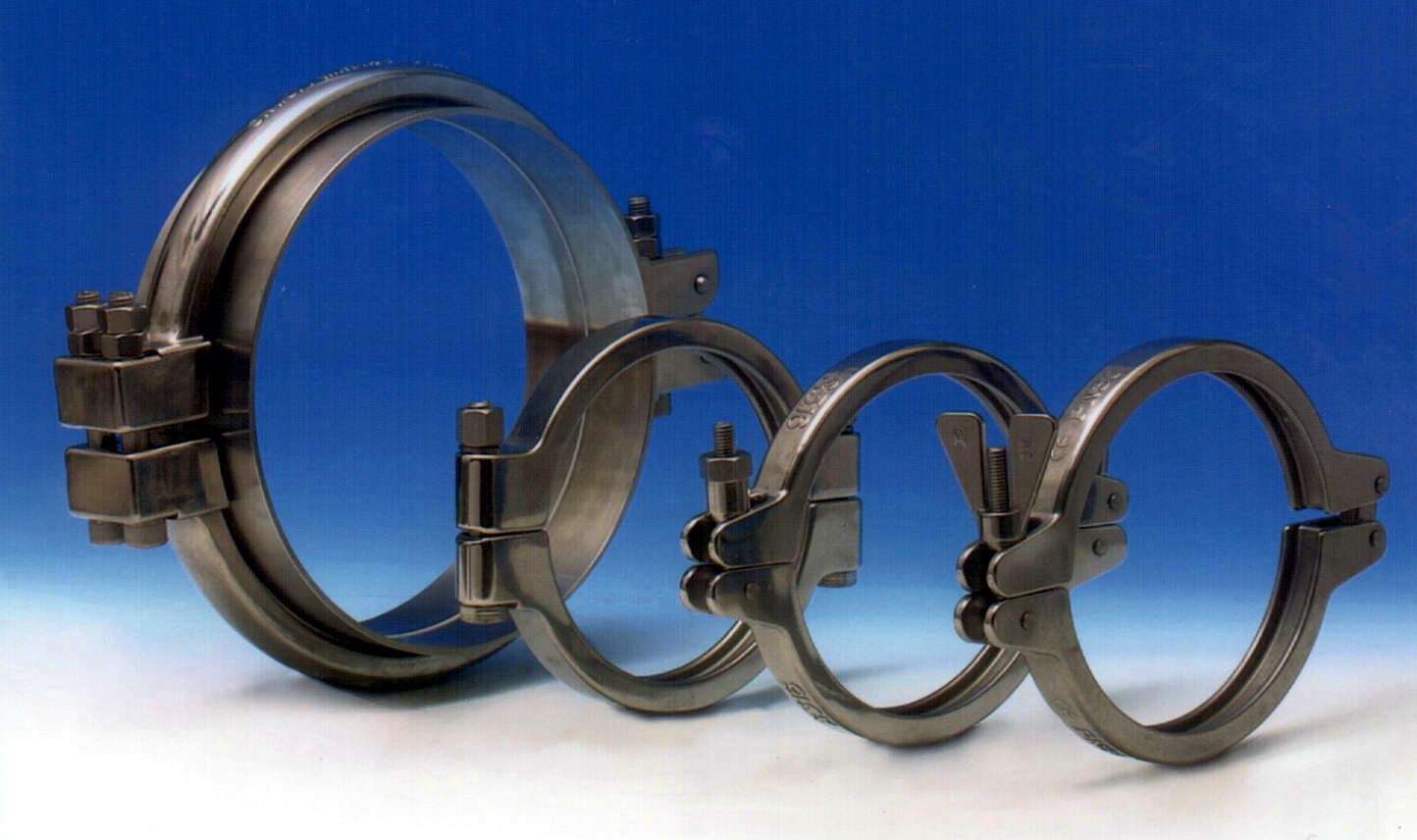

Feb 28, 2003 Series SH Type I Clamps are 316 stainless steel and come in 12 OD sizes from ½â€“12 in., with hinged or 2-bolt closure. Series SSH clamps are 304 stainless steel and available in 8 OD sizes from ½â€“6 in. They handle higher-pressure applications; up to 1450 psig at 100°F and 983 psig at 450°F. Third version, for pressure vessels, is ASME and BPE rated with 5 sizes between 4–12 in. Ratings range from 69 psi for 12 in. version at 450°F to 725 psi for 4 in. version at 100°F.

B & K Precision Corp.    Placentia, CA 92870
Feb 28, 2003 Model 5492, measuring 4.1 x 12 x 10 in., offers constant voltage or constant current operation. Utilizing 115 Vac outlet as power source, product incorporates dual display and ability to select display count (resolution) from 120,000, 40,000, or 4,000 counts. Additional features include 0.012% basic accuracy, and AC/DC voltage range of 750/1,000 V. Equipped with RS-232 interface, unit offers data hold function and selectable measurement rates.

Maxon Precision Motors, Inc.    Fall River, MA 02720

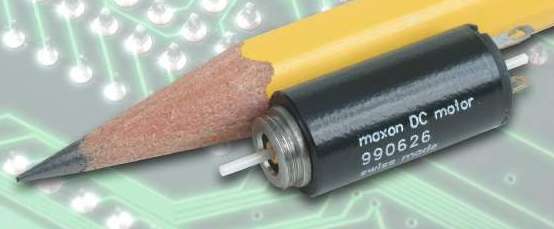

Feb 28, 2003 Available in 0.31 in. dia package, Series RE08 incorporates rhombic moving coil and ironless rotor that allows for zero cogging. Rated at 0.5 W, motor measures only 0.63 in. in length and produces max continuous torque of 0.07 oz-in. Max efficiency is 67%, depending on winding, and ambient temperature range is -4 to +149°F. Matching gearheads are available with ratios from 3.9:1 to 854:1, capable of delivering 8.5 oz-in. of intermittent torque.

Norgren    Littleton, CO 80120
Feb 28, 2003 Model 40D has built-in electronic processor that linearizes signal and compensates for temperature fluctuations. Measuring 2½ in. long with ½ in. dia, space-saving design incorporates revolving display that allows readout to be viewed even if sensor is located in awkward to reach position. Up to 4 different measurement units/peak values can be shown on display. Programmable as NO or NC, product offers switching time of less than 2.5 ms.

Helical Products Co., Inc.    Santa Maria, CA 93456 1069

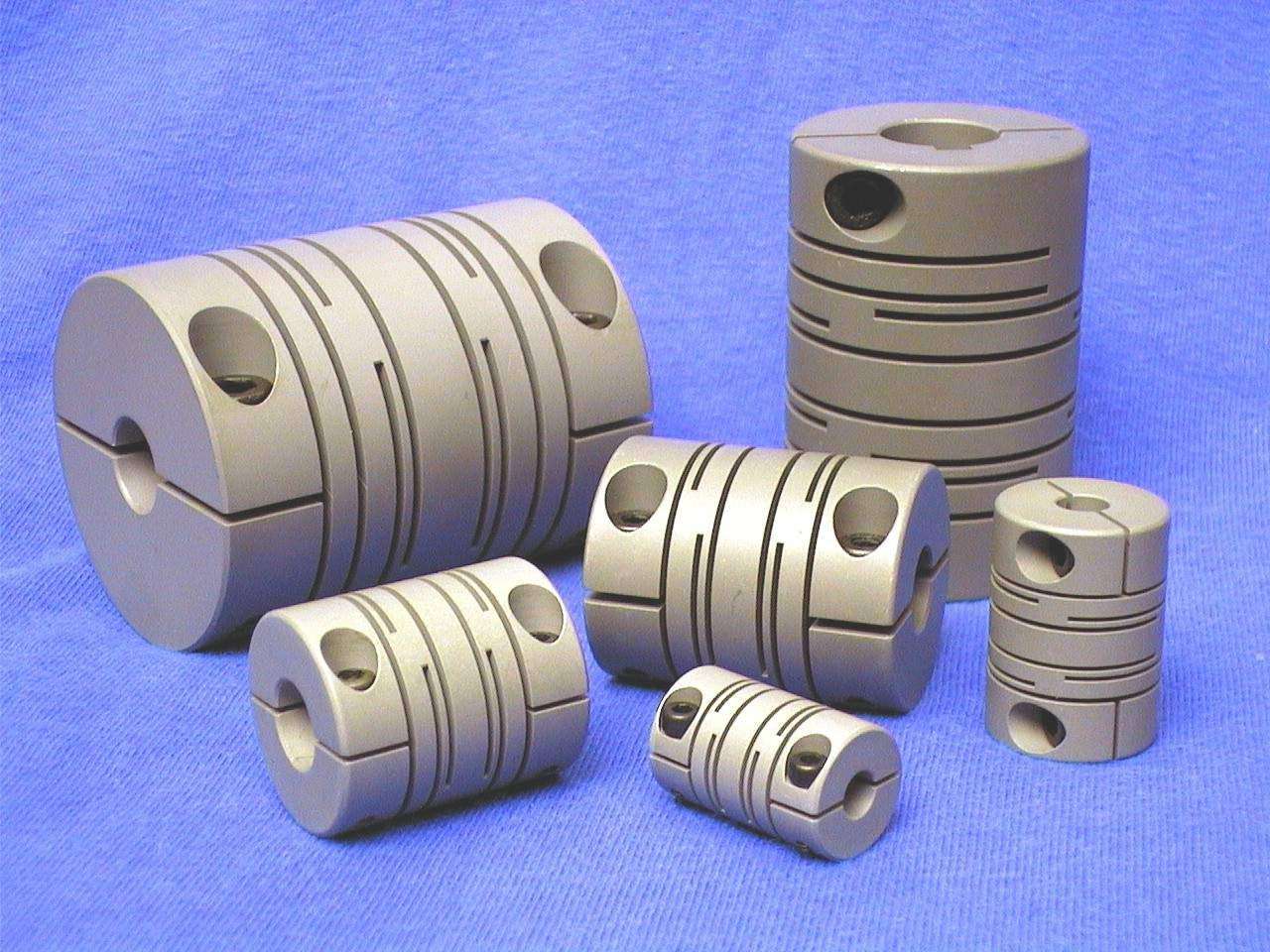

Feb 28, 2003 X-Slot Couplings incorporate 2 flexible element sets, combining end-to-end rotational accuracy with radial accuracy in one design. They are offered in aluminum or stainless steel, in 6 OD sizes from 15–50 mm, with bores that are mm, inch, or combination.

Hyde Park Electronics, Inc.    Dayton, OH 45420 4017
Feb 28, 2003 SUPERPROX® SC300 12 mm sensor detects changing colors, clear material, and small objects down to 0.1 mm at speeds of 2000/min. Up to 10 different engineering parameters can be graphically set through Windows®-based software and AC441 configurator. With glass epoxy face and NEMA 4X/IP67 rating, sensor resists most acids and bases, including most food products. It is sealed to withstand dusty, noisy, noncondensing-humidity, high-pressure, and washdown environments.

Edmund Optics    Barrington, NJ 08007
Feb 28, 2003 Adjustable-height, rack and pinion posts mount to M16 holes on positioning stages. Adjustable travel distances are 25 or 45 mm. Locking knob secures post's position. Metric laser holders mount helium neon lasers with twin-ring design. Small metric stage measures 24 x 30 mm and provides total travel of ±5 mm in X, Y, and Z directions. Large stage measures 40 x 60 mm, and provides total travel of ±7.5 mm in X and Y directions and ±6 mm in Z direction.
