Trident - An ITW Co.    Brookfield, CT 06804 1140
Mar 07, 2003 Automatic Maintenance Module™ (AMM™) cleans printhead orifices at adjustable intervals of anywhere from 2–32 hrs. Factory dust, sealing glue, corrugated fibers, and other substances that cause orifice clogging on factory floor are automatically purged from printhead, eliminating need for manual priming, wiping, and cleaning of printheads. Maintenance system is offered on UltraJet II and 768Jet printheads.

Methode Electronics Inc. / dataMate Products    Chicago, IL 60706
Mar 07, 2003 Small Form-Factor Pluggable (SFP) transceiver offers Gigabit Ethernet speeds over Category 5 unshielded, twisted-pair (UTP) copper cable. Product mates using RJ45 interface and fits into MSA-compliant SFP equipment. Hot-pluggable transceiver incorporates RJ45 connector with built-in magnetic coupling circuitry, operating from one +3.3 V power supply. Unit is packaged in die-cast metal housing and is suited for LAN backbones or drops up to 325 ft.

HV Component Associates Inc.    Farmingdale, NJ 07727 2484
Mar 07, 2003 Available in ratings up to 8,000 V peak reverse voltage, UX-FOB diodes produce recovery capability of 40 nsec. Suited for high frequency applications, products offer 12.0 V max forward voltage drop and 500 mA max average forward current. Standard recovery diodes with ratings up to 12,000 V peak reverse voltage and 11.0 V max forward voltage drop are also available.

Danfoss VLT Drives    Loves Park, IL 61111

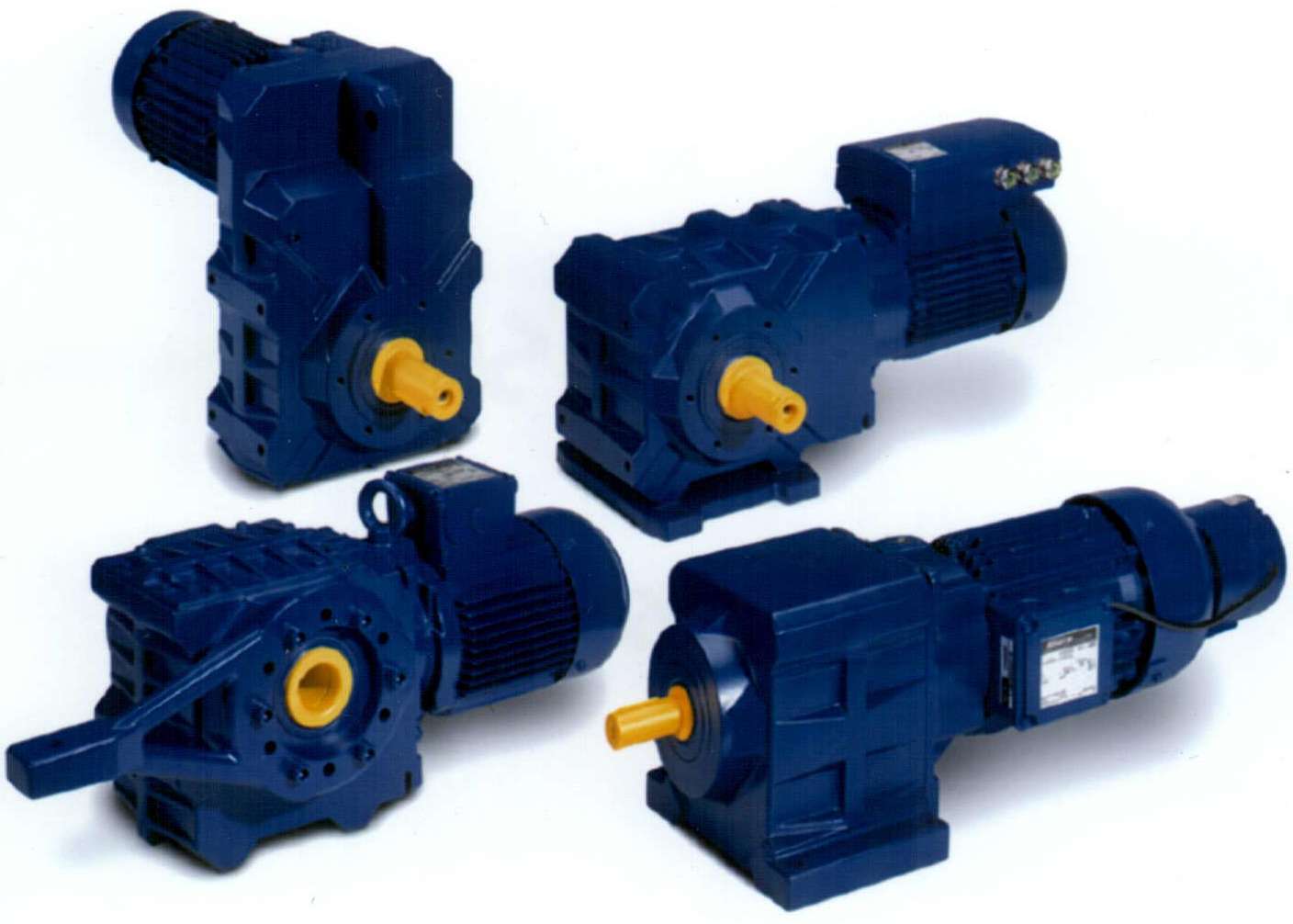

Mar 07, 2003 Dust-proof, 3-phase Danfoss Bauer Gearmotors are completely enclosed and comply with NEMA MG 1, IEC 34-1, and CSA C22.2 #100. Flange- or foot-mounted units are available with helical, shaft mounted, bevel, and worm gear motors that provide operation from 0.08-100 hp. Additionally, motors provide torque from 130 lb/in. to 140,000 lb/in. and speeds from 0.16-355 rpm.

Flexicon Corporation    Bethlehem, PA 18020 8006

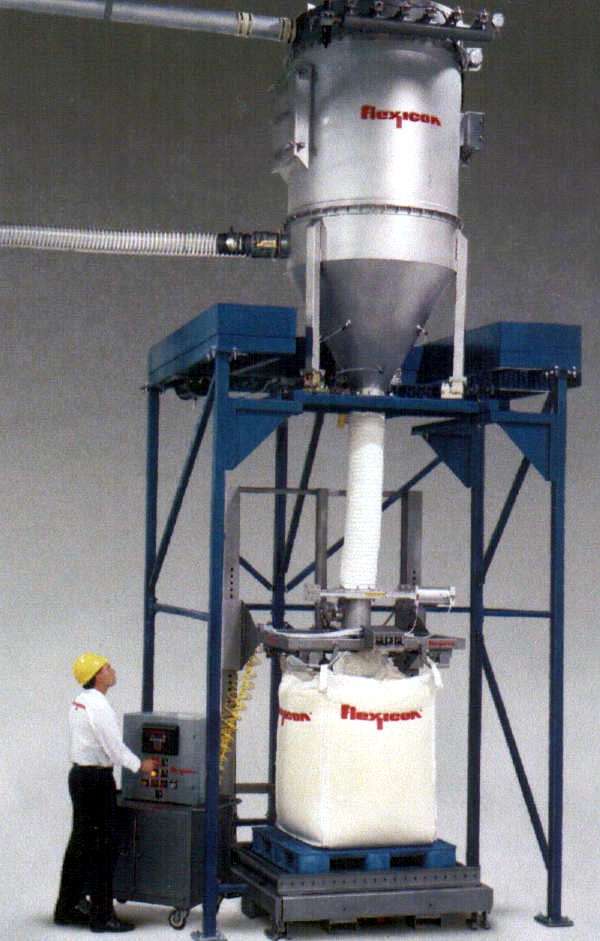

Mar 07, 2003 Automated bulk bag filling system feeds material to cantilevered, rear post bulk bag filler using dilute phase pneumatic gain-in-weight batching system. Filter receiver, mounted on load cells, enables system controller to stop conveyor once pre-selected batch weight has been accumulated. Additional components include operator-controlled slide gate valve, vacuum pump, and rotary airlock valves. System also offers automated vibratory densification/deaeration system.

Staveley Instruments, Inc.    Kennewick, WA 99336
Mar 07, 2003 SONIC® 1000PG is suited for measuring thickness in applications where access is only available from one side. Its 5.7 in. hi-brite Electroluminescent A-scan display aids in verifying readings on curved or difficult materials such as iconel and titanium, as well as plastic, glass, and composites. With thickness range of 0.0040–10.000 in., product offers 5, 10, and 15 MHz narrow band tuned settings and is available with delay line, pencil tip, or contact transducers.

Aget Mfg. Company    Adrian, MI 49221
Mar 07, 2003 Downdraft Tables, with overhead lighting, have light-reflective back and side panels to brighten interior work area. They draw contaminated air away from worker's breathing zone as they perform grinding, sanding, buffing, or polishing. All-steel industrial grade units have steel-bar grating work surface. Recommended air volumes range from 150–250 cfm/sq ft of table surface area.

Southwestern Petroleum Corp.    Fort Worth, TX 76161 0005
Mar 07, 2003 SWEPCO 121 Tri-Plex Universal Grease provides long life and wide application range. It is based upon Tri-Plex chemistry, combined with polymer modification for tight molecular structure. Tri-Plex chemistry significantly inreases service life, shear resistance, shock and impact resistance, extreme pressure capabilities, and water and high-temperature resistance.

NewAge Industries Inc.    Southampton, PA 18966
Mar 07, 2003 APBWF Hose features smooth, odorless, white chlorobutyl-rubber core and gray rubber cover that is weather, ozone, oil, and abrasion resistant. Wire reinforcement between layers of exterior rubber provides pressure and vacuum capability. Hose is rated to 150 psi working pressure at 70°F. Eight sizes are offered from ¾-4 in. ID. Recommended working temperatures is -4 to 176°F. Hose is suitable for potable water, oily and fatty foods, and milk and dairy products.

Quatech, Inc.    Akron, OH 44311
Mar 07, 2003 ThinQ(TM) servers are offered in 1, 2, 4, and 8-port RS-232 versions, where each independent port provides full modem control and hardware flow control. Based on Motorola® Digital DNA(TM) technology, products use PowerPC® processor with 80 MIPS processing power and contain 921 Kbaud serial technology. Devices use Installation Wizard, which automatically searches for and identifies ThinQ units attached to network for ease of set-up and configuration.

Streamlight, Inc.    Eagleville, PA 19403
Mar 07, 2003 Task-Lightâ„¢ Twin-Taskâ„¢ series flashlights include 2D, 3C, 3AA, One-cell Lithium, and Two-cell Lithium models, all of which incorporate LED/xenon bulb combination. Models 2D, 3C, and 3AA offer 10, 6, and 3 LEDs, respectively, while One- and Two-cell Lithium models incorporate 3 LEDs each. Equipped with micro-faceted reflectors, intensity of xenon bulb can be adjusted for spot-to-flood focus. Each light is constructed of computer-machined aluminum.

Cooper B-Line    Highland, IL 62249-1331
Mar 07, 2003 Premier Series is available in 142 sizes, with heights from 10–60 in., widths from 8–60 in., and depths from 4–20 in. Enclosures are UL and cUL approved, and rated Type 4 and Type 12. Stainless steel units are rated Type 4X. Hidden, spring-loaded hinges allow for 180° door openings. Units include seamless foam-in-place gasketing and slotted quarterturn flush latches. Body Flange trough design diverts liquid contaminants protecting sensitive equipment.

Aero-Motive Company Inc.    Kalamazoo, MI 49003
Mar 07, 2003 Model 1-2-1 no-weld system is entirely modular and adjustable. Holes in sides of uprights make it easy to reassemble in many different configurations. Uprights are offered in 6 different heights, ranging from 27–84 in. Horizontal units come in widths of 60, 45, and 30 in. System is suitable for mix and match configurations. Frame mounted uprights, surface mounted uprights, flow racks, standing frames and trolleys are available.

General Shelters Of Texas    Center, TX 75935 2108
Mar 07, 2003 Port-A-Cool® unit with 48 in. dia fan blade provides portable evaporative cooling for areas as large as 3,500 ft². System pulls hot, ambient air through water-soaked evaporative cooling media located in back of unit, lowering air temperature by 18–26 °F. Rotomolded, one-piece housing incorporates caddy, molded-in switch box, and recessed valve pockets. Unit incorporates sump tank with 23 gal capacity and requires 110 V and tap water in order to operate.

Intelligent Motion Systems, Inc.    Marlborough, CT 06447-1334
Mar 07, 2003 MDrive, with on-board electronics, includes Planetary Gearbox (PLG), which increases torque at lower speeds enabling inertia matching, and produces fine positional resolutions. PLG is offered for each size MDrive, including NEMA motor size 14, 17, 23, and 34. Users can select from 1-, 2-, or 3-stage gearboxes and various reduction ratios from 4:1–308:1. Each PLG comes with optional mounting flange and shaft keys for MDrive sizes 17, 23, and 34.

Des-Case Corp.    White House, TN 37188
Mar 07, 2003 Hydroguardâ„¢, suited for moisture-laden applications, combines functions of filtration, desiccant, and membrane technology to eliminate ingression of dirt and water through filler/breather port. Able to withstand direct wash-down spray, system incorporates controlled breathing mechanism that makes system breath only when pressured to do so. Breather is manufactured from engineered plastic and handles air volume caused by thermal expansion and contraction.

Fluke Corp.    Everett, WA 98203
Mar 07, 2003 Industrial ScopeMeter® 124 simplifies detection of signal anomalies, dropouts, and glitches that cause machinery to go down. Dual-channel oscilloscope with 40 MHz bandwidth also provides dual-channel, 5000-count, true-rms multimeter functionality and paperless data recorder capabilities. Its 20-memory capacity stores measurement data, setup information, and user text. Additional on-screen cursor measurements supplement the 26 built-in automatic measurements.

Yokogawa Corp. Of America    Newnan, GA 30265 1040
Mar 07, 2003 Series MT200 consists of 14 models offering gauge, absolute, and differential pressure measurements using silicon resonant sensor. Ranges from 0.145 psi low-pressure differential to 435 psi gauge are available. Basic Model M210 serves as standard for calibration of pressure instruments. Model MT210F provides high-speed pressure measurements with readings as fast as 50 ms. Model MT220 incorporates 24 Vdc power supply and digital multimeter for complete transmitter calibration.

Metrobility Optical Systems    Merrimack, NH 03054
Mar 07, 2003 Gig-E Bi-directional Wavelength Division Multiplexer utilizes two wavelengths to carry two channels in different directions on one strand of fiber. Product converts electrical signals to wavelengths on one strand of fiber, providing manageable solution to achieve distances up to 20 km. At one end of connection one wavelength is used to transmit, while another wavelength is used to receive. Unit is offered as line cards and as standalone units.

Trident - An ITW Co.    Brookfield, CT 06804 1140
Mar 07, 2003 Trident-poweredâ„¢ 768Jetâ„¢ printhead utilizes stainless steel printing orifice that allows unit to consistently print accurate, verifiable barcodes and graphics in industrial environments. Automatic Maintenance Moduleâ„¢ routinely cleans printhead, eliminating need for manual priming, wiping, and cleaning. Product is suited for carton labeling, bar coding, and graphics imaging.
