Trine Labelling Systems    Turlock, CA 95381
Mar 07, 2003 Model CMS-2160 provides full-body or neck band labeling at moderate speeds. In less than 10 min, unit can be converted from one container requirement to next. Constructed of stainless steel and aluminum, product offers footprint that ensures installation in tight areas. Suitable for various environments, unit is rust-resistant and easy to clean.

STAPLA Ultrasonics Corp.    Wilmington, MA 01887 1014
Mar 06, 2003 Ultrasonic System K1 offers operating frequency of 20 kHz and 3000 W range. Once programmed, generator permits one-button operation. System features user-friendly controller with key switch on input panel for selecting operation level, indexed exchange system for welding tools, and self-calibrating force measurement. Automatic data adjustment assures repetitive welding results. Self-diagnostics and automatic tool protection are included. Touchscreen PC control is optional.

Mitutoyo America Corporation    Aurora, IL 60504 9176
Mar 06, 2003 Formtracer® CS-Series generates contour and surface roughness analysis from single measurement of workpiece. Model CS-3000, for smaller workpieces, offers max measuring range of 10 mm and max resolution of 0.8 nm. Model CS-5000 provides laboratory level accuracy, employing Laser Holoscaleâ„¢, which utilizes interference of diffracted light to achieve nanometer resolution. Formtracepak software provides analysis for dimensional/contour measurements such as radius, distance, and angle.

Cherry Electrical Products    Pleasant Prairie, WI 53158
Mar 06, 2003 With actuator travel differentials as low as 0.002 in., GP Series offers mechanical endurance of more than 1 million cycles. Switch, with titanium-copper alloy spring and gold-over-silver contacts, offers max switching current of 15 A @ 125/250 Vac. Housed in phenolic case that measures 1.9 x 0.9 x 0.7 in., series includes 13 actuator styles. Temperature rating is -20 to +85°C. Initial contact resistance is 0.015 ohm max and insulation resistance is 100 Mohm min at 500Vdc.

Molex Inc.    Lisle, IL 60532-1682
Mar 06, 2003 RJ-45 Field Wireable Ethernet Connectors meet Ethernet/IP™ Specifications of Open DeviceNet™ and ControlNet™ Vendors Association. Circular, bayonet-style locking design meets all sealed connector industry specifications. Lock is molded into plug, and bayonet-style latch enables quick mating and unmating, and ensures proper depth when mated. Compression nut on back of plug provides strain relief and accepts cable diameters from 2.9–6.4 mm.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Mar 06, 2003 Infiniium 2.5 GHz oscilloscope can capture 4 real-time, single-ended and differential signals off single trigger event. By using dual-monitor mode, users can perform waveform analysis inside oscilloscope and display results on high-resolution monitor without having to transfer waveform data to external computer. Users can access and control oscilloscope from remote locations using built-in Web software and 10/100BaseT LAN connections.

MegaStar Systems    Marietta, OH 45750
Mar 06, 2003 MediaStationâ„¢ ELF Electric Lateral File storage system consists of series of vertically arranged, rotating carriers controlled by electronic keypad that delivers files to ergonomically positioned posting board. It provides more than 2,700 linear file inches of letter-sized filing space. Posting board can be folded down when not in use, allowing MediaStation ELF to be installed in areas of limited floor space.

Thales Computers Corp.    Raleigh, NC 27610
Mar 06, 2003 PowerEngine7 series utilizes single or dual IBM PowerPC® 750FX processors that operate at 733 MHz, providing performance at rates of more than 1600 Dhrystone 2.1 MIPS and drawing 14 W of power for entire board. Convection-cooled SBC includes up to 512 Mbytes SDRAM and up to 128 Mbytes Flash. It incorporates 133 MHz Avignon host bridge system controller, twin PMC slots, two 10/100 BaseT Ethernet interfaces, and 4 asynchronous and 2 synchronous/asynchronous serial lines.

Amacoil Inc.    Aston, PA 19014
Mar 06, 2003 Linear Drive unit offers up to 800 lb axial thrust, accuracy to within ±0.005 in., and travel speed up to 13 ft/sec over max distance of 16 ft. Stroke length is controlled by adjustable end stops. Backlash-free design eliminates need for additional drive-train preload. Inner race of each bearing has special contour which creates point of continuous contact with drive shaft, regardless of shaft rotational direction or speed. Threadless shaft stays clean and clog-free.

Paslode, An Illinois Tool Works Co.    Vernon Hills, IL 60061
Mar 06, 2003 Equipped with top-loading magazine, S200-S16 Framing Stapler drives 16-gauge, standard-crown staples from ¾â€“2 in. in length. Model S150-W16R Construction Stapler, adjustable shingle guide, drives 16-gauge, wide-crown staples from 5/8–1 ½ in. in length, while S200-W16 Insulation Sheathing Stapler drives 16-gauge, wide-crown, galvanized staples from ¾â€“2 in. in length. Each tool provides adjustable depth of drive, 150 staple capacity, and 2-fingered trigger.

Haewa Corp.    Duluth, GA 30097
Mar 06, 2003 Lamps employ 15 W energy-saving electronic bulbs that produce light equivalent to that of 80 W bulbs. Housed in sheet-steel assembly that measures 11.65 x 2.36 x 1.65 in., lamps can be top, side, or plate mounted. Products are available with pre-installed and wired door switches or integrated toggle switches. Selection of power outlet sockets permits installation in applications with 115 V, 230 V, and other power requirements.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
Mar 06, 2003 Able to remove lumps and particulates from adhesives and sealants, 1270-Series Material Filter ensures delivery of free-flowing, homogeneous material to dispense valve. Material filter also provides control of material pressure and flow rate. Rounded, internal design prevents material from becoming packed in corners and also prevents clogged material lines. Offered in 2 filter sizes, product has aluminum housing and 30-mesh stainless steel filter element down to 500 microns.

Keystone Electronics Corp.    Astoria, NY 11105
Mar 06, 2003 Leaf-type battery contacts allow snap-in mounting of AA batteries directly to PC boards. Spring tension provides low contact resistance while adjusting to any variations in battery length. Fabricated from 0.010 nickel-plated spring steel, products are available in leaf spring (negative, Part No. 590) or button (positive, Part No. 596).

Schurter, Inc.    Petaluma, CA 94975
Mar 06, 2003 Time-lag Series OMT 125 offers safety at fault currents up to 100 A @ 125 V AC/DC for protection of personnel and equipment from fire or damage. The 1 A fuse offers power dissipation of 88 mW and voltage drop of 88 mV. Rated currents are 500 mA to 5 A @ 125 V. Built to UL 248-14, unit can be directly soldered onto pcb or used with SMD fuseholder. Soldering heat resistance is 260°C for 10 sec. Applications include power supplies, battery chargers, and electronics.

Magstar Technologies    Hopkins, MN 55343
Mar 06, 2003 ROC 5 Envi-ro-fuge System utilizes centrifugal force of over 2,000 G to remove contaminants as small as 0.5 microns. When oil change is required, cleanliness of used oil makes it recyclable. Product takes out abrasive grit, soot, and dirt, and spins them into solid cake that is removed without shutting down operation. By-pass system allows for retrofit installation for engines, generators, pumps, and compressors with 100 gal and larger oil sump reservoirs.

Neptune Chemical Pump Co., Div. Of R.A. Industries, Inc.    Lansdale, PA 19446 0247
Mar 06, 2003 Calibration Columns measure drawdown rate on suction side while leaving discharge undisturbed in normal steady state operation condition. Products can also be used to determine if check valves are worn or dirty. Available in capacities from 100-4,000 ml, products are suited for use with pump capacities up to 120 gph. Constructed of PVC, units have slip-on top caps for filling and cleaning. Internal calibration scales are protected by Mylar lamination.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005
Mar 06, 2003 SIMATIC® Diagnostic Repeater delivers online diagnostic information about RS485 Profibus cable during operation. It monitors and detects wire breaks, short circuits, and missing terminations between sections of cable segments and instantaneously reports information to DP master. DP master forwards data, including cause of fault and location, to all connected HMI devices. Information can be displayed in clear text, eliminating need for hex code interpretation.

Mersen    Newburyport, MA 01950

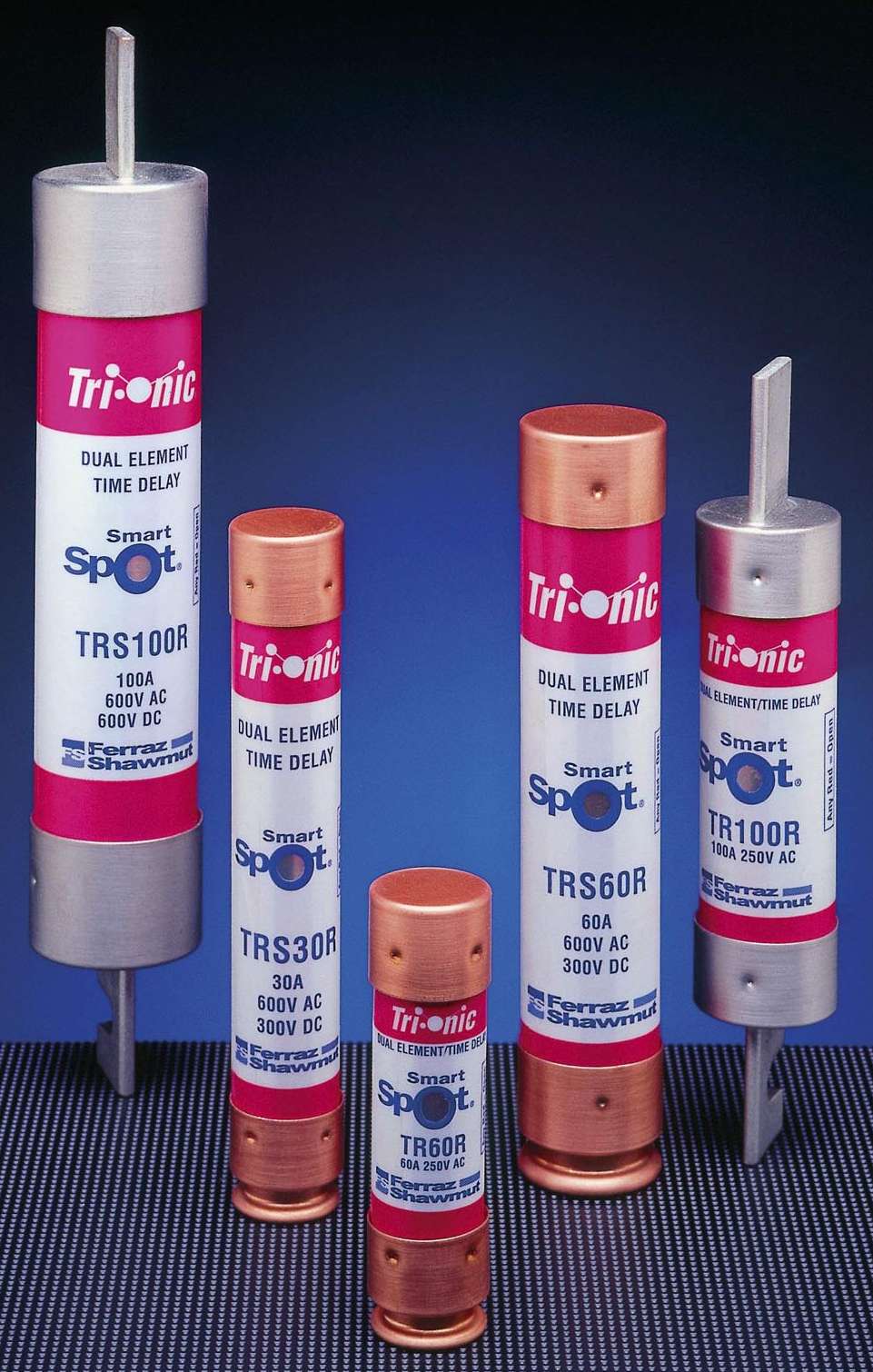

Mar 06, 2003 Tri-onic Class RK5 TR and TRS current-limiting fuses include time delay feature that safely handles harmless transformer and motor in-rush currents to minimize nuisance openings and maximize uptime. Current-limiting capabilities prevent damage to critical system components under short circuit conditions, reducing downtime and repairs.

Beta Dyne Inc.    Bridgewater, MA 02324

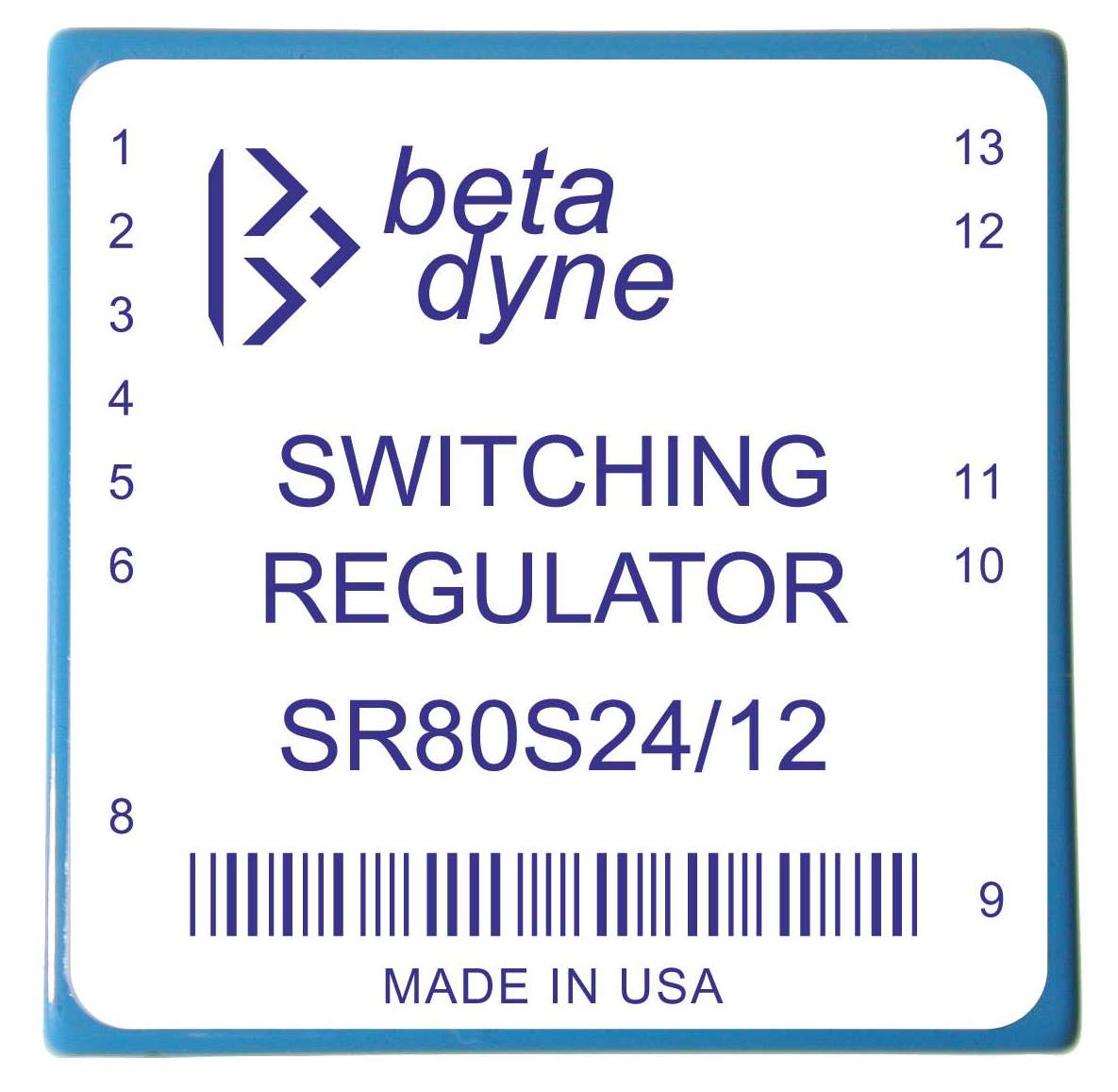

Mar 06, 2003 Models SR40 and SR80 are constant frequency, current mode step-up converters. Model SR40 delivers 40 W to load, accepts 5–10 V input, and provides 9, 12, 15, 18 and 24 Vdc output. Model SR80 delivers 80 W to load, accepts 10-18 V input and provides 15, 18 and 24 Vdc output. Both regulators include input undervoltage protection, external synchronization, 300 kHz constant frequency, 44 W/cu in. power density, and 6-sided shielding.

Airmaster Fan Co.    Jackson, MI 49203

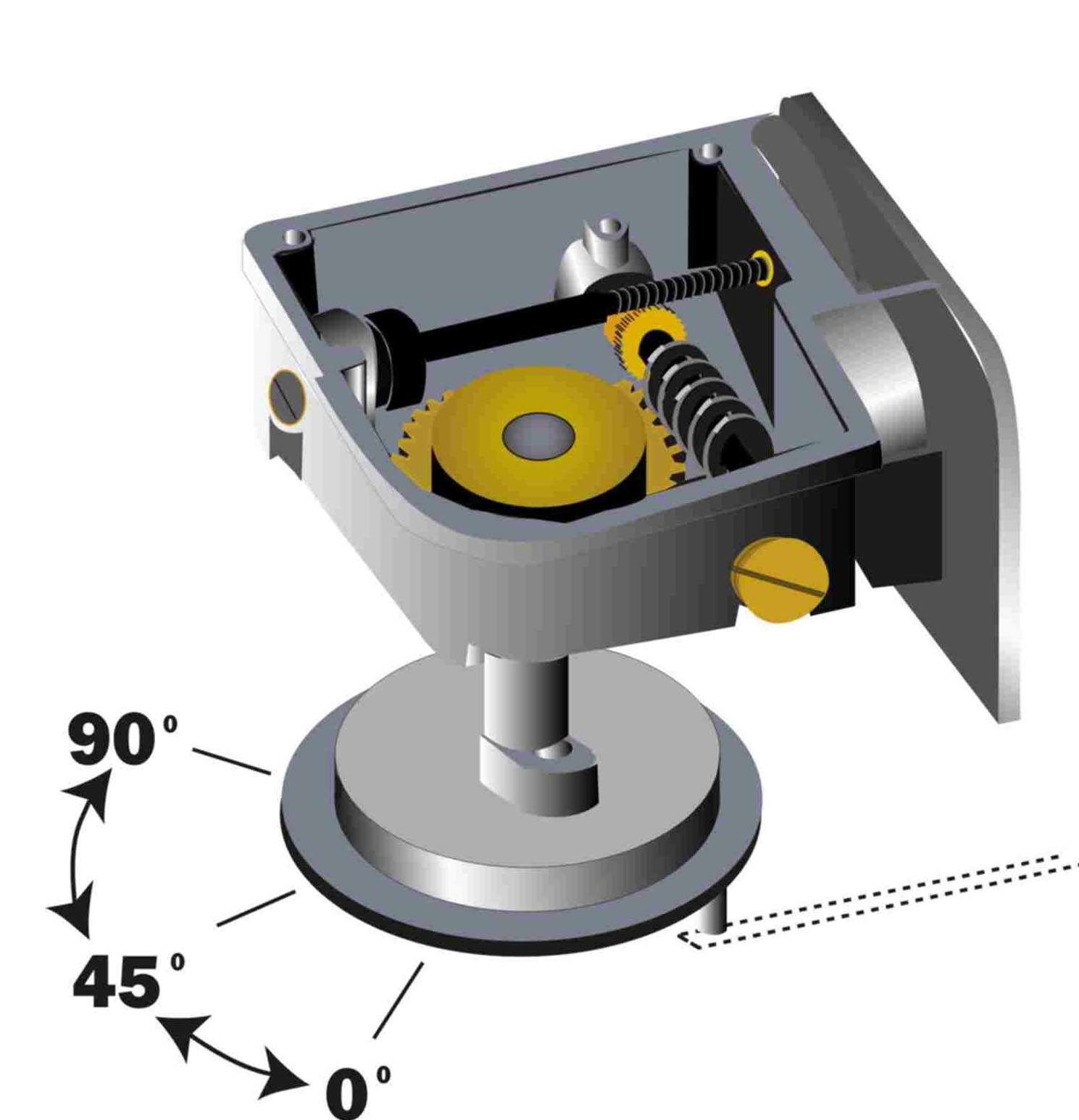

Mar 06, 2003 Quick Change Gear Box is used in Heavy-Duty Oscillating Air Circulators. Made of all steel and bronze parts, unit is protected from gear damage. Gear box is easily adjusted from 0 to 45° to 90° oscillation. It is interchangeable with any existing heavy duty gear box, and is included in all pedestal, wall, and I-beam mount oscillators.
