Extech Instruments Corp.    Nashua, NH 03063
Mar 04, 2003 Multimeters incorporate IR thermometers, which provide measurements from -4 to +520°F, and laser pointers. With distance to target ratio of 8:1, units also offer fixed emissivity of 0.95. Extech 450 autoranging DMMs have 2,000 count display and 0.5% basic DCV accuracy, while Extech 470 autoranging True RMS multimeters offer 4,000 count display, 0.3% basic DCV accuracy, capacitance and frequency functions, and Type K thermocouple measurements.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Mar 04, 2003 Using one button, Model 1209-1 automatically calibrates at power on and reads CO levels from 0-2000 ppm in increments of 1 ppm. Equipped with LCD, unit has temperature limit range from 32 to 140°F and operating relative humidity level of 10-90% RH (non-condensing). Sensor consists of electrochemical cell and ABS-plastic housing. Each unit is equipped with 9 V battery and instruction manual.

Leyman Mfg. Corp.    Cincinnati, OH 45242
Mar 04, 2003 LHLP Hide-A-Way liftgates are offered in 4400 and 5500 lb capacity models. Each features all-aluminum bi-fold platform up to 63 in. D x 86 in. W. LHLP 4400 accommodates floor heights of 45–59 in. and includes handheld remote control, automatic mechanical tilt, cart stops and greaseless operation. LHLP 5500 is best utilized with vehicle floor heights from 48–60 in., and includes power down on demand and platform brackets that do not dig into ground when tilting.

Kyocera Display America, Inc.    Plymouth, MI 48170

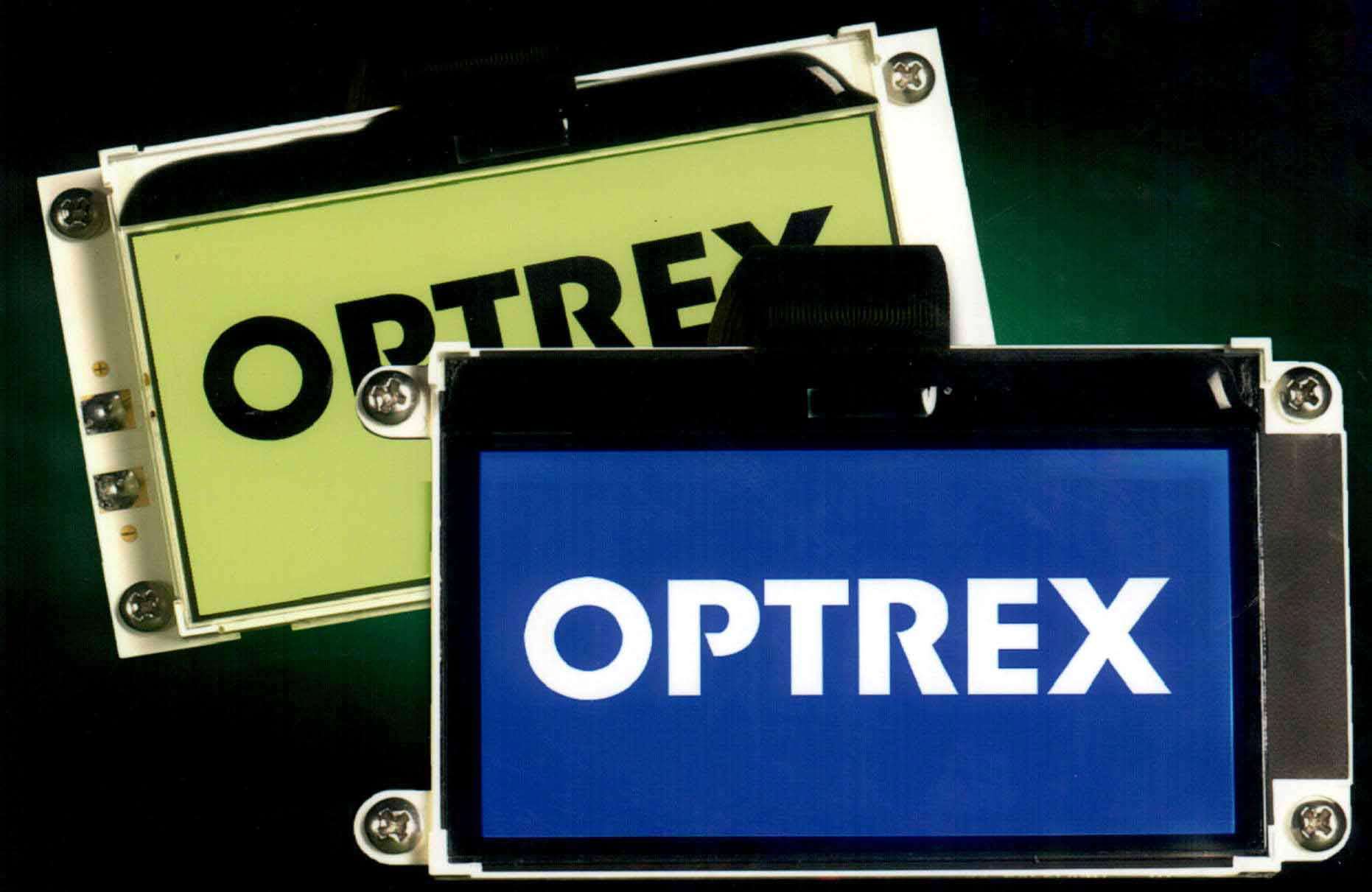

Mar 04, 2003 Monochrome, STN-transmissive, 128 x 64 dot, chip-on-glass (COG) Series F-51553, with 2.8 in. diagonal area, displays text and graphics. Offered in blue and yellow versions, backlit display, with 6:1 contrast ratio, provides temperature stability though use of liquid crystal fluid with flat voltage vs operation temperature characteristic. Supporting serial and parallel interfaces, it incorporates controller, row and column drivers, and booster circuit in one chip.

Micro 100, Inc.    Los Angeles, CA 90029

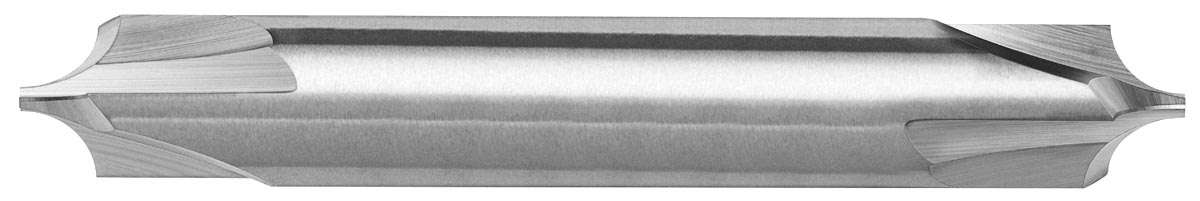

Mar 04, 2003 Solid carbide, 3-flute end mills, with double-end design, machine all materials, providing flexibility on shop floor. CNC precision ground units are offered in 36 sizes with overall lengths from 2–4 in. Shank diameters range from 1/8–1 in., precision ground -.0001 to -.0003 in. With radii from .0100–.4370 in. ±.0005 in., shock-resistant units are available with minor diameters from .060–.120 in.

LEVITON    Melville, NY 11747
Mar 04, 2003 Safety Disconnect Switches, part of Power Switch(TM) Industrial Grade Switch line, prevent haphazard making/breaking under load of electrical connections. Available products include IP65 watertight, 30 A non-fused model and IP67 watertight, non-fused models in 60 and 100 A. Fused models, with 30 and 60 A ratings, offer finger-safe fuse holders that accept Class J Time-Delay fuses. Switches are supplied with auxiliary contact and bottom hinge mechanism that pivots 180°.

Arrow Pneumatics, Inc.    Lake Zurich, IL 60047
Mar 04, 2003 DRYAIR cleans moisture and odors from confined areas. Measuring slightly more than 1 cu ft, it can be moved from place to place. Unit features rust and corrosion-proof stainless steel cabinet and evaporator; humidistat which permits user to adjust drying levels; and compressor with high-efficiency refrigerant.

Porta-King Building Systems    Earth City, MO 63045 1211
Mar 04, 2003 Trash Compactor Enclosures have steel frame to support high-speed door, and framed wall opening which allows easy conveyor pass through. Units may be configured for inside access, while separated from outside to prevent heat loss during operation. They are suitable for retrofitting existing dock door openings.

ICS Electronics Corp.    Milpitas, CA 95035
Mar 04, 2003 Model 4897 works with fiber-optic and metallic cables. It provides bus extension distances greater than 5,000 m and expands number of devices beyond specification limit of 14. Unit is IEEE-488.2 compliant and does not generate false replies to 488.2 FindListener protocol. Normal mode simultaneously handshakes GPIB bytes on both buses at rates greater than 80 kbytes/sec. Buffered mode transfers data to FIFO memory in remote extender at full transmission line rate.

HMS Industries, Inc.    Blairsville, PA 15717 8828
Mar 04, 2003 Model ABC-LON-RTU acts as slave on Modbus RTU side by converting serial application protocols between LonWorks network and master devices using Modbus protocol. Converting data passing between LonWorks and Modbus networks lets devices in different networks understand each other's application data. Unit supports RS232/422/485 on serial side and Free Topology Network on LonWorks side. It mounts on DIN rail and connects to Modbus-standard product via serial cable.

Burns Engineering, Inc.    Minnetonka, MN 55343
Mar 04, 2003 Series 12001 has 1/8 in. diameter with Inconelâ„¢ sheathing. It provides ±0.02°C accuracy with nominal drift per year of 0.01°C at 200°C. Hermetic seals lock out moisture and contaminants. Each probe comes with NIST-traceable ITS-90 calibration and certificate. Available in 6, 9, and 12 in. lengths, probe can be configured to variety of calibration equipment including stationary baths, portable blocks, and handheld readout equipment.

WinSystems, Inc.    Arlington, TX 76011
Mar 04, 2003 Model PCM-COM8 8-channel, serial asynchronous communications module provides each transmit and receive channel with 128-byte deep FIFO. All 8 channels support RS-232, RS-485, and RS-422 electrical levels to interface to serial communications devices. Two XR16C854 devices serve as serial communication controllers and contain on-chip, software programmable baud rate generators with data rates selectable through 115,200 bits/sec.

JDS Products, Inc.    El Dorado Hills, CA 95762 4072
Mar 04, 2003 SENSING-SAF-START® prevents small machines from restarting after power interruption. After power has been restored, unit will not reset until machine switch has been turned off. It replaces power cord on small machines such as table saws and drill presses, allowing them to conform to OSHA and NFPA safety standards by disconnecting machine's power during power loss. Three 120 V styles and one 240 V single phase style is available. All are UL recognized.

NewAge Testing Instruments, Inc.    Southampton, PA 18966
Mar 04, 2003 Series 7000 uses load cell to accurately monitor test force. Testers are not affected by temperature changes and hydraulic warmup period. With hydraulic stroke range of 4 in., units adjust to test different sizes of parts. Capacity of standard model is 10 in. with elevating screw lowered and 16 in. with it removed. Standard horizontal capacity is 8 in. Systems are controlled electronically and all electronics are enclosed for use in bad operating environments.

Agfa NDT, Krautkramer Ultrasonic Systems    Lewistown, PA 17044
Mar 04, 2003 Model CL 400 precision thickness gauge combines signal processing with compatible, damped, single element transducers. Instrument capabilities can be extended via optional A-Scan and programmable data recorder features. Unit provides parameter setups for delay, contact, and bubbler style probes as well as user-defined parameter setups. Offerings include help window with step-by-step procedures, six virtual keys, velocity value, and alarm bar graph.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110

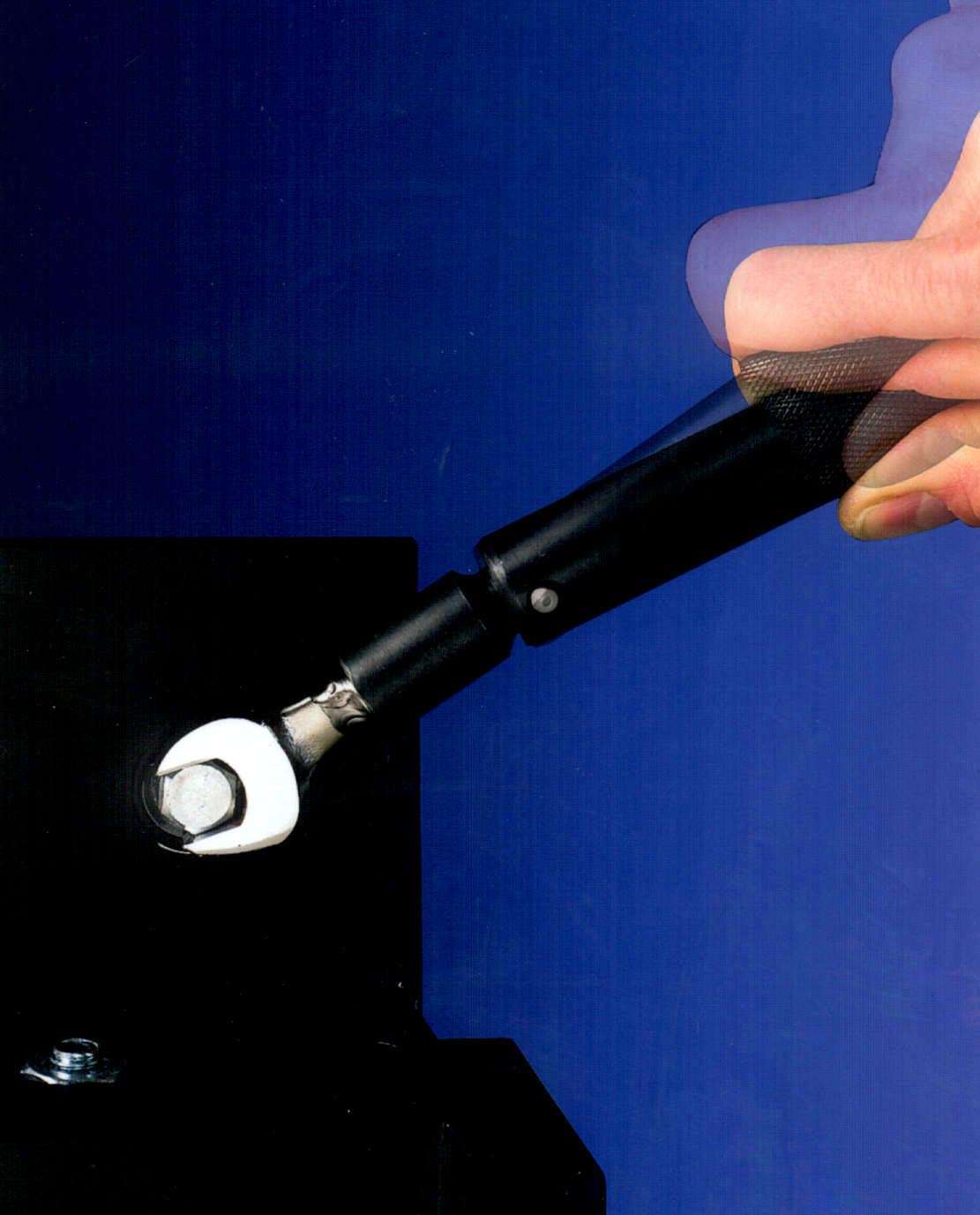

Mar 04, 2003 T-Series Wrenches provide accurate and repeatable torque for light assembly. When torque limit is reached, they emit audible click. One model offers torque range of 13–60 lbf-in., while other offers 36–108 lbf-in. torque range. Torques are adjusted via internal screw, and calibration can be in inch or metric settings. Wrenches use interchangeable universal round shank heads, including ratchet head, box-end or open-end drivers.

A & A Mfg. Co., Inc.    New Berlin, WI 53151

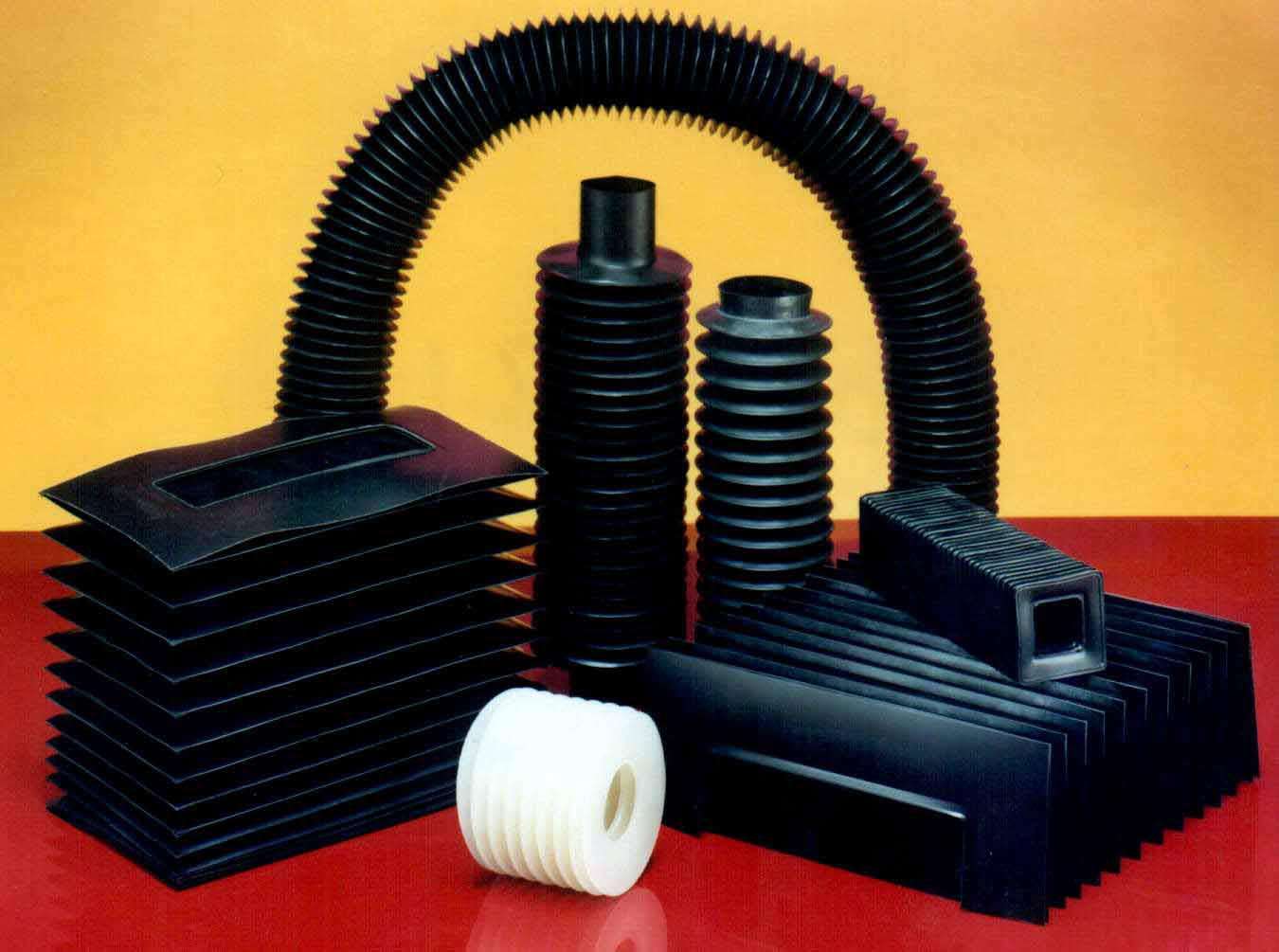

Mar 04, 2003 ThermiSeal bellows have open-to-closed length ratios that minimize space requirements. Bellows protect actuating members that move through range of travel. They are available in a variety of shapes and sizes, and in urethane or PVC materials. Uses include precision medical equipment, semiconductor equipment, clean room applications, and inspection and test equipment.

Watlow    St. Louis, MO 63146

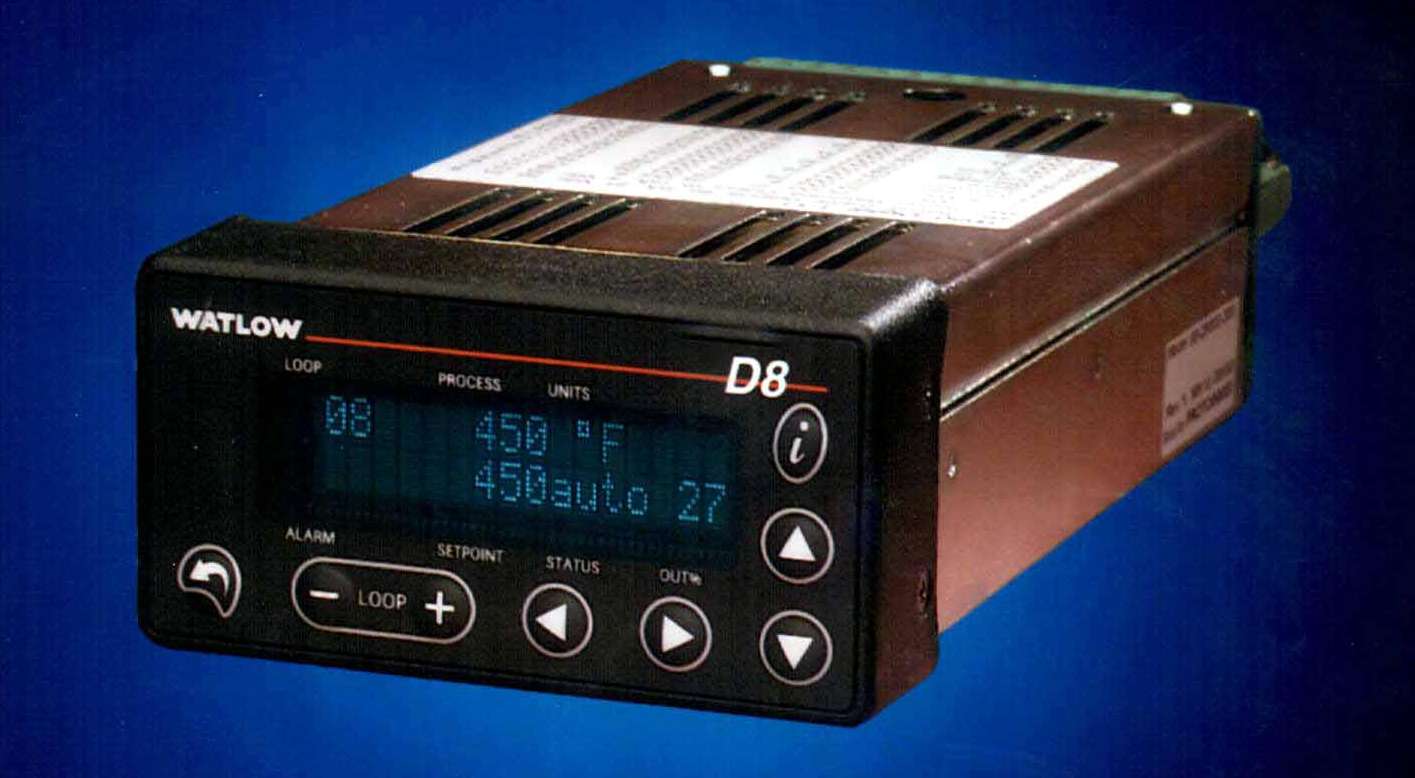

Mar 04, 2003 D8 Series temperature controllers offer DeviceNet compatibility within 1/8 DIN package. Compliance with ODVA and Semiconductor SIG specifications make D8 simple to integrate into DeviceNet networks. Available in 4 and 8 loop versions, units support thermocouple, RTD, linear voltage, and current inputs. Loops can be configured for on-off or PID control, and can be combined for cascade, ratio, or differential control.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 04, 2003 AMP Power Series model 175A is 2-pole, wire-to-wire style connector rated for 175 A at 600 V AC/DC when using 1/0 wire. Housing design allows mating between two identical housings. Single pole model 180A is rated for 180 A at 600 V and incorporates interlocking feature on housing that allows multiple connectors to be horizontally or vertically stacked. Each model uses impact resistant, UL 94V-0 polycarbonate housing and accepts 1/0-4 AWG wire.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Mar 04, 2003 Environmentally-friendly one-liter containers, for company's anaerobic adhesive line, occupy 1/3 less space when full versus traditional liquid adhesive packaging. Once emptied, container collapses reducing amount of packaging waste. Containers are compliant with Rigid Plastic Container Laws by State of California Integrated Waste Management Board and are compatible with all company dispensing equipment and low-level sensing devices.
