Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913

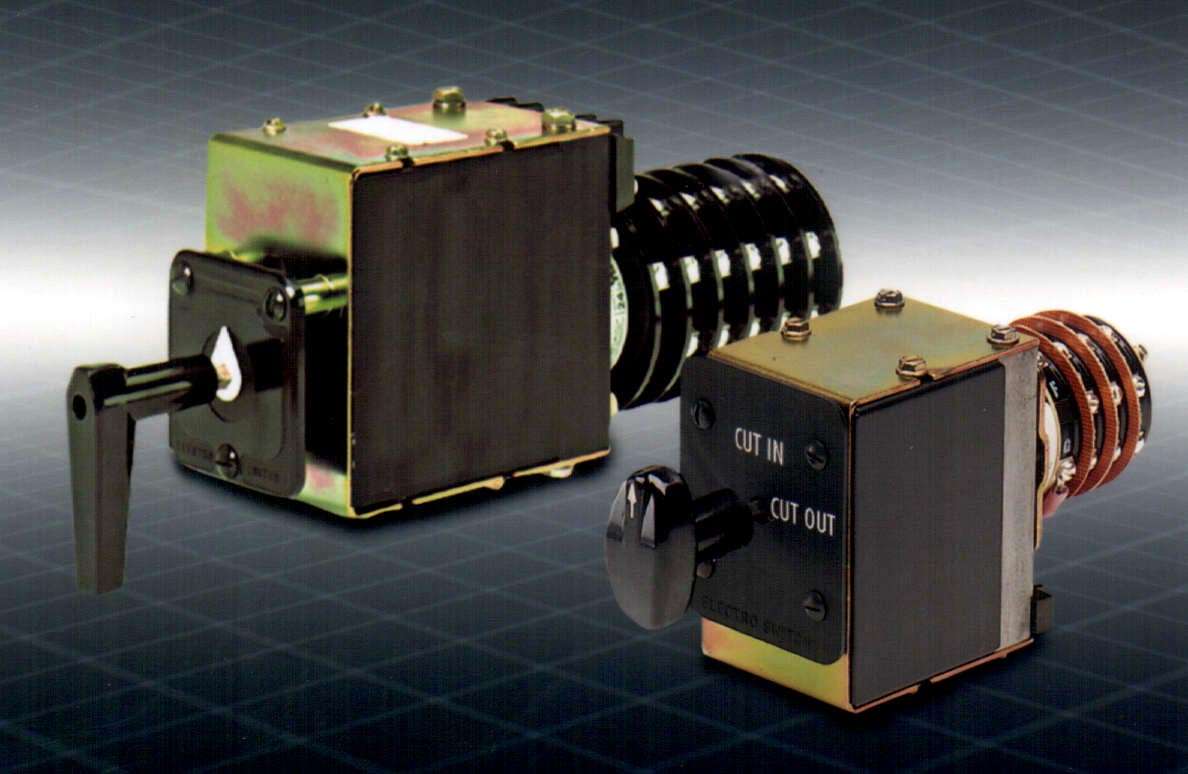

Mar 12, 2003 Latching Switch Relays are 2-position, rotary-action devices used to open or close and maintain up to 20 contacts. Series 24 LSR can be configured with 3, 5, 8, or 10 decks. Contacts are rated at 60 A for 1 min and 30 A continuous in range of 125–250 Vdc or 120–600 Vac. Series 31 LSR can be configured with 3, 6, or 8 decks. Contacts are rated at 25 A for 1 min and 15 A continuous in range of 12–125 Vdc or 120–600 Vac. Both can be operated manually or remotely.

Algor Inc.    Pittsburgh, PA 15238

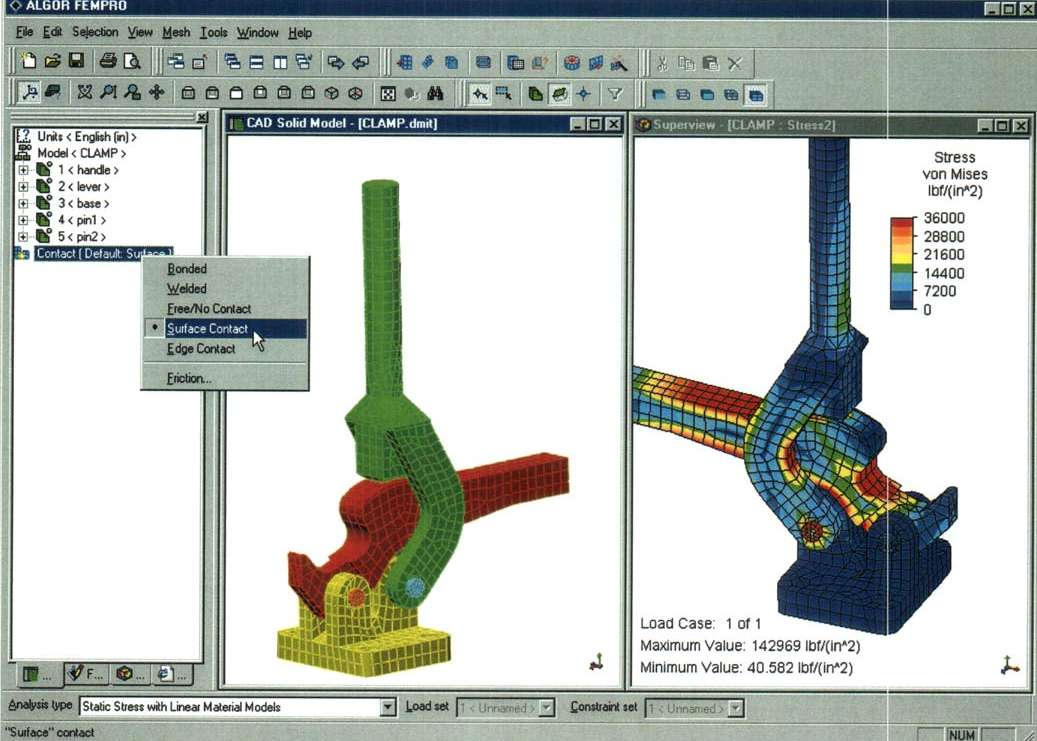

Mar 12, 2003 FEMPRO with contact option offers bonded, welded, free/no contact, surface contact, and edge contact analysis. Surface contact option simulates contact between surface area where parts touch, and edge contact option simulates contact between edges and where those edges touch other parts. Software can consider static friction effects by specifying static friction coefficient or by using default. It is suitable for use on models created in wide range of CAD solid modelers.

Lyon Workspace Products    Aurora, IL 60507

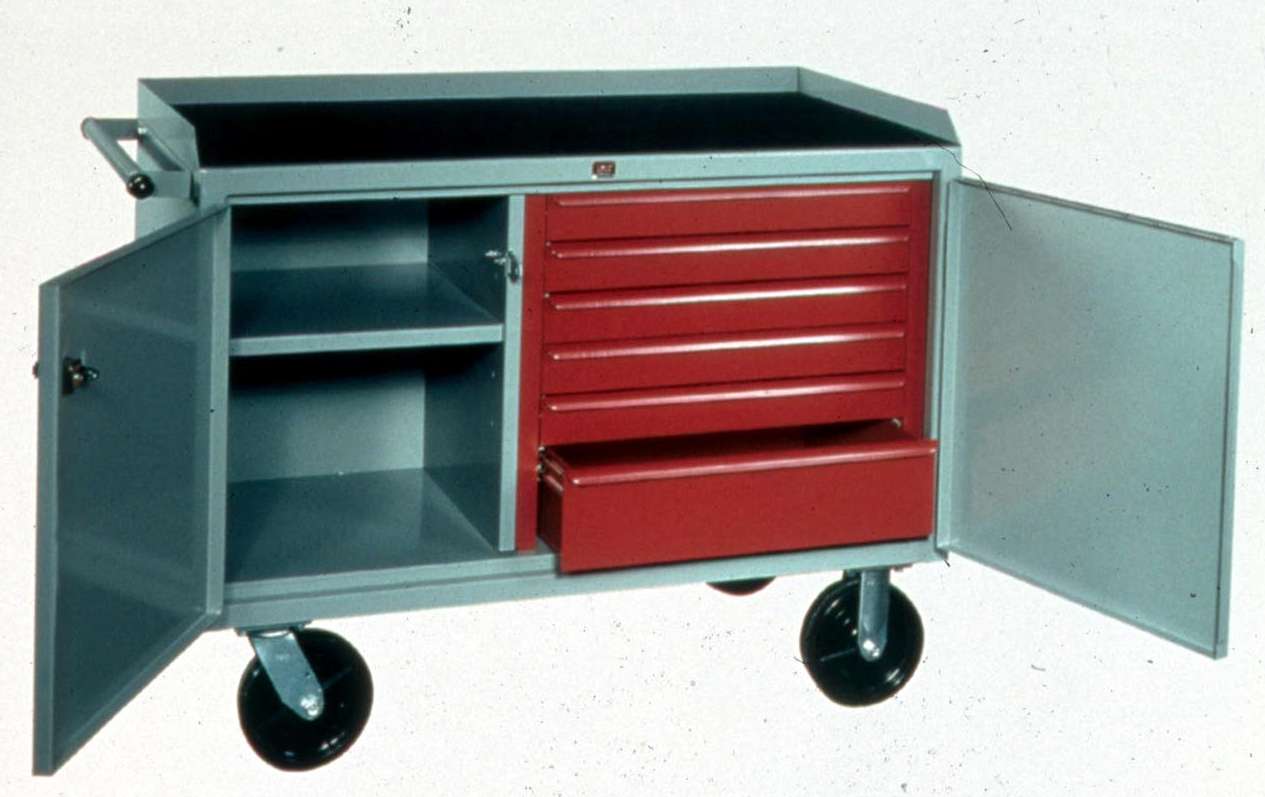

Mar 12, 2003 Mobile Work Centers have flush-mounted doors with padlock hasp, spring-actuated pull handle, and 8 gauge welded hinge plates. Ten gauge steel top features 2 in. high back and end stops, and accommodates customer-supplied vise. Internal shelf offers capacity of 1,450 lb and is adjustable on 3 in. centers. Two full-width open shelves across back hold supplies. Two fixed and 2 swivel-braking, 8 in. dia roller bearing phenolic casters support total of 3,600 lb.

Simonds Industries, Inc.    Fitchburg, MA 01420
Mar 12, 2003 Heat-treated BlockBuster® M42 Blades feature fatigue-resistant backer. Variable-pitch tooth configurations include 1.1-1.4, 1.5-1.9, 2-3, 3-4, 4-6, and 5-8 teeth per inch. Widths range from 1 ½ to 3 1/8 in. and thickness range from .050–.062 in. Blades can cut through variety of steel including carbon, chrome, tool, die, and stainless, as well as titanium and other alloys and are suited for high-production cutting applications.

Methode Electronics, Inc.,Connector Products Div.    Rolling Meadows, IL 60008
Mar 12, 2003 Mini USB Series consists of Type A, B, and AB connectors that are shielded for EMI protection, polarized to prevent mis-mating, and rated for 5,000 mating cycles. They support data rates up to 480 Mbps and power requirements up to 500 mA. Product variations include board-mount receptacles and cable plugs, both of which meet USB 2.0 requirements. Connectors are suitable for handheld computers, PDAs, MP3 players, digital cameras, and other portable devices.

Banner Engineering Corp.    Minneapolis, MN 55441

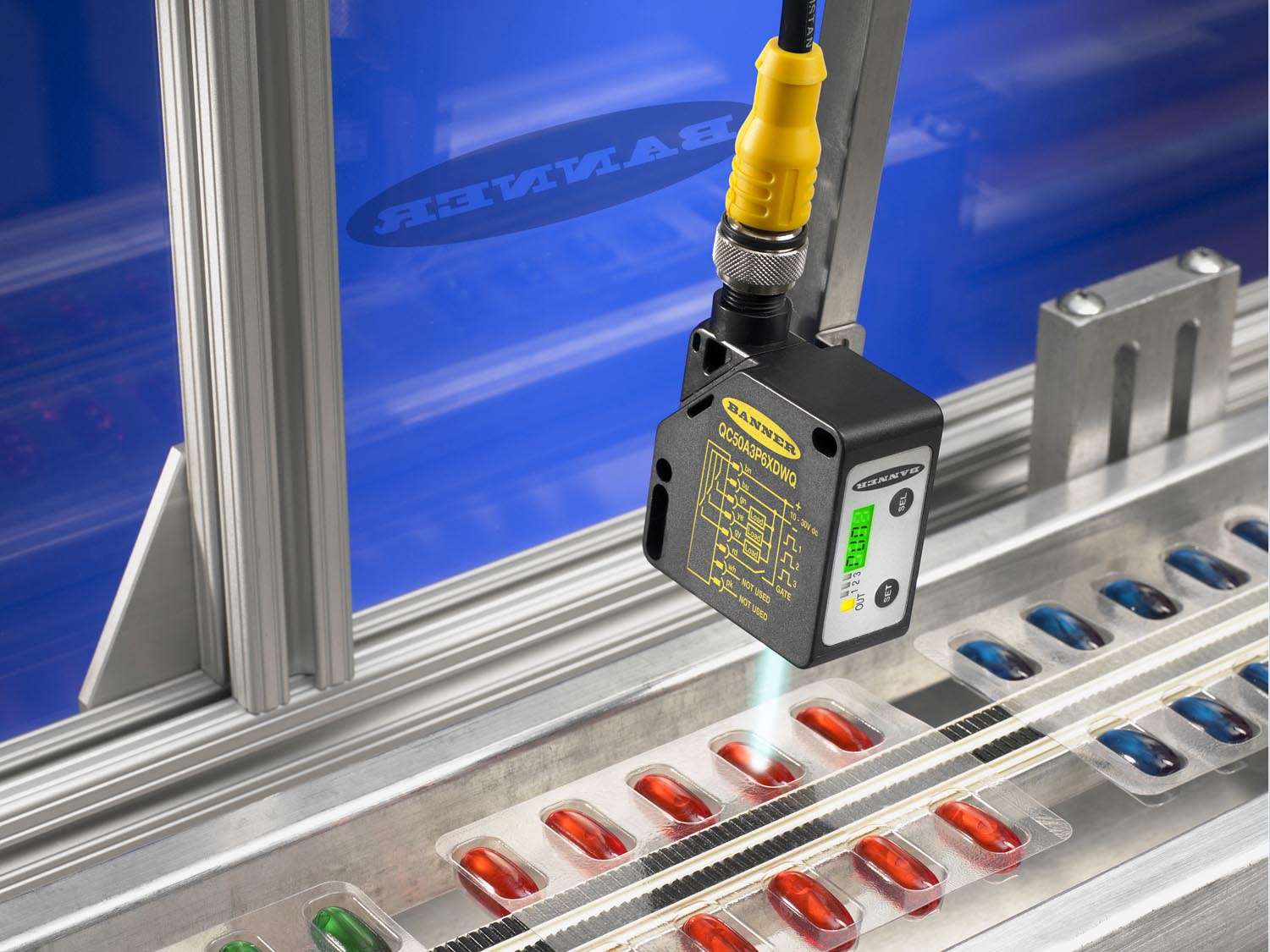

Mar 12, 2003 Model QC50 10-30 Vdc sensor emits modulated white light which, when reflected back from object, is electronically filtered to red, green, and blue components for color determination. Color-Only mode is for sorting applications where color differences are obvious, and Color-Plus-Intensity mode refines sensor's capabilities to include gray scale. Unit has IP67-rated plastic housing and operates in temperatures of 14-131°F. Max output rating is 40 mA at 24 Vdc.

Lion Precision Inc.    St. Paul, MN 55126 7014

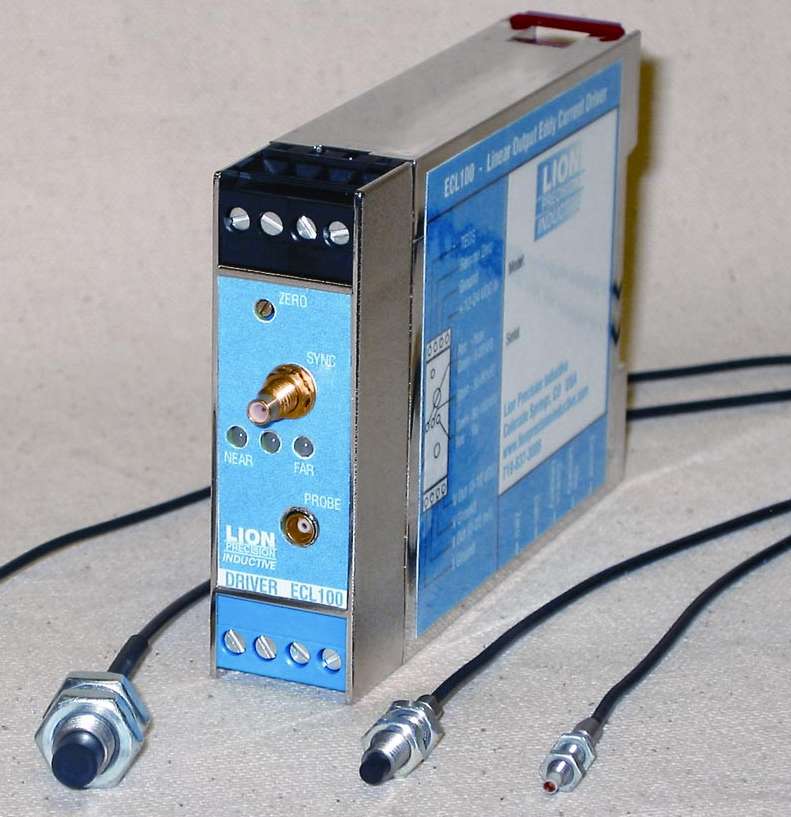

Mar 12, 2003 With selectable frequency response to 80 kHz, ECL100 driver's linear voltage and current outputs provide precision measurement throughout probe's calibrated range. Low noise circuit design yields static resolution of 0.004% FS output. Multi-color LED probe position indicator and local/remote zeroing capability facilitates installation and setup. It is offered with 3, 5, 8, and 12 mm Modular Inductive Probes.

Clarke    Chesterfield, MO 63017

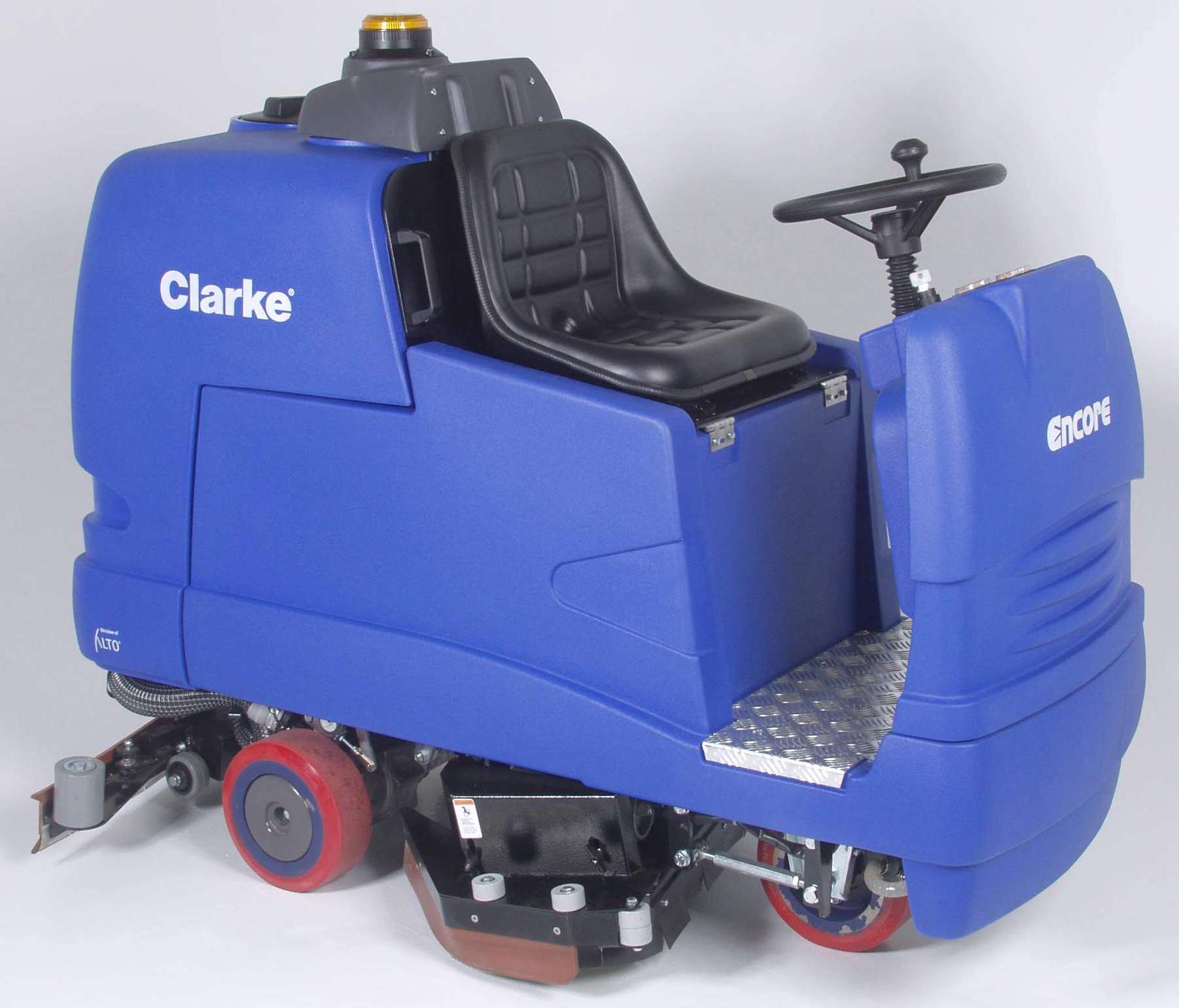

Mar 12, 2003 Encore Mini-Max and Encore Max incorporate minimized control panel with necessary switches to apply cleaning solution, scrub floors, and recover used solution and dirty water. Available with 26 in. disc, 30 in. disc, or 28 in. cylindrical brush head, scrubbers offer parabolic break-away squeegee, corrosion-proof Polydur® solution/recovery tanks, and 3-stage tangential discharge vacuum motor. Front-wheel steering allows turning in areas as tight as 72 in.

Production Basics, Inc.    Watertown, MA 02472
Mar 12, 2003 Binder Holder utilizes double swing arm to ergonomically position instructions and quality documentation that production operators use. Arm may be moved out of way when not in use. Measuring 12 in. wide and 9 in. tall, unit is constructed of 12-gauge steel and comes with 1 in. ring. It is suitable for use in assembly lines, laboratories, warehouses, shipping departments, and data entry stations.

Production Basics, Inc.    Watertown, MA 02472

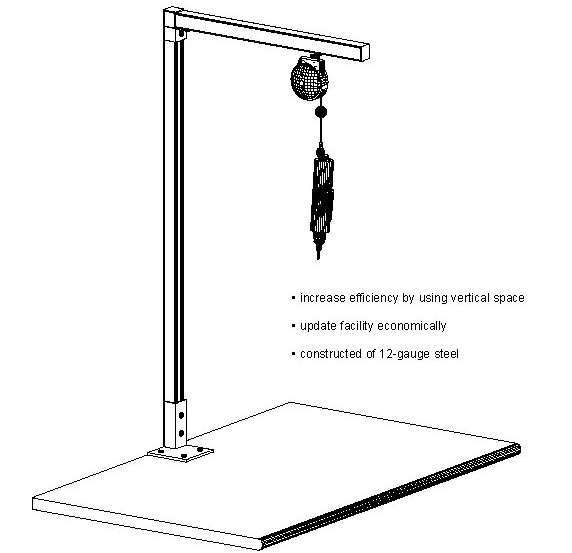

Mar 12, 2003 Accessory Tower mounts to flat, horizontal area such as laminate or wood work surface. It is made of 12 ga steel and extends 48 in. above surface. Perpendicular horizontal channel is 24 in. long and supports up to 2 suspended tools. Tower Parts Bin Panel and Tool Balancer can be attached for easy access and usage of tools and hardware. Tower makes use of vertical space to help production employees increase productivity.

Alto U.S. Inc.    Chesterfield, MO 63017 3626

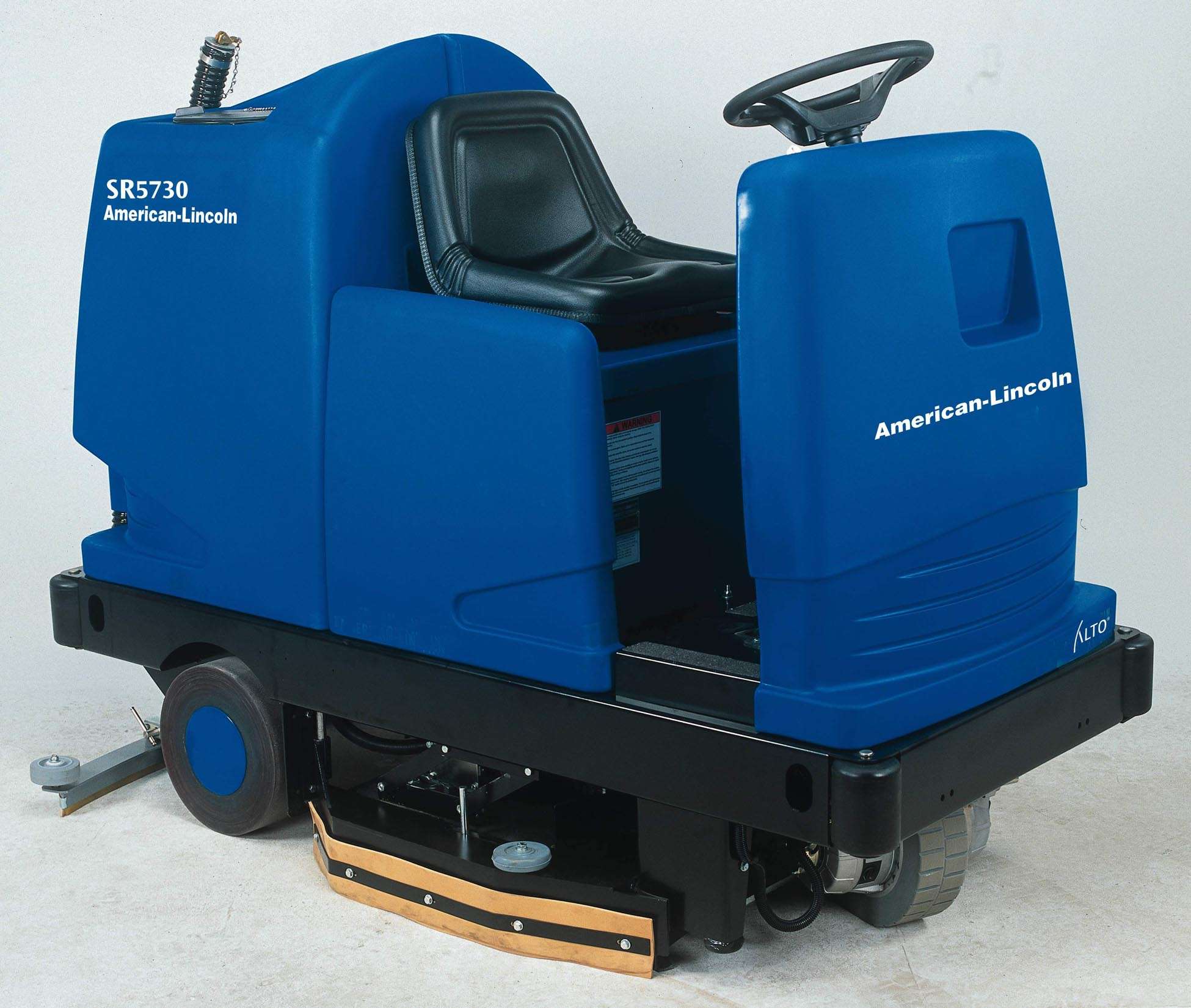

Mar 12, 2003 Model SR5730 features Speed Sense programmable speed controller for up to 5 hr of cleaning, modulated brake system for operator safety, and dual vacuum shutoff system for motor protection. Floating side squeegees follow contours of floor surface. Drain hose and large lid openings make filling and cleaning solution and recovery tanks easy. User can choose scrub path, brush size, battery package, and optional accessories.

Mitsubishi Heavy Industries America - Machine Tool Div.    Addison, IL 60101-1065
Mar 12, 2003 Centrifugal Compressor offers discharge pressure capacity of 450 ata (44.1 Mpa) and suction pressure capacity of 205 ata. It collects crude oil from aging oil fields through injecting compressed natural gas or inert gases below ground. Natural gas can also be stored below ground in oil and gas fields using compressor.

TechniDrill Systems Inc.    Kent, OH 44240
Mar 12, 2003 SB-100 skiving/roller burnishing system can finish inside diameter of seamless tubing to 8 RMS surface finish at penetration rate of 207 ipm. It is offered with diameter capacity to 2.500 in. and machining depth to 25 in. Spindle speeds are variable to 2800 rpm and are powered by 40 hp ac drive. Feed rates, controlled by ball screw and servo motor, are variable from 50–300 ipm, with reverse feed up to 300 ipm. Cooling oil is provided to tooling at 60 gpm and up to 500 psi.

TE Connectivity Ltd.    Berwyn, PA 19312

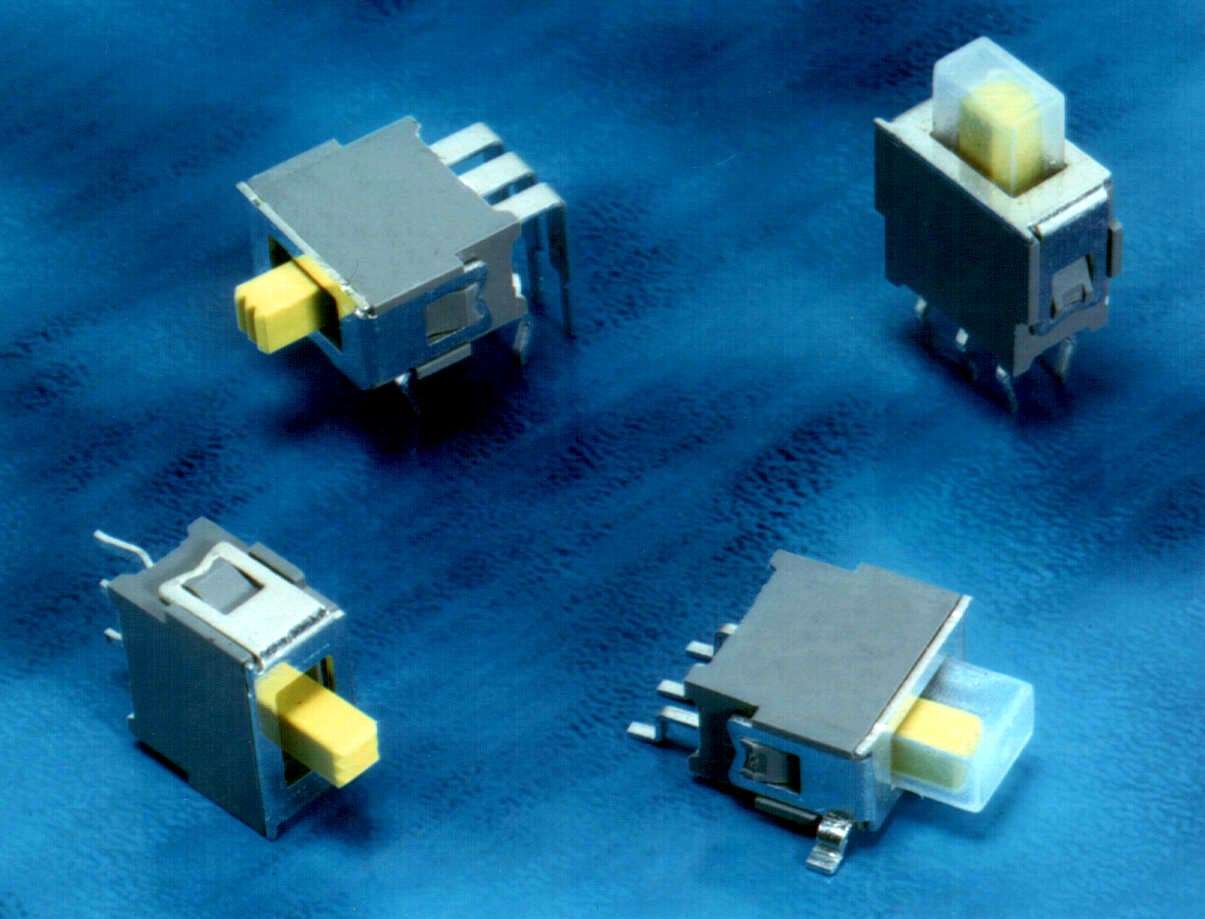

Mar 12, 2003 ALCOSWITCH slide switches come in SMT or thru-hole versions and offer double pole capability in single pole body. They employ PC board retention features for mechanical performance up to 10,000 cycles. Contacts are rated for 0.4 Va at 20 Vdc with initial contact resistance from 70-500 g. They are phosphor bronze with gold over nickel plating. Terminals are tin-lead over nickel-plated phosphor bronze. Housing, actuator, and plunger are UL94V-0 glass-filled thermoplastic.

Renishaw, Inc.    Hoffman Estates, IL 60192

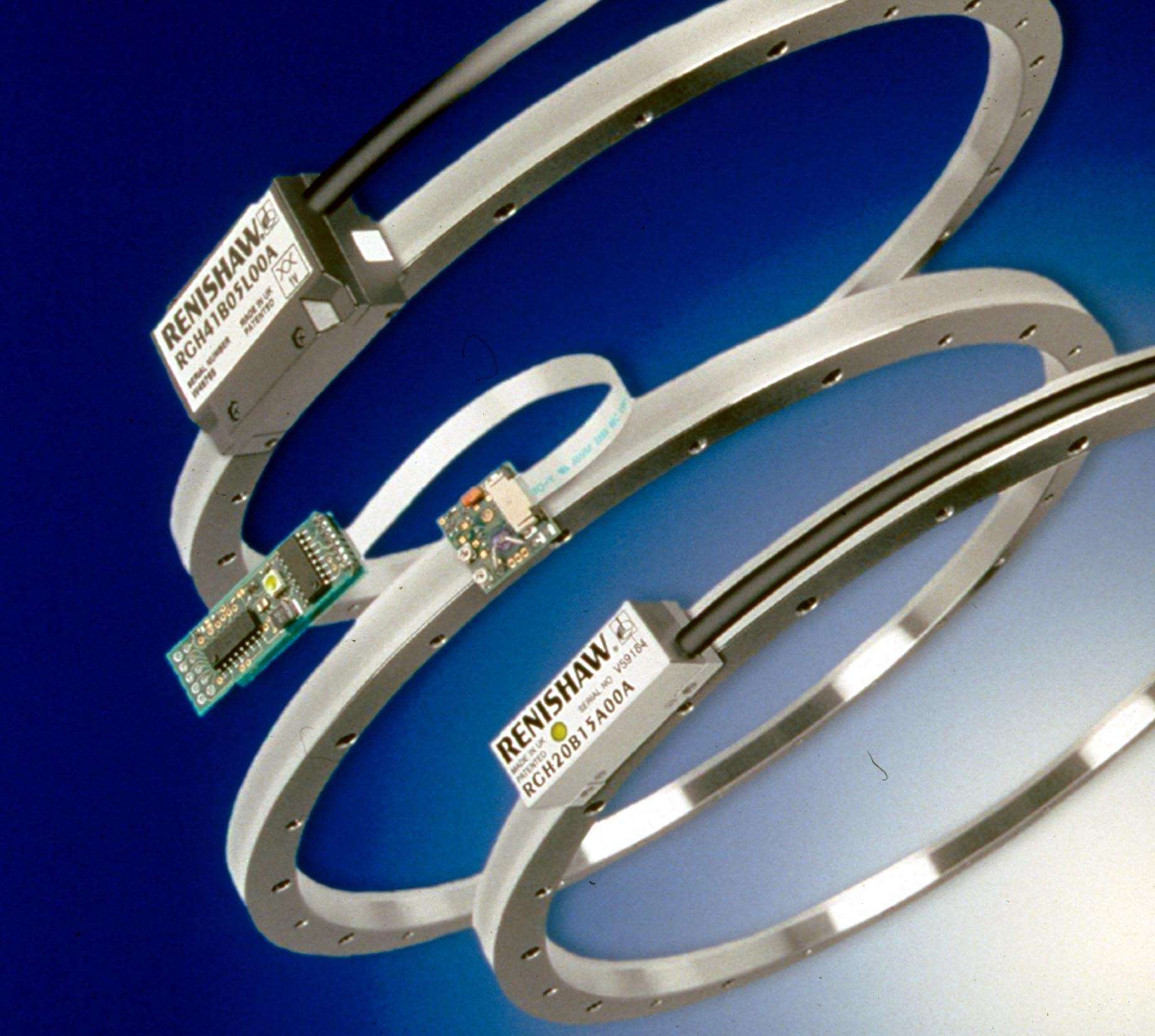

Mar 12, 2003 Series RESR offers accuracy to ±0.5 arc sec and up to 129.6 million counts per revolution. Non-contact optical encoders feature 1-piece design, integral scale, and large through-hole. Digital quadrature outputs range from 27-0.01 arc sec resolutions. Sized for shafts from 1.18-15.43 in., encoders provide line counts from 4096-64,800 with up to 2000X interpolation. Non-contact readhead and filtering optics provide high tolerance to dirt, scratches, and fingerprints.

ID Technology Corp.    Fort Worth, TX 76106

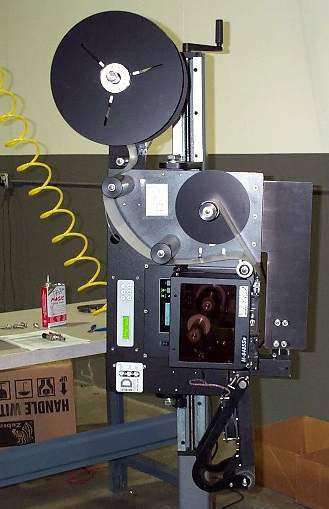

Mar 12, 2003 Corner Wrap Module for Model 250 Label Printer Applicator allows label to wrap from leading edge onto top of case or carton. Print engine prints label and dispenses it onto tamp pad. Corner wrap assembly, mounted on pneumatic cylinder, extends tamp pad into path of case as it travels down conveyor. Module advances and transfers label along side of box and onto top panel as forward momentum of carton converges with tamp pad. Follow along roller wipes label for complete adhesion.

Alto U.S. Inc.    Chesterfield, MO 63017 3626
Mar 12, 2003 Encore33HD Cylindrical Walk-Behind Scrubber simultaneously provides wet debris pickup and aggressive scrubbing. Accu-Trackâ„¢ break-away squeegee does not require any tools for changing. Construction features include heavy-duty Polydur® exterior, cast aluminum scrub deck, and high torque scrub brush motors. Power forward and reverse operation provide maneuverability in manufacturing plants, warehouses, and beverage plants.

Bel-Art Products    Wayne, NJ 07470
Mar 12, 2003 Portable kit cleans small mercury spills. Users unscrew lid with attached foam pad and press it firmly onto spill, forcing mercury into pad. When lid is screwed back onto jar, pad is compressed against freestanding perforated plate, releasing mercury into jar bottom for recovery or disposal. Replacement Pads are available and are affixed using rubber cement.

Master Bond, Inc.    Hackensack, NJ 07601

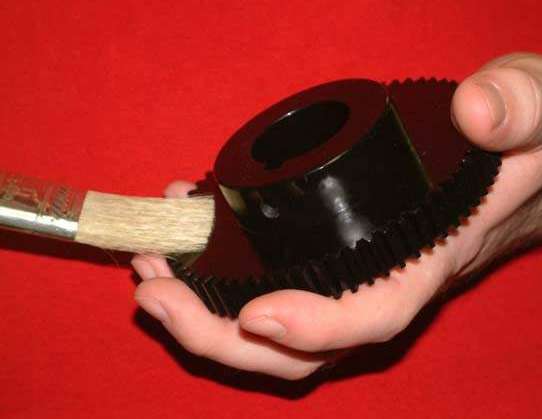

Mar 12, 2003 EP125 two component epoxy system, suited for service above 500°F, withstands exposure to boiling acids, alkalis, salts, fuels, and organic solvents. Able to bond to metallic and nonmetallic surfaces, product offers typical lap shear strengths of 2,400–2,500 psi at ambient temperatures. Castings exhibit flexural strength as high as 15,000 psi and flexural moduli of more than 500,000 psi. With mix ratio of 2 to 1, product requires elevated temperature cure.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217

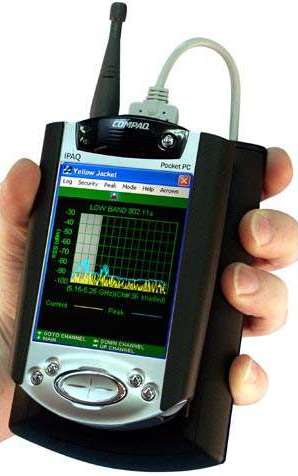

Mar 12, 2003 Yellowjacketâ„¢ 802.11a Wi-Fi Analysis Tool works with Compaq's iPAQ PocketPC for sweeping, analyzing, and optimizing 5 GHz Wireless Local Area Networks. Calibrated receiver measures all 12 OFDM network channels operating on IEEE 802.11a standard, allowing users to determine Access Point, Packet Error Rate, SSID and RSSI signal levels of all access points, and NIC Client cards on or off network.
