MTS Sensors Group    Cary, NC 27513
Mar 10, 2003 Series CSPR sensors provide accurate position sensing while electronics are located remotely. Plastic IP65 model and all-metal IP67 model both have metal sensor tubes and are shielded to prevent signal interruption. They measure up to 250 mm with standard stroke lengths from 72.3–250.1 mm. Temperature range is 0–85°C for IP65 model and -40 to +85°C for IP67 model. Each has analog and PWM outputs and custom-length electrical pigtails.

MTS Sensors Group    Cary, NC 27513
Mar 10, 2003 Suited for fluid level sensing in automotive, marine, agricultural, and recreational applications, Shaped Electromagnetic Field (SEF)-based sensors offer floatless operation and absolute measurement. Continuous level sensing technology can be shaped to linearize volume output in water, coolant, and oil level tanks with non-uniform, irregular cross sectional areas as level rises. Flat, ruler-shaped units can be shaped to fit into serpentine paths.

Hatch    Mississauga, ON L5K2R7  Canada
Mar 10, 2003 Centurionâ„¢ Disturbance Gear, offered as one complete kit, is available in two versions to suit varying applications. Each set of gear includes chest protector, integrated groin protector, hard-shell shin guards, forearm protection, gloves, and nylon restraints. Components are packed in M2 Mission Specific gear bag.

Ultra Electronics - DNE Technologies, Inc.    Wallingford, CT 06492
Mar 10, 2003 Model AN/FCC-100(V)9/9X, 16-channel multiplexer offers aggregate rate of 2,048 kbps and SNMP Management capabilities. Cards within multiplexer include Mux/Demux, FXS, FXO, and E&M Voice card. Unit supports digital interfaces in asynchronous and synchronous formats at rates from 50 bps to 768 kbps. Additional features include voice compression technology; support for STU-III, CDI, and serial applications; and Crypto Resync capability.

Moxa Inc.    Brea, CA 92823
Mar 10, 2003 MOXA EtherDevice Server(TM) includes Reliable Redundant Ring Connection, Line-Swap Fast Recovery, and Auto E-mail Warning features. EDS-SNMP OPC Server software package collects SNMP data from Ethernet then converts data to OPC format. MOXA EtherDevice(TM) Switch EDS-308/305 Series supports IEEE 802.3/802.3u/802.3x, and provides relay output alarm by power failure or port break. MOXA Industrial Media Converter IMC-101 Series converts and connects from Ethernet to Fiber Optical port.

Hach Company    Loveland, CO 80539-0389
Mar 10, 2003 Equipped with digital, backlit display, HachLDOâ„¢ measures dissolved oxygen using luminescent measurement technique that does not consume oxygen and requires no electrodes or electrolyte. Measuring technique eliminates frequent calibrations and reduces cleaning frequency.

Bayhead Products Corp.    Dover, NH 03820 4340
Mar 10, 2003 Haul-All Tilt Trucks are offered in 6 sizes ranging from 1/3–3.0 cubic yard. Smallest unit provides compact size for tight spaces. Molded plastic bodies are available in variety of colors, as are optional hinged lids.

Kycon Inc.    San Jose, CA 95125
Mar 10, 2003 Right Angle RJ-45 Jack, with LED indicators, is fully shielded and has top and side grounding tabs for conductivity, panel grounding, and EMI/RFI protection. Snap-in board retention tabs provide additional stability after soldering. PCB-mount RJ45 is black Nylon 46, high-temp thermoplastic for wave and reflow soldering compatibility. Contact material is nickel-plated phosphor bronze with selectively plated gold on contact area and tin-lead on solder tails.

Moxa Inc.    Brea, CA 92823
Mar 10, 2003 Multiport serial boards feature low profile Universal PCI interface, 64-byte FIFO driver, and ability to accept both 3.3 and 5 V server slots. CP-132U series has 2 RS-422/485 ports, CP-134U series has 4 RS-422/485 ports, CP-104UL series has 4 RS-232 ports, and CP-168U series has 8 RS-232 ports. Features include embedded 16 kV ESD surge protection, optional 2 kV optical isolation for RS-422/485, and ADDC(TM) for RS-485 programming.

Moxa Inc.    Brea, CA 92823
Mar 10, 2003 NPort Express Model DE-211 features wide power input range that accepts 24 Vdc, terminal-block accessories, built-in terminator, and 2- and 4-wire RS-485 for long distance transmission up to 1.5 km. Unit comes with 3-in-1 RS-232/422/485 serial interface and can network-enable industrial serial devices, such as information display boards, PLCs, flow meters, gas meters, and CNC machines. Software includes deployment tool and MAC-address based IP address configuration.

Joyce/Dayton Corp.    Dayton, OH 45401-1630
Mar 10, 2003 Screw-Driven Vertical Reciprocating Conveyor, with self-locking drive design, eliminates risk of carriage free falling due to power outages, drive and/or hydraulic failure. Unit includes mushroom-style emergency stop buttons, over/under travel limit switches, gates and enclosures with interlocks, and handrails with safety chains. LED circuit board streamlines controls. Carriage sizes range from 3 x 3 to 6 x 6 ft with capacities from 1,000–6,000 lb.

Lock n'Pop    Lynnwood, WA 98036
Mar 10, 2003 Pallet-stabilizing Lock n'Pop is for low-volume use for materials in storage and securing airfreight shipments. Adhesive assures that packages won't slide, yet separates with no evidence of adhesive use. Designed for paper surfaces including white, printed, and non-printed corrugated boxes and multi-walled bags, adhesive is safe for indoor use. Aerosol is water-based and biodegradable, and is safe for indirect contact with food.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Mar 10, 2003 With self-recharging Solarcell™ lithium battery, auto-darkening welding helmets have variable welding shade control (No. 9–13), lens sensitivity and delay control, and auto-on/auto-off circuitry with reset function. Viewing field of 3.85 x 1.85 in. provides continuous eye protection against UV and IR radiation, even when lens is in No. 3 ultra-clear mode. Made of polyamide nylon materials, helmets weigh 16 oz. Series has 1/16,000 sec lens reaction time.

Big Ass Fans    Lexington, KY 40575
Mar 10, 2003 High-volume, low-speed 8 ft enclosed vertical fan pivots to direct air to wherever it is desired. Movable fans cost less than a nickel an hour in electricity to operate. With energy savings throughout year, payback on fans is typically two years or less.

Innovative Solutions, LLC    Naugatuck, CT 06770-2224
Mar 10, 2003 Model L500C Remote Chamber Level Switch mounts outside tank where inside mounting is impractical or impossible. Vertically installed unit features all brass or 316 SS body with 316L SS internal float assembly. It is rated for operating pressures to 750 psig at 70°F and max operating temperatures to 300°F. Housing can safely contain over pressure to 1,500 psig. Ample clearance between float and chamber wall avoids particle entrapment and jamming. Ports are ¾ or 1 in. NPT.

Dixon Valve & Coupling Co.    Chestertown, MD 21620 1135

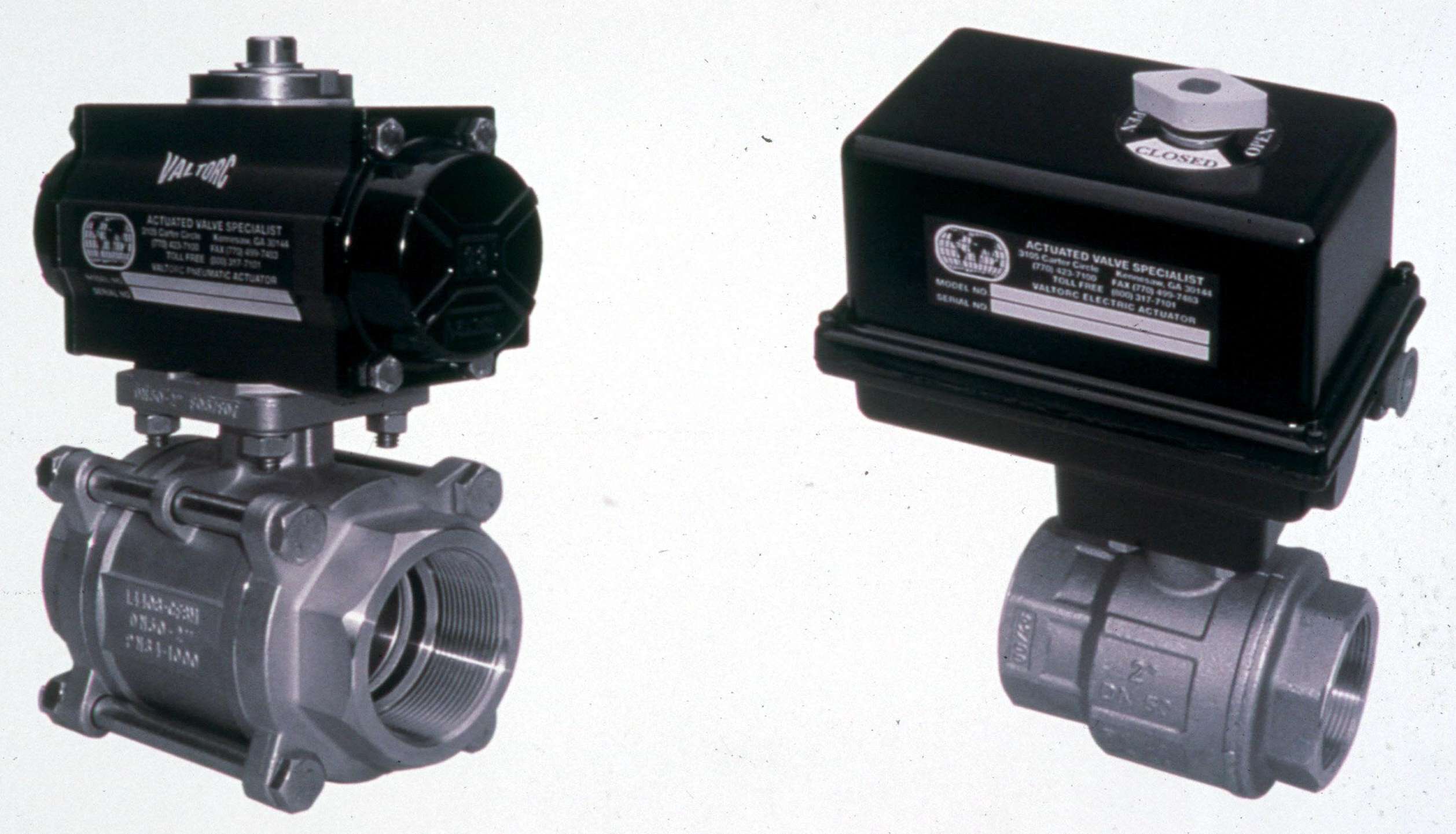

Mar 10, 2003 Direct-mounted, brass and stainless steel ball valves are available in model sizes from ½â€“3 in. Used to remotely control operation of valves in various applications, products incorporate positioners and solenoid valves that provide visual confirmation of valve position. Products offer full control over opening/closing of each valve and are suited for use with valves in difficult to reach or dangerous environments.

Princo Instruments, Inc.    Southampton, PA 18966

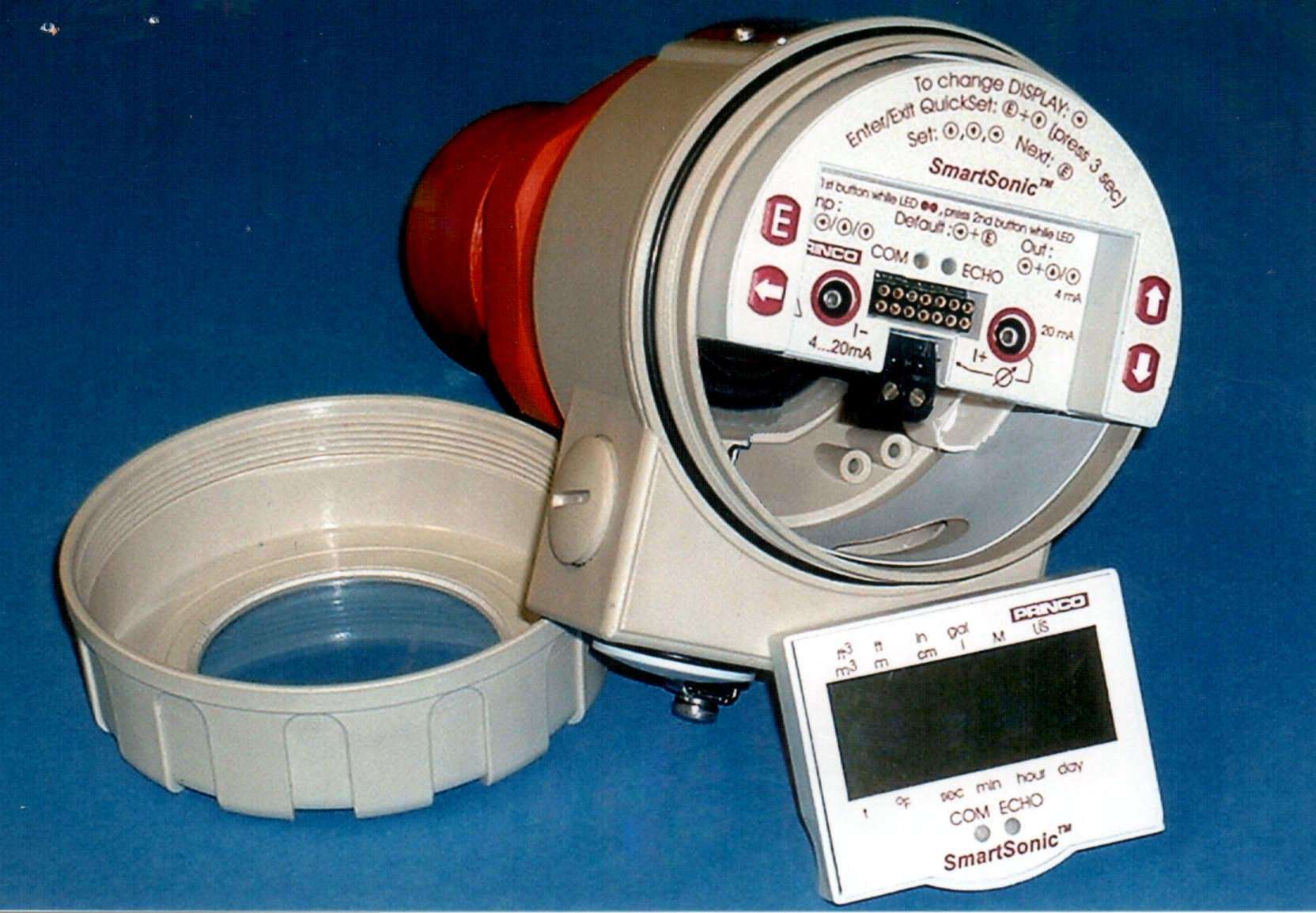

Mar 10, 2003 SmartSonicâ„¢ L4660-SE/SG-300 2-wire loop-powered transmitters offer built-in temperature compensation and indication, open channel flow characterization, 32-point linearization, and intuitive setup. Signal processing software identifies and validates surface signal and provides agitator/stirrer filtering and dead band control. Narrow Beam Technology allows accuracy in narrow vessels and flumes and ignores baffles, uneven sidewalls, and other obstructions.

Sylvania Automotive & Miniature Lighting Operations    Hillsboro, NH 03244

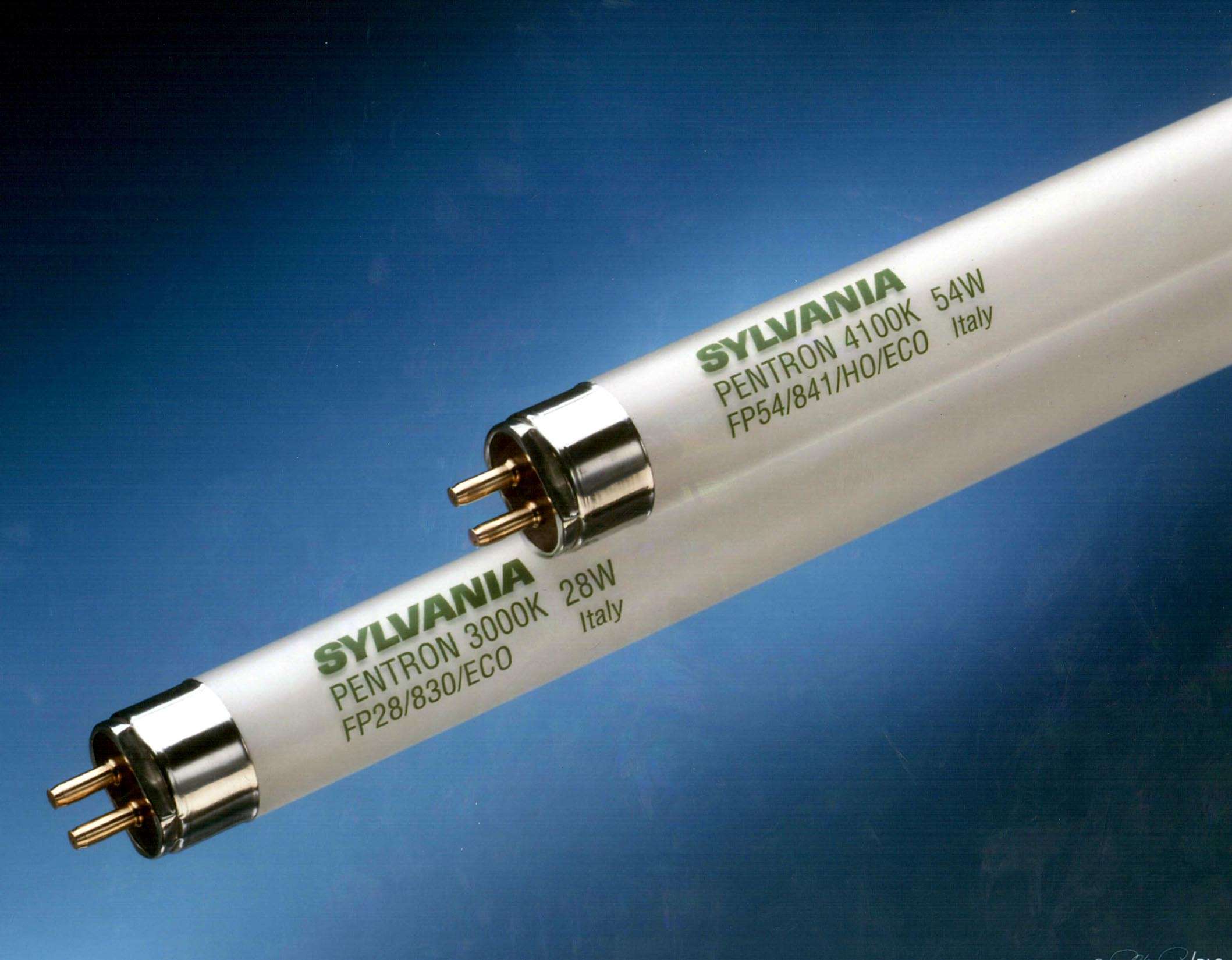

Mar 10, 2003 PENTRON® ECO and PENTRON® HO ECO low mercury T5 lamps are offered in nominal 2, 3, 4, and 5 ft lengths. When used in luminaires specifically designed for them, PENTRON ECO Systems can produce between 5-20% more light than T8 Systems while reducing impact on environment. Lamps are 5/8 in. in diameter and offer high light output making them suitable for indirect lighting, task lighting, and industrial/warehouse lighting.

Ciratec Corp.    Phillipsburg, NJ 08865

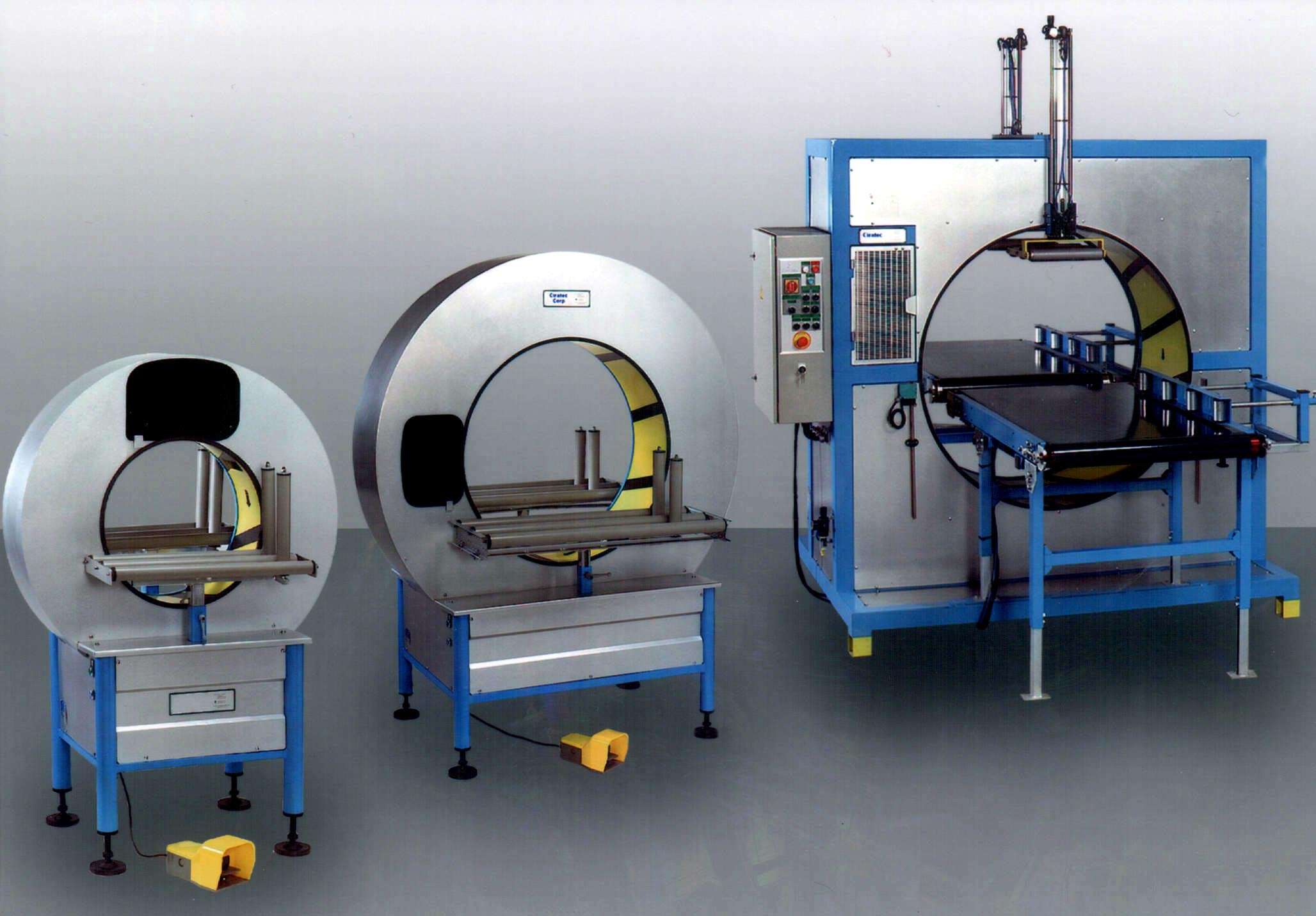

Mar 10, 2003 Orbital Wrapping Machines simultaneously apply 2 rolls of film to double wrapping rates and cut frequency of film reload in half. They accommodate bulky, flat, loose, light and heavy loads in unlimited lengths with packaging diameters up to 48.80 in. Vertical and horizontal gravity rollers ensure products are fed smoothly and centered. They may be adjusted on the fly for product changeover. Machines come in 20, 36, and 50 in. ID operating at speeds from 121-45 rpm.

Optical Gaging Products, Inc.    Rochester, NY 14621 4839

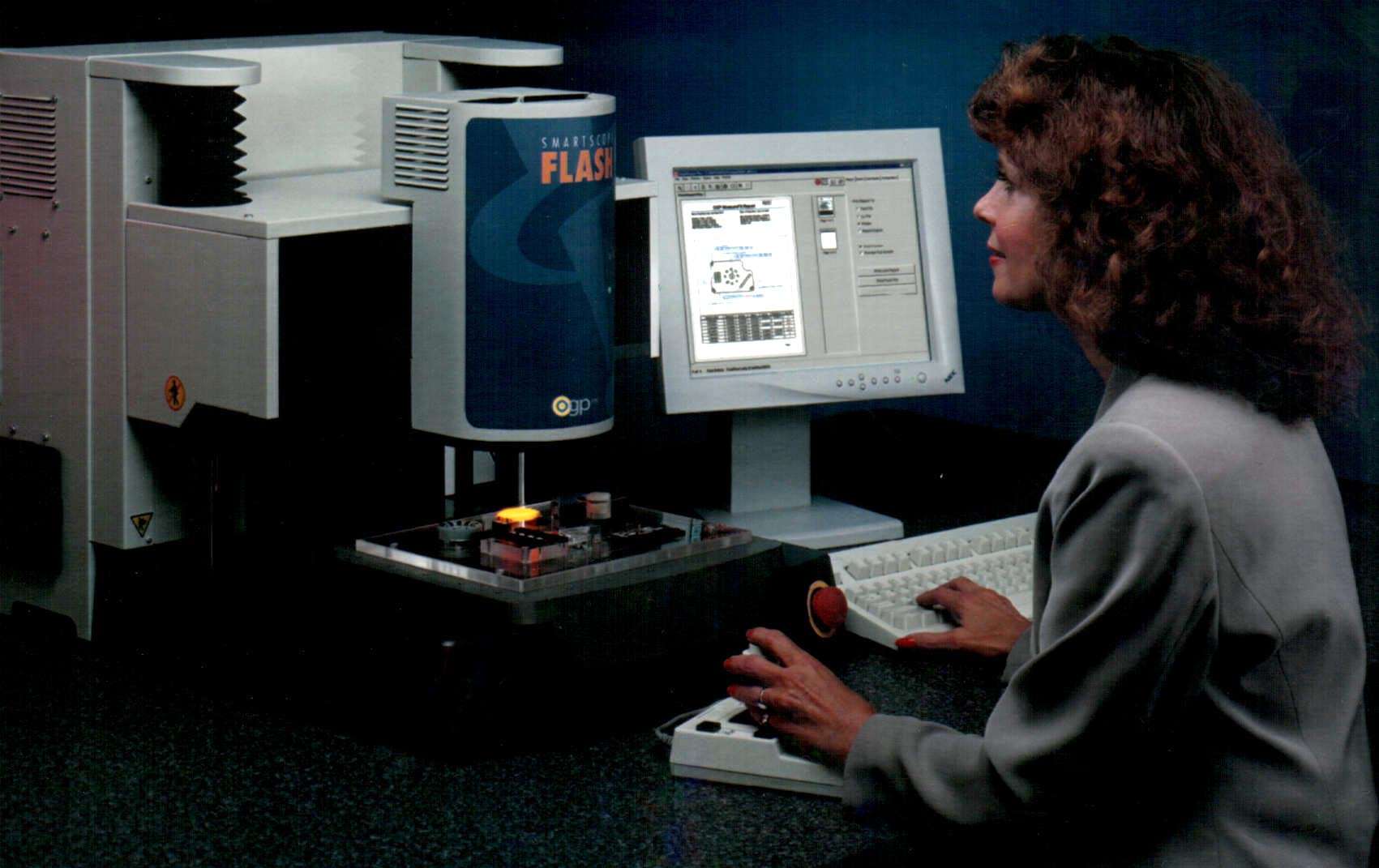

Mar 10, 2003 Multi-sensor SmartScope® Flashâ„¢ 200 integrates video and through-the-lens laser to measure dimensions of manufactured parts, without contact. Imaging range of AccuCentricâ„¢ 12x zoom lens is automatically calibrated at every magnification. Integral laser complements video measurements with linear, circular, and area scans of surface contours and geometry. Powered by 32-bit Measure-Xâ„¢ software, SmartScope Flash 200 uses point and click tools to simplify measurements.
