Anderson Products    Worcester, MA 01610

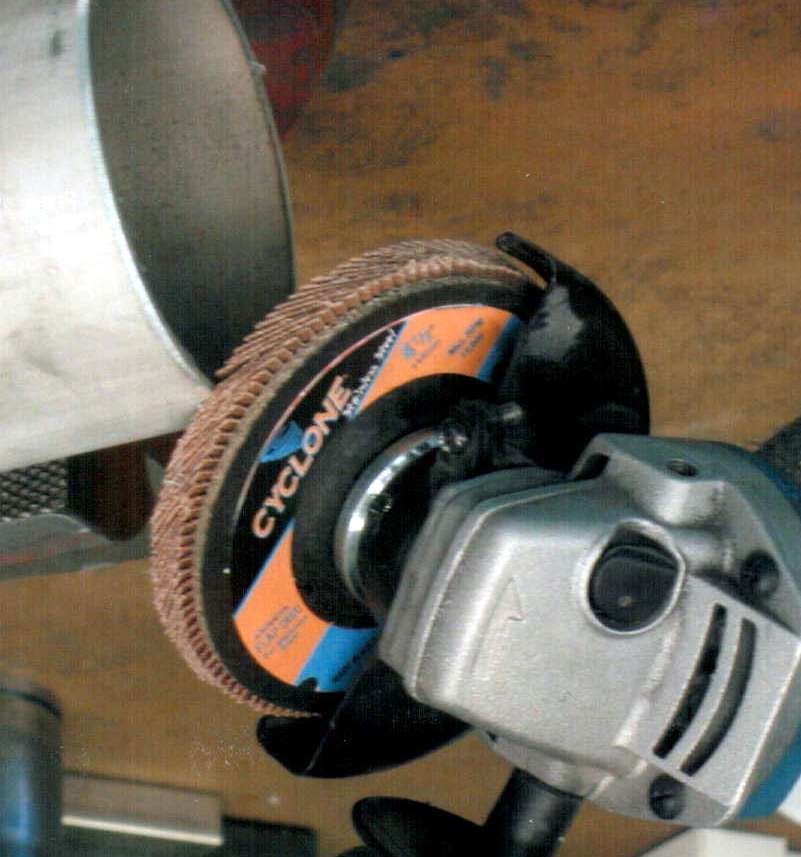

Mar 12, 2003 Cycloneâ„¢ Stainless Steel Flap Discs are for grinding stainless steel in weld blending, deburring, deflashing, stock removal, and dressing applications. Discs are made of long-life abrasive cloth to reduce cost-per-piece. Fast-cutting cloth prevents dulling and glazing of abrasive grains and phenolic backing prevents gouging. Offered in 4 1/2 and 7 in. diameters, discs come in 60 or 80 grit.

RF Industries    San Diego, CA 92126 4202

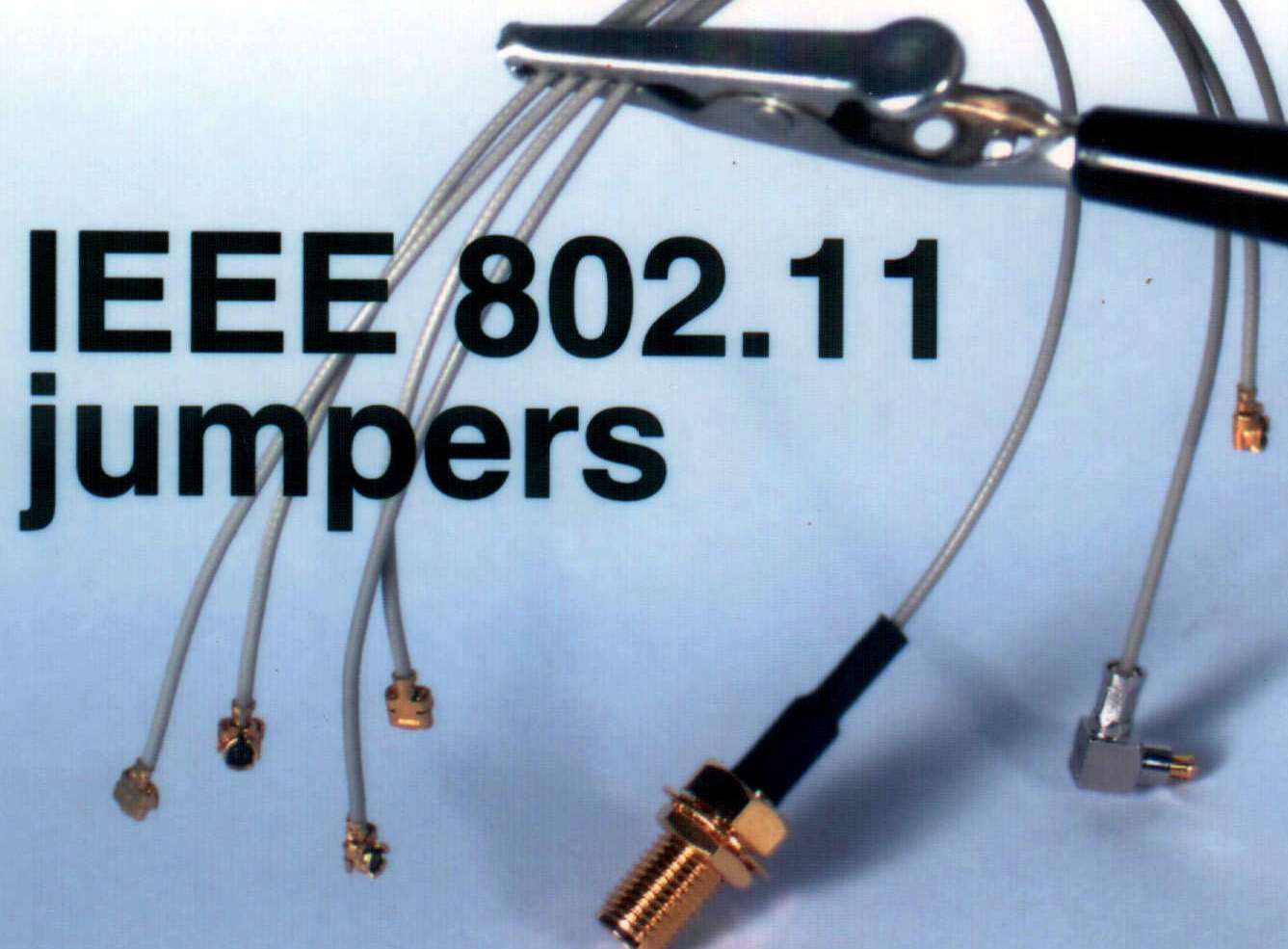

Mar 12, 2003 MHF jumpers satisfy IEEE 802.11, Bluetoothâ„¢ and FCC Part 15 standards for wireless applications including WLAN, RF Test Points, and PDA devices. Jumpers use low profile connectors that occupy minimal board space while providing VSWR rating of 1.3 max. up to 6 GHz. Teflon cables are used in RFW-10506-XX, MHF plug to MHF plug; RFW-10507-XX, MHF plug to pigtail; RFW-10508-XX, MHF plug to MC Card plug; and RFV-10531- XX, MHF plug to SMA female bulkhead.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608

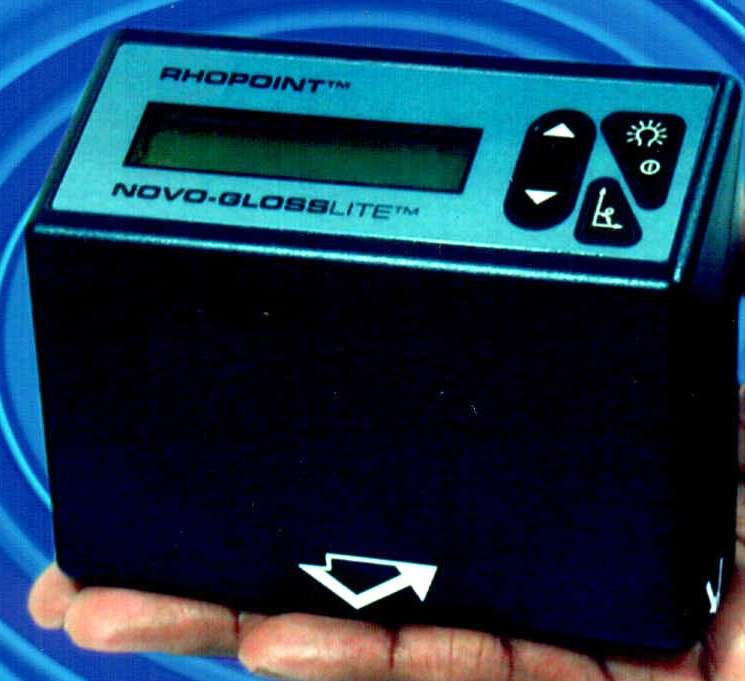

Mar 12, 2003 NovoLITE(TM) comes with choice of dual or single 20/60° angles, with or without statistical analysis. Injection-molded optic block reduces weight. Auto-ranging meter measures from matte to mirror finish, with one-touch calibration system and hold and read capability to check surfaces for high and low gloss levels. It is supplied with NOVO-SOFT(TM) Quality Control software and connection leads. Up to 25 readings can be batched together and downloaded to spreadsheet.

CPC    St. Paul, MN 55114-1065
Mar 12, 2003 Series NSH non-spill, corrosion-resistant, pressure-balanced couplings feature all-plastic, metal-free, and spring-free flow path. Integral termination fittings eliminate potential leak path. Couplings, with 3.0 Cv capacity, withstand operating pressures from vacuum to 120 psig and temperatures from 32–120°F. Terminations include 3/8 and 1/2 in. OD compression, 3/8 and 1/2 in. ID hose barb, 3/8 in male NPT thread, 3/8 in. male BSPT thread, and 3/8 in. female NPT thread.

Colder Products Co.    St. Paul, MN 55114

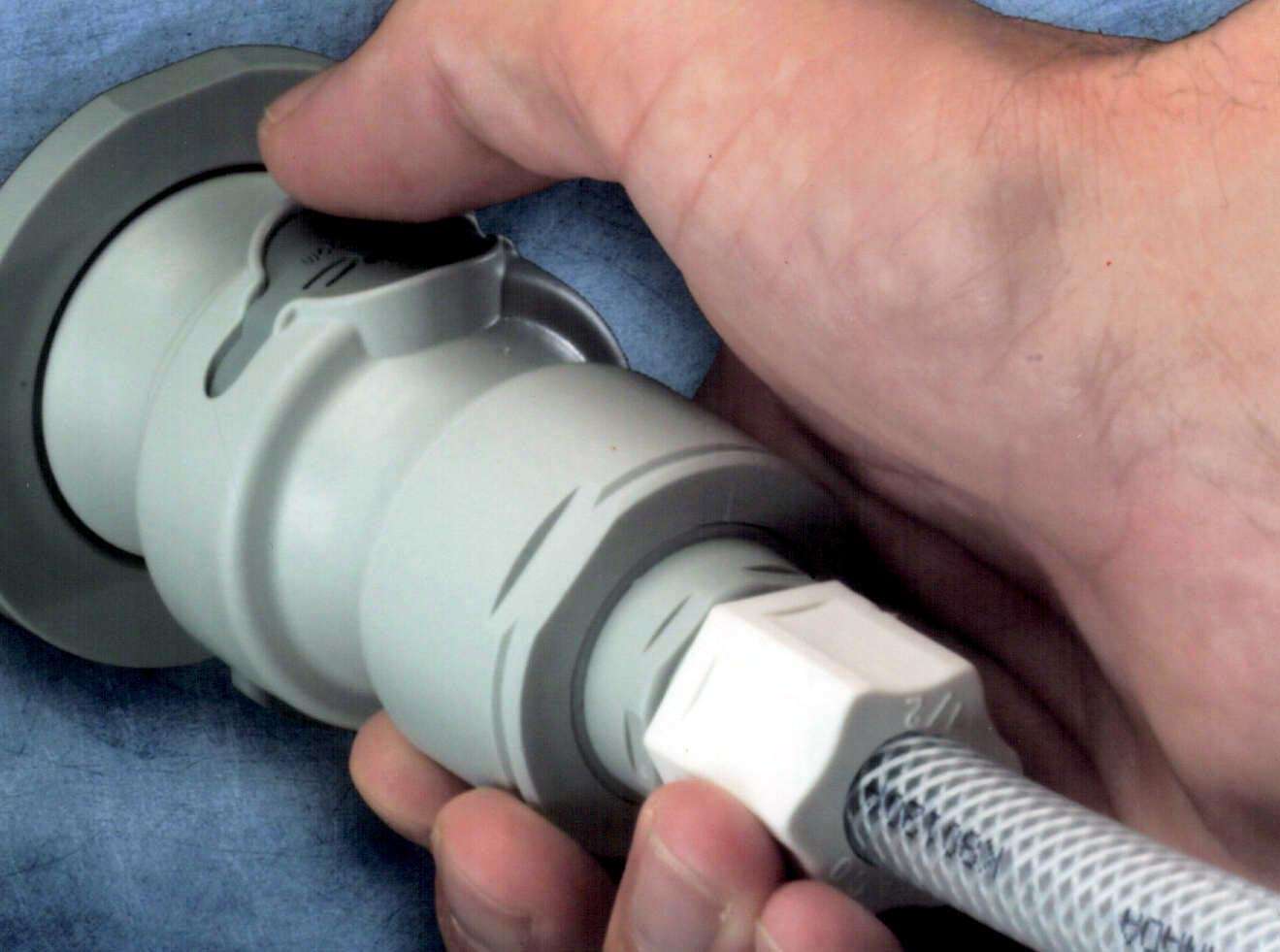

Mar 12, 2003 Rack and Panel quick-disconnect, non-spill couplings make close-loop liquid cooling safe for electronic enclosures. Made of aluminum and thermoplastics, they are virtually leak-free with flow rates reaching 14 gpm at 100 psi. Couplings are suitable for cell tower base stations, power amplifiers, computer cooling, circuit board testing, and MRI cooling.

EFD Inc.    East Providence, RI 02914-1342
Mar 12, 2003 Squeegee lubricity reduces friction when applying solder pastes, which minimizes wear and extends stencil and squeegee life. Chemical-resistant product includes blades that can be rotated as they wear to provide four working faces. Adjustable holder, used with squeegees, provides unique geometry that optimizes material roll, facilitating faster print speeds.

EMX Industries, Inc.    Cleveland, OH 44128
Mar 12, 2003 With sensing range of 2-60 mm, models LC 2001 and LC 2004 detect one and four recorded colors respectively. Both units incorporate Self-Teach function for quick adjustments. Applications include sorting of colored parts; detection of marks, colored tags, and lid color; and verifying presence of labels, wires, and colored liquids. They can also be used in verification of rocker switch color, orientation of parts, and correct assembly of color-coded plugs.

Baldor Electric Company    Fort Smith, AR 72901

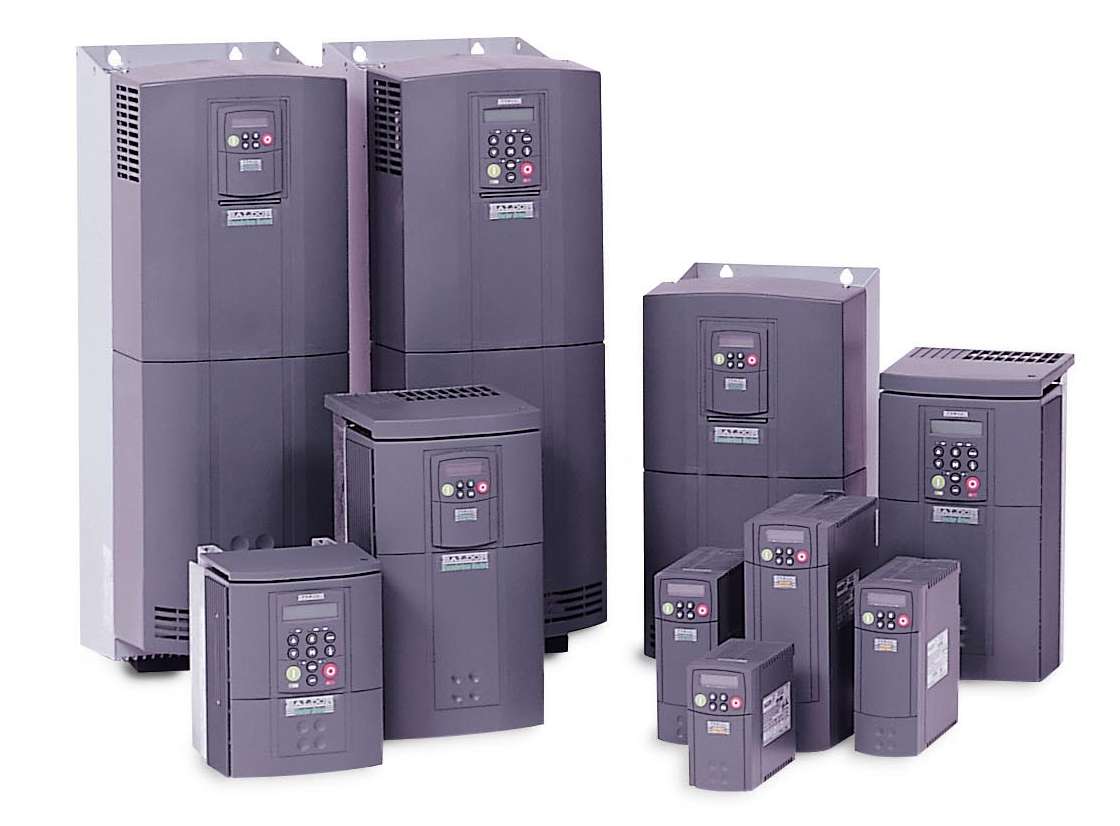

Mar 12, 2003 VersaFlex(TM) drives, with protected chassis enclosures, provide selectable feedback with option boards and auto-tune. Design offerings include 30 sec peak overload capacity @ 150% (1 sec @ 200%) and assignable analog I/O. Products include AC inverter drives, encoderless vector drives in open-loop vector configurations, and vector drives in closed-loop configurations. Features include output frequency of 0-240 Hz and digital operator control and display.

Baldor Electric Company    Fort Smith, AR 72901

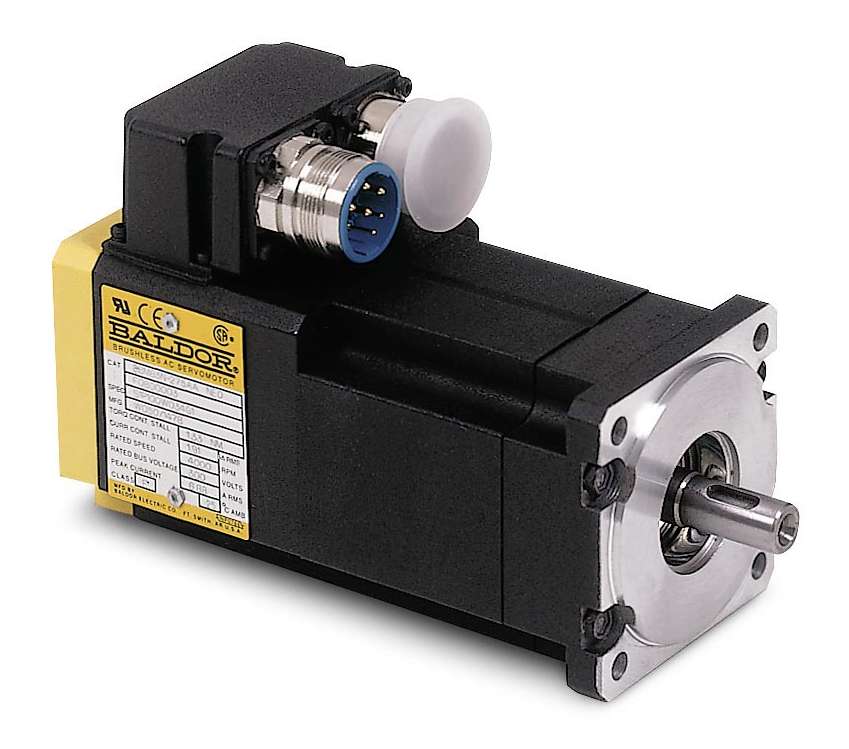

Mar 12, 2003 With rated speed of 4,000 rpm, BSM C-series provides users with positive solution for torques ranging from 20-200 lb-in. with medium inertia. Peak current is rated at 688 A rms. It is available with feedback devices such as resolvers, encoders, and absolute position encoders. Motor series may be Performance Matched(TM) with company's digital servo drives. Setup choices include keypad or Wizard Windows(TM).

SWF Machinery    Sanger, CA 93657
Mar 12, 2003 Fully automatic TF 600H produces trays that facilitate handling, storage, and shipment of products on standardized pallets. Product also allows for mixed pallet loads with production of common footprint trays. Capable of producing hundreds of tray styles, unit produces 600 x 400, 400 x 300, and 500 x 400 mm footprint trays, with various depths. Trays conform to 5 and 6 down requirements, while 10 and 12 down half sizes can also be produced.

Baldor Electric Company    Fort Smith, AR 72901

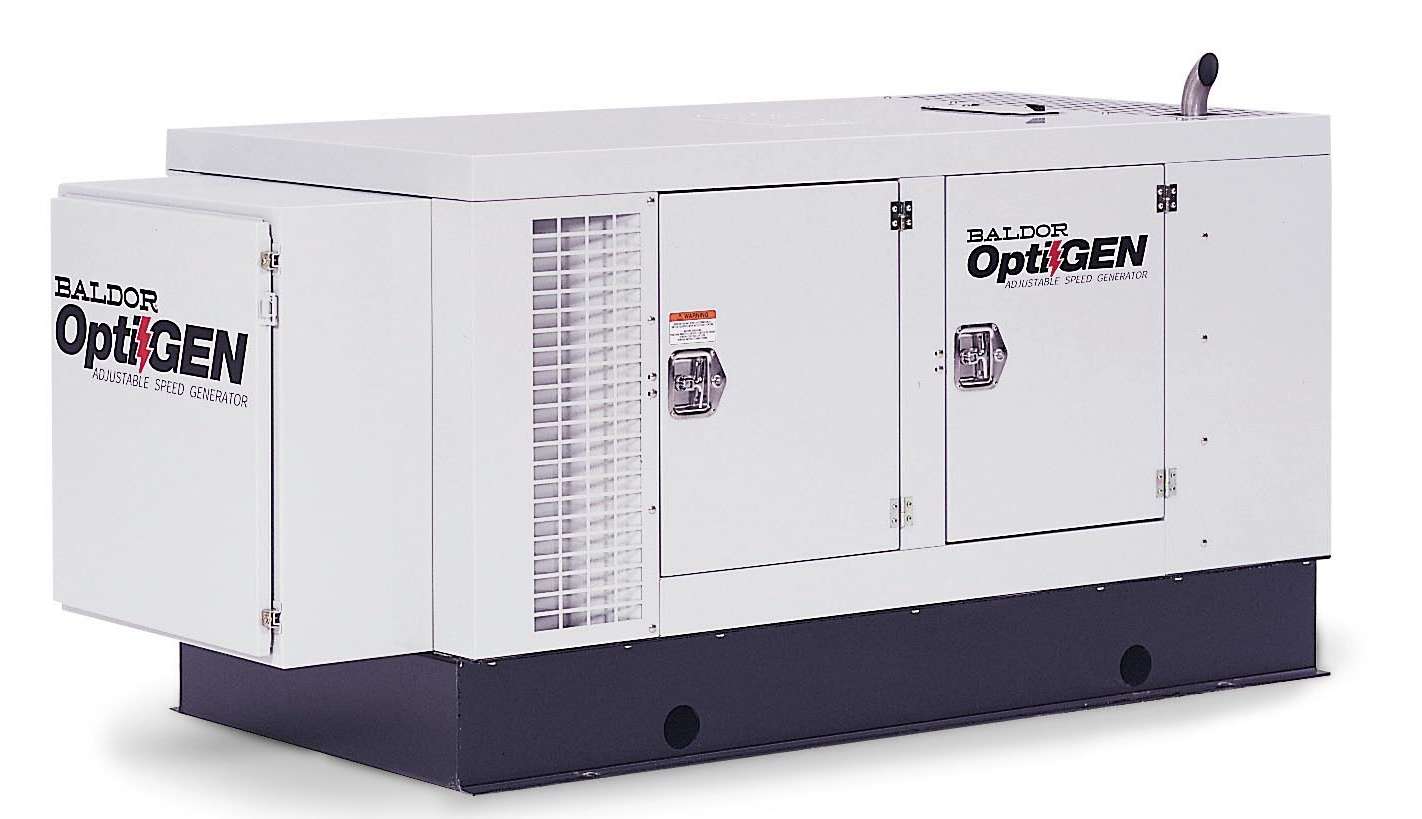

Mar 12, 2003 OptiGen(TM) utilizes power electronics and engine control to automatically adjust engine speed in accordance with electrical power being consumed. Onboard power electronics also maintain constant voltage and frequency output during all load conditions. Generator provides up to 250% rated power for electric motor starting. UPS module may be added when power transfer time is critical. It is suited for applications where standby power generation is required.

Kanotech Information Systems Ltd.    Edmonton, AB T5S 1J9  Canada

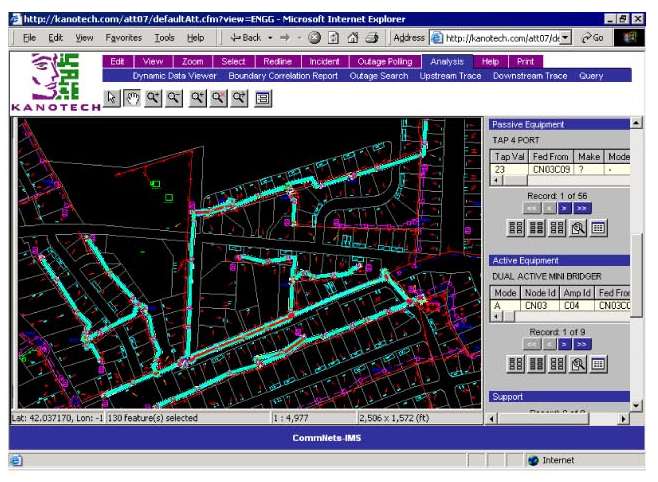

Mar 12, 2003 Communication Networks Infrastructure Management System software provides configurable solution for distributing mapping and related data for infrastructure dense networks. Suited for firms that have large RF and/or Fiber Optic networks, software provides access to detailed mapping, engineering data, and connectivity data. Tools allow users to perform connectivity tracing, outage logging, outage analysis, redlining, querying/reporting, and incident reporting.

ASCO (Automatic Switch Co., Valve Div.)    Florham Park, NJ 07932

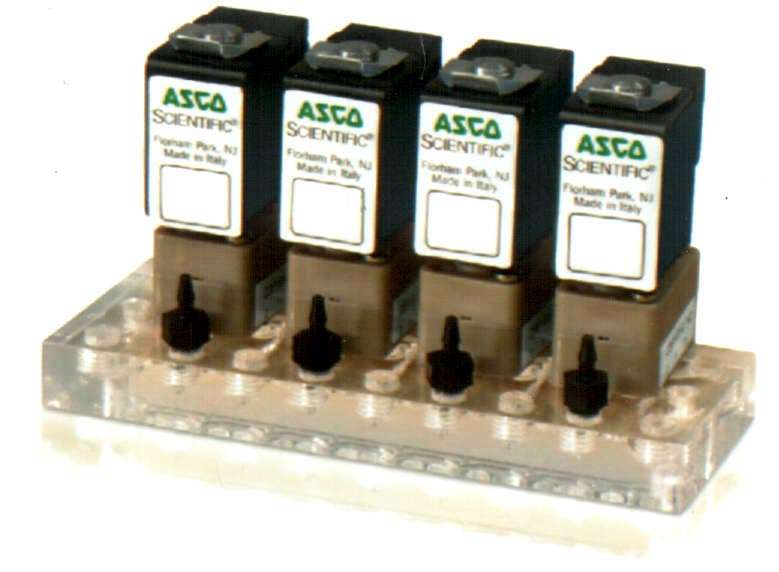

Mar 12, 2003 Miniature Series 385 is 16 mm wide with manifold-mount design that reduces number of potential leak points of fluid circuit. Rocker diaphragm mechanism forms easy-to-flush internal cavity, which prevents cross-contamination and eliminates erratic flow caused by pumping action. Inert materials of construction include PEEK, FFKM, FKM, and EPDM to handle corrosive or high-purity fluids.

Clark Solutions    Clinton, MA 01510

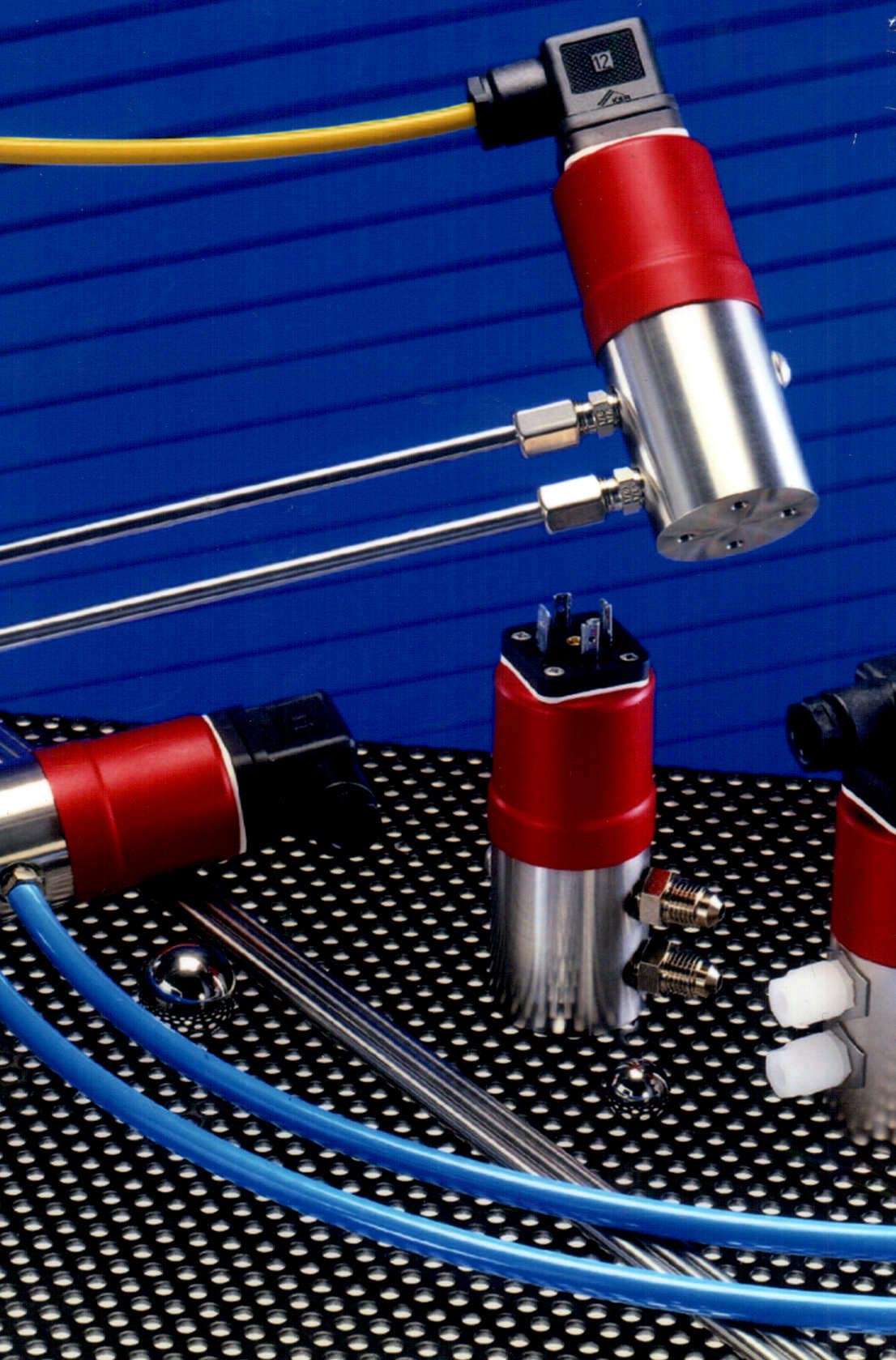

Mar 12, 2003 Series 692 transmitters utilize ceramic sensor technology and feature calibrated and amplified sensor signals available as standard voltage or current outputs. Offered in 5 models with pressure ranges of 0–25 to 0–150 psid, units have stainless steel or PVDF housings and variety of seal elastomers to accommodate liquid and gas media. They are suitable for monitoring pumps and pressure drops in HVAC chilled water and process systems.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
Mar 12, 2003 Latching Switch Relays are 2-position, rotary-action devices used to open or close and maintain up to 20 contacts. Series 24 LSR can be configured with 3, 5, 8, or 10 decks. Contacts are rated at 60 A for 1 min and 30 A continuous in range of 125–250 Vdc or 120–600 Vac. Series 31 LSR can be configured with 3, 6, or 8 decks. Contacts are rated at 25 A for 1 min and 15 A continuous in range of 12–125 Vdc or 120–600 Vac. Both can be operated manually or remotely.

Algor Inc.    Pittsburgh, PA 15238
Mar 12, 2003 FEMPRO with contact option offers bonded, welded, free/no contact, surface contact, and edge contact analysis. Surface contact option simulates contact between surface area where parts touch, and edge contact option simulates contact between edges and where those edges touch other parts. Software can consider static friction effects by specifying static friction coefficient or by using default. It is suitable for use on models created in wide range of CAD solid modelers.

Lyon Workspace Products    Aurora, IL 60507
Mar 12, 2003 Mobile Work Centers have flush-mounted doors with padlock hasp, spring-actuated pull handle, and 8 gauge welded hinge plates. Ten gauge steel top features 2 in. high back and end stops, and accommodates customer-supplied vise. Internal shelf offers capacity of 1,450 lb and is adjustable on 3 in. centers. Two full-width open shelves across back hold supplies. Two fixed and 2 swivel-braking, 8 in. dia roller bearing phenolic casters support total of 3,600 lb.

Simonds Industries, Inc.    Fitchburg, MA 01420
Mar 12, 2003 Heat-treated BlockBuster® M42 Blades feature fatigue-resistant backer. Variable-pitch tooth configurations include 1.1-1.4, 1.5-1.9, 2-3, 3-4, 4-6, and 5-8 teeth per inch. Widths range from 1 ½ to 3 1/8 in. and thickness range from .050–.062 in. Blades can cut through variety of steel including carbon, chrome, tool, die, and stainless, as well as titanium and other alloys and are suited for high-production cutting applications.

Methode Electronics, Inc.,Connector Products Div.    Rolling Meadows, IL 60008
Mar 12, 2003 Mini USB Series consists of Type A, B, and AB connectors that are shielded for EMI protection, polarized to prevent mis-mating, and rated for 5,000 mating cycles. They support data rates up to 480 Mbps and power requirements up to 500 mA. Product variations include board-mount receptacles and cable plugs, both of which meet USB 2.0 requirements. Connectors are suitable for handheld computers, PDAs, MP3 players, digital cameras, and other portable devices.

Banner Engineering Corp.    Minneapolis, MN 55441
Mar 12, 2003 Model QC50 10-30 Vdc sensor emits modulated white light which, when reflected back from object, is electronically filtered to red, green, and blue components for color determination. Color-Only mode is for sorting applications where color differences are obvious, and Color-Plus-Intensity mode refines sensor's capabilities to include gray scale. Unit has IP67-rated plastic housing and operates in temperatures of 14-131°F. Max output rating is 40 mA at 24 Vdc.
