American Zettler, Inc.    Aliso Viejo, CA 92656 4115

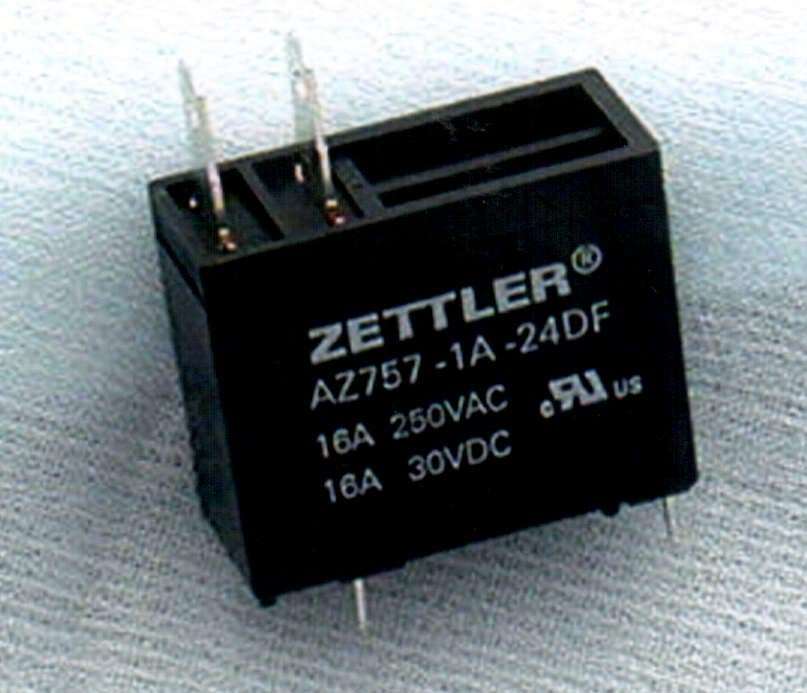

Apr 09, 2003 Model AZ757 pc-mount 16 A power relay features standard pc connections for coil with quick-connects for contacts. Slimpak® Design allows high-density placement. Dielectric rating is 5 kV contact to coil, and surge rating is 10 kV. Coil voltages range from 5–24 Vdc. Class B insulation is standard, with Class F insulation optional. Typical applications include microwave ovens, copiers, stereo equipment, and vending machines.

GOJO Industries, Inc.    Akron, OH 44309 0991
Apr 09, 2003 Ink and Stain Hand Cleaner removes stubborn inks and dyes with various compositions, including solvent, water, and UV-curable bases from hands. Hand cleaner is available in 14 fl. oz. grip bottle with integrated hand and nail brush.

Avalon Vision Solutions, LLC.    Lithia Springs, GA 30122

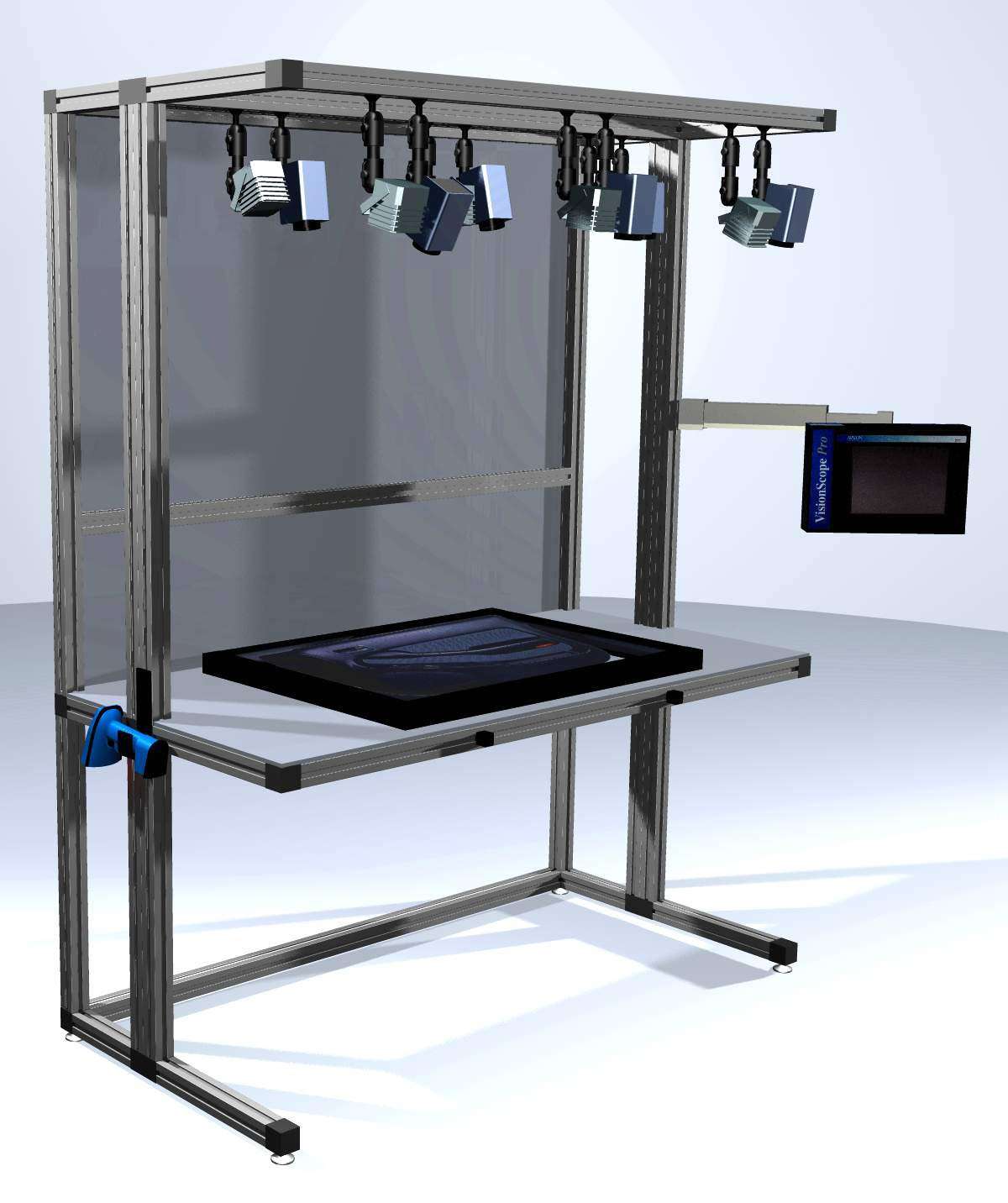

Apr 09, 2003 QualityStation with PlantVision v7 features event-driven I/O architecture that permits multiple quality assurance inspection events to be executed asynchronously. Variety of parts and assemblies can be inspected in random order and in any lot size. Advanced machine interface (AMI) allows maintenance-level technician to configure digital, serial, or Ethernet control interfaces with virtually any production machinery and does not require ladder-logic, programming, or command language.

Adalet    Cleveland, OH 44135 3301

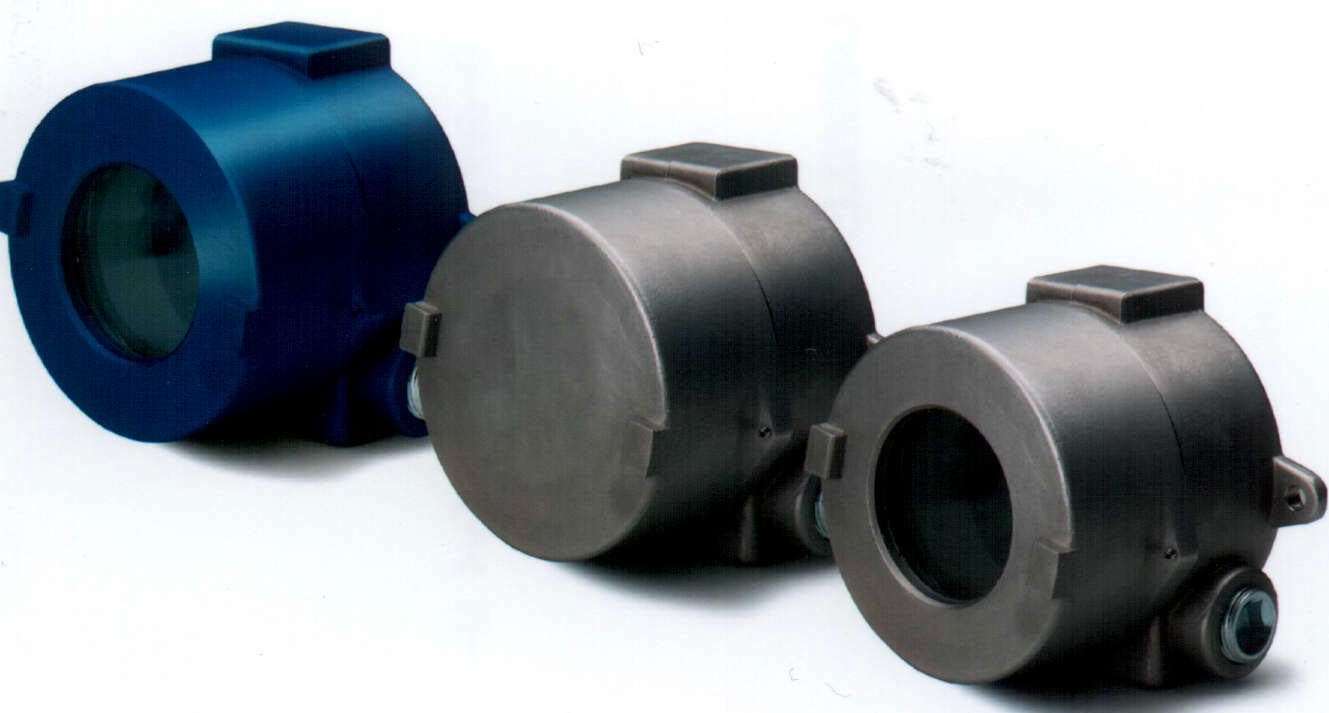

Apr 09, 2003 Series XIHMK Explosionproof Instrument Housings suit large diameter assemblies, multi-level circuit boards or wide-angle readouts and displays and have 3-9/16 in. ID. Housings are precision machined from sand-cast, copper-free aluminum, or 316 stainless steel and feature 3/4 in. NPT conduit feed-through hubs, 7/16 in. thick base for blind tapped instrument mounting holes, and 2-1/2 in. dia. glass cover. Units meet multiple certification agency requirements.

Saint-Gobain Performance Plastics, Attachment Tapes, Sealants & Gaskets    Granville, NY 12832-1699

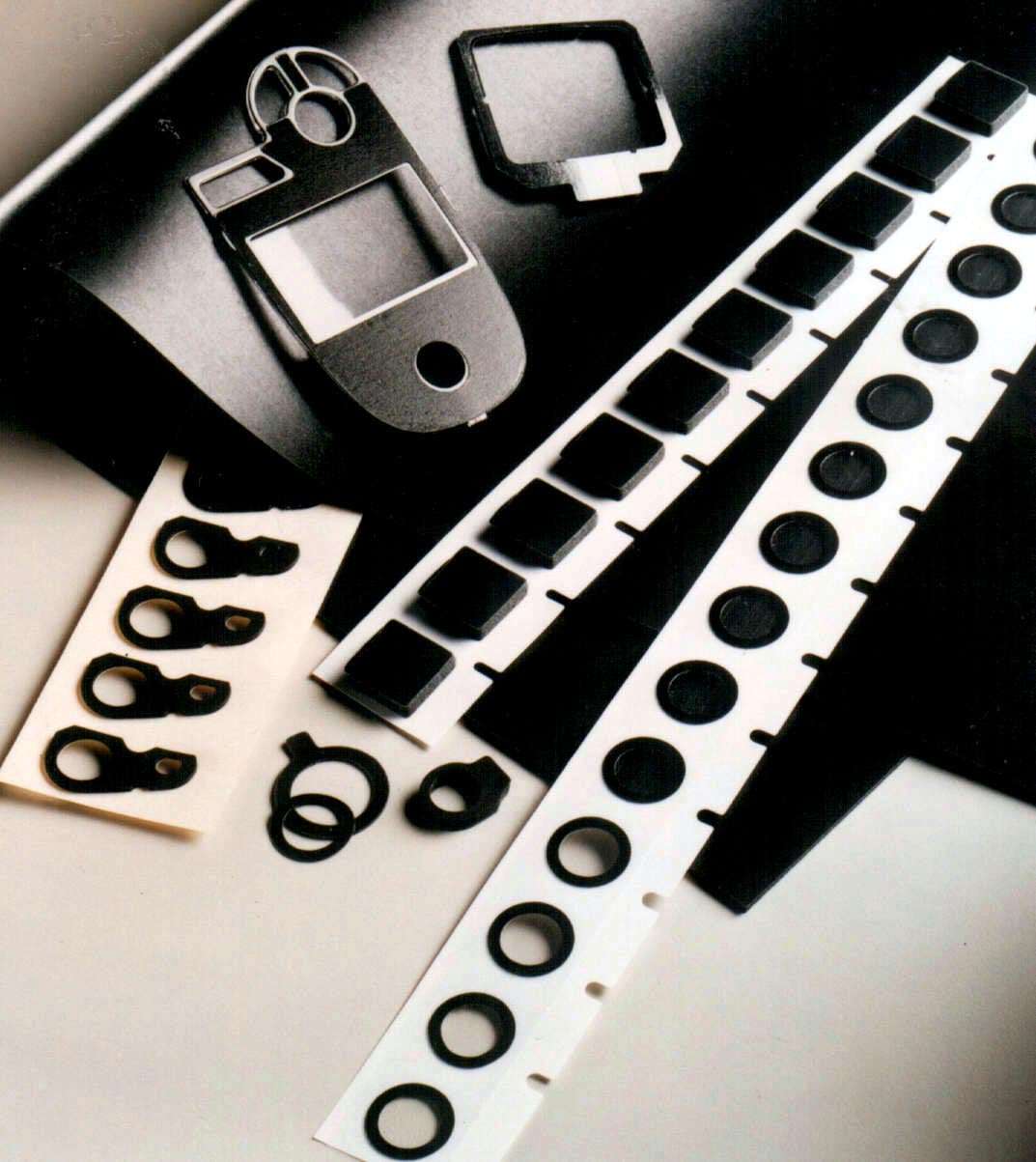

Apr 09, 2003 Korel® micro-cellular .3–1.0 mm gauge foams resist compression set even in elevated temperatures. They facilitate assembly of parts with variable dimensions and will absorb thermal expansion and contraction. Foams are offered on PET liner that adds stability and aids in die-cutting. They are suitable for demanding telecommunications gasket and sealing applications.

Retsch, Inc.    Irvine, CA 92614

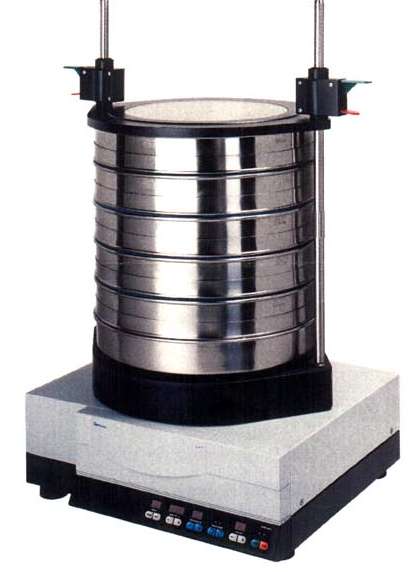

Apr 09, 2003 Suited for use with sieve stacks from 4–16 in. in diameter, AS 400 employs careful circular motion for use with coarse particles and grains of oblong shape. All parameters are digitally controlled, and users can save up to 9 combinations for routine sieving processes. Unit may be switched to acceleration mode and can be recalibrated. Interface allows for integration of unit in sieving process controlled through EasySieve® software.

Clark Solutions    Clinton, MA 01510

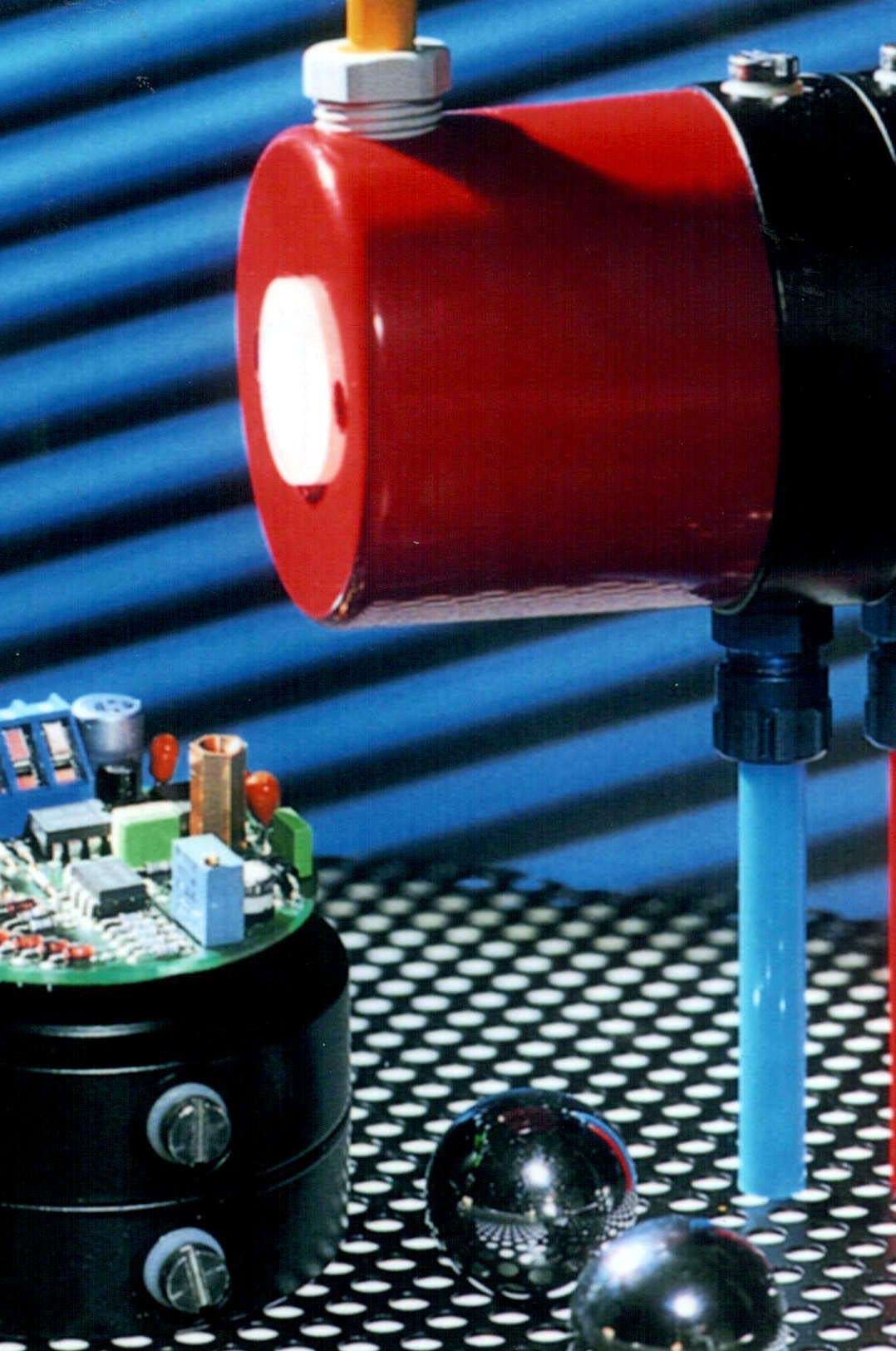

Apr 09, 2003 Compatible with slightly aggressive media, 652 series instruments provide overpressure safety protection and are available for ranges of 0–20 in. w.c., 0–7.0 PSID, and 0–15 PSID with 0–10 V or 4–20 mA outputs. Transmitters have integral stain relief connections and 1/8 in. NPT pressure connections. Constructed with diaphragm materials of NBR, EPDM, and Viton, additional materials that come in contact with media include 430F, 304, and 301 SS; AISI A2 alloy; and polyacetate-c/Polyamide.

American Lewa, Inc.    Holliston, MA 01746 1455
Apr 09, 2003 Available in single- or multiple head configurations, LEWA E Series Hygienic Diaphragm Pumps are suited for CO₂ process metering in water-free systems. They incorporate leak-free, sealless diaphragm technology with smooth internals and no dead spaces. While diaphragm keeps CO₂ in liquid state, pumps handle pressures up to 17,500 psi and are suitable for metering and transfer from 0.1–360 GPH with less than 1% accuracy.

Aved Electronics, Inc.    Lowell, MA 01851-2729
Apr 09, 2003 Aved Military Cable Assemblies are custom engineered and manufactured using all appropriate MIL-Spec wire, cable, boots, transitions, tubing, contacts, terminals, connectors, backshells, and adapters. With hand soldering certified to MIL-S-45743, MIL-STD-1460, and MIL-STD-2000, assemblies integrate RF and DC wiring and are packaged as required by MIL-Specifications. Assemblies are built on custom test fixtures which measure integrity of every contact point.

Nelco Products, Inc.    Pembroke, MA 02359
Apr 09, 2003 Heavy-Wall Polyolefin Heat Shrink Tubing incorporates thermoplastic sealant inside product, which is heat activated and creates environmental seal against moisture, dirt, and corrosives. It has 3:1 shrink ratio to fit over terminals and functions as strain relief. Tubing comes in black and red in 10 expanded sizes from ¼â€“7 in. OD. Self-extinguishing, UV-resistant, product is suited for -55 to +135°C service.

CyberResearch, Inc.    Branford, CT 06405 2932

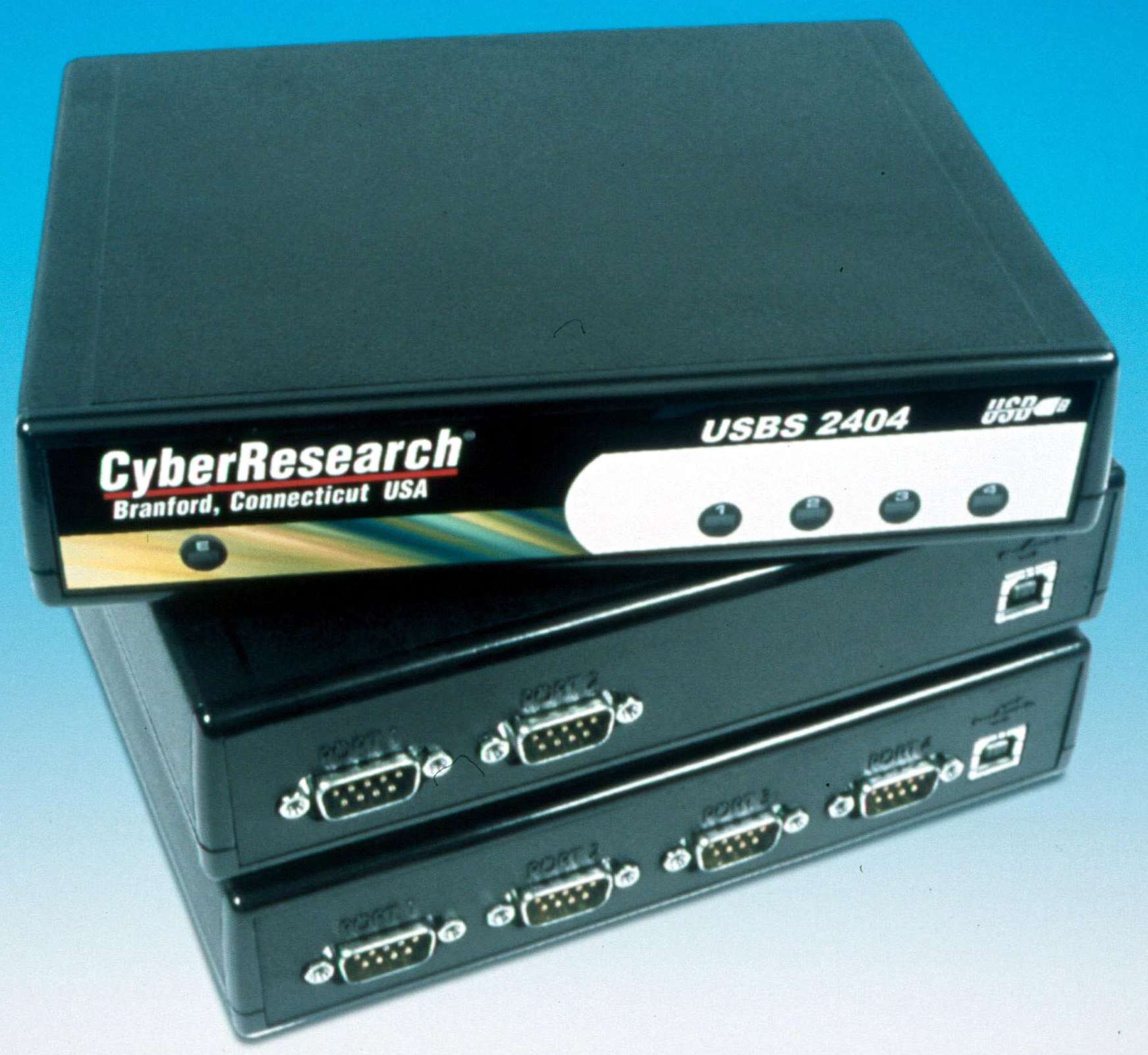

Apr 09, 2003 USBS 1000 and 2000 series serial communication converters enable communication with serial-port devices using RS-232/422/485/530 serial protocols. Working with systems that support V1.1 USB in hardware and OS, converters are powered from USB cable and are automatically configured by computer. USBS 1000 units support speeds of 461 kbps or less and buffers no larger than 16 bytes. USBS 2000 converters run at 921.6 kbps and provide buffers of 128 bytes (TX) and 384 bytes (RX).

Mack Corp.    Flagstaff, AZ 86004

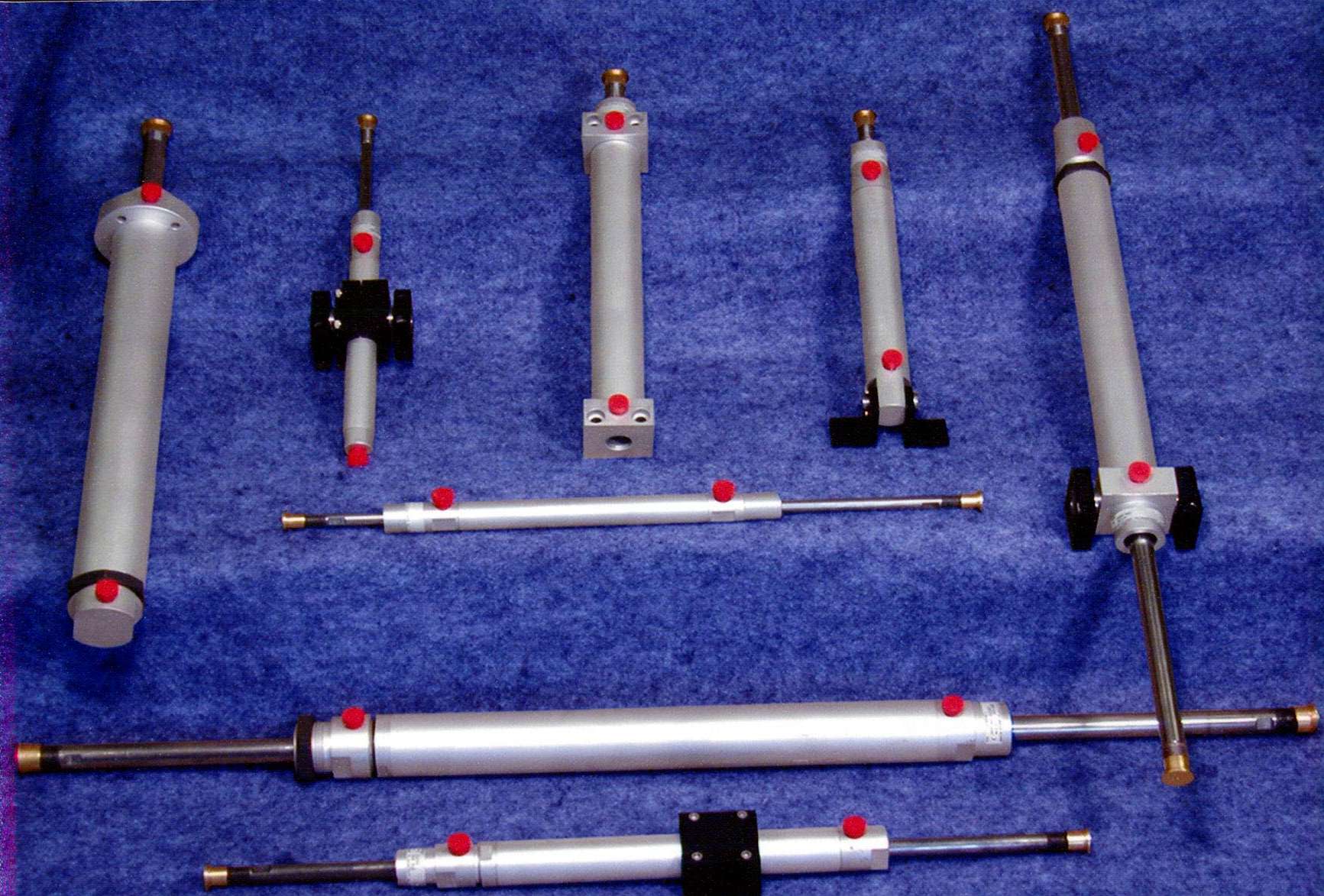

Apr 09, 2003 Low Profile Air Cylinders have heavy walls and threaded end caps for easy repair and seal replacement. Forty eight configurations are available in 16 mounting styles with 4 bore sizes and choice of stroke to 12 in. Units feature precision machined components, internal lube cavities, oil impregnated rod bearings, density enhanced cylinder bores, and internal shock absorbers. Port relationship is adjustable.

Parramatta Group    Plainfield, IL 60544

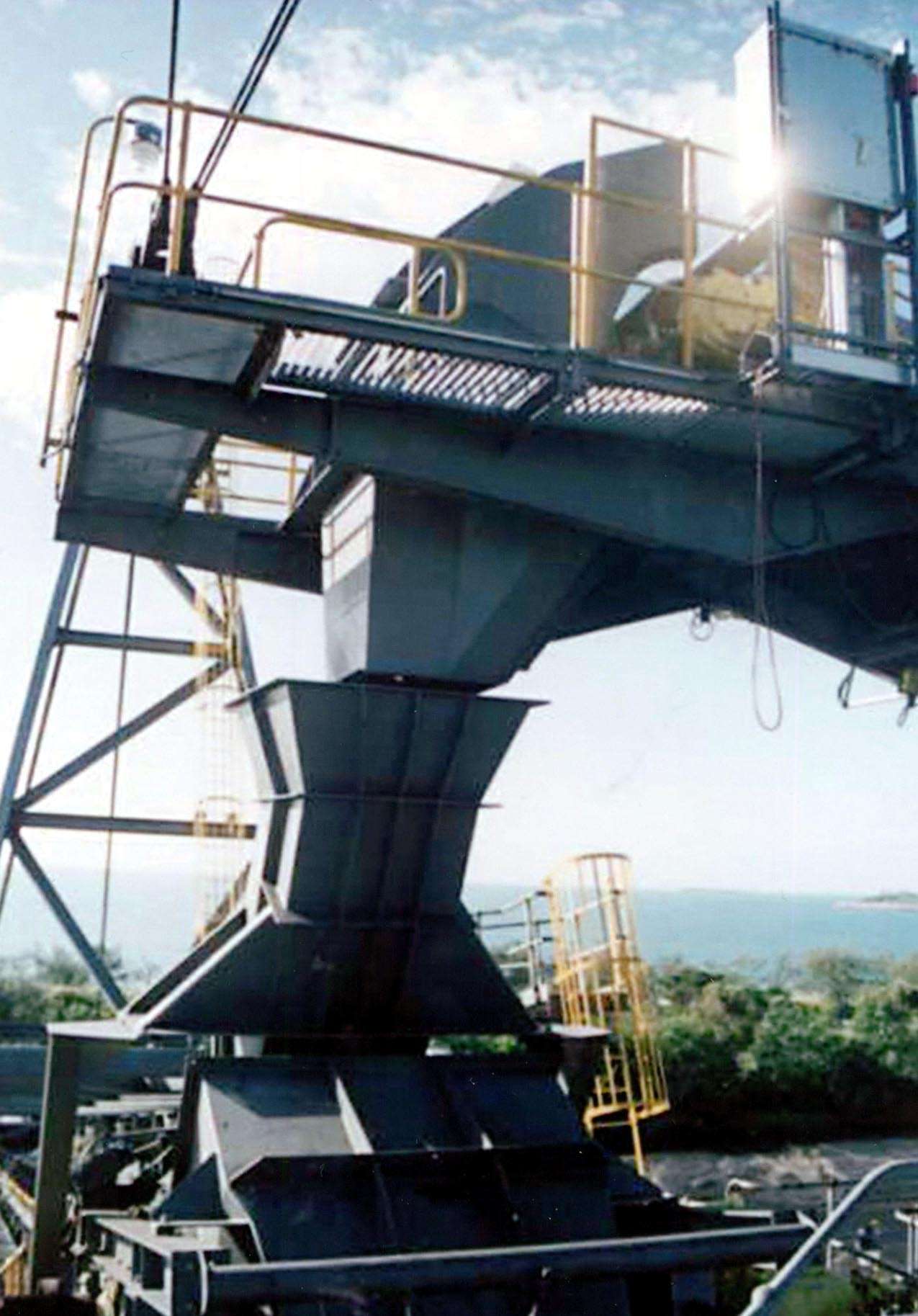

Apr 09, 2003 Controlled Flow Material Transfer System is comprised of two major components: hood and spoon. In hood section, material from discharge belt is collected and concentrated. Material moving through chute is directed onto spoon, where it is softly and uniformly positioned on receiving belt. Regardless of existing belt configurations, material volume, velocity, and direction are fully controlled. Offerings include uniform, centered loading and elimination of spillage.

Aerotech, Inc.    Pittsburgh, PA 15238
Apr 09, 2003 Direct-drive Series ASR provides angular positioning and velocity control for applications such as disk-drive testing, imaging applications, and precision wafer inspection. Balanced to ISO 1940 G 1.0 tolerances, design uses labyrinth-type sealing to minimize particle migration from spindle. Features include brushless servomotor; precision ABEC-7 angular-contact bearings; total radial error motion of < 3 µm; and total axial error motion of < 1.5 µm.

Master Chemical Corporation    Perrysburg, OH 43552
Apr 09, 2003 TRIM® SC410 semisynthetic cutting and grinding fluid is based on vegetable-derived ester technology and contains no mineral oil. It is clean-running, keeping machine and work environment residue free. Coolant contains no chlorine or sulfur-based additives, no nitrites, sulfonates, alkyephenol ethoxylates, or phenols. It is suitable for machining cast iron and for surface and cylindrical grinding of ferrous and nonferrous materials.

Create!form International (CFI)    Canoga Park, CA 91303
Apr 09, 2003 Create!archive v2.7 has Web-based search and retrieval capabilities for PC-based and scanned documents. Software incorporates file and database management, including document aging and duplicate management utilities to optimize network environments. Documents can be archived via high-volume enterprise scanning, low-volume departmental scanning, Microsoft® Windows desktop, or from Create!form documents directly.

Wonderware    Lake Forest, CA 92630
Apr 09, 2003 Built on ArchestrA(TM) architecture, ABCIP DataAccessServer (DAServer) v1.2 offers support for Rockwell ControlLogix controllers. It provides connectivity between client applications based on Wonderware's SuiteLink(TM) protocol as well as OPC® and DDE protocols running on Microsoft Windows® 2000 and Microsoft XP(TM) OS and data devices supported by specific protocol being translated. Current version retains functionality of ABCIP DAServer v1.1.

Woodhead Canada Ltd. / SST    Waterloo On N2V 1n3, CD   Canada
Apr 09, 2003 ApplicomIO v2.2 provides high speed, real-time data acquisition from device bus level to control systems, visualization software, and various industrial applications. It is based on PCI-ETHIO 10/100 MHz, Ethernet controller board which embeds and performs communication with I/O slave devices. Configuration is managed via graphical interface of Console tool. Auto-detection feature scans devices connected on bus to provide equipment list which is dragged and dropped into configuration.

Pentek Inc.    Upper Saddle River, NJ 07458
Apr 09, 2003 Model 7631 Peripheral Component Interconnect module consists of one 16-channel multiband digital receiver and two 14-bit 80 or 105 MHz A/Ds for direct wideband signal processing within on-board Virtex-II field programmable gate array. GateFlow tool suite supports custom FPGA configurations, while software drivers for Windows and Linux allow full visibility into low-level source code. Assembled as single PCI board, product offers flexible A/D channel switching and receiver bypass mode.

Reemay Inc.    Old Hickory, TN 37138 3651
Apr 09, 2003 Reemay X-Treme™ nonwoven web consists of multiple layers of polyester spunbond fibers. Fiber shapes can be varied in composition to meet application requirements, and denier per filament can be varied between layers to provide exacting filtration properties. Area bonded, Reemay X-Treme has no chemical binders, and can be used as stand-alone media or support media. It is pleatable with both rotary and push bar pleaters, and comes in weights from 0.5–6.0 osy.
