SmartMove(R) Conveyors    Fall River, MA 02720
Mar 13, 2003 SmartMove® Z-Rex® incline conveyor features Beveledgeâ„¢ plastic belt that incorporates beveled vertical flights at both edges to safely guide small parts. Designed for water fall style parts transfer applications, conveyor series includes variable speed, direct-drive brushless DC motors that run on 115 Vac and 2 A. Available with three inclines up to 60° and belt widths from 5–23 in., all-plastic belting snaps together by hand and is self-lubricating.

Mosaic Industries    Newark, CA 94560

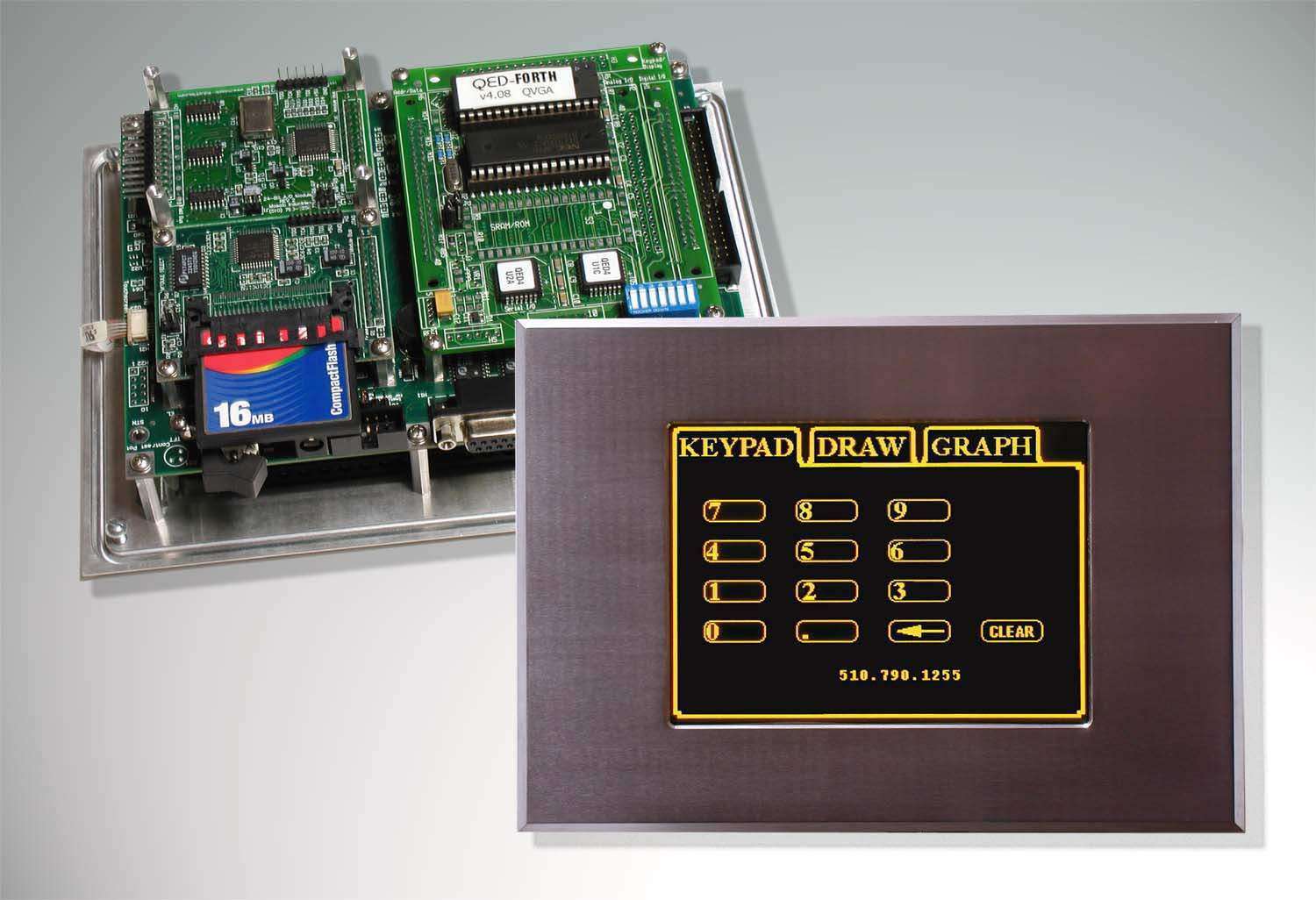

Mar 13, 2003 Model QVGA Controllerâ„¢ consists of C-programmable embedded computer with touchscreen-controlled GUI on 1/4 VGA display. It commands eight 12-bit analog input channels, eight 8-bit analog inputs, eight 8-bit D/A lines, 24 digital I/O, 4 high current drivers, and two RS232/485 ports. Unit features real-time multitasking operating system, hundreds of pre-coded device drivers, 512 K Flash and 512 K RAM. It can be commanded remotely from PC or used stand-alone.

Universal Instruments Corp.    Binghamton, NY 13902 0825

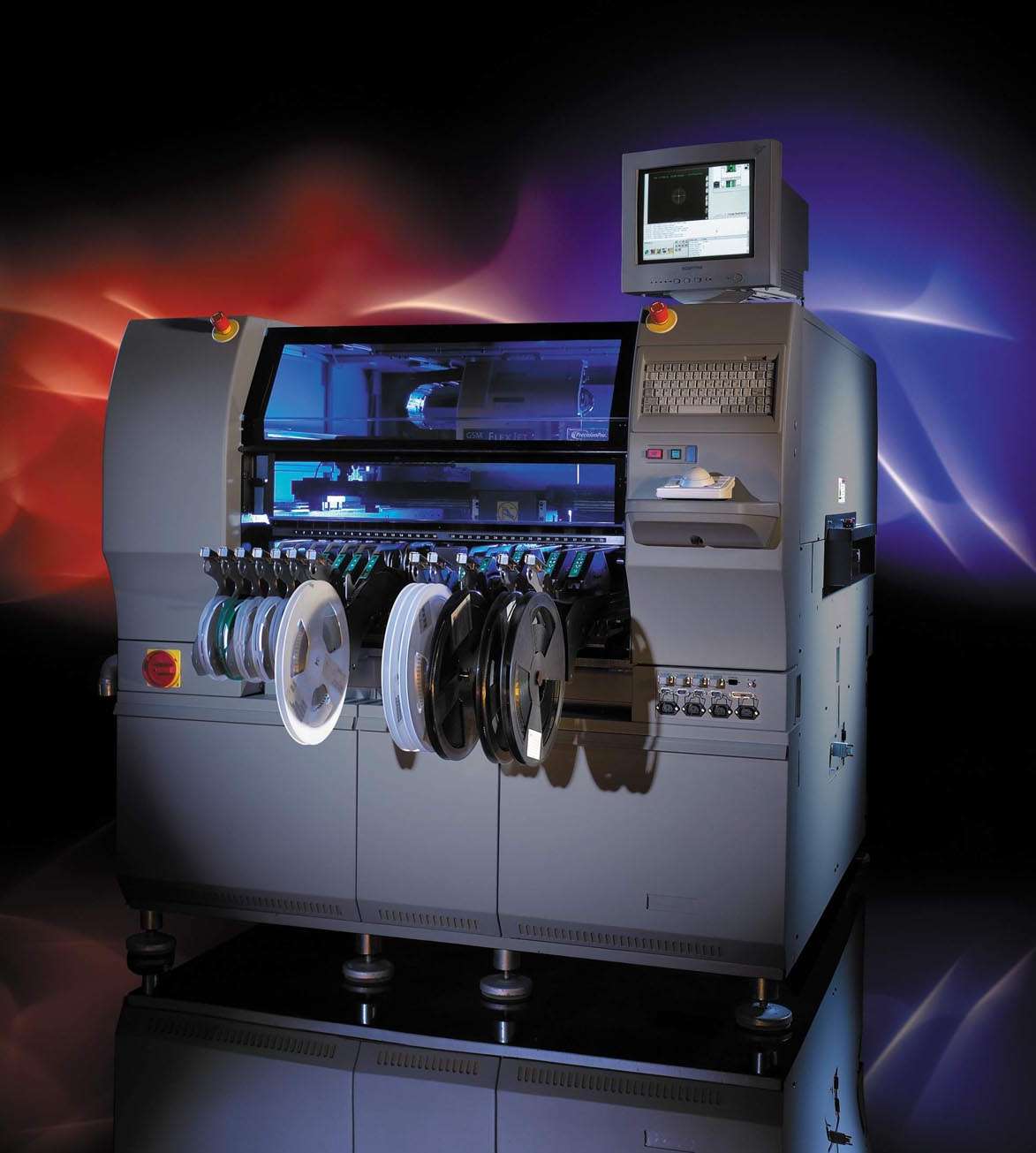

Mar 13, 2003 Vantisâ„¢ placement platform, for circuit board manufacturing, incorporates single-beam positioning system and supports limited number of heads, cameras, and configurations. Choice of 7-spindle high-speed, or 4-spindle flexible heads accommodates wide component range. Asian language application support, networking capabilities, and intuitive GUI simplify use. Vantis is suitable for manufacturers of consumer electronics, audio-visual equipment, PCs, and peripherals.

Meter-Treater Inc.    Lake Park, FL 33403

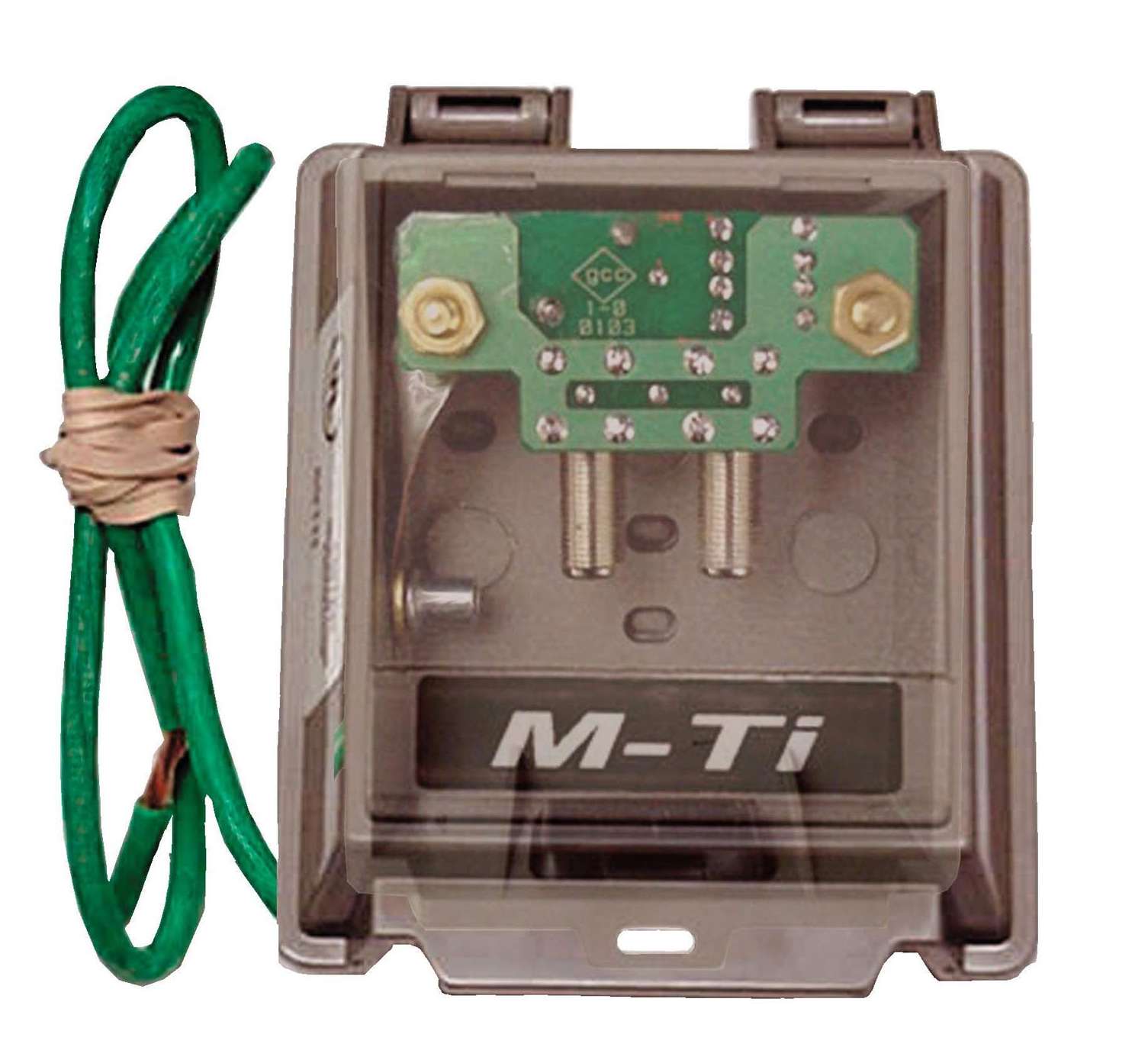

Mar 13, 2003 Series CLT-XT provides protection for CATV and SATV against harmful affects of transient energies induced on cable lines by lightning, utilities, and other sources. Units handle 10 kA of surge energy. Max operating voltage is 27 V with max clamping voltage of 36 V. Frequency range is 0–1.2 GHz with insertion loss of <2 dB at 1.2G Hz level. Surge protectors are housed in UL-recognized plastic enclosure suitable for outside installation.

A.W.T. World Trade, Inc.    Chicago, IL 60641
Mar 13, 2003 Accu-Cureâ„¢, with computer-designed cooling system, minimizes level of heat transmitted to stock in curing chamber. Operators adjust gate height on curing head module according to stock thickness, eliminating light leakage. Due to variable position wattage selection of 300, 200, or 100 W, users can also adjust lamp output to conditions. Ozone Removal System safely vents ozone and hot air, while light guards protect against UV and visible band light and absorb lamp heat.

Astec America Inc.    Carlsbad, CA 92008
Mar 13, 2003 With active power factor correction, 125 W LPS125, 85-264 Vac power supply is suited for 1U rack installations and low-profile applications. With 6.7 W/in.³ density, unit delivers full rated output of 130 W with 30 CFM forced air or 80 W with convection cooling. It measures 3 x 5 x 1.29 in. and can be set up for lengthwise or crosswise airflow. Device also includes Class B EMI filter, remote sense, remote inhibit, and single-wire parallel on primary output.

Orion Packaging Systems, Inc.    Collierville, TN 38107
Mar 13, 2003 Model CTS-67 stand-alone, turntable-style stretch-wrapping unit provides separate staging and wrapping areas. Manufactured of 100% structural steel, product handles 48 x 48 in. loads that weigh up to 4,000 lb, and automatically adjusts for varying load heights of up to 72 in. Max turntable rotation of 12 rpm, on 25 in. precision, ring-bearing turntable support, with ANSI chain and sprocket drive, provides rated throughput of up to 45 loads per hour.

Kanotech Information Systems Ltd.    Edmonton, AB T5S 1J9  Canada

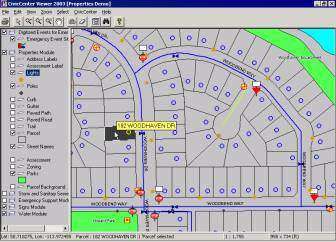

Mar 13, 2003 CivicCenter 2003, comprised of Properties, Water, Sewers, Signs, and Emergency Support modules, provides technical users with tools to maintain, update, and distribute GIS information while also providing non-technical users with point-and-click access to all information housed in GIS solution. It supports mapping and data for sewer valves, water booster stations, water supply wells, and water storage tanks. Software can be used stand-alone or as data distribution application.

Bivar, Inc.    Irvine, CA 92618 2593

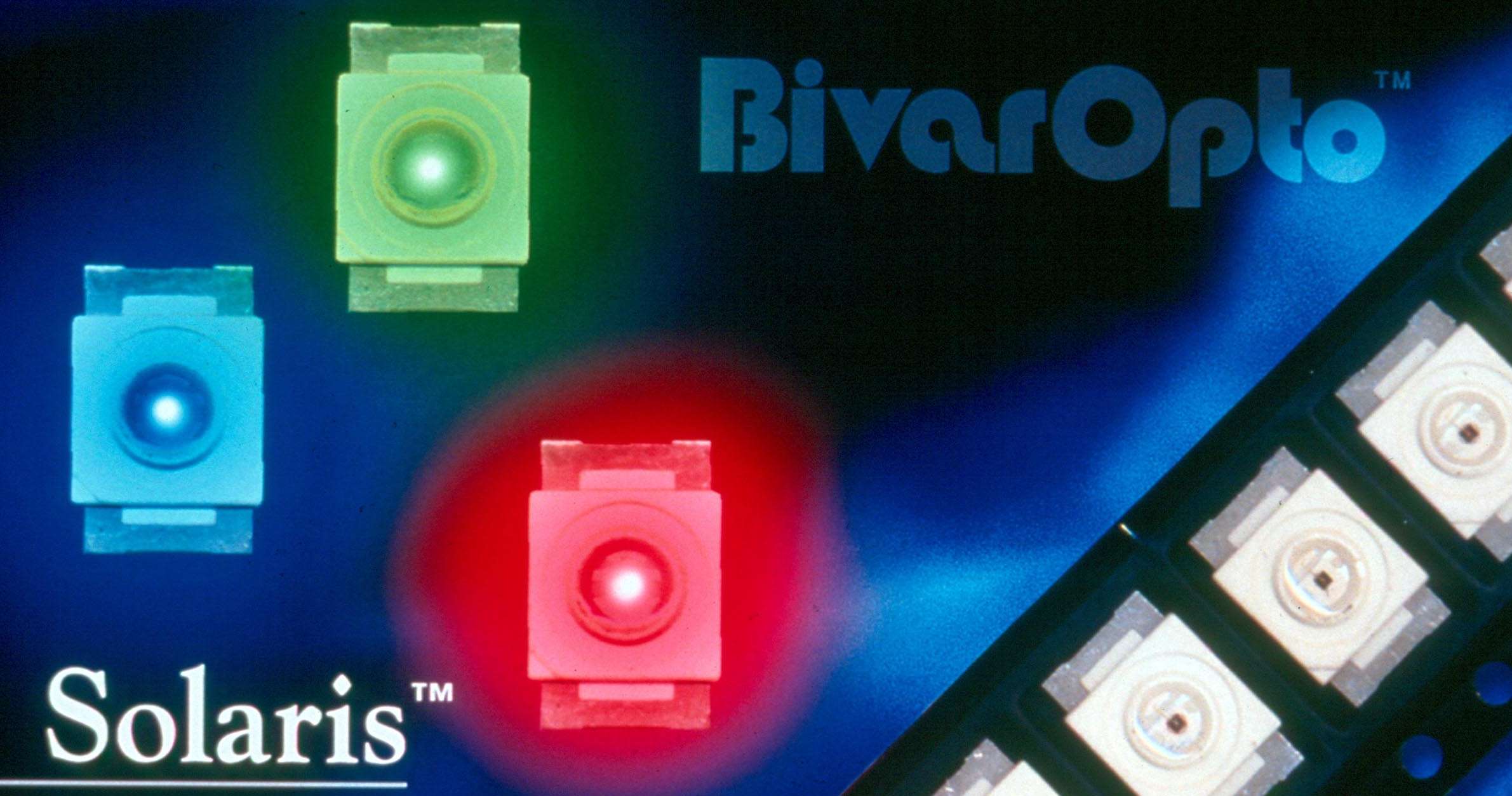

Mar 13, 2003 Solarisâ„¢ SM Series, with high-current drive capability, includes blue, true green, red, yellow, and white LEDs with luminance intensities from 1400–2000 mcd, at 75 and 175 mA forward current, respectively. Forward voltages range from 2.2-5.5 V. Operating temperature is -40 to +100°C, with power dissipation ranging from 525–450 mW. Miniaturized LEDs are housed in 6 mm square packages with 1.5 mm profile. They provide 120° viewing angle and demonstrate thermal resistance of 20 K/W.

Panduit Corp.    Tinley Park, IL 60477 3091

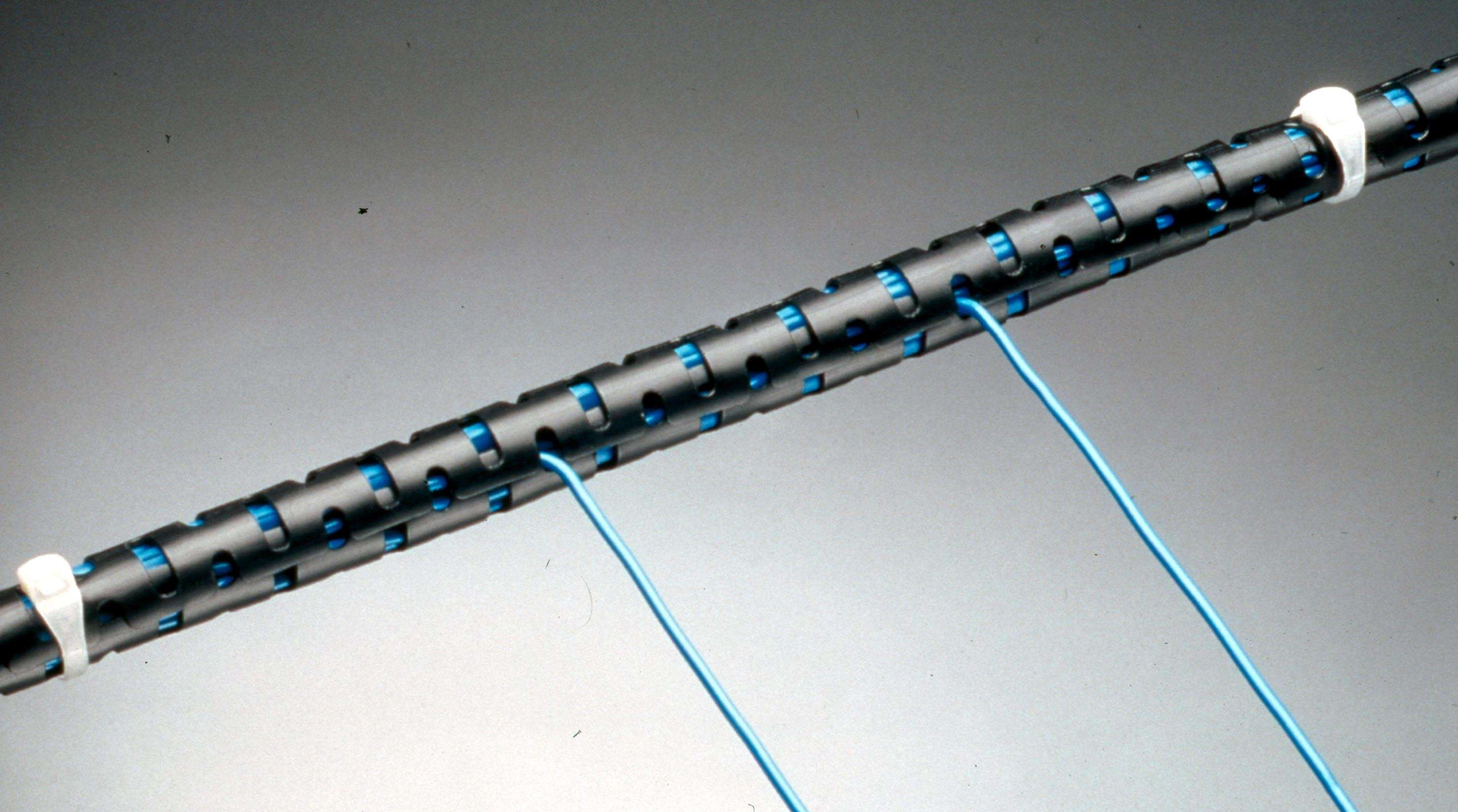

Mar 13, 2003 Designed for flexibility and maximum harness protection, PAN-WRAPâ„¢ holds cables within overlap that accommodates various bundle diameters. Slot pattern provides flexibility and abrasion protection in any application, while wall design provides for ease of wire or cable breakout. Installation tool has 180° opening that allows loading of maximum bundle diameters to speed installations by pulling tool along bundle length.

Agfa NDT, Krautkramer Ultrasonic Systems    Lewistown, PA 17044
Mar 13, 2003 Portable model USN 58L, with transreflective LCD display, offers 60 Hz update rate and two rotary operational adjustment knobs. It also includes .040–480 in. range in steel and 15–2,000 pulse repetition frequency. Unit's 4 damping settings and 10 frequency selections from 250 kHz to 25 MHz enable optimum matching to probe characteristics. Offerings include 2 independent flaw gates, memory for 200 stored data sets, and single-shot measurement technique.

Nilfisk Industrial Vacuums    Morgantown, PA 19543
Mar 13, 2003 Available in red, green, yellow, blue, and white, nozzles enable users to dedicate color to specific application, eliminating vacuum-related cross-contamination. Made of FDA-approved polymers, nozzles are suitable for food and non-food contact surfaces. They are autoclavable and will never rust. Shapes and sizes are available to fit various pipe sizes as well as flat surfaces. Applications include food processing, chemical, pharmaceutical, and hazmat.

AMETEK Test & Calibration Instruments    Largo, FL 33773

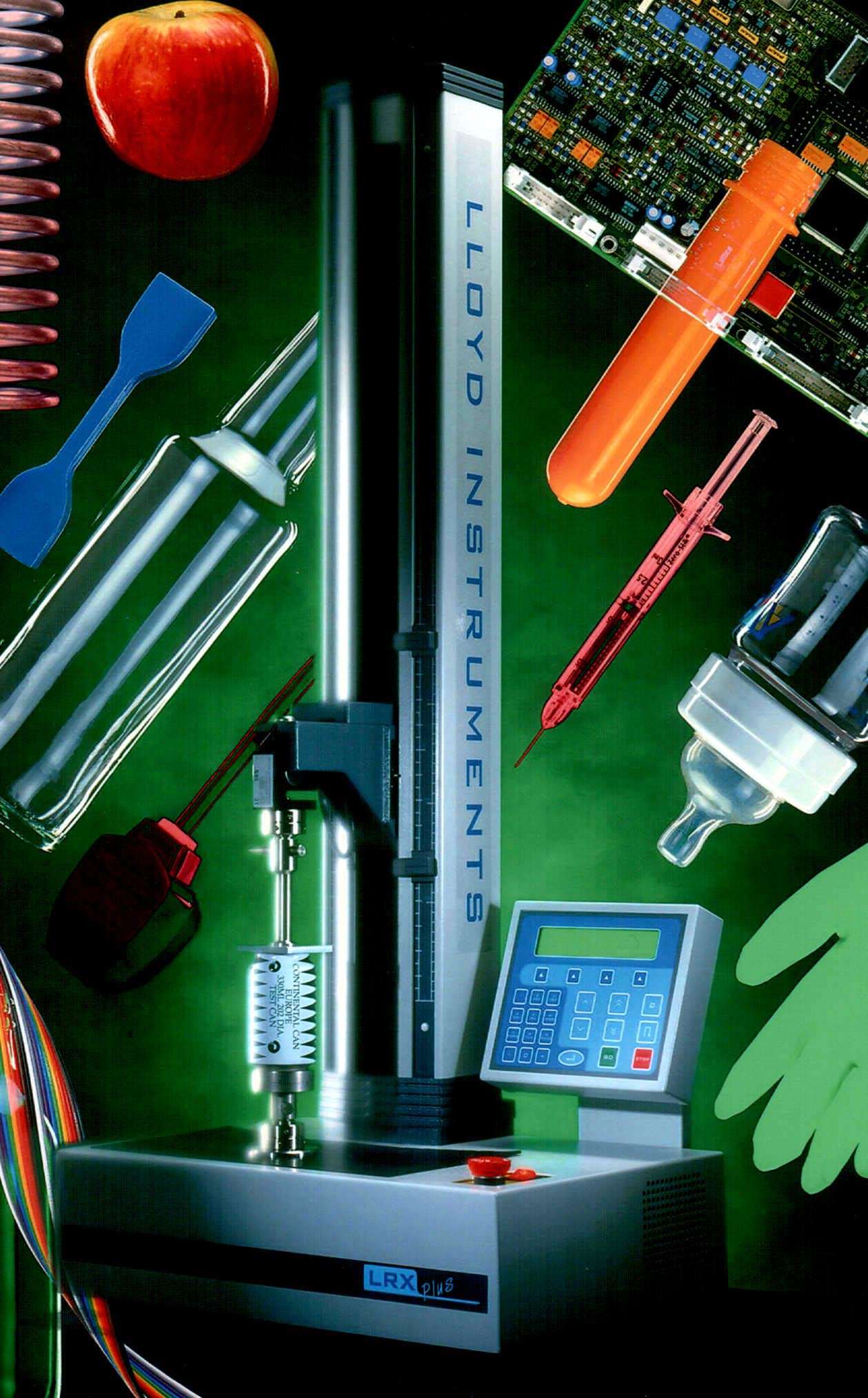

Mar 13, 2003 Multi-function unit tests electrical switch contact resistance, crushability of core cable, and compressibility of insulated wires. It measures interruptions in flow of electrical current in cable, wire, or switch sample subjected to compressive forces applied by materials-testing system. Suited for checking integrity of plastic insulation when force is applied, unit indicates which conductors have shorted together or broken through outer insulation.

AMETEK Test & Calibration Instruments    Largo, FL 33773

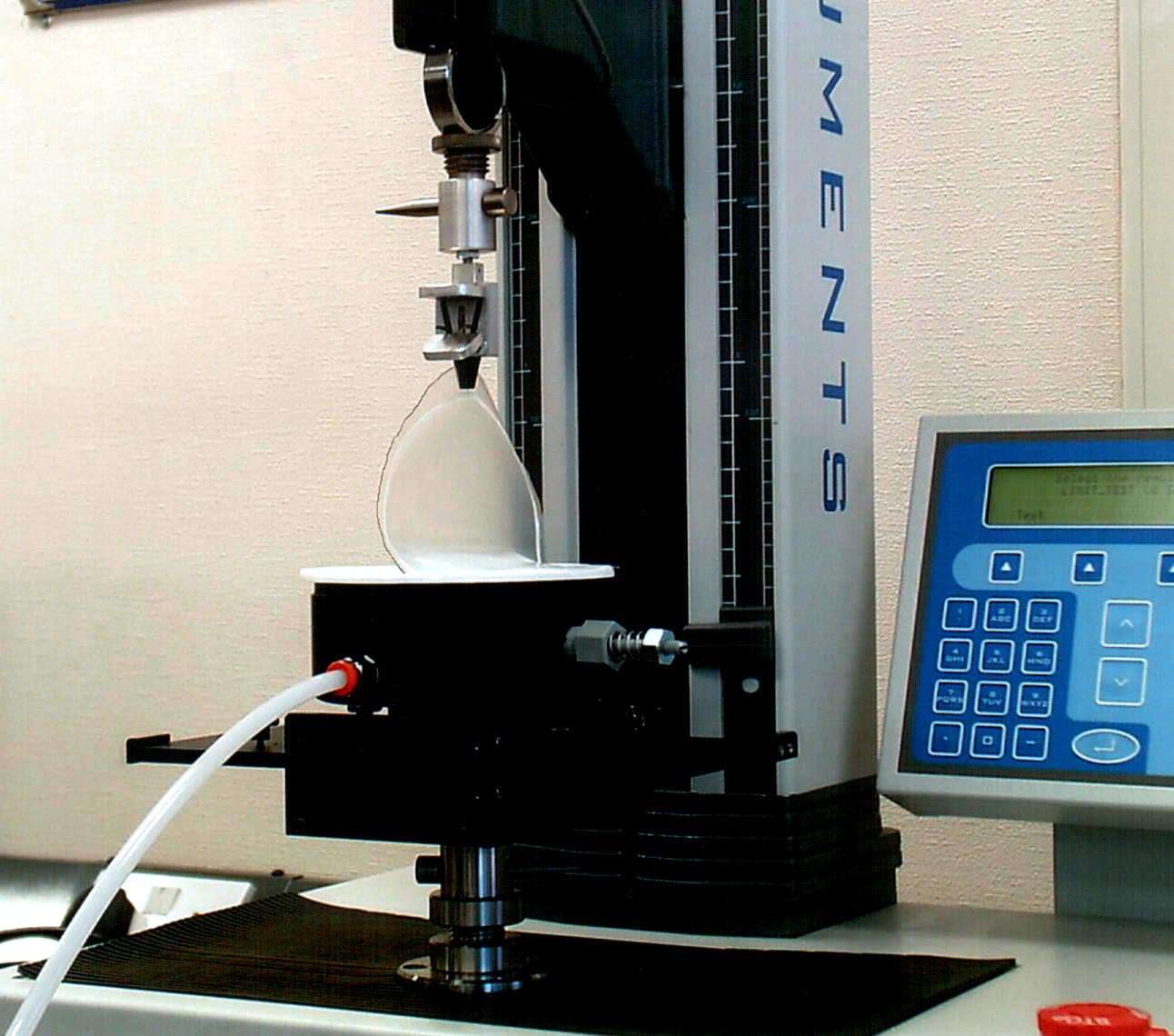

Mar 13, 2003 Model TG 5093 Peel Fixture helps food and packaging industries develop quality seals on food containers. It consists of small upper spring-loaded wedge grip that holds film cover and horizontal sliding bed with dish holder. Vacuum system securely grips food container in position. System handles containers measuring 120 mm in diameter. It has 112 lb force capacity and fits onto LF, LR, or Plus ranges of low force universal testing machines.

Allegro Industries    Garden Grove, CA 92841-1410

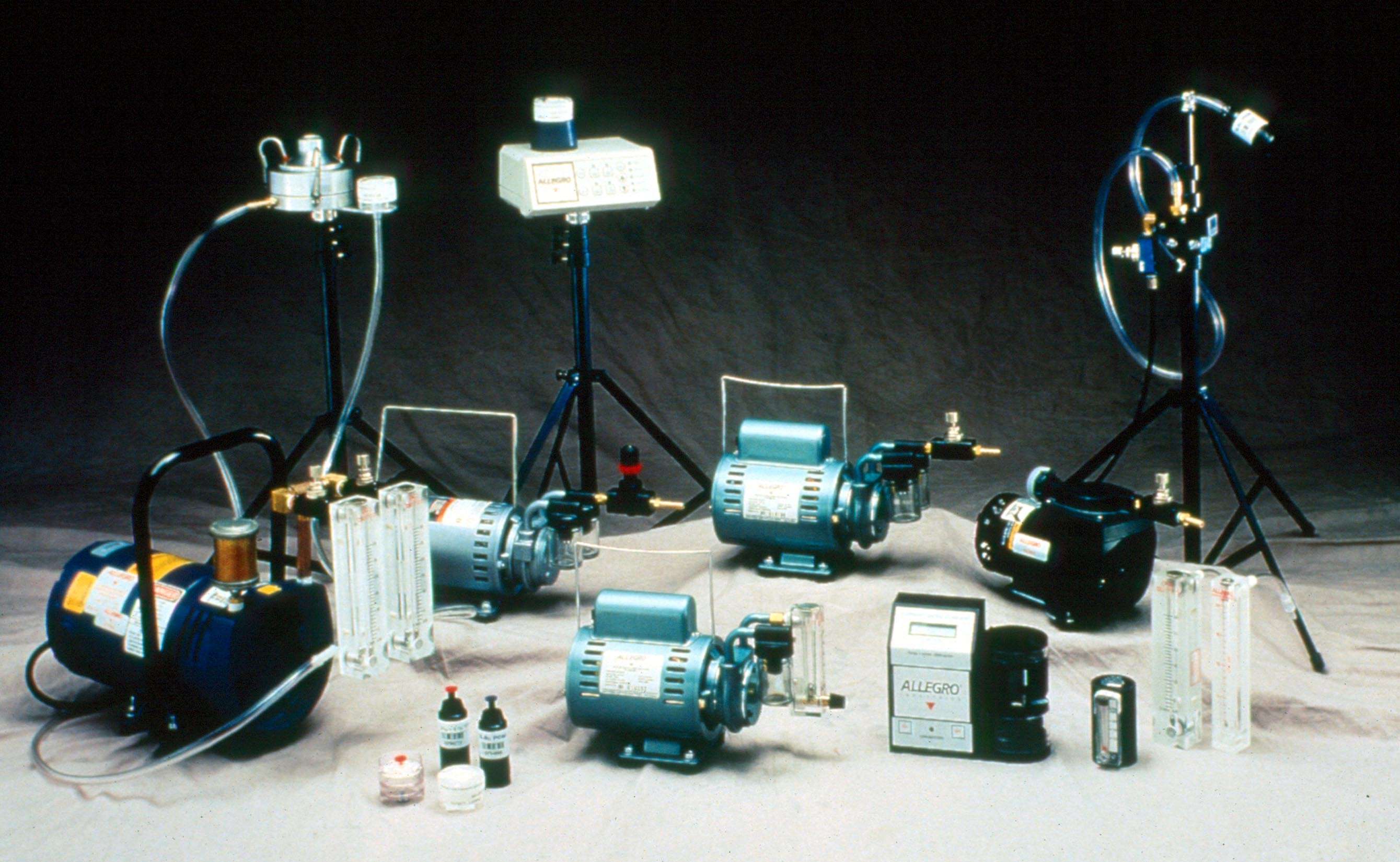

Mar 13, 2003 Meeting OSHA and AHERA standards, Sampling Pumps monitor mold, lead, asbestos, and other dangerous particulates. Venturi Pump is air-driven and requires 40 psi to draw samples. Models T100 and A100 Rotary Vane pumps offer sampling range of 3-20 lpm. Model T100 includes adjustable 5-50 lpm flowmeter. Diaphragm Sampling Pump uses pulsating diaphragm to sample air quality. Adjustable regulator provides locked-in operating range of 3-15 lpm. DC-powered Sampling Pump is self-contained.

Coreco Imaging    St. Laurent, QC H4T1V8  Canada

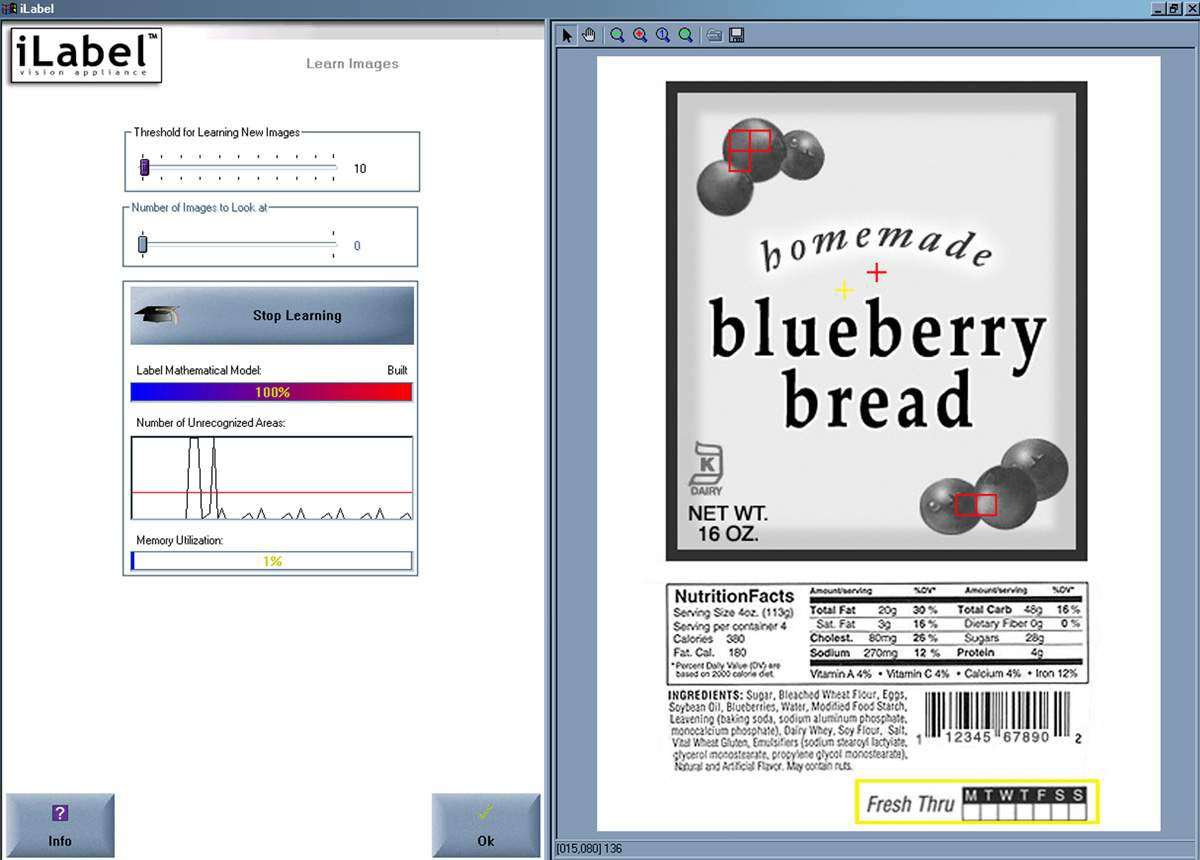

Mar 13, 2003 iLabel checks for appropriateness, placement, angle, and quality of labels on bottles, boxes, cans, and packaged goods, issuing overall grade of pass, fail, or recycle for each label. Using neural network technology, product automatically learns variation in good labels and checks for flags, tears, and damage in subsequent labels. System inspects 300 labels/min with sizes from 1-10+ in. and is accessible via standard web browser.

Ophir Optronics, Inc.    Danvers, MA 01923

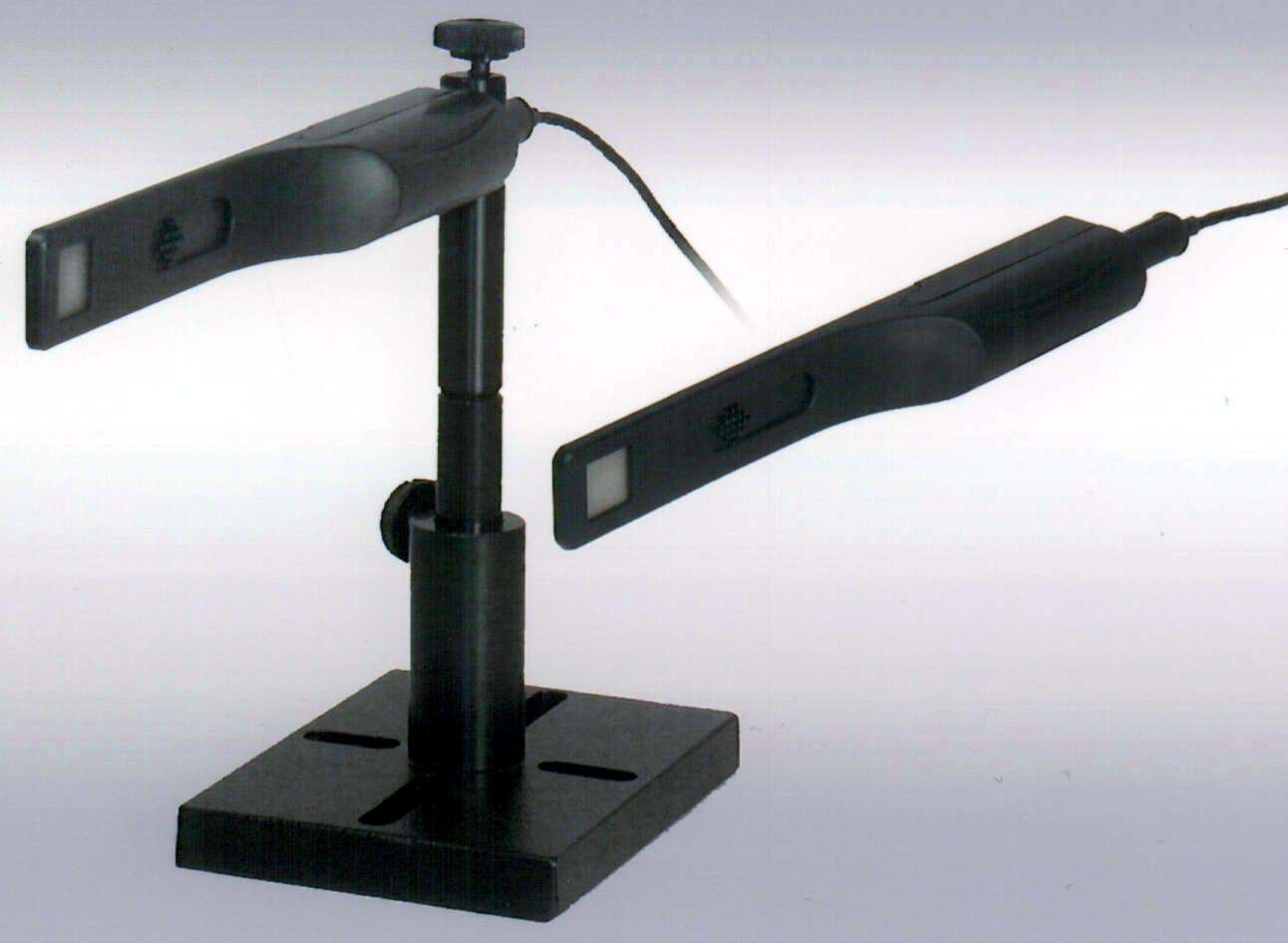

Mar 13, 2003 Model PD300-TP laser power measuring head is 4 mm thick and can make power measurements on cw lasers in tight spaces. Sliding filter measures 50 pW to 300 mW and also contains measurement in dBm. Spectral range is 350–1100 nm. Unit provides ±3% accuracy within spectral response range of 400-950 nm. Wavelength calibration is built-in. Model PD300-TP operates on stand or can be hand held.

Measurement Research Inc.    San Fernando, CA 91340
Mar 13, 2003 Model M15-W Universal Torque Tester provides MicroTorqueâ„¢ analysis for extremely low torque levels of 1.4 x 10^-5 oz-in. in analytical mode, and 2.8 x 10^-6 oz-in. in averaging mode. Rotation speed can be set as low as 0.001 rpm. TorqueScopeâ„¢ Windows-based software allows user to pre-program complex rotational tests with multiple stages and torque measurement conditions. Rotation can be set in tenth degrees from 1.0–3600.0°. Angular accuracy is ±1/10°. Test speed is .001–4.0 rpm.

ITC Mfg. Inc.    Phoenix, AZ 85009
Mar 13, 2003 Light-duty wire shelving fits securely into standard storage racks and can also be used with boltless, bulk, and Z beam racks. Additional Sandwich wires are placed every 12 in. for additional support. Shelving provides product visibility and allows sprinkler water to flow through shelving and storage racks for OSHA compliance. Standard product comes in nine sizes with speckle gray powder coated finish. Custom sizes and other colors are available.

TRUMPF Inc.    Farmington, CT 06032

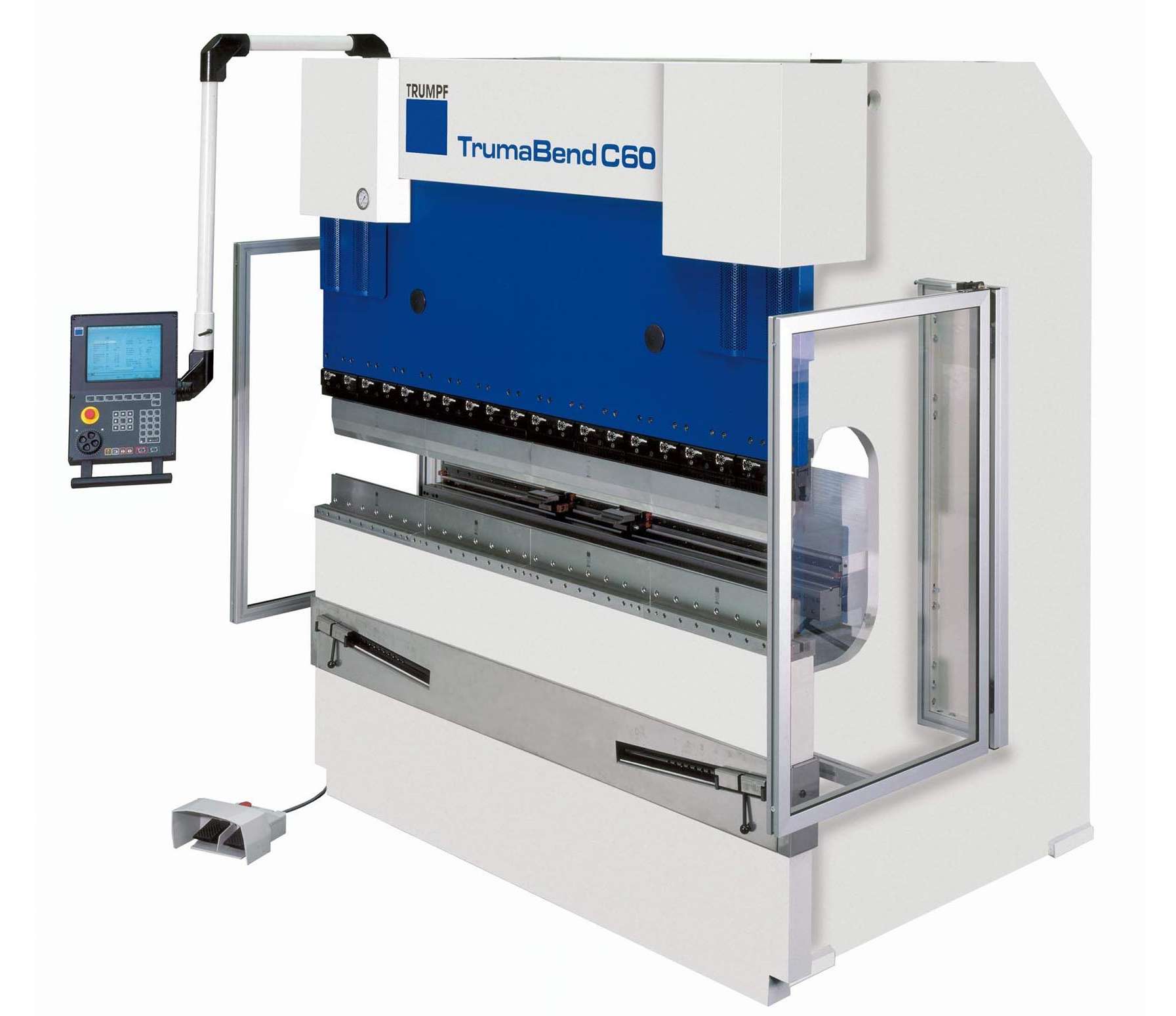

Mar 13, 2003 Special Edition C Series CNC Press Brakes feature quick-clamp punch holder to speed up manual tooling clamping process. Complex parts can be formed and completed in one handling with 4-axis back gauge. Two manual front support arms simplify part handling. Networking card provides central storage and retrieval of programs. Three dimensional visual part graphics allow operator to view tool setup plans and bending sequences created by ToPs 600 offline programming software.
