Cincinnati Incorporated    Cincinnati, OH 45211 0111

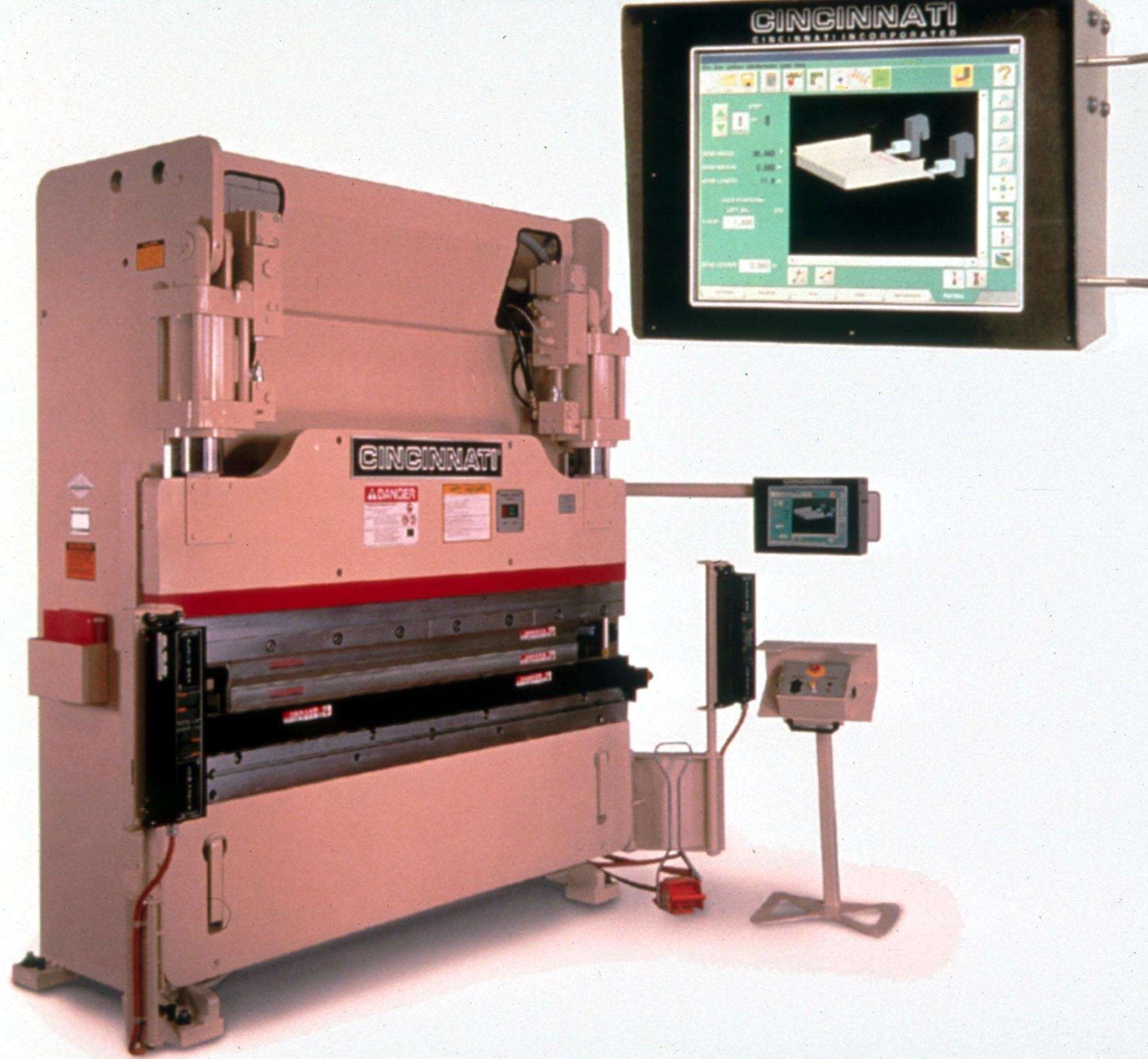

Apr 16, 2003 Proform hydraulic press brake features adjustable stroke length and full-tonnage throughout stroke. Precision servo hydraulics allow unit to hold ram repeatability to ±0.001 in. along entire length. Proform comes in 60- to 350-ton versions in overall bed lengths from 4–14 ft. Control has 15.1 in. LCD touch-screen and uses icon-driven Windows® operating system. Software allows 3D rotational viewing of part, detailing part shape and gage fingers.

Sherwin-Williams Co.    Cleveland, OH 44115
Apr 16, 2003 Fast Glo Acrylic Safety Marking Paint is single component acrylic with phosphorescent luminescent pigment that enables paint to glow yellow/green in dark for up to 4 hours. Paint is for marking aisle ways, emergency routes, boundaries, and stairways to identify safe passageways in event of power outage or failure of back-up power systems. It can be applied by brush, roll, or spray and comes in quart and gallon containers.

Fluke Corp.    Everett, WA 98203
Apr 16, 2003 Suited for use in hazardous environments, 707Ex Loop Calibrator is used for calibration, repair, and maintenance of current loops. Offering manual stepping and automatic ramping, unit also offers pushbutton-selectable 25% voltage steps and built-in span check function. Loop current sourcing and simulating are standard, allowing measurement of current while providing 24 V loop power from internal loop supply. Readings are in mA and %, and unit features one-handed operation.

Jensen Fabricating Engineers, Inc./JENFAB    Berlin, CT 06037

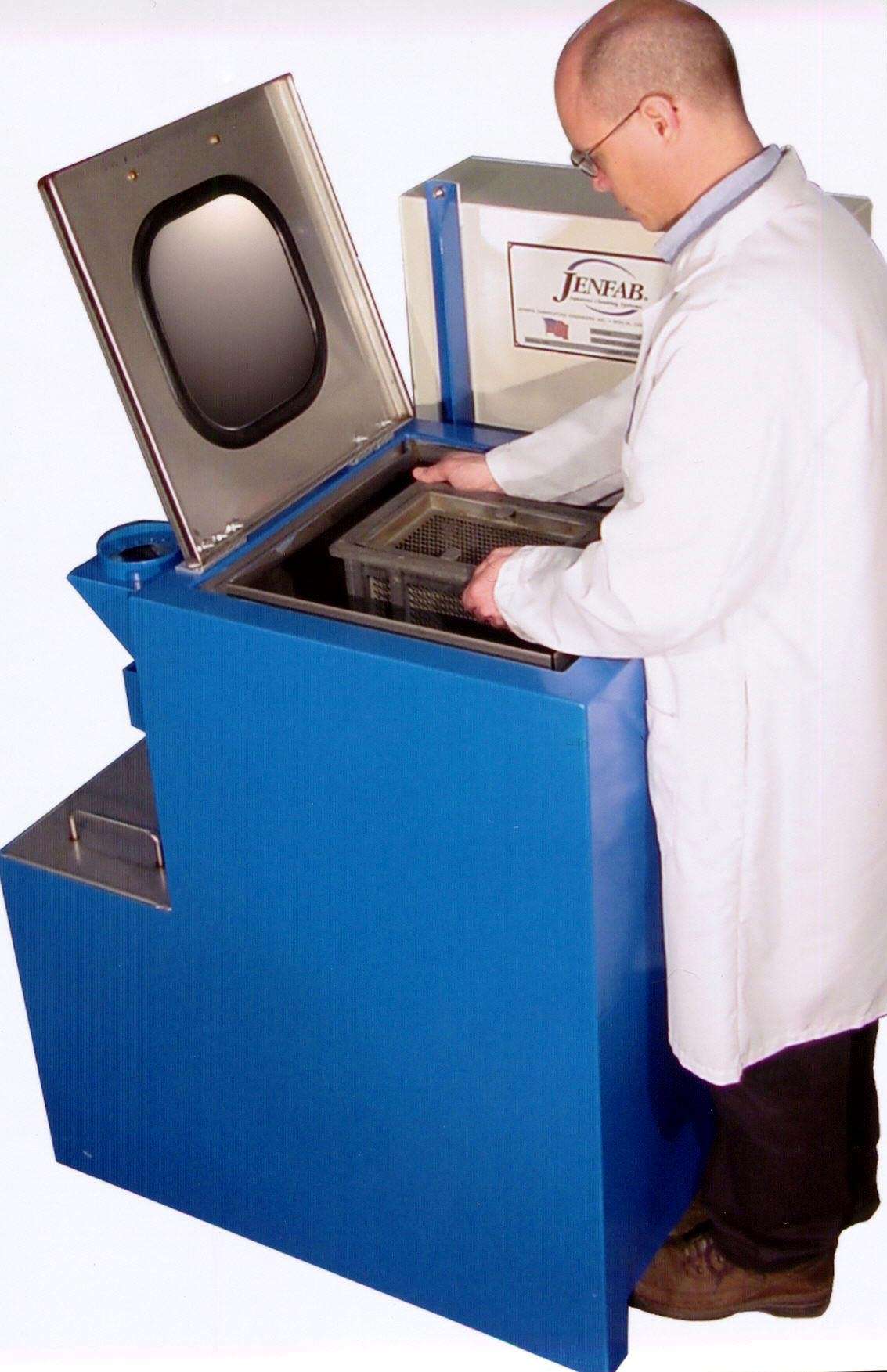

Apr 16, 2003 LeanClean Flex Cell Parts Washer features automated and PLC controlled cycle to provide powerful spray wash, immersion wash, submerged and turbulated spray plus blow-off. During cleaning cycle, all solution is continually recirculated, filtered and discharged back onto parts. Cleaning chamber accommodates 9 x 12 x 6 in. baskets. Washer cleans blind holed screw machine parts, small machined parts with intricate cavities, and tubular parts.

CDS Analytical, Inc.    Oxford, PA 19363 0277
Apr 16, 2003 Model 9600 cleans/conditions sorbent tubes off-line. Stand-alone module accommodates tubes with mixed sorbent packings, sizes, and lengths and allows users to individually set flow rates, temperatures, and conditioning times. Standard unit has six heating jackets that accept ¼ in. OD tubes up to 11.5 cm in length. Temperature control zones can be programmed in 1°C increments to 400°C, and conditioning times are programmable in 0.1 min increments to 999.9 min.

EGS Electrical Group    Skokie, IL 60077
Apr 16, 2003 Single and Two Gang Boxes feature continuous and seamless die cast construction to stop entry of damaging dirt, dust, and moisture. Powder coating assures uniform weatherproof durability, while tapered hubs prevent wire abrasion. Boxes are furnished with closure plugs, ground screws, and mounting lugs. They fit weatherproof covers in standard trade sizes and are suitable for interior and exterior applications.

Iconotech    Clinton, CT 06413
Apr 16, 2003 MAXIMIZER prints text, bar codes, and graphics on uncoated multi-wall kraft bags, flat cases, die cuts, and blanks. Unit includes vacuum feeder that allows operators to switch from one type of print job to another as well as lift table magazine that holds up to 100 bags or 60–90 single sheet die cuts. It prints one side at a time in one color. Computer generated printing stencil allows placement of print anywhere within 32 x 11 in. area.

Sullair Corporation    Michigan City, IN 46360
Apr 16, 2003 Model LS-20 utilizes one single-stage, 100 hp rotary screw compressor with tapered roller bearings on discharge end and cylindrical roller bearings on inlet. Fluid-lubricated and cooled, product is offered in four models from 344–490 acfm with pressure ratings of 100–175 psig. Features include multi-stage air/fluid separation, flange-mounted motor and air end, and heavy-duty air inlet filter. Microprocessor control monitors/controls essential functions.

MHI Injection Molding Machinery, Inc.    Addison, IL 60101
Apr 16, 2003 Series em combines electric and hydraulic features for reduced cycle times. Two-platen mechanism provides accurate mold clamping, while linked split nut drive results in simultaneous actuation. Peakless Pressure Control eliminates high-pressure spikes at end of fill during high-speed injection. Long platen supports resist tilting and ensure parallelism of moving platen and mold. MAC-VIII control provides 12 in. LCD touch screen, automatic mold thickness adjustment, and Jet Purge.

TRUMPF Inc.    Farmington, CT 06032
Apr 16, 2003 Model TPC 150-2 cuts sandwich panels up to 6 in. thick in one cut without flipping sheet. Capable of making burr-free, precision cuts, tool does not require users to drill starter holes or refinish completed cut edge. With output of 1,400 W, unit reaches working speeds of up to 98 ipm and is available in 3 and 6 in. lengths. Handles are located in line with cut line for two-handed operation. Guide rail and connection for vacuum cleaner are available.

Dematic Corp.    Grand Rapids, MI 49505
Apr 16, 2003 Cantilevered Gate is a retractable conveyor bed with self-supporting design and spring/shock technology. Gate section is used to temporarily halt conveyor flow and allow people to pass through line. Conveyor retracts into floor support and adjustable bed angle optimizes product flow and fine tunes for different applications. Typical configurations include gravity wheel and powered roller beds with speeds ranging from 90-330 fpm.

Hypac    Kewanee, IL 61443
Apr 16, 2003 Series C810C includes 7,275 lb Model C815C for granular and mixed soil applications, and 7,385 lb Model C812C with 70 contact pads for cohesive and semi-cohesive soils. Dual travel pump system, rear travel axle with no-spin differential, and radial piston drum-drive travel motor allow gradeability of 55%. Both models utilize 50 hp Deutz F3L 2011 air/oil-cooled diesel engines, and include dual amplitudes with operating frequency of 2,460 vpm. Maximum working speed is 5.6 mph.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 16, 2003 Piston type Series PS features hermetically sealed SPST magnetic reed switch. It is composed of Noryl® housing and piston, and 316 SS spring and stop pin. Temperature range is 0-212°F, and pressure limits are 150 psi at 70°F and 50 psi at 212°F. Actuation points are preset from 0.05-1.0 gpm for water and 25 cfh to 5 cfm for air. Switch is suitable for air and pure water applications, filter life monitoring, heat exchangers, and cooling applications.

C & D Technologies    Mansfield, MA 02048-1151
Apr 16, 2003 Model ADCDS-1405 contains user-configurable input amplifier, correlated double sampling function, and 5 MHz, 14-bit A/D converter in one 40-pin, TDIP package. SMT assembly technique is used to combine mixed-signal ICs and passives in one assembly. Noise specified at sampling rate of 5 Megapixels/sec (145 µVrms) can be reduced to 50 µV. Offerings include programmable input bandwidth, gain and offset adjustments, and internal timing circuits.

Magnatech Limited Partnership    East Granby, CT 06026
Apr 16, 2003 Digital Tubemaster Model 514 stores up to 100 programs, each with up to 100 levels. Autoprogramming mode allows users to enter tube OD, wall, and weld Head to automatically generate weld program. With Industrial Grade electronics, stainless enclosure incorporates sealed membrane keypad and sealed color LCD display. Power source output is rated at 200 A with autoranging 115–230 Vac input. Unit incorporates weld parameter monitoring/out-of-limits reporting.

Pactiv Corp.    Lake Forest, IL 60045
Apr 16, 2003 Microfoam® XFS polypropylene foam is compliant with U.S. FDA regulations for all food applications for all conditions at temperatures not exceeding 250°F. Foam incorporates 50,000 closed cells/in.³ for cushioning, void fill, thermal, vapor transmission, interleaving, surface protection, and insulation. Capable of immobilizing food items and preventing abrasion/bruising, product is resistant to staining and mold/mildew growth.

International Light, Inc.    Newburyport, MA 01950 4092
Apr 16, 2003 Hand-held Model IL1400A is self-programmable when miniature fiber optic PIN Probe is plugged in, and automatically displays brightness measurements in units such as fL and w/cm². Miniature probe consists of thin quartz fiber protected by surgical stainless steel tubing. Lengths up to 3 ft are available. Suitable for measuring small or hard-to-reach color LCDs and organic LEDs, radiometer/probe provides NIST traceable measurements from UV to near IR.

Two Technologies, Inc.    Horsham, PA 19044
Apr 16, 2003 GraFX® hand held/panel mount terminal has 120 x 32 pixel graphics display, which allows user to review data prior to processing. It displays standard ISO font sets and international character sets. Multiple overlaying pages operate independently of each other, allowing data on each individual page to be scrolled without affecting data on other pages. Unit is programmable using C or Assembly language. GraFX can be totally submerged and is chemical resistant.

Two Technologies, Inc.    Horsham, PA 19044
Apr 16, 2003 Designed for 1-handed operation, JETT•ce is equipped with Intel® XScaleâ„¢ Technology processor and sunlight readable, 192 x 128 pixel, monochrome LCD with optional touch-screen. Unit also comes with 64MB SDRAM and 16 MB built-in Compact Flash, expandable to 2 GB. Interface options include 1 RS-232 serial port and 1 optional second RS-232, RS-422, or RS-485 serial port. Available as line- or battery-powered unit, product has case constructed of Cycolac® ABS.

Saftronics, Inc.    Fort Myers, FL 33905
Apr 16, 2003 Built on GP10, 18-pulse, Vector AC drive platform, HR1018 Harmonic Reduction Technology package incorporates integrally mounted 18-pulse transformer in 1, pre-engineered, NEMA 12 or NEMA 3R enclosure. Unit offers microprocessor and Insulated Gate Bipolar Transistor (IGBT) technologies as well as set of monitoring, maintenance, and protective functions. Unit provides static, dynamic, and on-line tuning.
