Douglas Electrical Components, Inc.    Rockaway, NJ 07866
Mar 25, 2003 Type DE43874 ceramic potting compound is suitable for applications up to 500°F. It is fire resistant, self-extinguishing, and may be approved for explosion proof applications by UL and other certifying organizations. Viscosity permits penetration of small cavities. Product bonds to aluminum, steel, and copper alloys, enabling non-elastomeric sealing designs. Applications include feedthrus for HVAC compressors, pumps, autoclaves, and solder reflow ovens.

Photovac Inc.    Waltham, MA 02451 1166

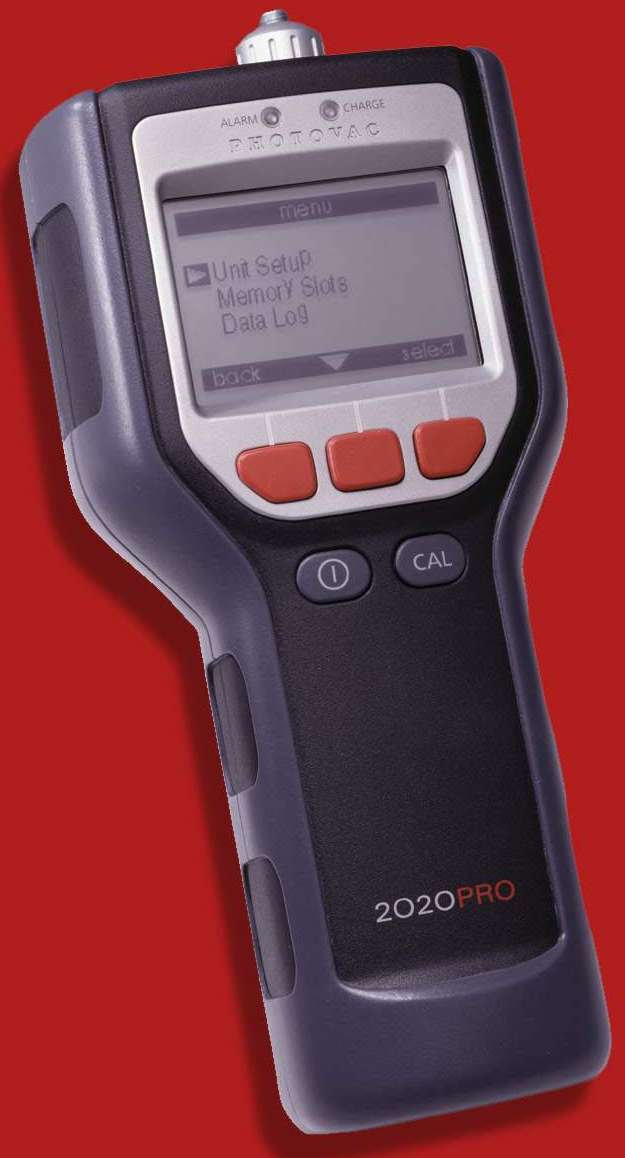

Mar 25, 2003 Portable 2020PRO(TM) provides users with onsite volatile organic compound (VOC) detection in air, water, and soil. Suited for use in potentially explosive environments, instrument offers 3 modes: Non-logging Mode for continuous readings, Tag Mode for EPA Method 21, and Interval Mode which logs at pre-set intervals. Features include graphical display and dedicated calibration key. Humidity-compensated detector allows for samples to be analyzed directly from field or source.

SICK, Inc.    Minneapolis, MN 55438
Mar 25, 2003 Model CSM 1 identifies, sorts, and checks objects on basis of color. Switching frequencies up to 1.5 kHz allow detection at high throughput rates. Model KT 3 utilizes 2-point teach-in on marks and backgrounds, high-contrast resolutions, and integrated switching threshold adaptation for highly reflective target objects. Sensing distance is 12.5 mm and switching frequencies are up to 10 kHz. Model LUT 2, self-contained UV light, detects visible and invisible markings that luminescence.

WAGO Corp.    Germantown, WI 53022
Mar 25, 2003 Ethernet TCP/IP Programmable Fieldbus Controller, Model 750-841 comes with 32-bit RISC processor, 512 kbyte program memory, 128 kbyte data memory and 24 kbyte retentive memory. Programs are stored in flash memory to ensure system integrity on recovery from power failure and eliminate need for periodic battery replacement. Capabilities include e-mailing information directly from PFC, serving up Web pages, and generating remote procedure calls using SOAP.

KCI Konecranes    Houston, TX 77086

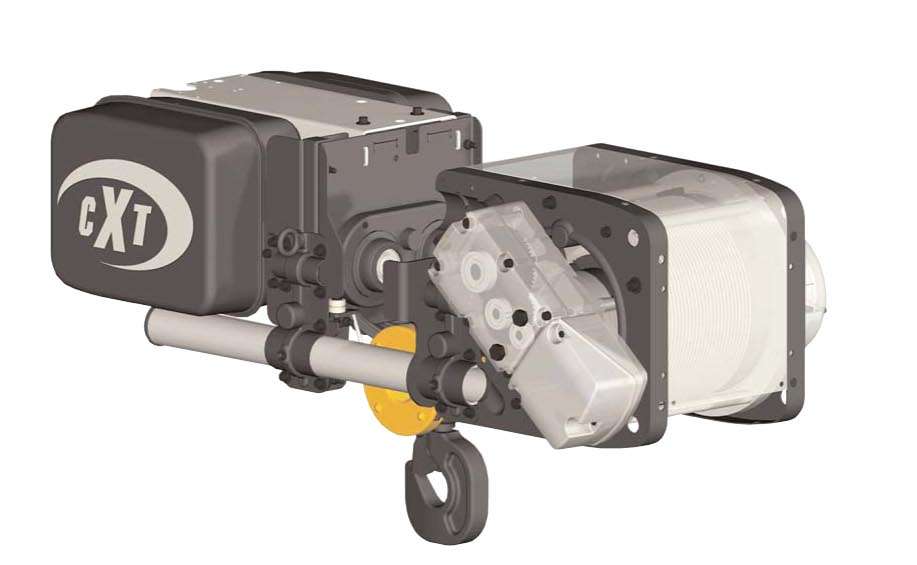

Mar 25, 2003 Series CXT Hoists uses rope drum that is large in diameter but short in length, reducing bending forces and minimizing horizontal hook travel during lowering. Integrated motor and inverter controls provide stepless speed control. Ergonomic design of hook forging and safety catch makes it safer for worker rigging load. Brakes are dust proof and adjustment free for life of hoist. Constant-condition-monitoring technology enhances crane safety and performance.

Vaccon Co., Inc.    Medway, MA 02053

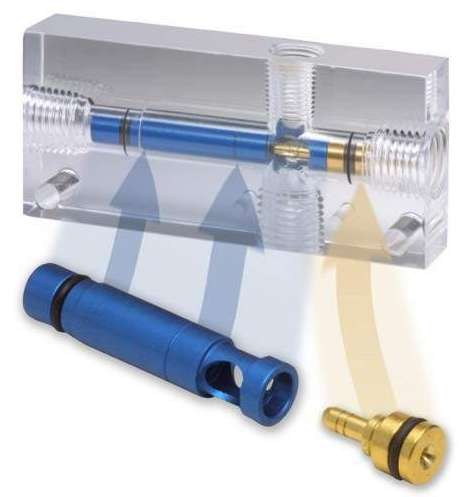

Mar 25, 2003 Single-stage venturi vacuum cartridge inserts, offered in 13 models, are installed into cavities within pieces of equipment to eliminate need for pumps. Products consist of interchangeable nozzles and diffusers that optimize equipment performance based on desired vacuum level, vacuum flow, evacuation speed, and air consumption. Color-coded cartridges are made of anodized aluminum and operate from 1-80 psi with vacuum levels from 0-28 in. Hg.

Quatech, Inc.    Akron, OH 44311
Mar 25, 2003 Equipped with ruggedized cable for communication with attached serial device, PC cards offer connection that survives jiggling, frequent movement, dust, and dirt. Suited for portable-computing environments, permanently attached cables provide secure connection and asynchronous data communication and are secured with molded plastic connectors. RS-232 PCMCIA products include single- and dual-port asynchronous cards and single-port synchronous card.

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910

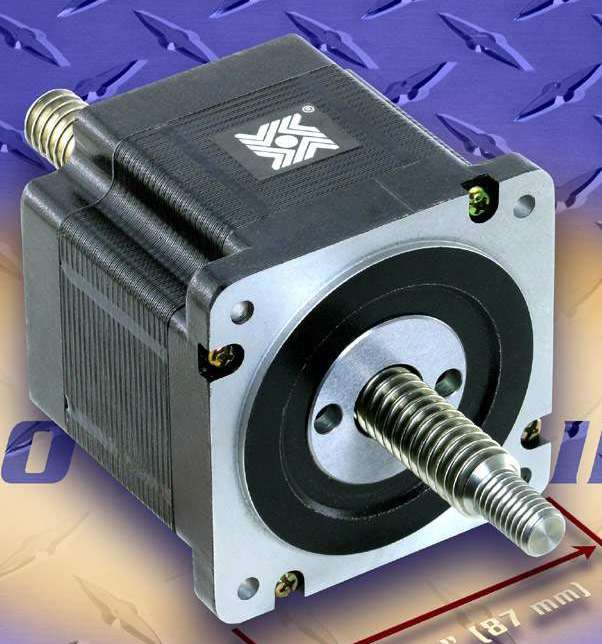

Mar 25, 2003 Size 34, non-captive, linear actuator, with life of several million cycles, offers engineering thermoplastics in rotor drive nut and stainless steel Acme lead screw. Hybrid linear actuator is available in resolutions from 0.0005–0.005 in. per step and delivers forces up to 500 lb. with speeds exceeding 3.0 ips. Applications include medical equipment, X-Y Tables, packaging equipment, and industrial automation.

Spence Engineering Co., Inc.    Walden, NY 12586-0230

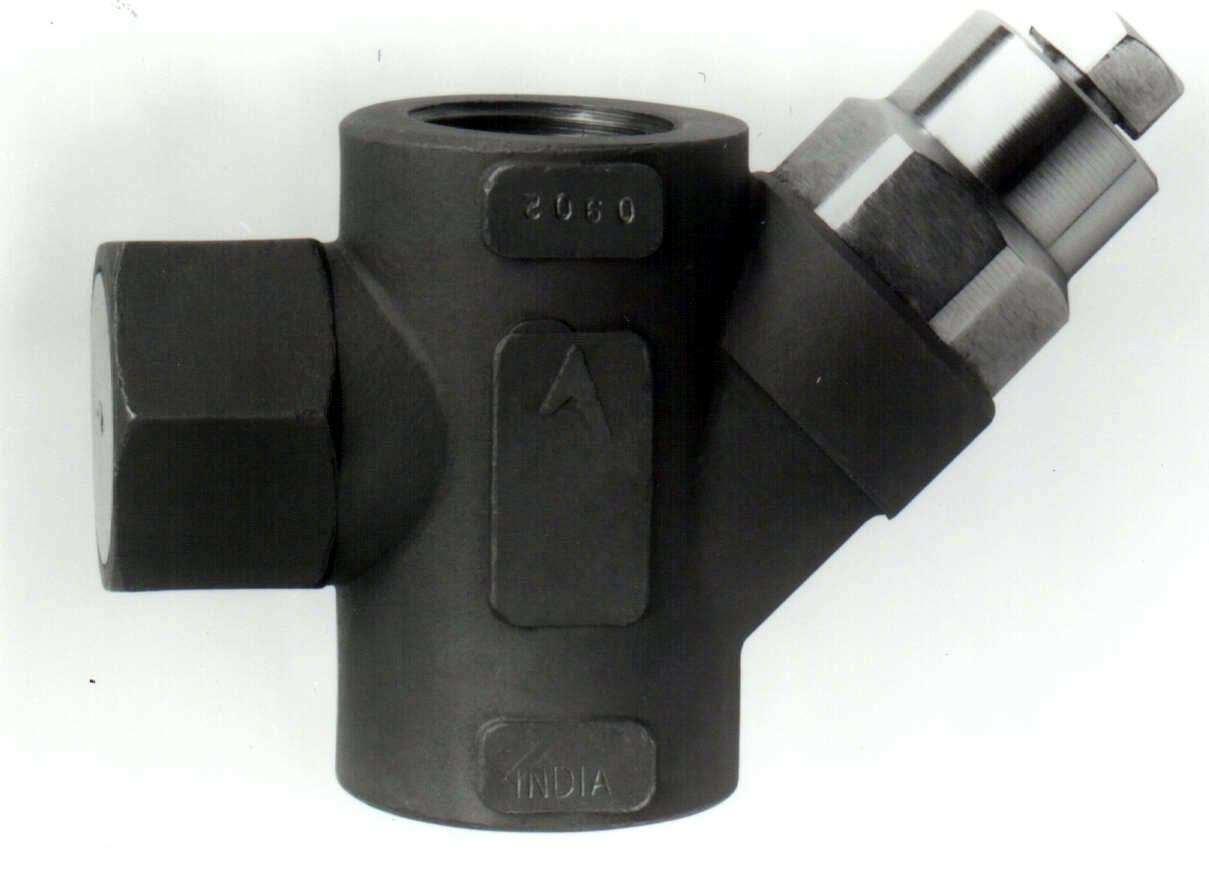

Mar 25, 2003 Model NTD600B Thermodynamic Steam Trap is freeze resistant and may be installed in any position. All-stainless-steel trap, with 3 outlet orifices, has turbulence grooves on disc to ensure positive closure before live steam reaches inlet. Trap is suitable for steam tracing, drip, and heating applications with pressures to 600 psig and temperatures to 800°F.

Mastercam/CNC Software, Inc.    Tolland, CT 06084

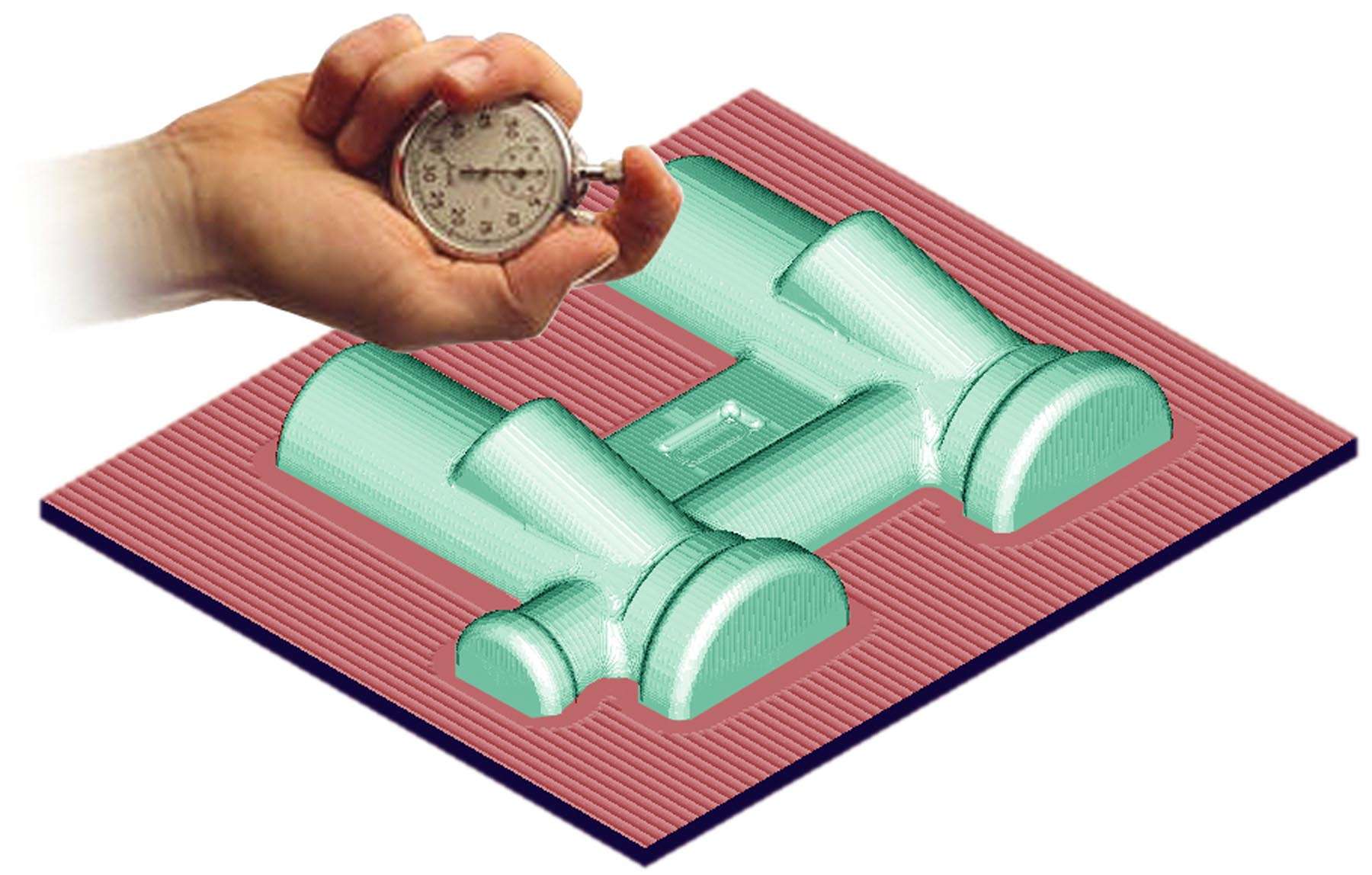

Mar 25, 2003 Mastercam® v9.1 offers tool control, solid contour programming, and ability to customize functions using VBScript. With Thin Wall Machining, users can specify multiple finish cuts in Z for every rough-cut. Additional features include user-created toolpaths, Lightworksâ„¢ true solid multi-axis verification, and ability to perform solid Boolean remove operations while keeping original solid bodies. Solids programming features give user control over tool lead-in and lead-out motion.

United Grinding Technologies, Inc.    Miamisburg, OH 45342

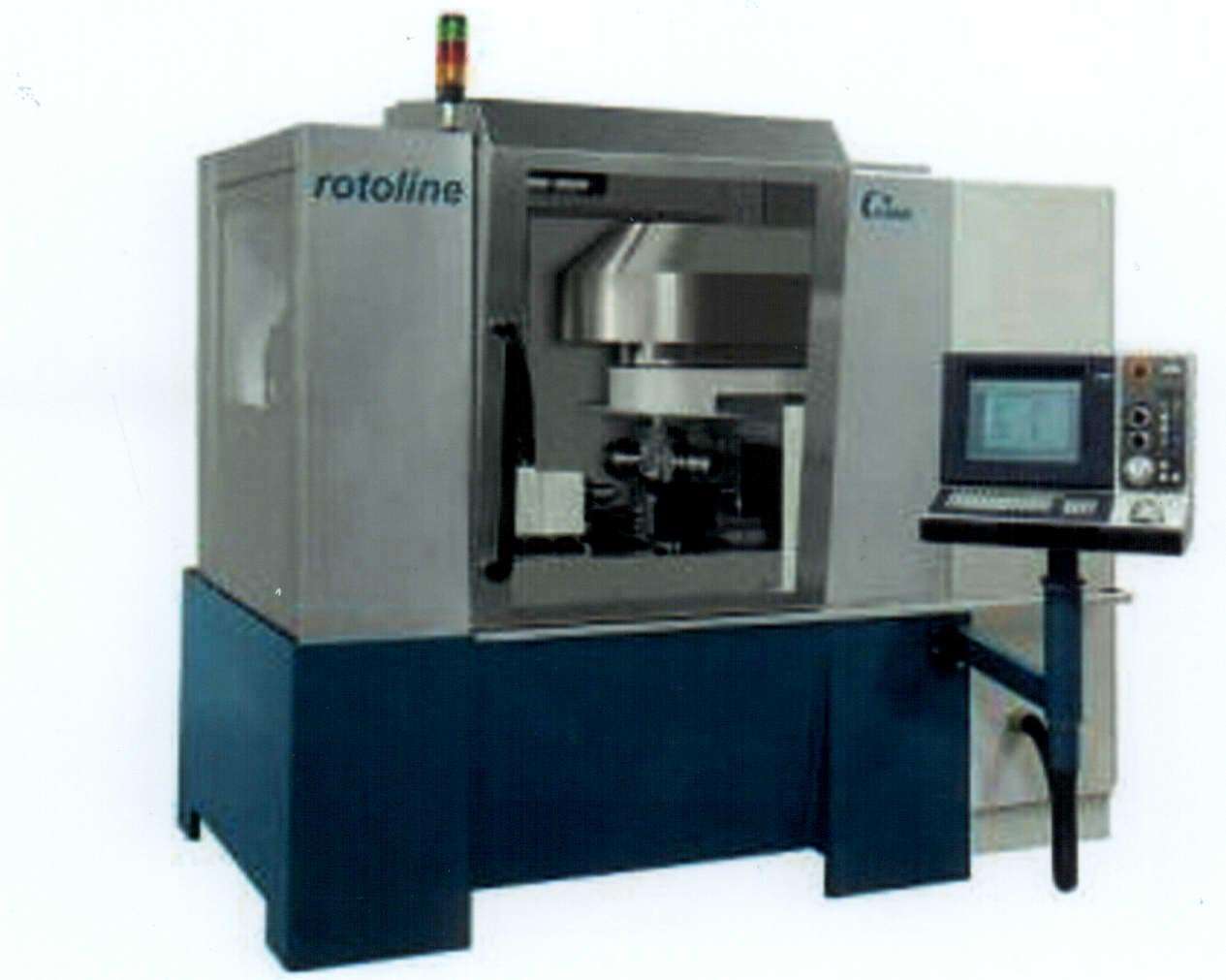

Mar 25, 2003 In addition to main 5 CNC axes, Rotoline CNC Machines are equipped with CNC steady rest and CNC tailstock support. Steady rest travel is 600 mm, independently adjustable from infeed Z-axis. Tailstock center travel is 660 mm with 450 mm between centers. Z-, W1- and W2-axis travel is either independent or synchronous. Grinding wheel diameter is 150 mm, and 9 kW ac variable speed motor offers steplessly adjustable speed control up to 10,000 rpm.

Diamond Ground Products Inc.    Newbury Park, CA 91320
Mar 25, 2003 Piranha III allows operators to grind tungsten longitudinally on diamond wheels and improve arc starting, arc stability, and electrode life. Enclosed grinding area protects operator from hazardous dust, sparks, abrasions and other injury while allowing for dust collection and disposal. Diamond grinds, flats and notches tungsten with no vibration. Piranha III grinds .040 through 3/16 in. tungsten at any angle from 10–60° with minimum length of 1.75 in.

JSJ Plastics, Inc.    Grand Haven, MI 49417 2897

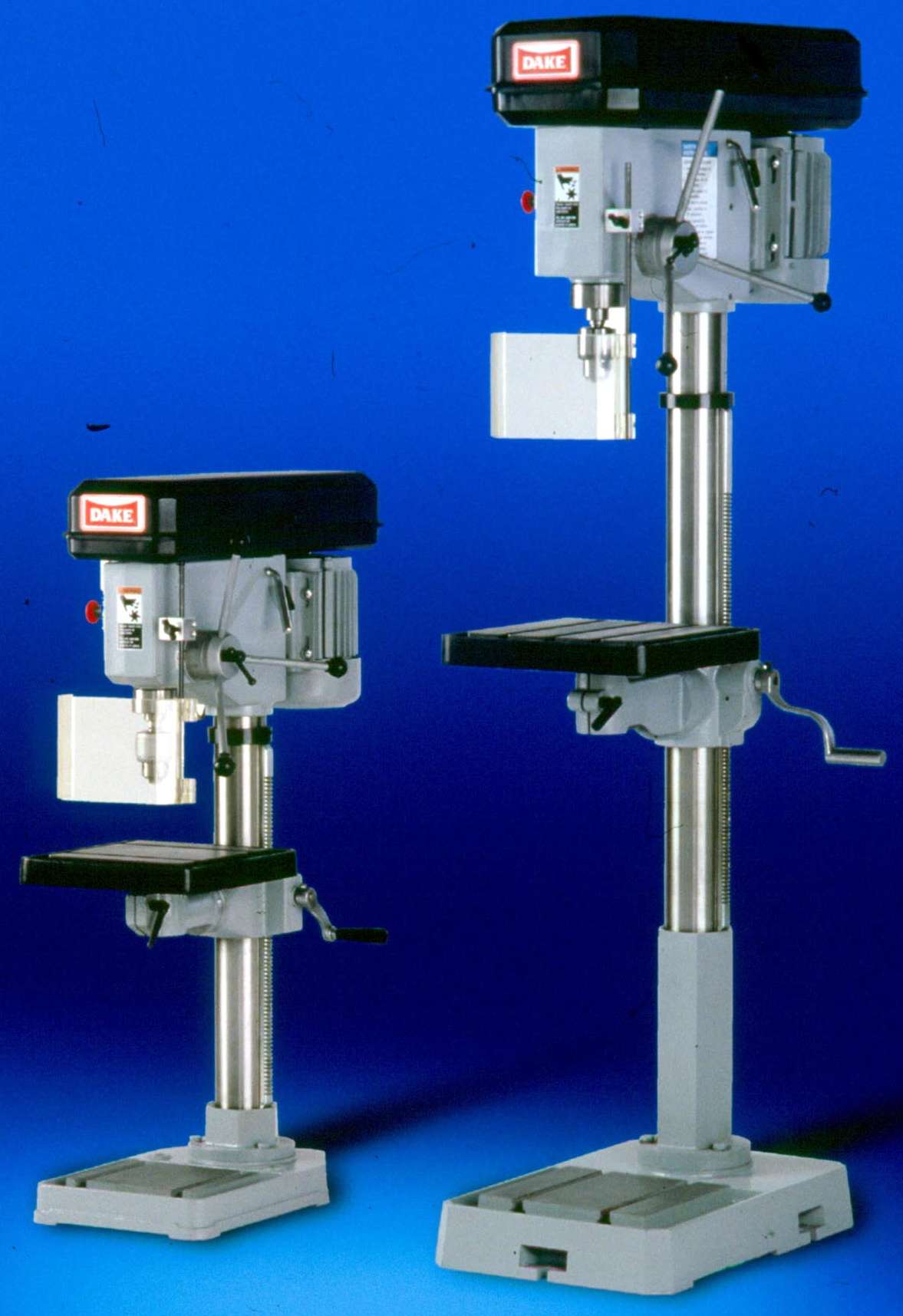

Mar 25, 2003 Pulley-driven Value Line drill presses include interlock switch for belt cover, emergency stop button, adjustable Plexiglas® chip and chuck guard, low-voltage controls, and thermal overload protection. Equipped with quick-release belt tensioning and Morse Taper (MT) drill chucks, products are offered in four floor and bench-top models. Drill capacities range from 5/8–1 ¼ in. and spindle travel ranges from 3 1/8–5 ¼ in.

International Light, Inc.    Newburyport, MA 01950 4092
Mar 25, 2003 Model IL RGS-2 UV-VIS-NIR offers better than 2 nm resolution, and >10^-5 stray light rejection. It includes full radiometric/photometric software for controlling hardware and data analysis, and has USB interface. Incorporating gratings that are 600 g/mm holographic optimized at 300 nm and 600 g/mm holographic blazed at 500 nm, spectroradiometer provides ±0.1 nm wavelength repeatability and ±0.3 nm accuracy.

Topp Industries, Inc.    Rochester, IN 46975

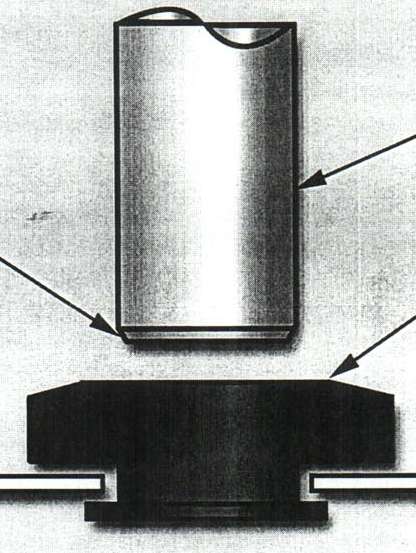

Mar 25, 2003 Manufactured from pliable thermoplastic, pipe-to-tank seal provides tight, positive mechanical seal. Tapered inner diameter forces outer diameter to expand, sealing penetrating pipe/tubing. Grommet seals flat and curved material up to angles of 15°. Suited for use with PVC, galvanized steel, copper, EMT, rigid conduit, fiberglass, and polyethylene pipe, product resists most chemical compounds and soil conditions.

TE Connectivity Ltd.    Berwyn, PA 19312

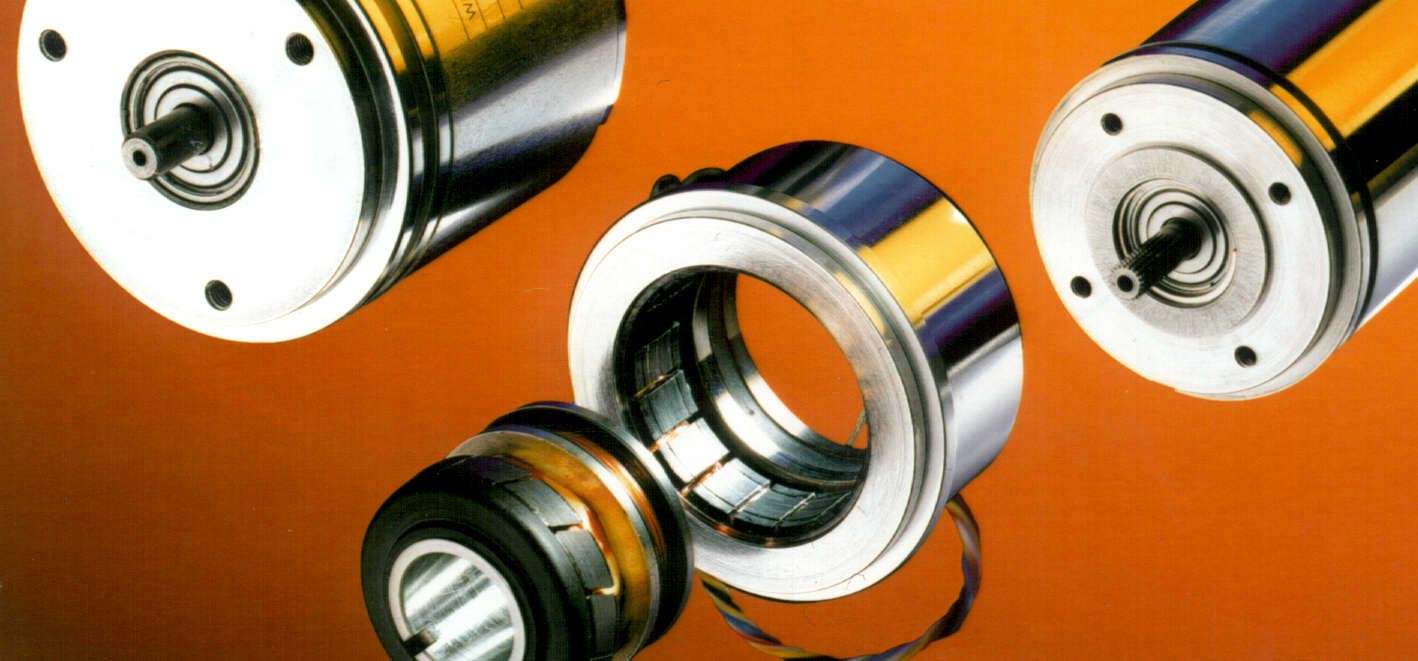

Mar 25, 2003 Absolute shaft angle transducers, suited for hostile environments, consist of stationary stator and movable rotor. Frameless or hollow shaft resolvers are offered for industry standard frame sizes 15 and 21, for 1.5 and 2.1 in. OD shafts. Both are available in various housing materials with precisions from ±10 to ±4 angular minute. Maximum rotational speed is 20,000 rpm. Applications include industrial machinery, factory automation, and process controls.

Denison Hydraulics Inc.    Marysville, OH 43040
Mar 25, 2003 Series T7 vane pumps utilize combination of different cartridges in double and triple pumps to allow low-flow/high-pressure (4350 psi) and high-flow/low-pressure operation. High-pressure capability is 4,650 psi max. Typical volumetric efficiency of 94% reduces heat generation and allows speeds down to 600 rpm at full pressure. With mechanical efficiency typically better than 94%, units have speed range of 600–3600 rpm and are suited for applications in cold environments.

Denison Hydraulics Inc.    Marysville, OH 43040

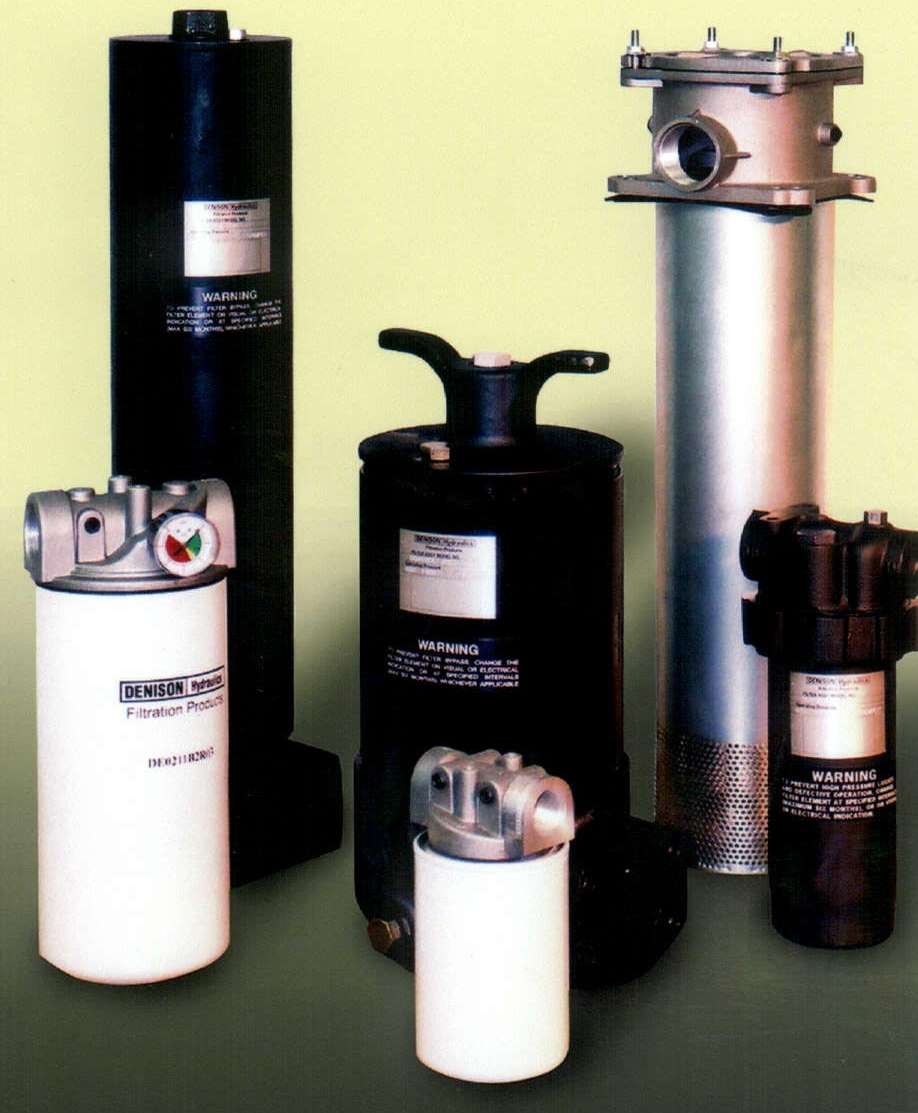

Mar 25, 2003 With 29 total models, filter series includes spin-on filters with cellulose or glass elements, tank top or in-line, low-pressure return filters, and high-pressure (6,000 psi) filters. Port configurations include inline, dual-head, in-tank, base-mount, L-type, duplex, inline T-type, sandwich plate, inline manifold, and side head manifold. Filter media includes Beta-Pore, Westa-Pore, and W-Pore series.

B & B Electronics Mfg. Co.    Ottawa, IL 61350
Mar 25, 2003 Vlinx Model ESP901 Serial Server allows unused serial ports to be connected to LAN or Intranet, enabling users to monitor and program devices from remote office. Ethernet-to-serial server connects RS-232/422/485 serial devices to Ethernet LAN/WAN and operates in Direct IP Mode, Virtual COM Mode, and Paired Mode. Unit has asynchronous 9-pin serial port and 10/100 Mbps Ethernet RJ-45 connection.

Norstat, Inc.    Rockaway, NJ 07866

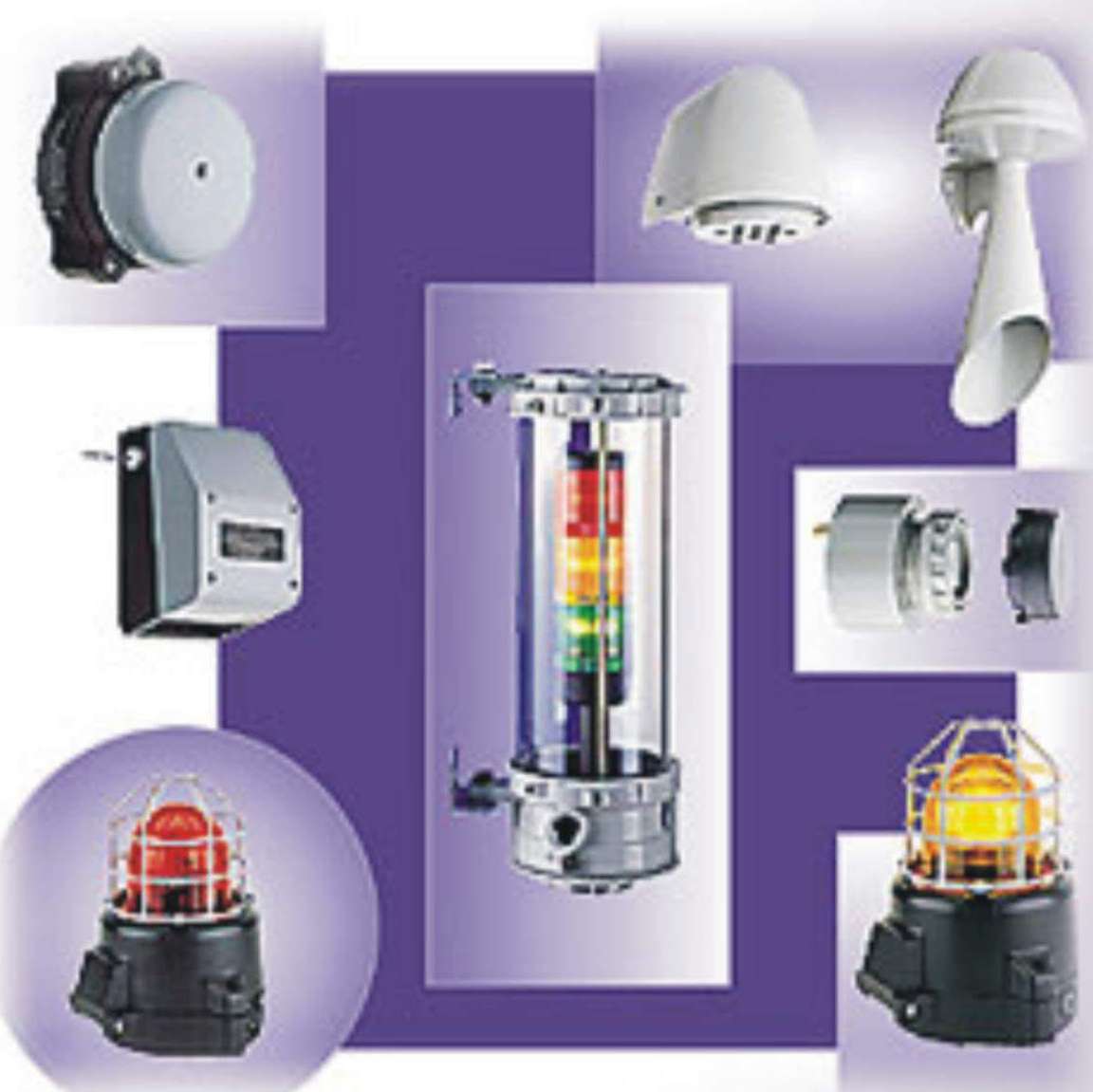

Mar 25, 2003 Explosion-proof lights, horns, alarms, beacons, and buzzers, suited for outdoor or harsh environments, meet specifications of EN 50014–50020 and 50028 and carry IP 55 to IP 67 protection ratings. Decibel ranges start at 90 dB for buzzers, increasing to 105 and 108 dB for horns. Flashing and rotating light beacons are equipped with rust-proof, wire protective cages, and signal towers are encased/protected by aluminum and glass housings.
